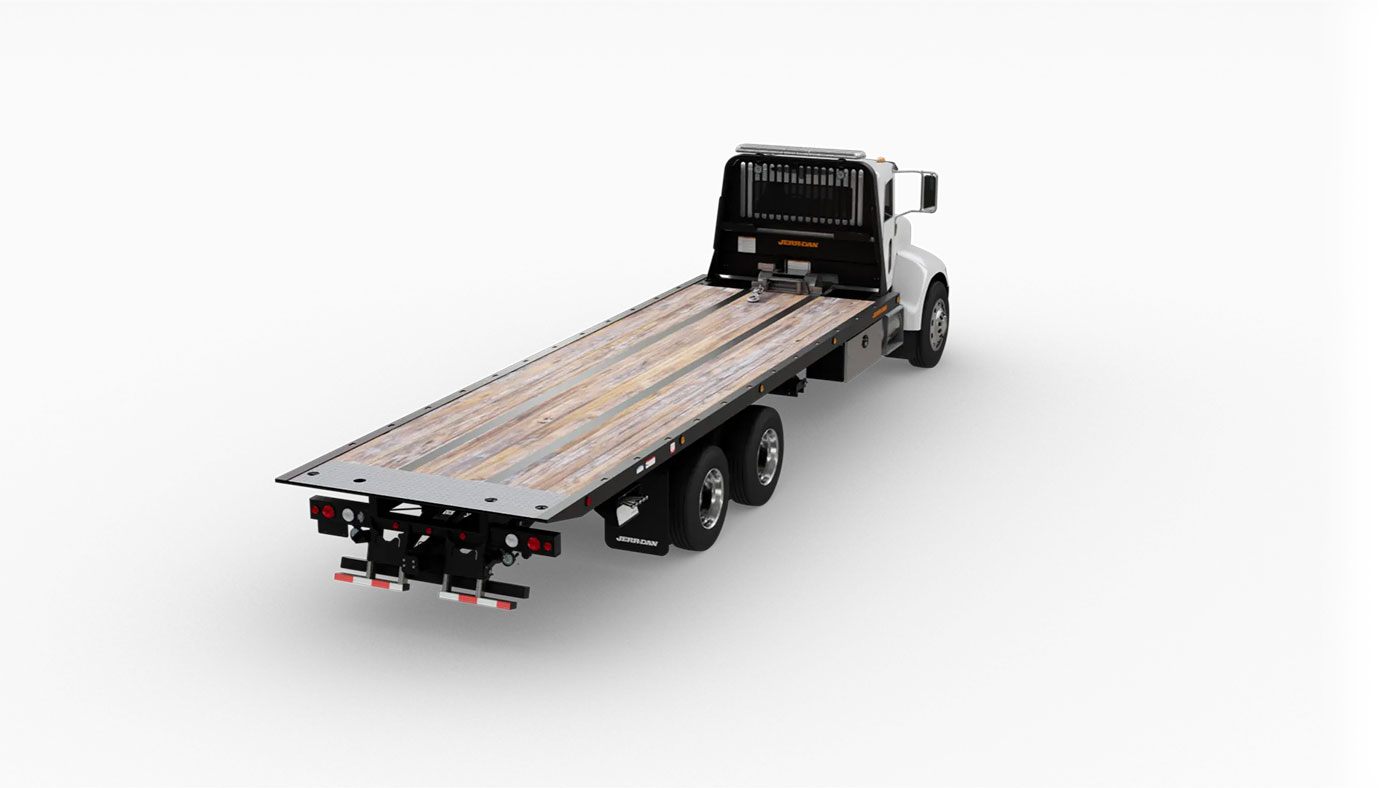

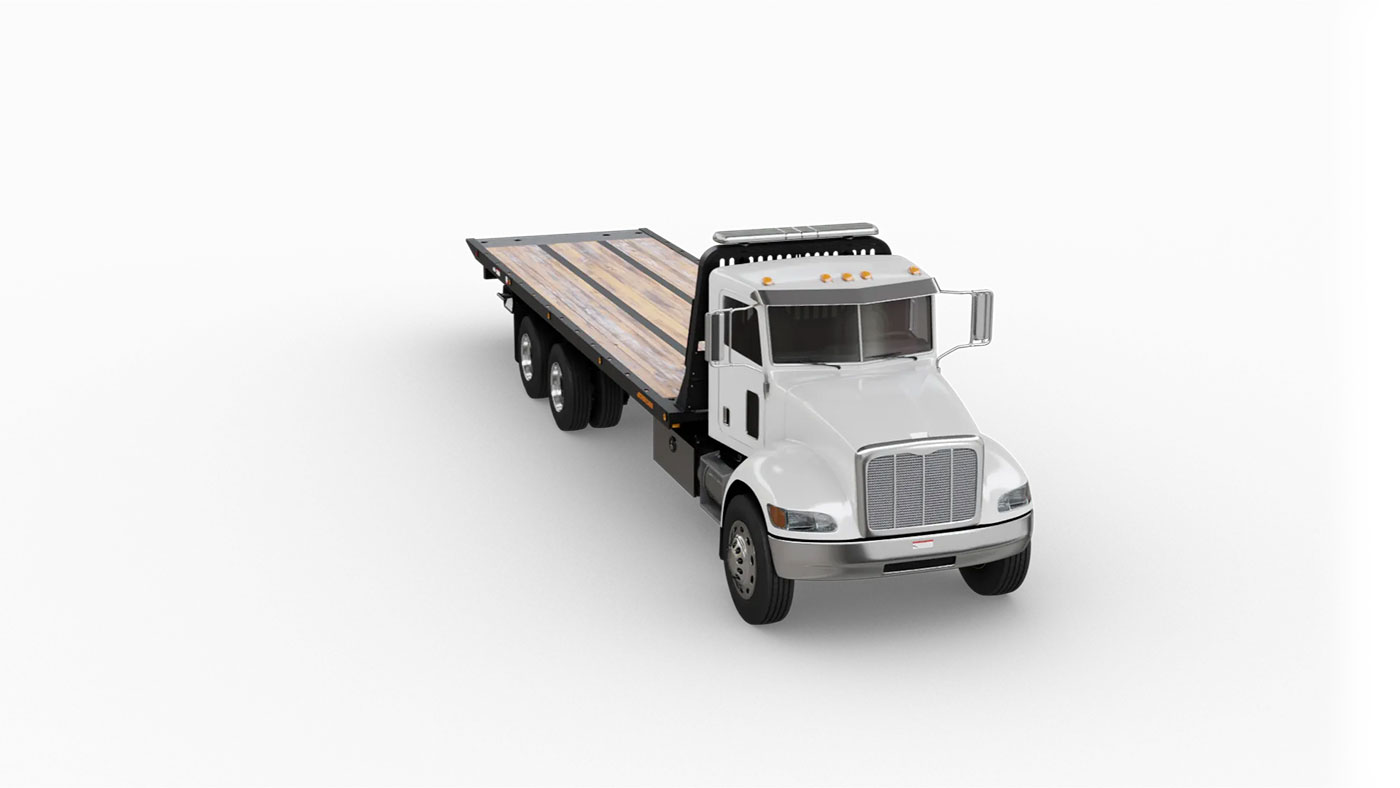

Durable steel-over-wood deck material
Durable steel-over-wood deck in multiple length and width configurations
Load angles as low as 7.5 degrees
Durable steel-over-wood deck in multiple length and width configurations
Durable steel-over-wood deck in multiple length and width configurations
12,000 lbs. Structural deck capacity
17,000 lbs. Structural deck capacity
No-Lube™ technology for slide pads and pivot joints
20,000 lbs. Structural deck capacity
30,000 lbs. Structural deck capacity
8,000 lbs., or 10,000 lbs. Worm Gear Winch
10,000 lbs. or 12,000 lbs. Worm Gear Winch
15,000 lbs. Worm Gear Winch
12,000 lbs. or 20,000 lbs. Worm Gear Winch
20,000 lbs. Worm Gear Winch

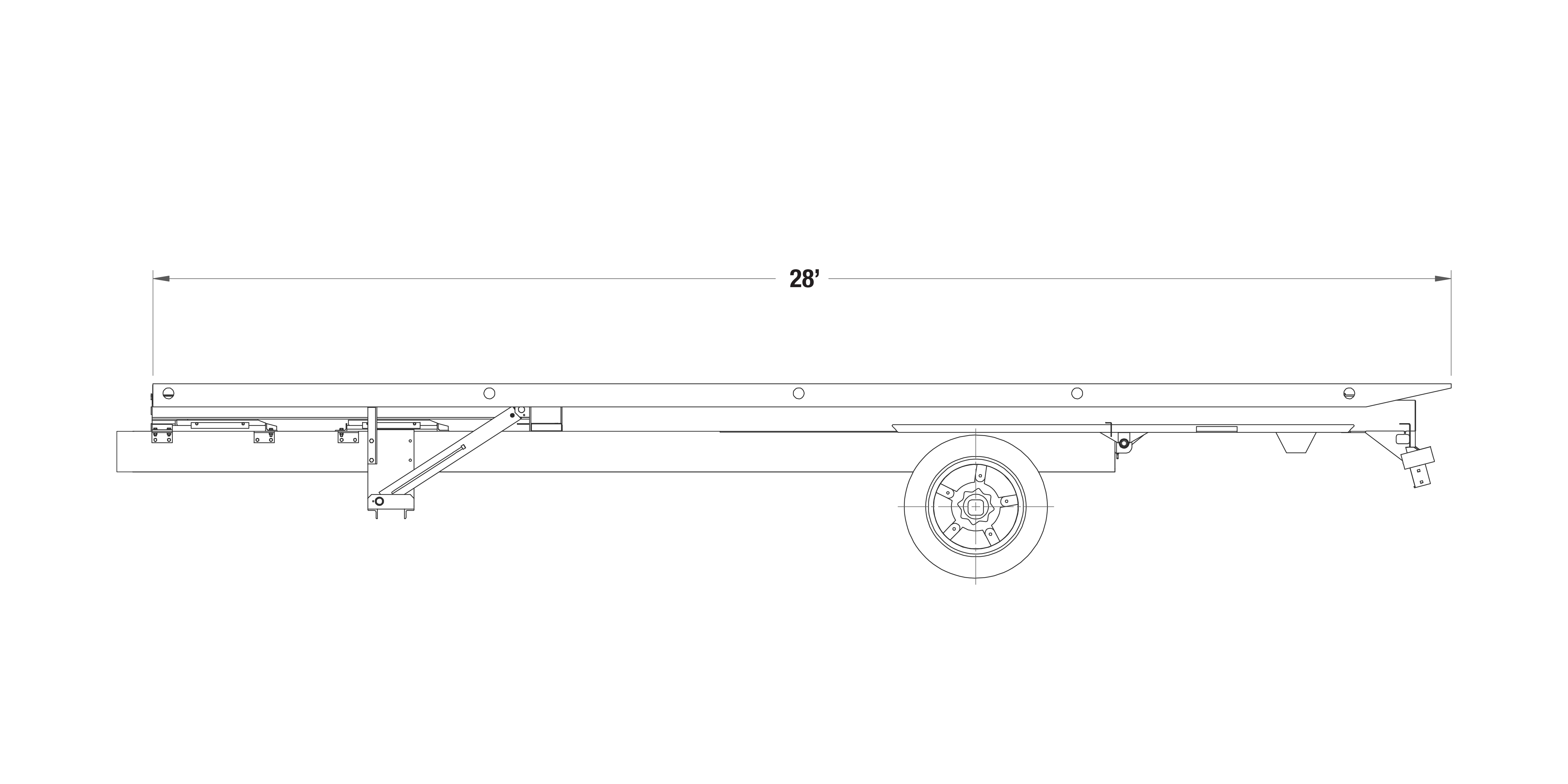

Length
21'
22', 24'

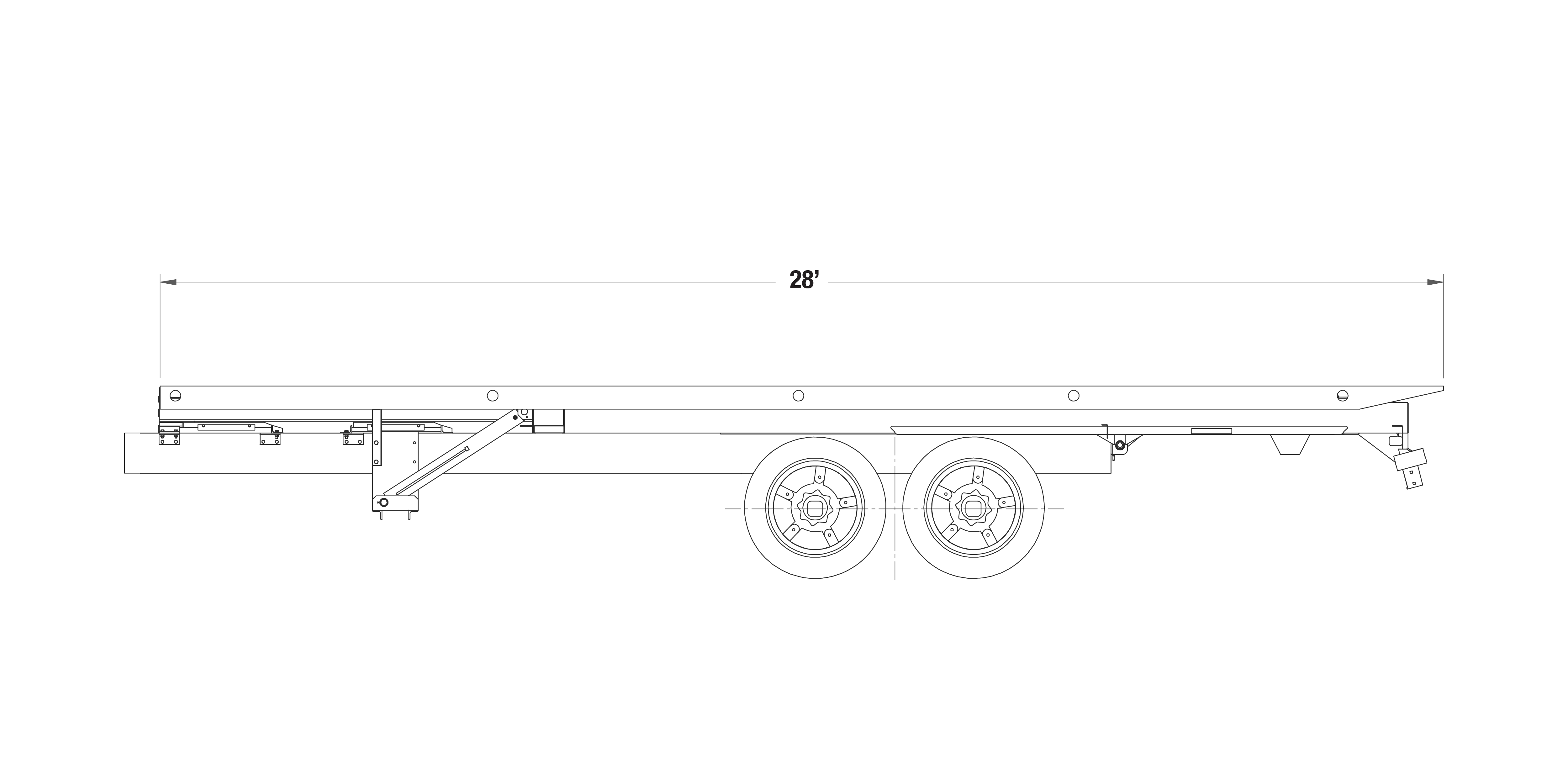

24', 26', 28'
24', 26', 28', 30'
24', 26', 28', 30'
Structural Capacity
12,000 lbs.
17,000 lbs.
20,000 lbs.
20,000 lbs.
30,000 lbs.

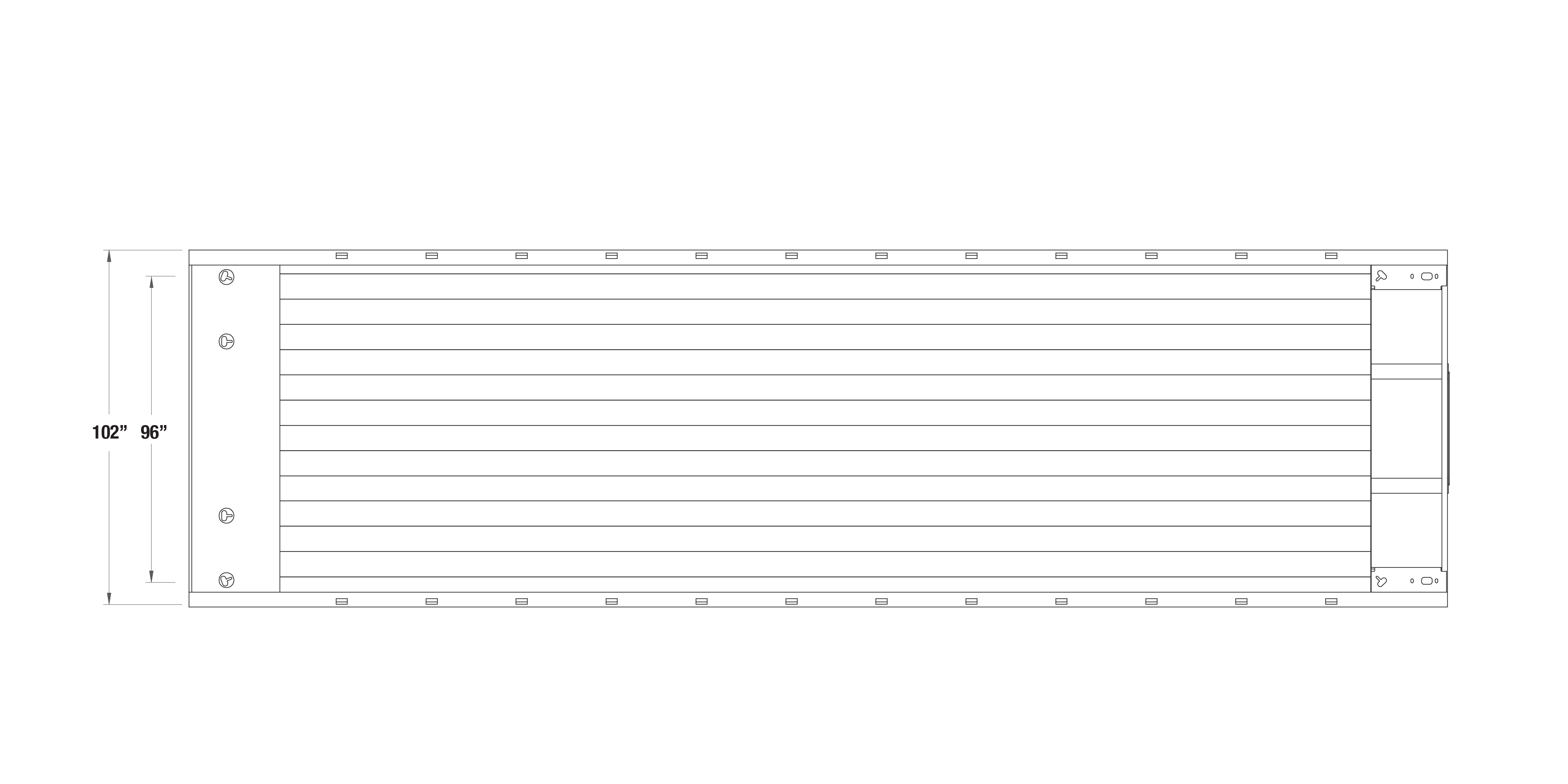

Width
96 in ,102 in.
96 in ,102 in.
96 in., 102 in.
96 in ,102 in.
96 in., 102 in.

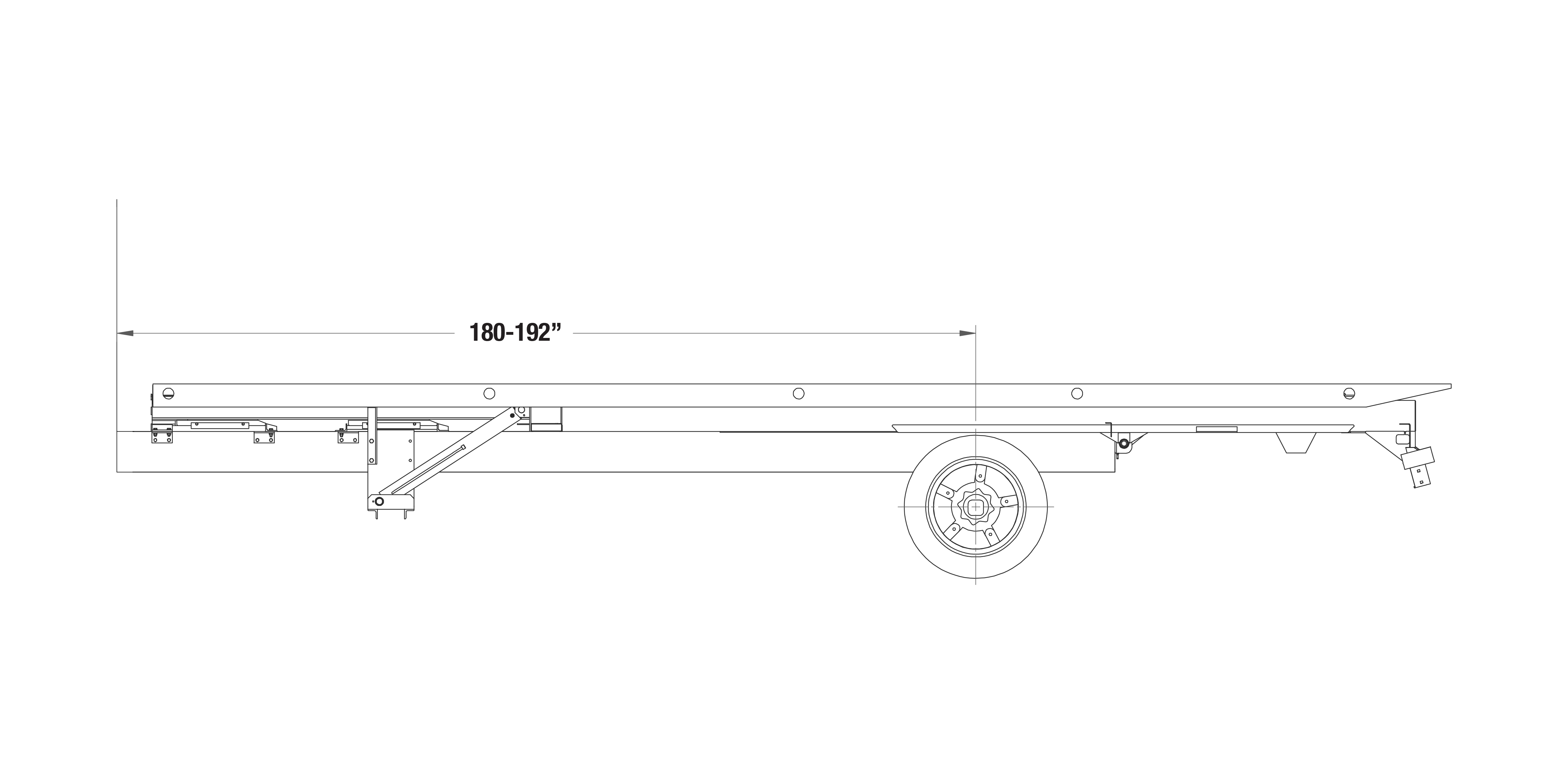

Usable CA
132 in. – 144 in. (21 ft.)
132 in. – 144 in. (21 ft.)

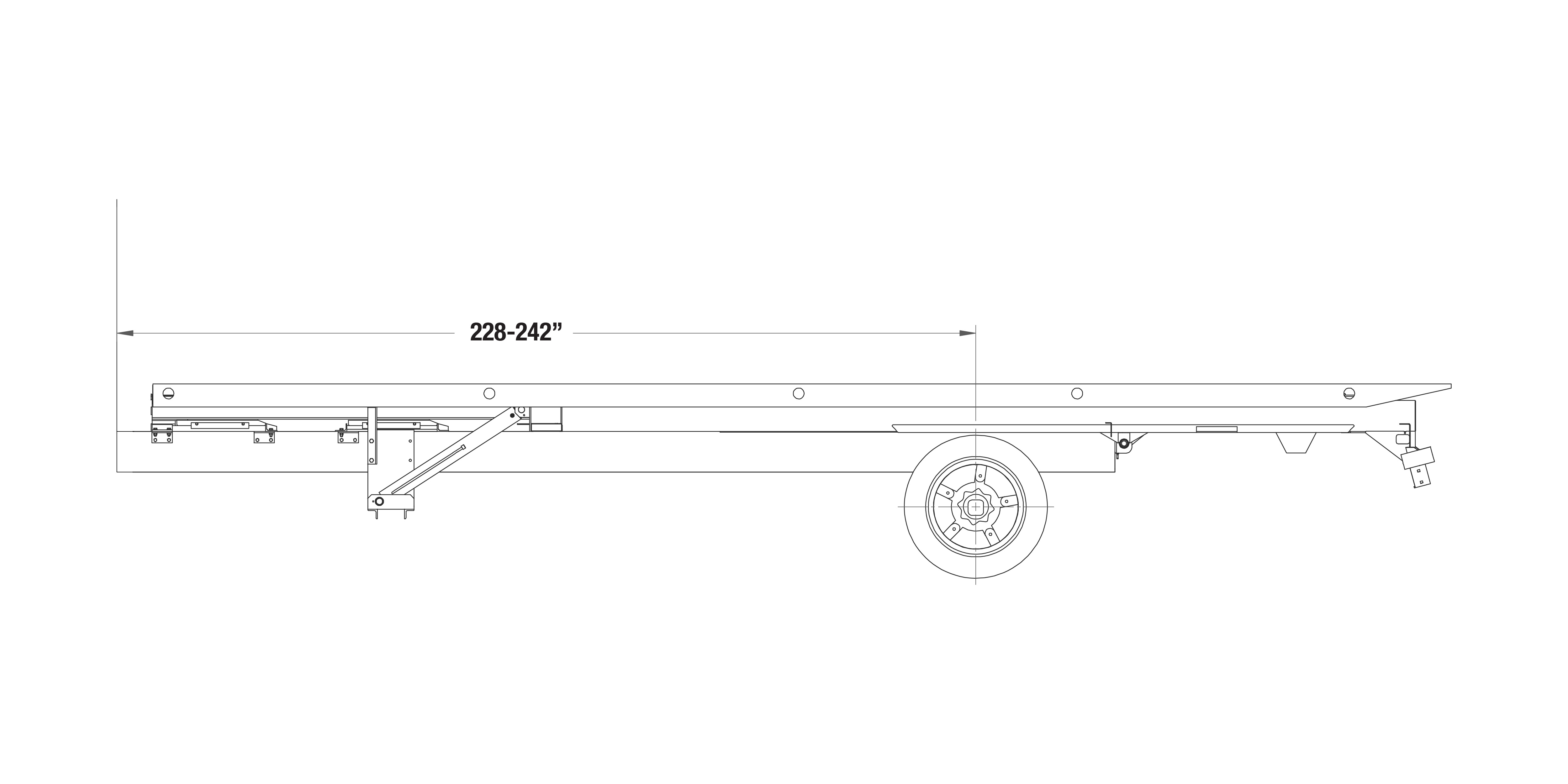

156 in. -168 in. (24 ft.) ; 180 in. -192 in. (26 ft.) ; 204 in. -218 in. (28 ft.); 228 in. - 242 in. (30 ft.)
156 in. -168 in. (24 ft.) ; 180 in. -192 in. (26 ft.) ; 204 in. -218 in. (28 ft.); 228 in. - 242 in. (30 ft.)
N/A

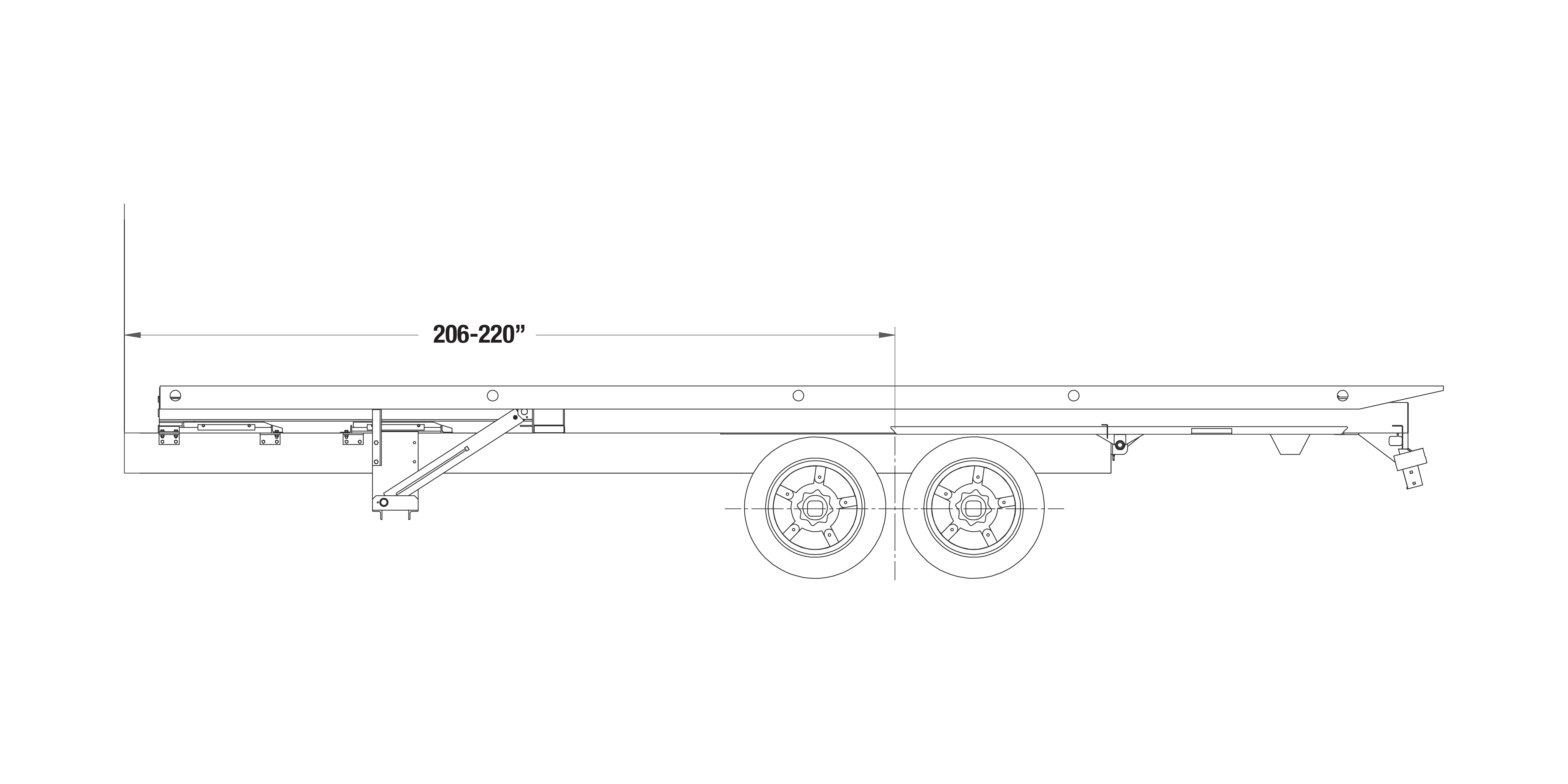

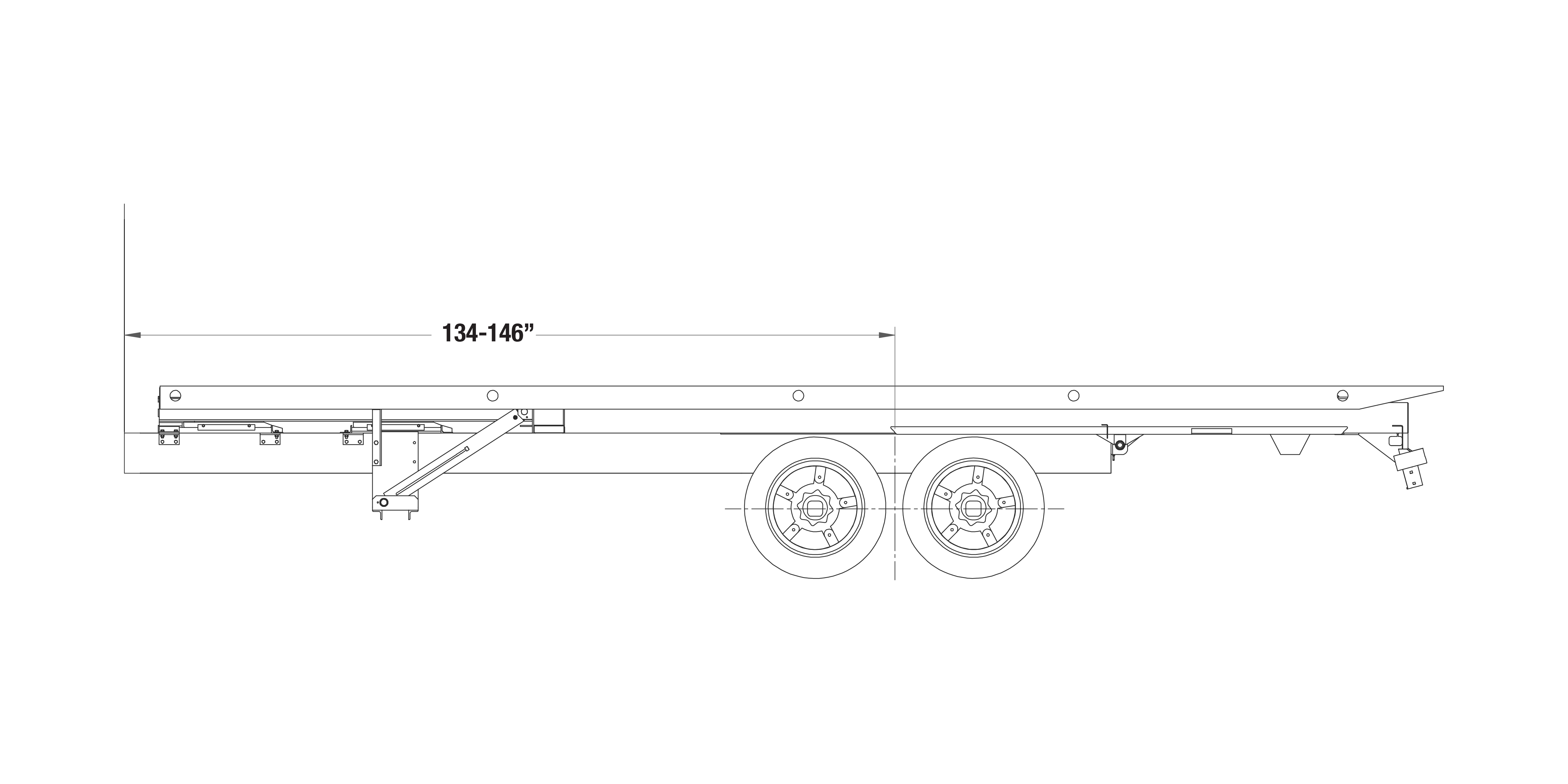

Usable CT
N/A
N/A

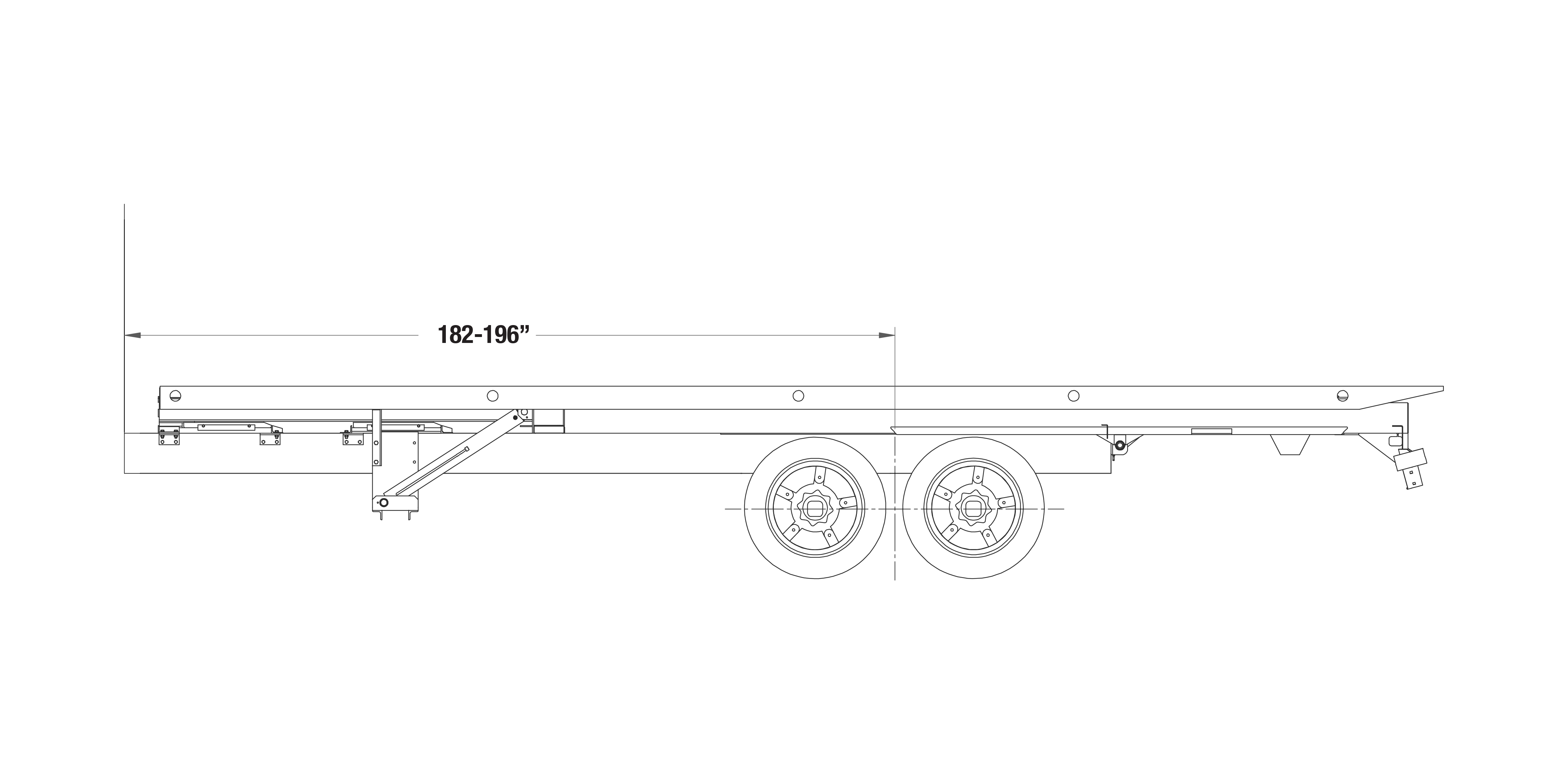

134 in. -146 in. (24 ft.) ; 158 in. -170 in. (26 ft.) ; 182 in. -196 in. (28 ft.); 206 in. - 220 in. (30 ft)
134 in. -146 in. (24 ft.) ; 158 in. -170 in. (26 ft.) ; 182 in. -196 in. (28 ft.); 206 in. - 220 in. (30 ft)
134 in. -146 in. (24 ft.) ; 158 in. -170 in. (26 ft.) ; 182 in. -196 in. (28 ft.); 206 in. - 220 in. (30 ft)
Lifting Capacity
3,500 lbs.
4,000 lbs.
5,000 lbs.
5,000 lbs.
5,000 lbs.
Maximum Extended Reach (from tail of bed)
Maximum Extended Reach (from tail of bed)
68 in.
67 in.
56.2 in.
56.2 in.
56.2 in.
Towing Capacity
10,000 lbs.
12,000 lbs.
20,000 lbs.
20,000 lbs.
20,000 lbs.
Minimum GVW Rating (Without Wheel lift)
Minimum GVW Rating (Without Wheel lift)
15,000 lbs.
25,500 lbs.
33,000 lbs.
33,000 lbs.
46,000 lbs.
Minimum GVW Rating (With Wheel lift)
Minimum GVW Rating (With Wheel lift)
19,500 lbs.
33,000 lbs.
33,000 lbs.
33,000 lbs.
46,000 lbs.
