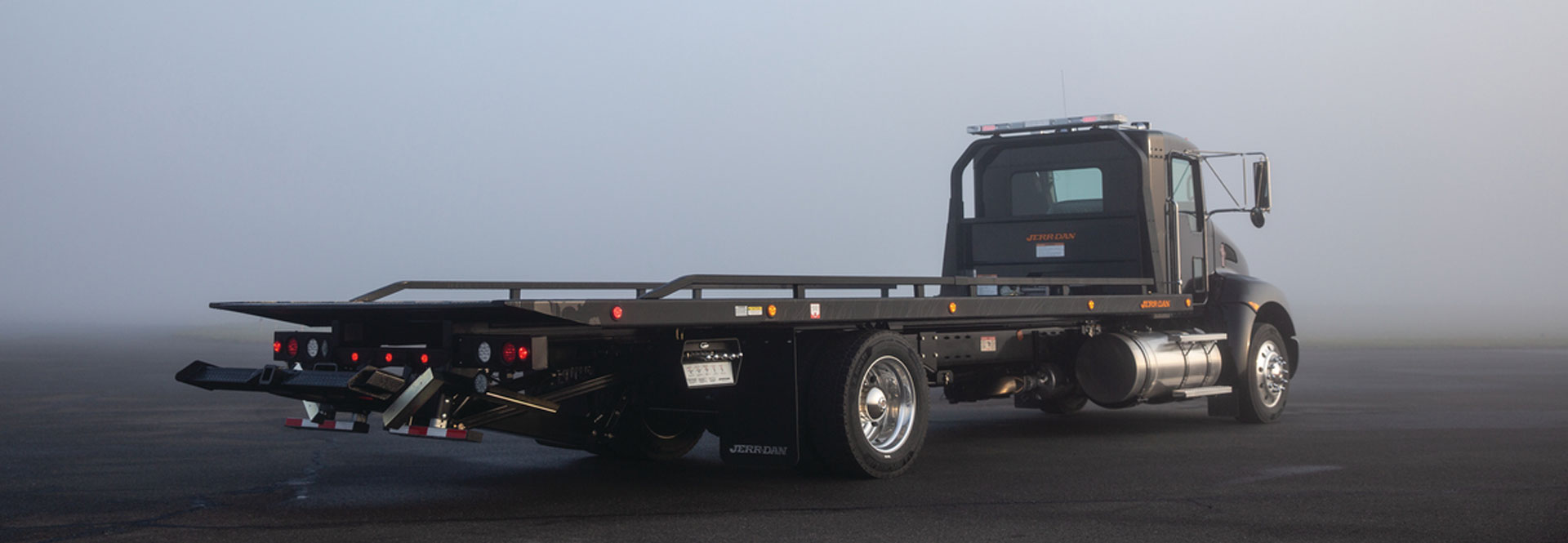

1920x665
MULTIPURPOSE WORKHORSES

Medium Duty
Carriers

Versatile enough to handle the demanding jobs of a light duty carrier, but designed and engineered to handle the toughest jobs of a medium duty carrier.

Models

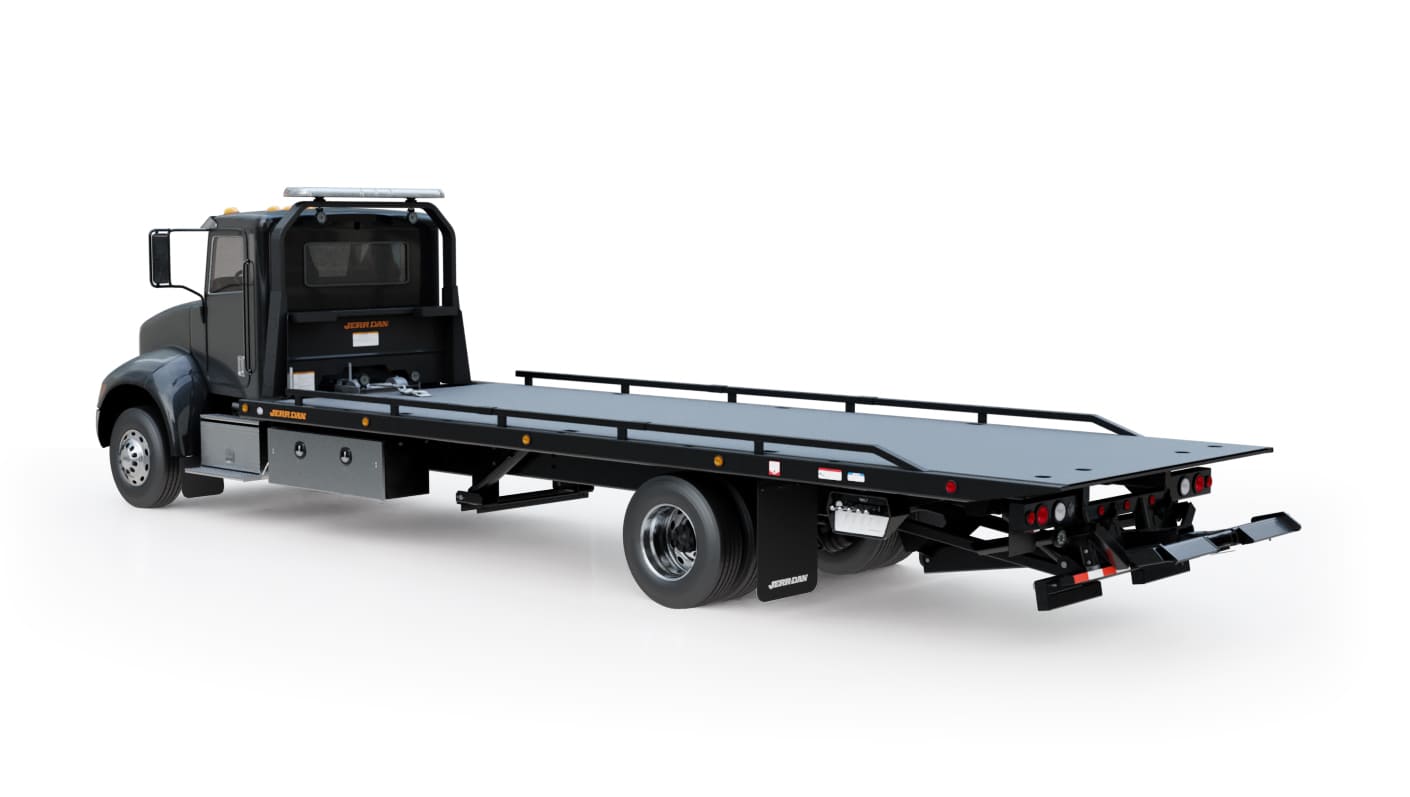

8.5 ton XLP
8.5 TON XLP

With a 17,000 lb. structural capacity, available in steel or aluminum, from deck lengths of 22' to 30' long, 96 inches or 102 inches wide, with dock stabilizer or wheel lift options of 3,000 lb. , 3,500 lb. , 4,000 lb. or 5,000 lb.

Deck Capacity 8.5 ton = 17,000 lbs.
Deck Width 96 in. or 102 in.
Deck Length 22 ft. or 30 ft.
See model
Sell Sheets
8.5TonXLP_Sell_Sheet (.pdf)

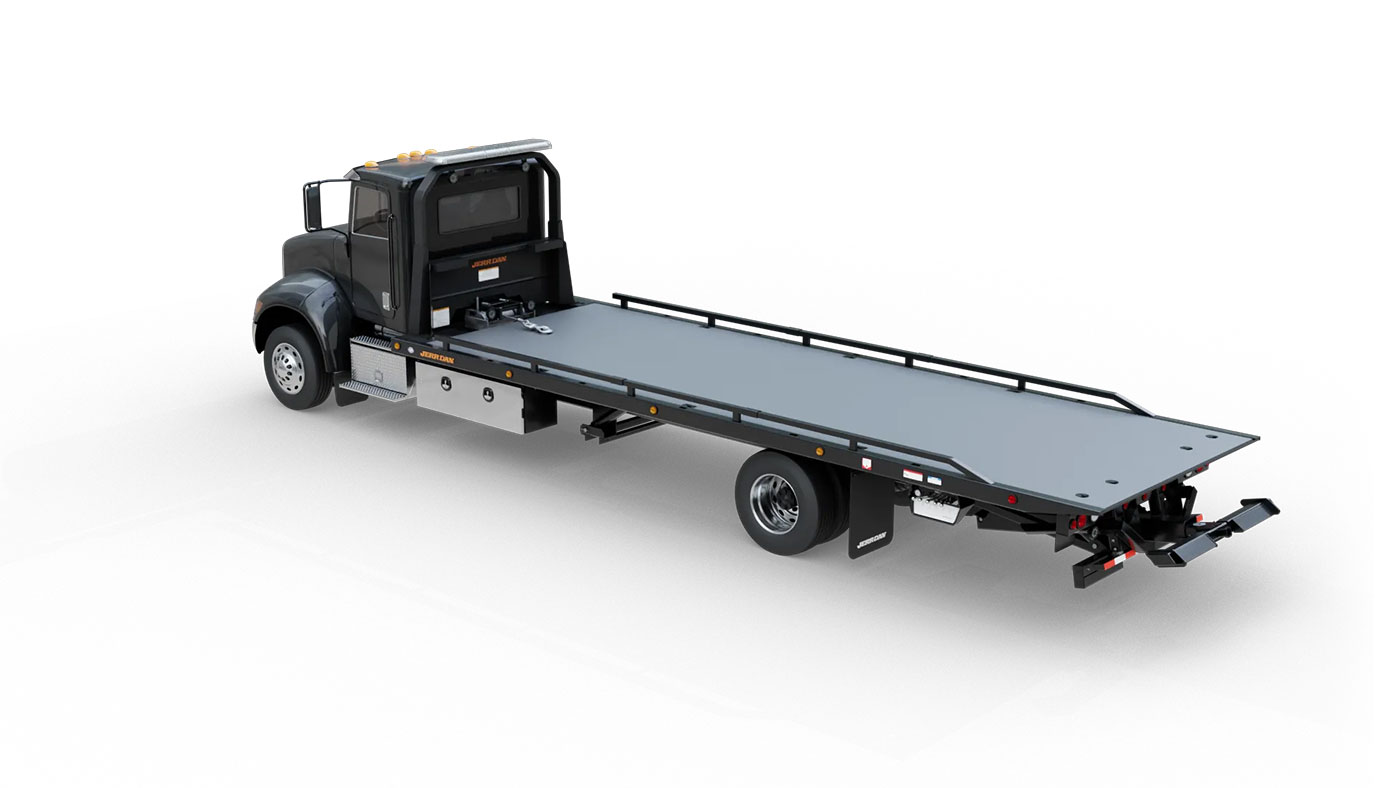

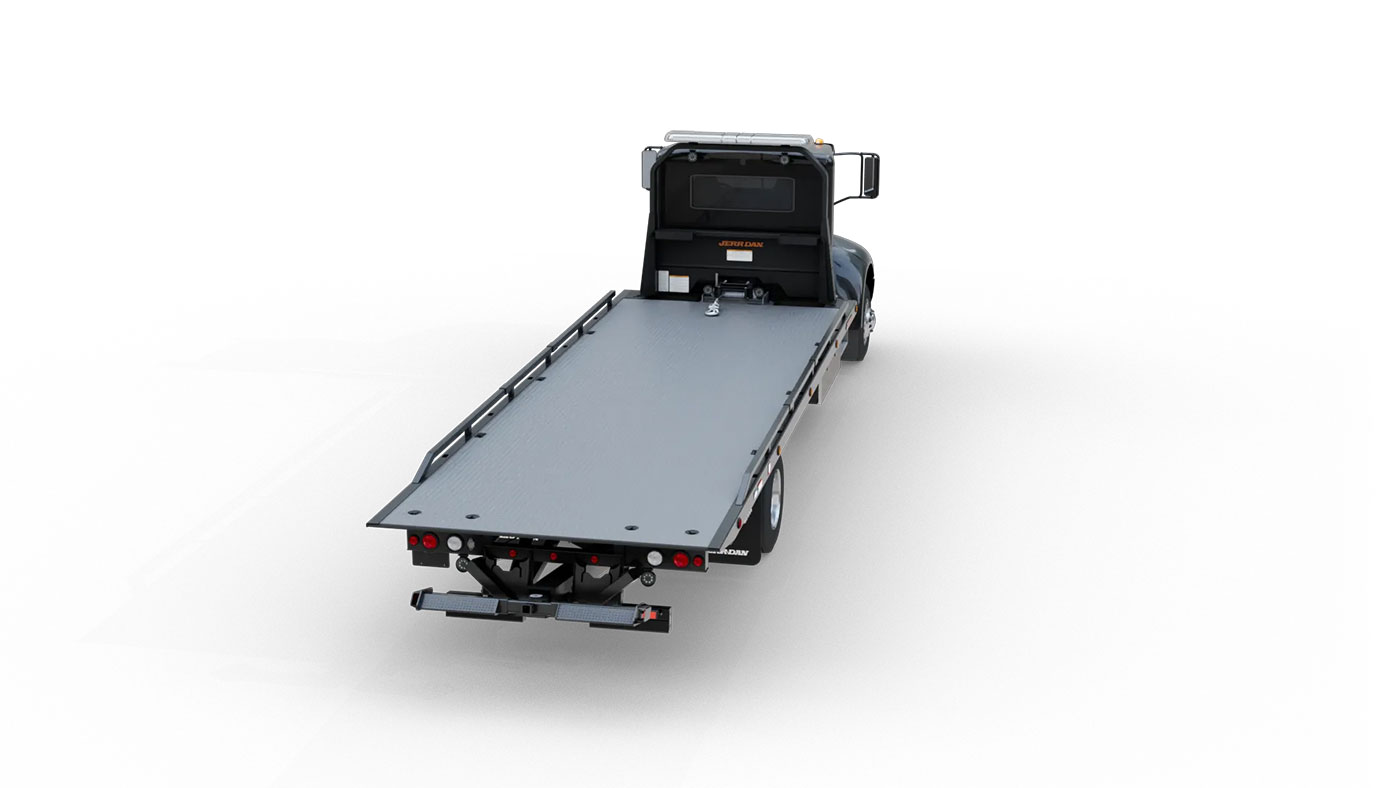

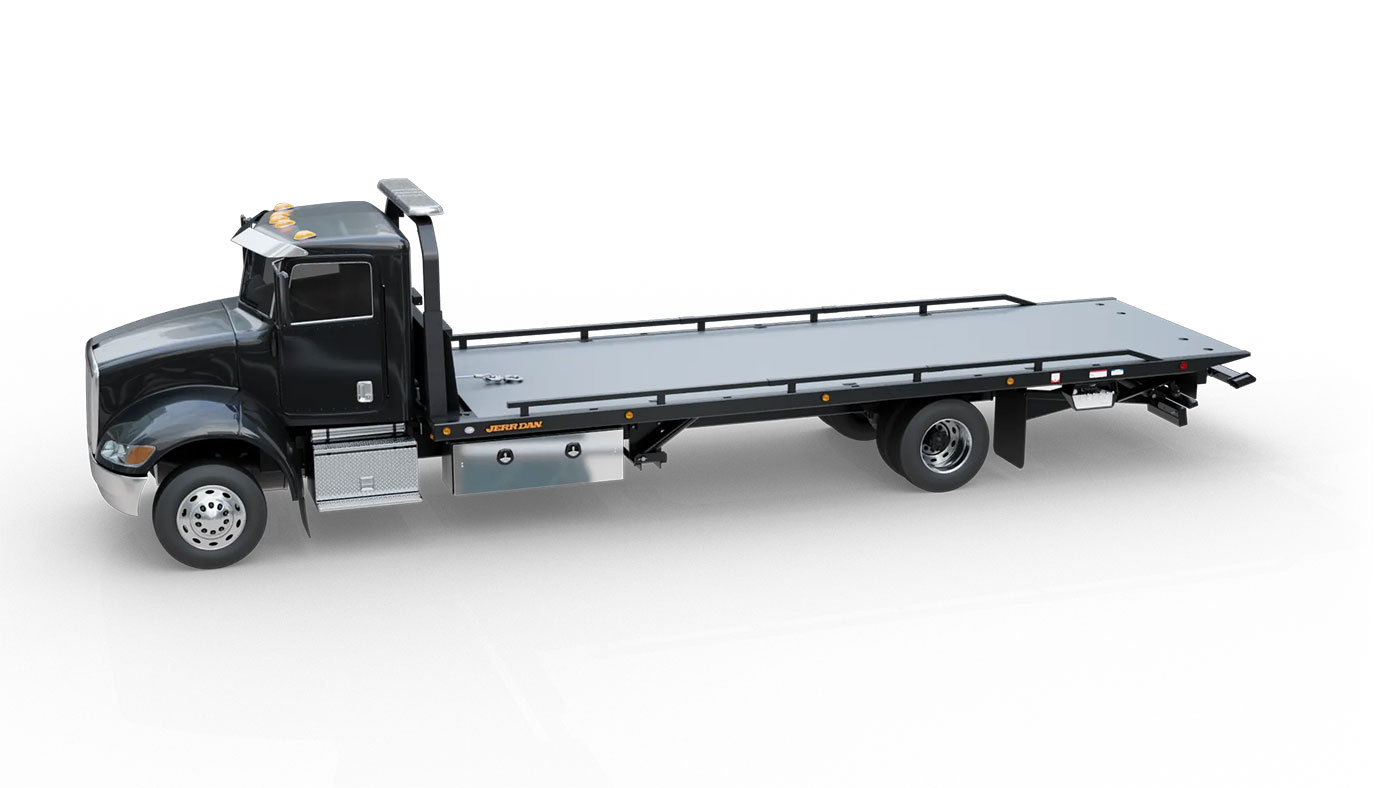

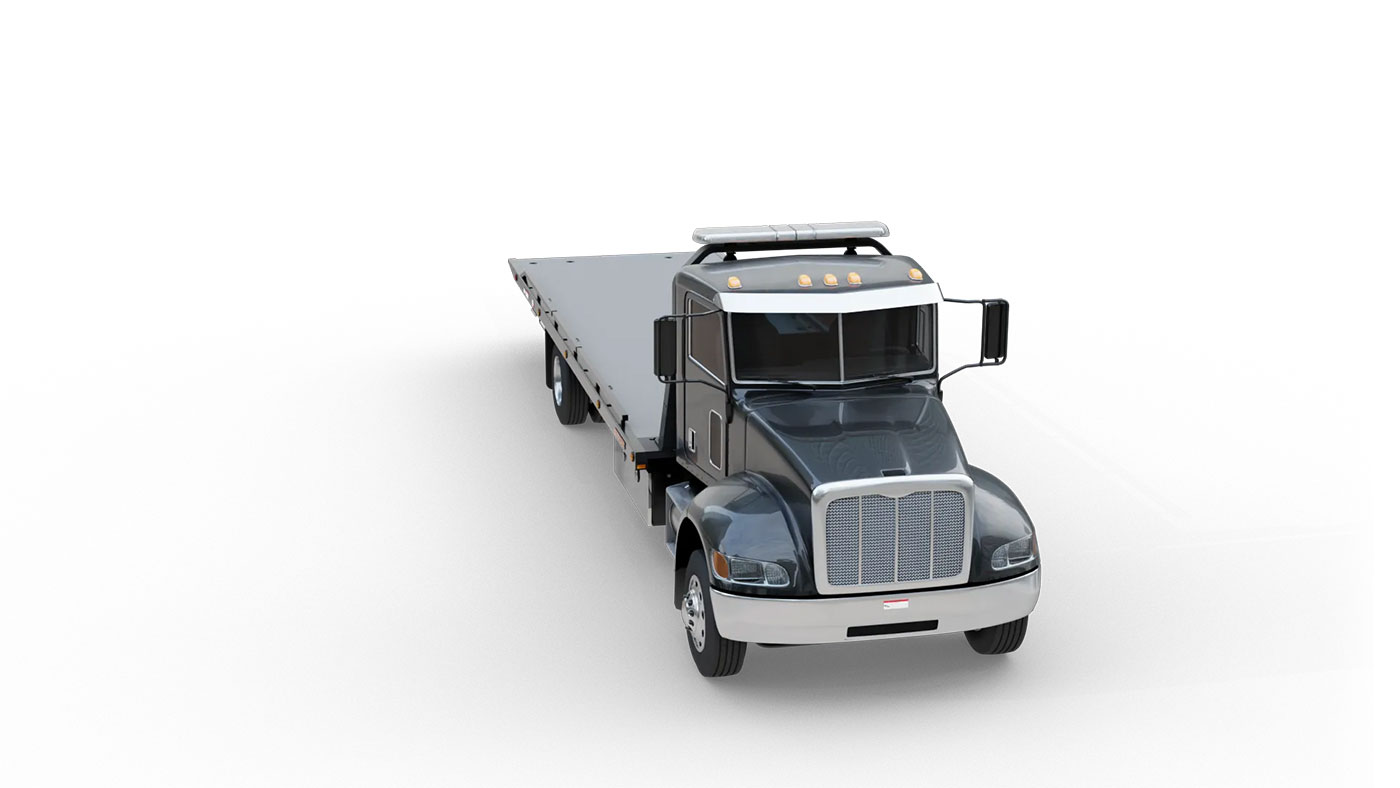

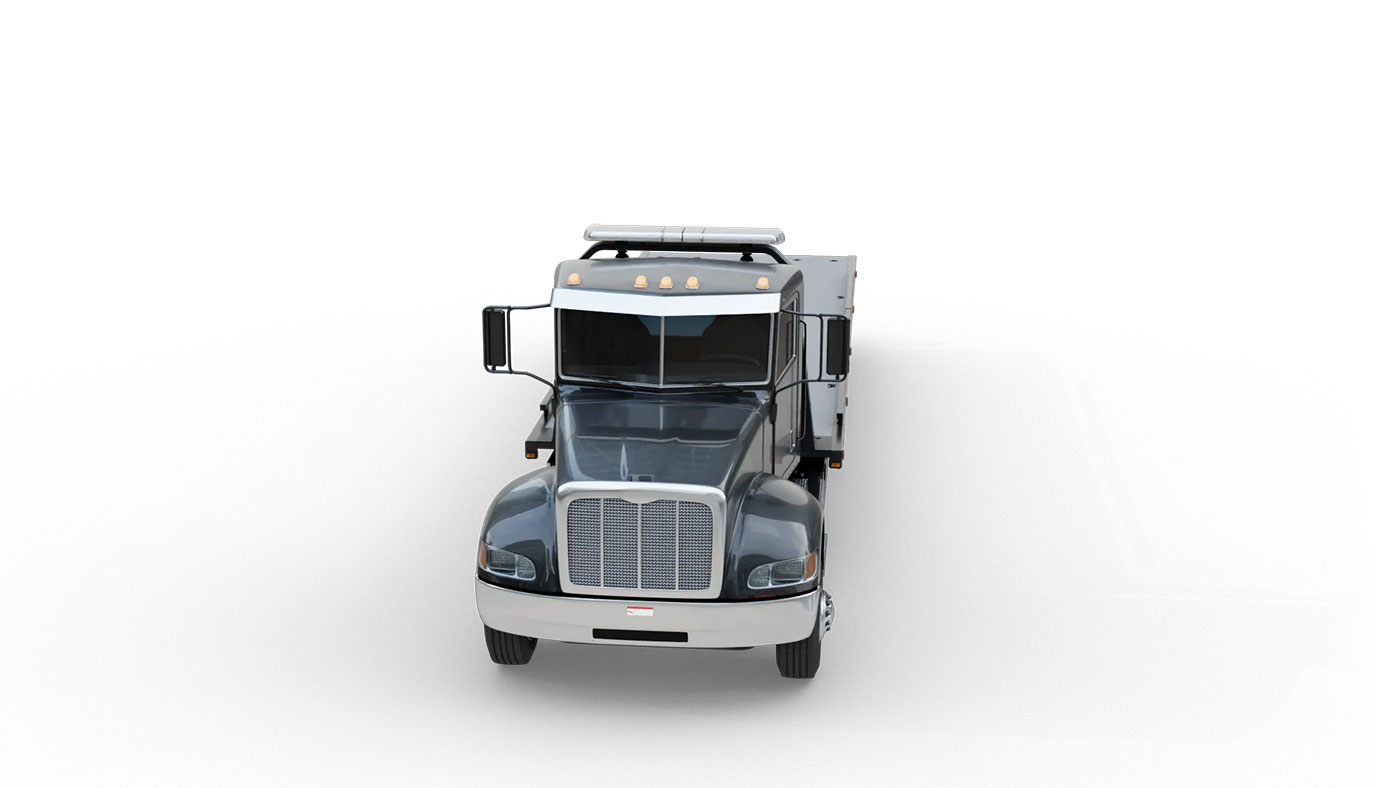

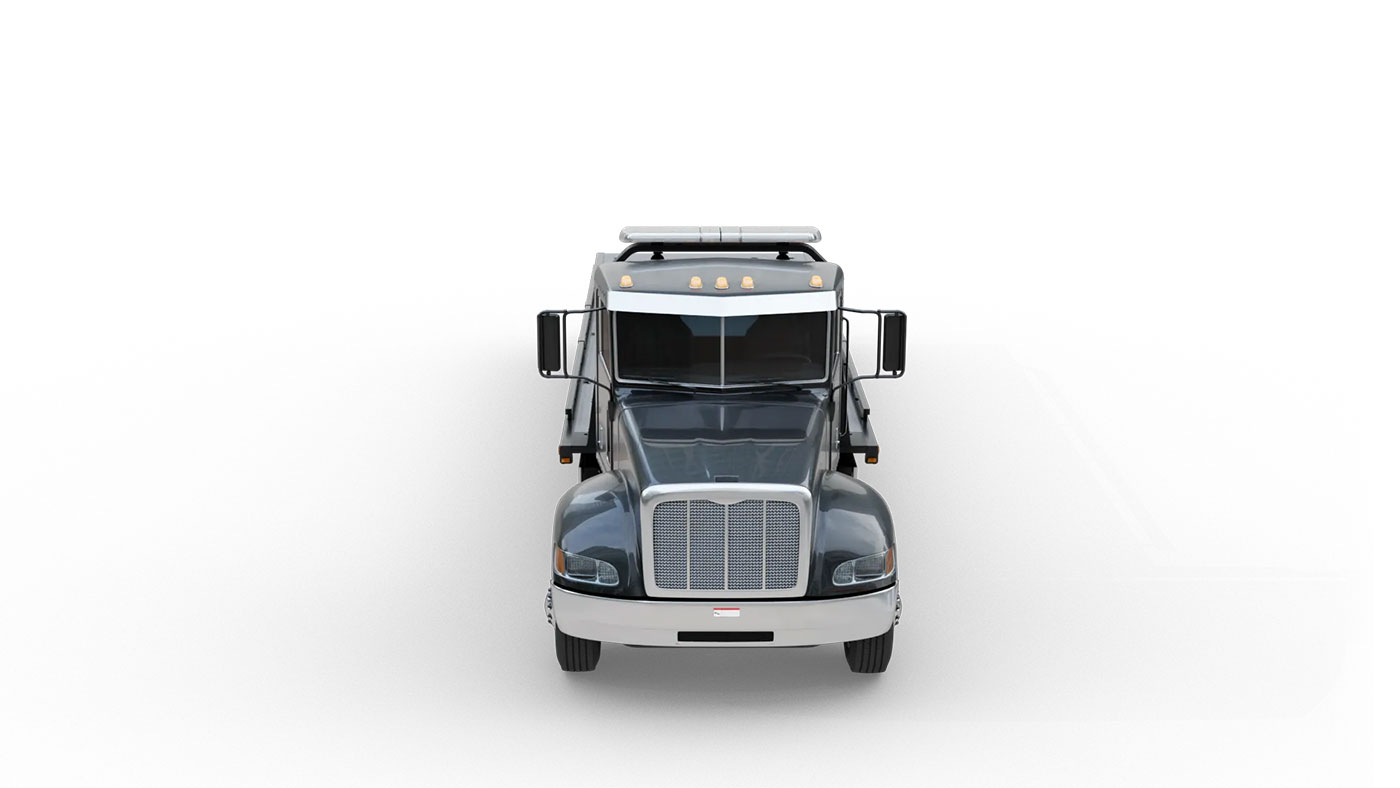

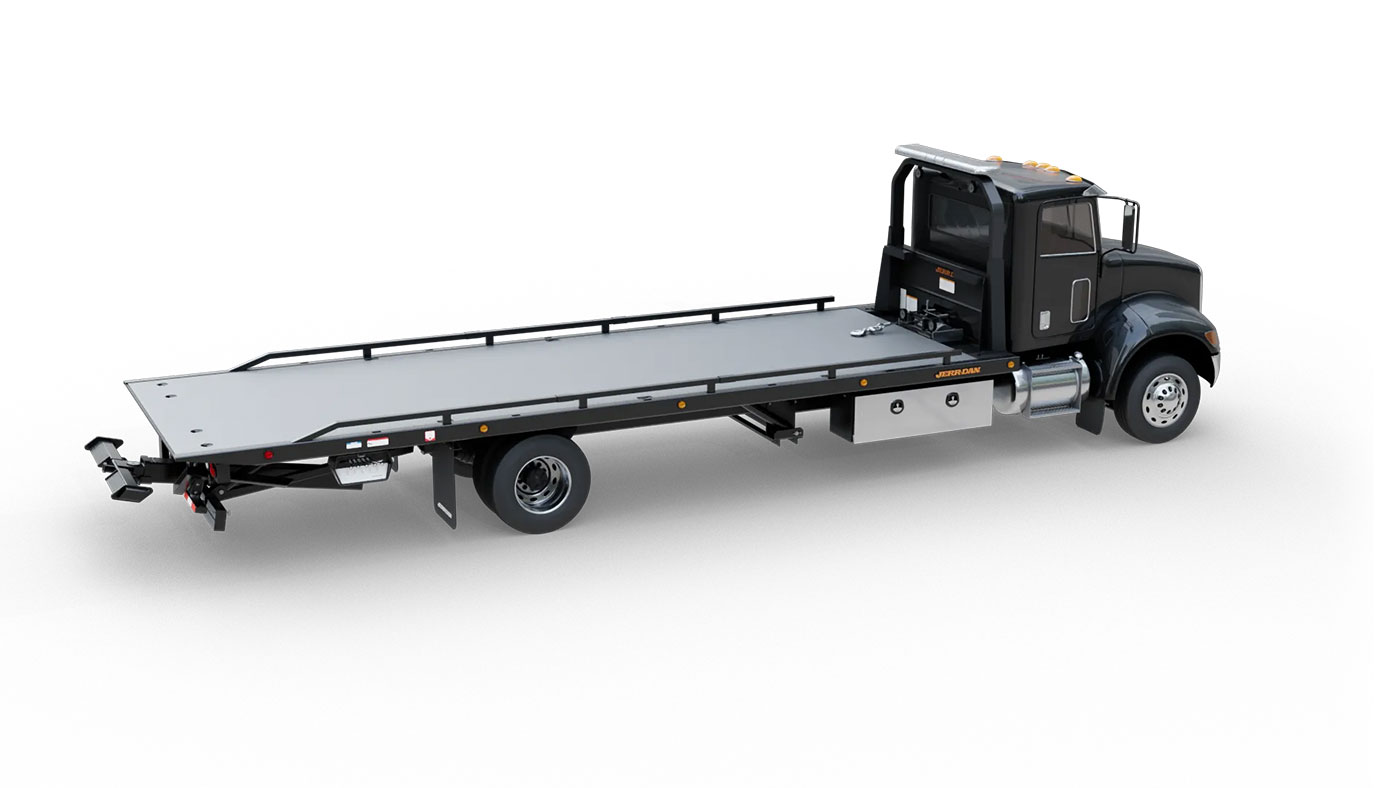

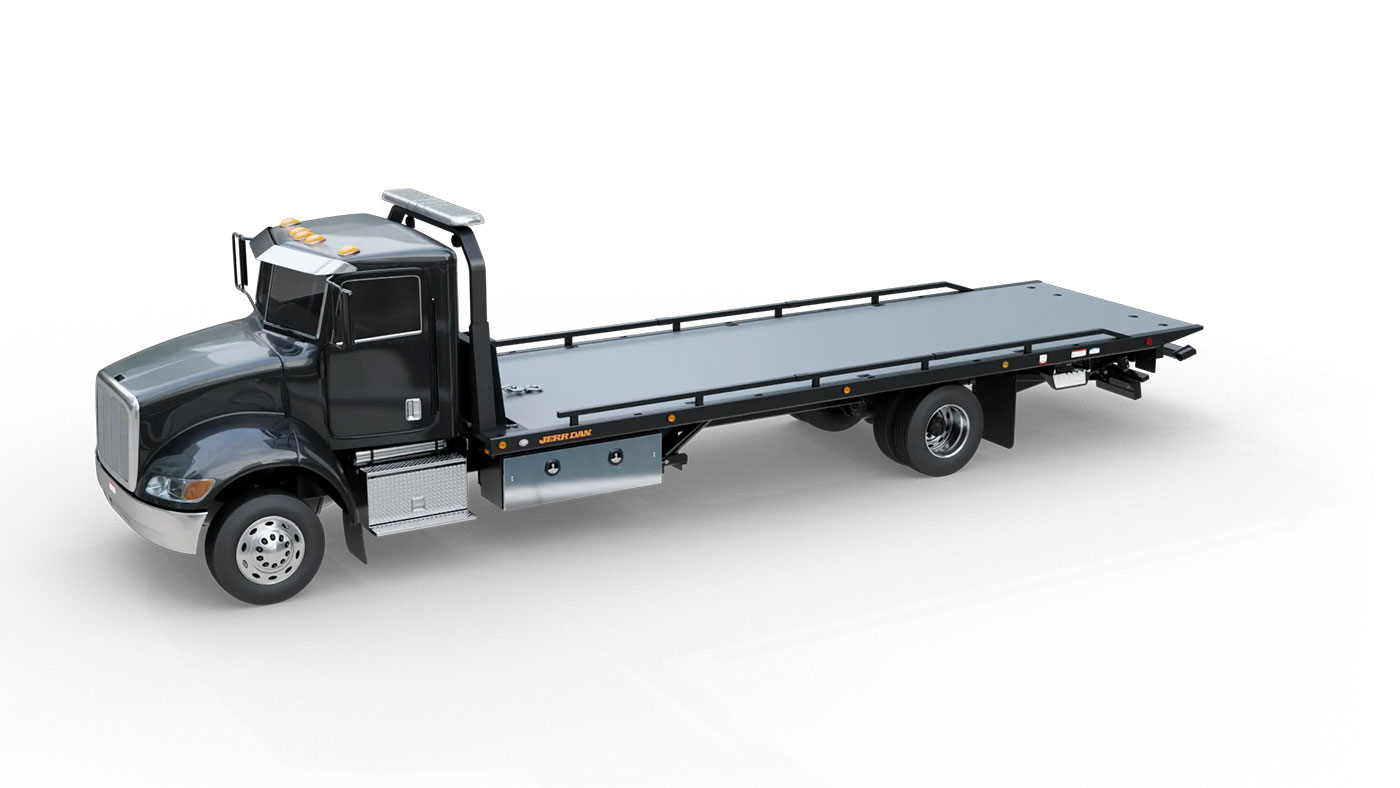

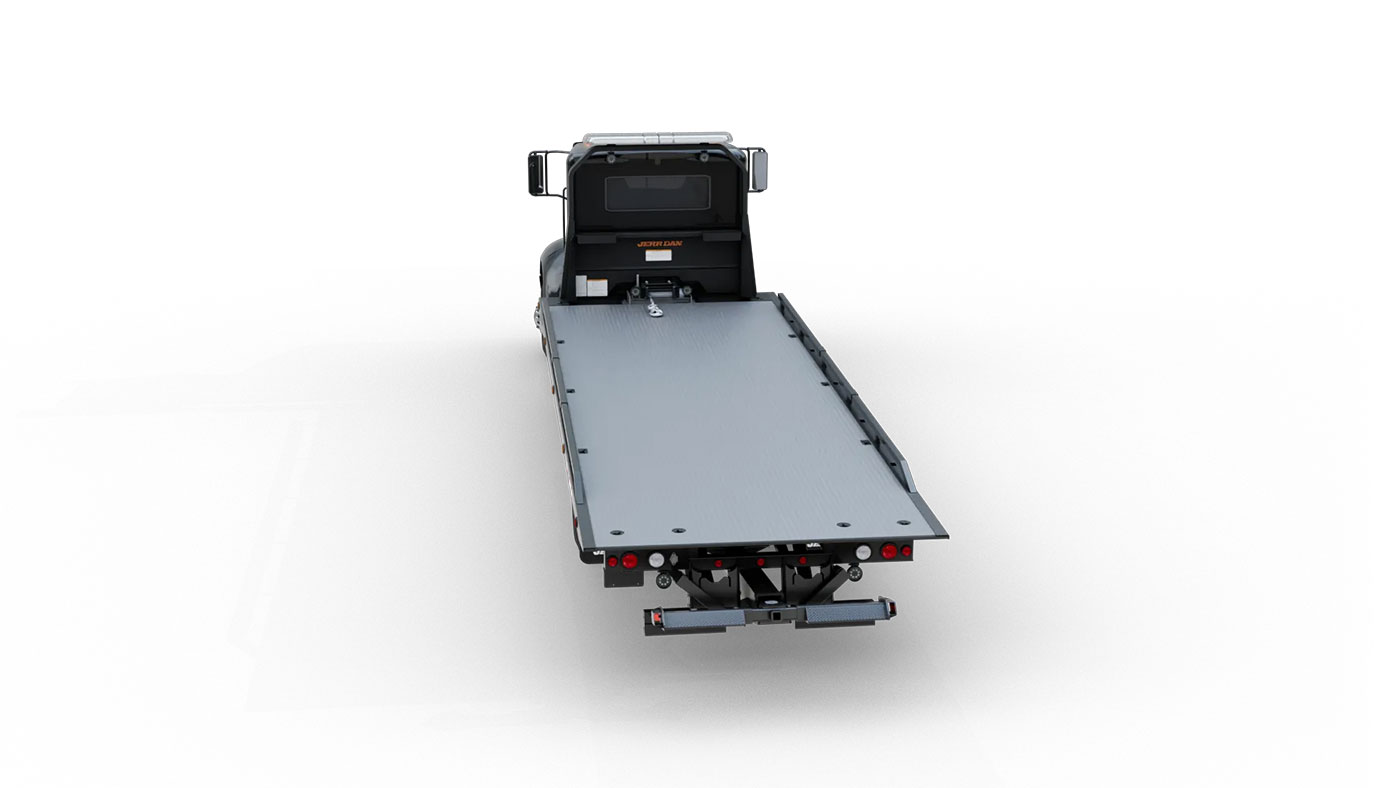

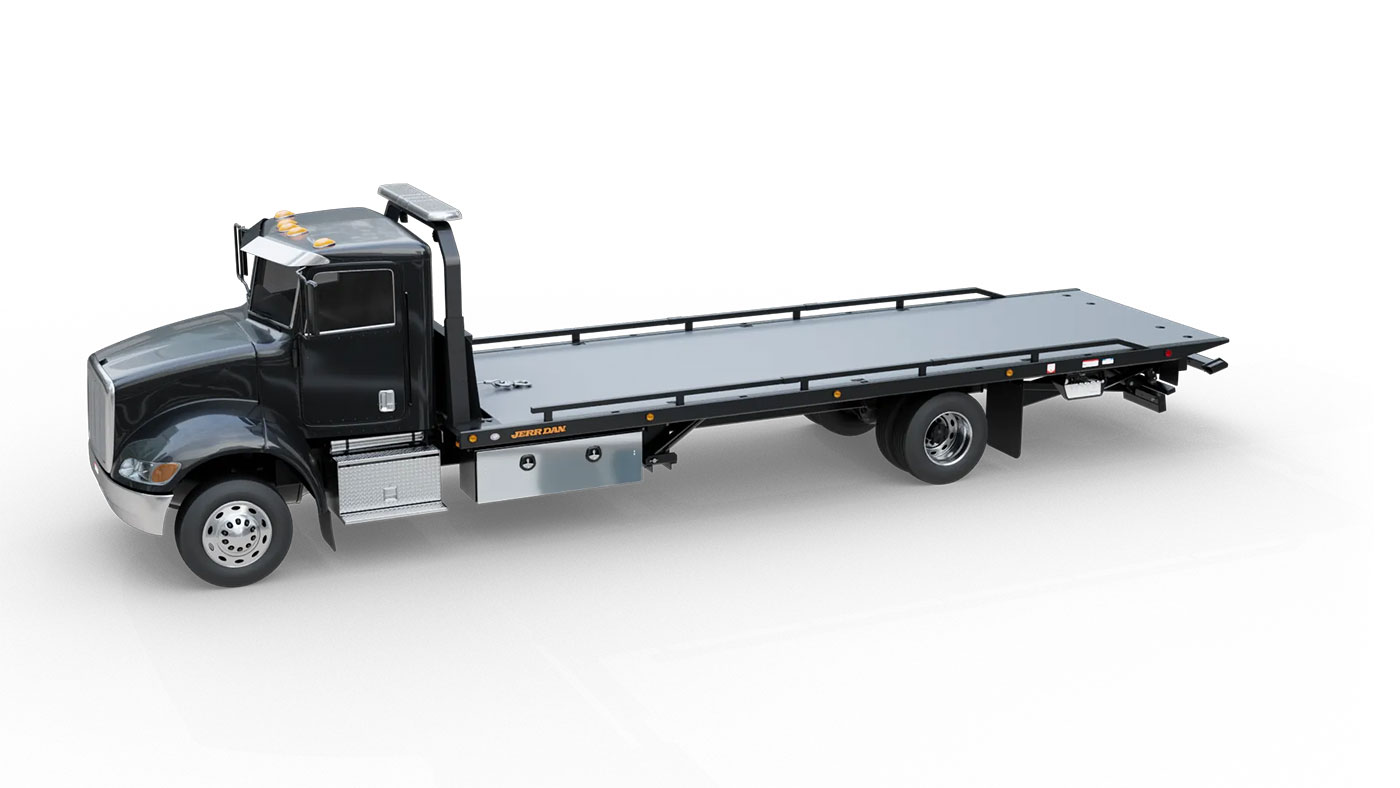

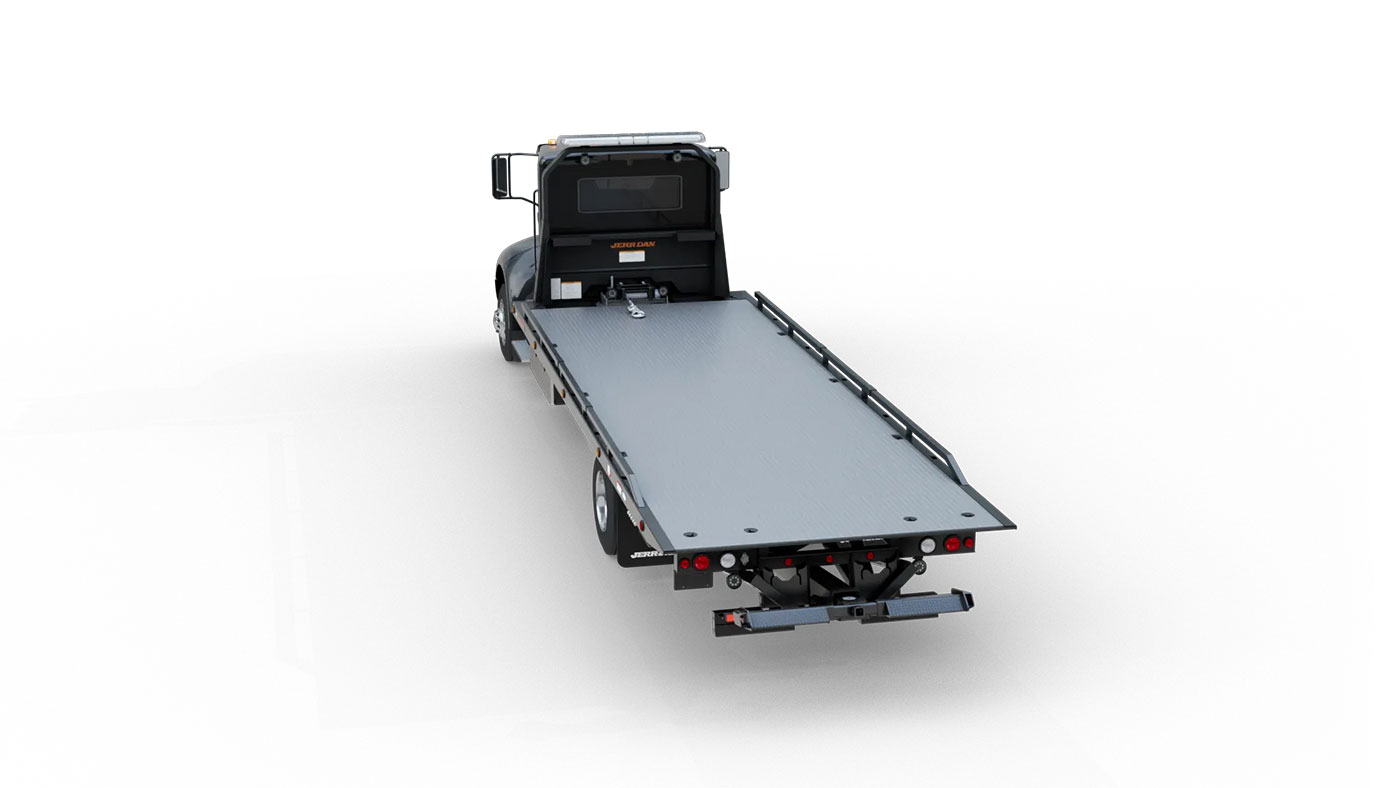

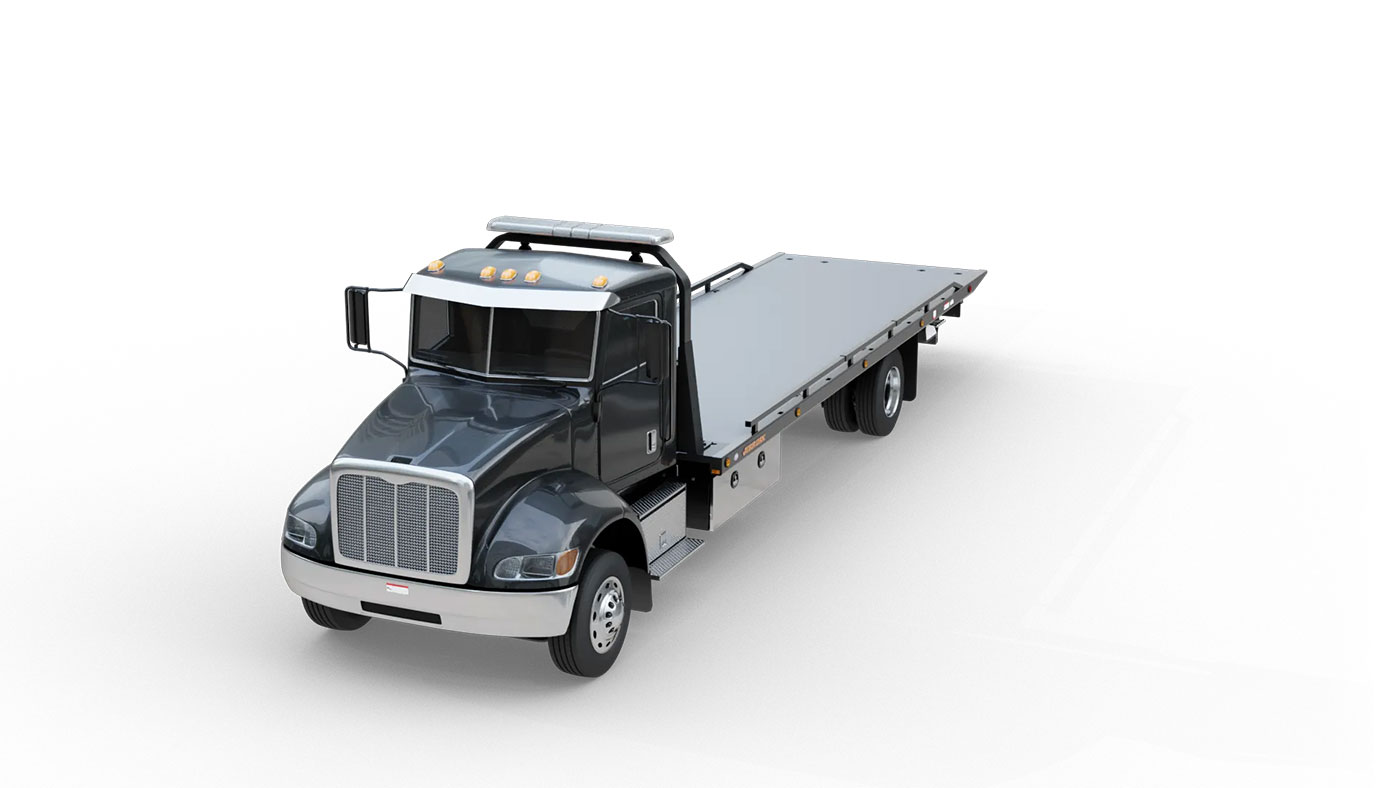

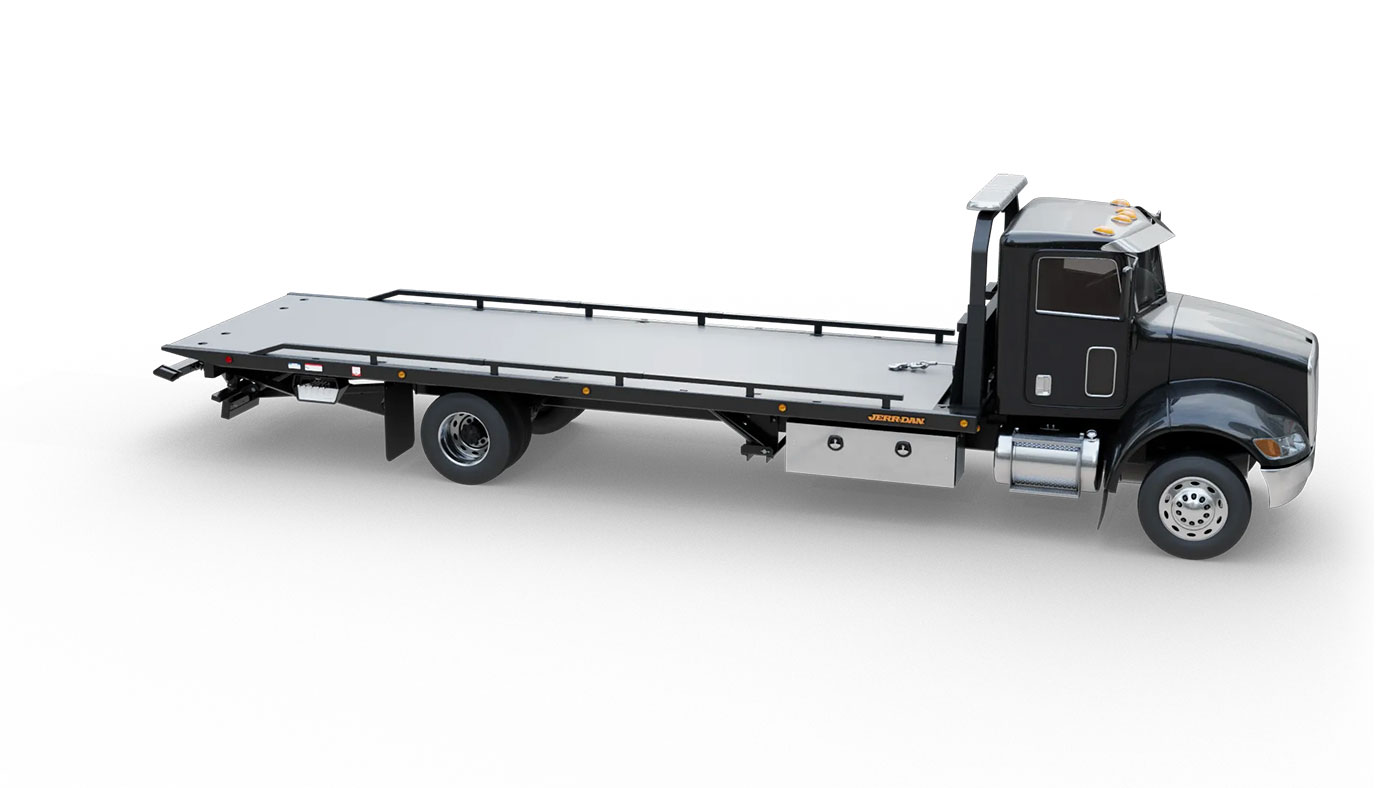

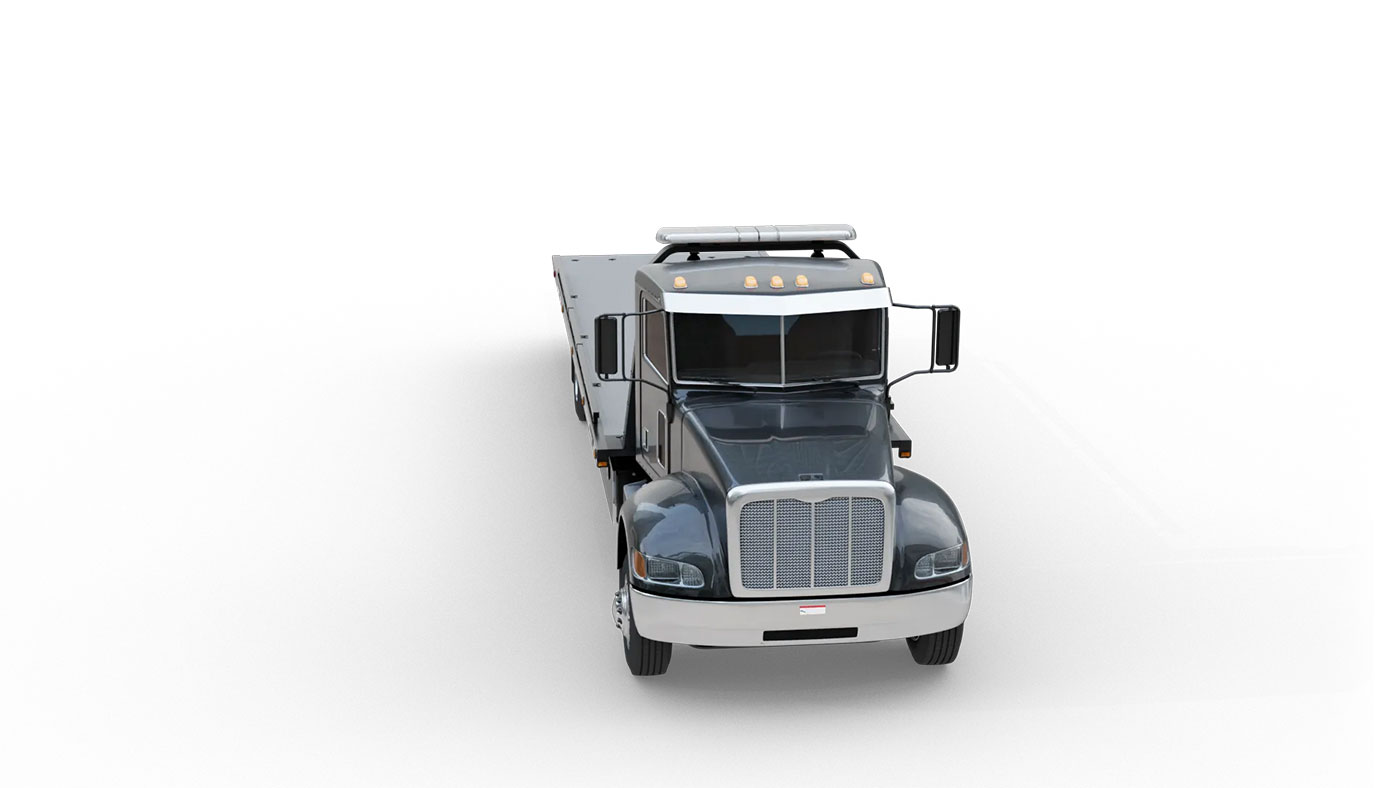

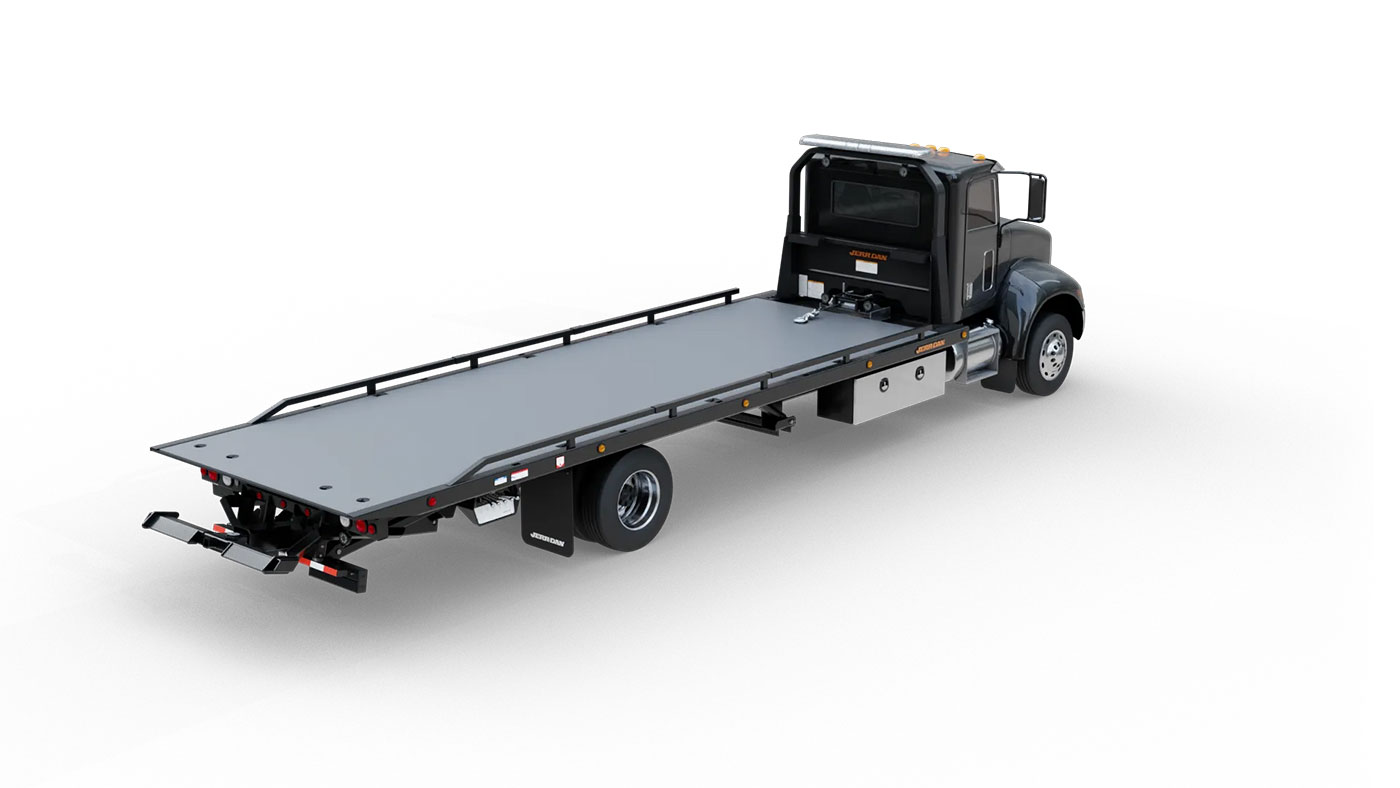

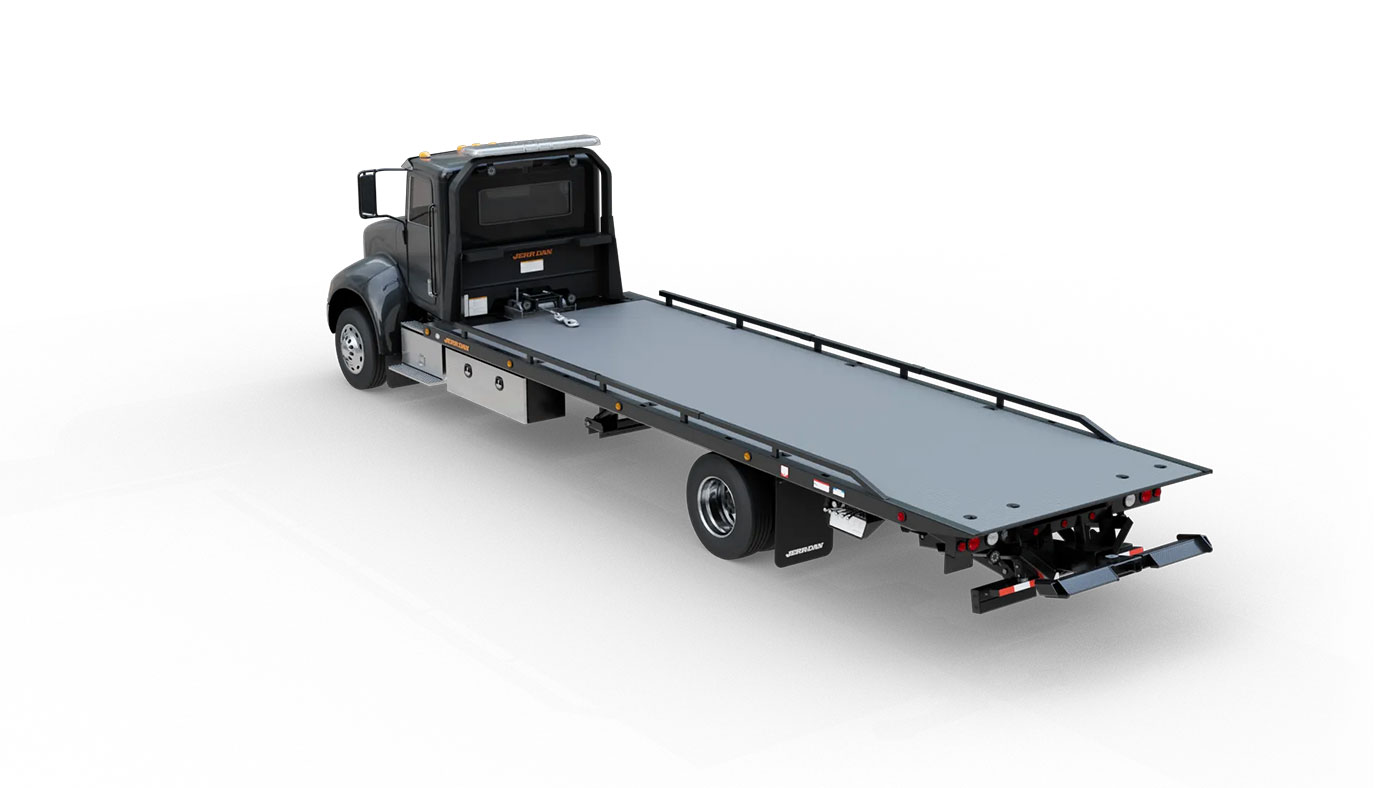

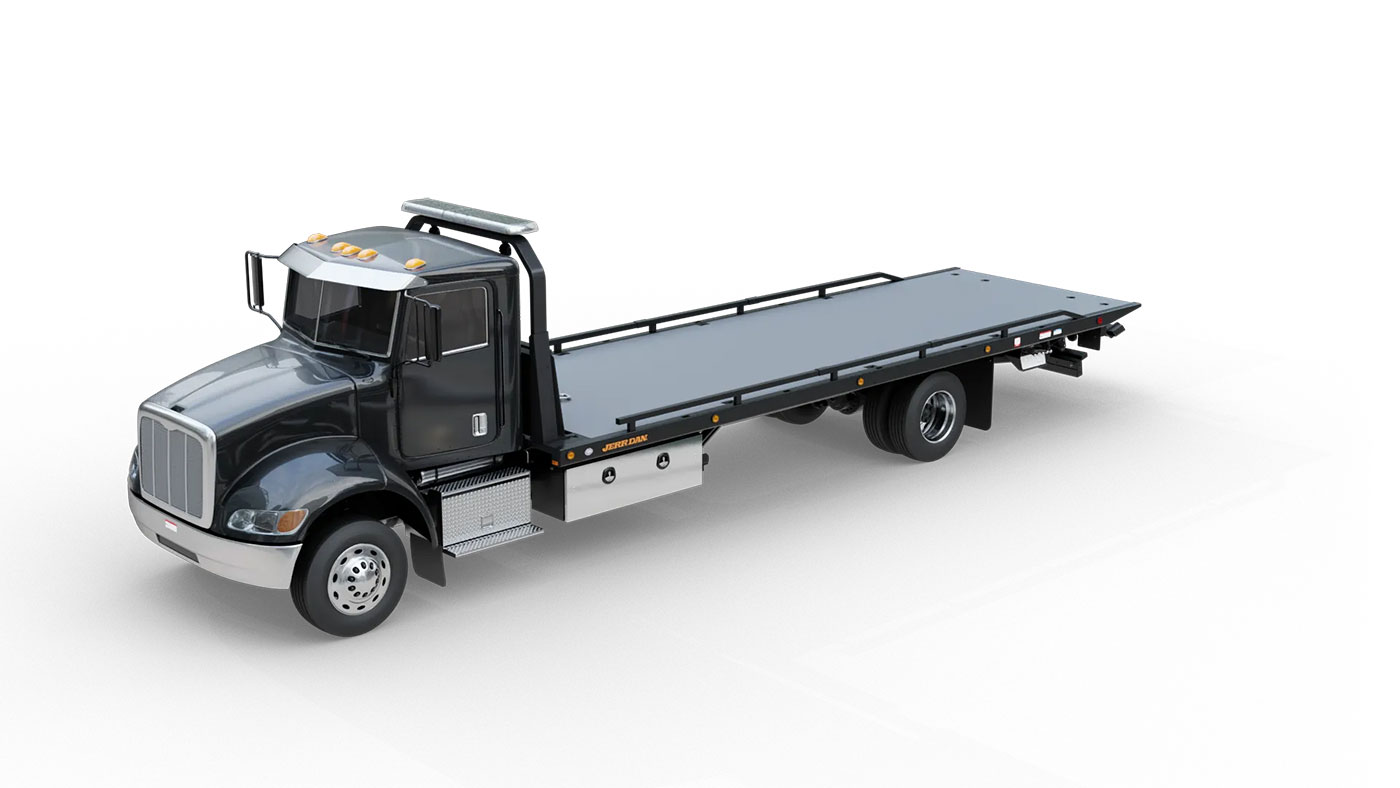

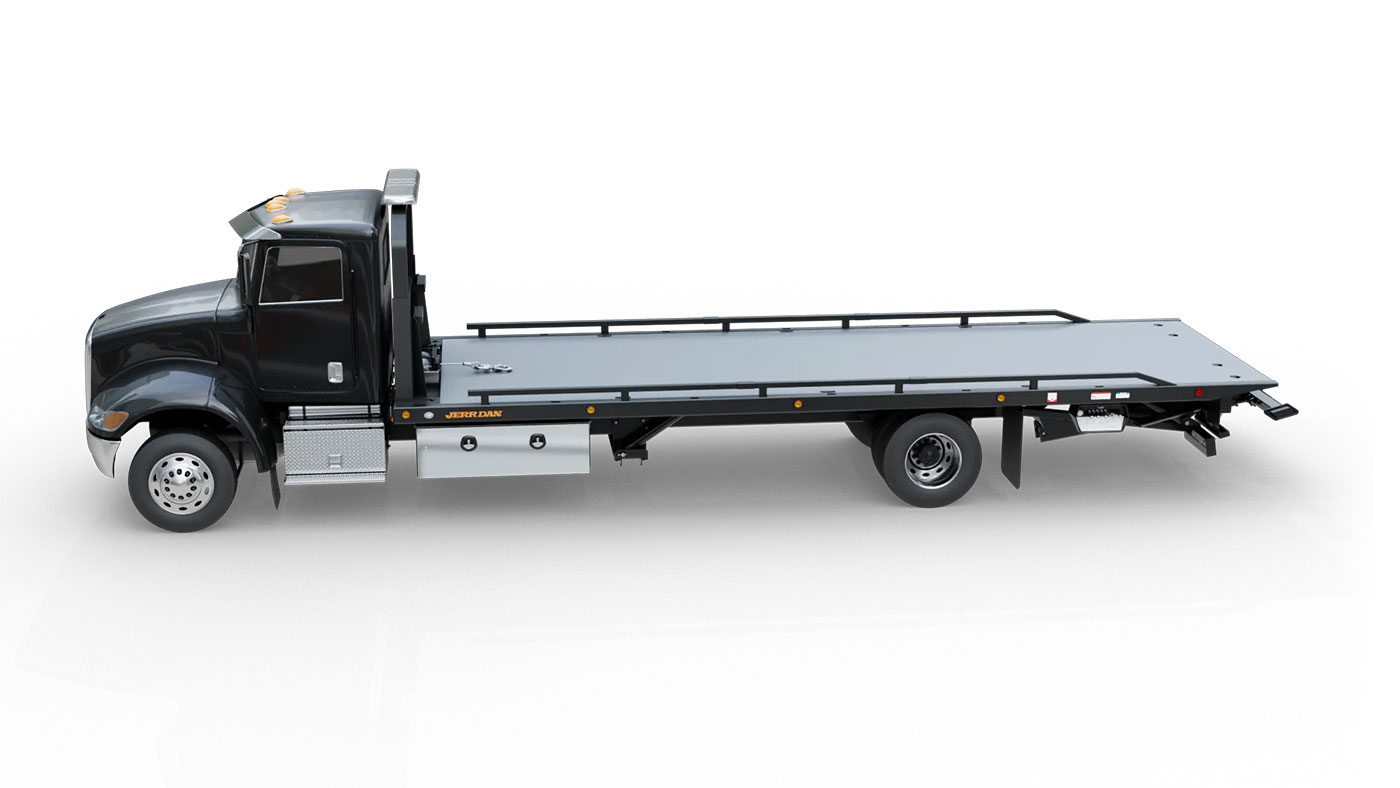

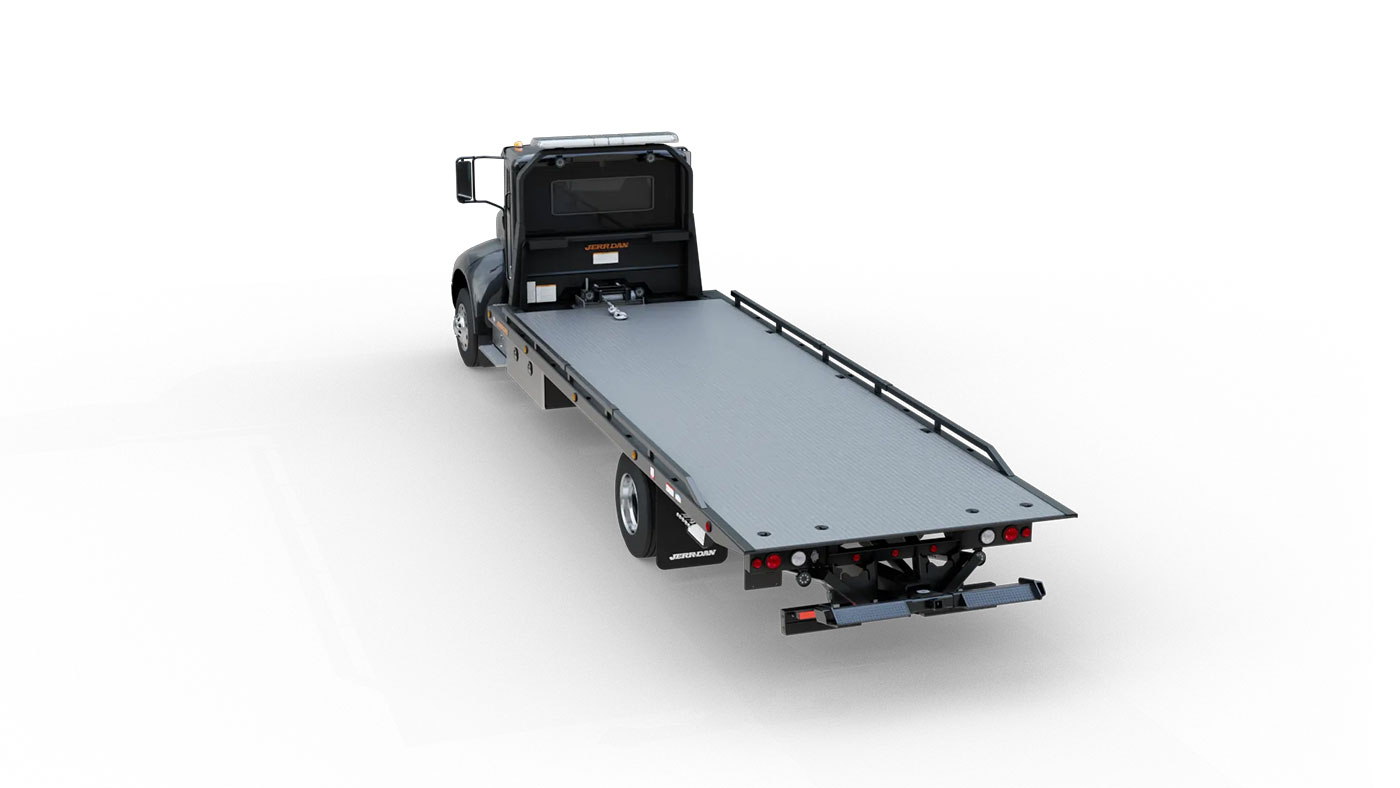

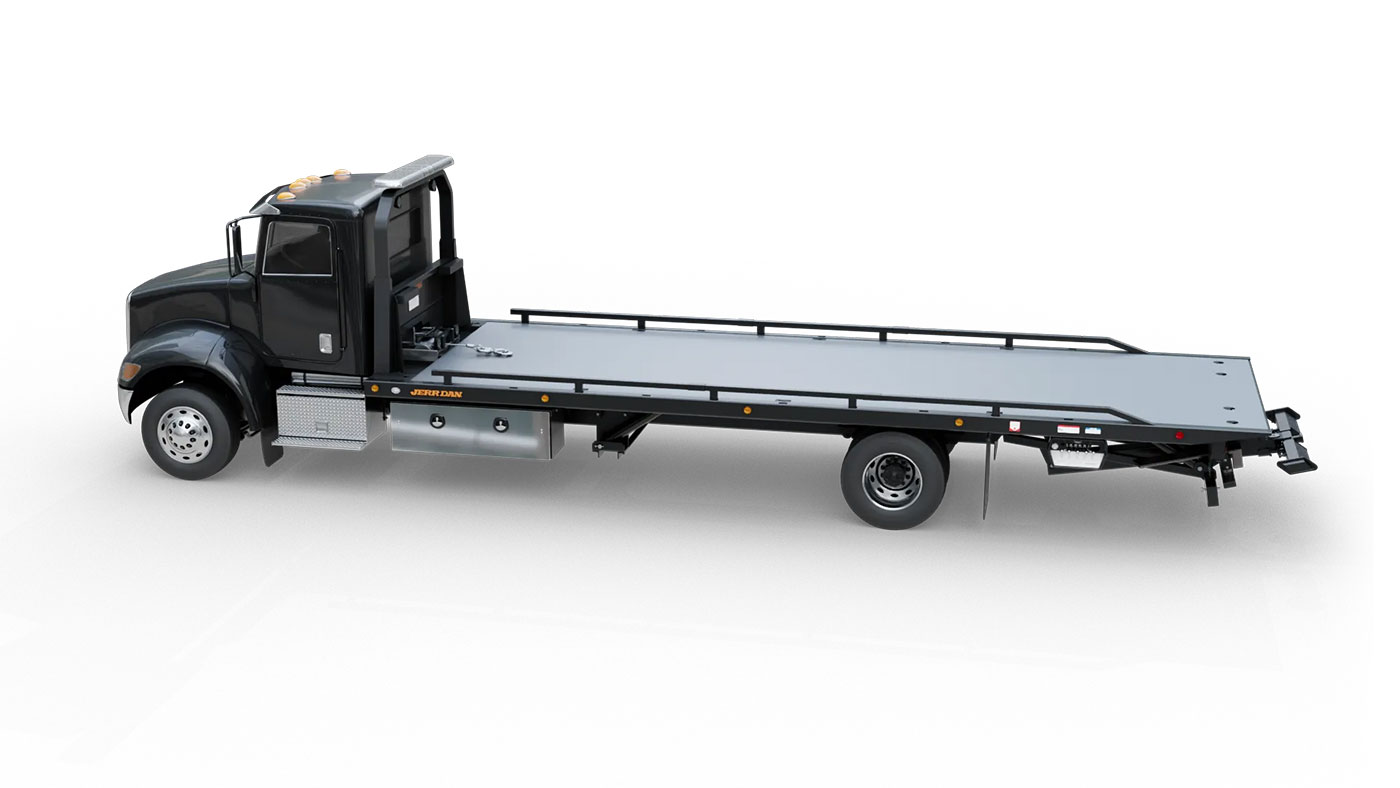

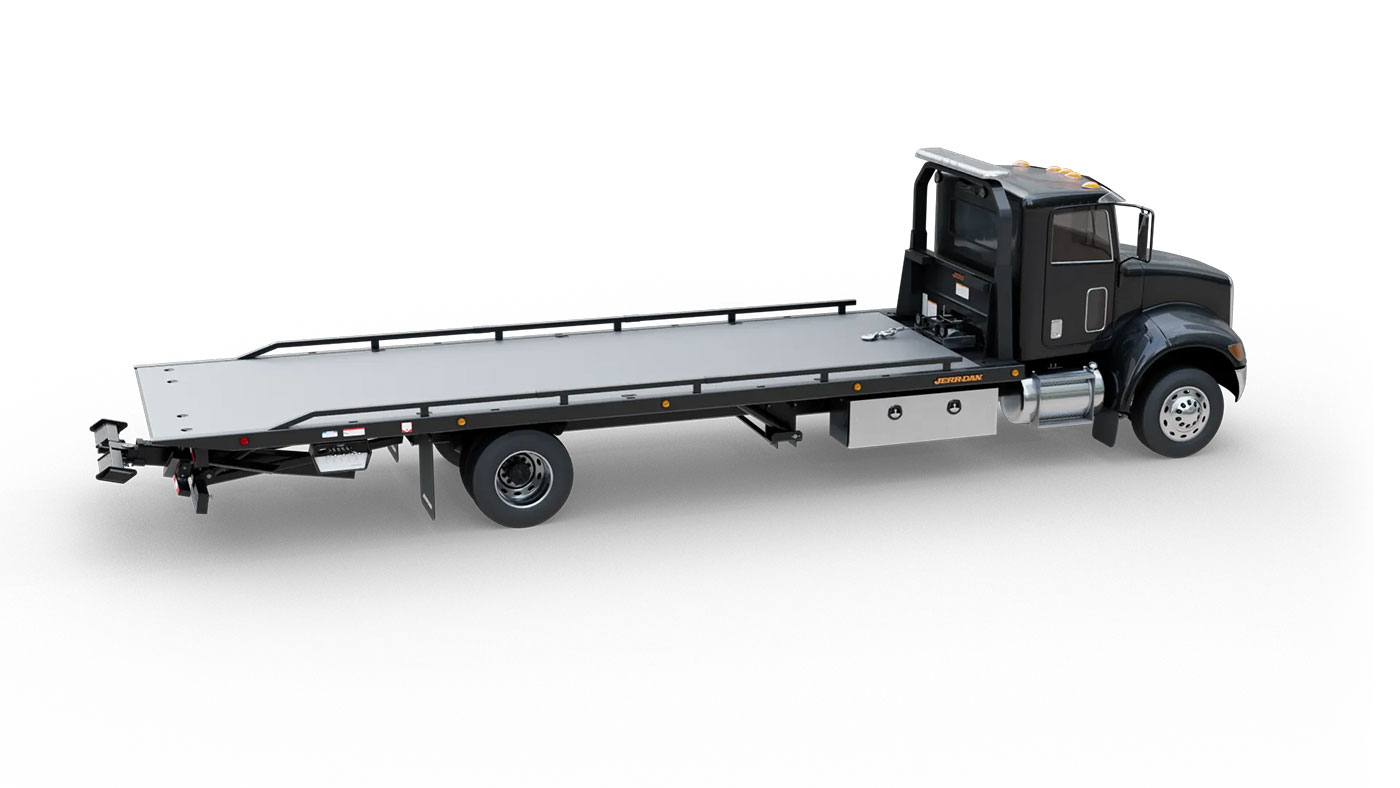

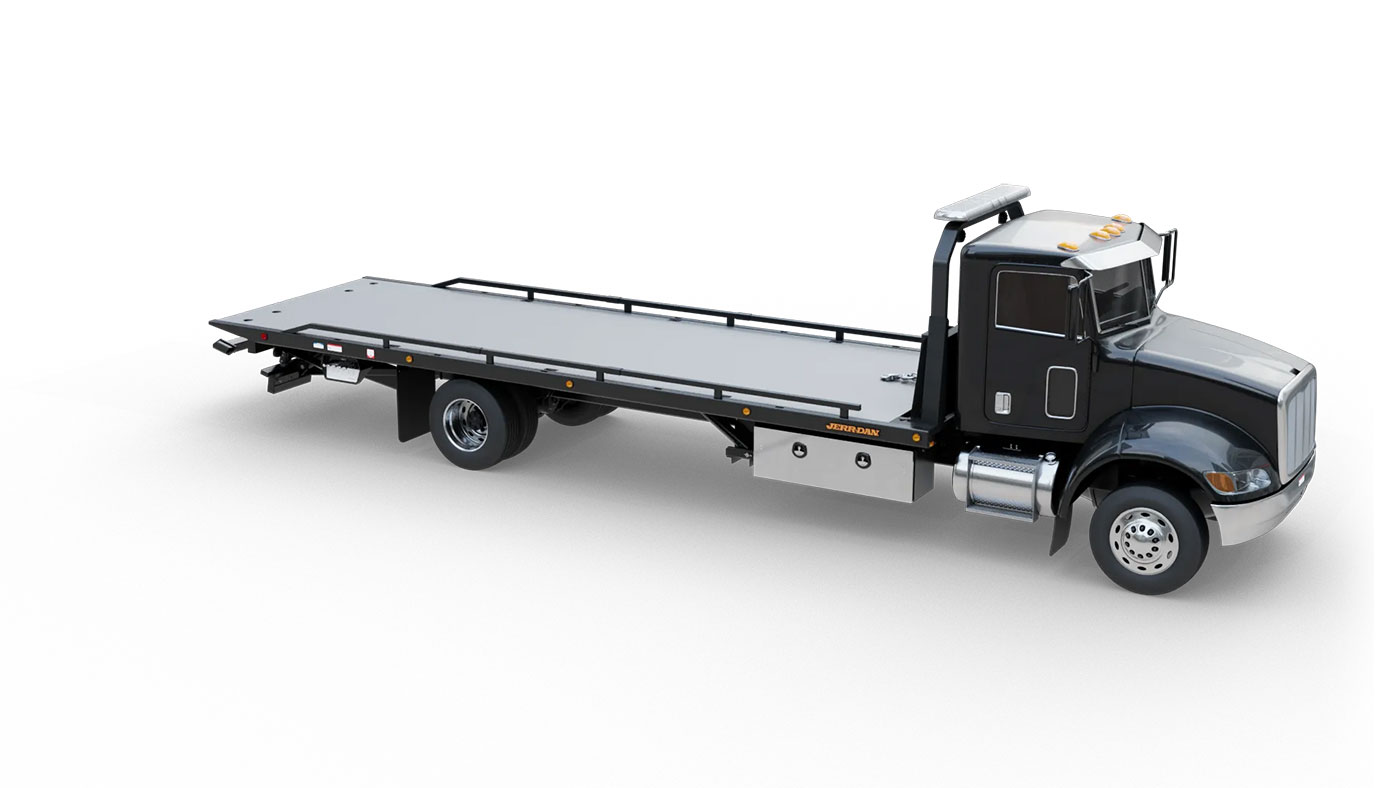

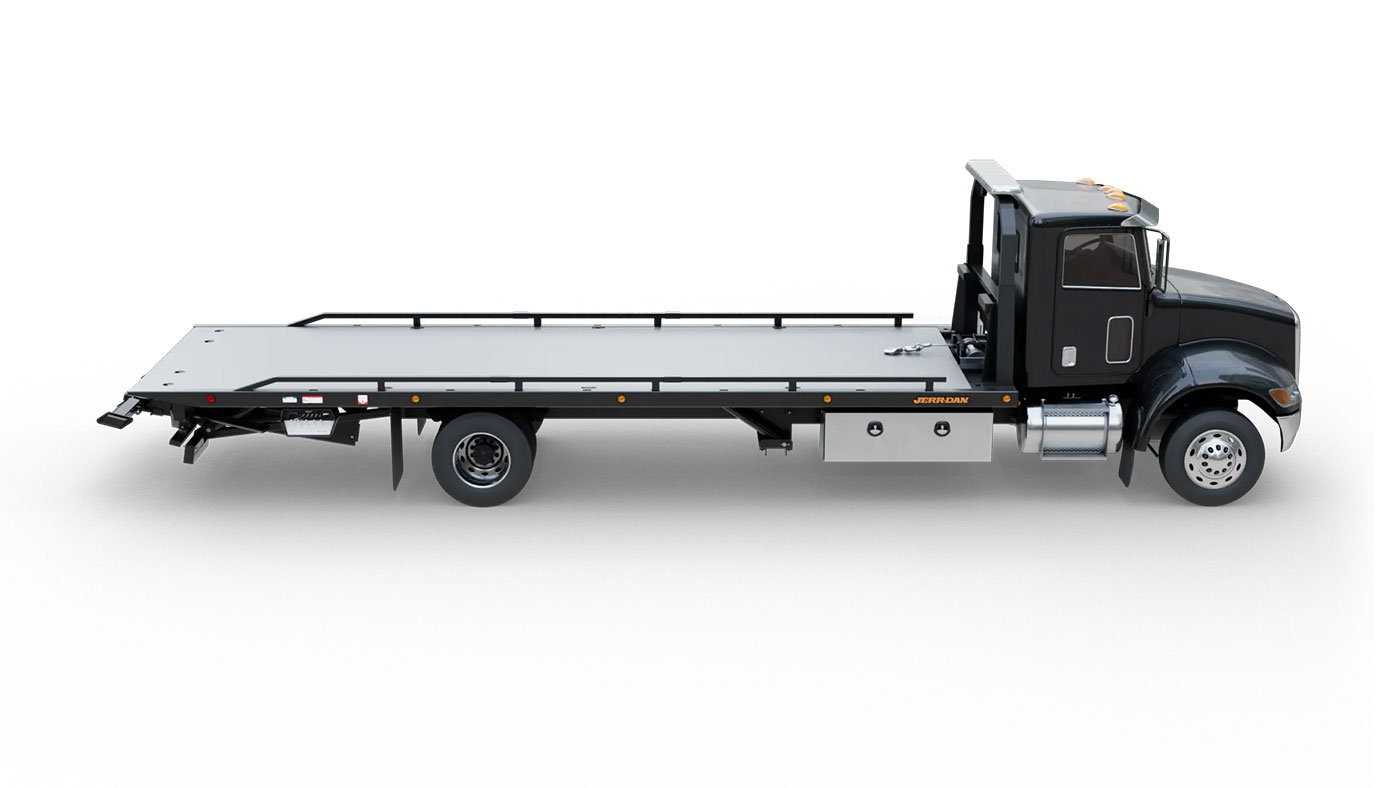

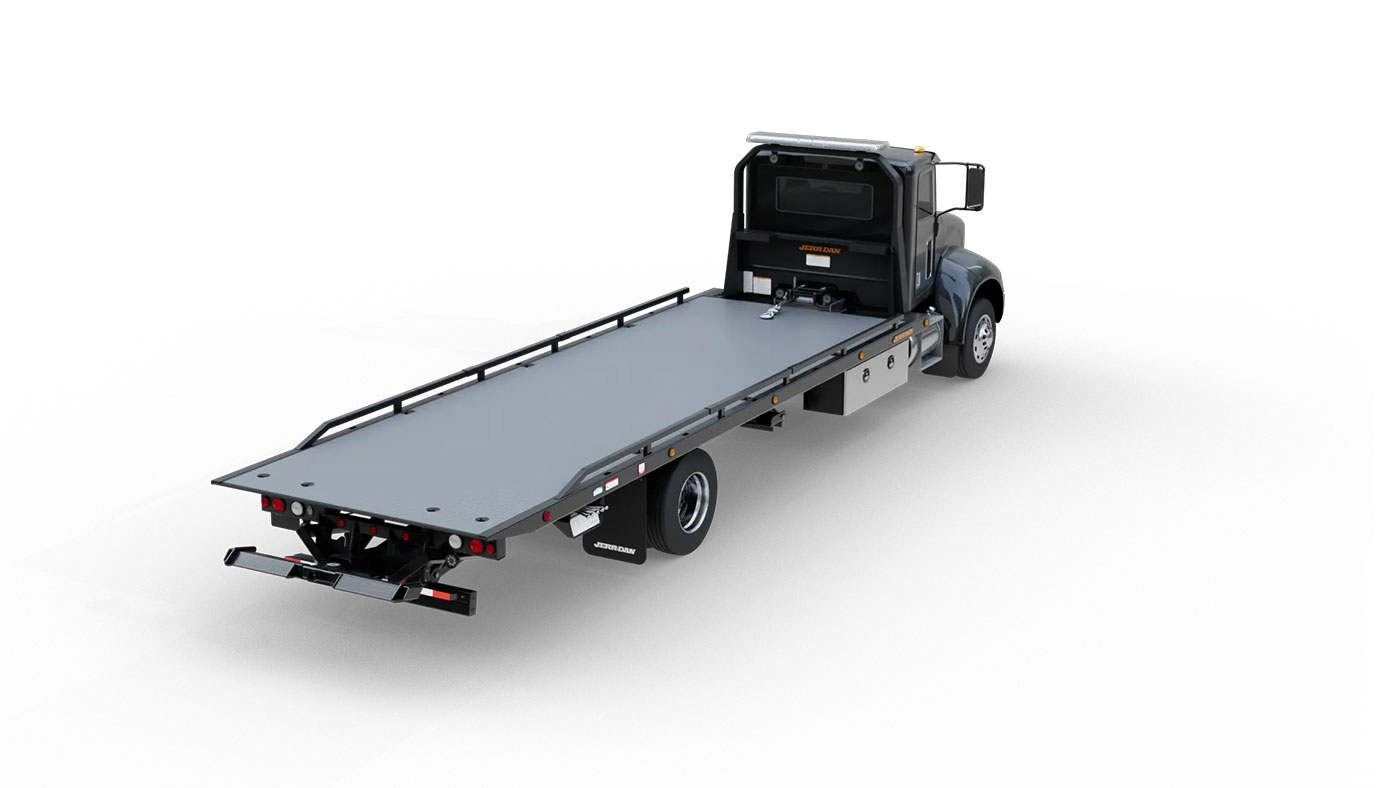

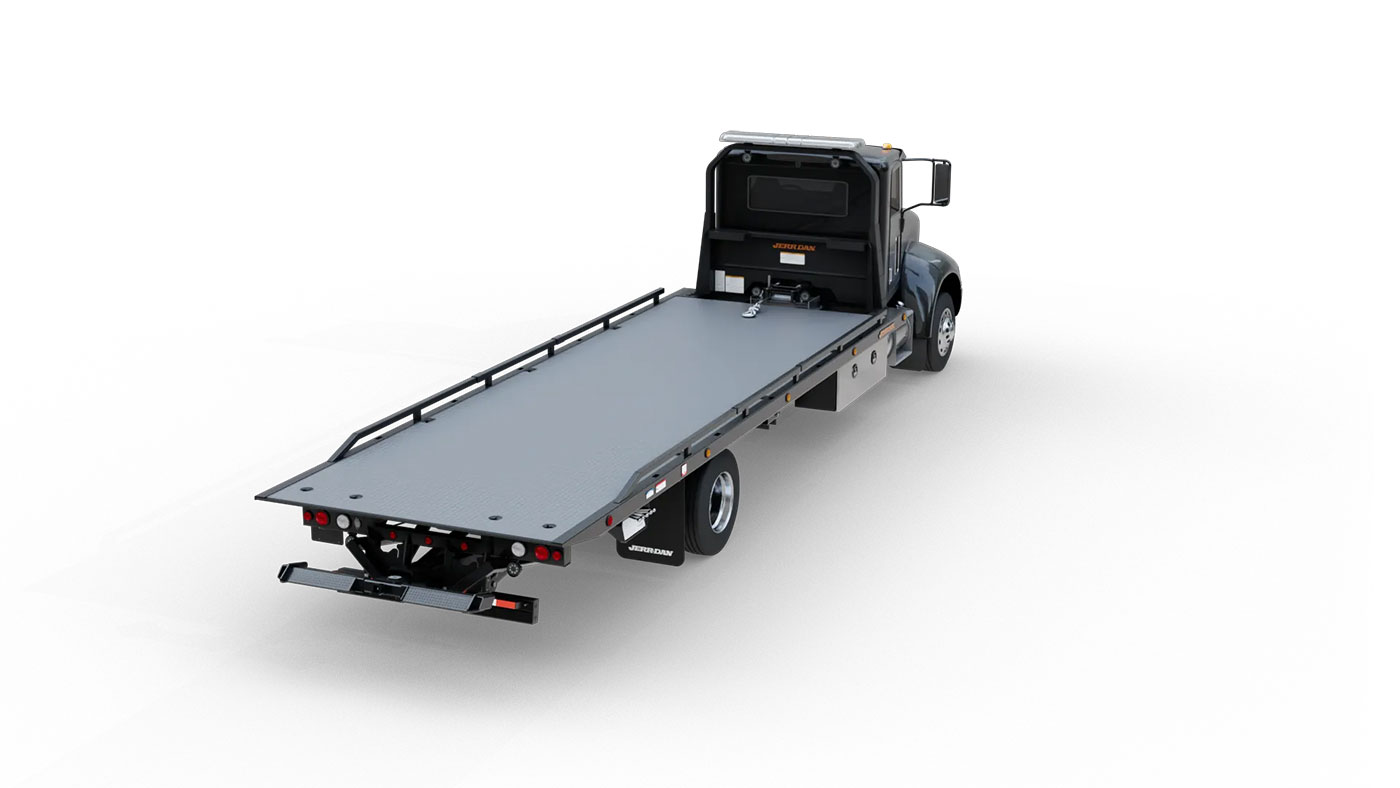

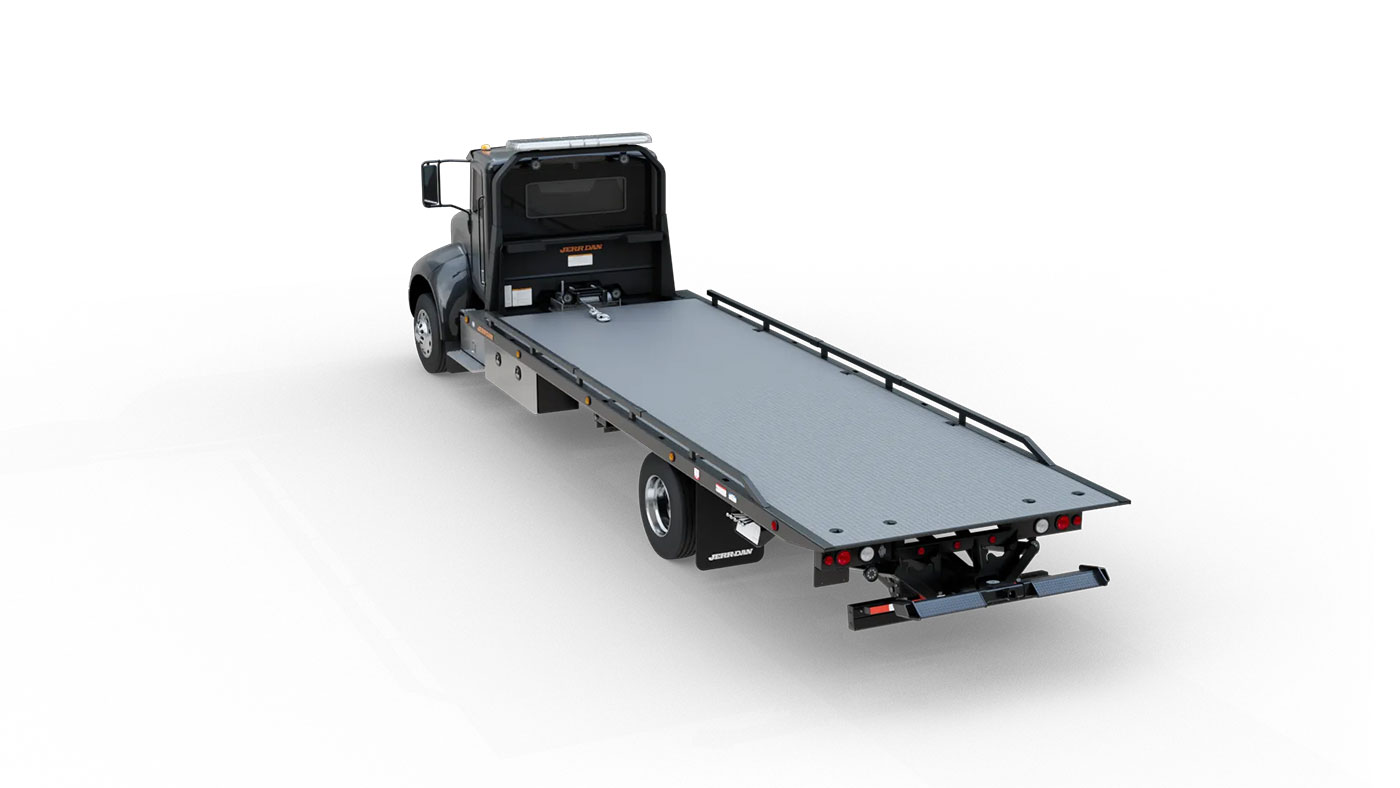

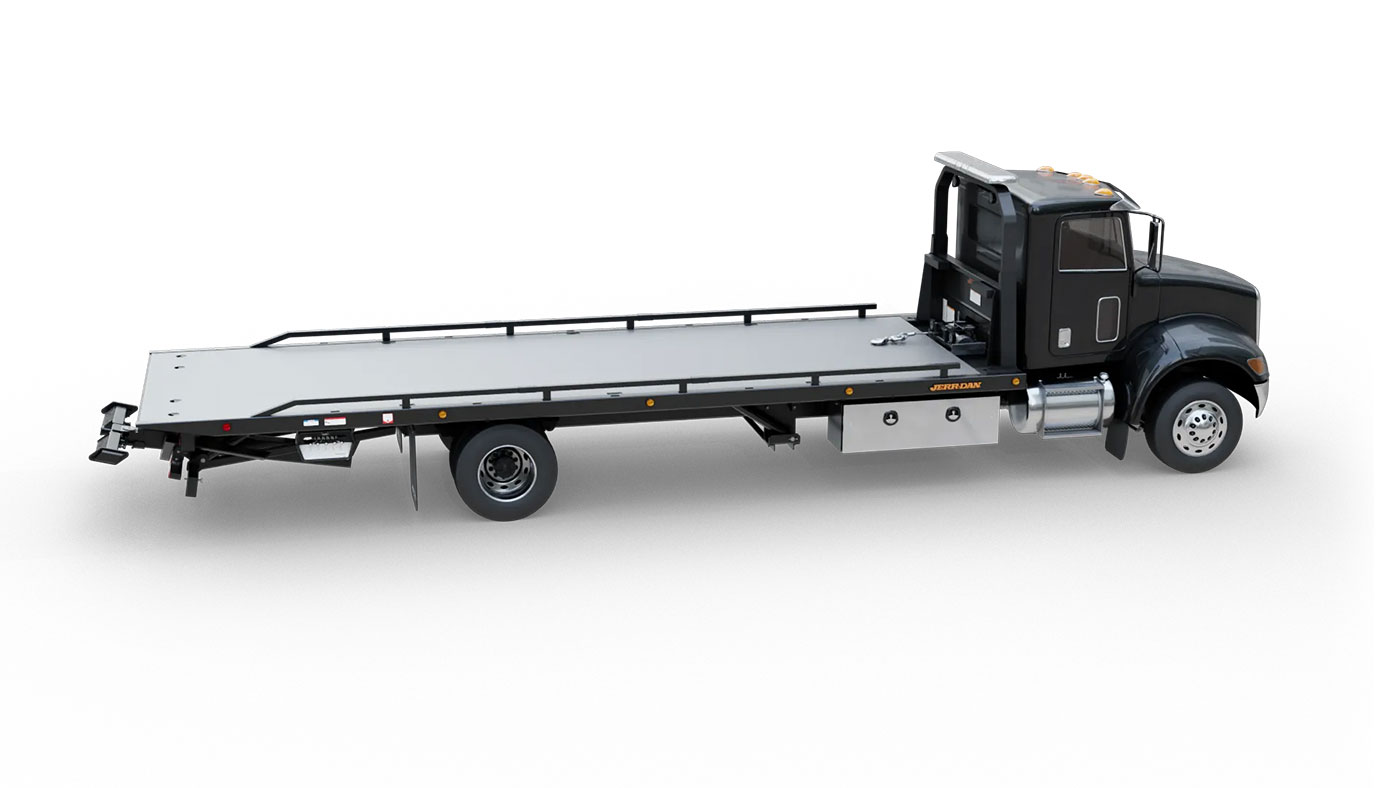

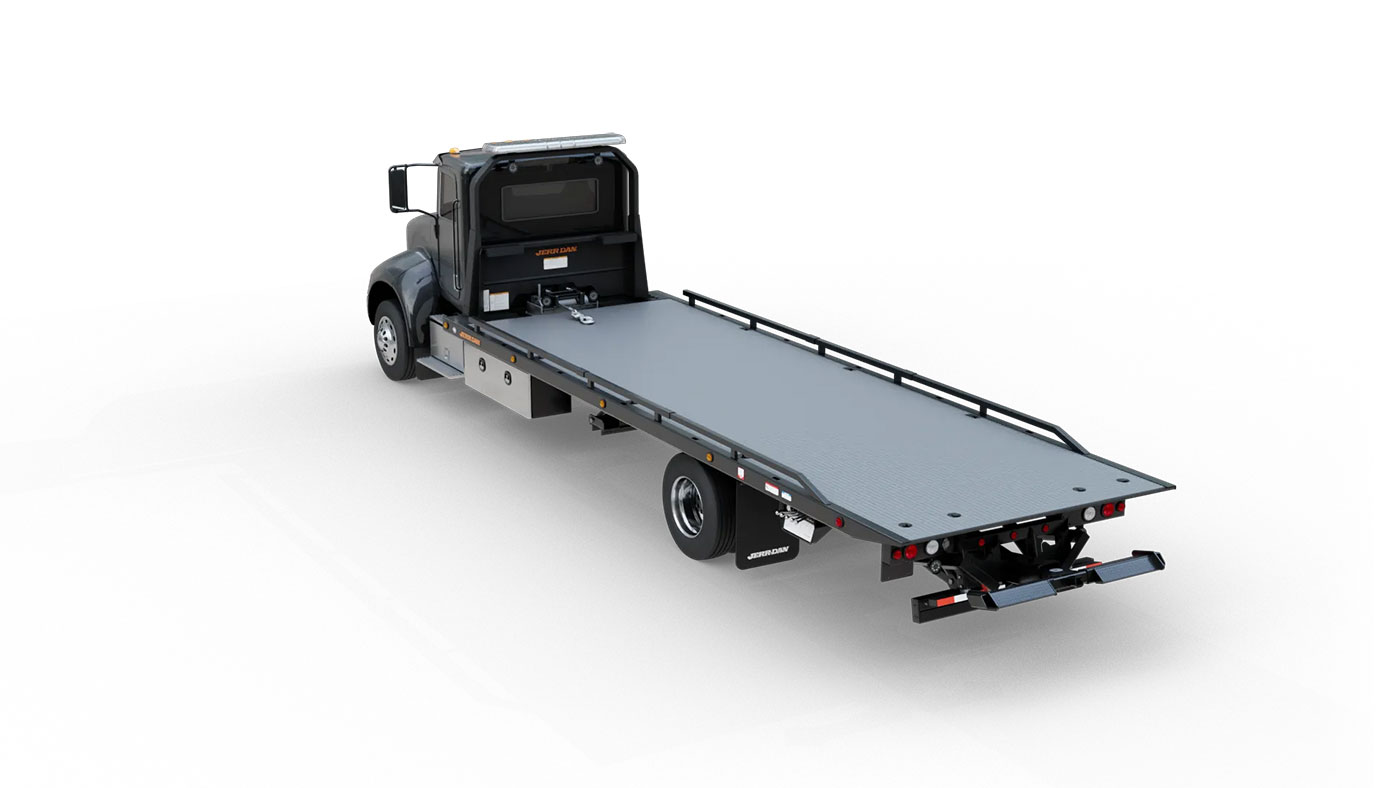

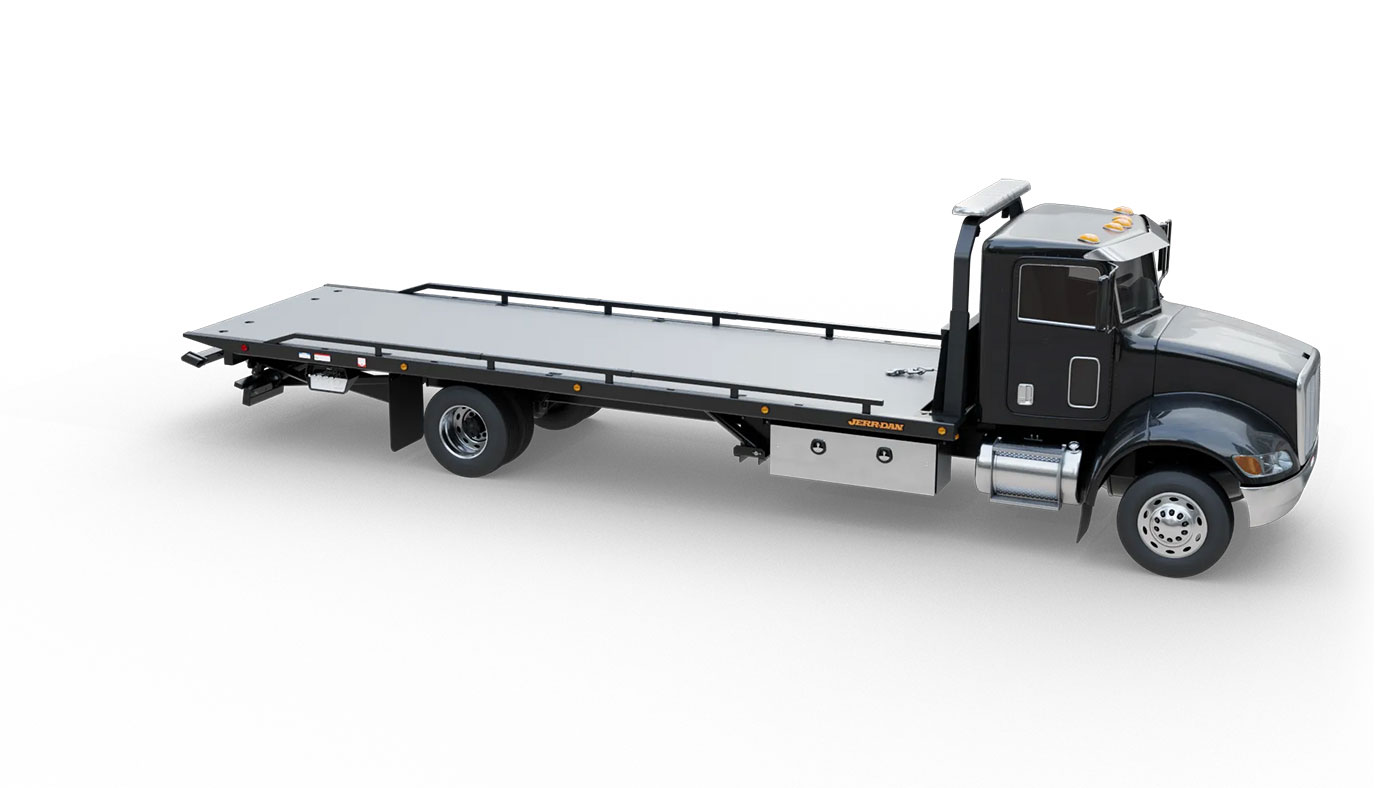

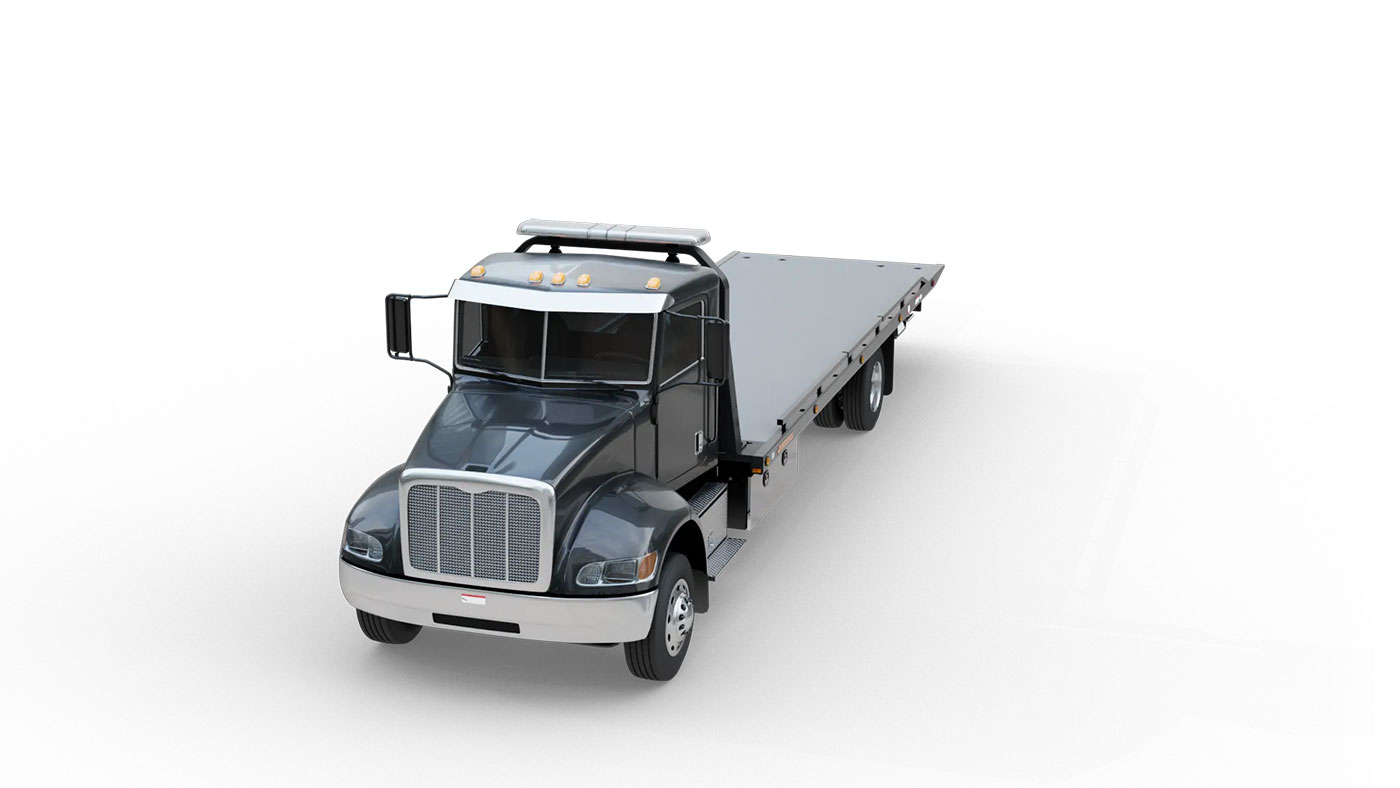

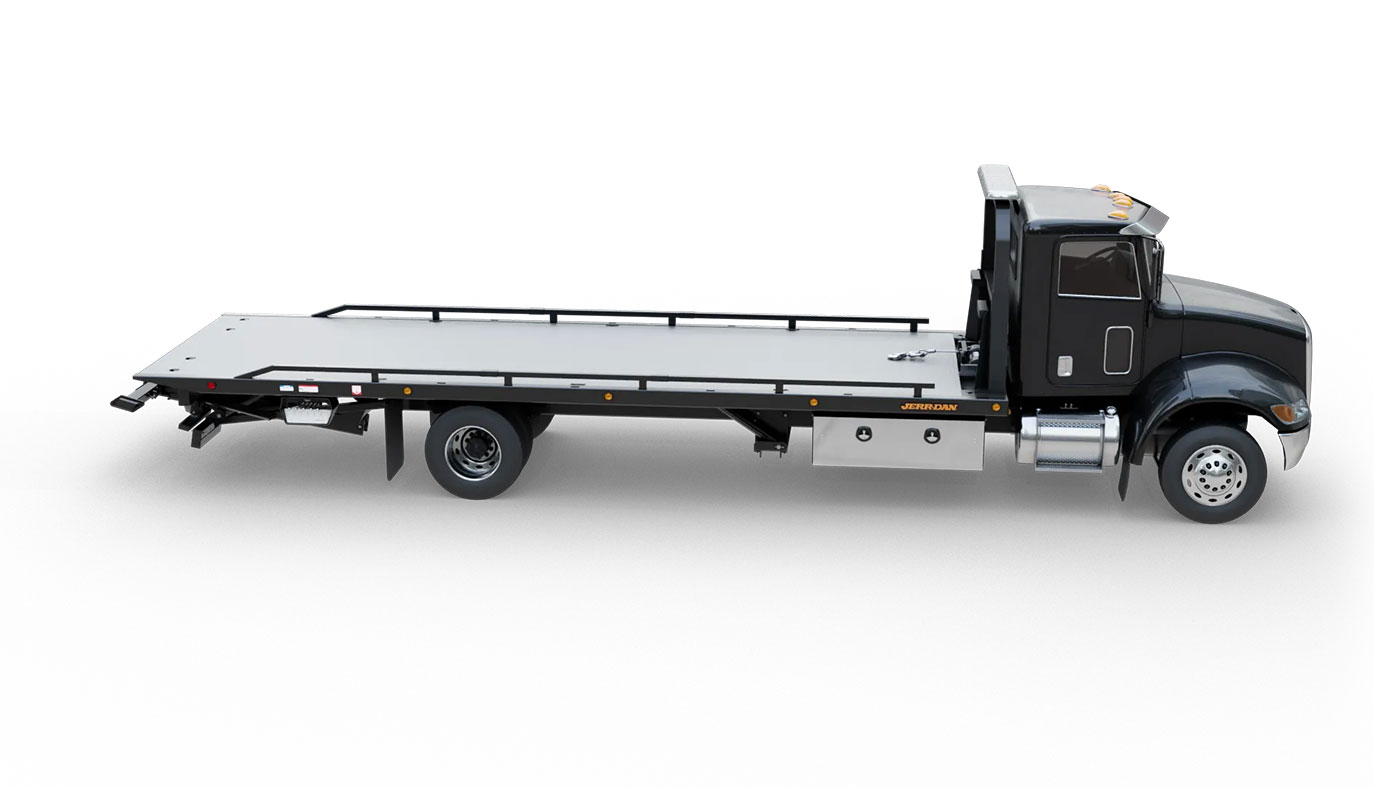

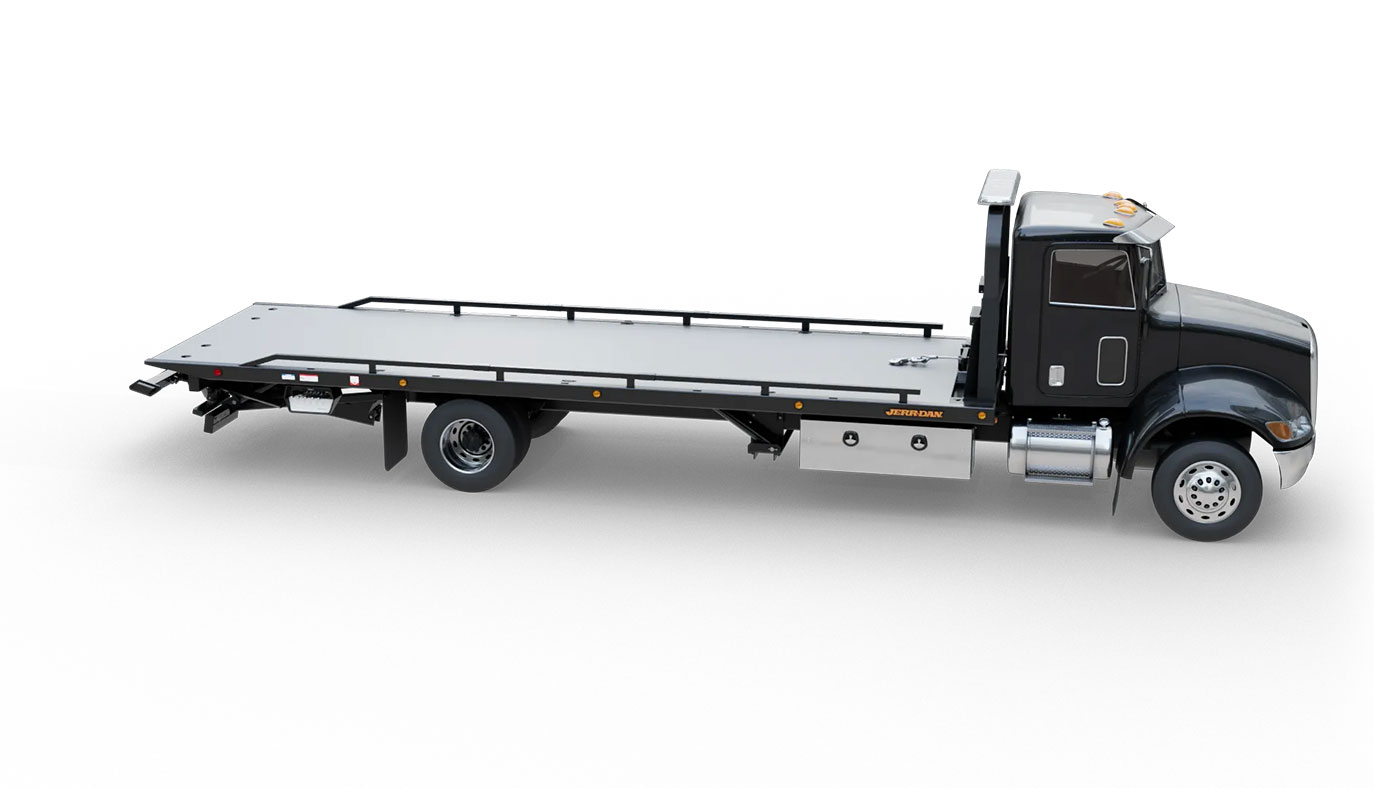

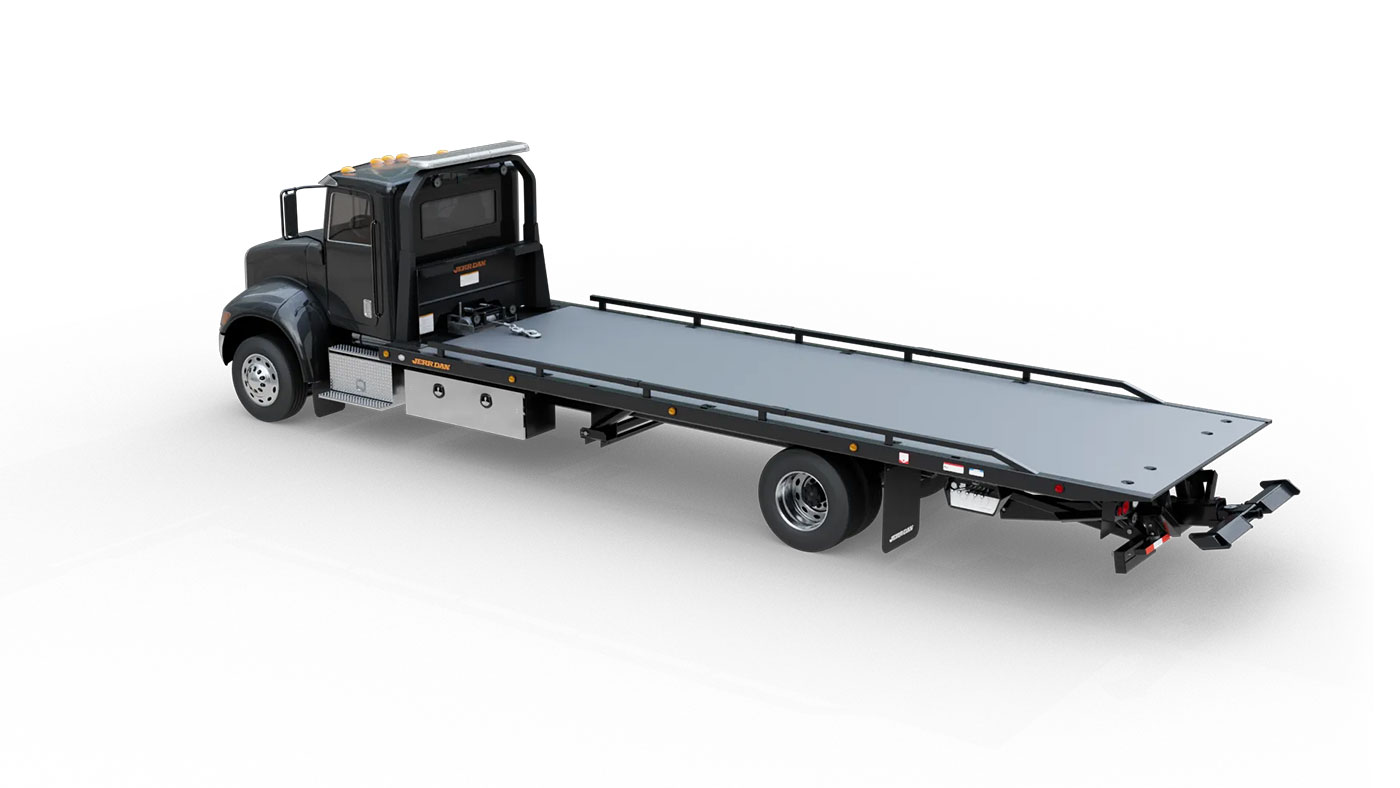

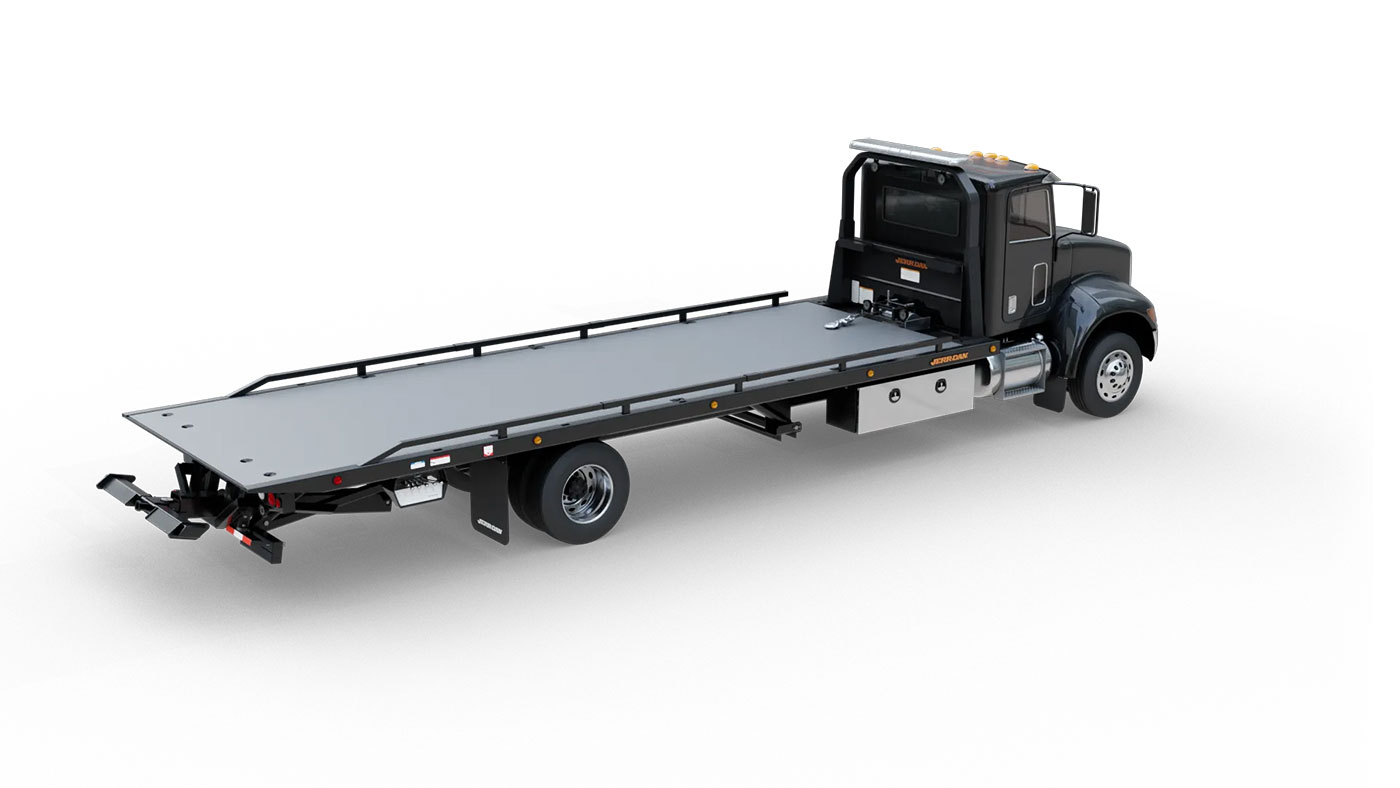

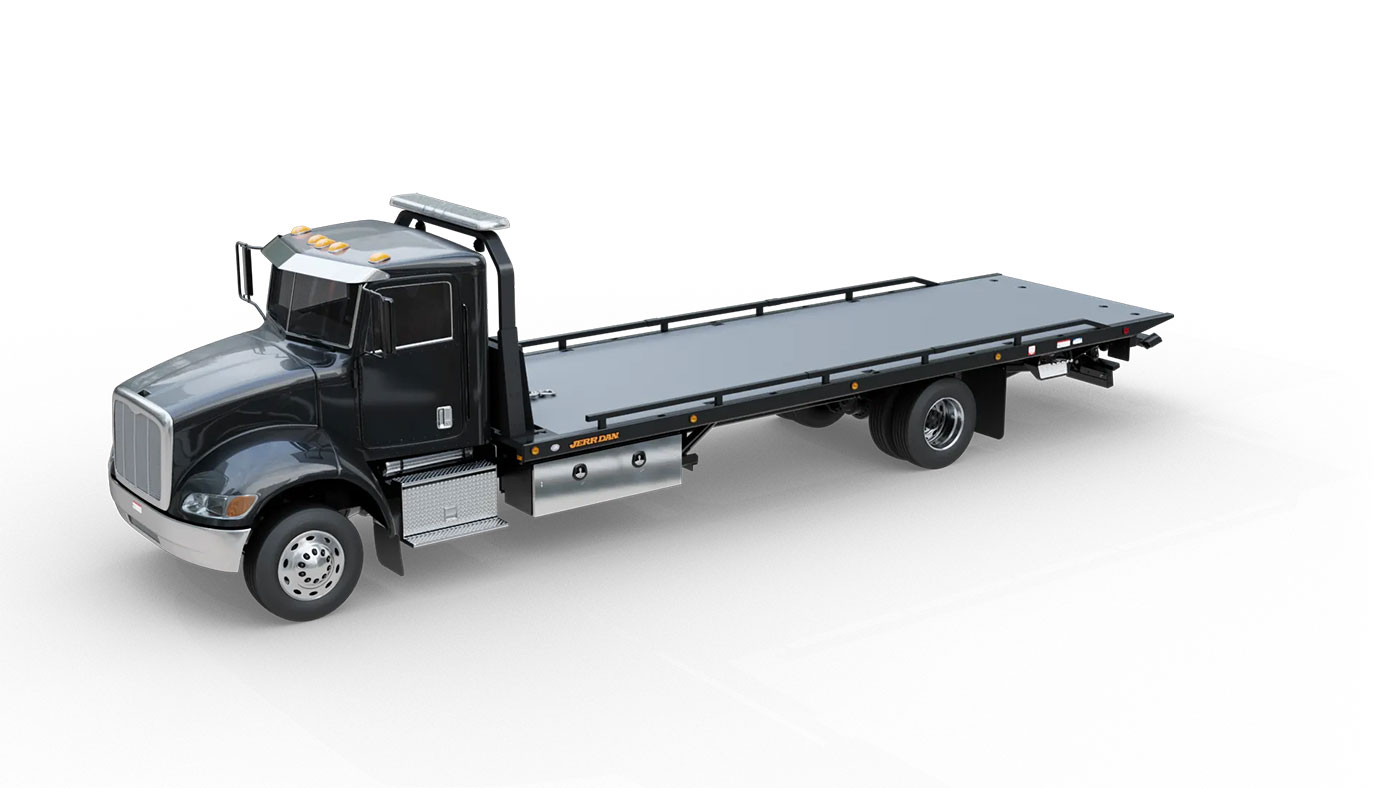

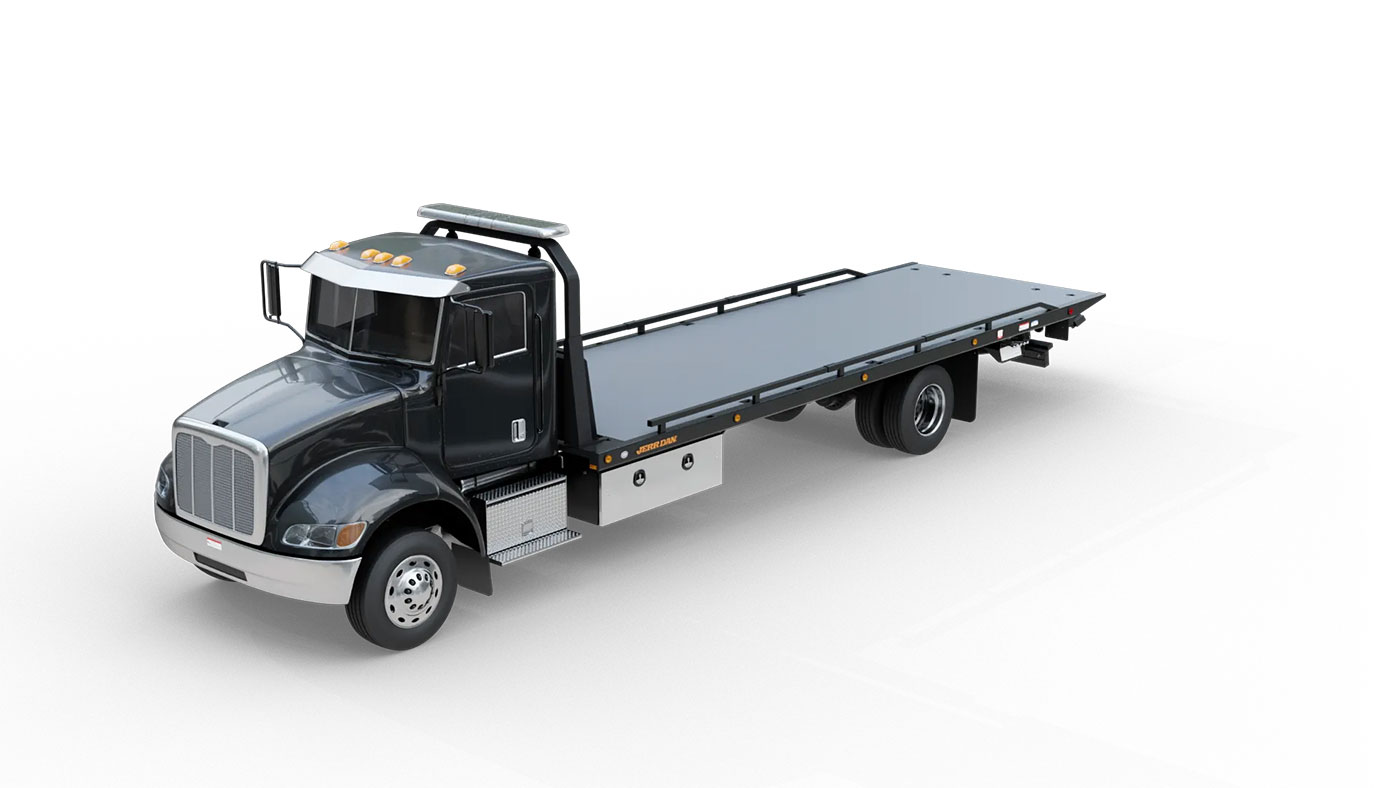

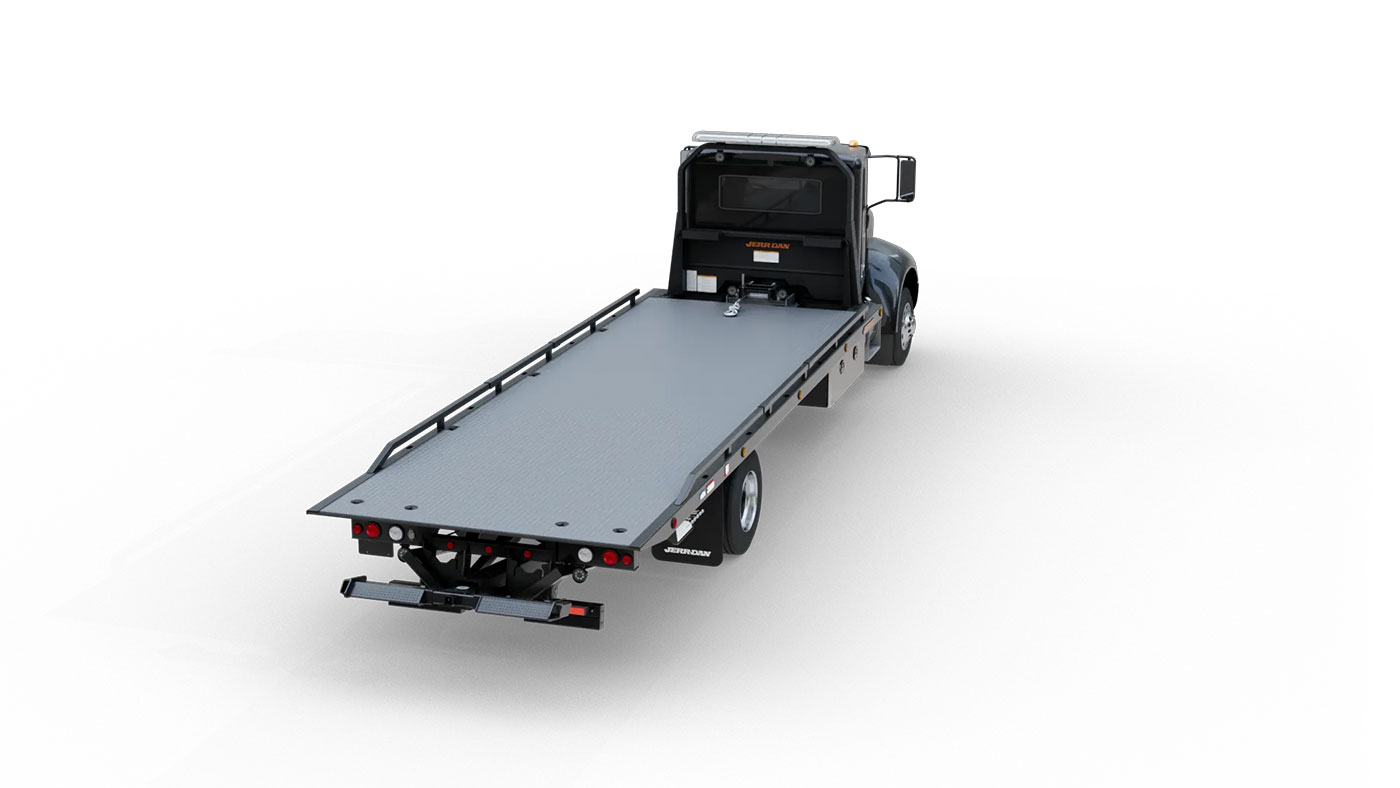

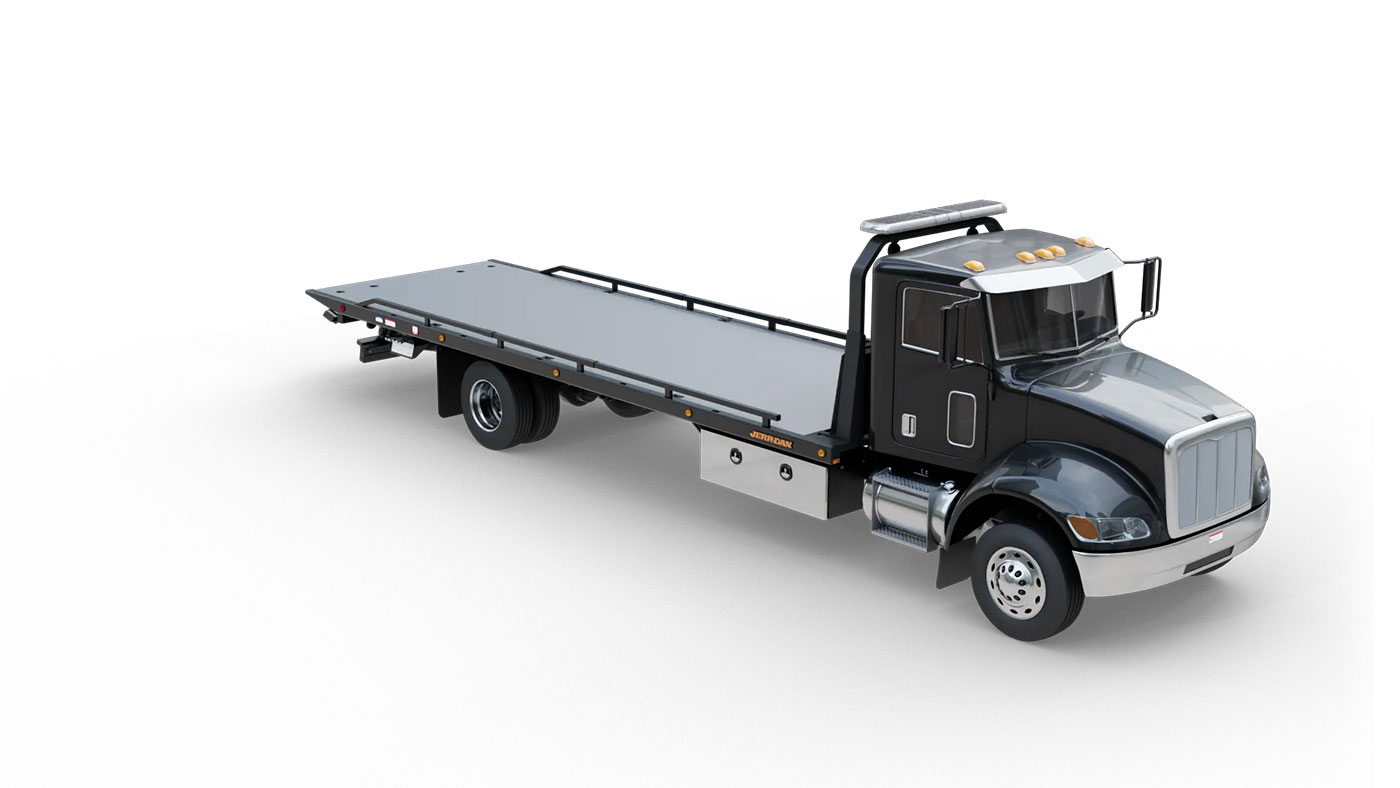

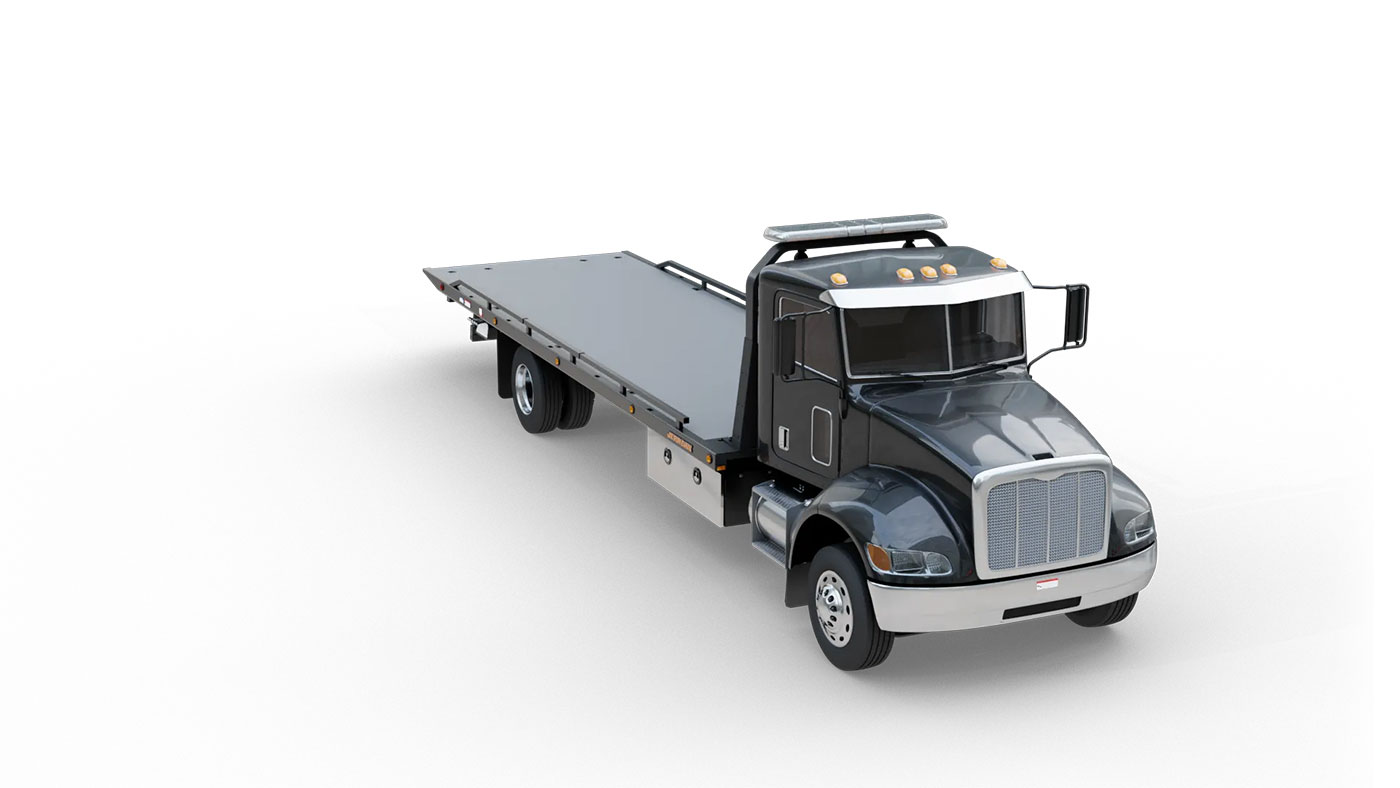

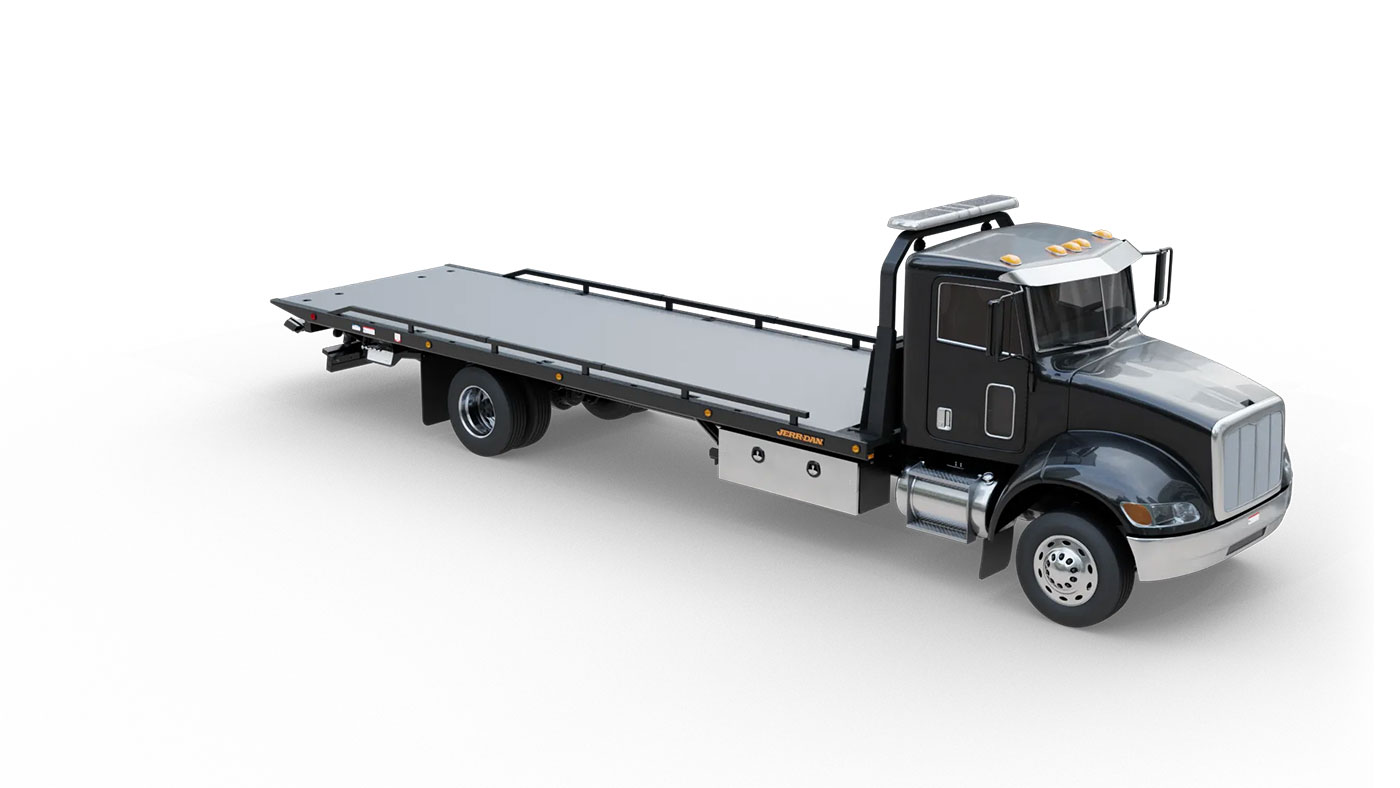

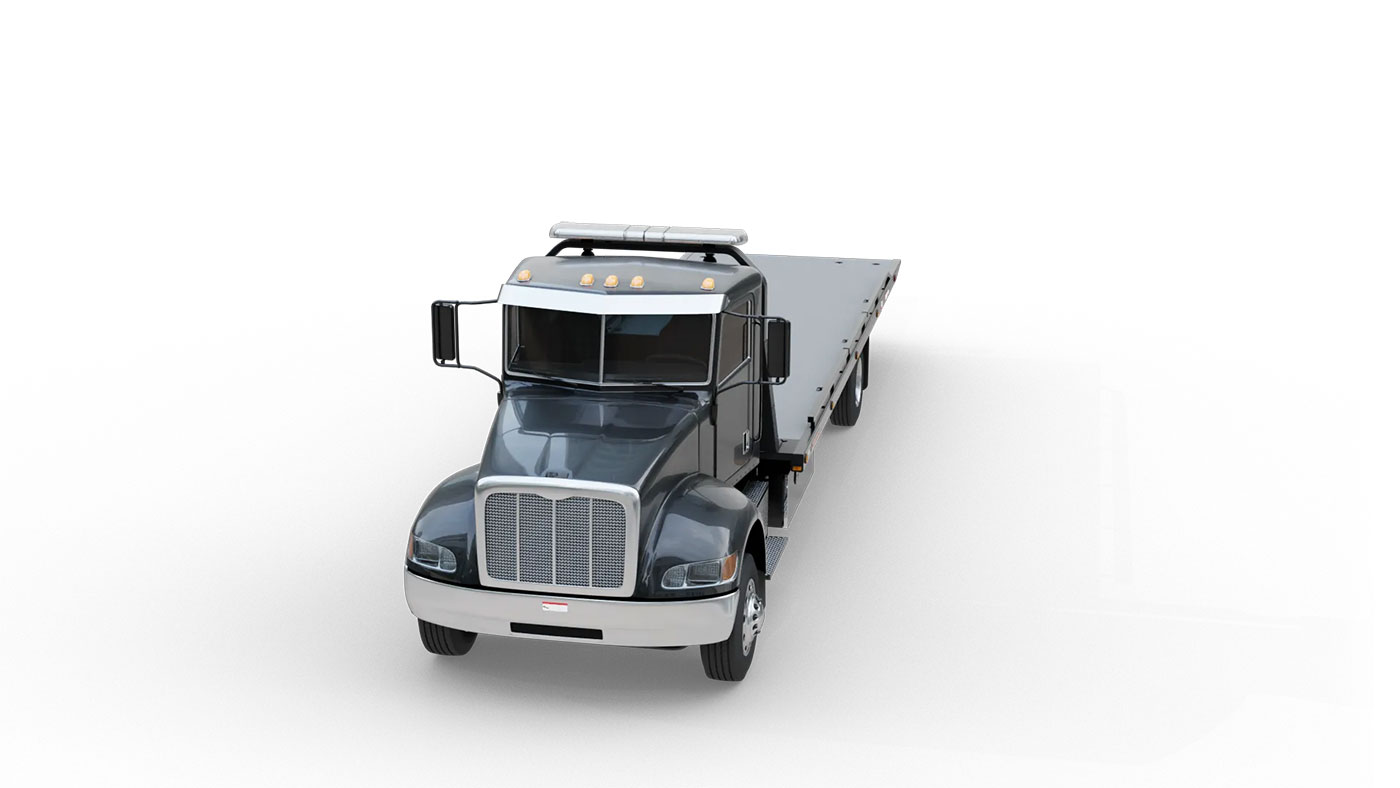

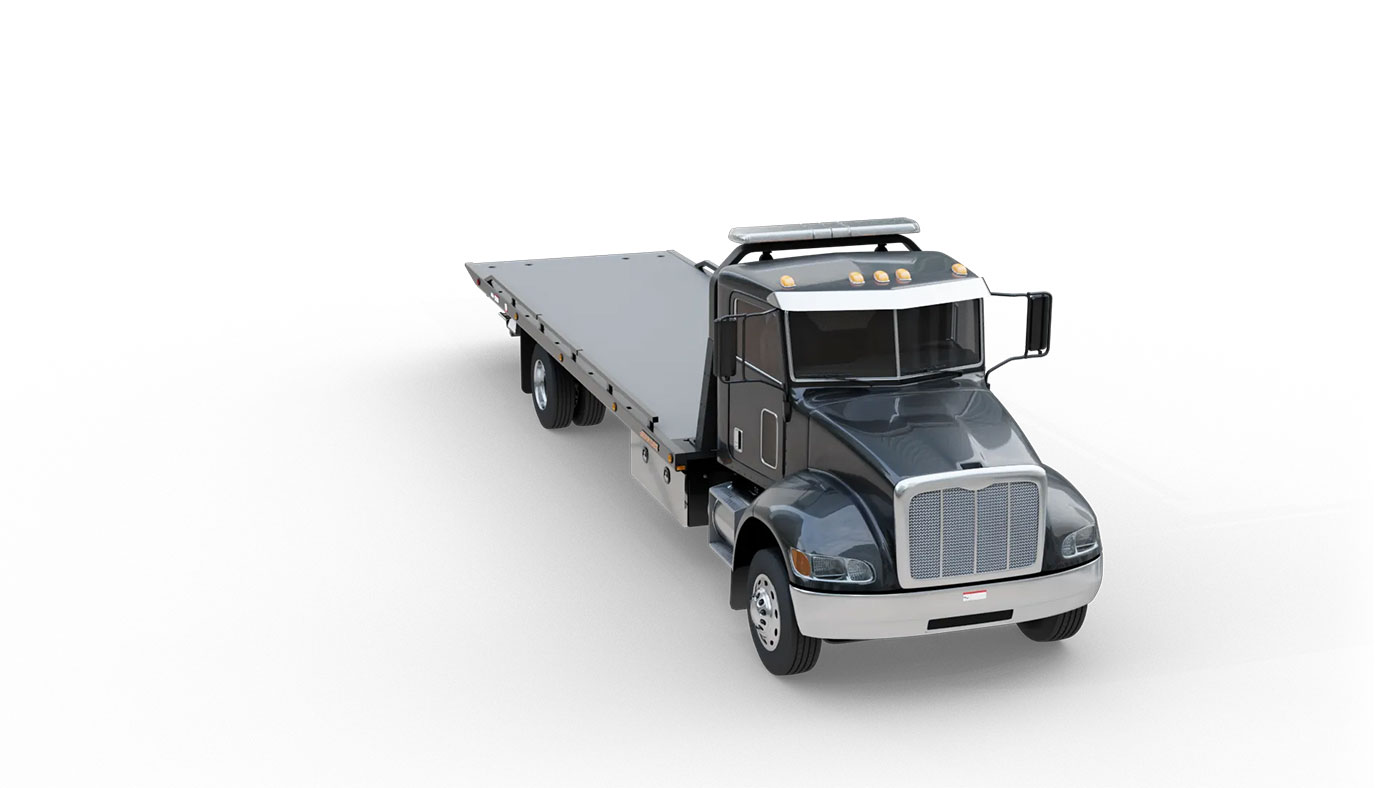

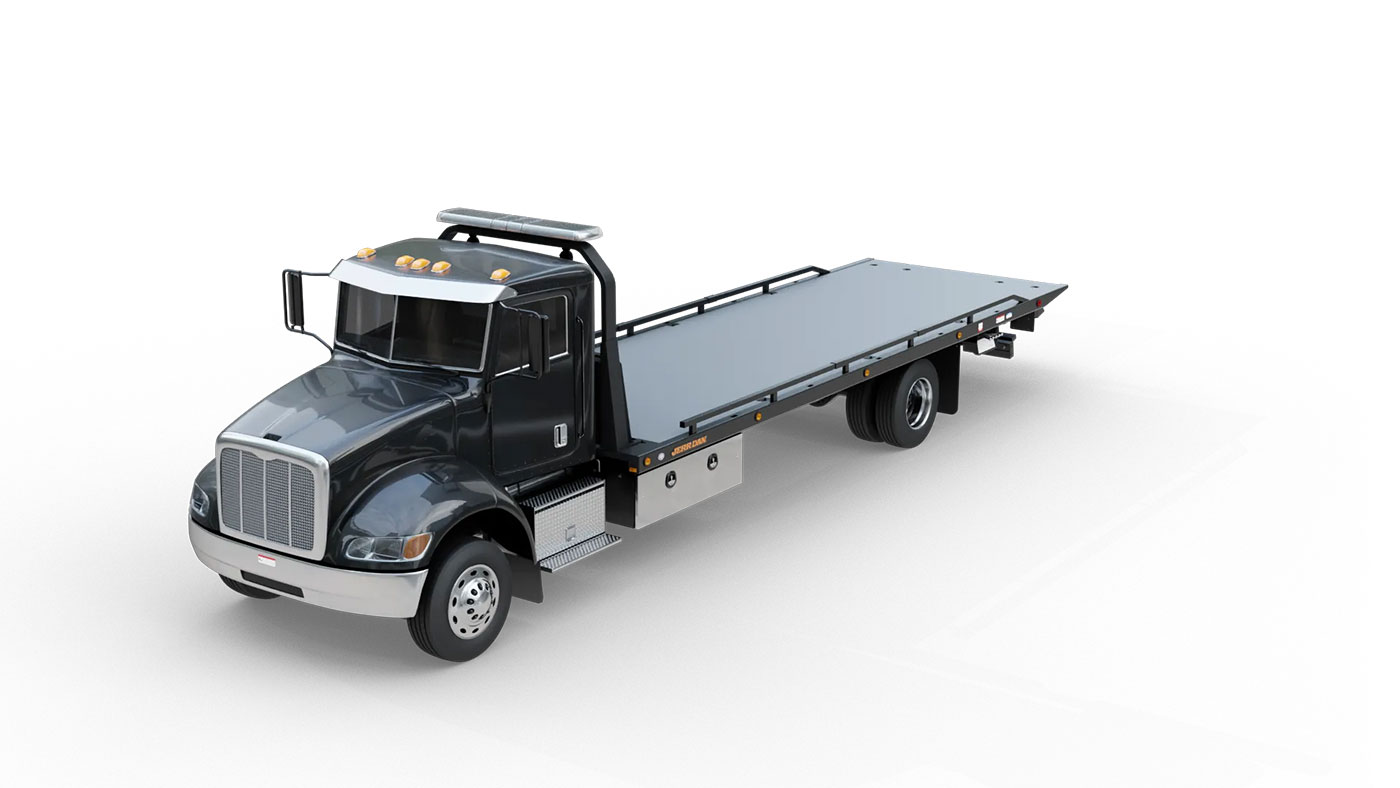

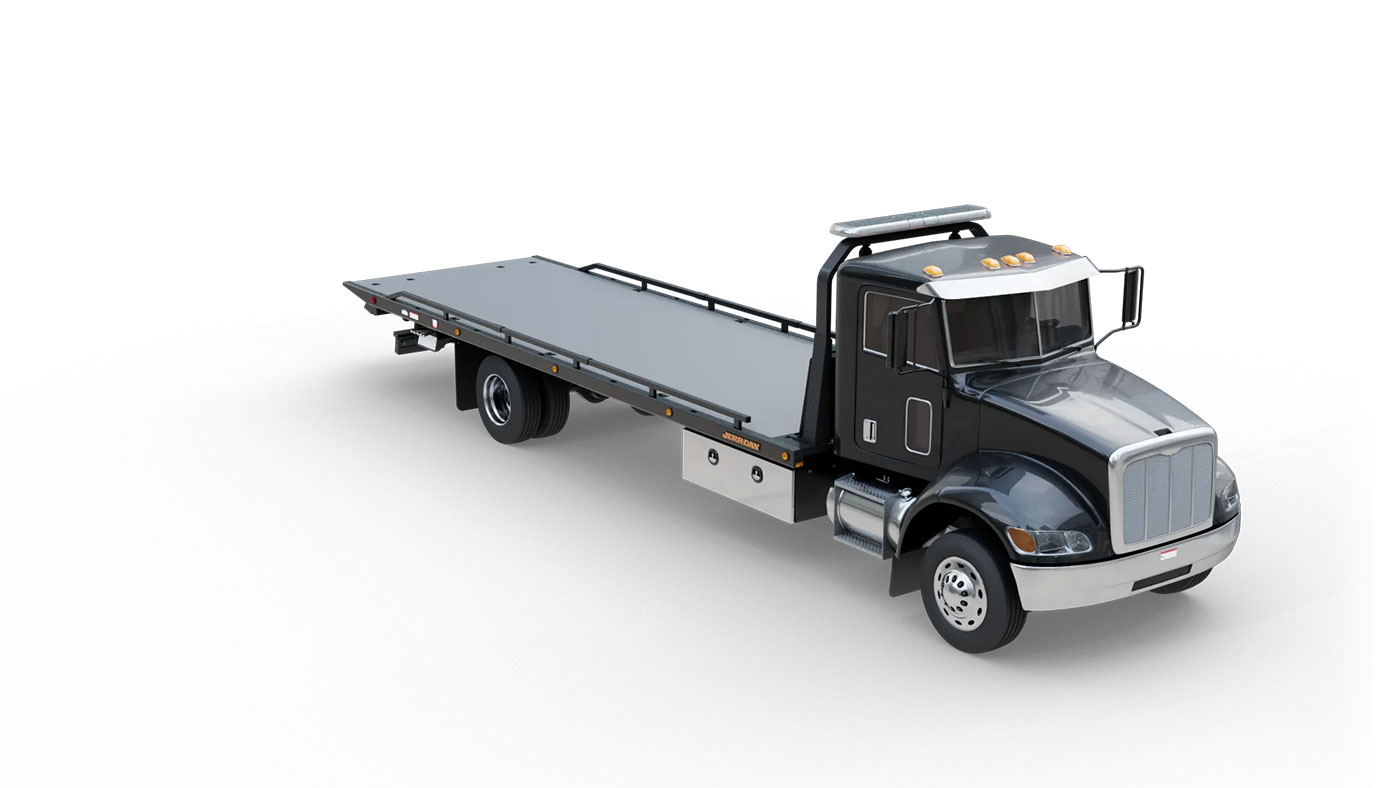

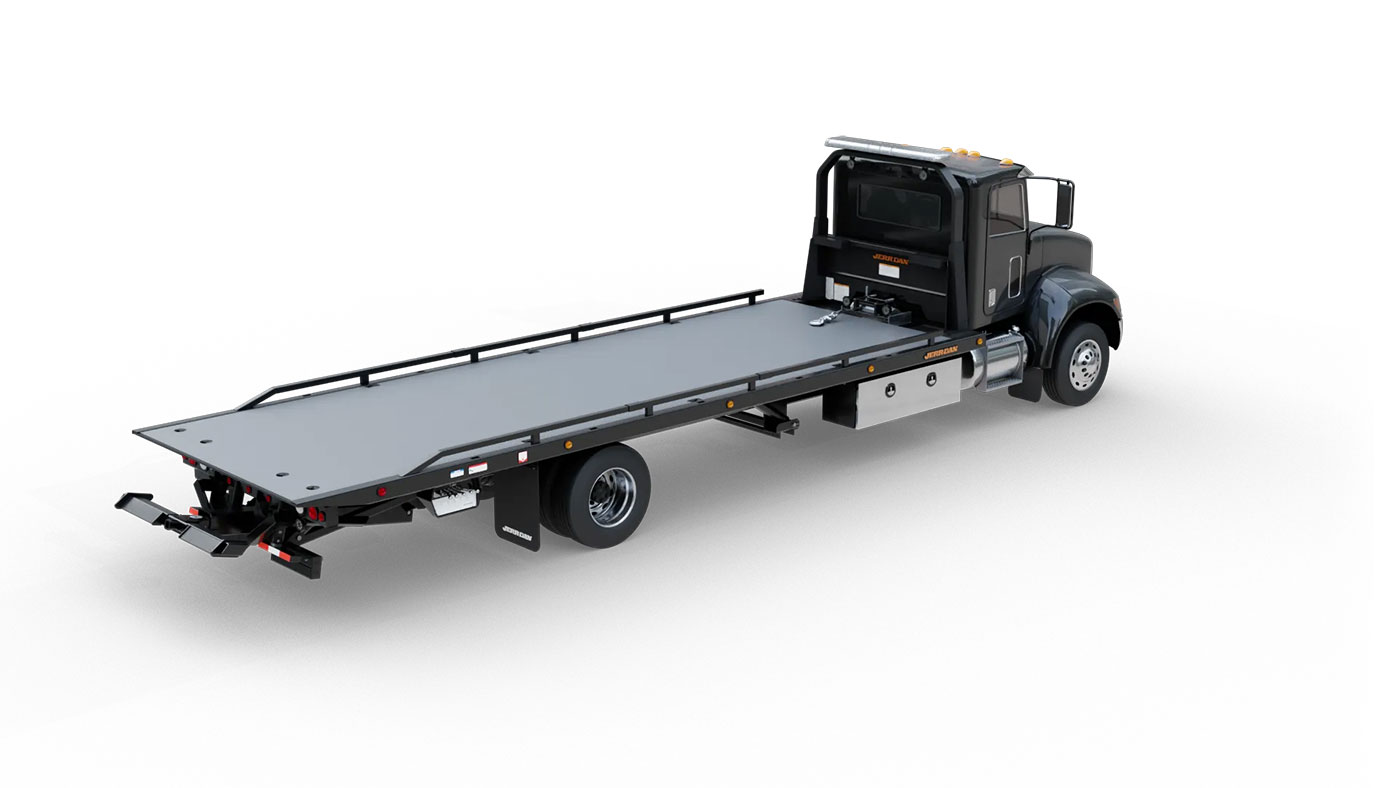

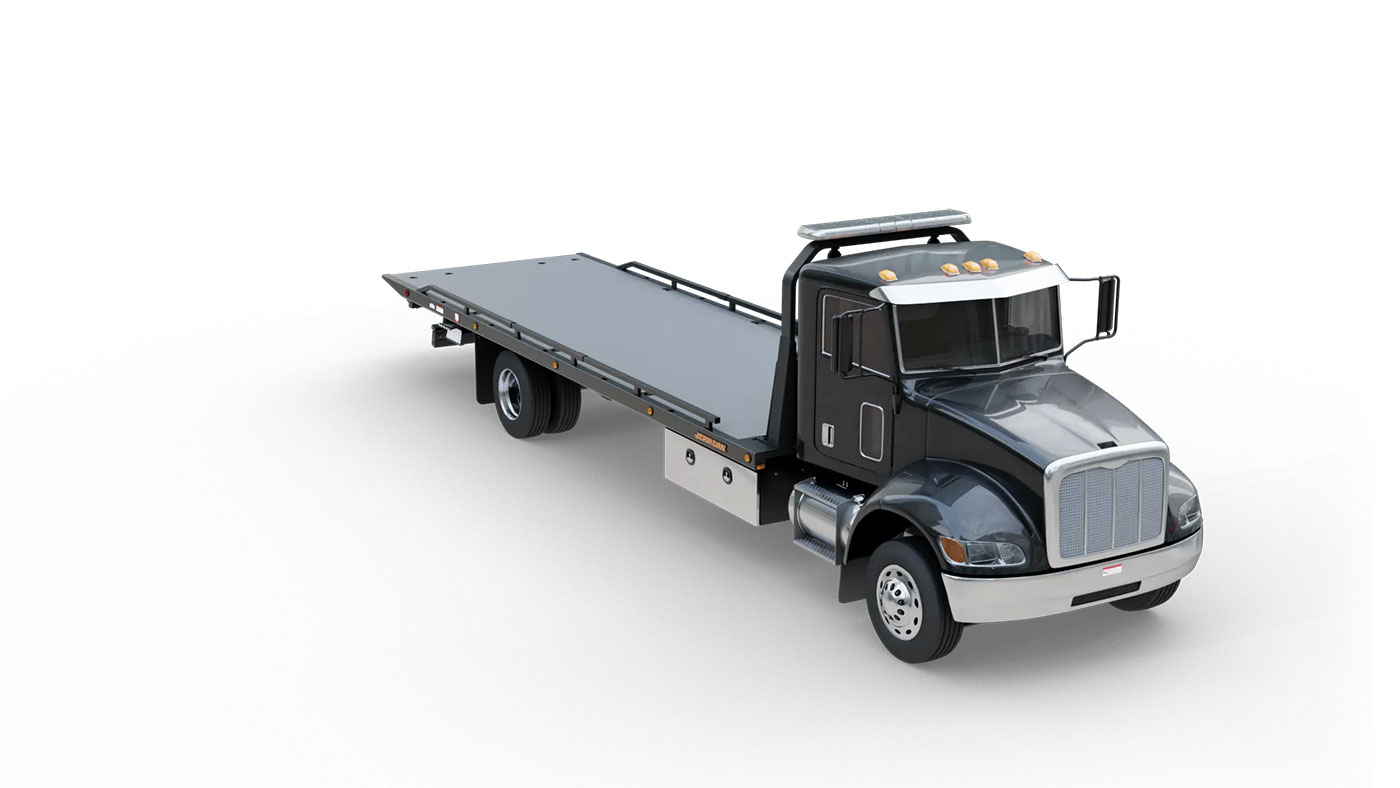

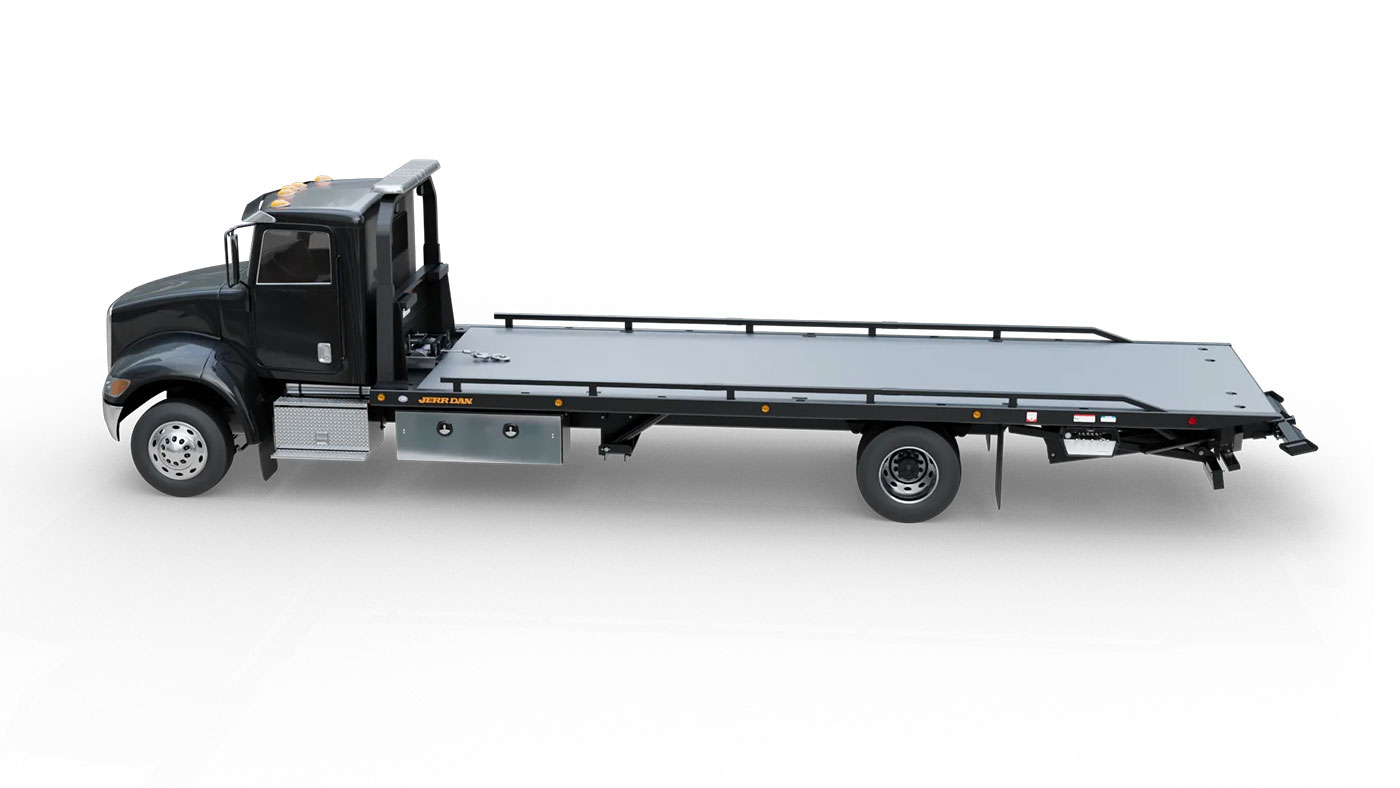

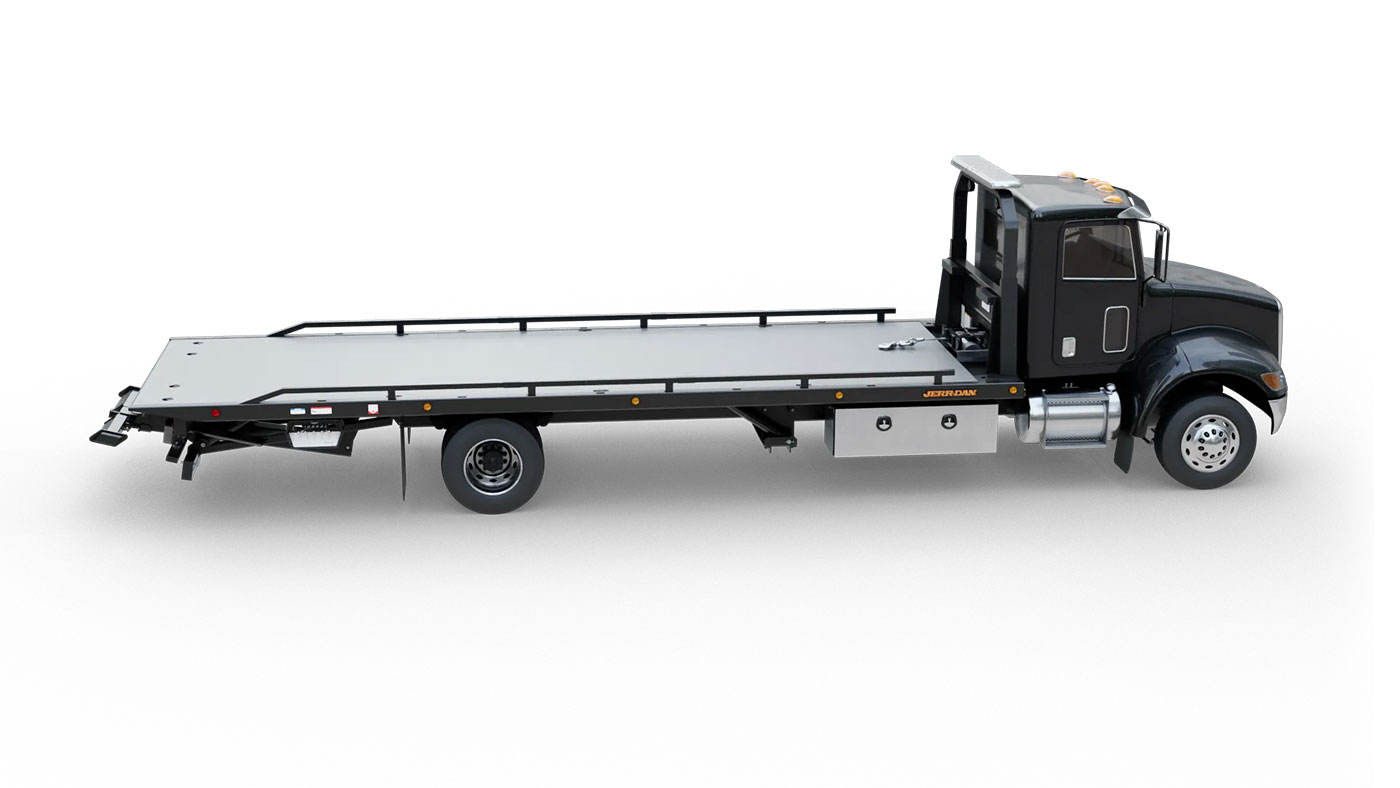

360 View

X

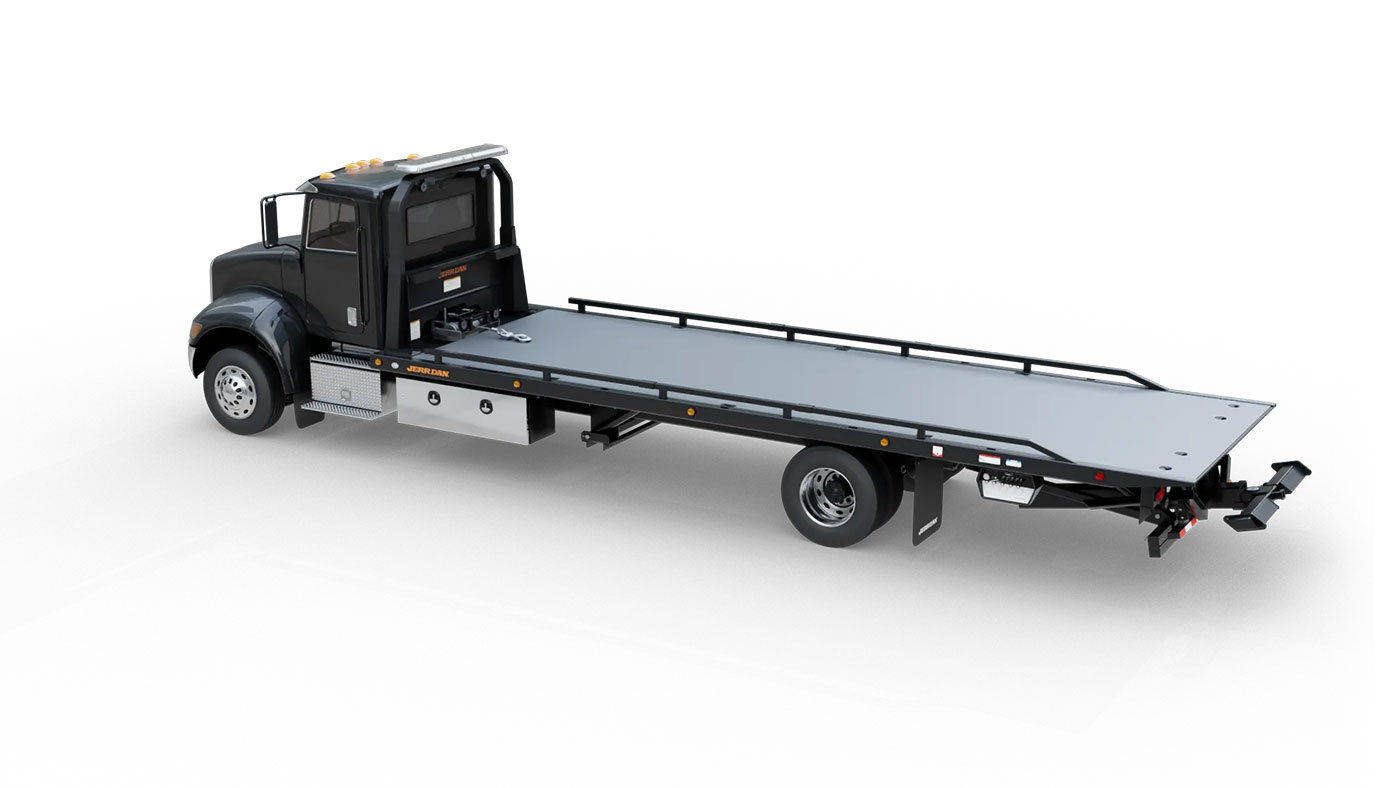

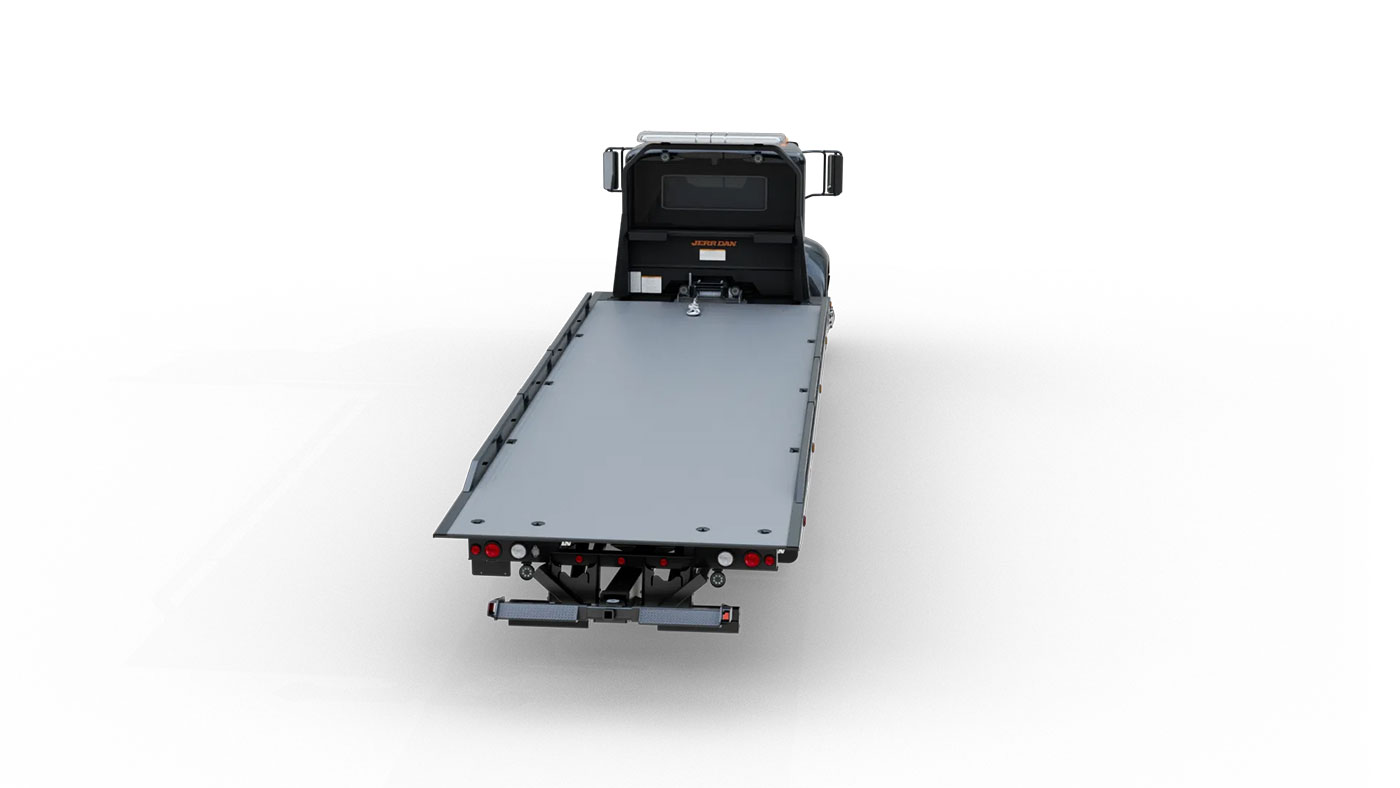

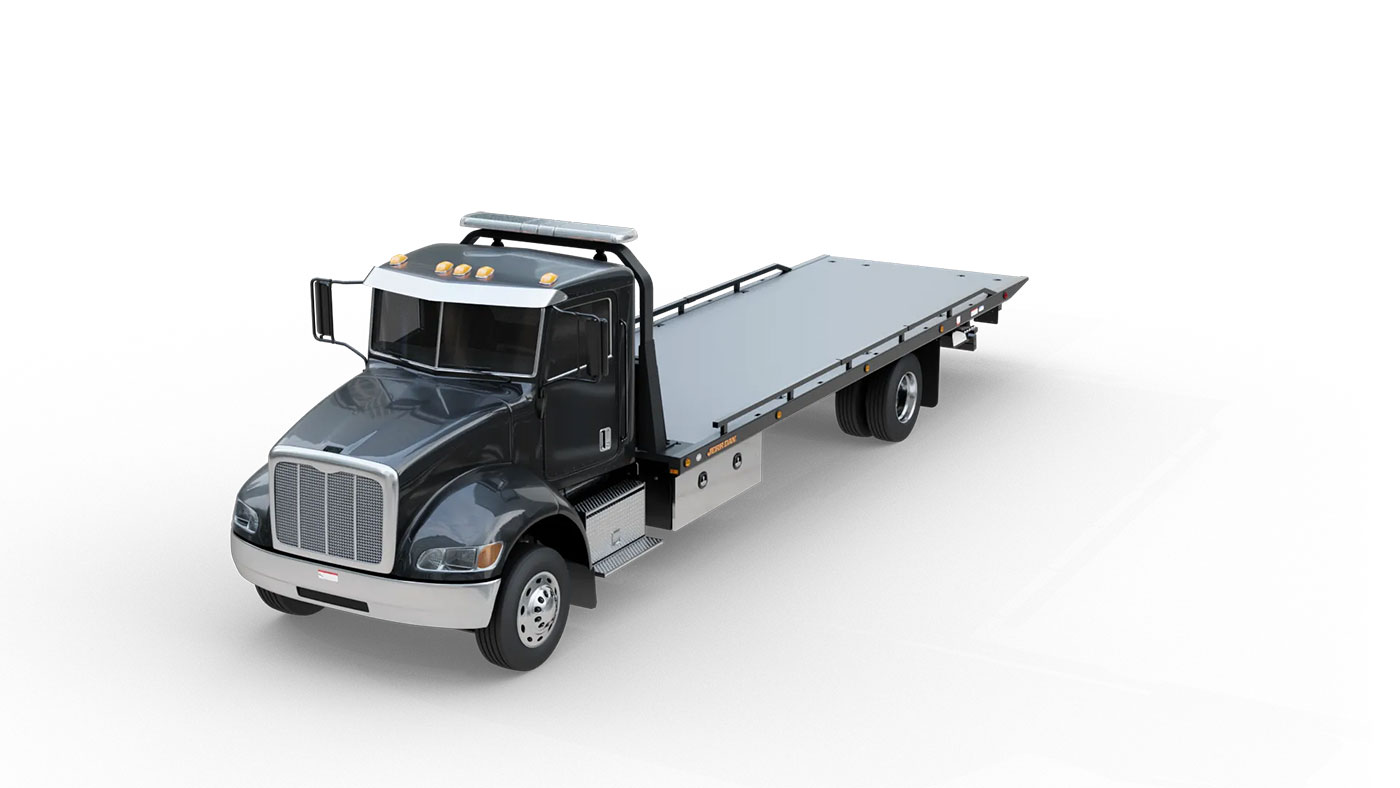

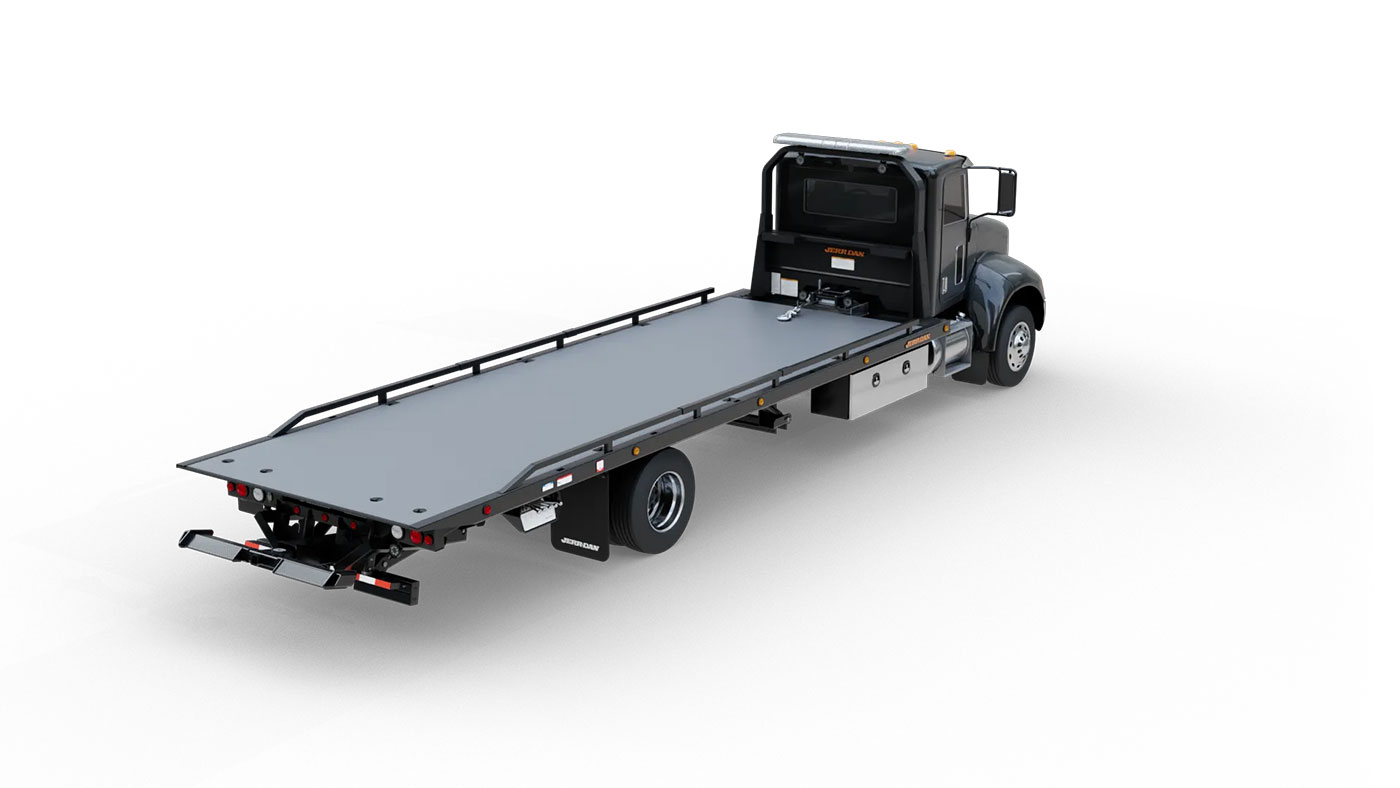

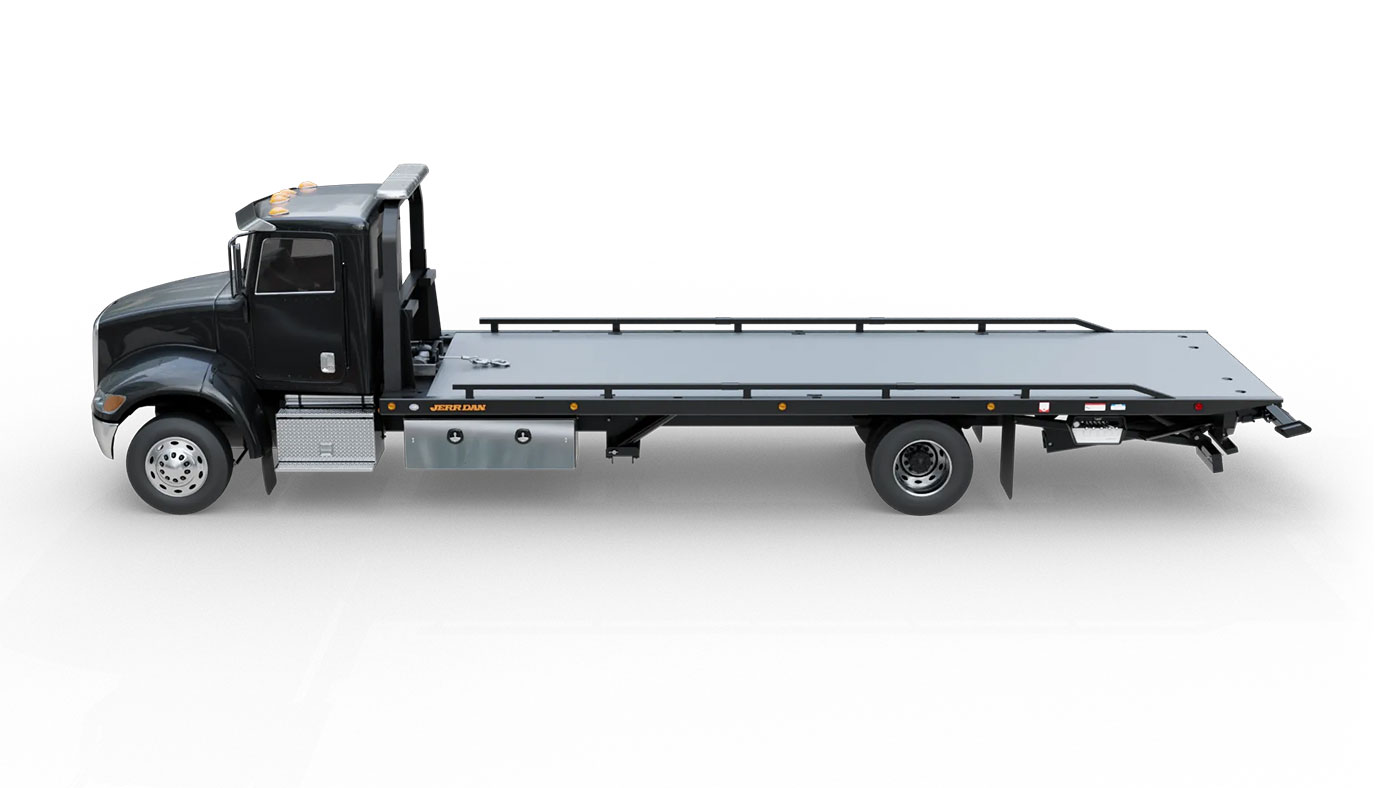

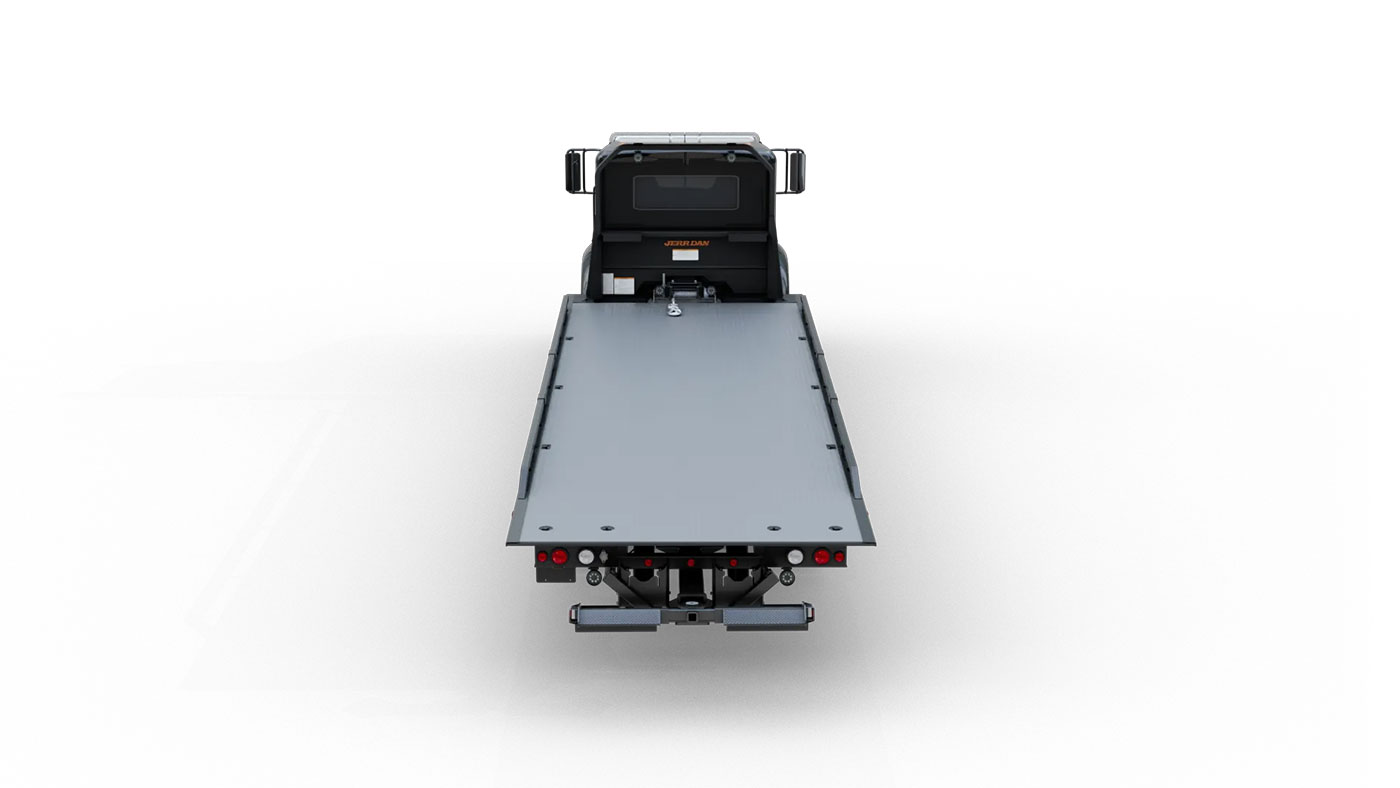

8.5 Ton XLP

8.5 Ton XLP

Features

Features

Controls
Deck
Tilt Cylinder
Winch

Dimensions

22'
Bed Length Cab to Axle Overall Width Option

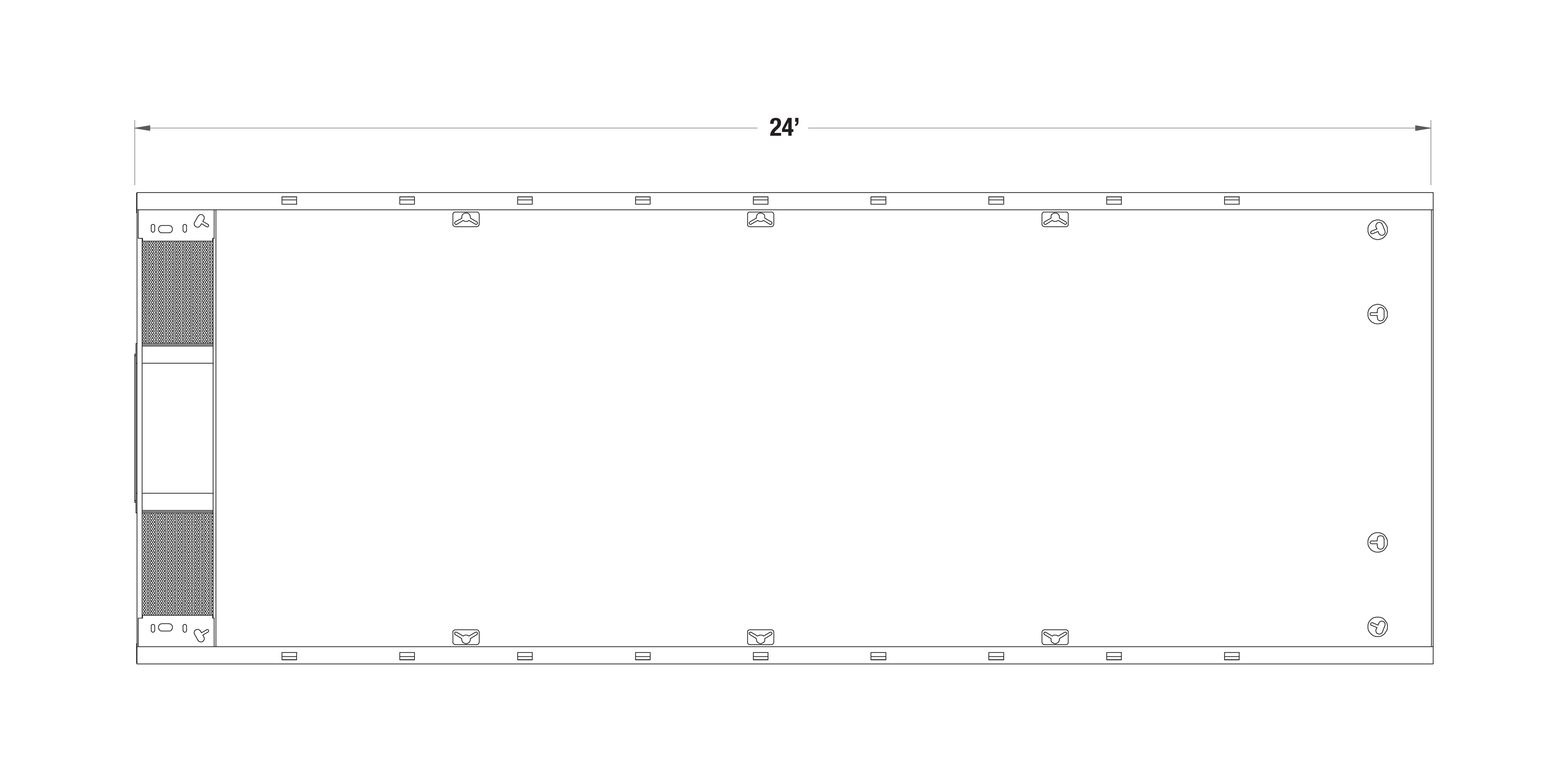

24'
Bed Length Cab to Axle Overall Width Option

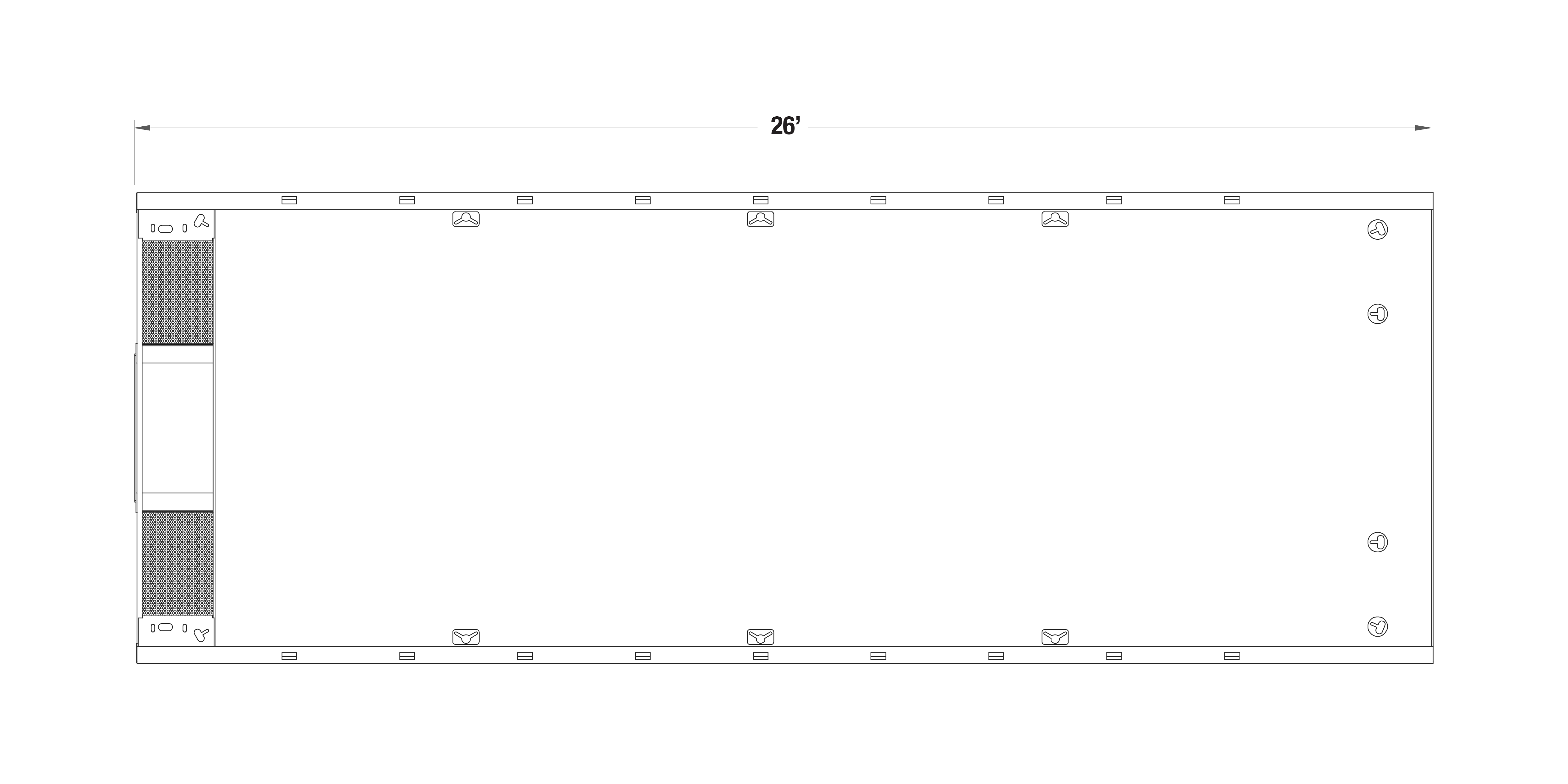

26'
Bed Length Cab to Axle Overall Width Option

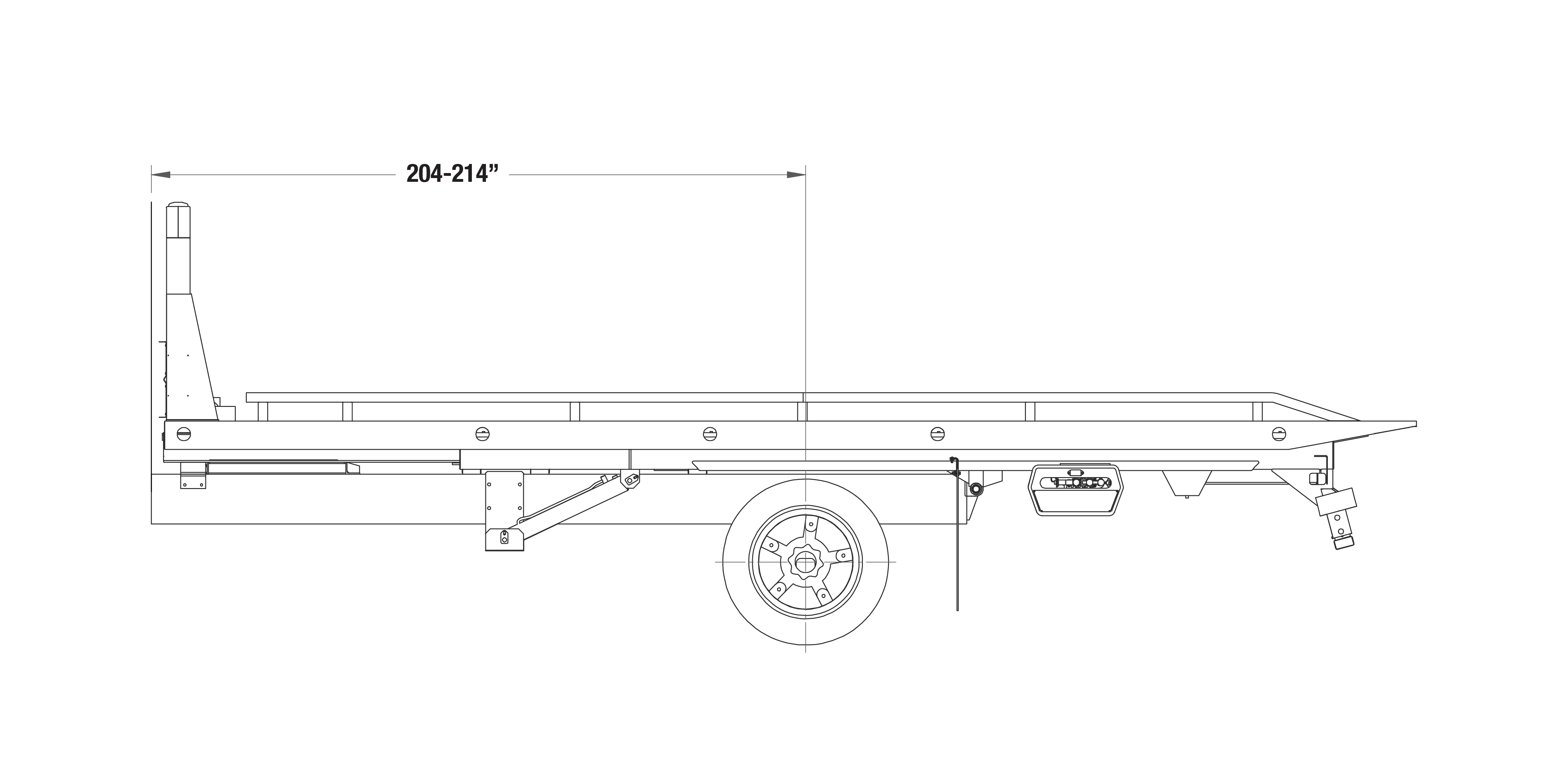

28'
Bed Length Cab to Axle Overall Width Option

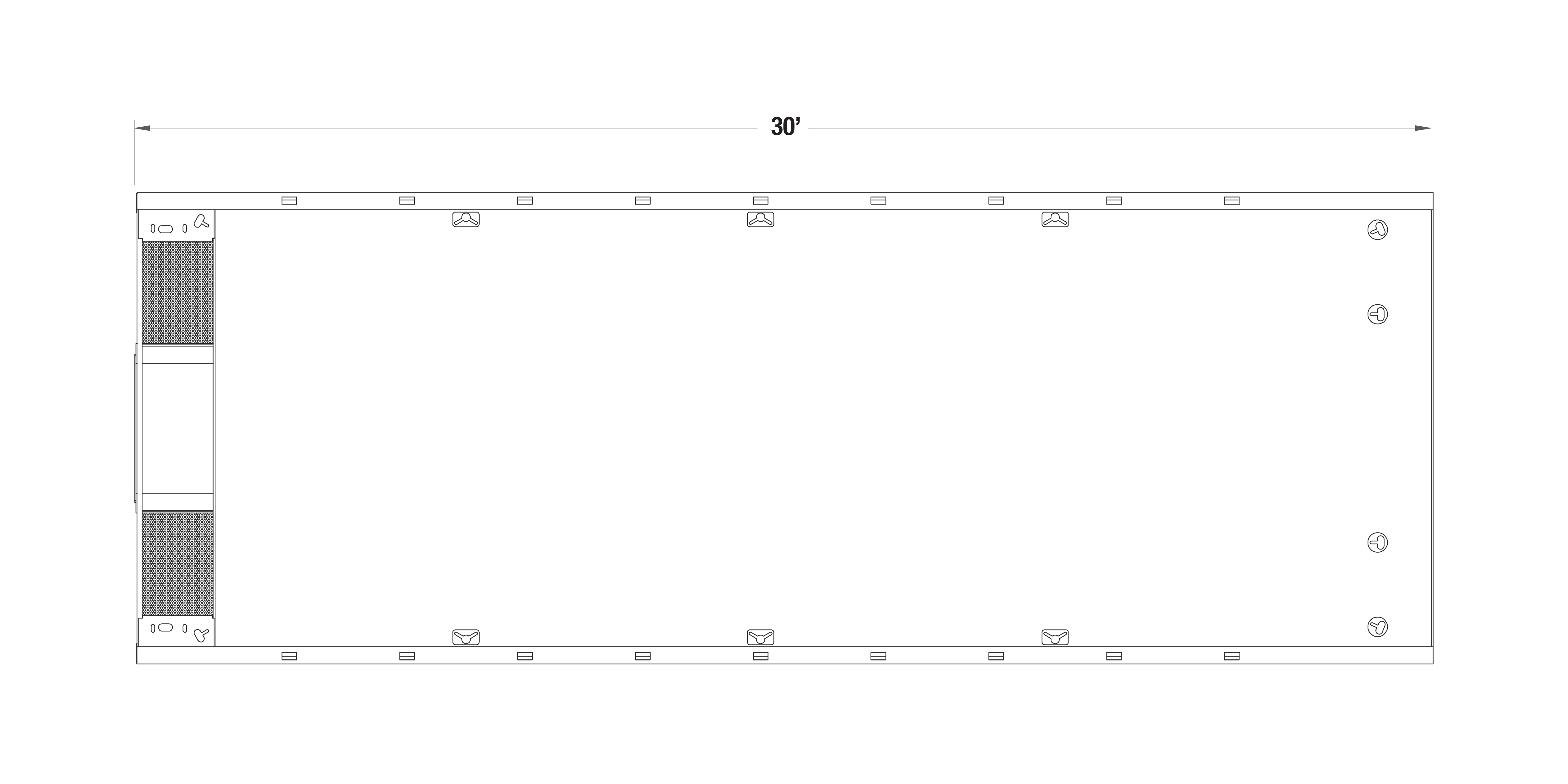

30'
Bed Length Cab to Axle Overall Width

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

8.5 Ton XLP
Deck
Deck
Length
Length
22', 24', 26', 28', & 30'
Width
Width
96 in, 102 in
Material
Material
Steel or Aluminum
3,500 lb. Wheel Lift
3,500 lb. Wheel Lift
Lift Capacity
Lift Capacity
3,500 lbs.
Tow Capacity
Tow Capacity
10,000 lbs.
Maximum Extended Reach
Maximum Extended Reach
65 in.
5,000 lb. Wheel Lift
5,000 lb. Wheel Lift
Lift Capacity
Lift Capacity
5,000 lbs.
Tow Capacity
Tow Capacity
12,000 lbs.
Maximum Extended Reach
Maximum Extended Reach
67 in.
Winch
Winch
Winch Capacity
Winch Capacity
Dual 8,000 lbs., Single 10,000 lbs., or 12,000 lbs.
Chassis Recommendation
Chassis Recommendation
Minimum GVWR (w/o wheel lift)
Minimum GVWR (w/o wheel lift)
25,500 lbs.
Minimum GVWR (w/ wheel lift)
Minimum GVWR (w/ wheel lift)
33,000 lbs.

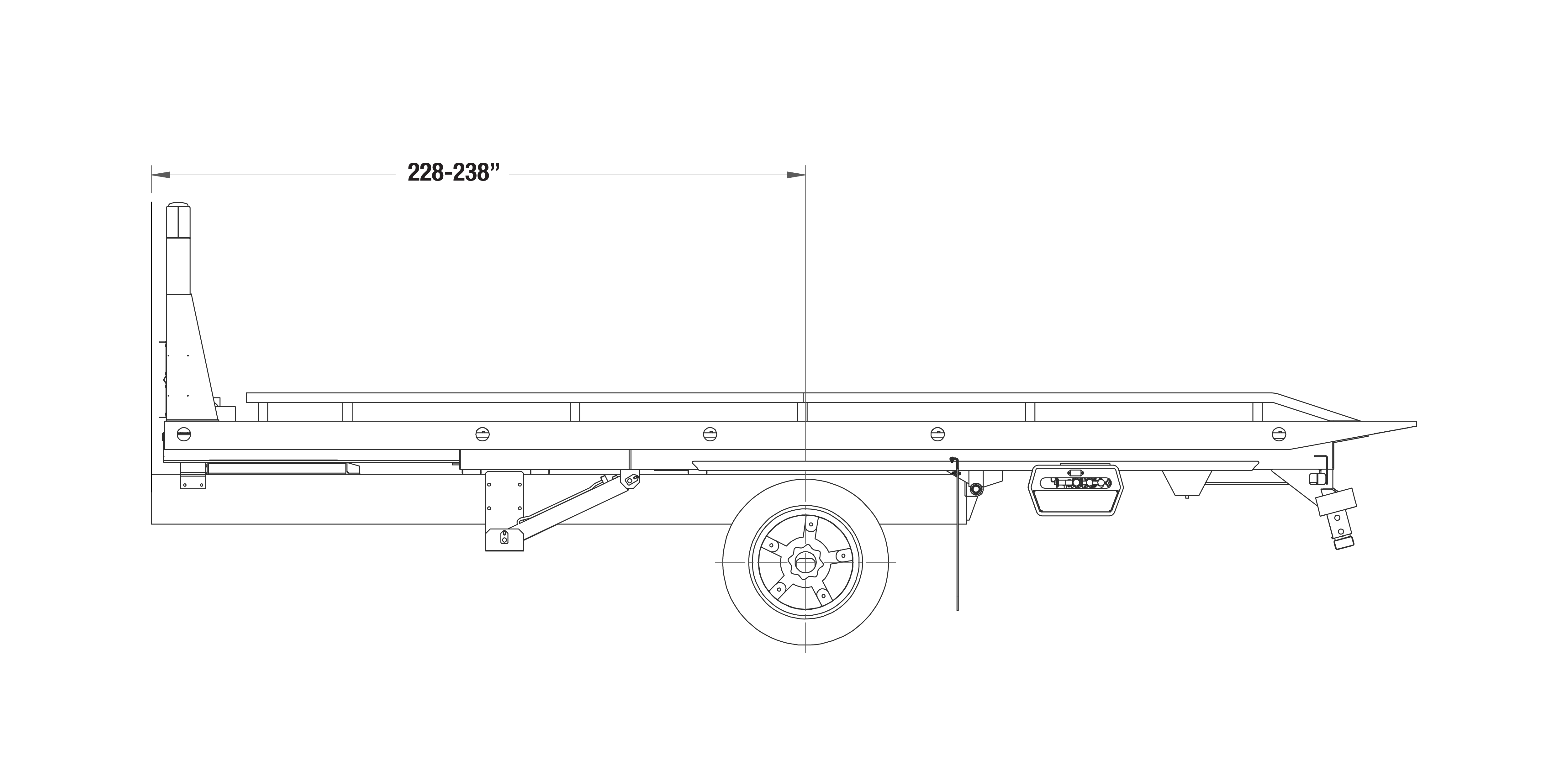

Cab to Axle (CA) Range
Cab to Axle (CA) Range
138"-150" (22' Deck), 156"-168" (24' Deck), 180"-192" (26' Deck), 204"-214" (28' Deck), 228-238" (30' Deck)
Cab to Tandem (CT) Range
Cab to Tandem (CT) Range
158"-170" (26' Deck), 182"-192" (28' Deck), 228"-238" (30' Deck)
Sell Sheets
8.5TonXLP_Sell_Sheet (.pdf)
Showing:

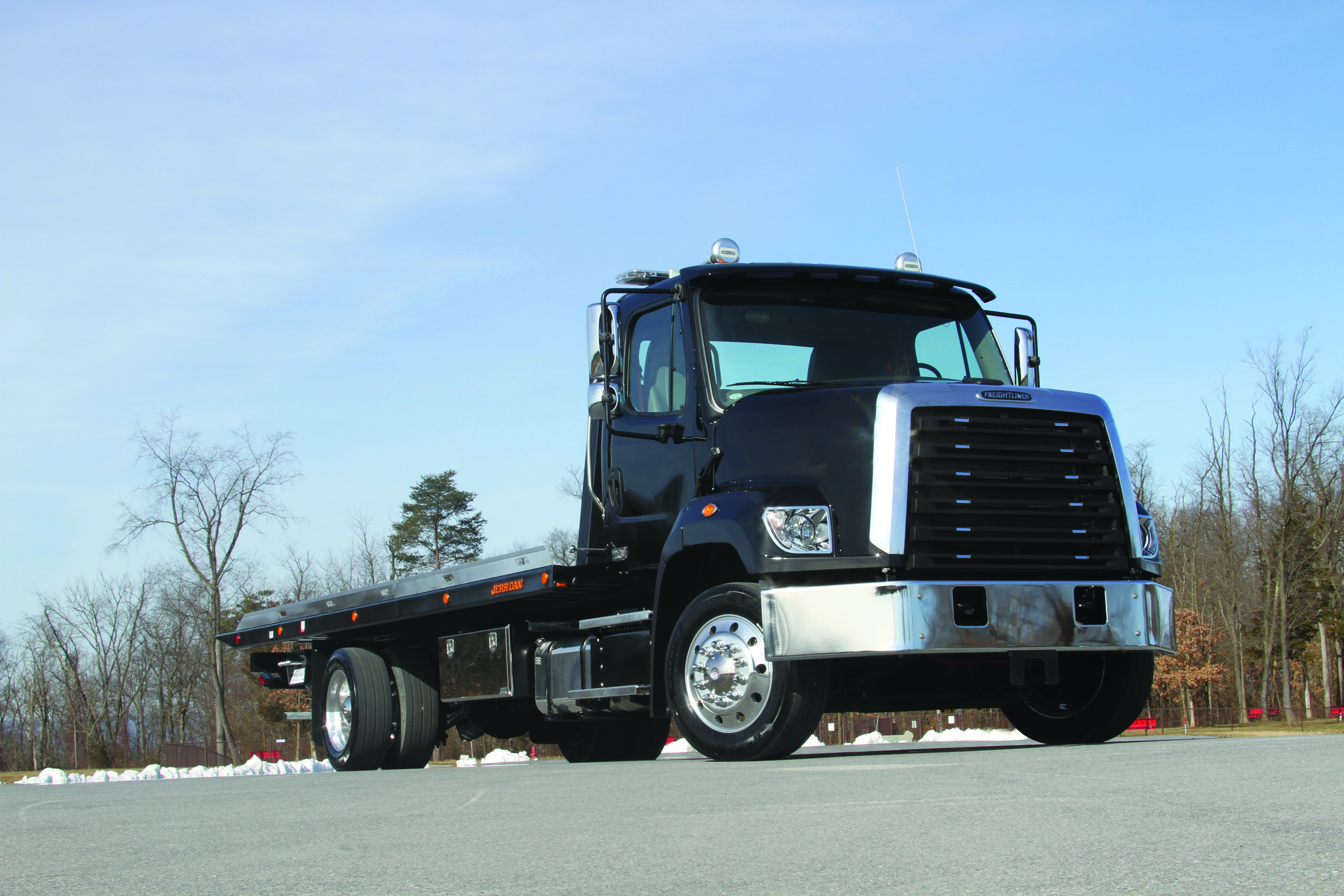

8.5 Ton XLP Carrier

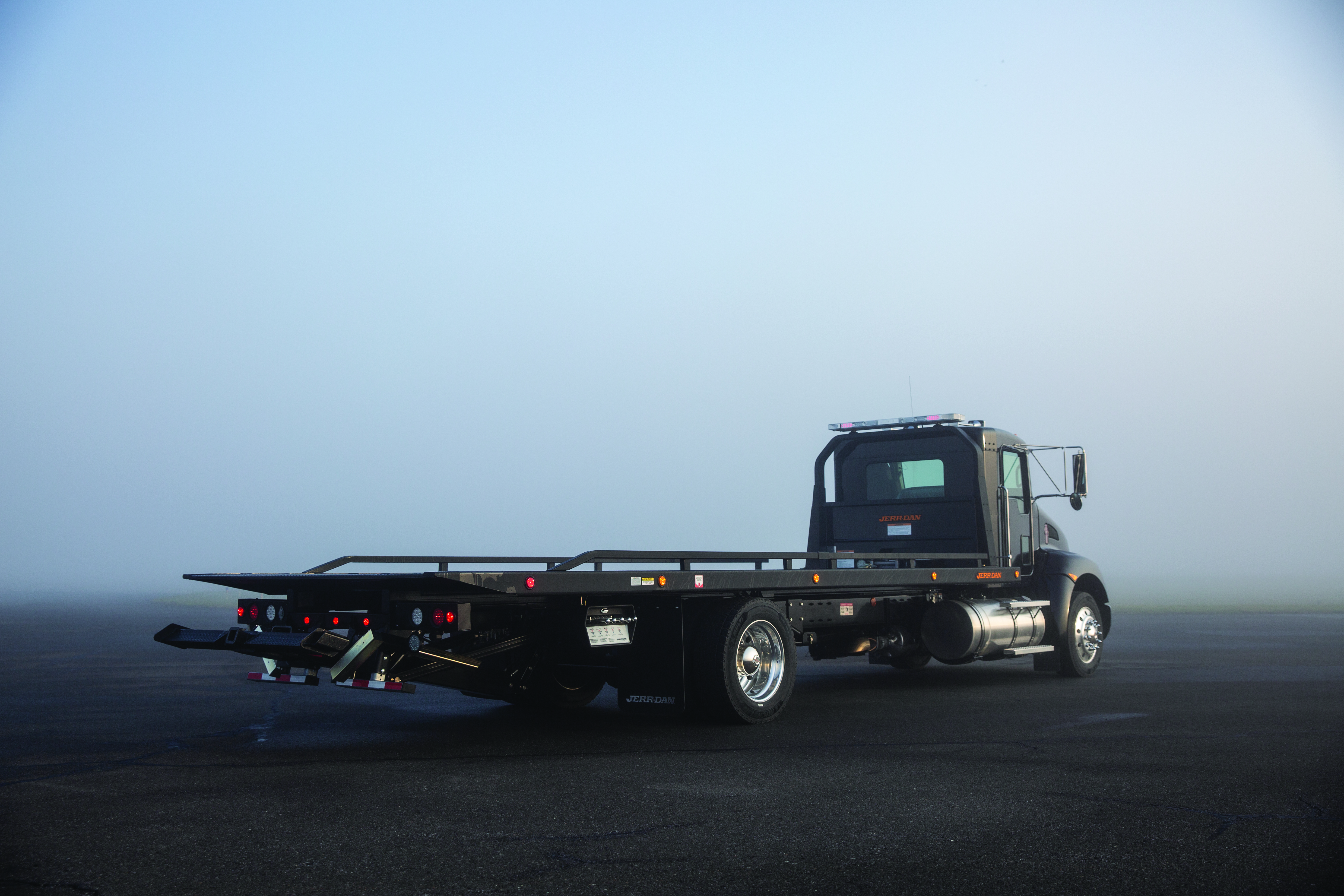

2021 Calendar - December 8.5 Ton XLP
8.5 Ton XLP Carrier
1 / 2

8.5 Ton XLP Carrier

2021 Calendar - December 8.5 Ton XLP
2 / 2

2021 Calendar - December 8.5 Ton XLP

Sell Sheets
8.5TonXLP_Sell_Sheet (.pdf)

Showing:
Buyers Toolboxes Expanded Assortment
Removable Steel Rails 19’-20’ Kit

Removable Steel Rails 19’-20’ Kit

Models:
  • Light Duty Carrier
  • Medium Duty Carriers
Requires:

Steel Deck

Removable Steel Rails 19’-20’ Kit

Removable Steel Rails 19’-20’ Kit

Models:
  • Light Duty Carrier
Requires:

Steel Deck
