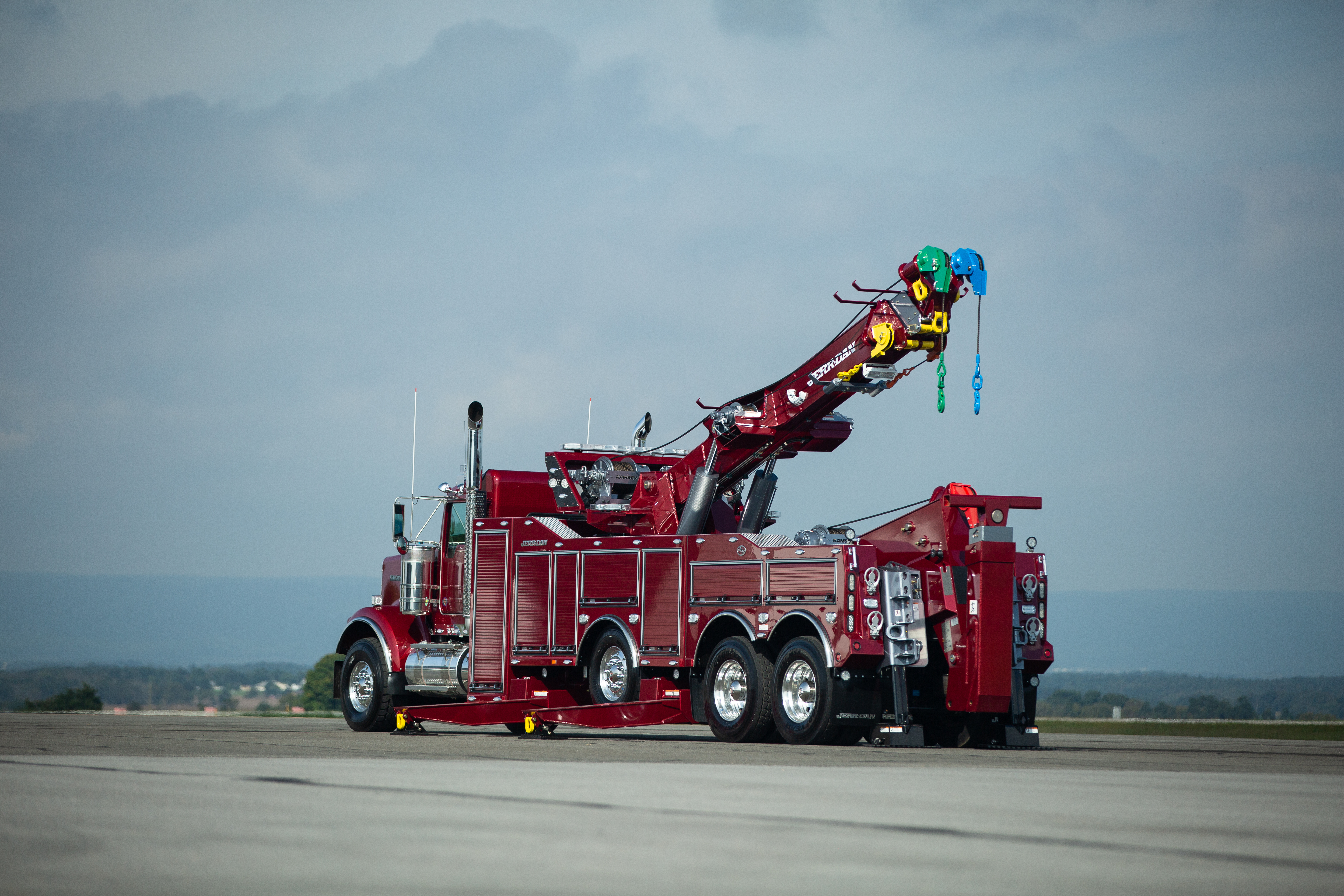

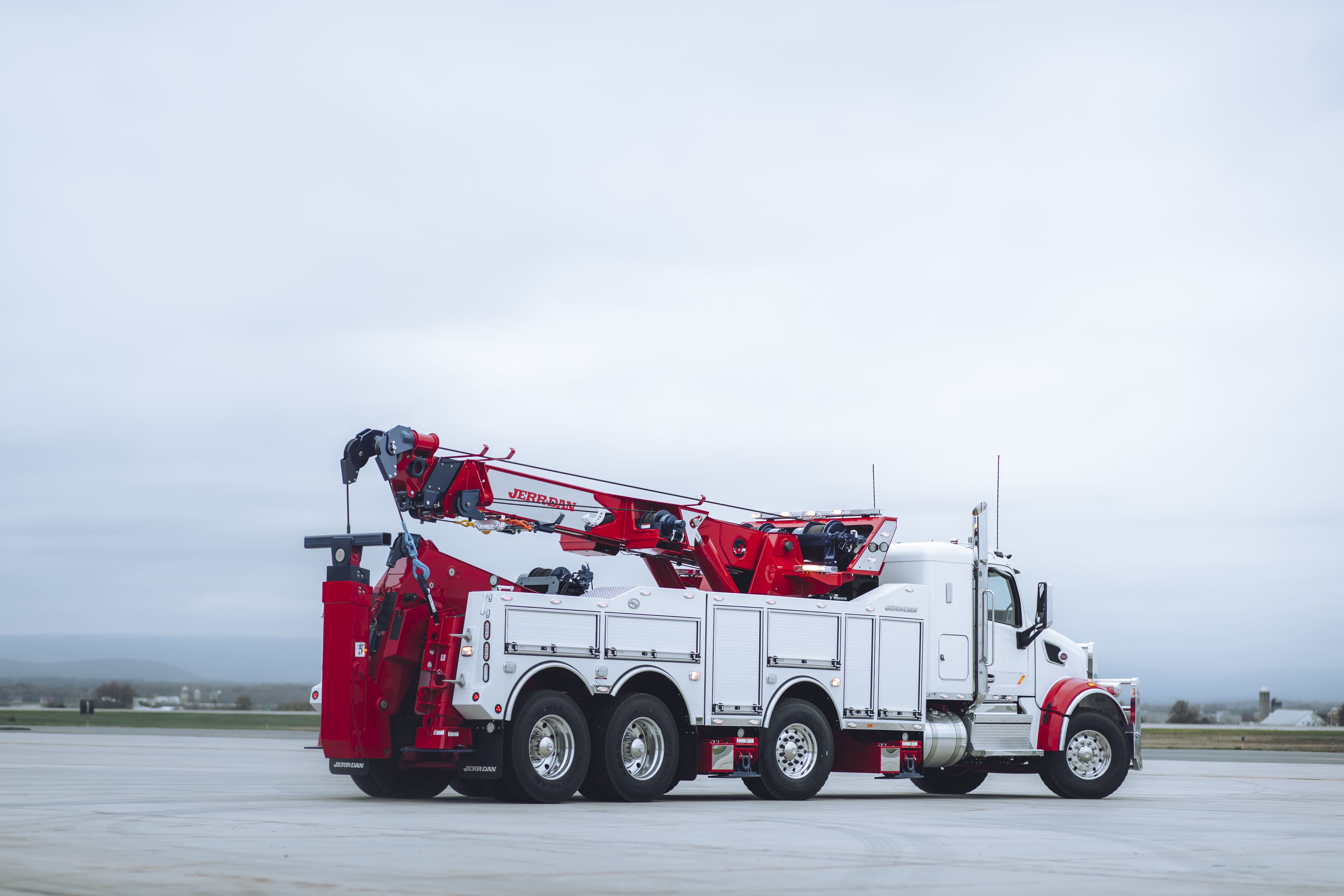

Extended Capacity @ 30°
20,000 lbs.
20,000 lbs.
Retracted Capacity @ 30°
100,000 lbs.
100,000 lbs.
Reach Past Tailboard - Extended @ 0 degrees
Reach Past Tailboard - Extended @ 0 degrees
283 in
283 in
Reach Past Tailboard - Extended @ 30 degrees
Reach Past Tailboard - Extended @ 30 degrees
216 in.
216 in.
Reach Past Tailboard - Extended @ 60 degrees
Reach Past Tailboard - Extended @ 60 degrees
33 in.
33 in.
Side Capacity Extended @ 0 degrees
Side Capacity Extended @ 0 degrees
10,300 lbs.
13,100 lbs
Side Capacity Extended @ 30 degrees
Side Capacity Extended @ 30 degrees
12,100 lbs.
15,600 lbs.

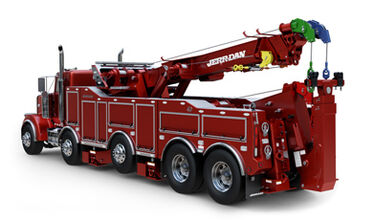

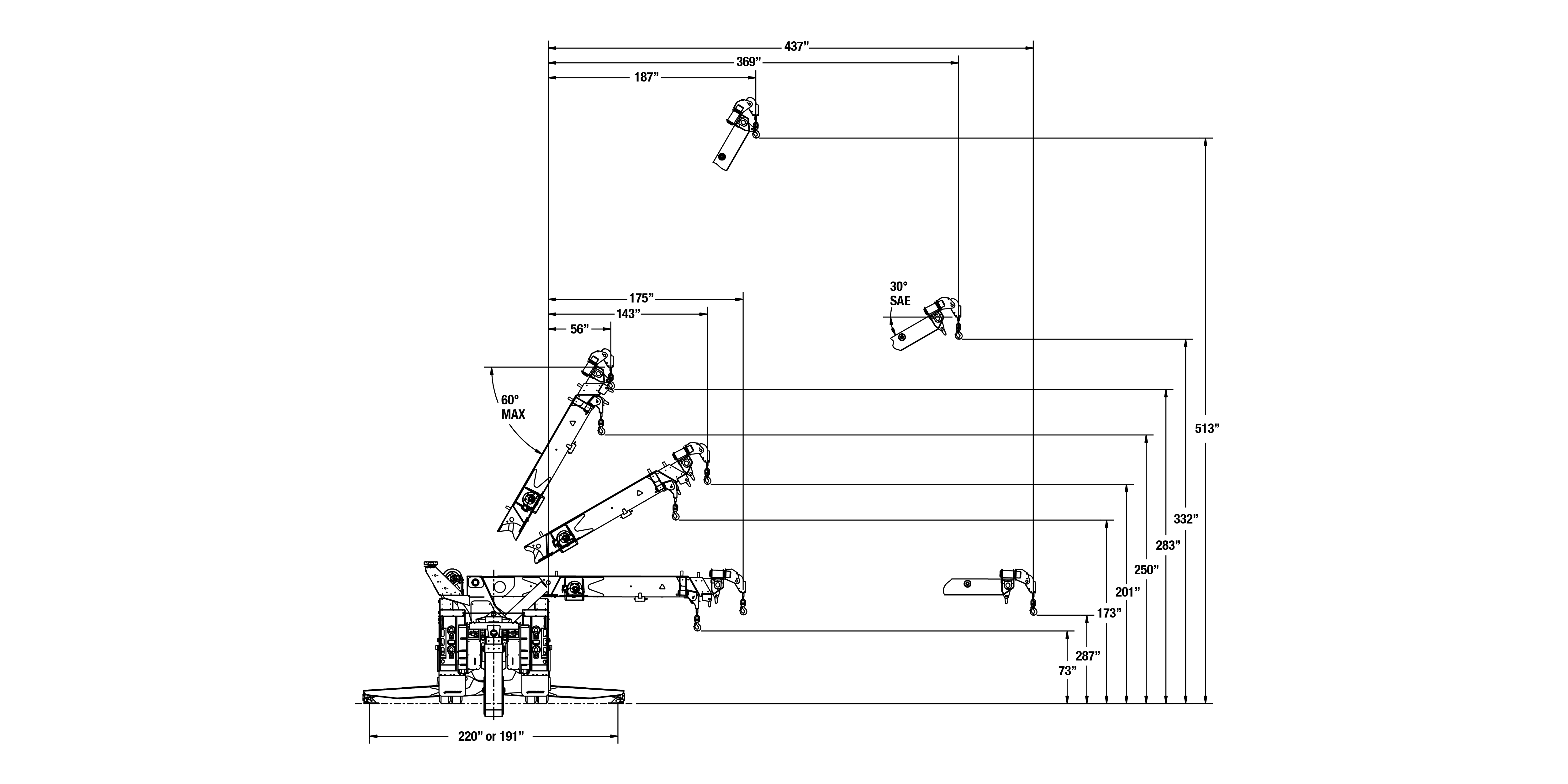

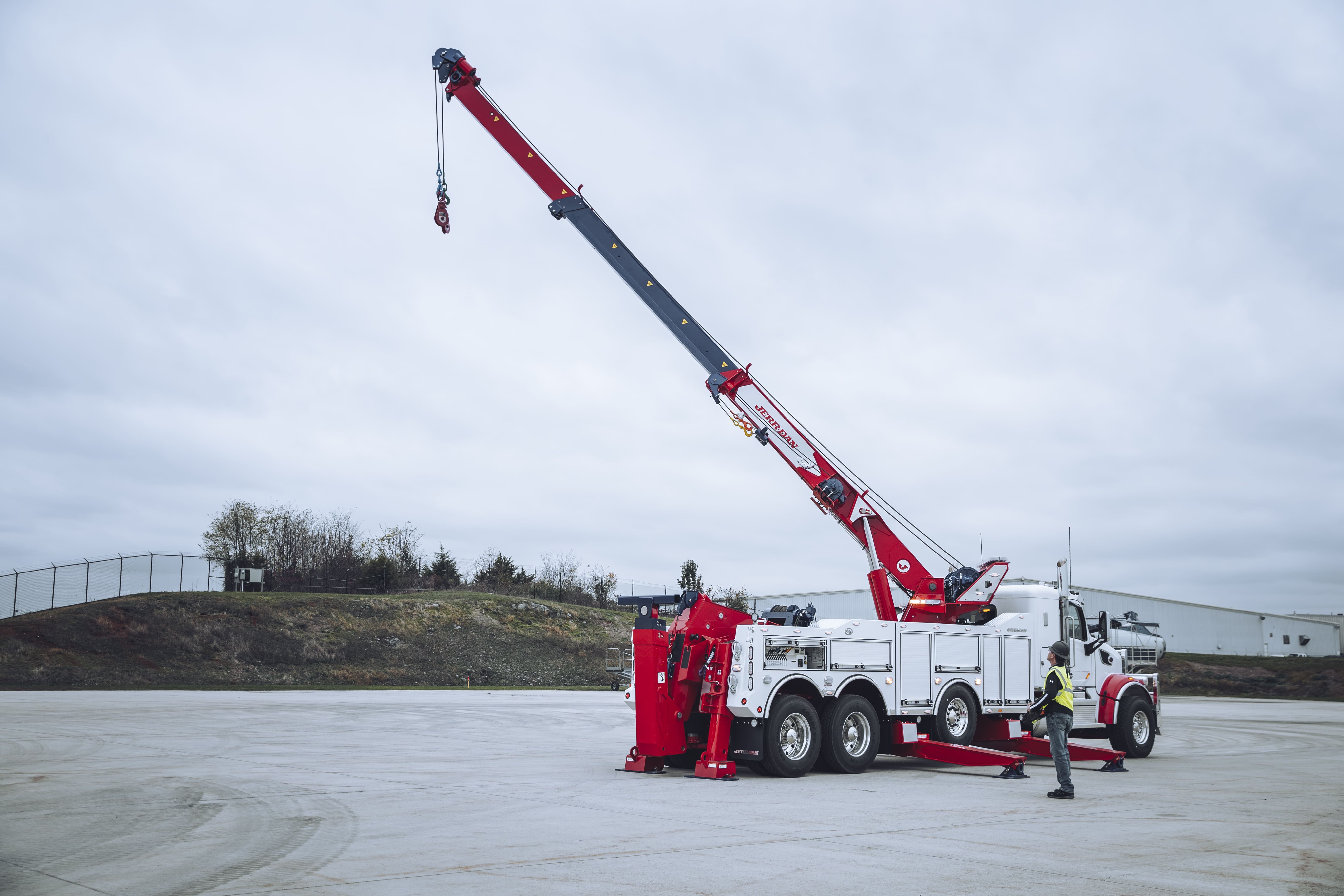

Maximum Hook Height
513 in.
513 in.
Working Hook Height @ 60 Degrees Retracted
Working Hook Height @ 60 Degrees Retracted
287 in.
287 in.
Maximum Boom Length
41 ft.
41 ft.
Working Hook Height: 0 Degrees
Working Hook Height: 0 Degrees
83 in.
83 in.
Working Hook Height: 30 Degrees Extended
Working Hook Height: 30 Degrees Extended
332 in.
332 in.
Working Hook Height: 30 Degrees Retracted
Working Hook Height: 30 Degrees Retracted
201 in.
201 in.
Working Hook Height: 60 Degrees Extended
Working Hook Height: 60 Degrees Extended
513 in.
513 in.
Working Hook Height Auxiliary Winch @ 0 Degrees
Working Hook Height Auxiliary Winch @ 0 Degrees
73 in.
73 in.
Working Hook Height Auxiliary Winch @ 30 Degrees
Working Hook Height Auxiliary Winch @ 30 Degrees
173 in.
173 in.
Working Hook Height Auxiliary Winch @ 30 Degrees
Working Hook Height Auxiliary Winch @ 30 Degrees
250 in.
250 in.
Rated Capacity - Retracted
Rated Capacity - Retracted
35,000 lbs.
35,000 lbs.
Rated Capacity - Extended
Rated Capacity - Extended
16,000 lbs.
16,000 lbs.
Reach Past Tailboard: Retracted With Forks at Ground Level
Reach Past Tailboard: Retracted With Forks at Ground Level
75 in.
75 in.
Reach Past Tailboard: Extended with Forks at Ground Level
Reach Past Tailboard: Extended with Forks at Ground Level
152 in.
152 in.
Positive Tilt
10 degrees
10 degrees
Negative Tilt
20 degrees
20 degrees
Tow Capacity
80,000 lbs.
80,000 lbs.
Rated Capacity - Retracted
Rated Capacity - Retracted
35,000 lbs.
35,000 lbs.
Rated Capacity - Extended
Rated Capacity - Extended
16,000 lbs.
16,000 lbs.
Reach Past Tailboard: Retracted with Forks at Ground Level
Reach Past Tailboard: Retracted with Forks at Ground Level
68 in.
68 in.
Reach Past Tailboard: Extended with Forks at Ground Level
Reach Past Tailboard: Extended with Forks at Ground Level
134 in.
134 in.
Positive Tilt
10 degrees
10 degrees
Negative Tilt
20 degrees
20 degrees
Tow Capacity
80,000 lbs.
80,000 lbs.
Rated Capacity - Retracted
Rated Capacity - Retracted
53,000 lbs.
53,000 lbs.
Rated Capacity - Extended
Rated Capacity - Extended
17,000 lbs.
17,000 lbs.
Reach Past Tailboard: Retracted with Forks at Ground Level
Reach Past Tailboard: Retracted with Forks at Ground Level
77 in.
77 in.
Reach Past Tailboard: Extended with Forks at Ground Level
Reach Past Tailboard: Extended with Forks at Ground Level
147 in.
147 in.
Positive Tilt
9 degrees
9 degrees
Negative Tilt
21 degrees
21 degrees
Tow Capacity
80,000 lbs.
80,000 lbs.
Rated Capacity - Retracted
Rated Capacity - Retracted
56,500 lbs.
56,500 lbs.
Rated Capacity - Extended
Rated Capacity - Extended
17,600 lbs.
17,600 lbs.
Reach Past Tailboard: Retracted with Forks
Reach Past Tailboard: Retracted with Forks
92 in.
92 in.
Reach Past Tailboard: Extended with Forks
Reach Past Tailboard: Extended with Forks
186 in.
186 in.
Positive Tilt
9 degrees
9 degrees
Negative Tilt
21 degrees
21 degrees
Tow Capacity
80,000 lbs.
80,000 lbs.
Rated Capacity - Retracted
Rated Capacity - Retracted
56,500 lbs.
56,500 lbs.
Rated Capacity - Extended
Rated Capacity - Extended
17,600 lbs.
17,600 lbs.
Reach Past Tailboard: Retracted with Forks at Ground Level
Reach Past Tailboard: Retracted with Forks at Ground Level
83 in.
83 in.
Reach Past Tailboard: Extended with Forks at Ground Level
Reach Past Tailboard: Extended with Forks at Ground Level
184 in.
184 in.
Positive Tilt
9 degrees
9 degrees
Negative Tilt
21 degrees
21 degrees
Tow Capacity
80,000 lbs.
80,000 lbs.
50,000 lb. 2-Speed Planetary Winch
50,000 lb. 2-Speed Planetary Winch
3/4 X 250 - 6 X 36 EEIPS - IWRC WLL 18,500 lbs. w/ Locking Swivel Hook
3/4 X 250 - 6 X 36 EEIPS - IWRC WLL 18,500 lbs. w/ Locking Swivel Hook
35,000 lb. 2-Speed Planetary Winch
35,000 lb. 2-Speed Planetary Winch
5/8 X 250 - 6 X 37 EEIPS - IWRC WLL 12,900 lbs. w/ Locking Swivel Hook
5/8 X 250 - 6 X 37 EEIPS - IWRC WLL 12,900 lbs. w/ Locking Swivel Hook
20,000 lb. Planetary Winch
20,000 lb. Planetary Winch
9/16 X 135 - 6 X 36 EEIPS - IWRC WLL 10,500 lbs. w/ Locking Swivel Hook
9/16 X 135 - 6 X 36 EEIPS - IWRC WLL 10,500 lbs. w/ Locking Swivel Hook
Drag Winch Options
20,000 lbs., 35,000 lbs., 50,000 lbs.
20,000 lbs., 35,000 lbs., 50,000 lbs.
Minimum RBM per Rail
4,200,000 in-lbs.
4,200,000 in-lbs.
Minimum Front Axle Rating
Minimum Front Axle Rating
20,000 lbs.
20,000 lbs.
Minimum Rear Axle Rating
46,000 lbs.
46,000 lbs.
Minimum GVW Rating
86,000 lbs.
86,000 lbs.
Minimum Body Useable Cab to Tandem (CT)
Minimum Body Useable Cab to Tandem (CT)
215 in.
215 in.
