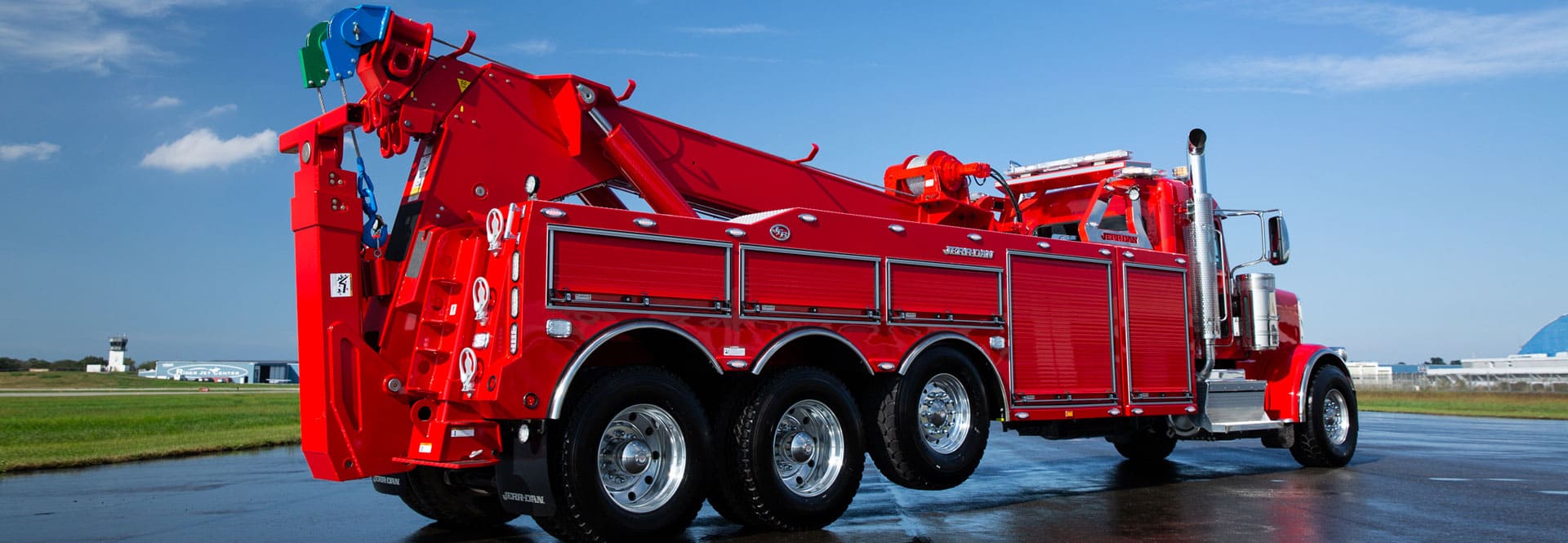

1920x665
Engineered for Strength and Durability

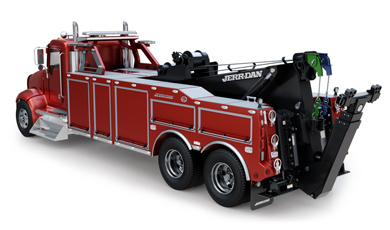

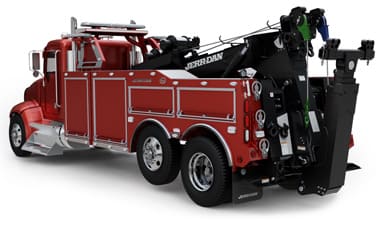

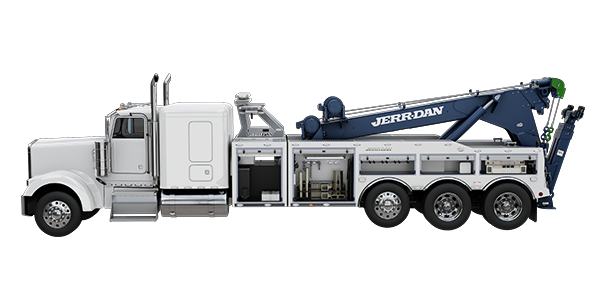

Heavy Duty Integrated Wreckers

The JD25 INT, JD35 INT and JD50 INT are designed for strength, reliability, and durability with fully extended boom ratings of 16,000 lb., 22,000 lb., and 30,000 lb., each model is built with a polypropylene copolymer corrosion-free material.

Models

Sell Sheets

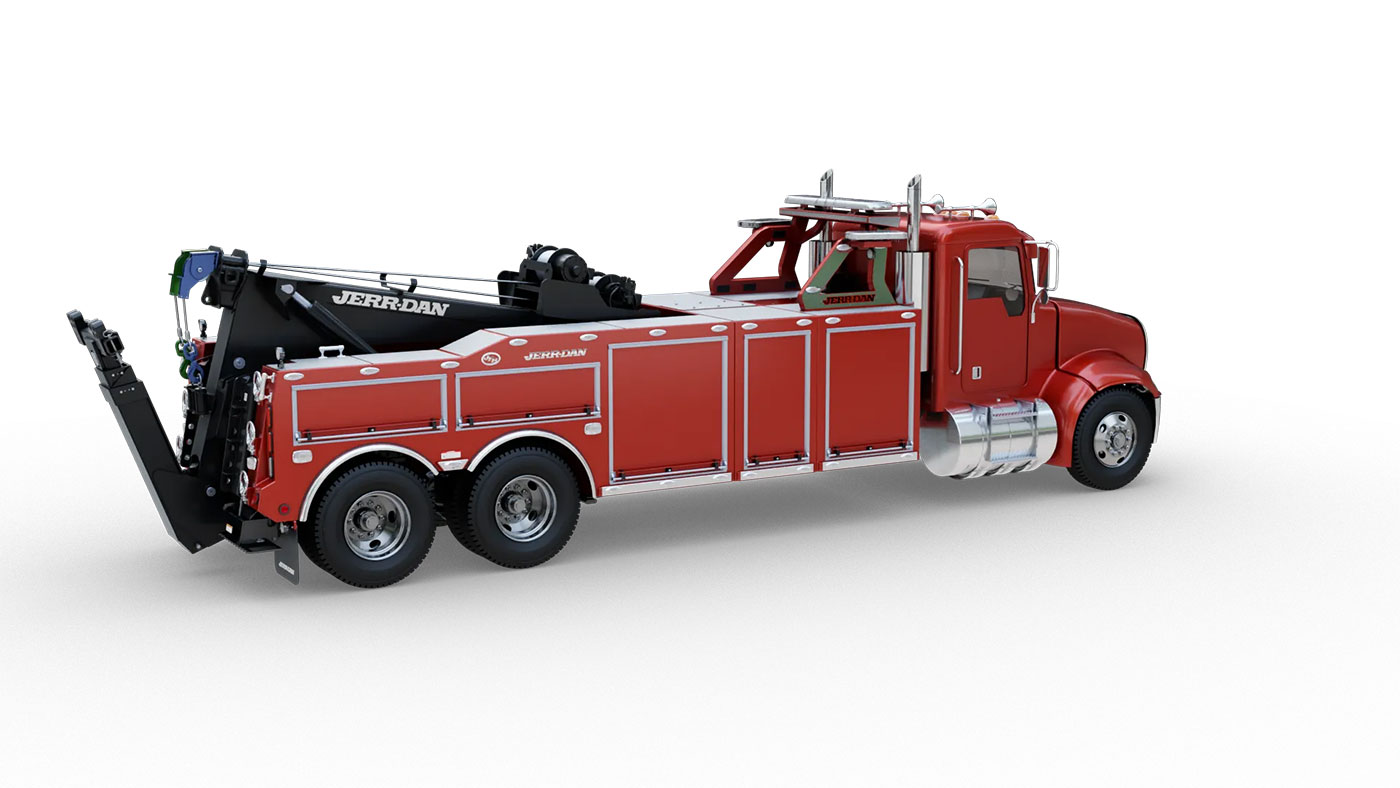

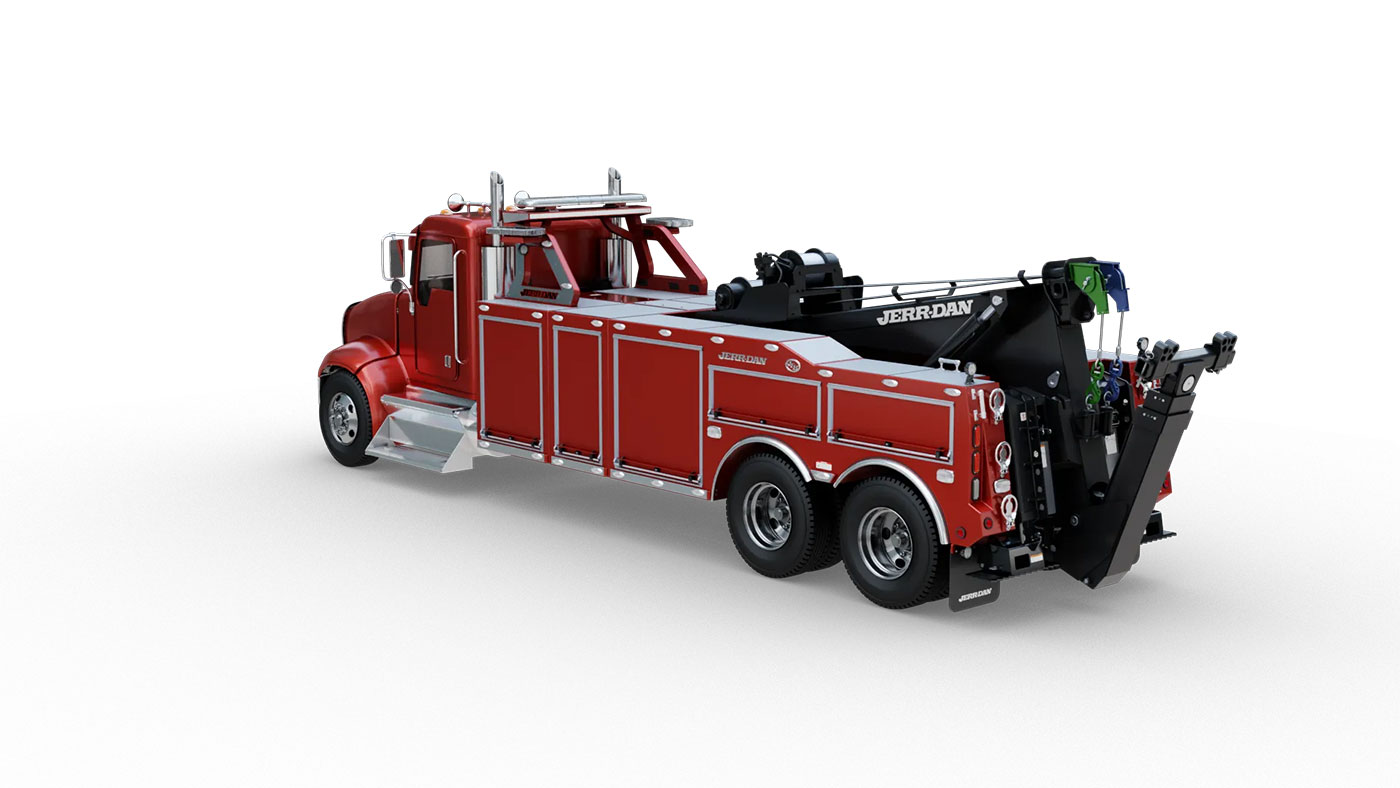

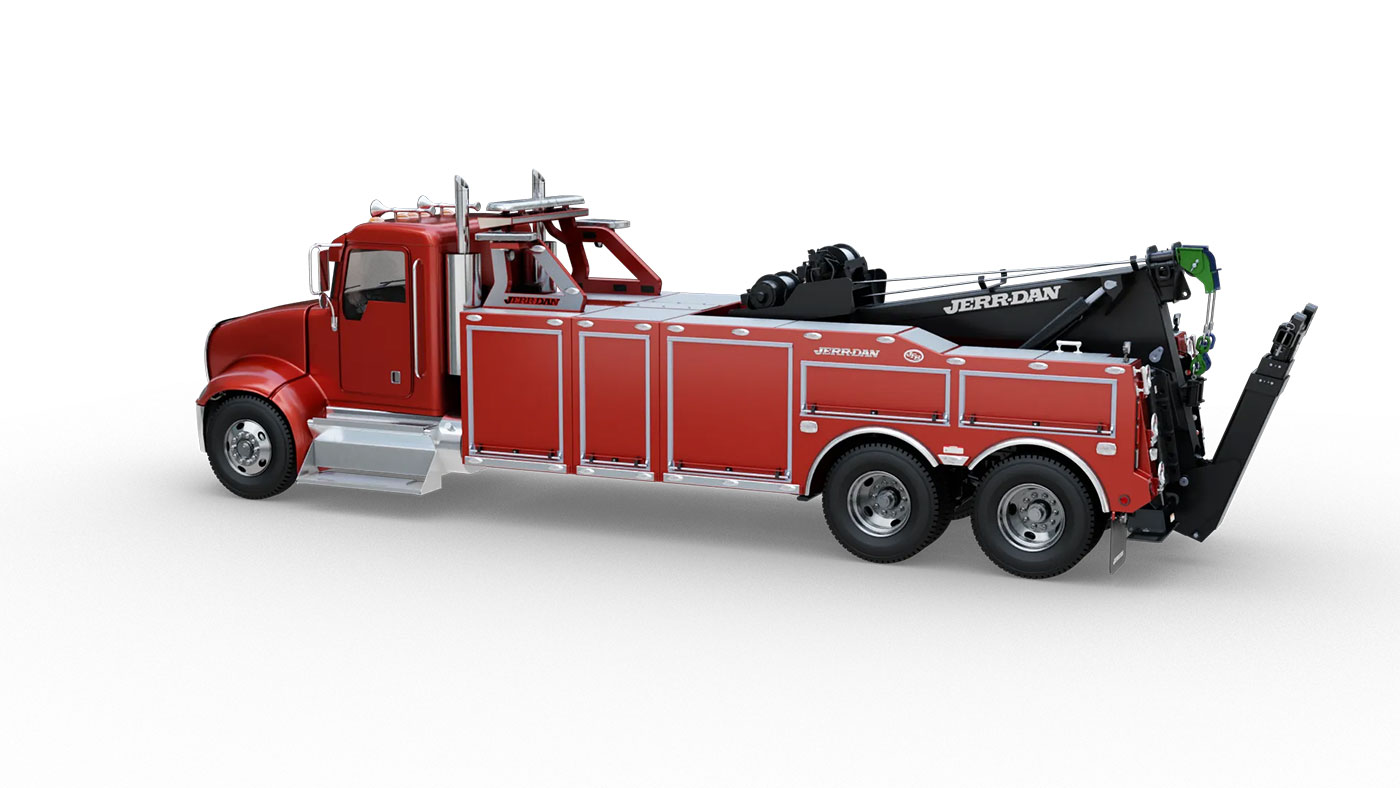

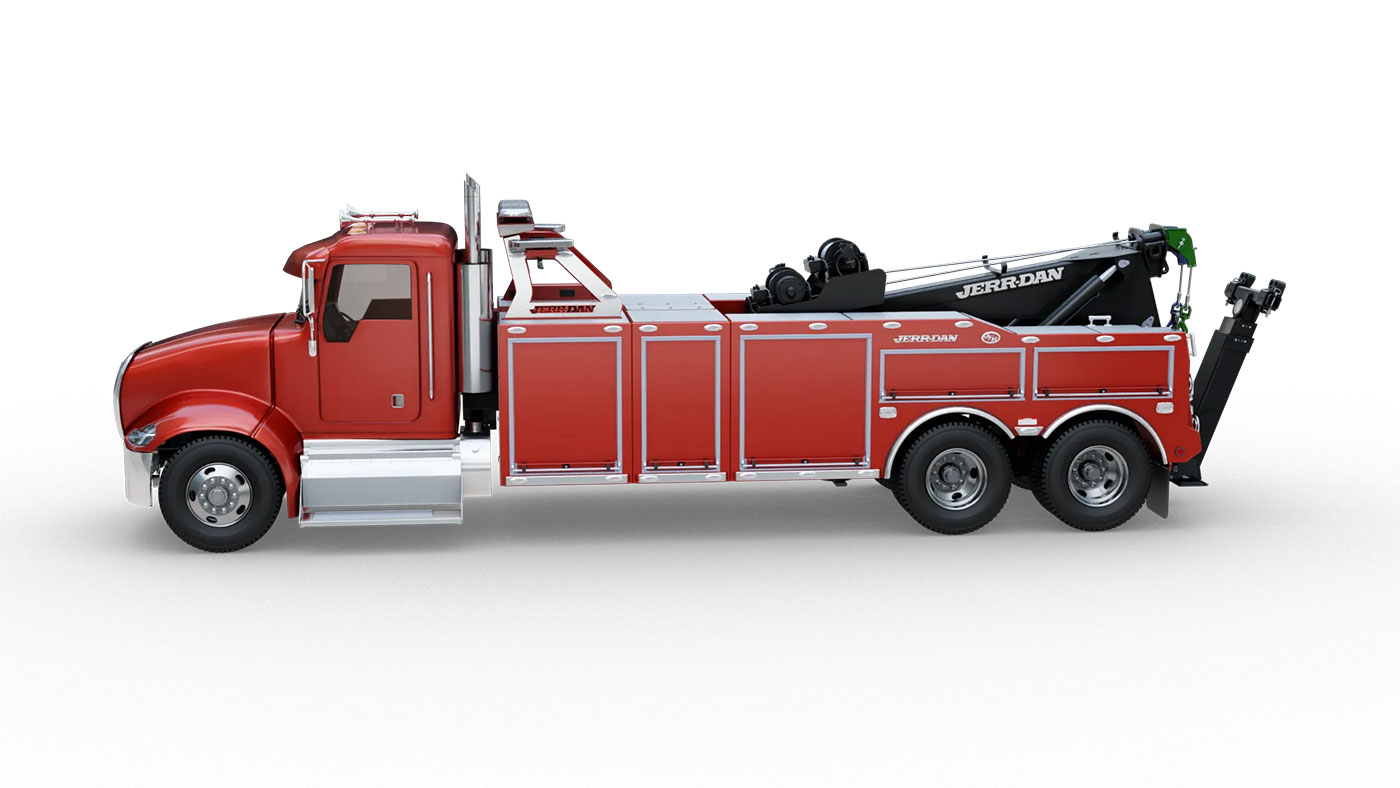

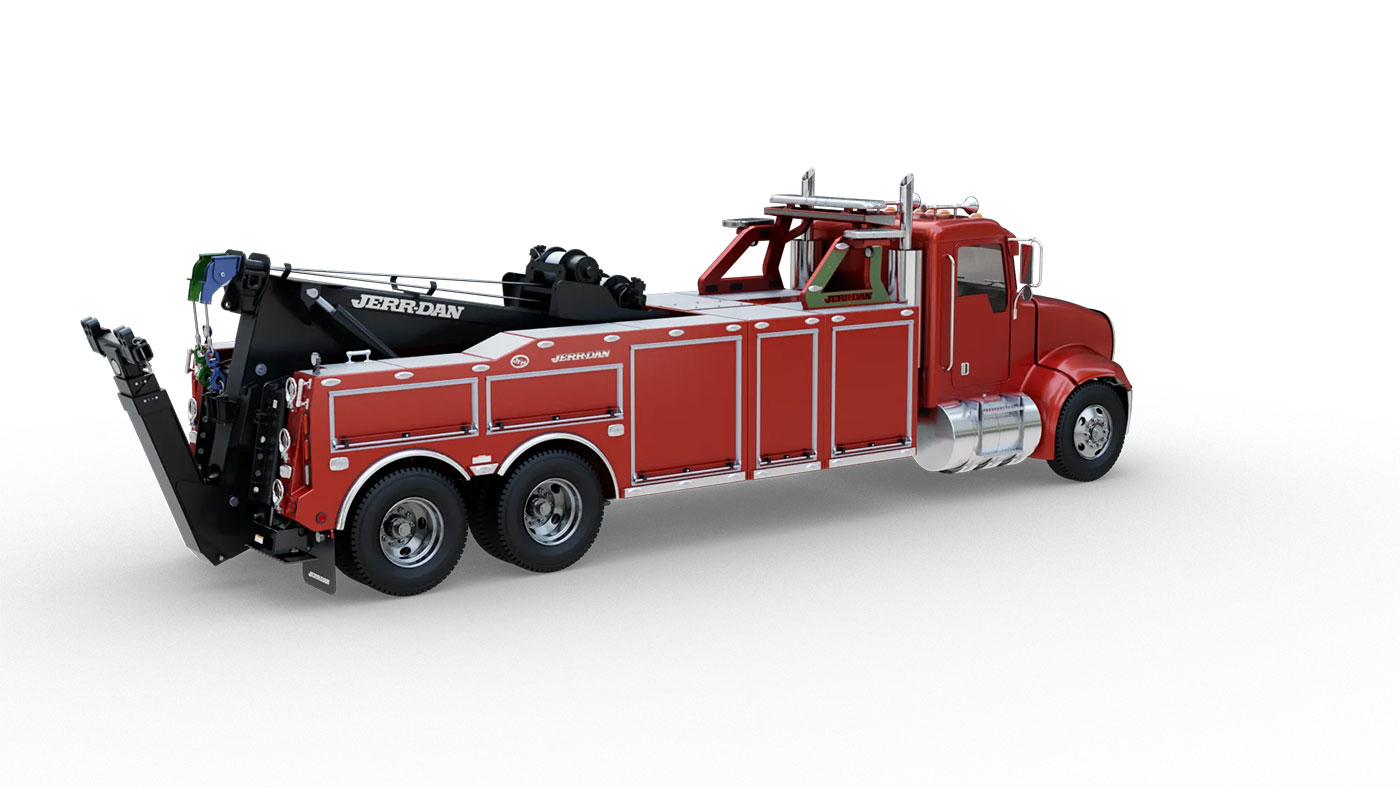

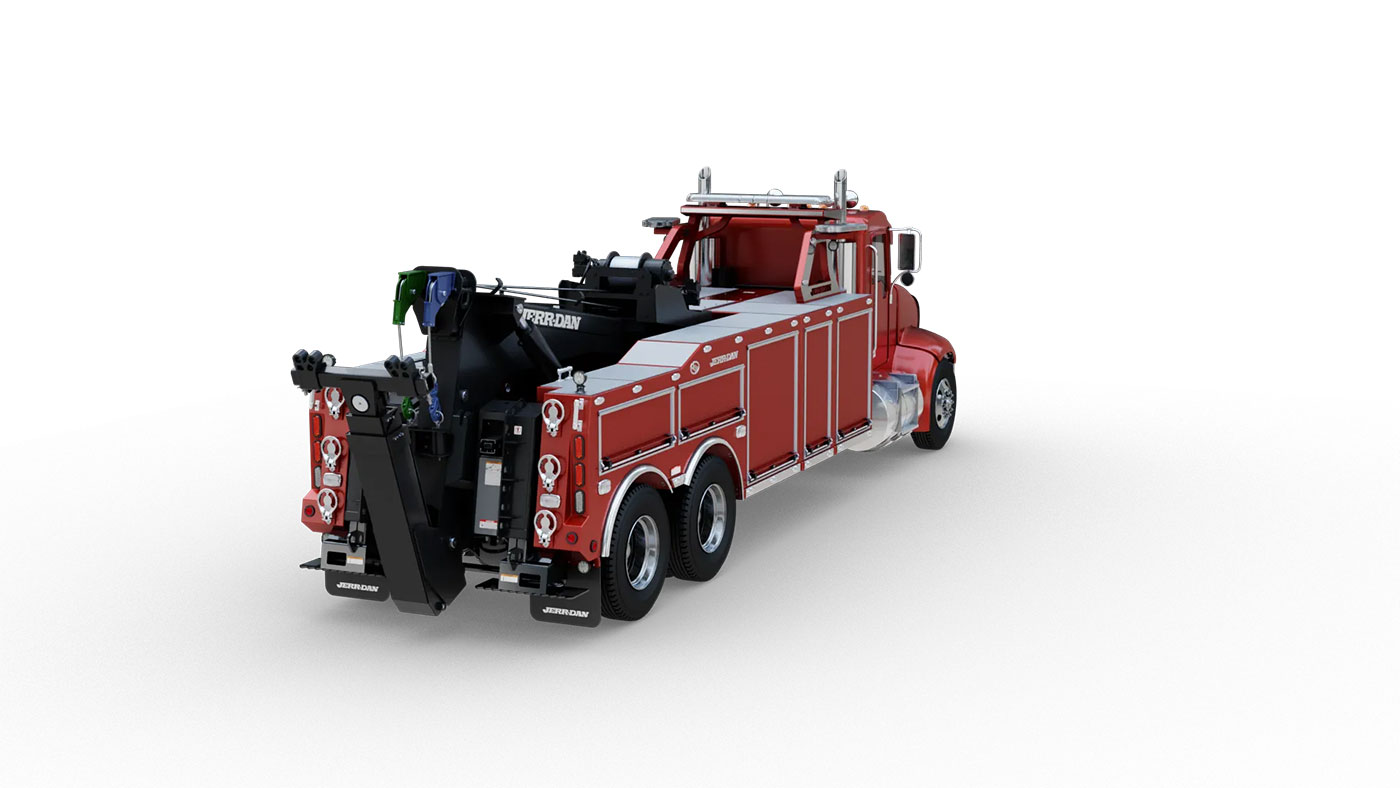

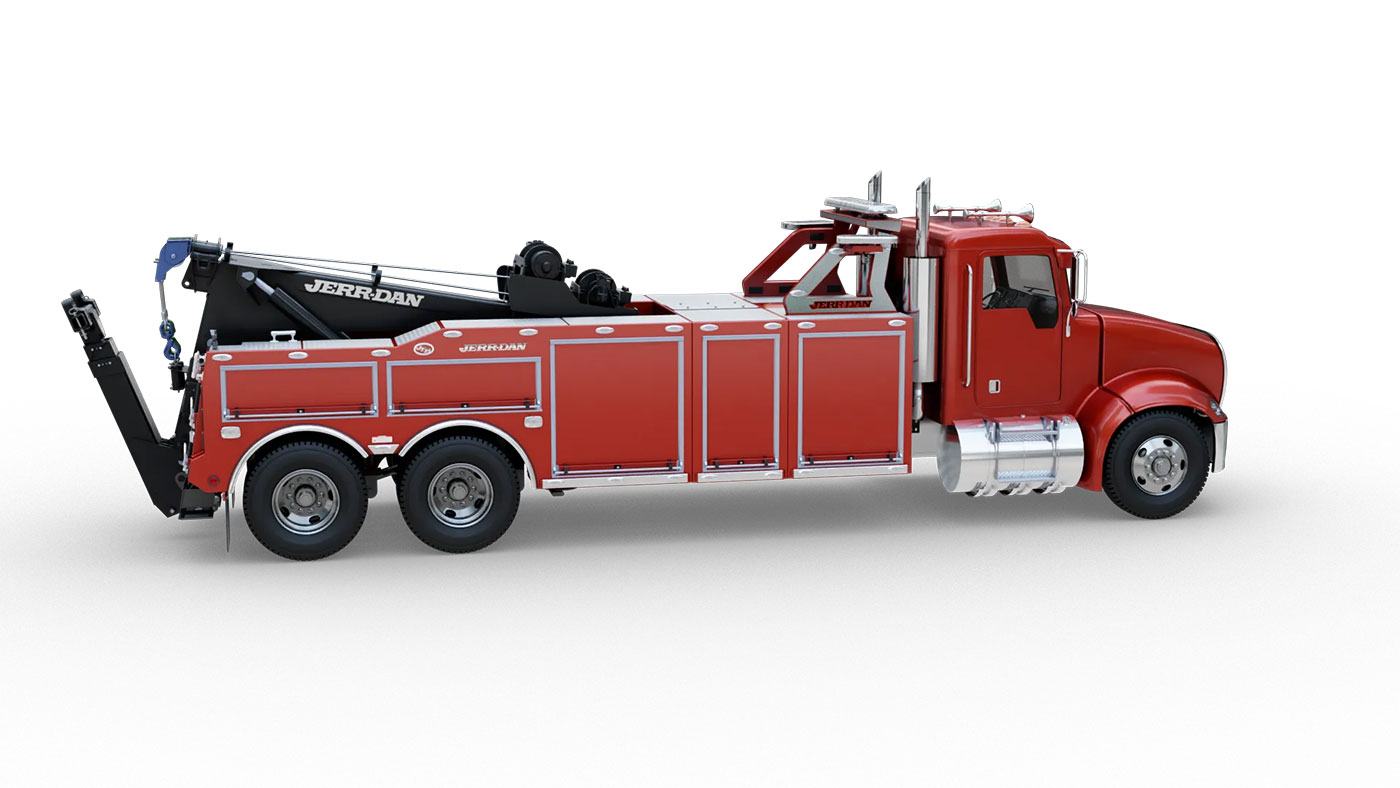

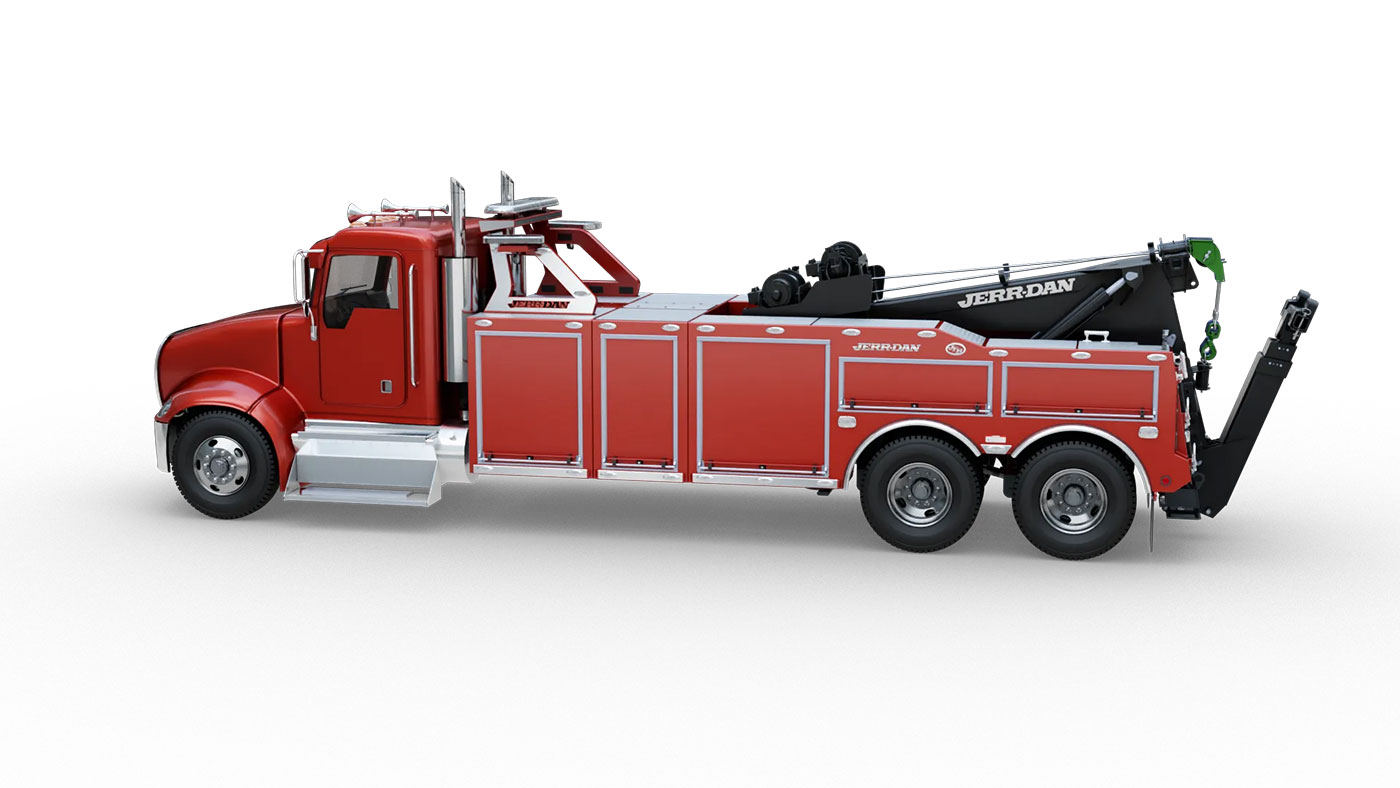

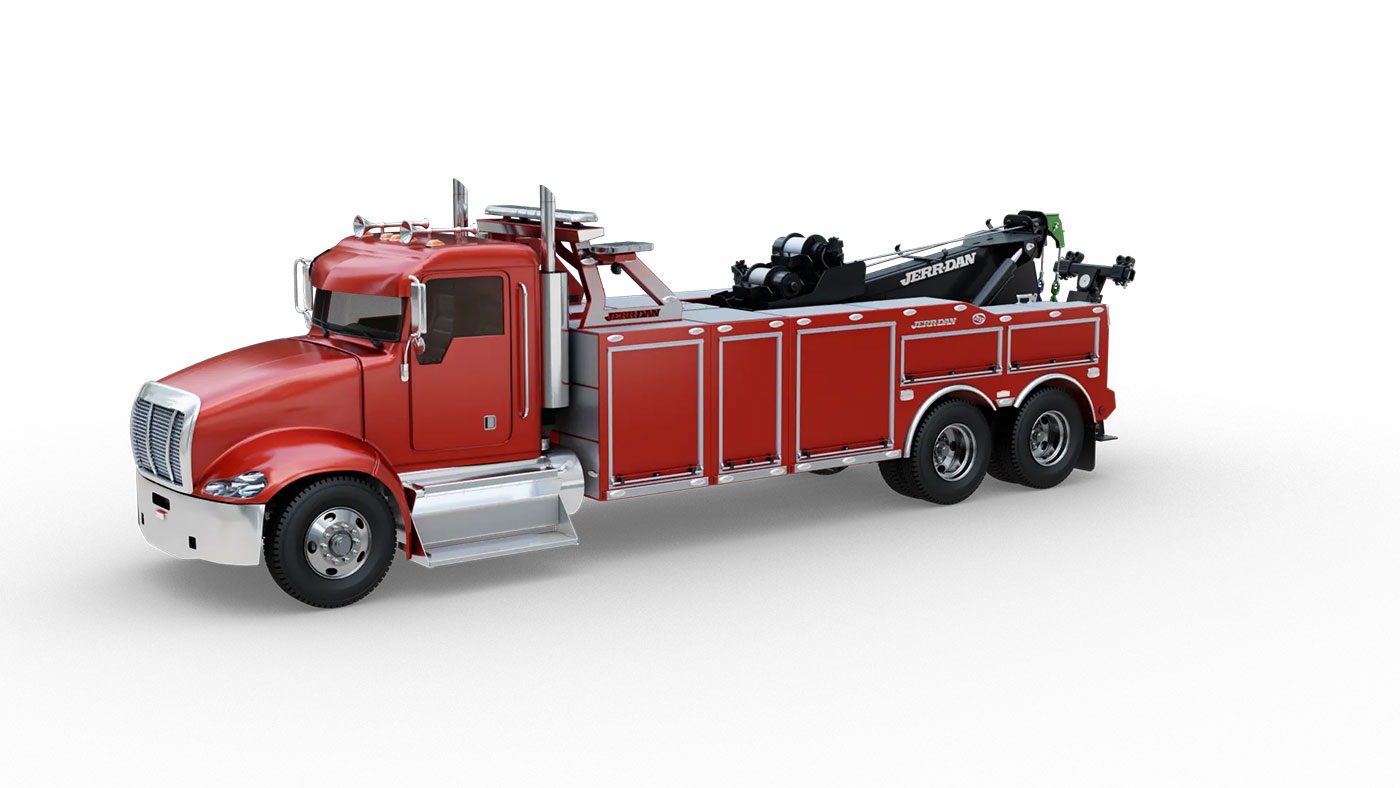

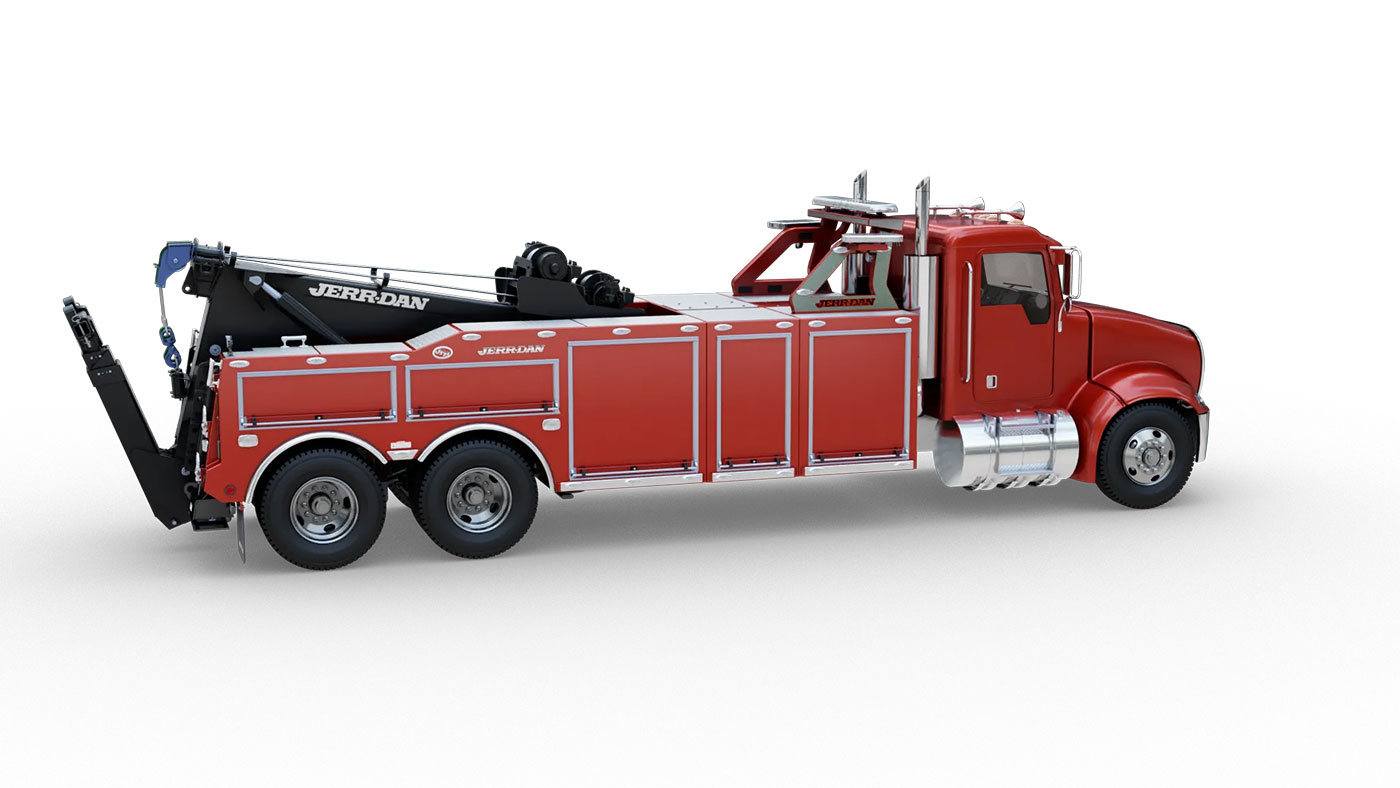

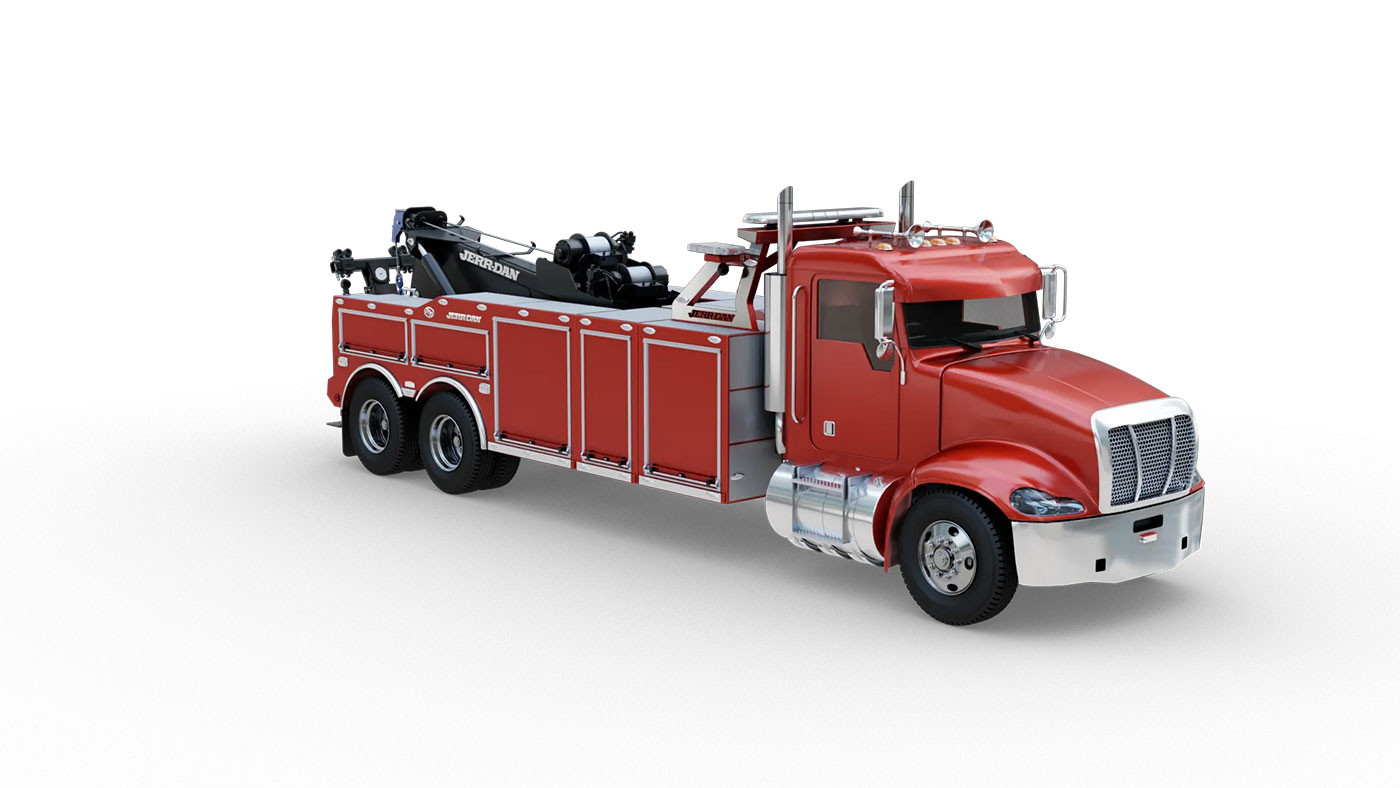

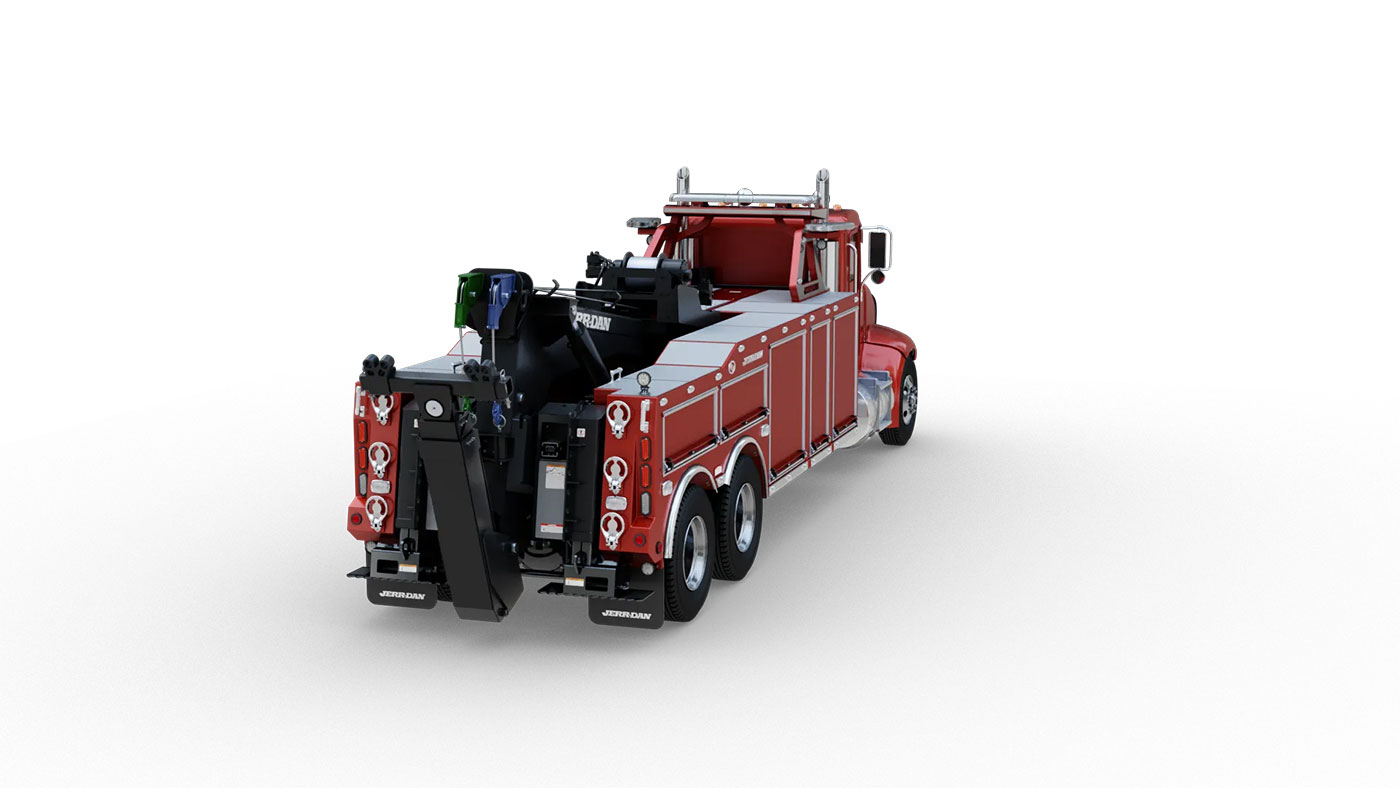

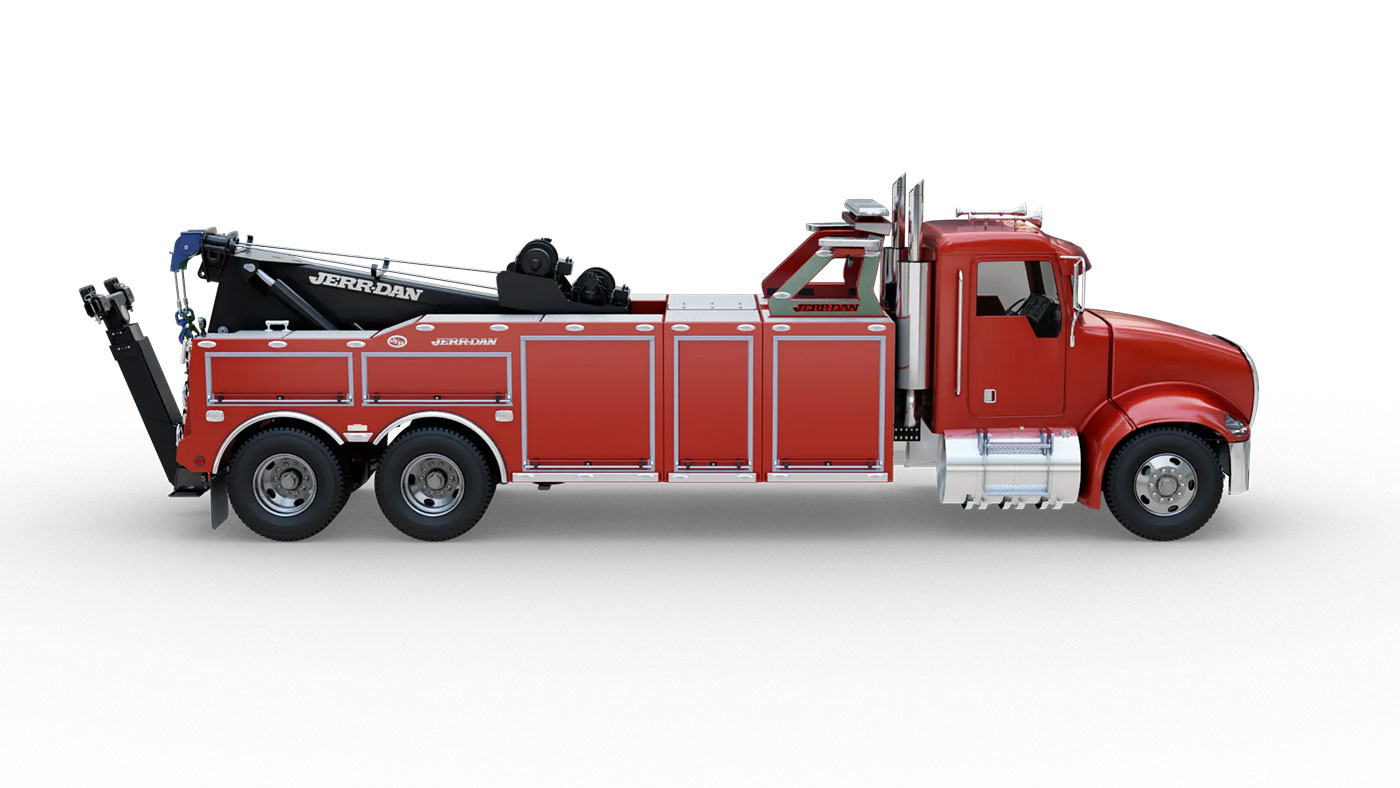

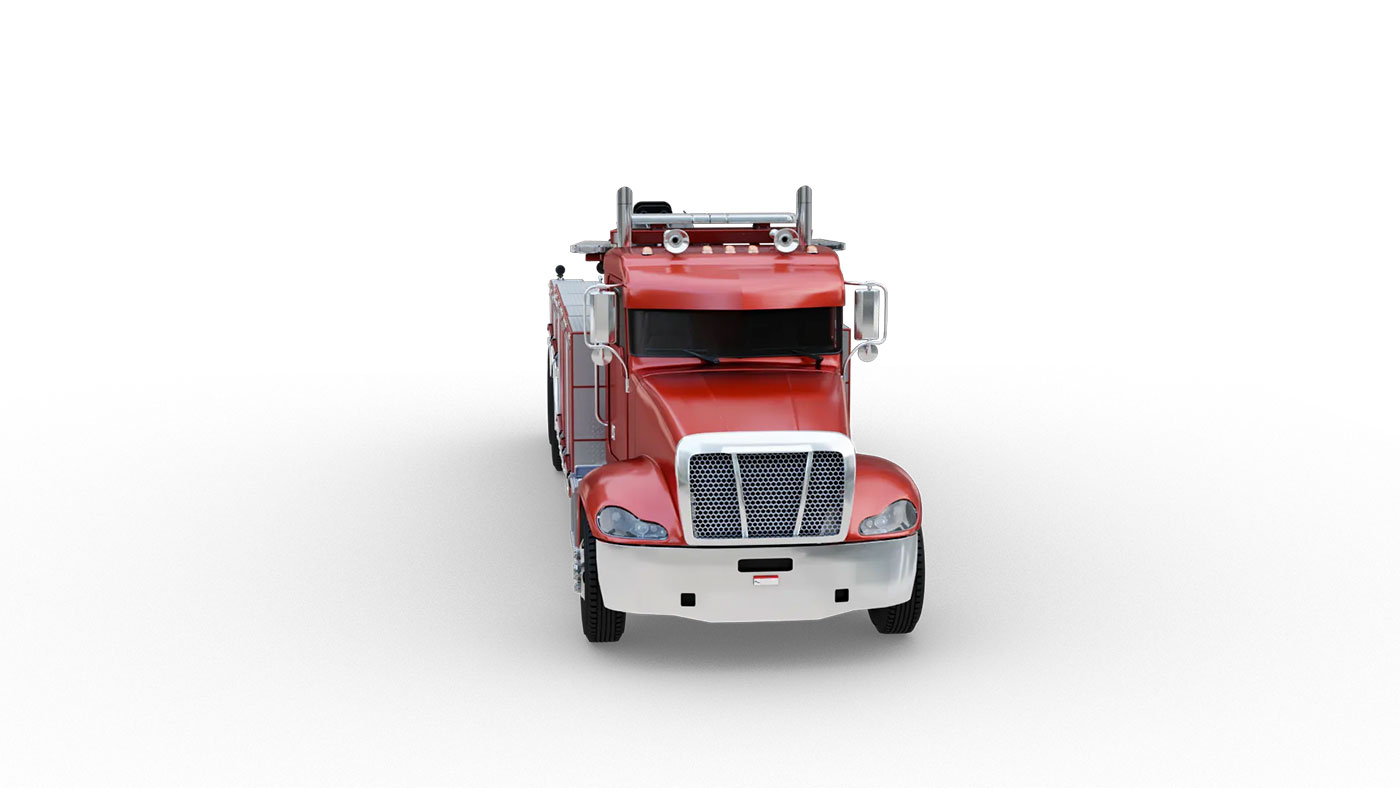

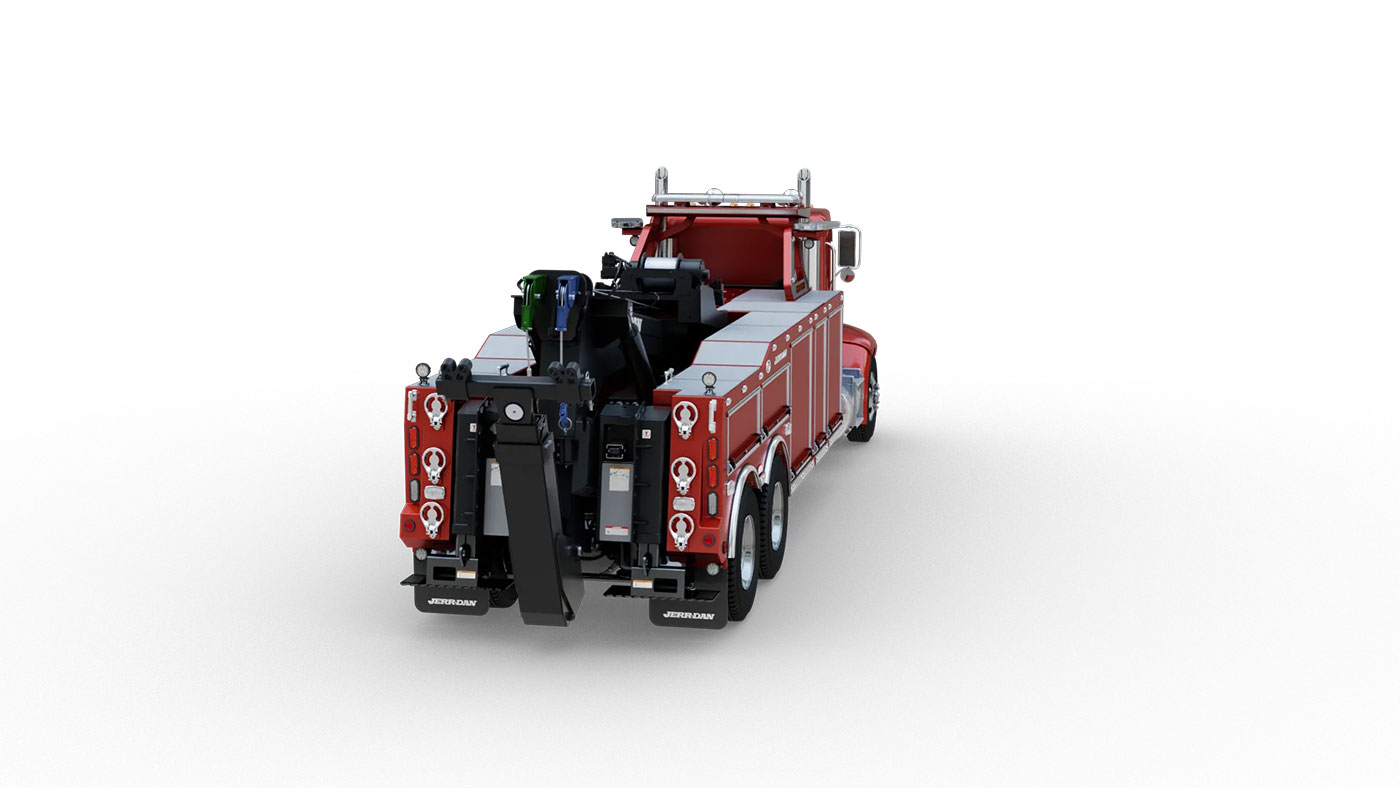

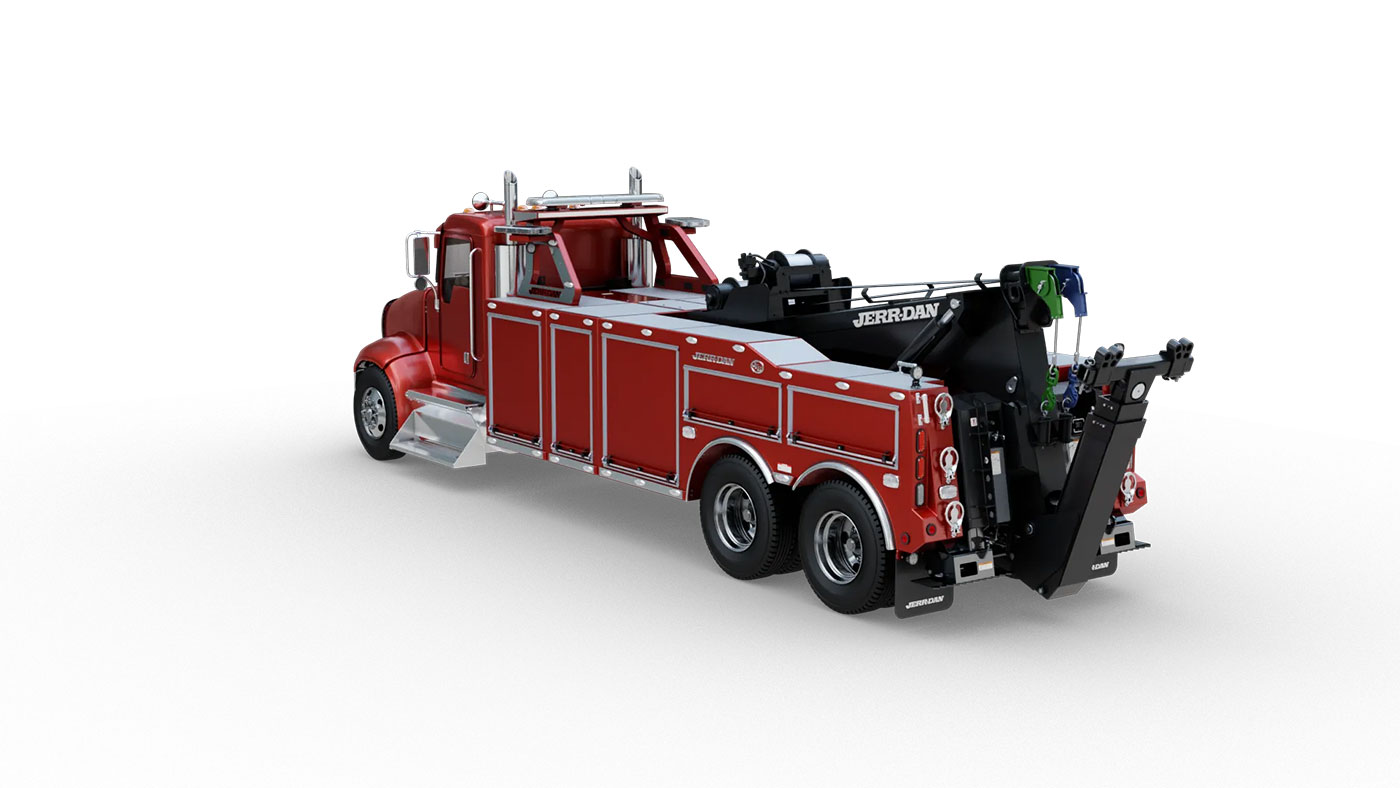

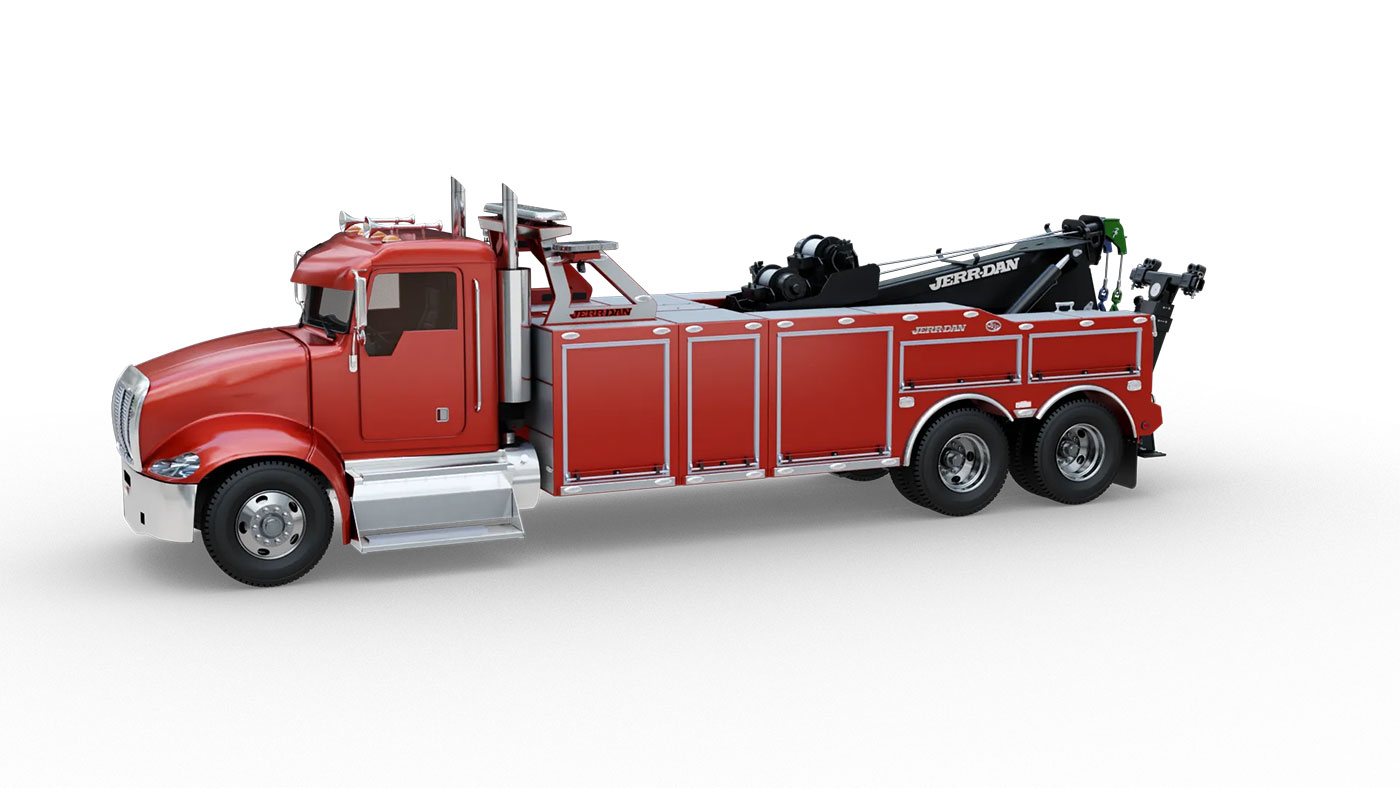

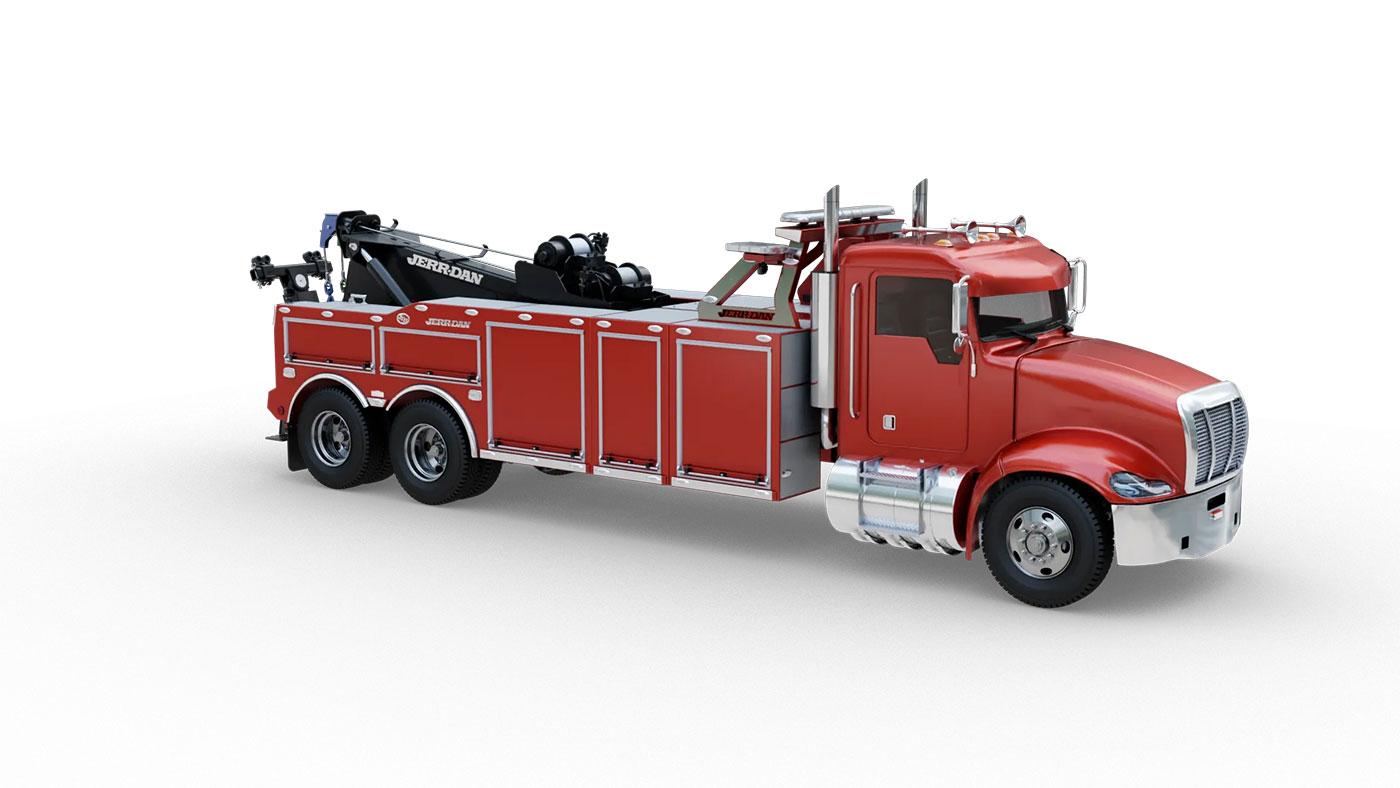

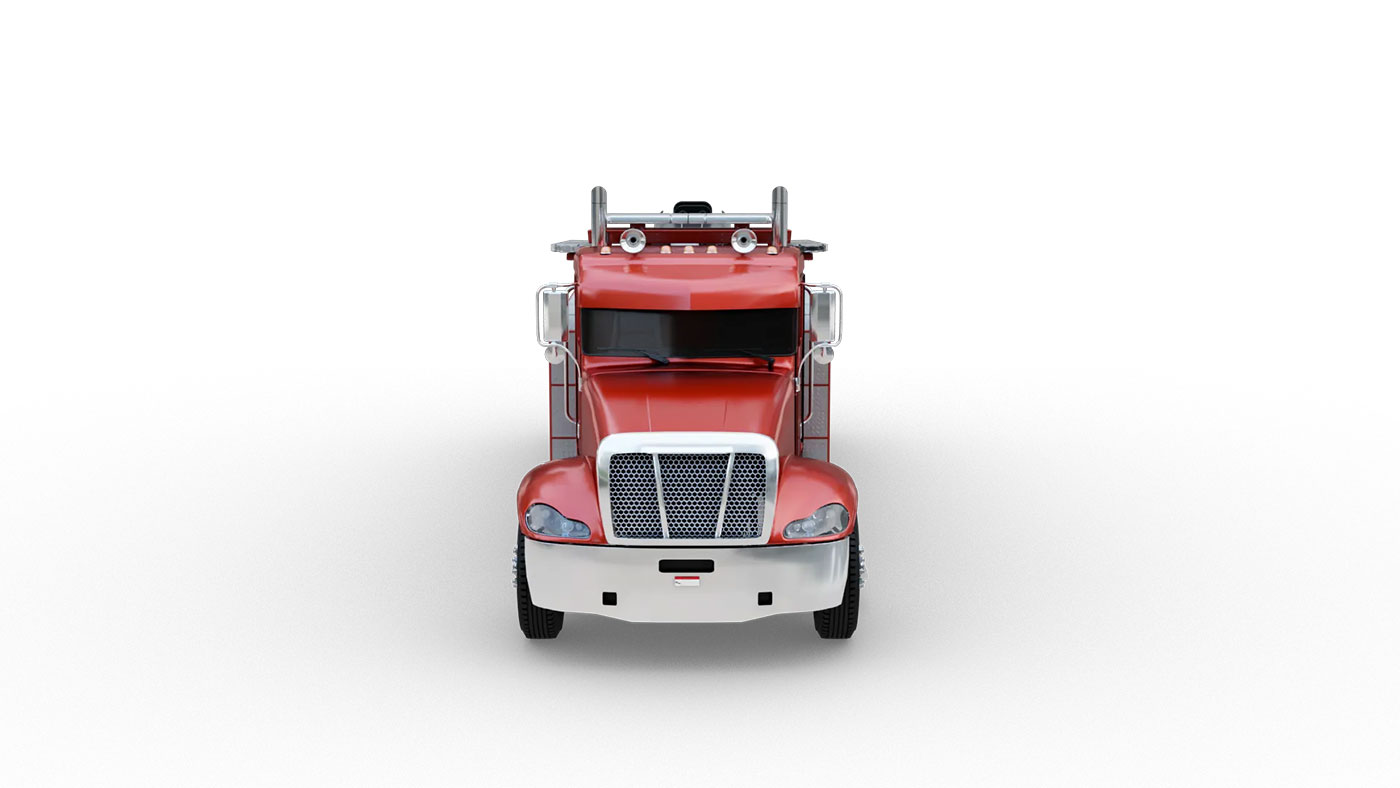

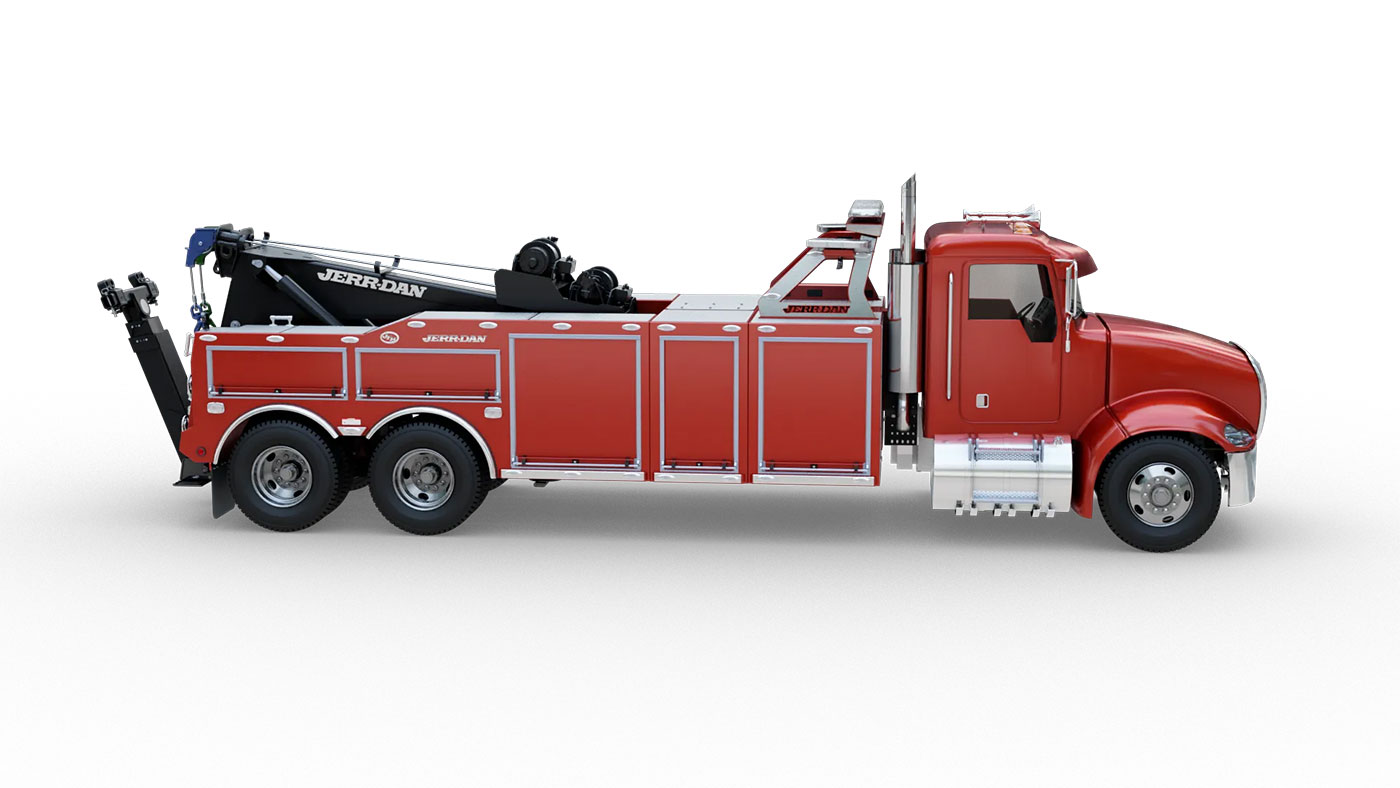

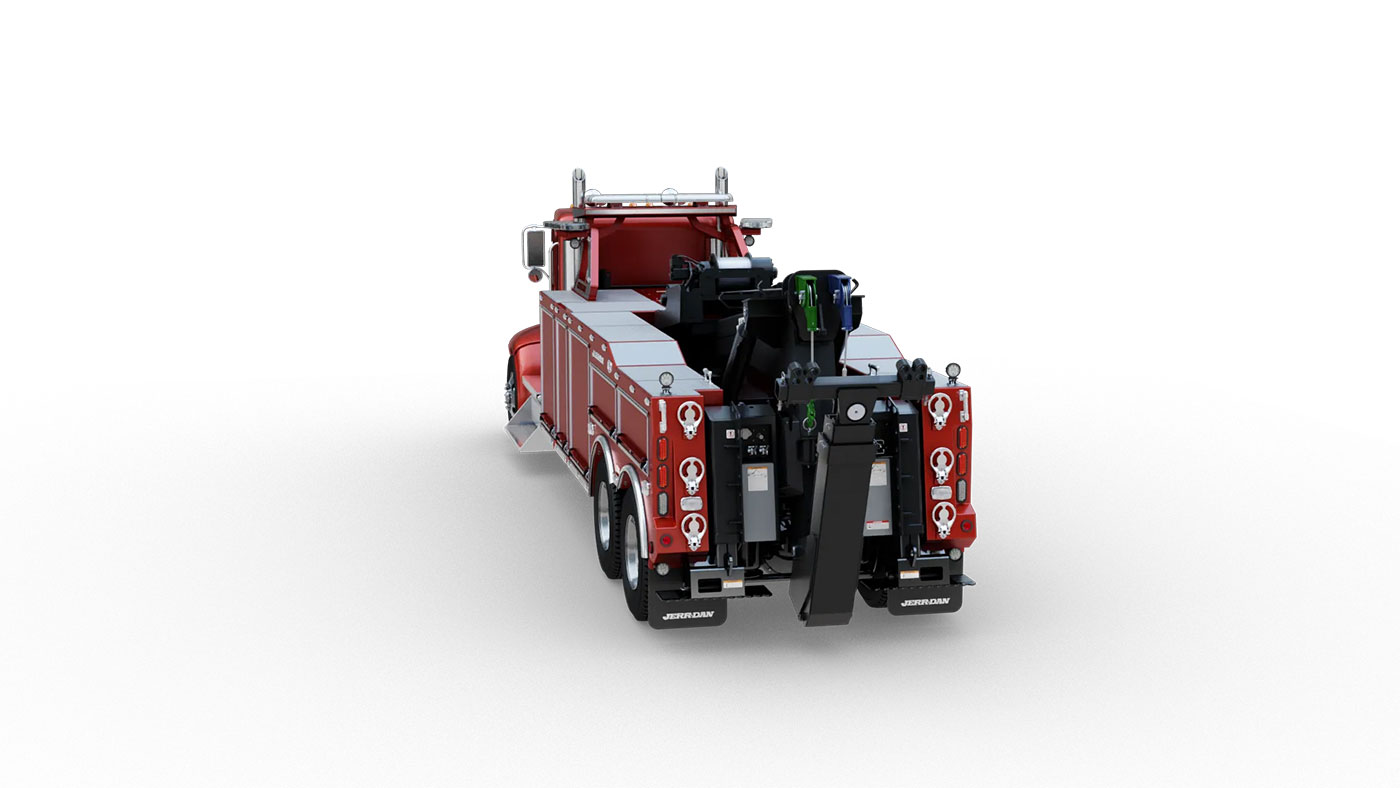

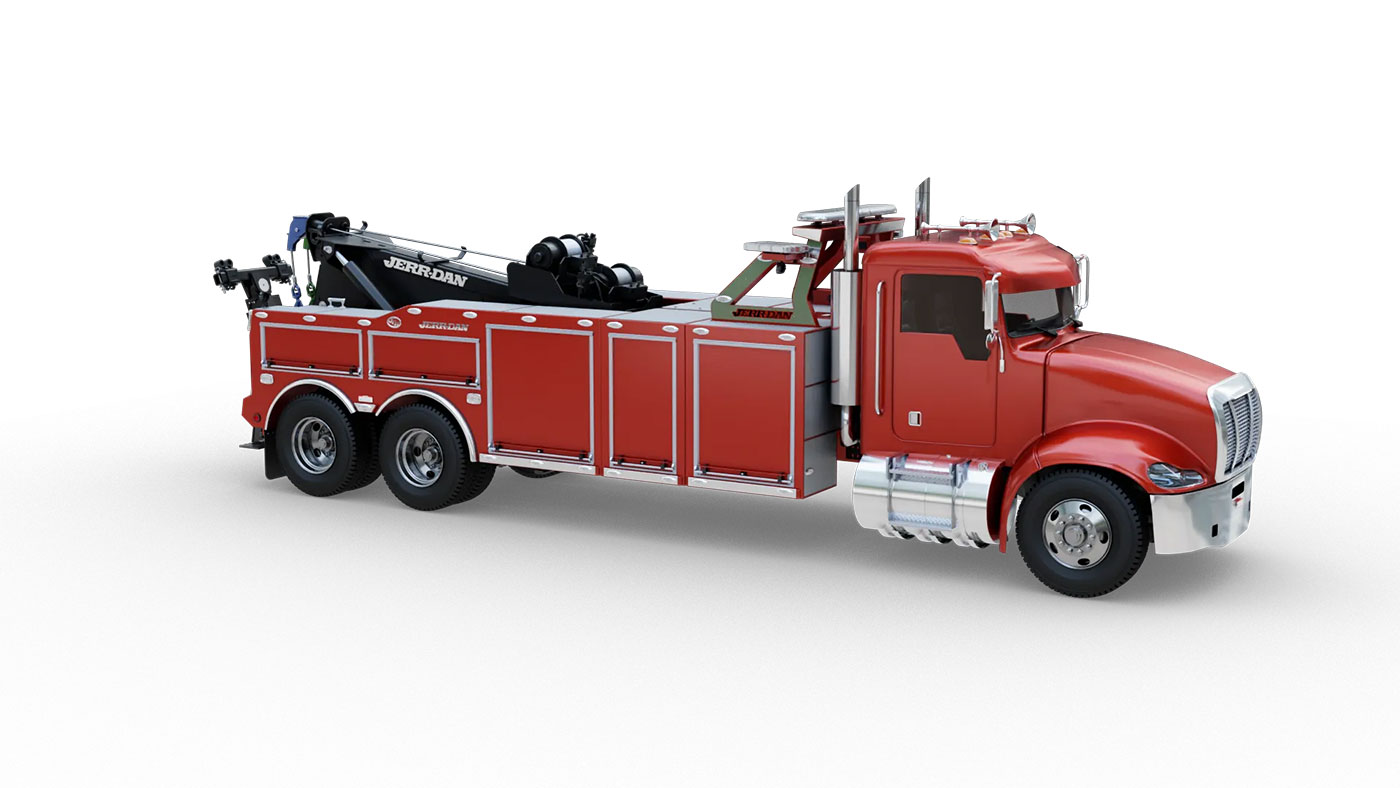

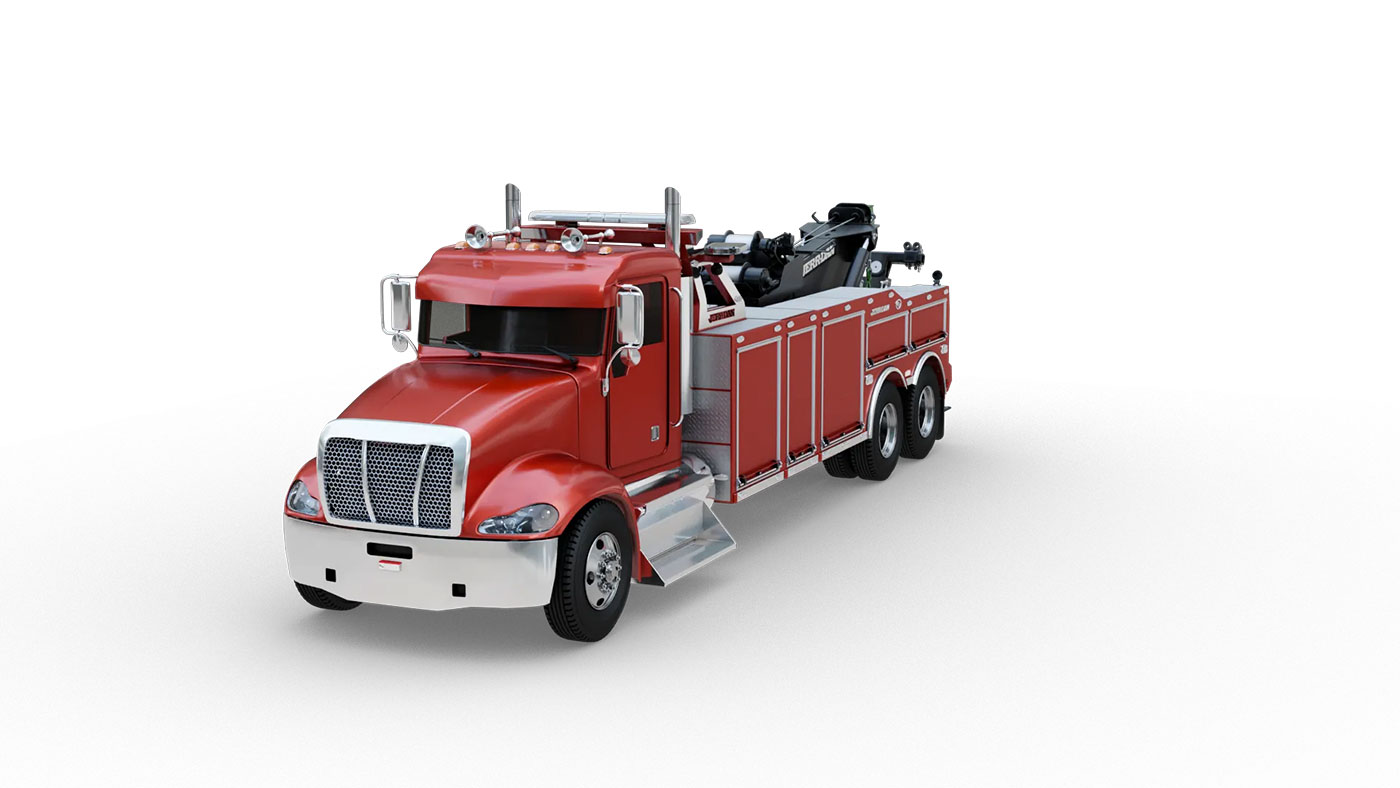

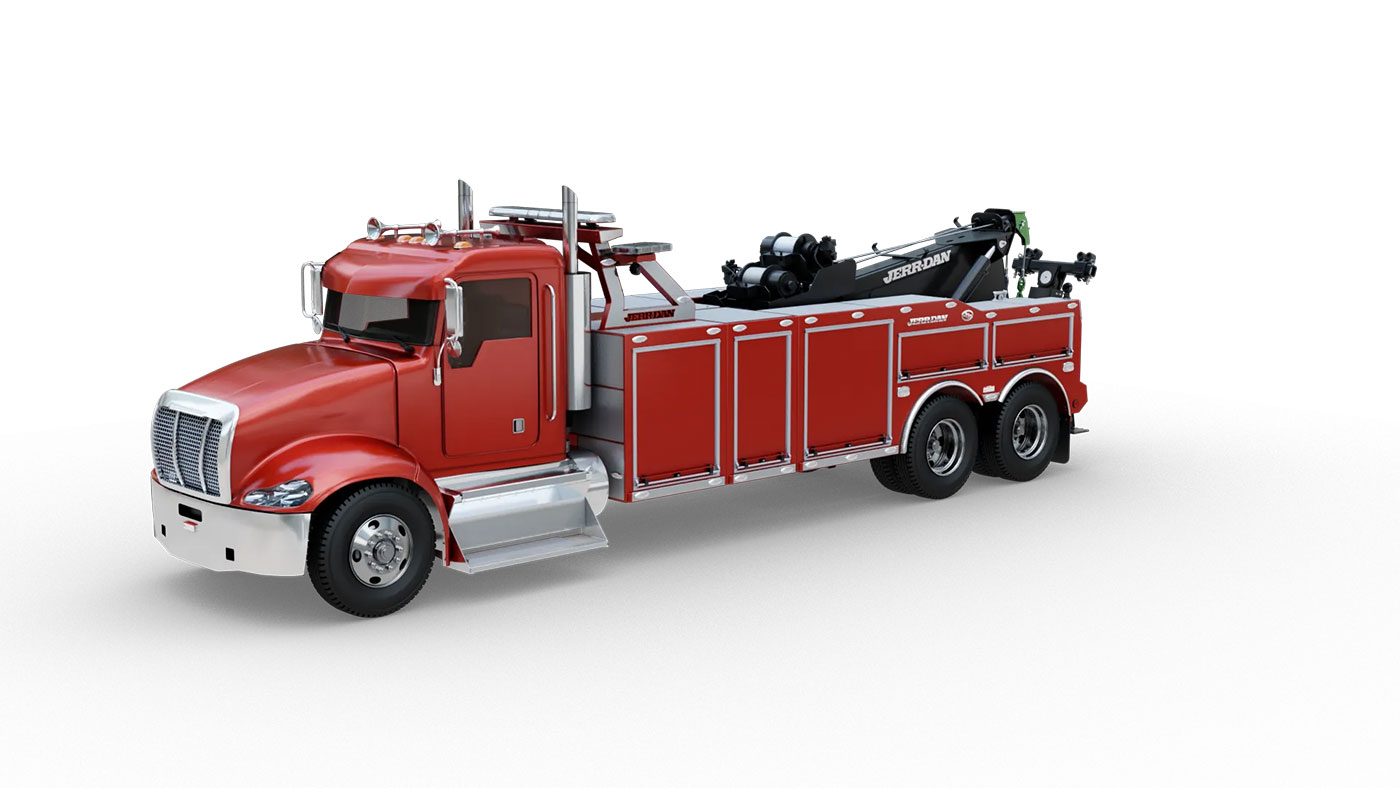

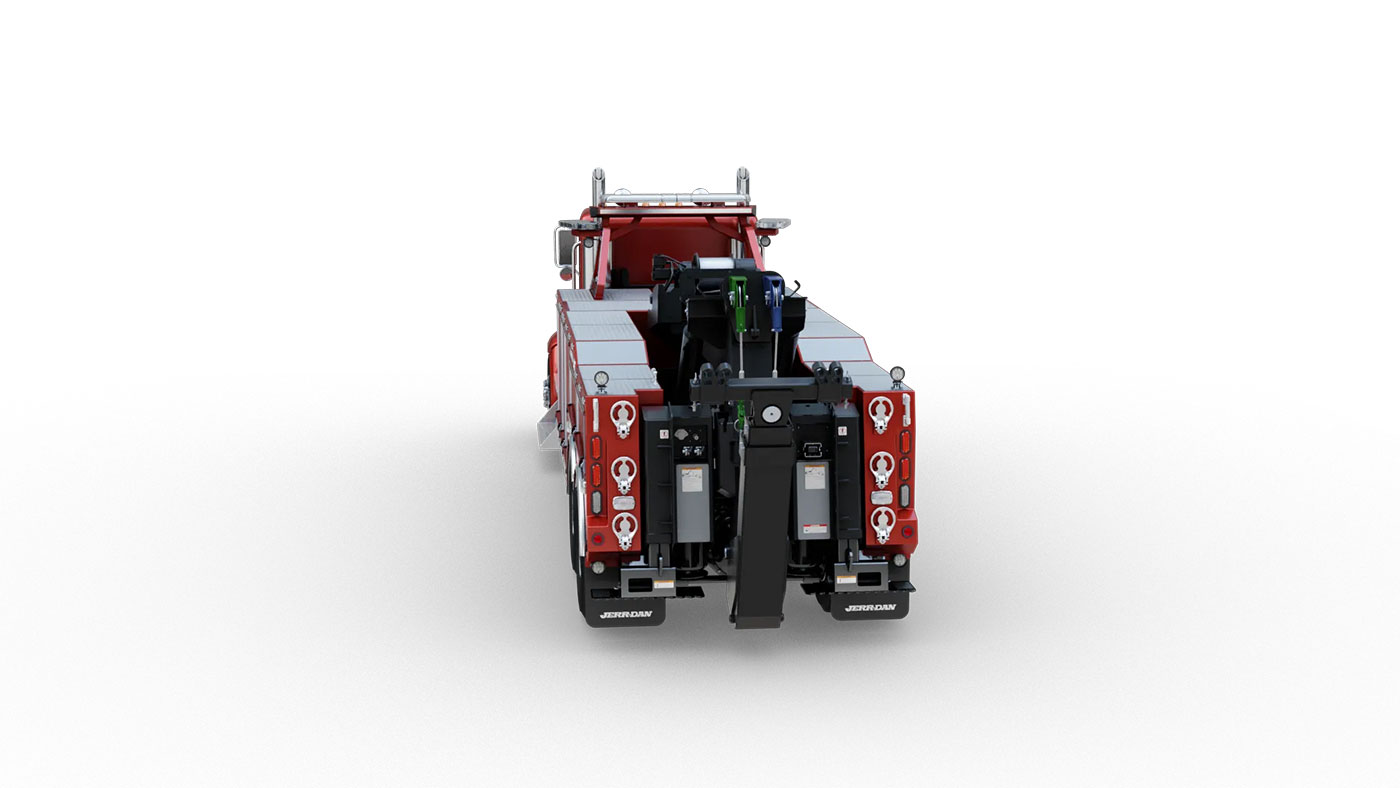

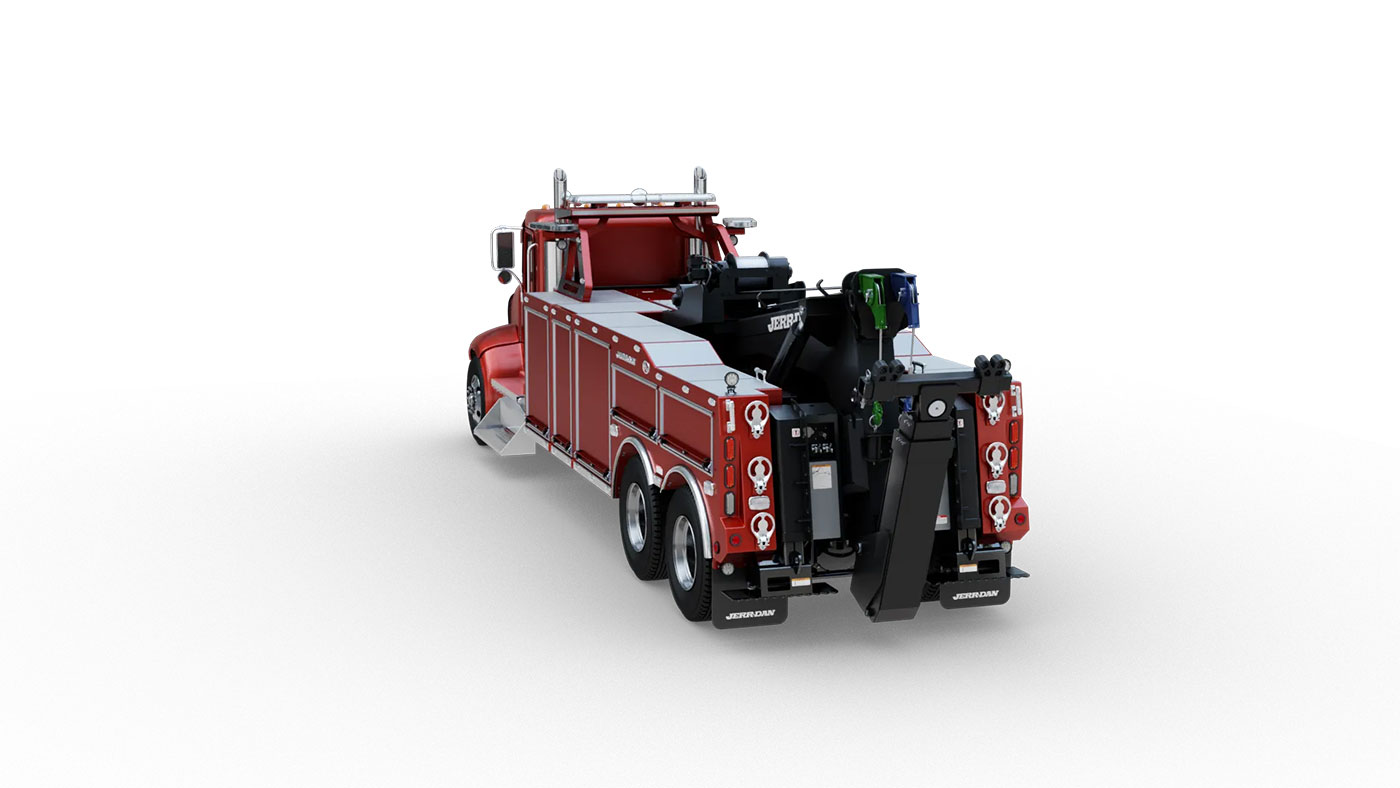

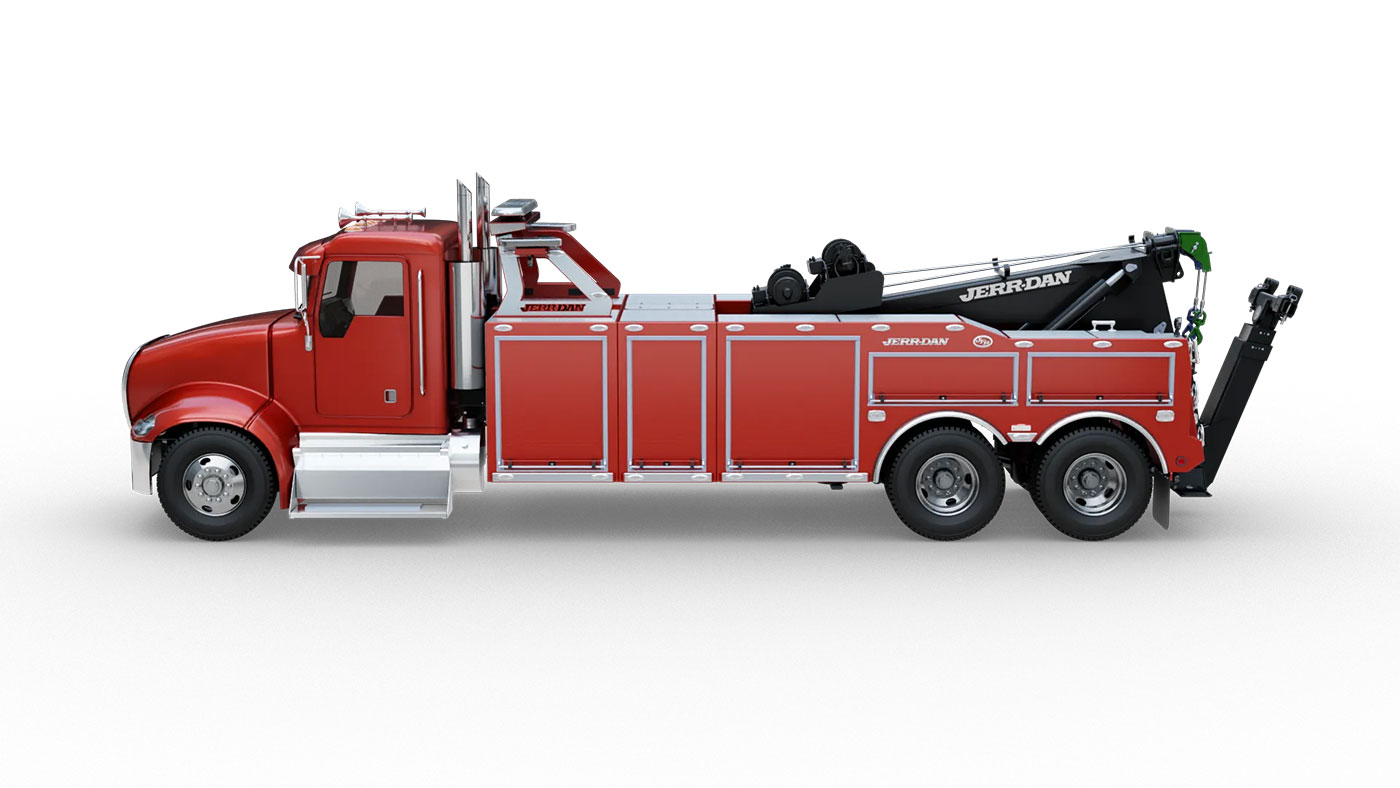

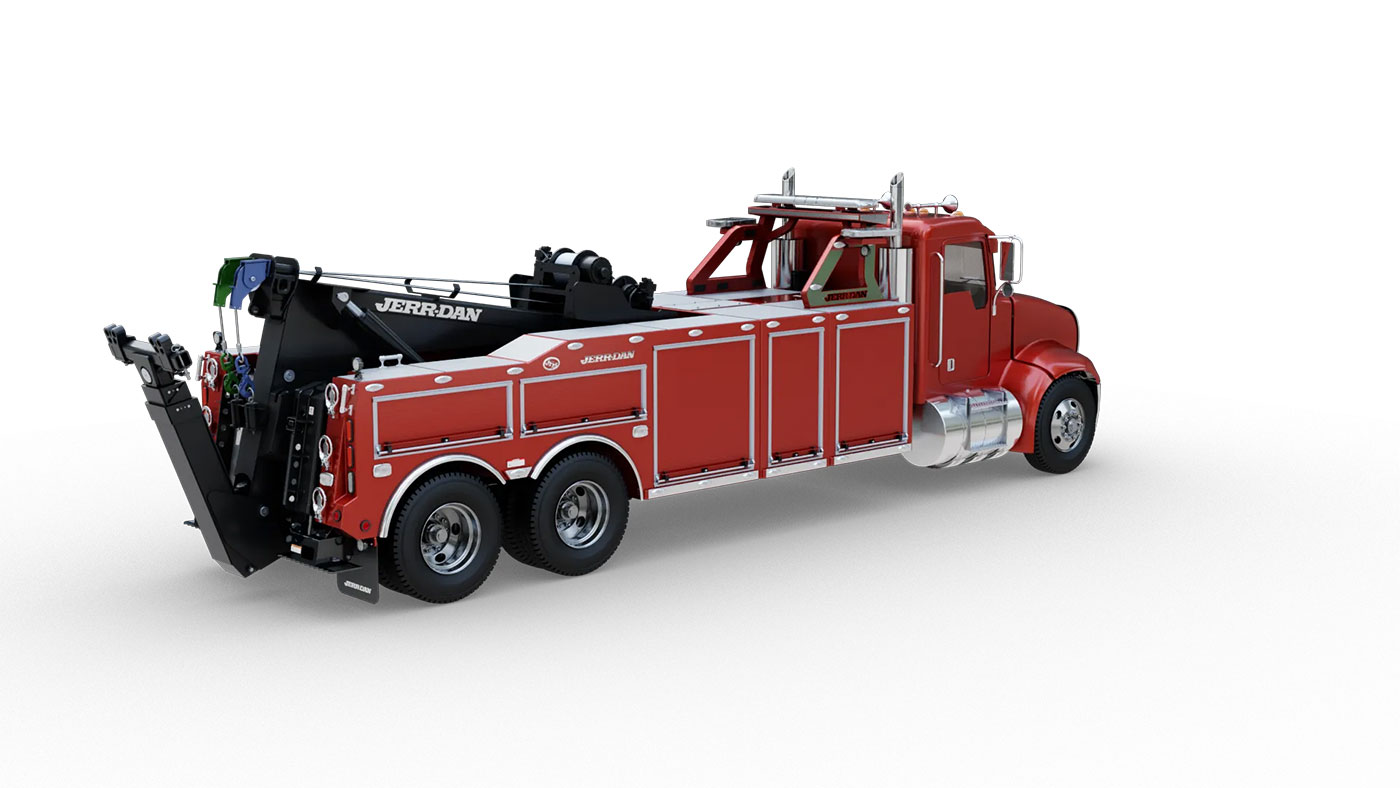

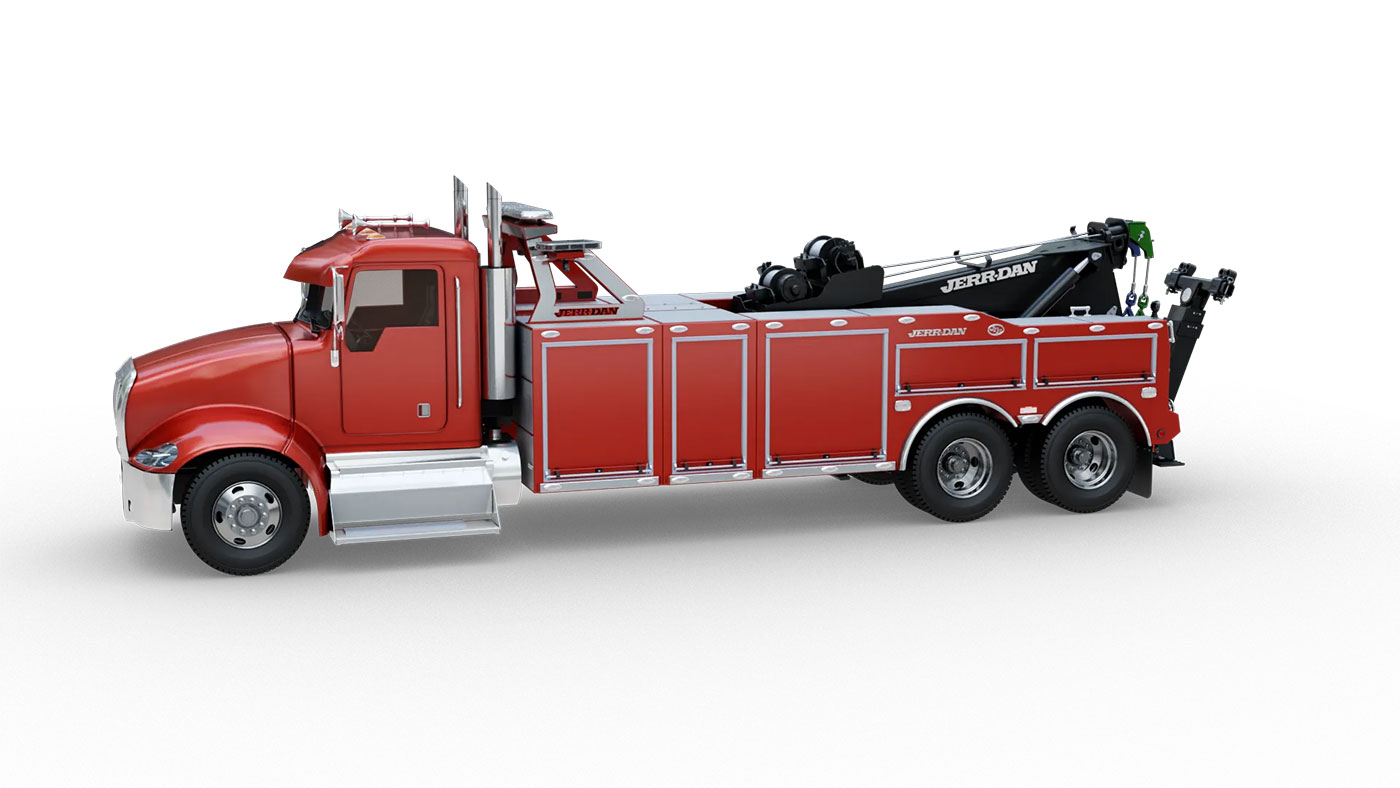

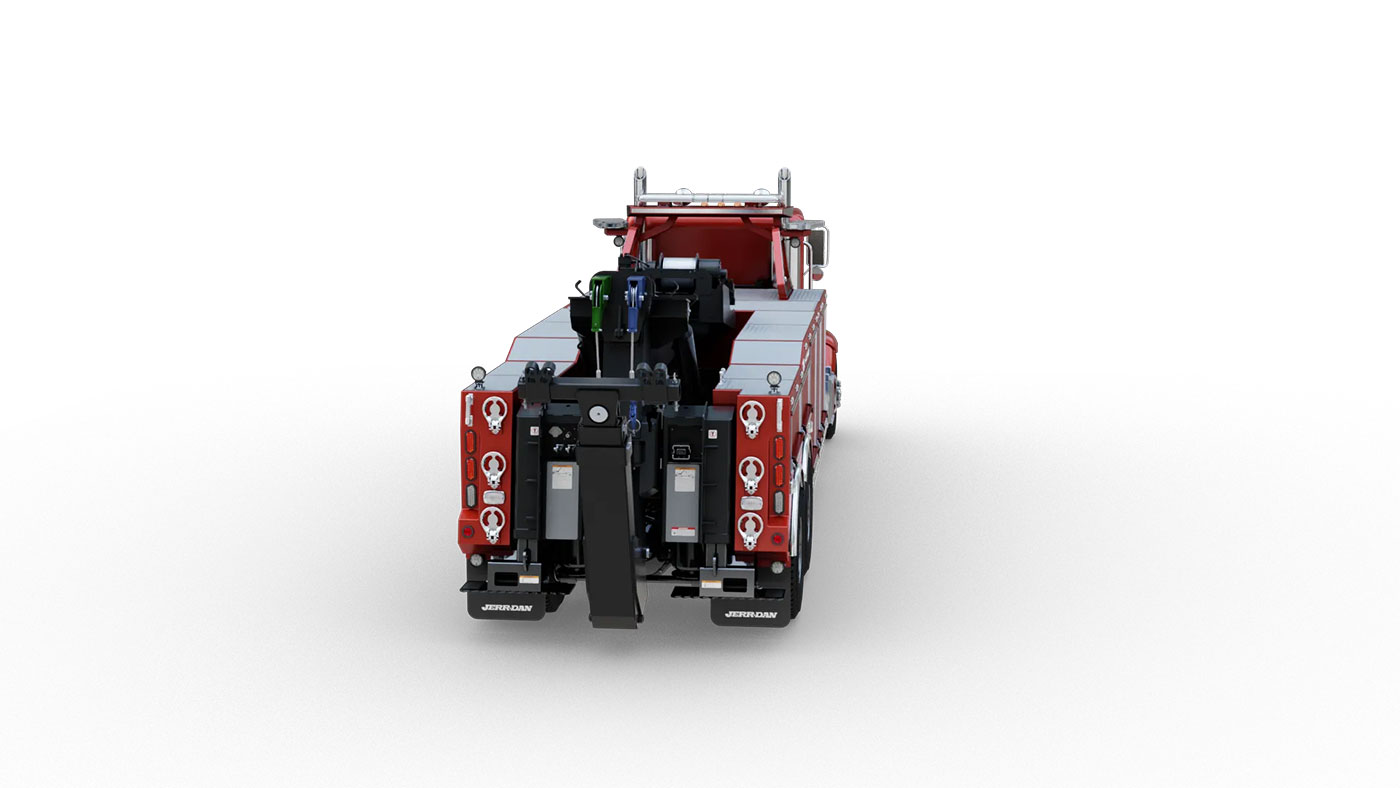

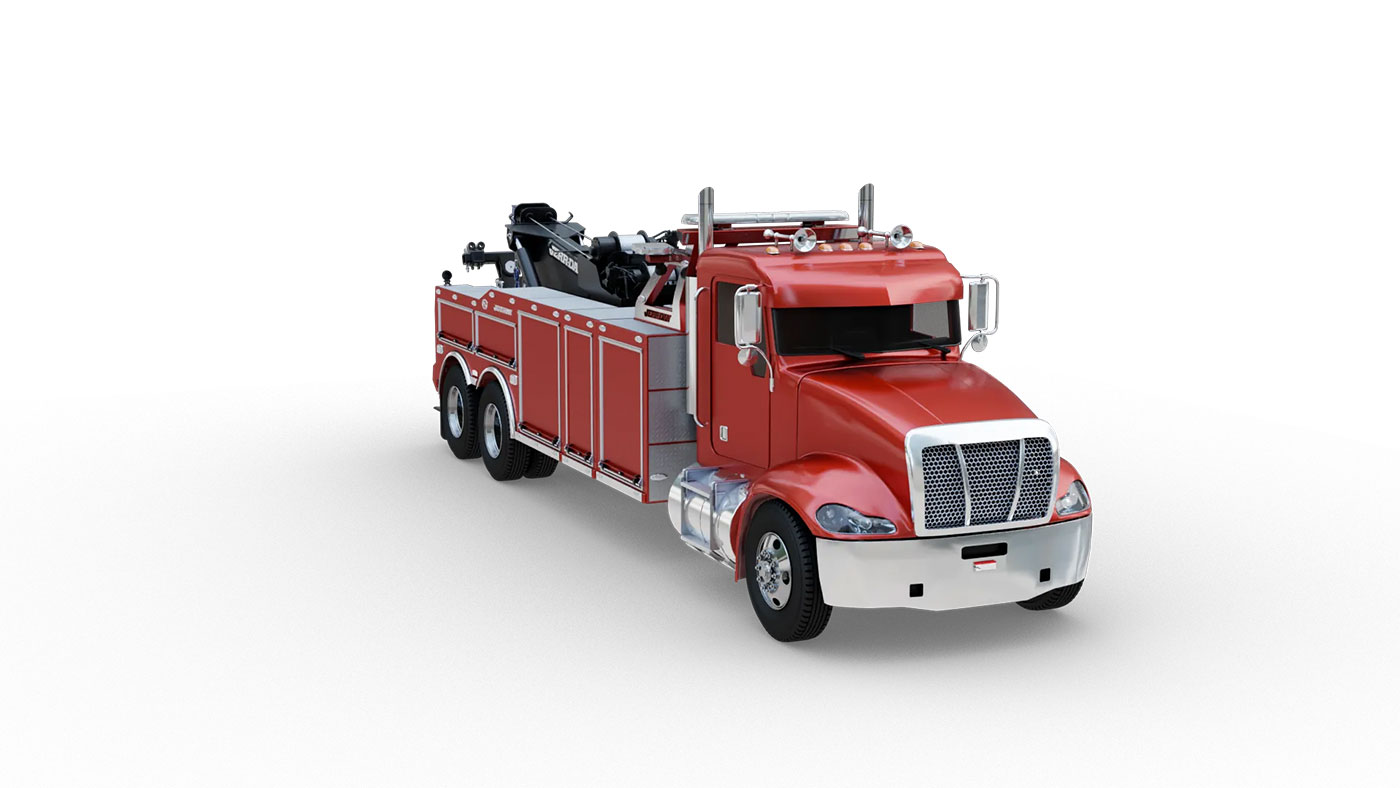

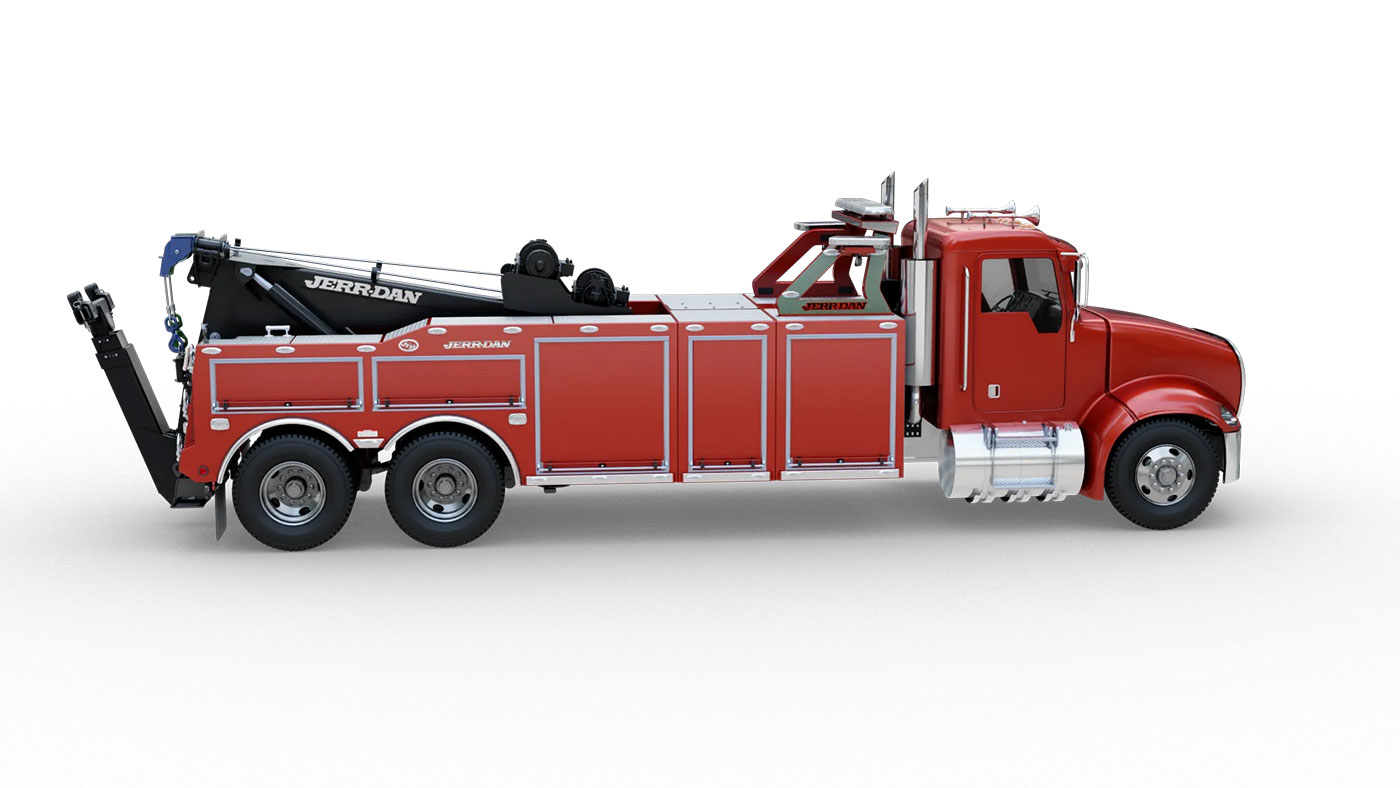

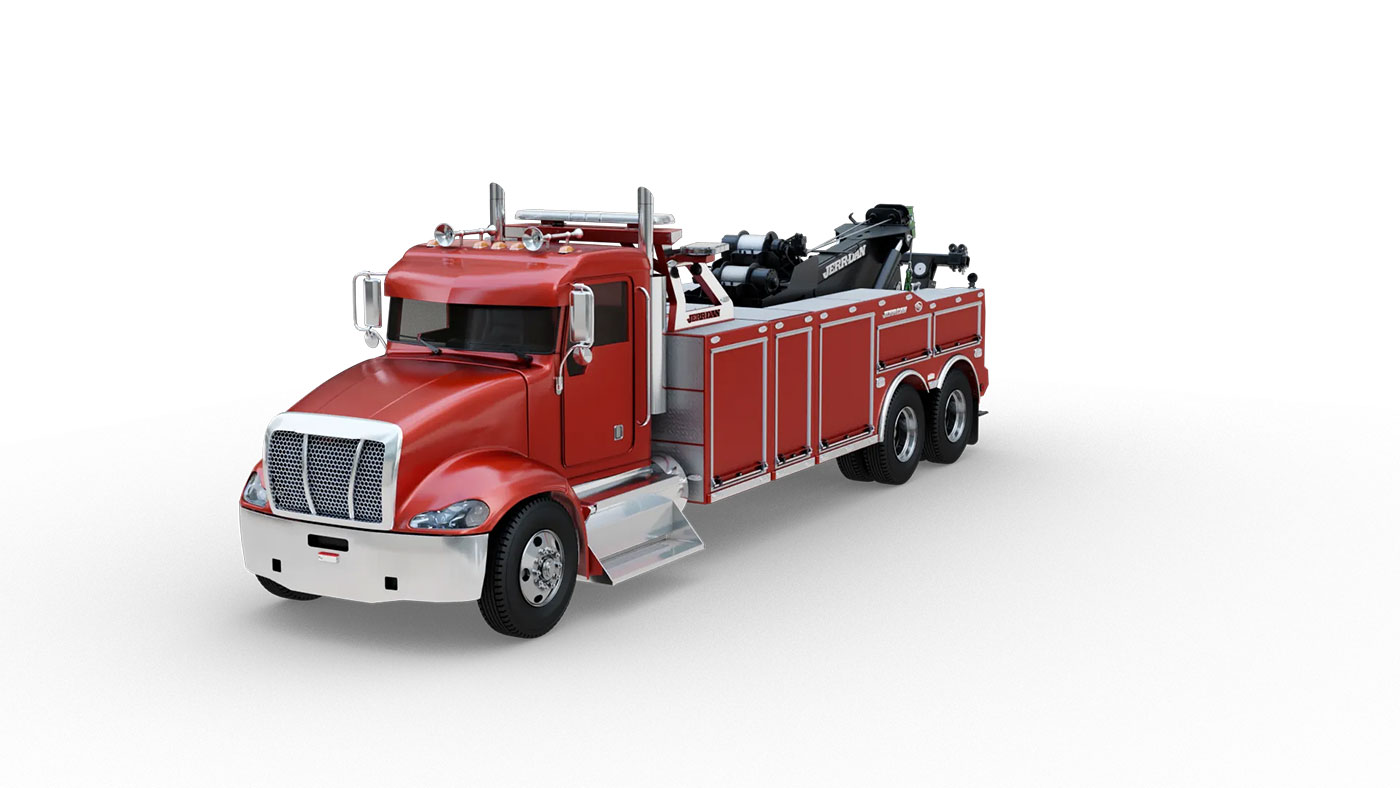

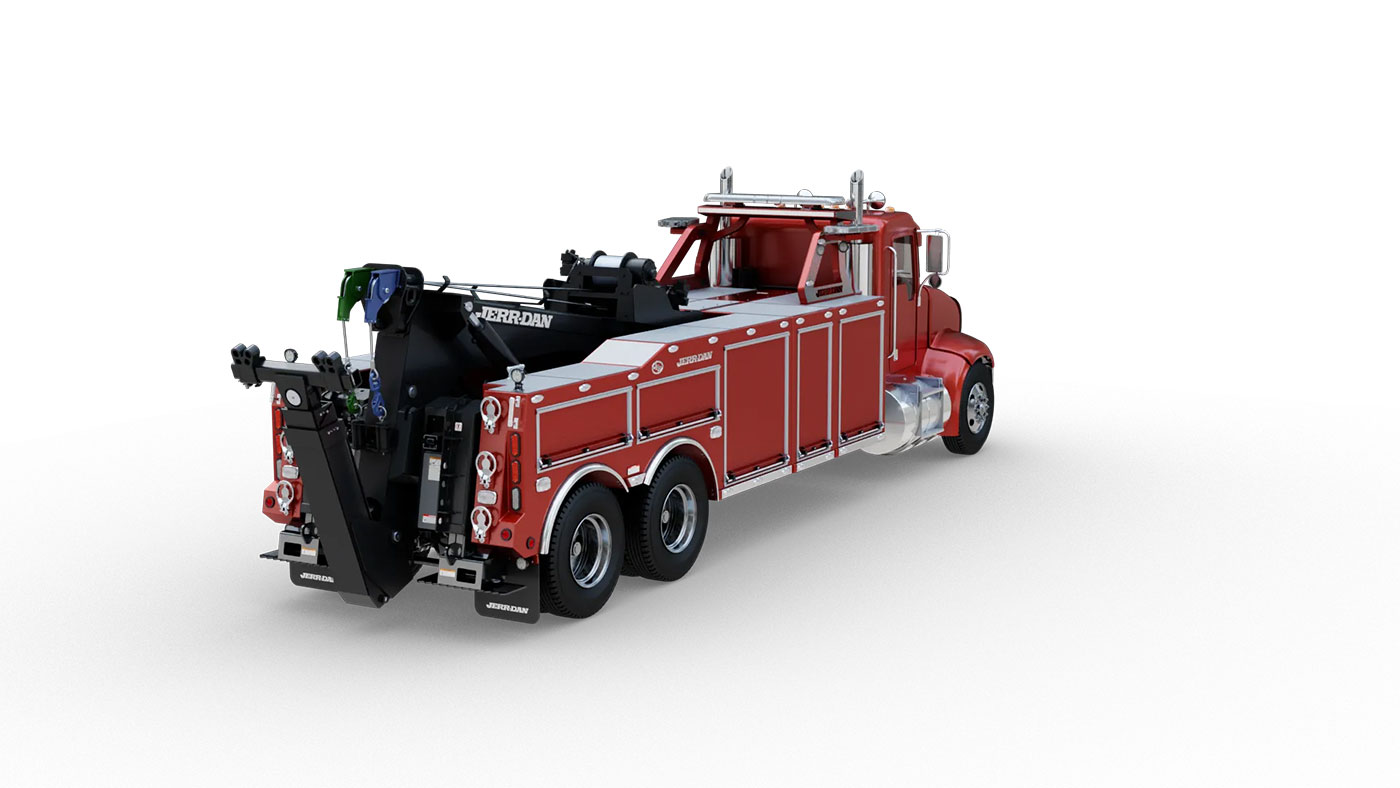

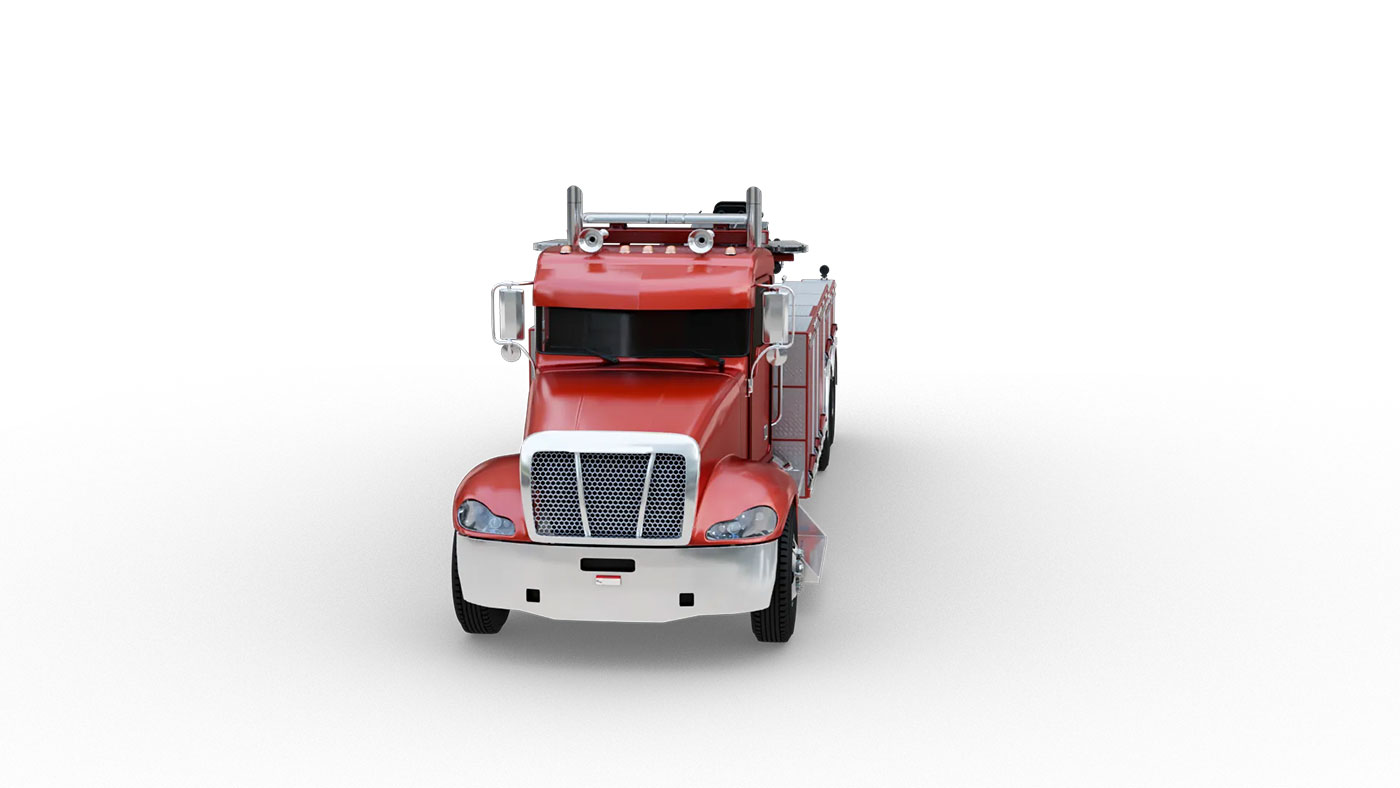

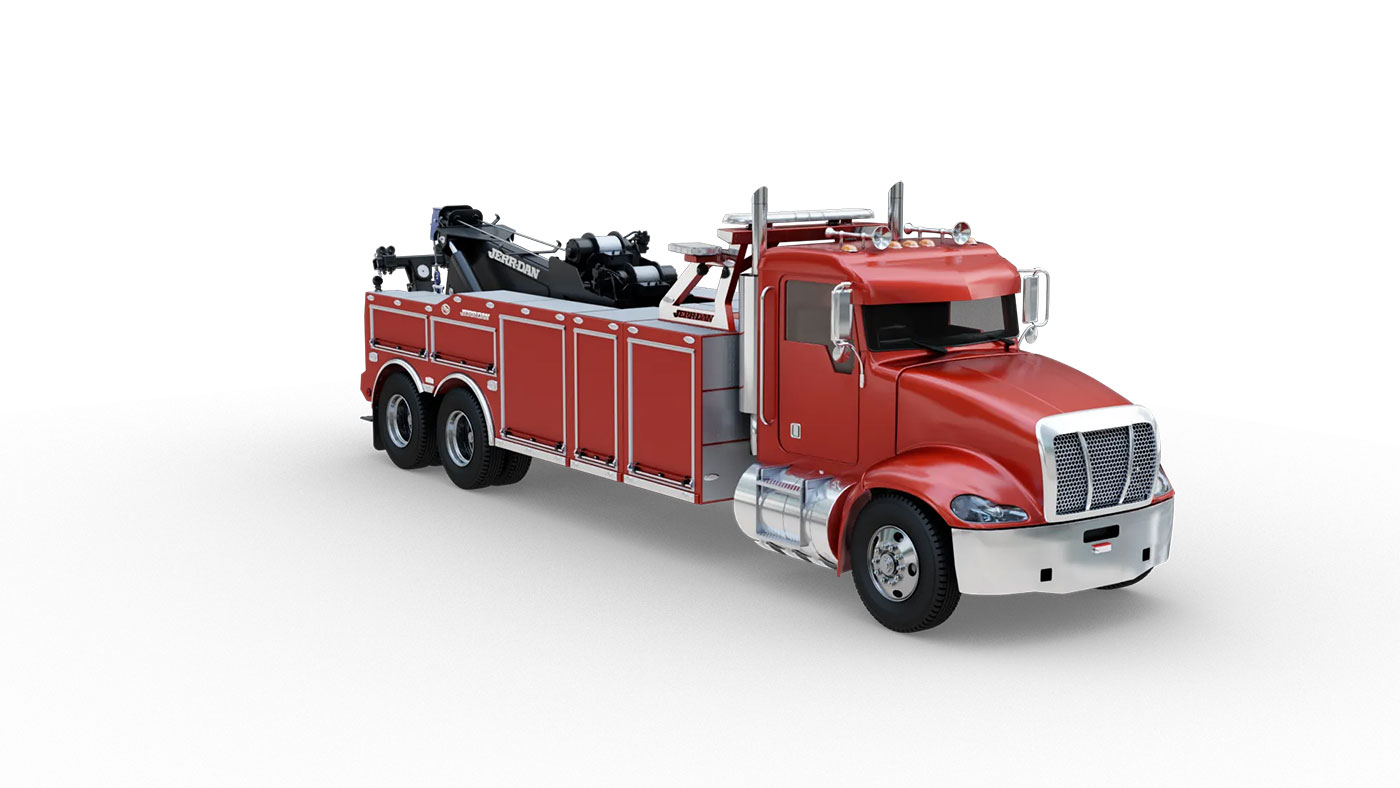

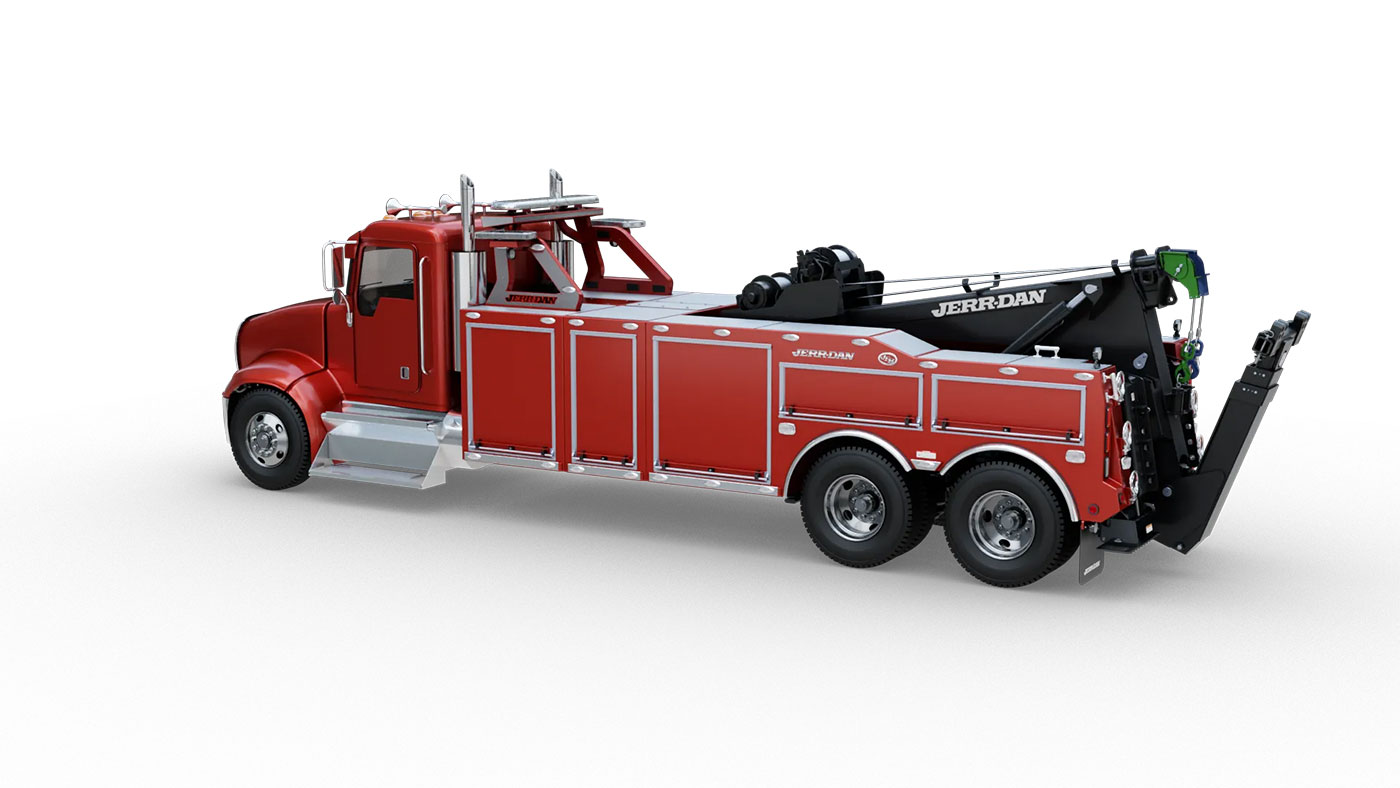

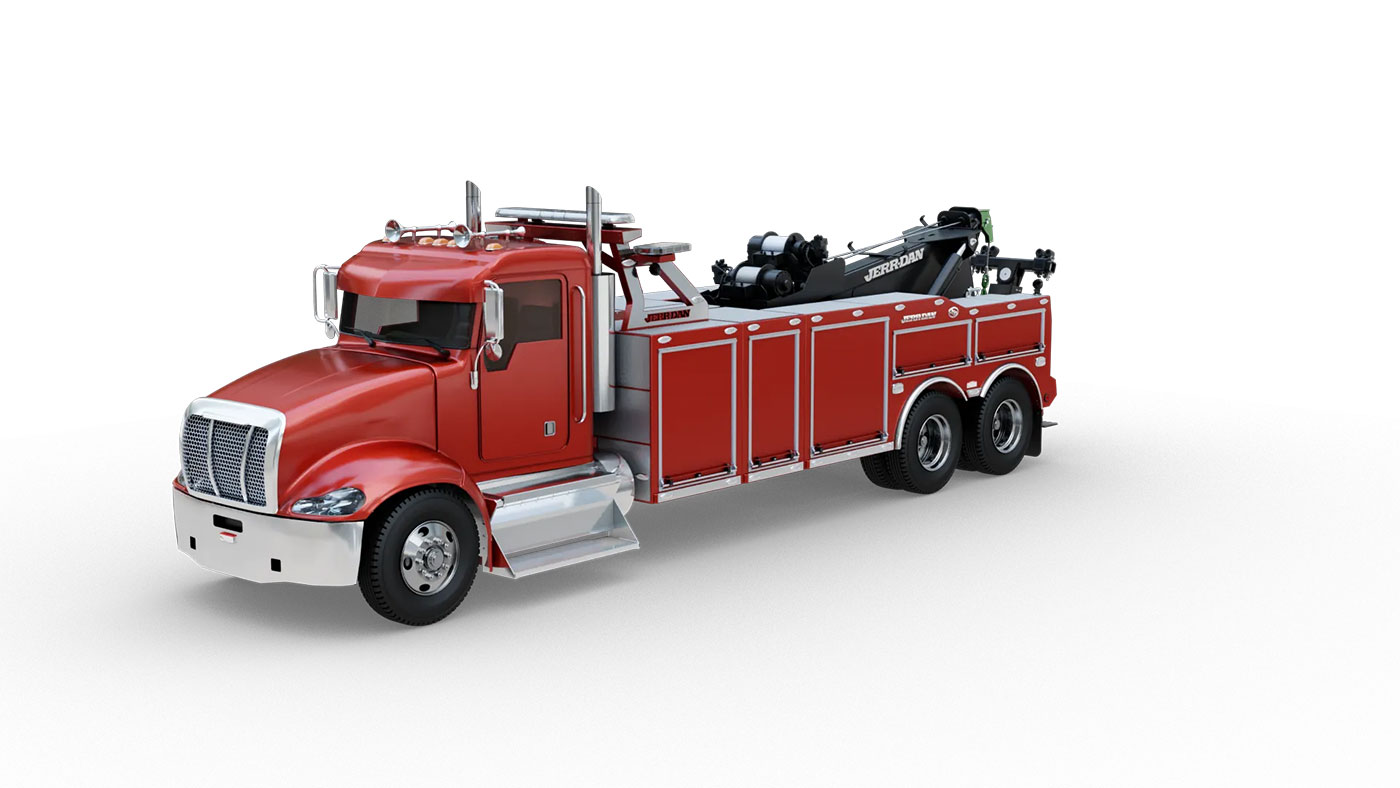

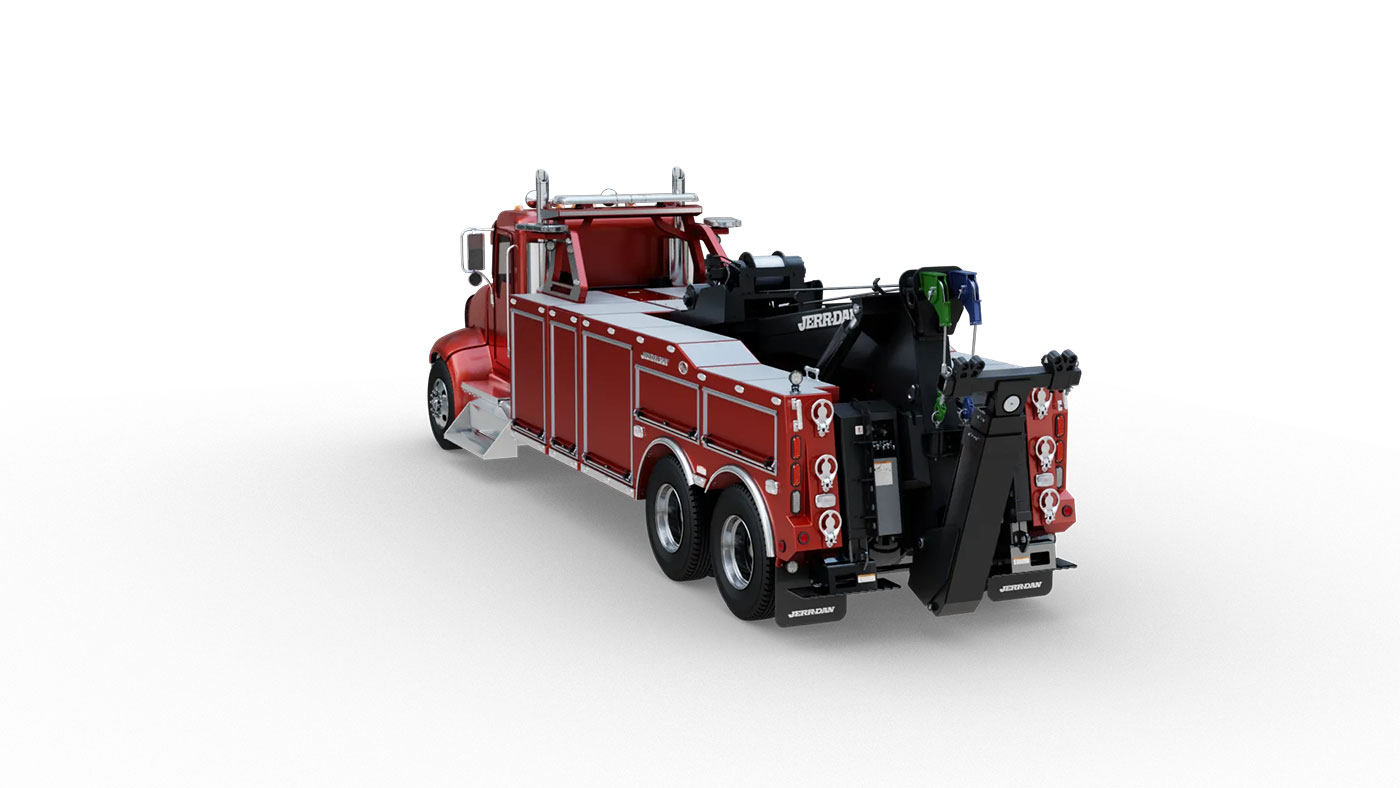

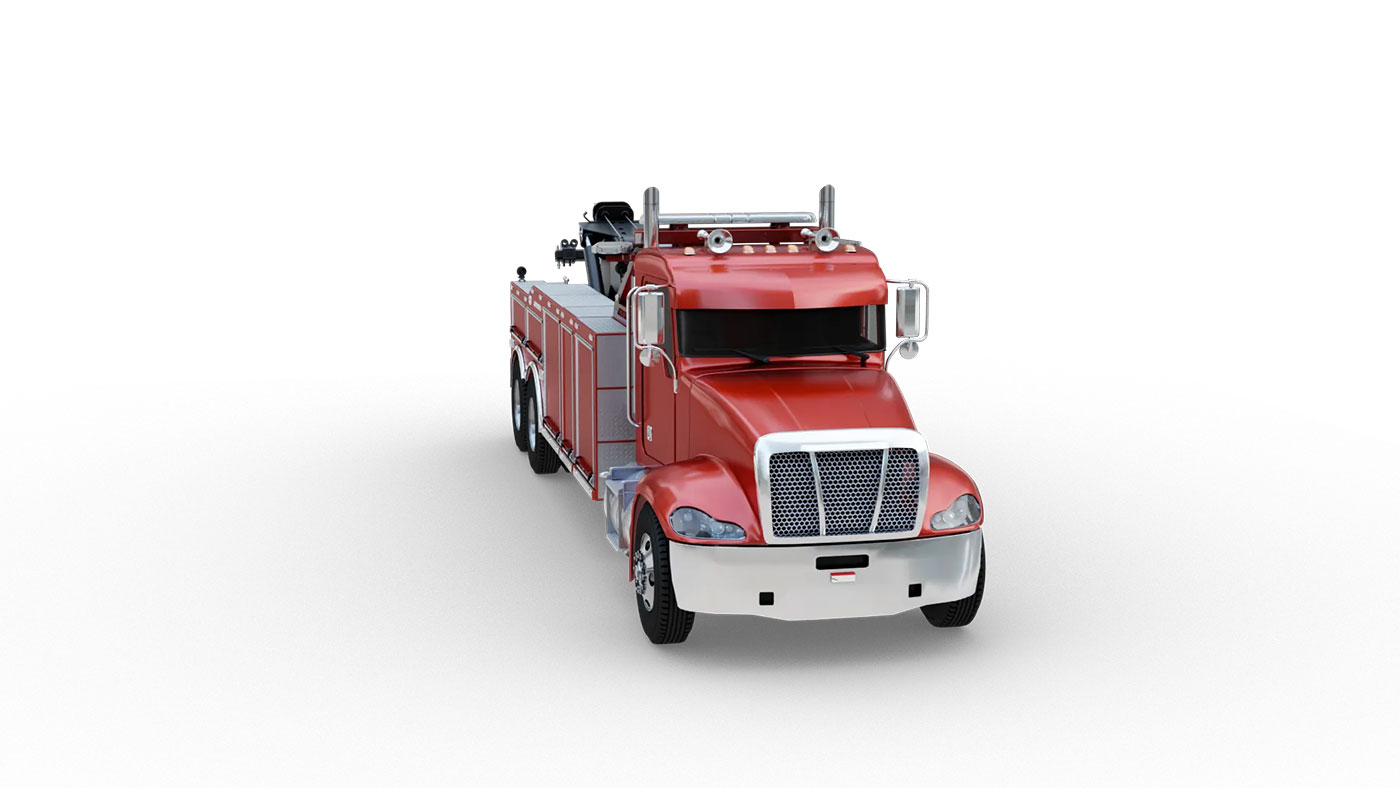

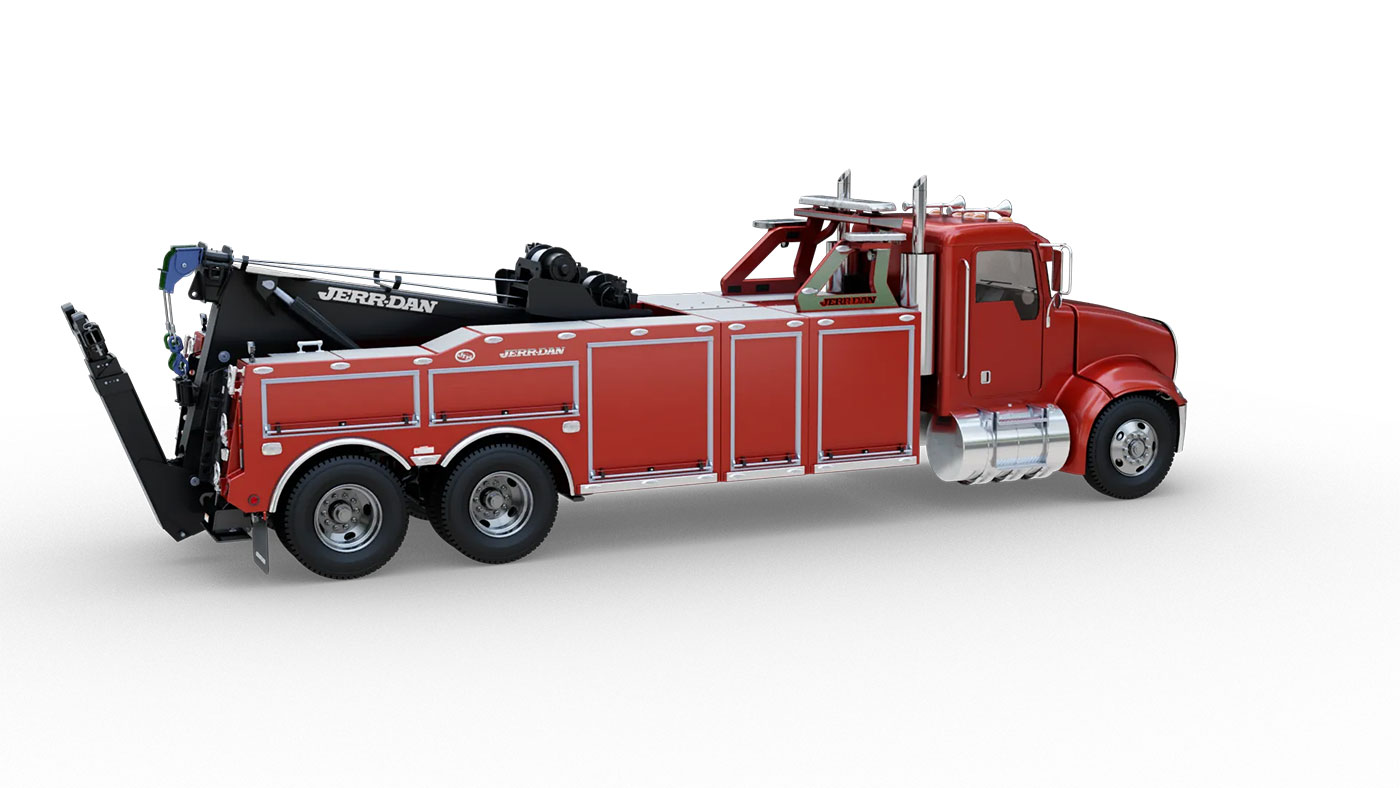

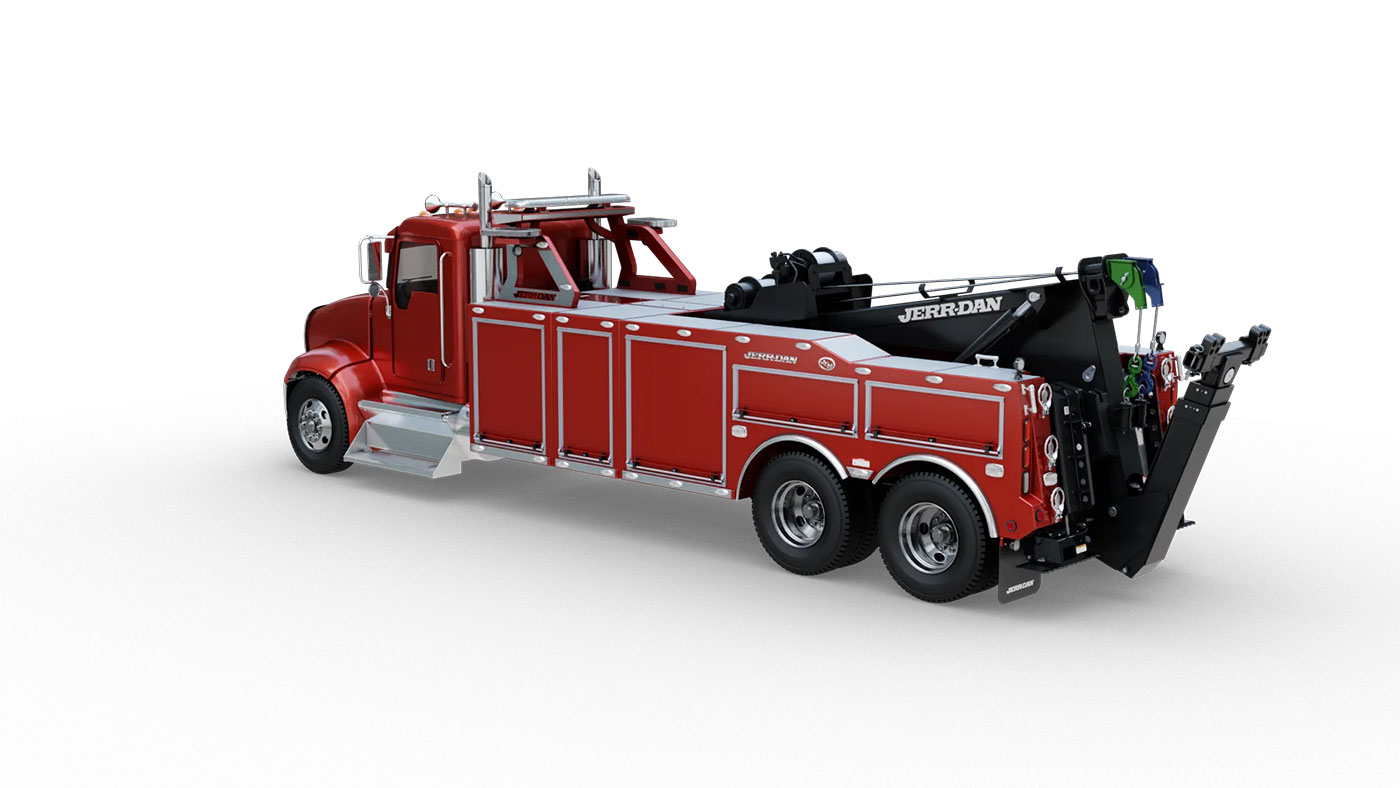

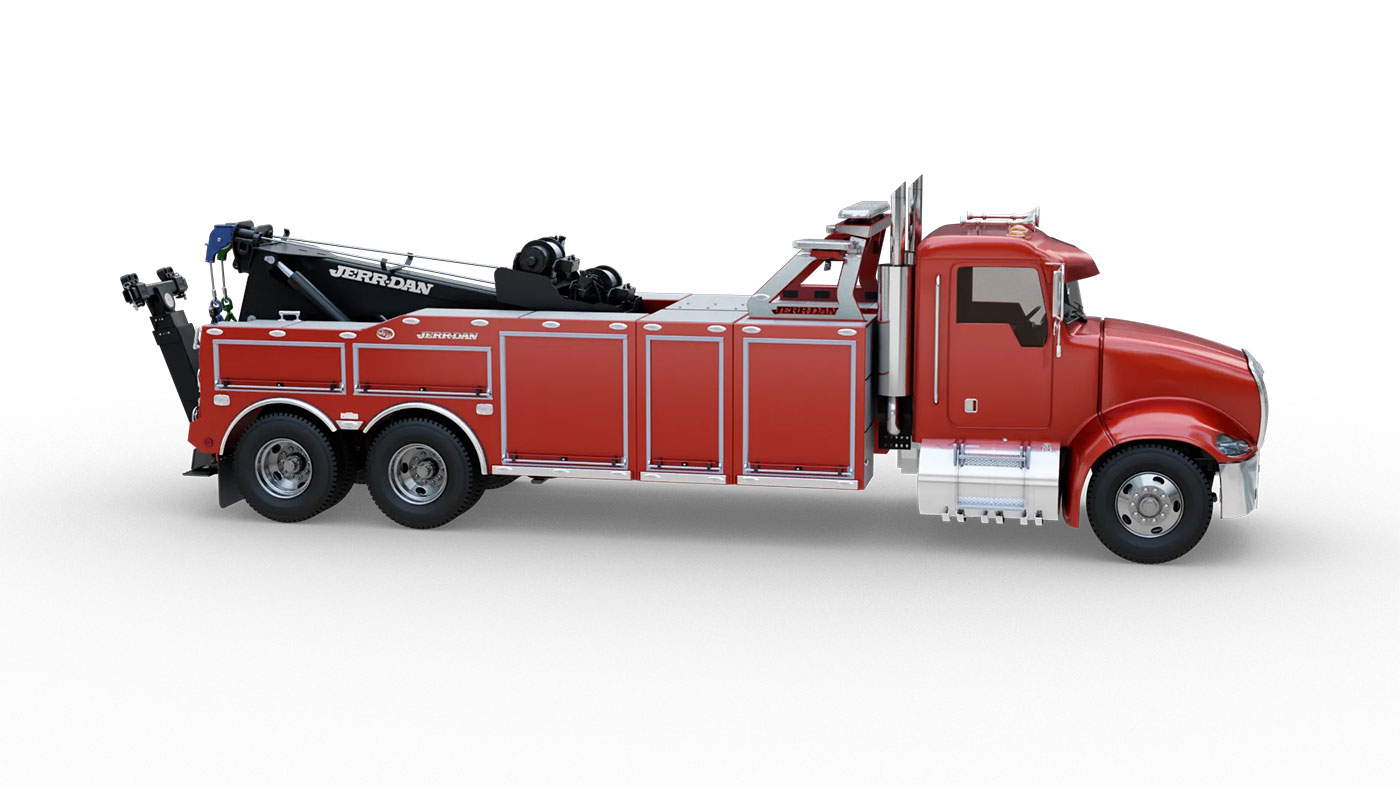

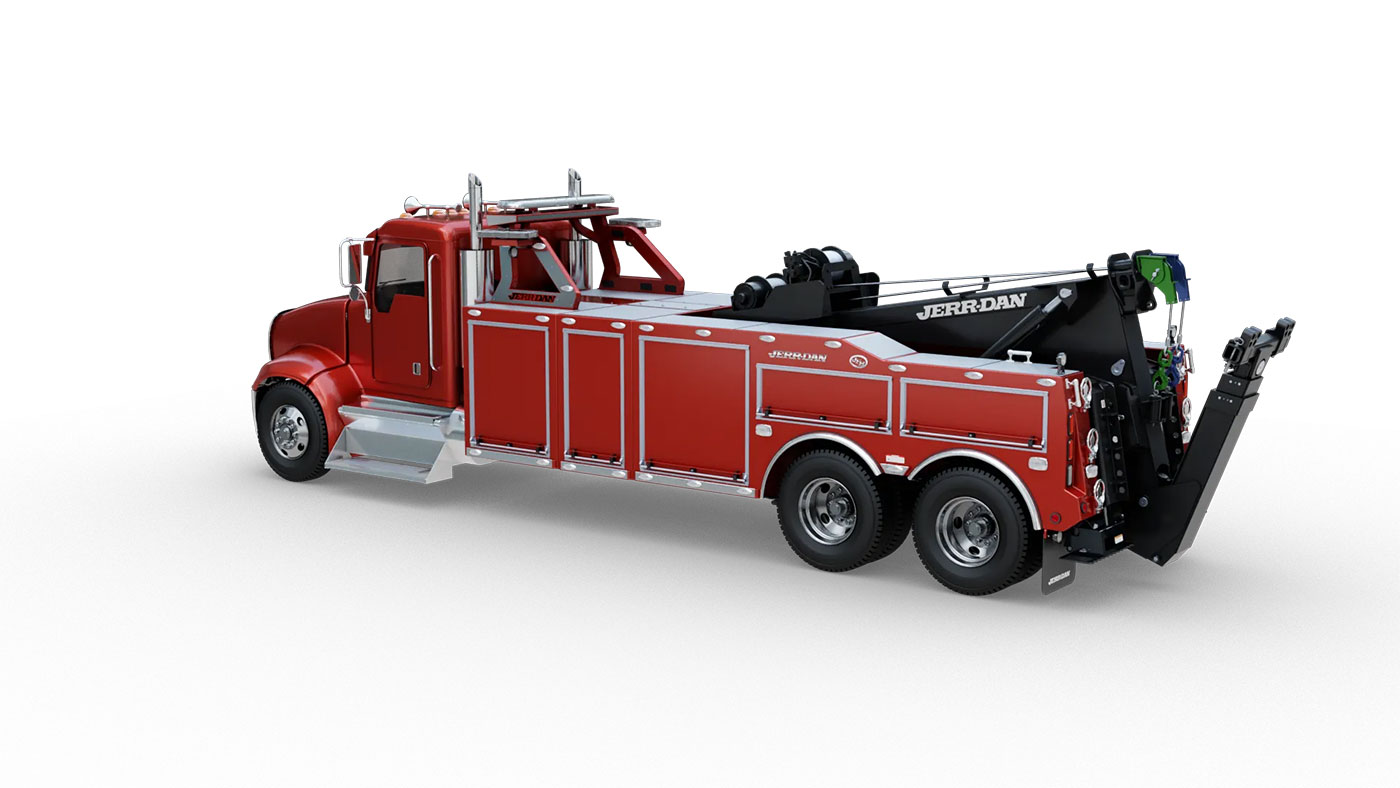

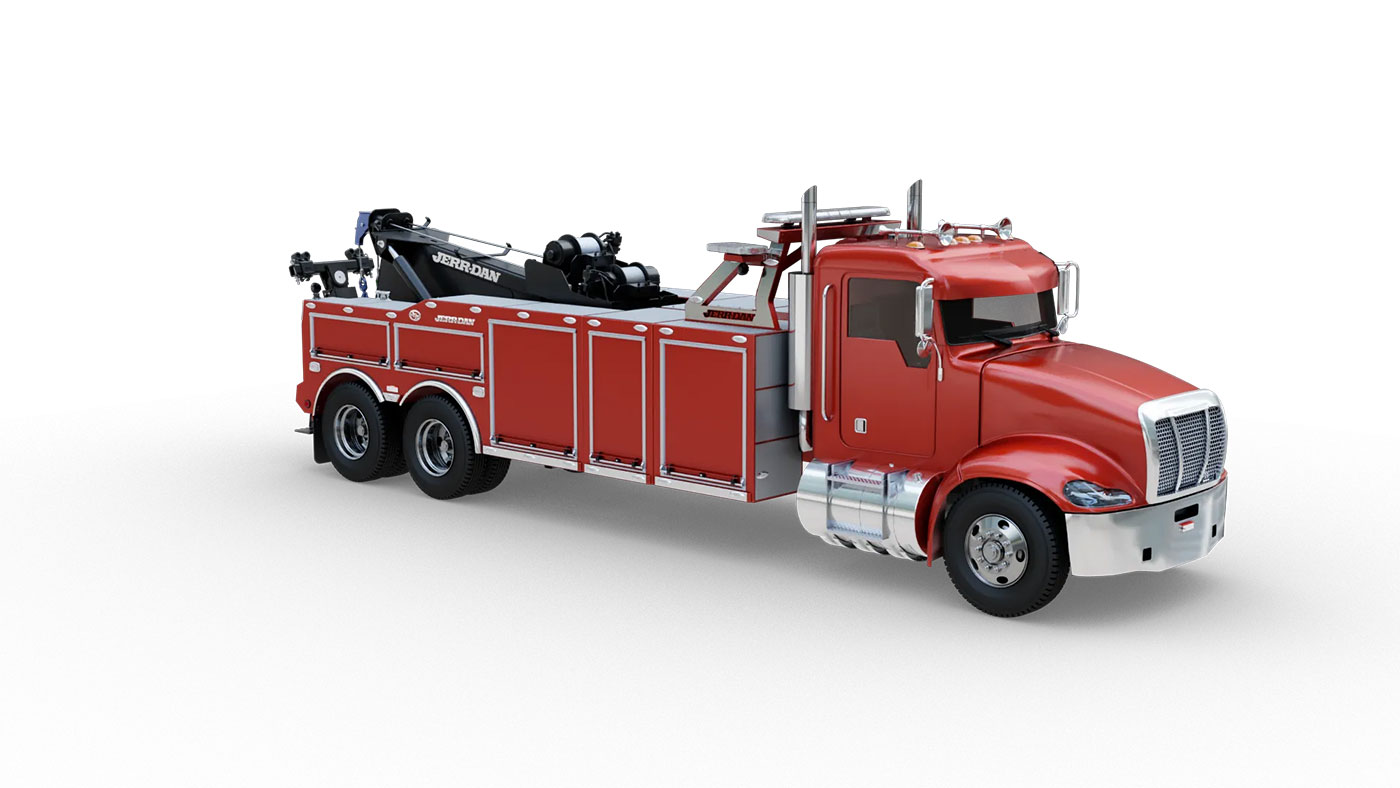

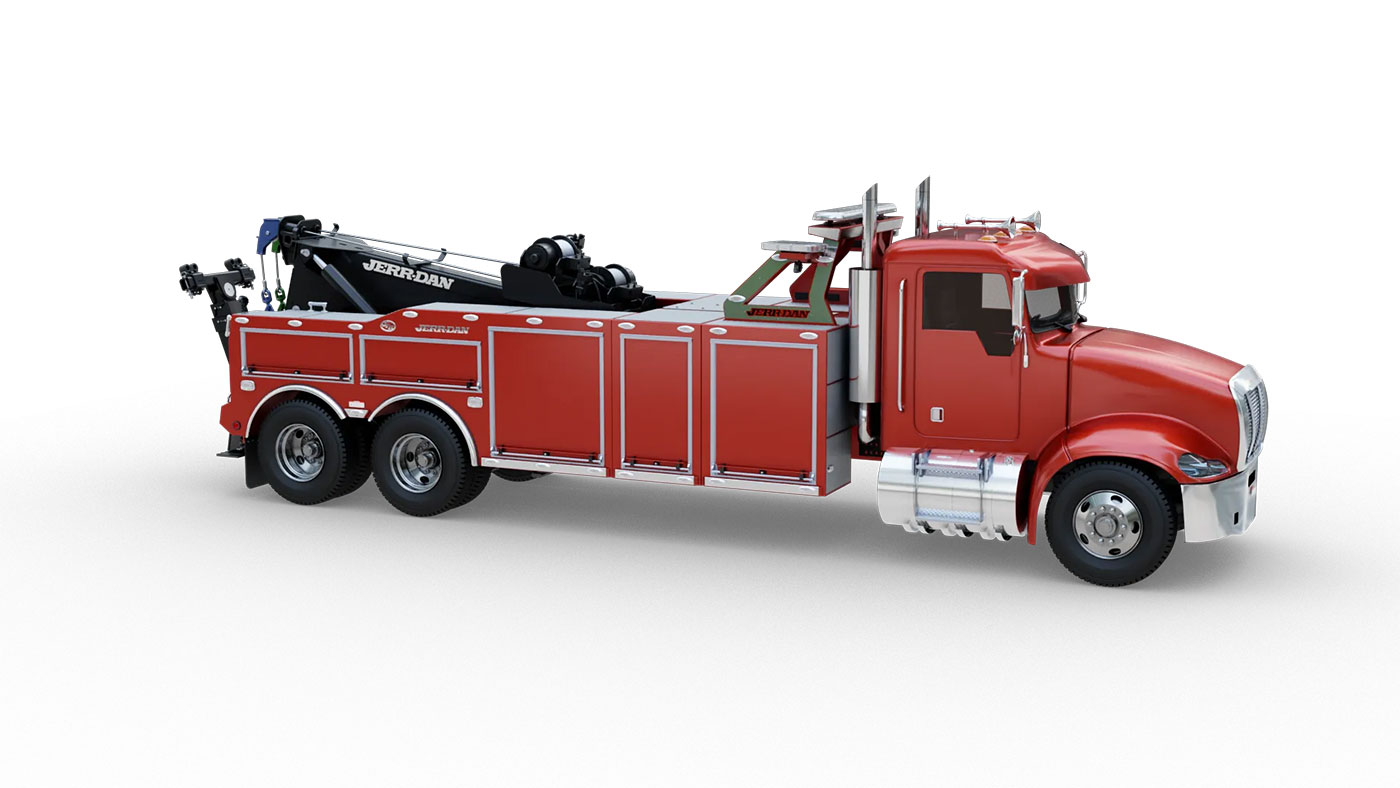

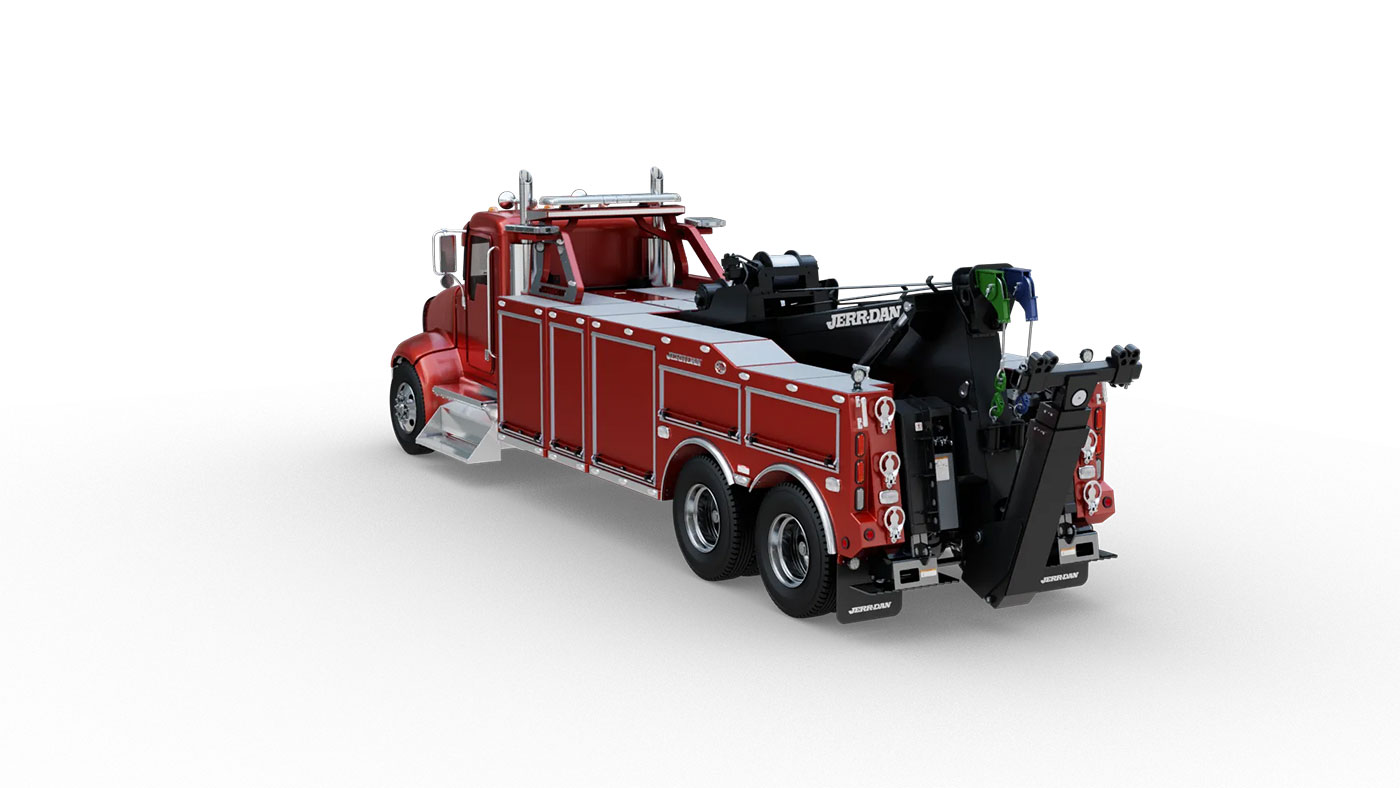

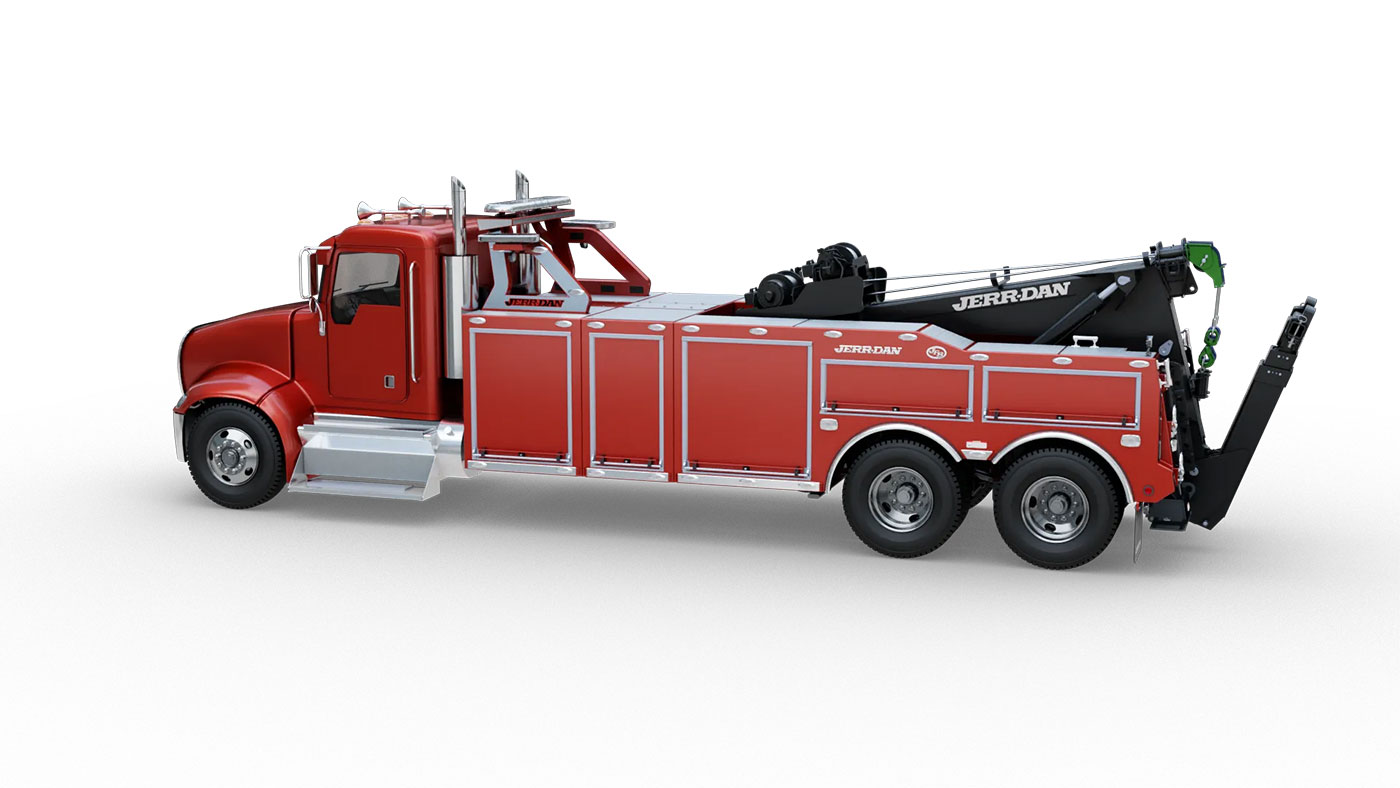

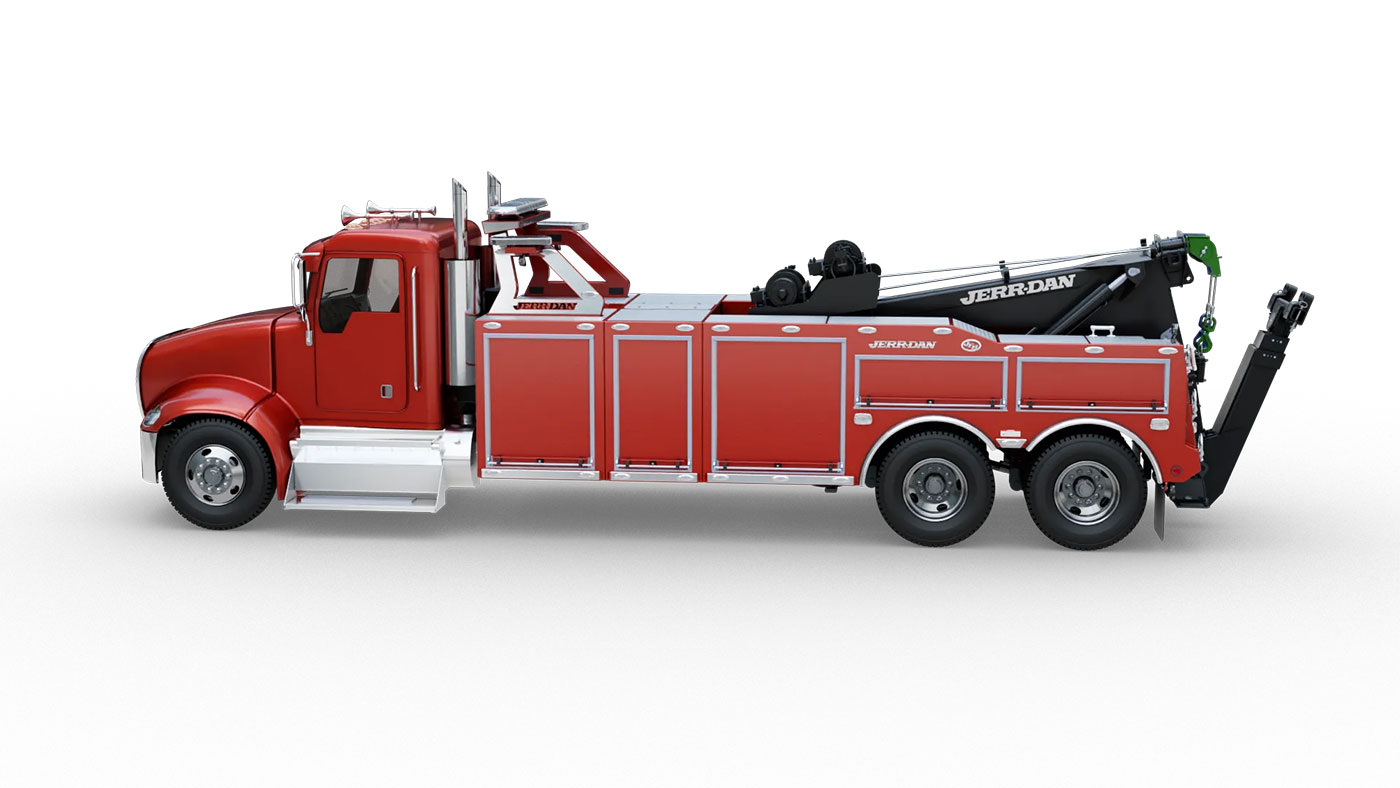

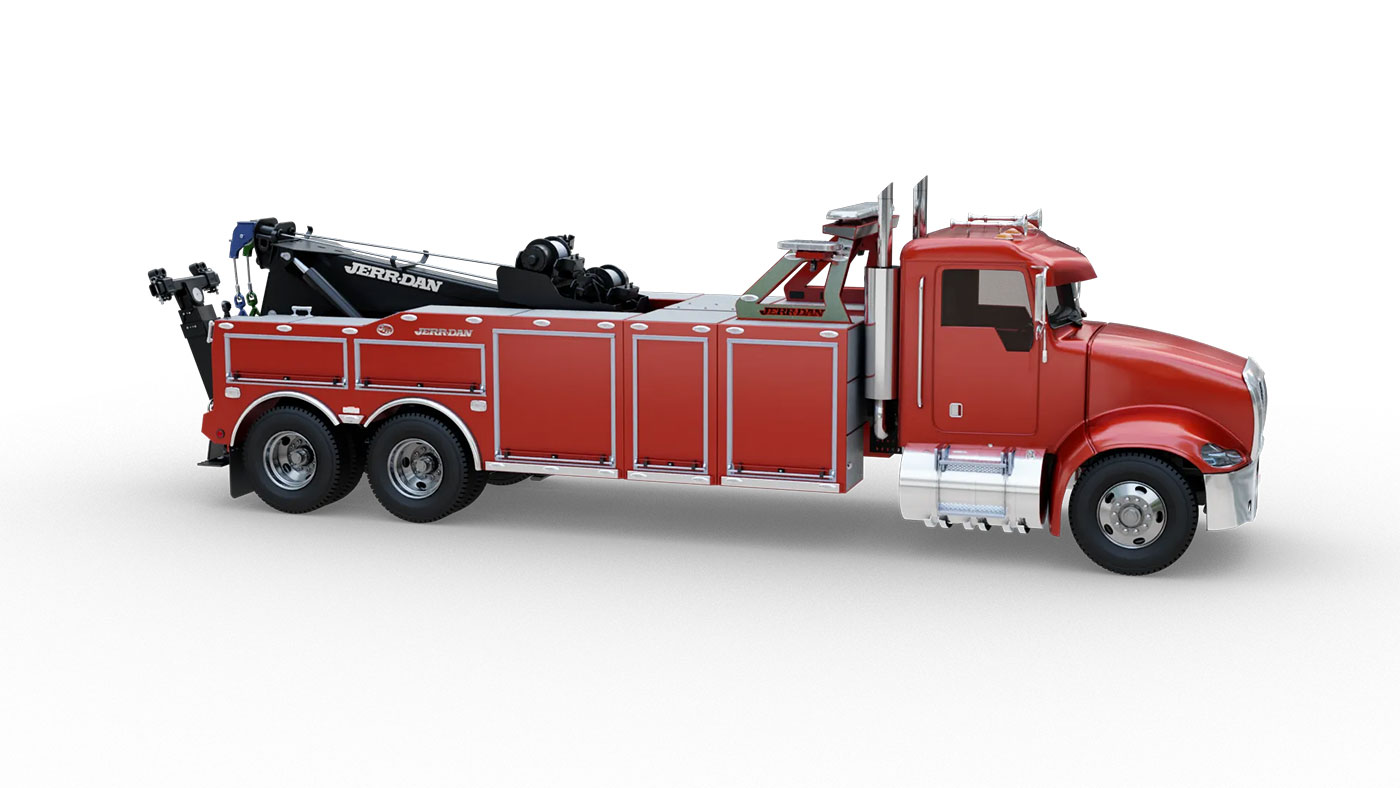

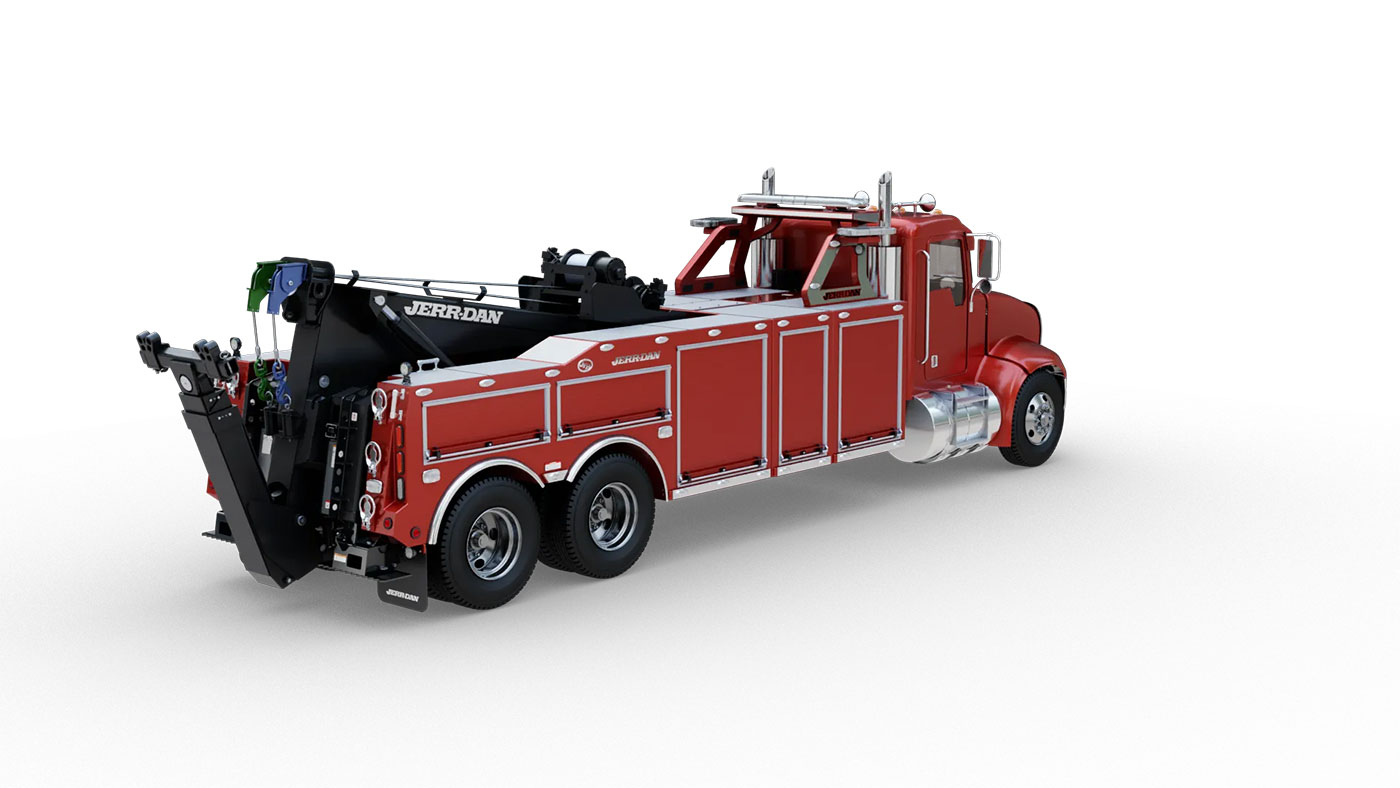

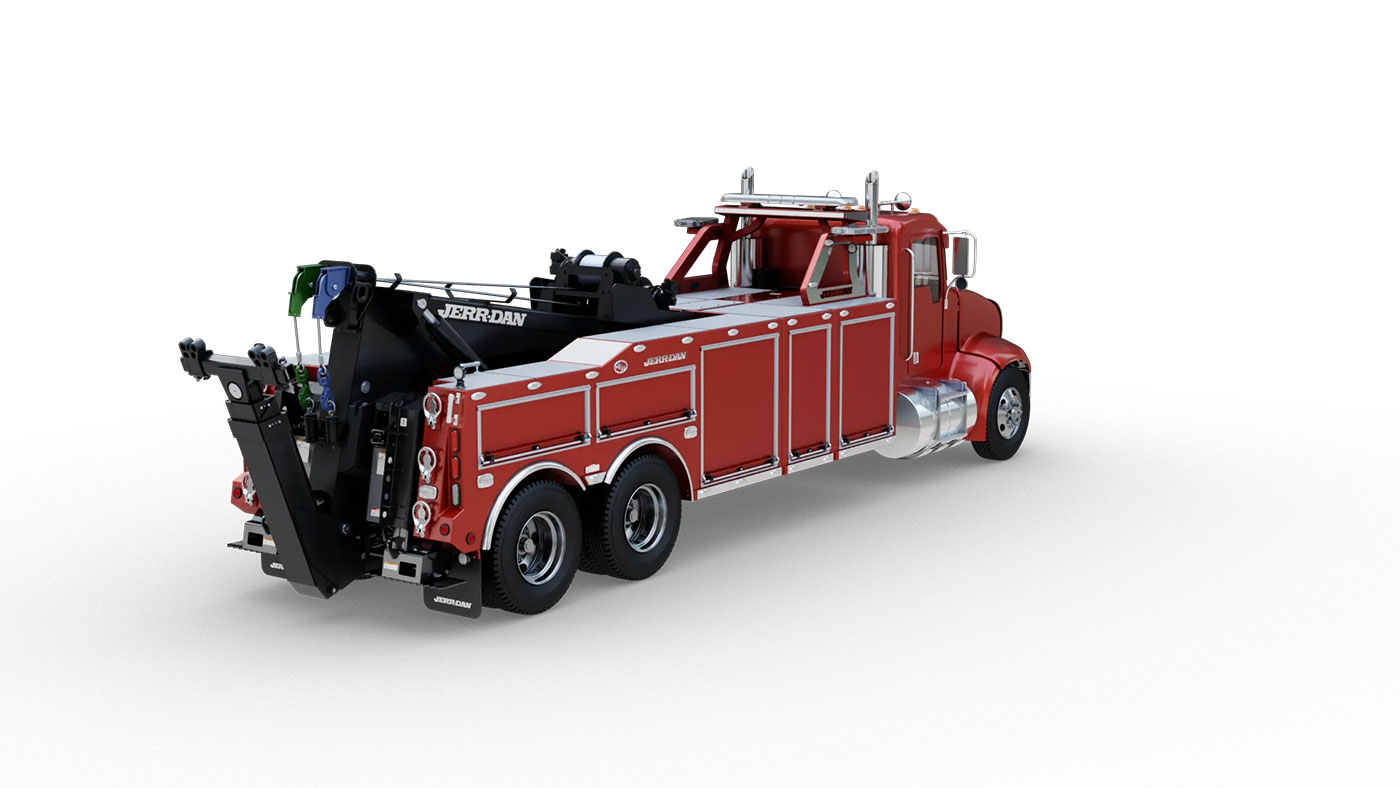

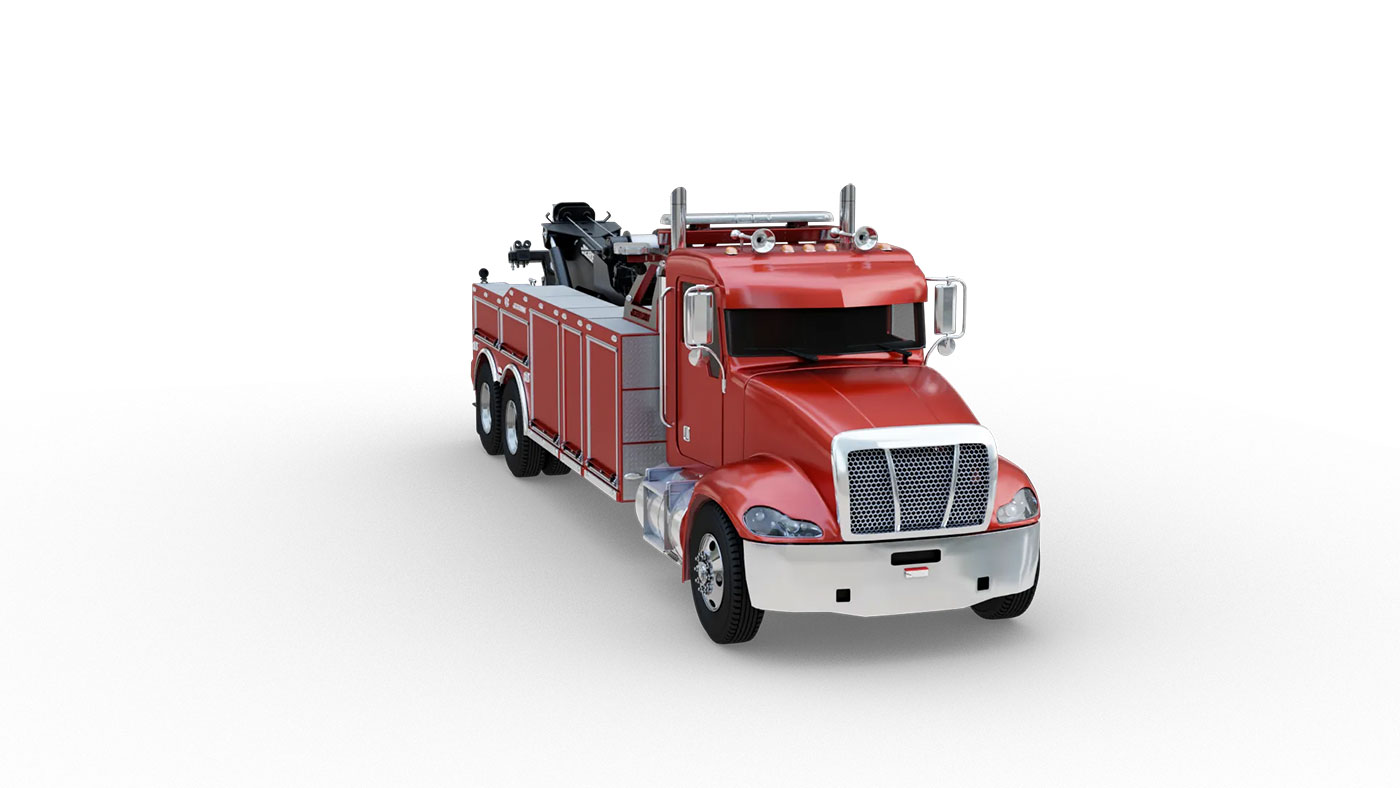

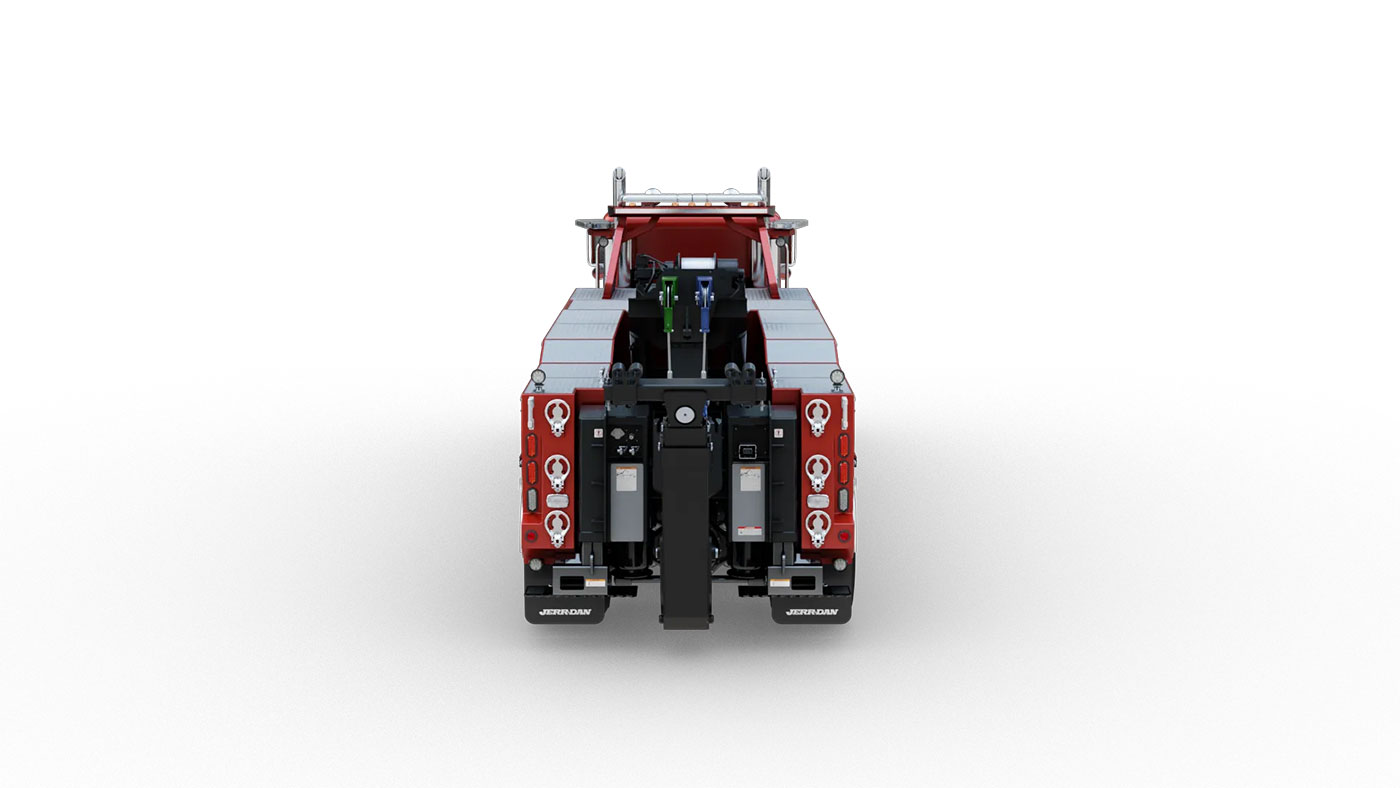

360 View

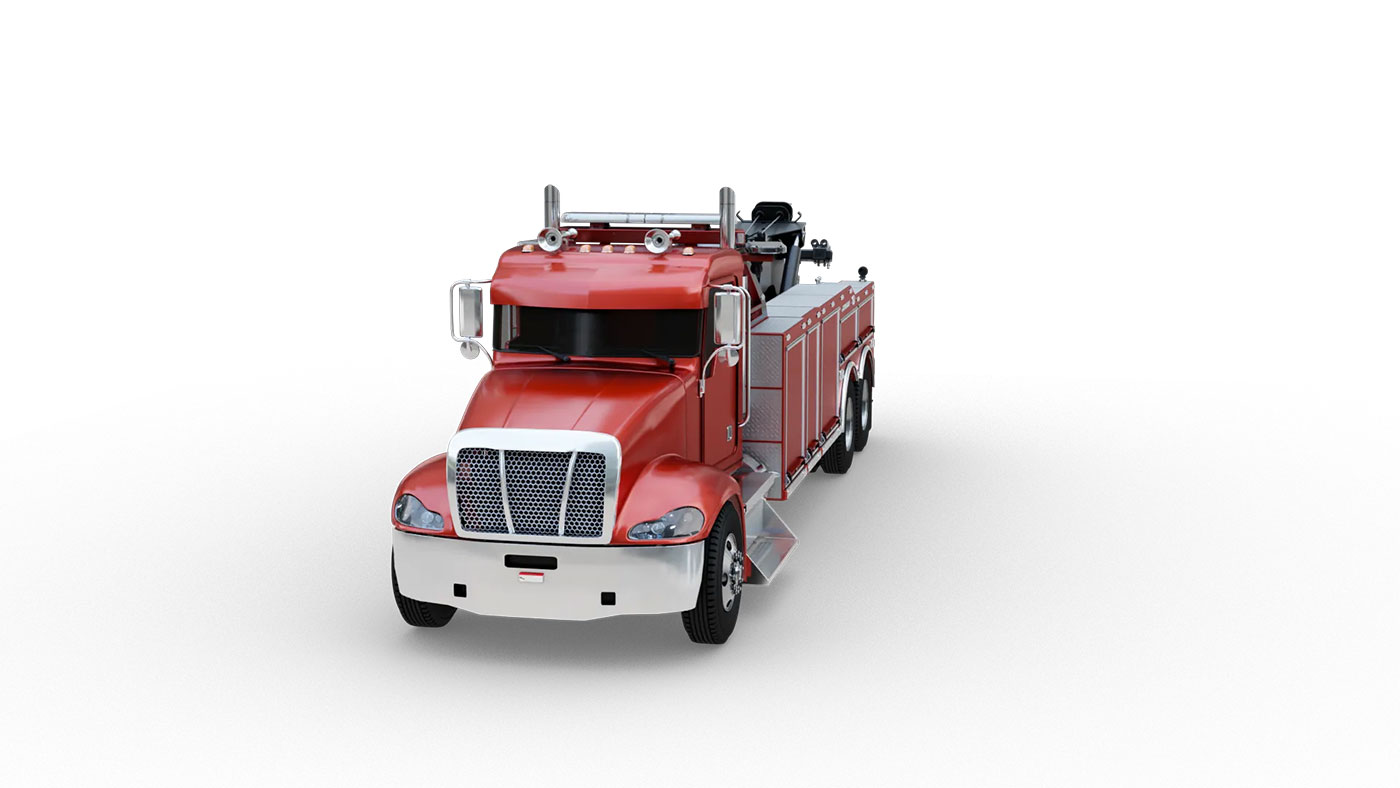

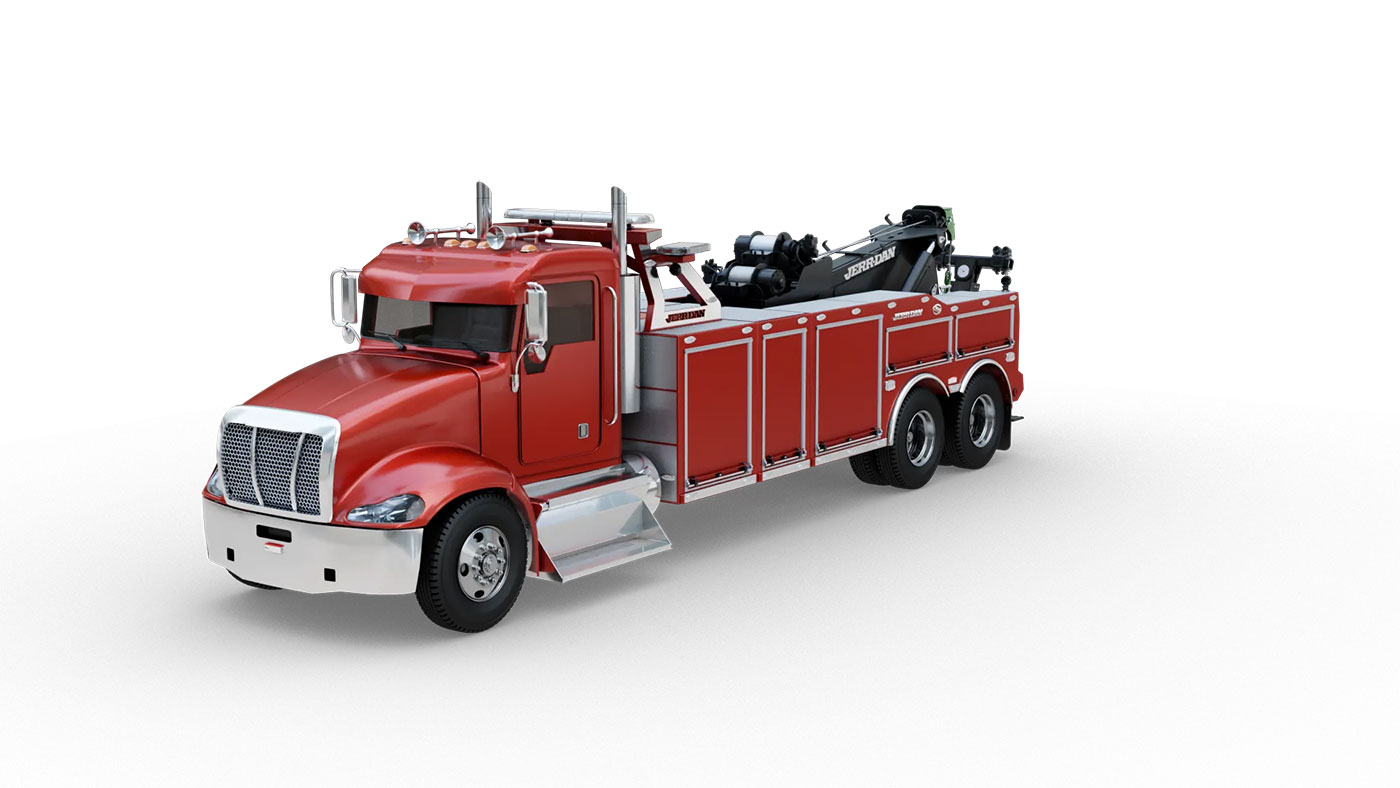

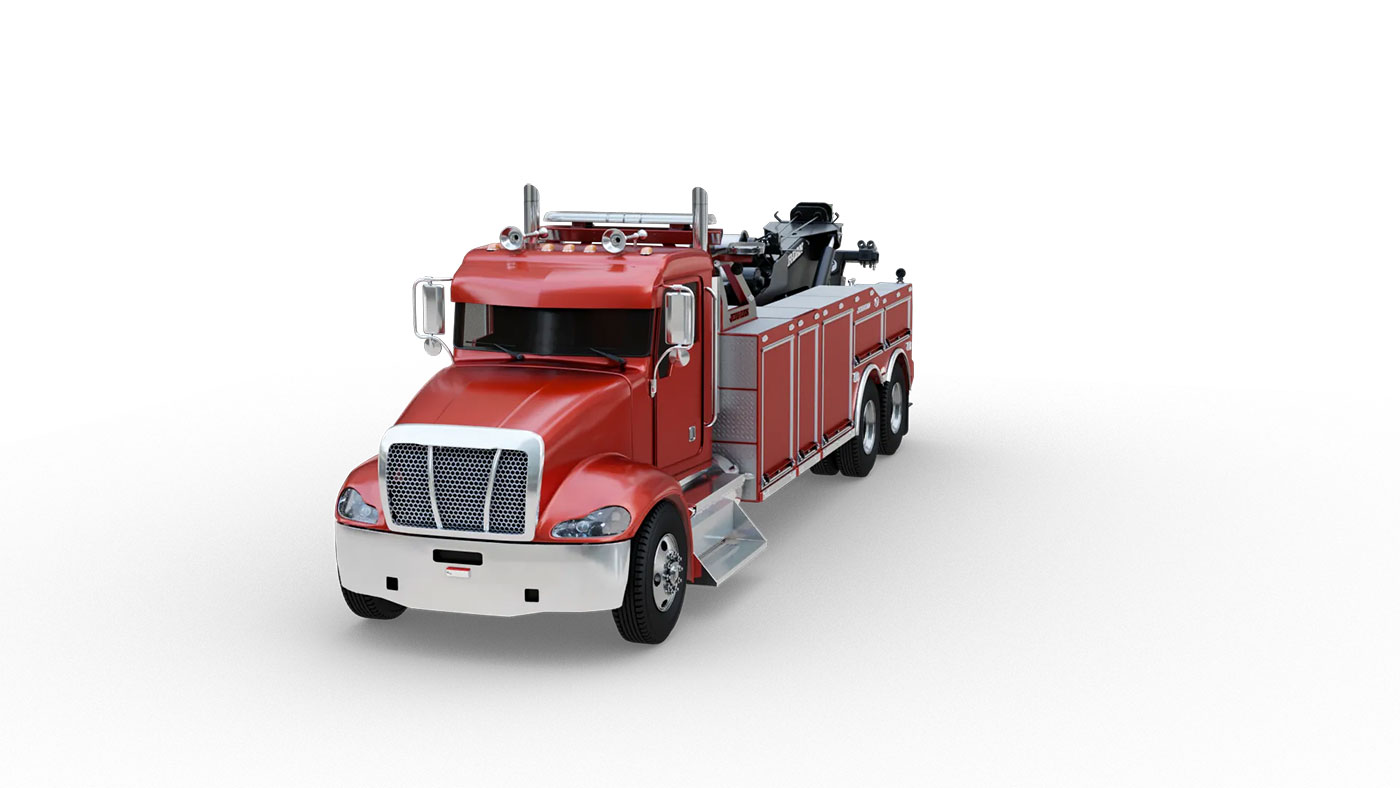

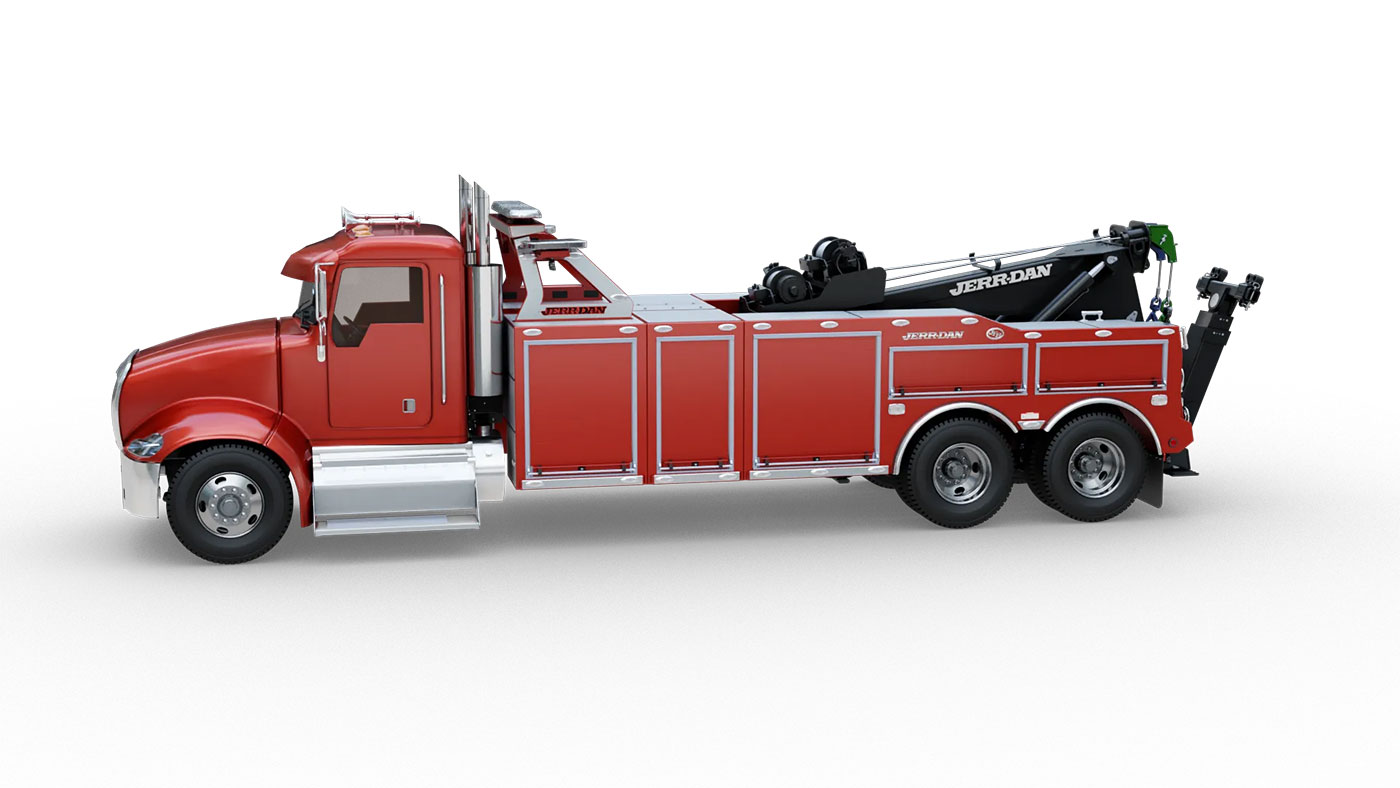

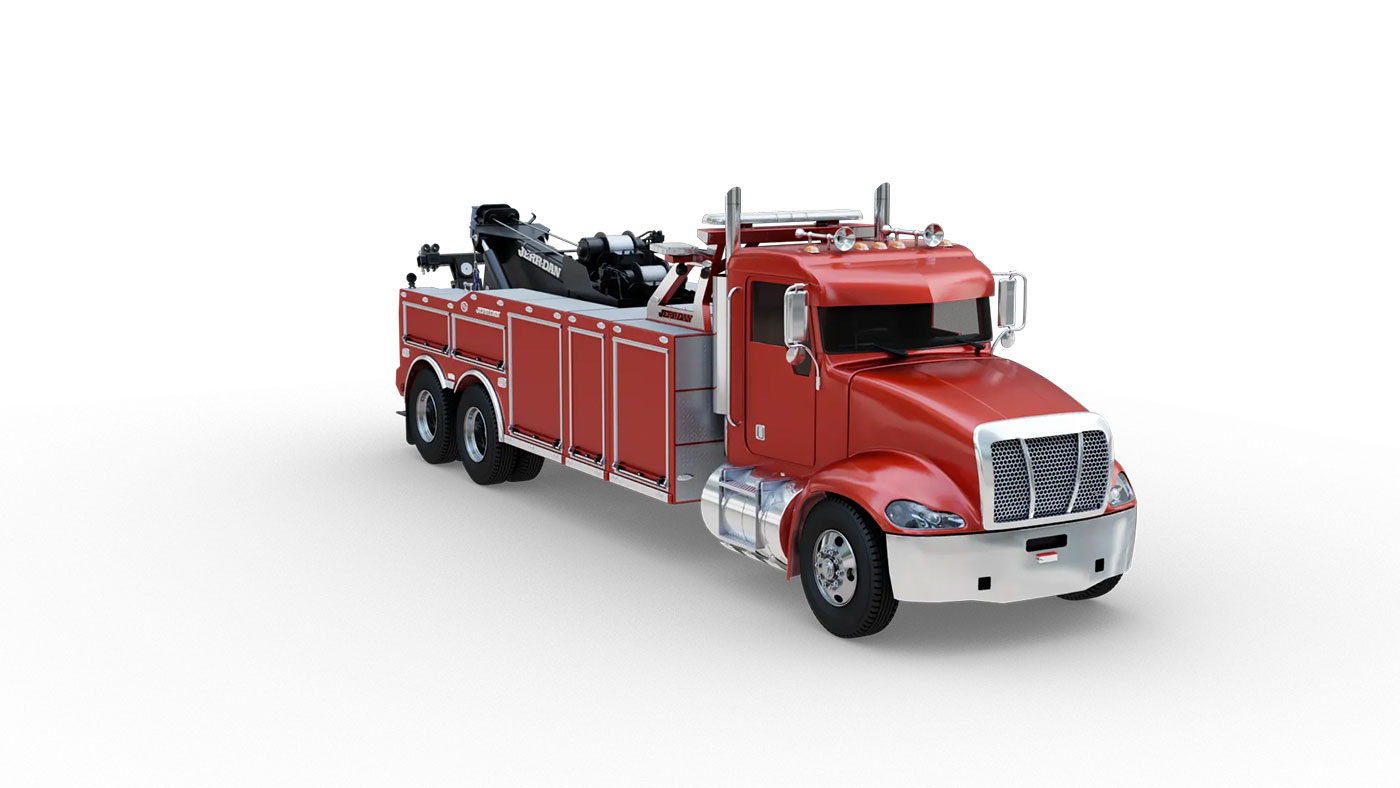

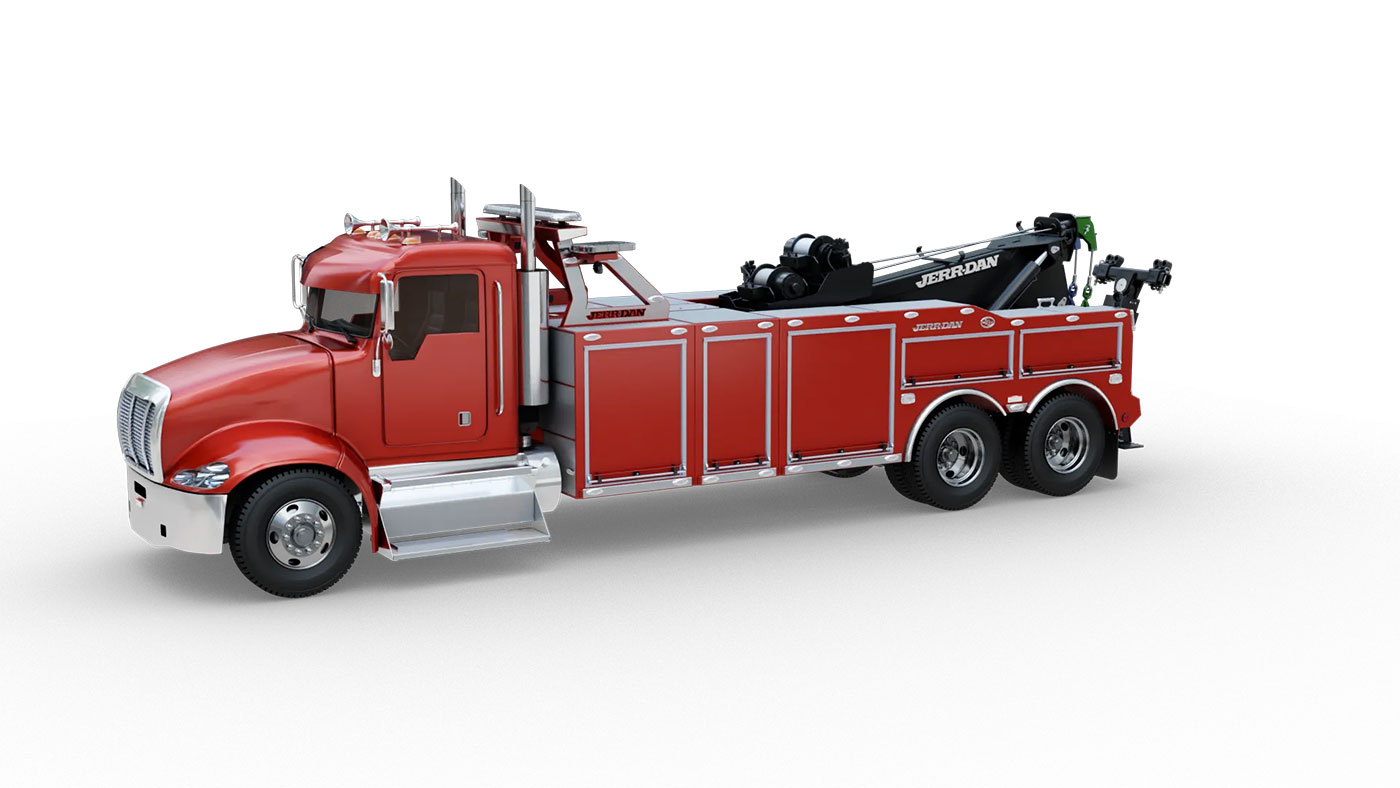

JD35 INT

JD35 INT

Features

Features

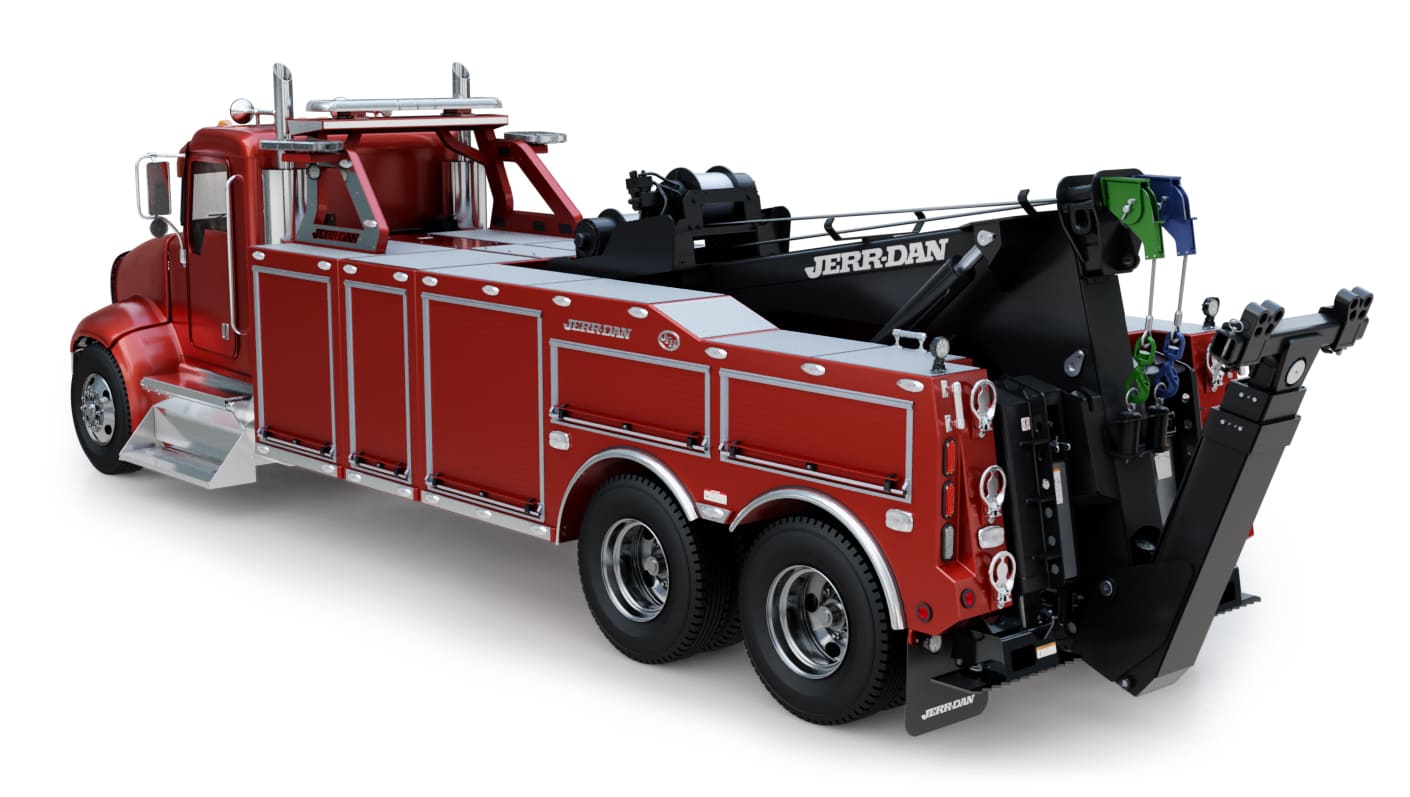

2-Stage Boom - JD35 INT shown
JFB Body
Tunnel Box
Wire Rope Tie-backs

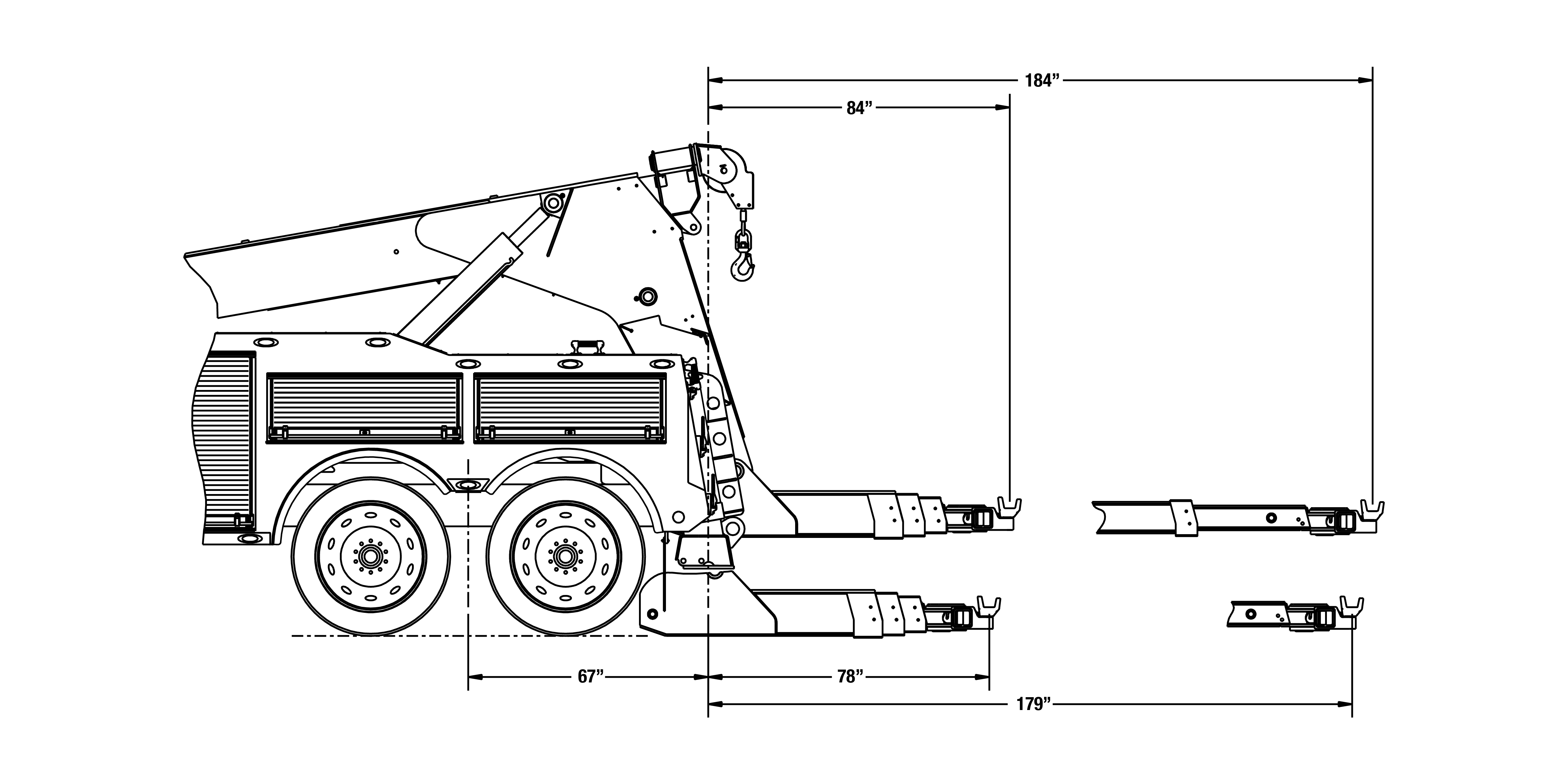

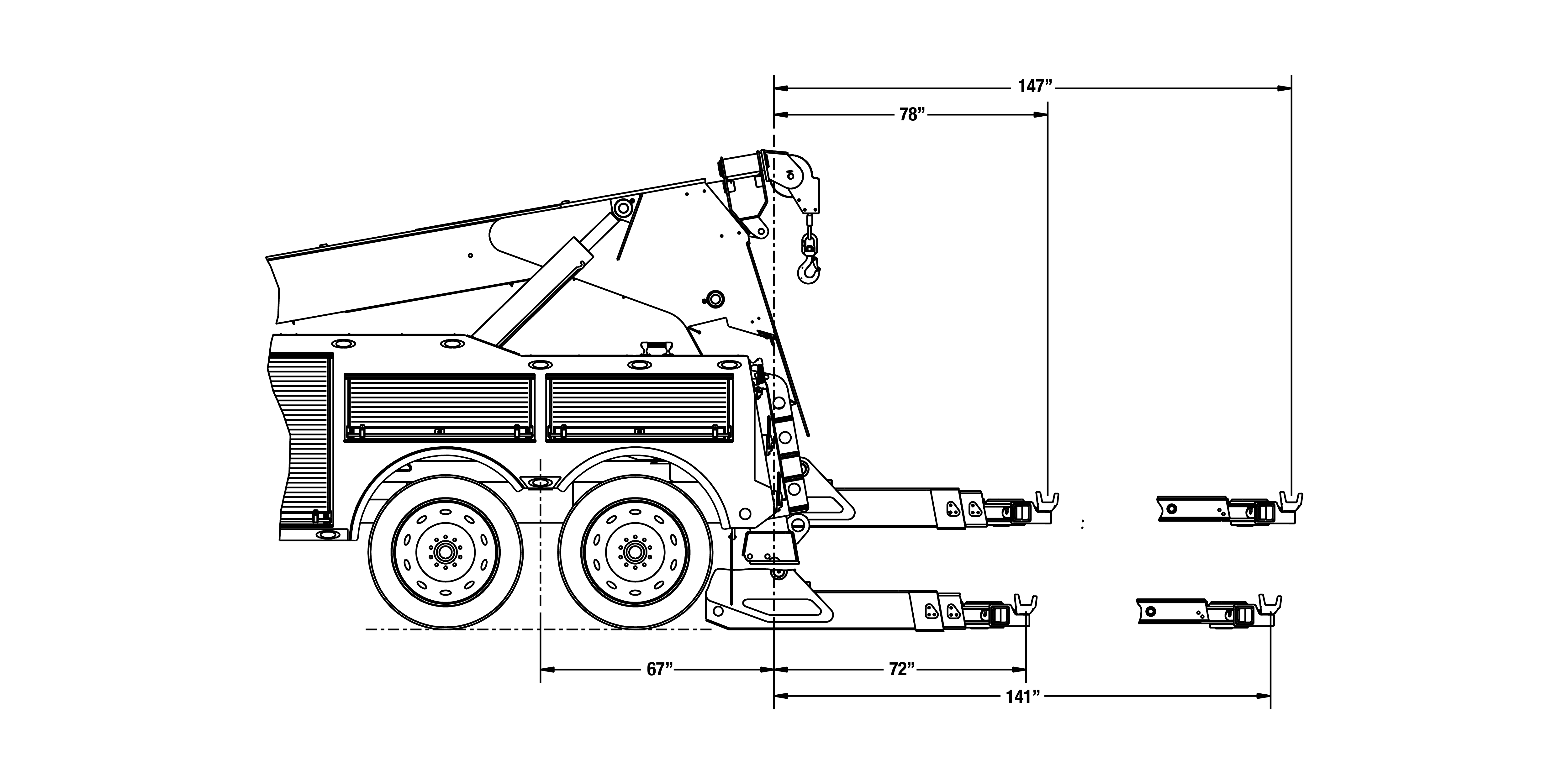

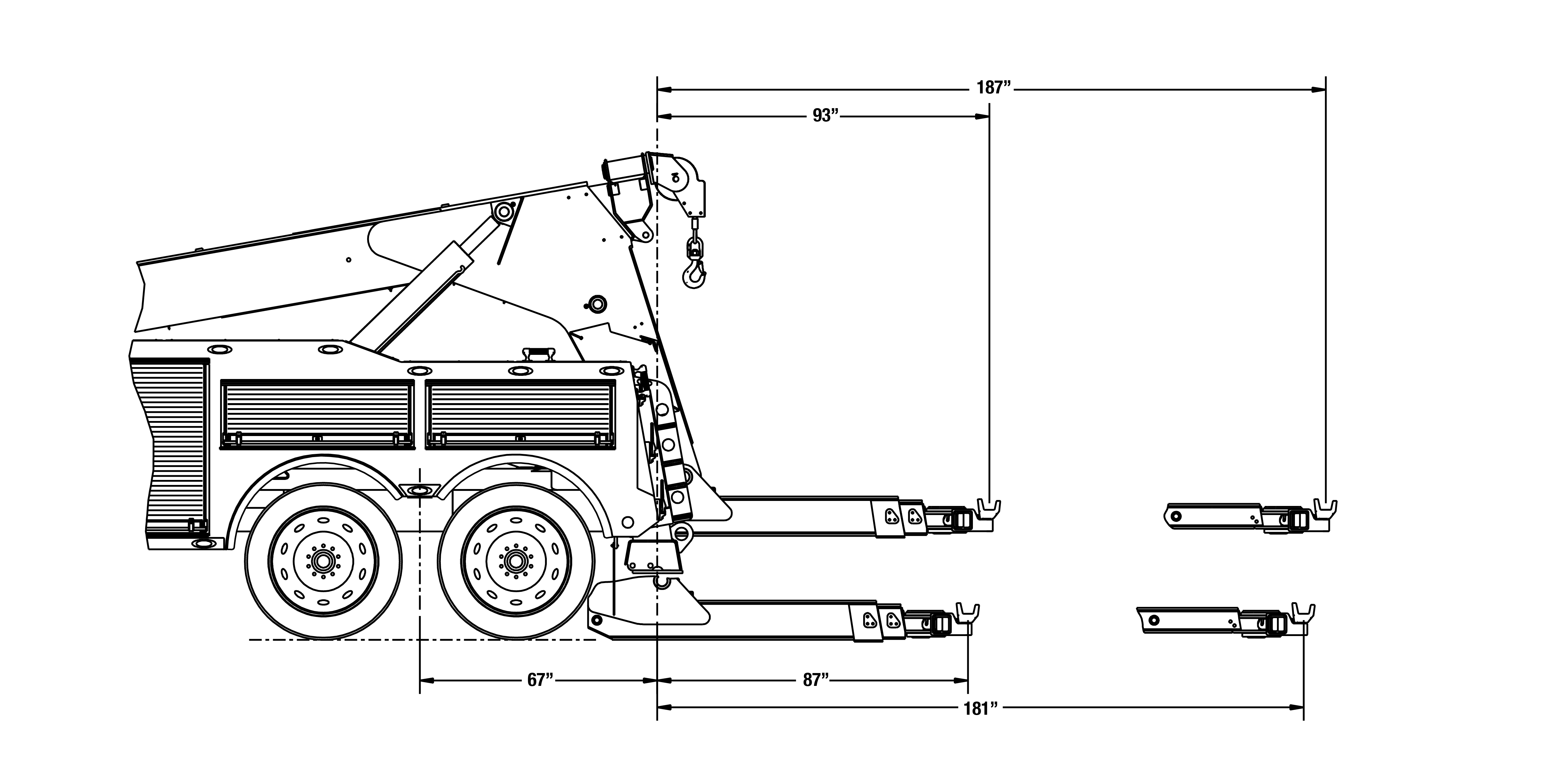

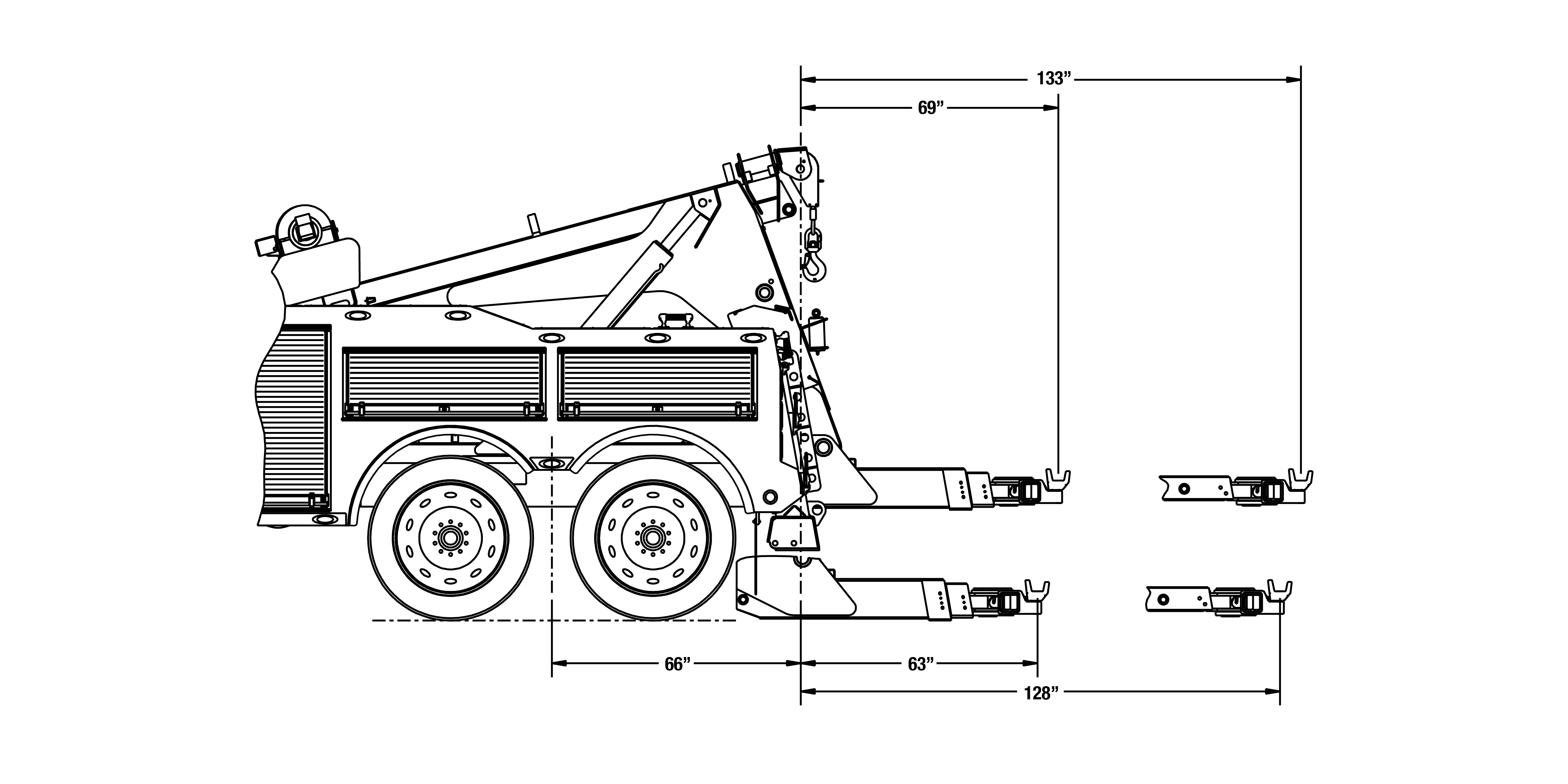

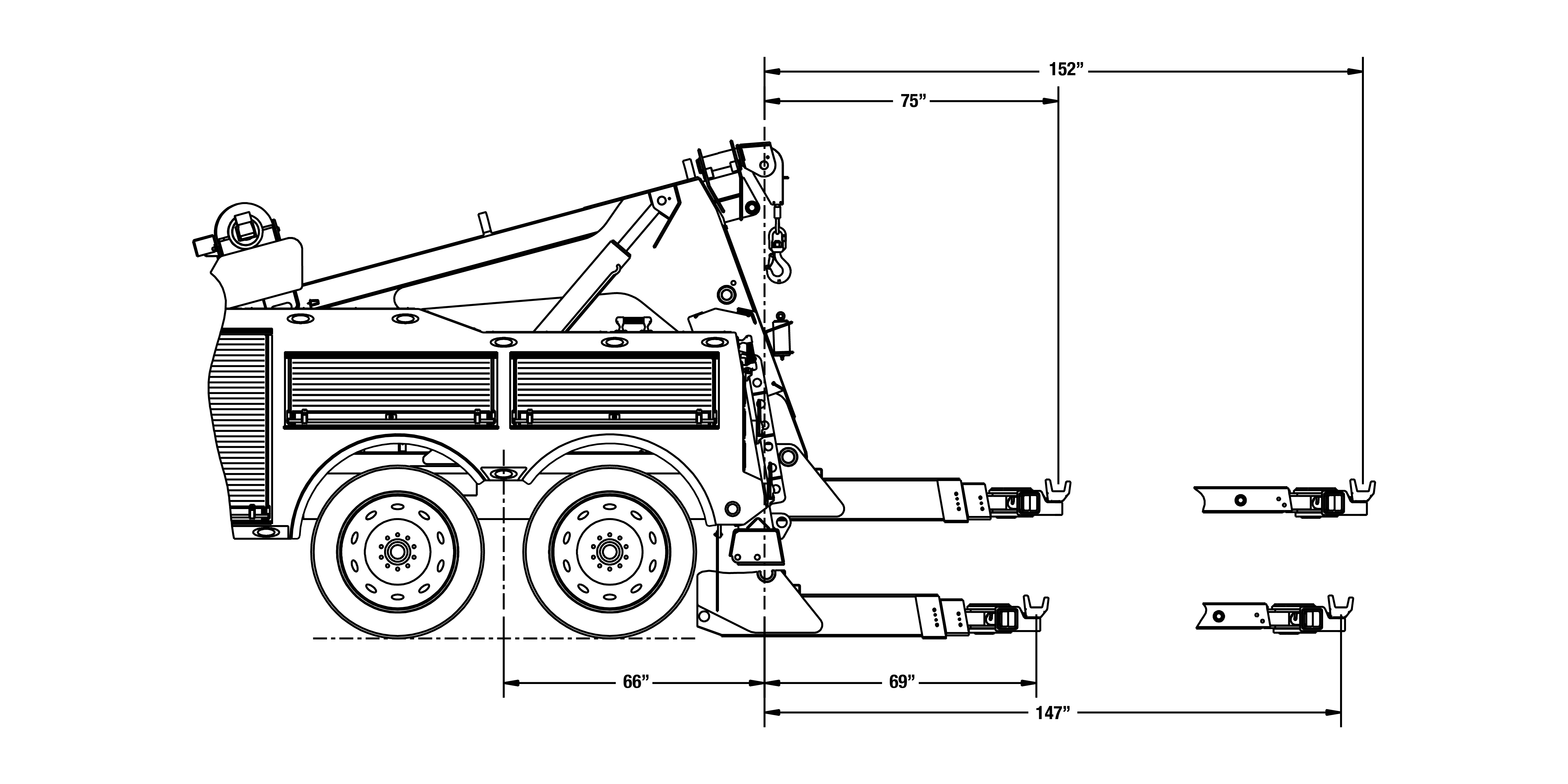

Dimensions

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

JD25 INT
JD35 INT
JD50 INT
Key Features
Key Features
Boom: 50,000 lb. Capacity Retracted
Boom: 70,000 lb. Capacity Retracted
Boom: 100,000 lb. Retracted Capacity
JFB Body is built with a Polypropylene Copolymer material that is High-Impact Resistant and Corrosion-Free
JFB Body is built with a Polypropylene Copolymer material that is High-Impact Resistant and Corrosion-Free
JFB Body is built with a Polypropylene Copolymer material that is High-Impact Resistant and Corrosion-Free
3-Stage Underlift with 134 inches of reach
3-Stage Integrated underlifts with either 128 inches of reach or 147 inches of reach
3- or 4- Stage Integrated underlift that offers 142, 179 or 181 inches of reach
Features
Features
Driver & Passenger Side Manual Controls with Passenger Side Hydraulic Pressure Gauges
Driver & Passenger Side Manual Controls with Passenger Side Hydraulic Pressure Gauges

Level Gauge and Filter Minder
Level Gauge and Filter Minder
Underlift Remote
Underlift Remote
Anti-Skid Diamond Plate Walking Surface
Anti-Skid Diamond Plate Walking Surface
Clear Body Marker Lights (LED)
Clear Body Marker Lights (LED)
Roll Up Doors
Roll Up Doors
Interior Tool Box Lighting
Interior Tool Box Lighting
Touchlink Control System
Touchlink Control System
2-Stage Recovery Boom
2-Stage Recovery Boom
Rated Capacity at 30° Retracted
Rated Capacity at 30° Retracted
50,000 lbs.
70,000 lbs.
100,000 lbs.
Rated Capacity at 30° Extended
Rated Capacity at 30° Extended
16,000 lbs.
22,000 lbs.
30,000 lbs.
Reach Past Tailboard Extended at 0°
Reach Past Tailboard Extended at 0°
134 in.
132 in.
174 in.
Reach Past Tailboard Extended at 30°
Reach Past Tailboard Extended at 30°
88 in.
87 in.
115 in.
Maximum Boom Angle
Maximum Boom Angle
42 degrees
39 degrees
40 degrees
Maximum Hook Height
Maximum Hook Height
238 in.
225 in.
290 in.
3-Stage Recovery Boom
3-Stage Recovery Boom
Rated Capacity @ 30° Retracted
Rated Capacity @ 30° Retracted


100,000 lbs.
Rated Capacity @ 30° Extended
Rated Capacity @ 30° Extended


20,000 lbs.
Reach Past Tailboard Extended @ 0°
Reach Past Tailboard Extended @ 0°


291 in.
Reach Past Tailboard Extended @ 30°
Reach Past Tailboard Extended @ 30°


217 in.
Maximum Boom Angle
Maximum Boom Angle


40 degrees
Maximum Hook Height
Maximum Hook Height


364 in.
Winches & Wire Rope
Winches & Wire Rope
Dual Boom Mounted Planetary Winches
Dual Boom Mounted Planetary Winches
25,000 lbs. each
35,000 lbs. each
50,000 lbs. each
Wire Rope 3/4" x 250' EIPS Galvanized
Wire Rope 3/4" x 250' EIPS Galvanized


16,800 lbs.
Wire Rope 5/8" x 250' EIPS Galvinzed
Wire Rope 5/8" x 250' EIPS Galvinzed
11,700 lbs.
11,700 lbs.

Wire Rope 5/8" X 250' Synthetic
Wire Rope 5/8" X 250' Synthetic
11,200 lbs.


320 Underlift
320 Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted
32,000 lbs.


Rated Capacity - Extended
Rated Capacity - Extended
15,000 lbs.


Reach Past Tailboard - Retracted with Forks at Ground Level
Reach Past Tailboard - Retracted with Forks at Ground Level
69 in.


Reach Past Tailboard- Extended with Forks at Ground Level
Reach Past Tailboard- Extended with Forks at Ground Level
131 in.


Negative Tilt
Negative Tilt
12 degrees


Positive Tilt
Positive Tilt
18 degrees


Tow Capacity
Tow Capacity
80,000 lbs.


350 Underlift
350 Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted

35,000 lbs.

Rated Capacity - Extended
Rated Capacity - Extended

16,000 lbs.

Reach Past Tailboard - Retracted with Forks at Ground Level
Reach Past Tailboard - Retracted with Forks at Ground Level

63 in.

Reach Past Tailboard - Extended with Forks at Ground Level
Reach Past Tailboard - Extended with Forks at Ground Level

128 in.

Positive Tilt
Positive Tilt

20 degrees

Negative Tilt
Negative Tilt

10 degrees

Tow Capacity
Tow Capacity

80,000 lbs.

350x Underlift
350x Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted

35,000 lbs.

Rated Capacity - Extended
Rated Capacity - Extended

16,000 lbs.

Reach Past Tailboard - Retracted with Forks at Ground Level
Reach Past Tailboard - Retracted with Forks at Ground Level

147 in.

Reach Past Tailboard - Extended with Forks at Ground Level
Reach Past Tailboard - Extended with Forks at Ground Level

69 in.

Negative Tilt
Negative Tilt

10 degrees

Positive Tilt
Positive Tilt

20 degrees

Tow Capacity
Tow Capacity

80,000 lbs.

530 Underlift
530 Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted


53,000 lbs.
Rated Capacity - Extended
Rated Capacity - Extended


17,000 lbs.
Reach Past Tailboard- Retracted with Forks at Ground Level
Reach Past Tailboard- Retracted with Forks at Ground Level


72 in.
Reach Past Tailboard - Extended with Forks at Ground Level
Reach Past Tailboard - Extended with Forks at Ground Level


141 in.
Positive Tilt
Positive Tilt


12 degrees
Negative Tilt
Negative Tilt


18 degrees
Tow Capacity
Tow Capacity


80,000 lbs.
565 Underlift
565 Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted


56,500 lbs.
Rated Capacity - Extended
Rated Capacity - Extended


17,600 lbs.
Reach Past Tailboard - Retracted with Forks at Ground Level
Reach Past Tailboard - Retracted with Forks at Ground Level


87 in.
Reach Past Tailboard - Extended with Forks at Ground Level
Reach Past Tailboard - Extended with Forks at Ground Level


181 in.
Positive Tilt
Positive Tilt


15 degrees
Negative Tilt
Negative Tilt


15 degrees
Tow Capacity
Tow Capacity


80,000 lbs.
565 (4-Stage) Underlift
565 (4-Stage) Underlift
Rated Capacity - Retracted
Rated Capacity - Retracted


56,500 lbs.
Rated Capacity - Extended
Rated Capacity - Extended


17,600 lbs.
Reach Past Tailboard- Retracted with Forks at Ground Level
Reach Past Tailboard- Retracted with Forks at Ground Level


78 in.
Reach Past Tailboard - Extended with Forks at Ground Level
Reach Past Tailboard - Extended with Forks at Ground Level


179 in.
Positive Tilt
Positive Tilt


15 degrees
Negative Tilt
Negative Tilt


15 degrees
Tow Capacity
Tow Capacity


80,000 lbs.
Chassis Requirements
Chassis Requirements
Minimum GVW Rating
Minimum GVW Rating
46,000 lbs.
54,000 lbs.
64,000 lbs.
Minimum RBM per rail
Minimum RBM per rail
2,500,000 in-lbs.
3,250,000 in-lbs.
4,200,000 in-lbs.
Sell Sheets

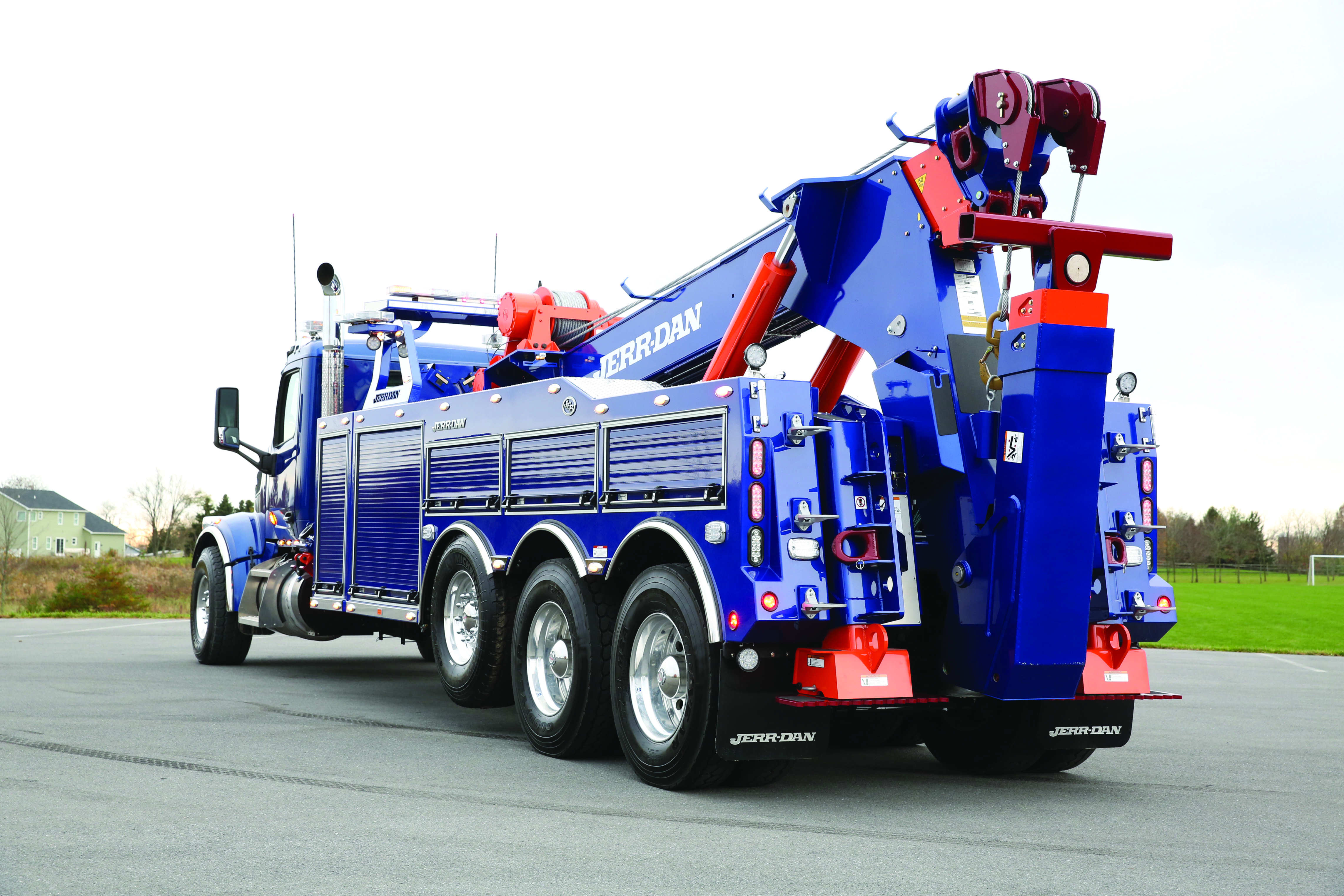

2021 Calendar - February 50 Ton
1 / 2

2021 Calendar - February 50 Ton

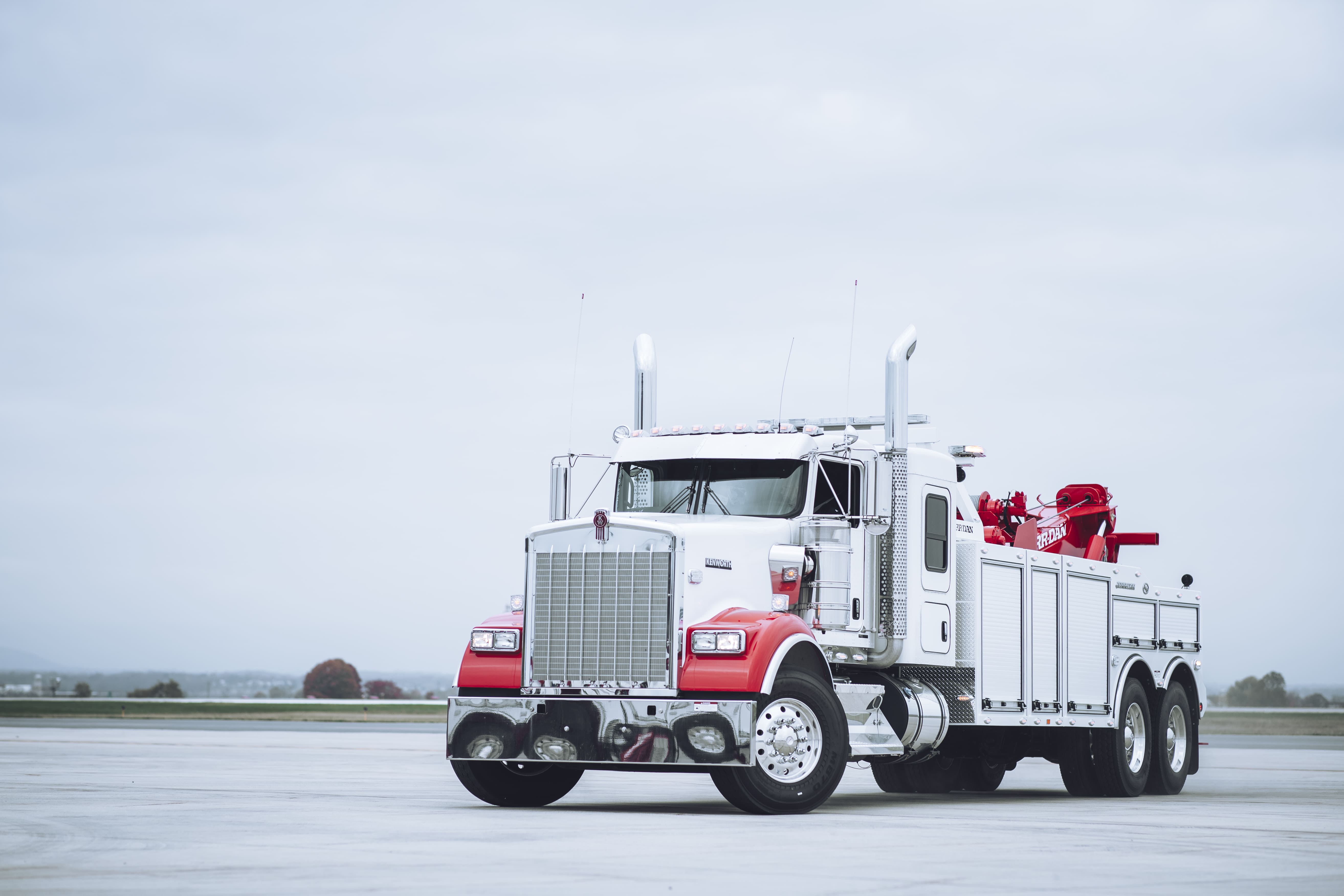

Jerr Dan 35 Ton Wrecker
2 / 2

Jerr Dan 35 Ton Wrecker

Sell Sheets

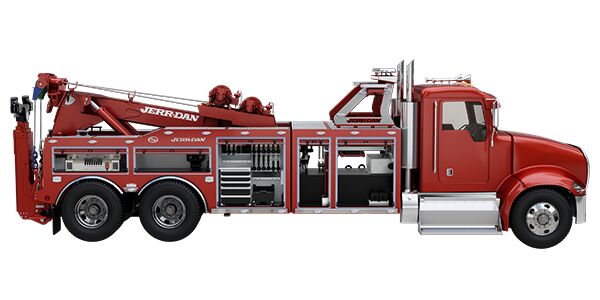

Storage Solutions

Every part has its place with new storage solutions from Jerr-Dan. Engineered to fit with the 2023 updated wrecker body design, choose the part storage package that fits your model.

Individual storage solution items can be purchased through your local Jerr-Dan distributor. Tools and rigging are not included with individual storage solution or storage solutions packages. Additional rigging packages are also available through your local Jerr-Dan distributor. Gold storage package shown below.

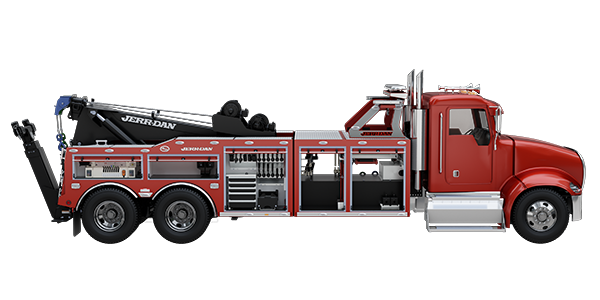

JD25 Integrated Heavy Duty Wrecker

Parts Information
Gold
Silver
Bronze
Snatch Block Storage View
Chain Binder Storage
Shackle Rack
Stationary Shelf View
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage View
Spill Kit Storage
Stationary Chain Rack
Rotary Chain Rack
Ladder Storage View
Stay Dry Silo
Tilt Down Drawer View
Hand Tool Storage View

JD25 TANDEM AXLE

Tilt Down Drawer
Ladder Storage
Snatch Block Storage

JD25 TANDEM AXLE

Bottle Jack Storage
Stationary Shelf
Tool Storage

ADDITIONAL STORAGE SOLUTIONS

Parts Information
Snatch Block Storage
Chain Binder Storage
Shackle Rack
Stationary Shelf
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage
Spill Kit Storage
Stationary Chain Rack
Rotary Chain Rack
Ladder Storage
Stay Dry Silo
Tilt Down Drawer
Hand Tool Storage

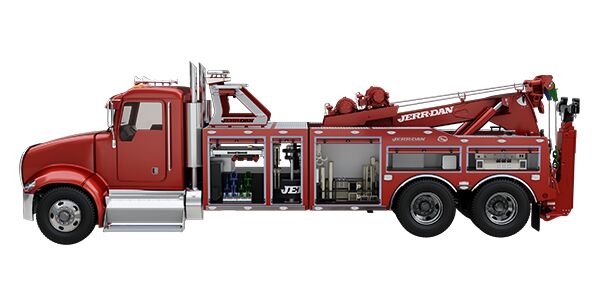

JD35 Integrated Heavy Duty Wrecker

Parts Information
Gold
Silver
Bronze
Snatch Block Storage View
Chain Binder Storage
Shackle Rack
Stationary Shelf View
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage View
Spill Kit Storage
Stationary Chain Rack
Rotary Chain Rack
Ladder Storage View
Stay Dry Silo
Tilt Down Tool Drawer View
Hand Tool Storage View

JD35 TANDEM AXLE

Tilt Down Drawer
Ladder Storage
Snatch Block Storage

JD35 TANDEM AXLE

Bottle Jack Storage
Stationary Shelf
Tool Storage

ADDITIONAL STORAGE SOLUTIONS

Parts Information
Snatch Block Storage
Chain Binder Storage
Shackle Rack
Stationary Shelf
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage
Spill Kit Storage
Stationary Chain Rack
Rotary Chain Rack
Ladder Storage
Stay Dry Silo
Tilt Down Tool Drawer
Hand Tool Storage

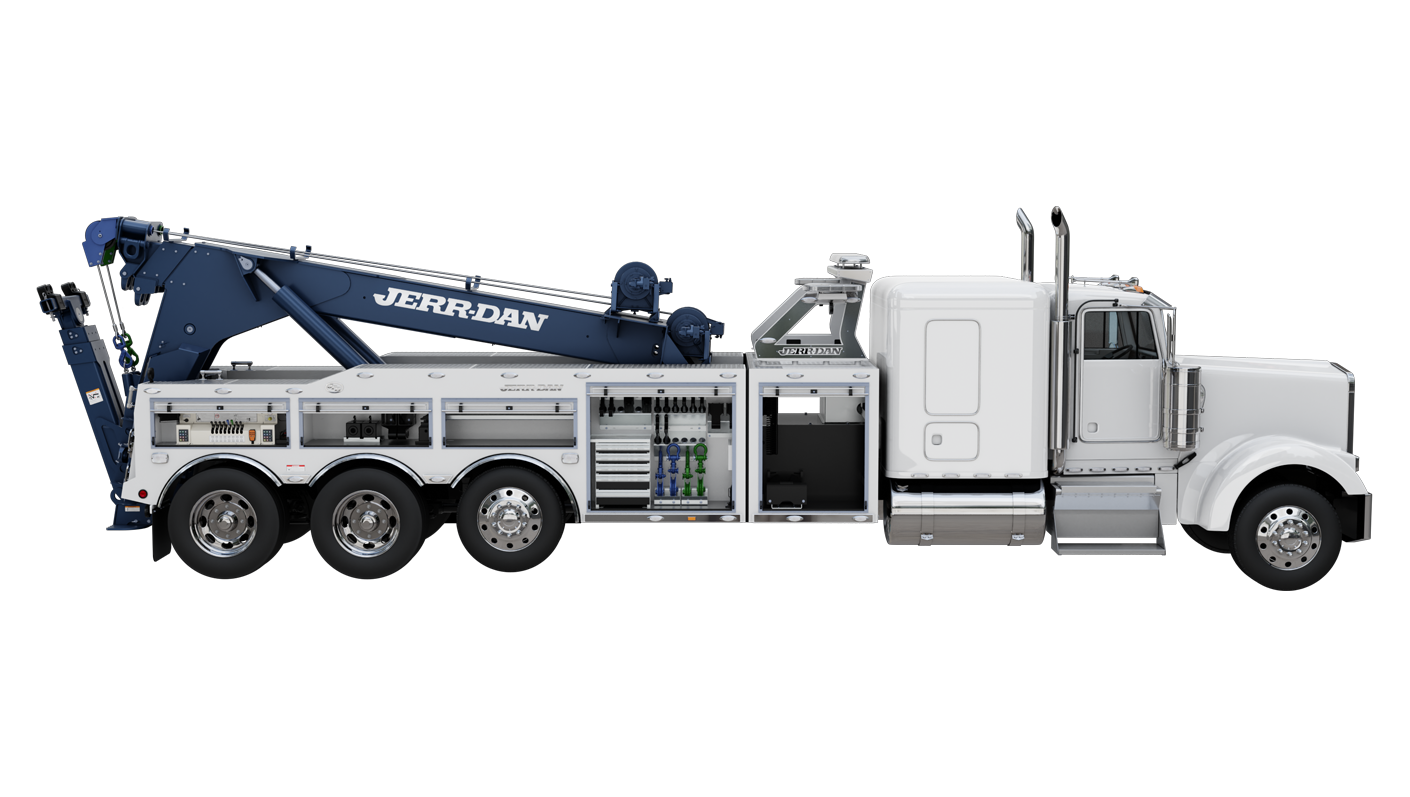

JD50 Integrated Heavy Duty Wrecker

Parts Information
Gold
Silver
Bronze
Snatch Block Storage View
Chain Binder Storage
Shackle Rack
Stationary Shelf
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage View
Spill Kit Storage
Stationary Chain Rack View
Ladder Storage View
Stay Dry Silo
Hand Tool Storage View

JD50 Tri-Axle Counterweight

Chain Rack
Ladder Storage

JD50 Tri-Axle Counterweight

Bottle Jack Storage
Snatch Block Storage
Tool Storage

ADDITIONAL STORAGE SOLUTIONS

Parts Information
Snatch Block Storage
Chain Binder Storage
Shackle Rack
Stationary Shelf
Tow Light Storage
Chain Bars
Tool Drawer
Shovel/Broom Storage
Bottle Jack Storage
Spill Kit Storage
Stationary Chain Rack
Ladder Storage
Stay Dry Silo
Hand Tool Storage

Calculate & Compare Tow Performance

Is your vehicle optimized for the unique demands of your towing operation?

Calculating tow ratings requires considering wheelbase, front and rear axle weights along with retracted and extended overhang, The math can be complex, use this calculator to truly understand how much you can tow, either with one of our trucks or your current truck, and compare ratings to make sure you’re getting the right equipment for your towing needs.

Terms & Conditions

Calculation 1

1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Add to Compare

Calculation 2

Axle Type
1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Wheelbase

Distance from centerline of the front axle to the centerline of the rear axle

Steer Axle Weight

Amount of weight applied to the front axle including the driver, fuel, and all equipment.

Drive Axle Weight

Amount of weight applied to the rear axle including all equipment.

Drive Axle Weight Rating

Weight capacity of the drive axle per the axle manufacturer.

Steer Axle Remaining Weight

Desired weight remaining on the towing vehicle’s steer axle when the load is lifted.

Overhang

Distance from centerline of the drive axle to the lift point.

Results
Tow Performance:
 May exceed drive axle rating
Rear Axle Rating:
Rear Drive Axle(s) Weight:

Calculation 1

1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Add to Compare

Calculation 2

Axle Type
1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Wheelbase

Wheelbase definition

Steer Axle Weight

Steer Axle Weight definition

Drive Axle Weight

Drive Axle Weight definition

Tooltip 4

Drive Axle Weight Rating definition

Steer Axle Remaining Weight

Steer Axle Remaining Weight definition

Overhang

Overhang definition

Results
Tow Performance:
 May exceed drive axle rating
Rear Axle Rating:
Rear Drive Axle(s) Weight:

Calculation 1

1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Add to Compare

Calculation 2

Axle Type
1. Wheelbase in
2. Steer Axle Weight lbs
3. Drive Axle Weight lbs
4. Drive Axle Weight Rating lbs
5. Steer Axle Remaining Weight
%
6. Overhang
in

Wheelbase

Wheelbase definition

Steer Axle Weight

Steer Axle Weight definition

Drive Axle Weight

Drive Axle Weight definition

Tooltip 4

Drive Axle Weight Rating definition

Steer Axle Remaining Weight

Steer Axle Remaining Weight definition

Overhang

Overhang definition

Results
Tow Performance:
 May exceed drive axle rating
Rear Axle Rating:
Rear Drive Axle(s) Weight:
Ready?

We build tough, reliable towing equipment that gets the job done.

In-stock truck

Let us know what you’re looking for and we’ll put a distributor in touch that has it on-hand.

FIND EQUIPMENT

Build to your specs

Want something built to your specific needs or need more information?

FIND DISTRIBUTOR
