Engineered for Strength and Durability

Light Duty Independent
Wreckers

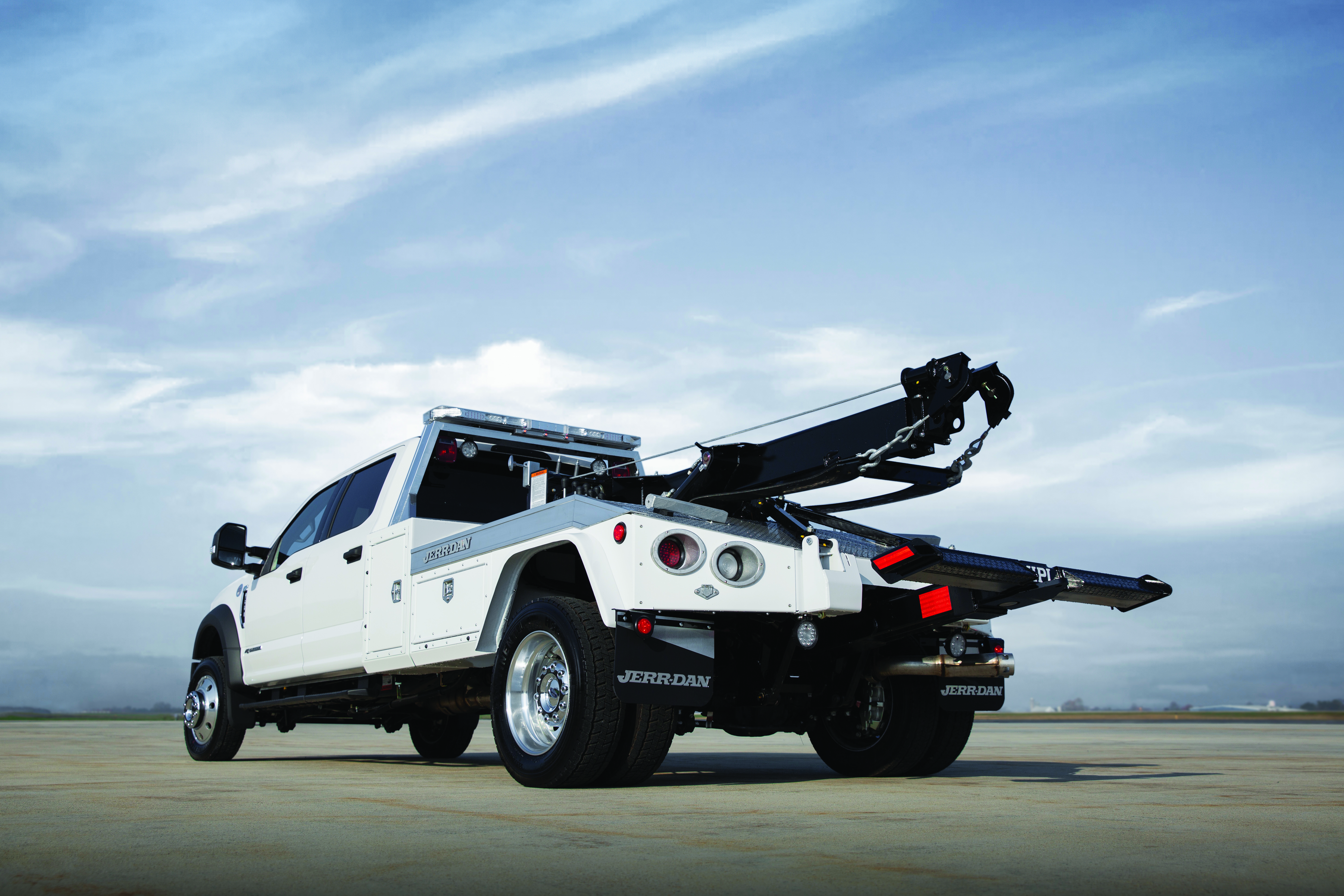

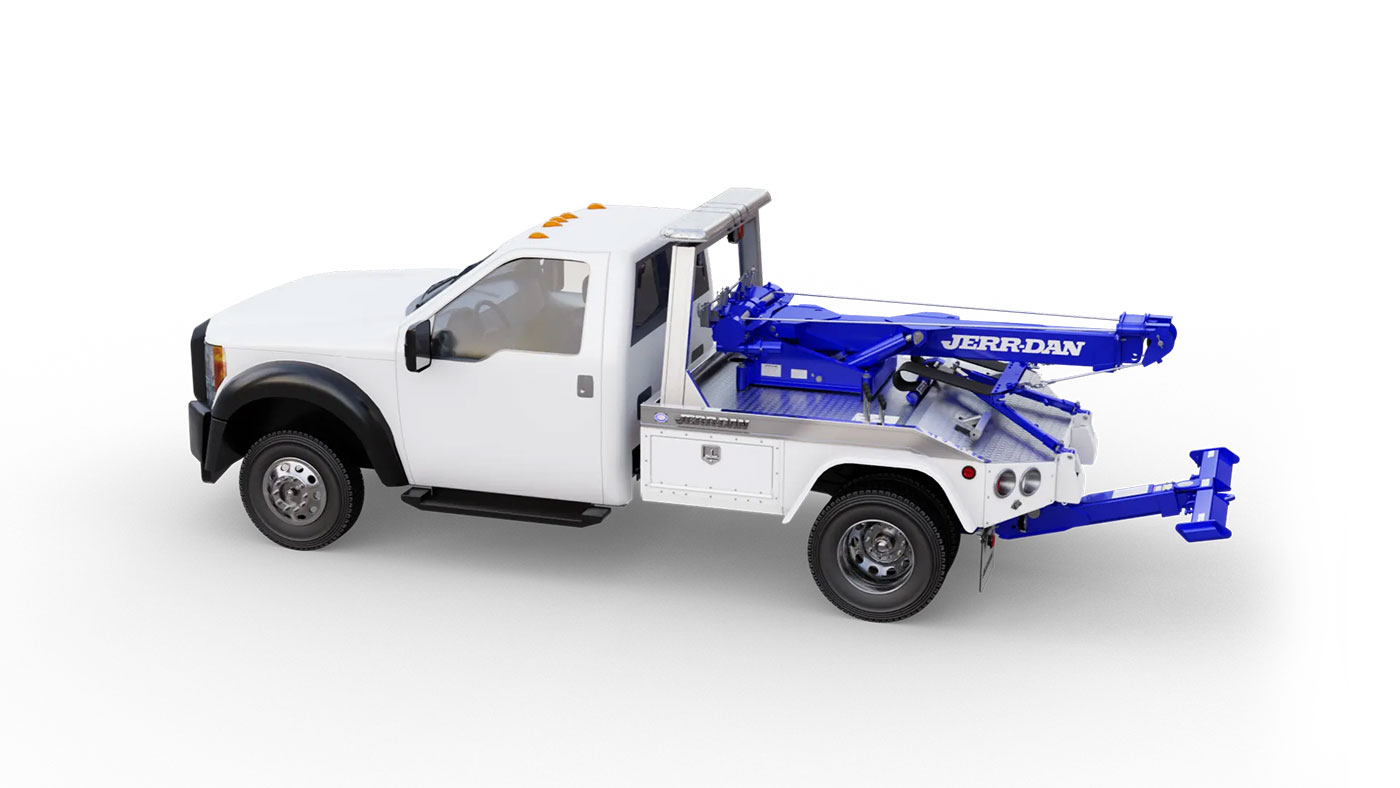

The HPL-35 offers either a 8-ton or 12-ton independent wrecker booms. Both are engineered with a modular aluminum body.

Models

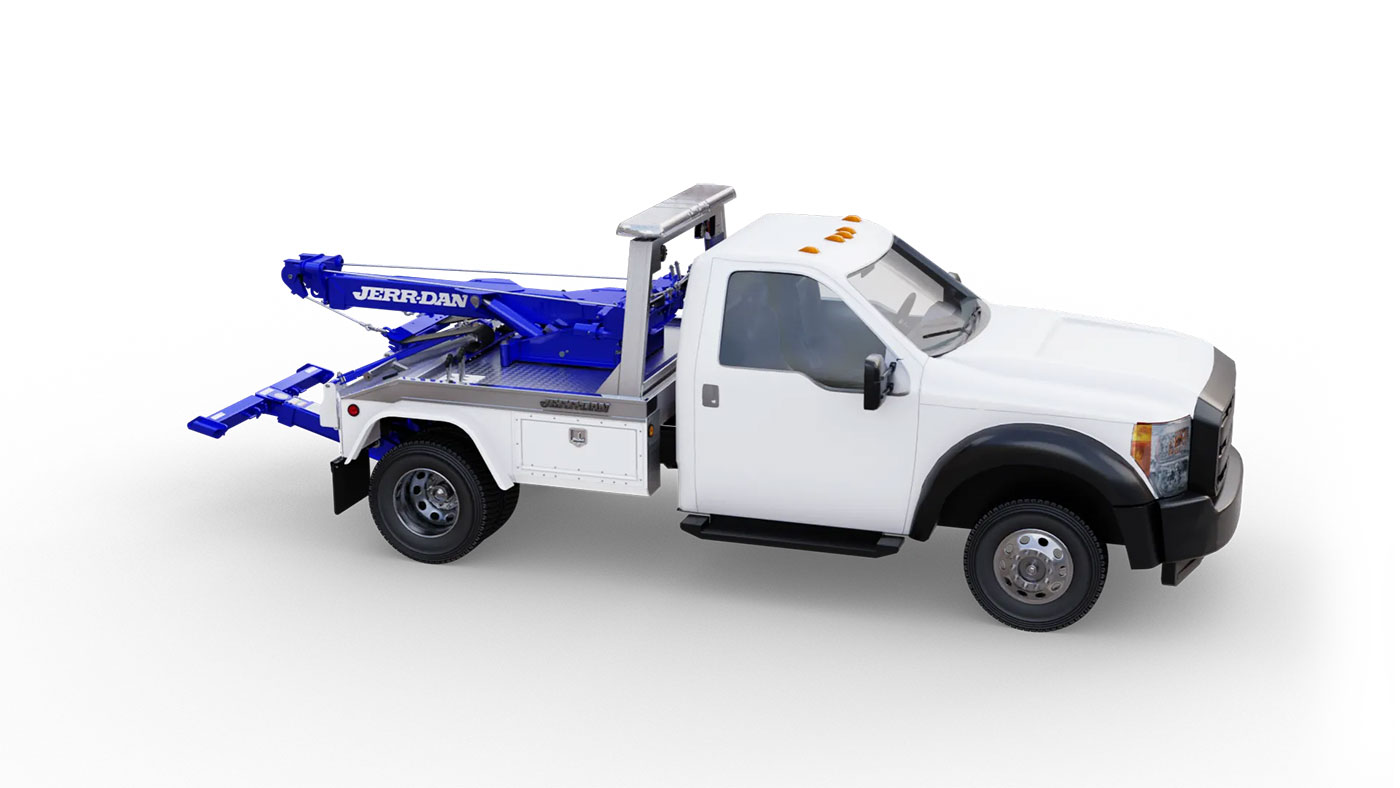

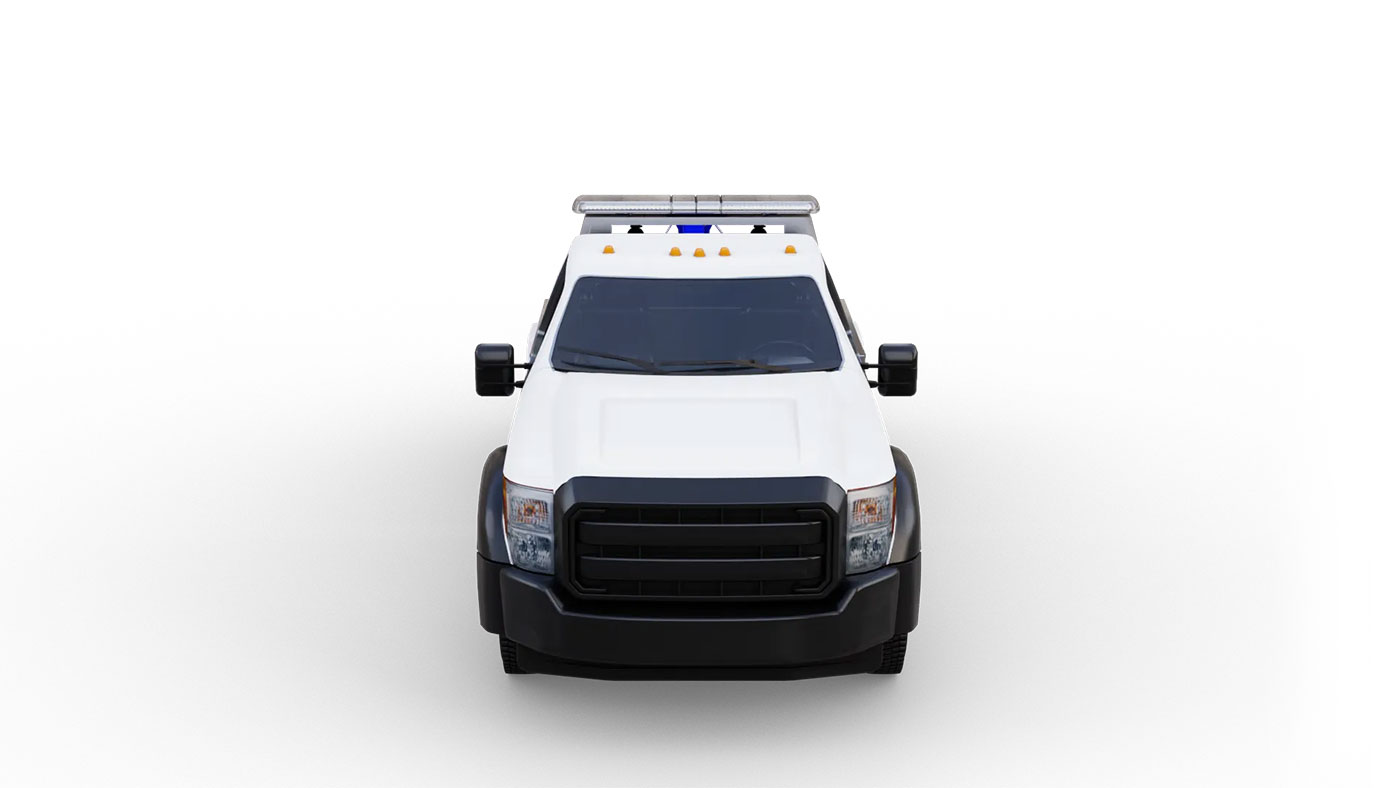

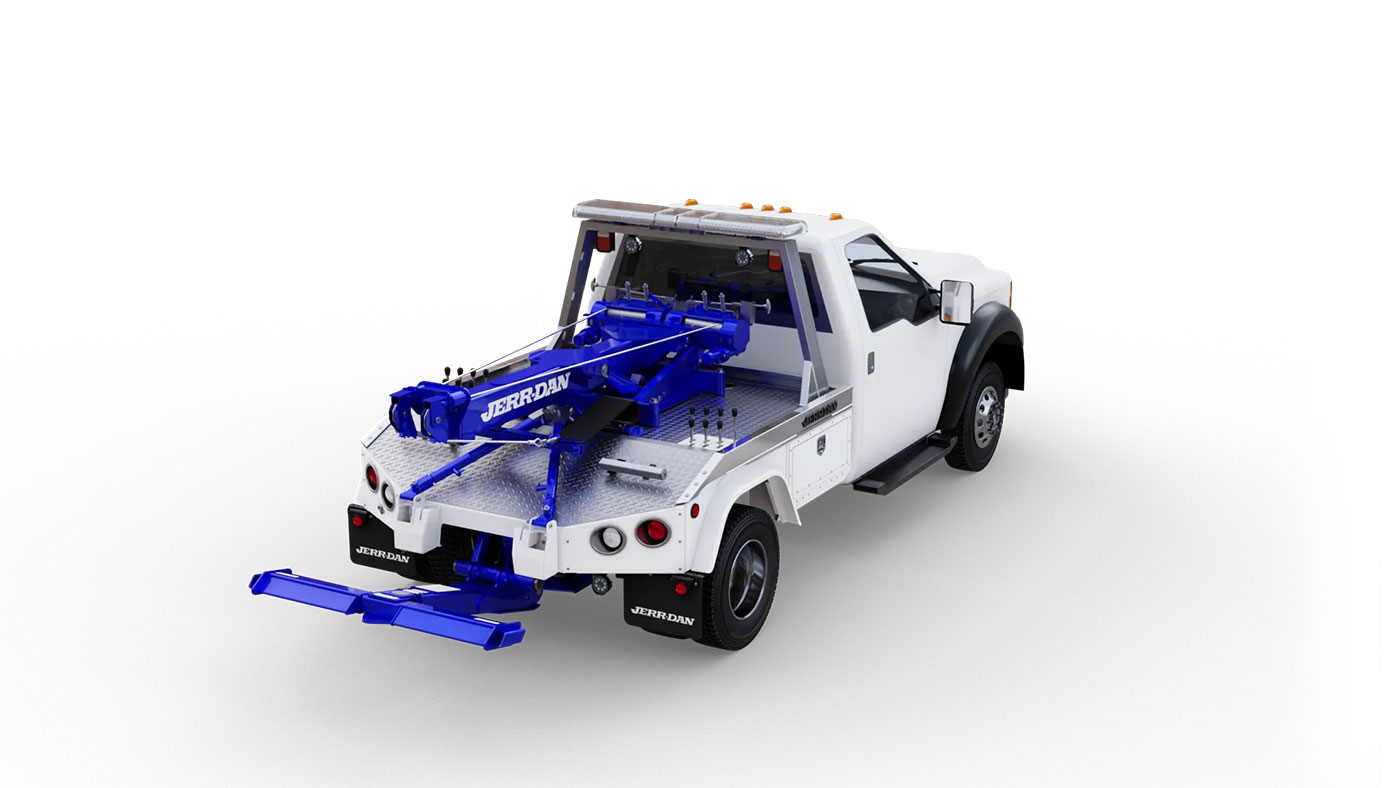

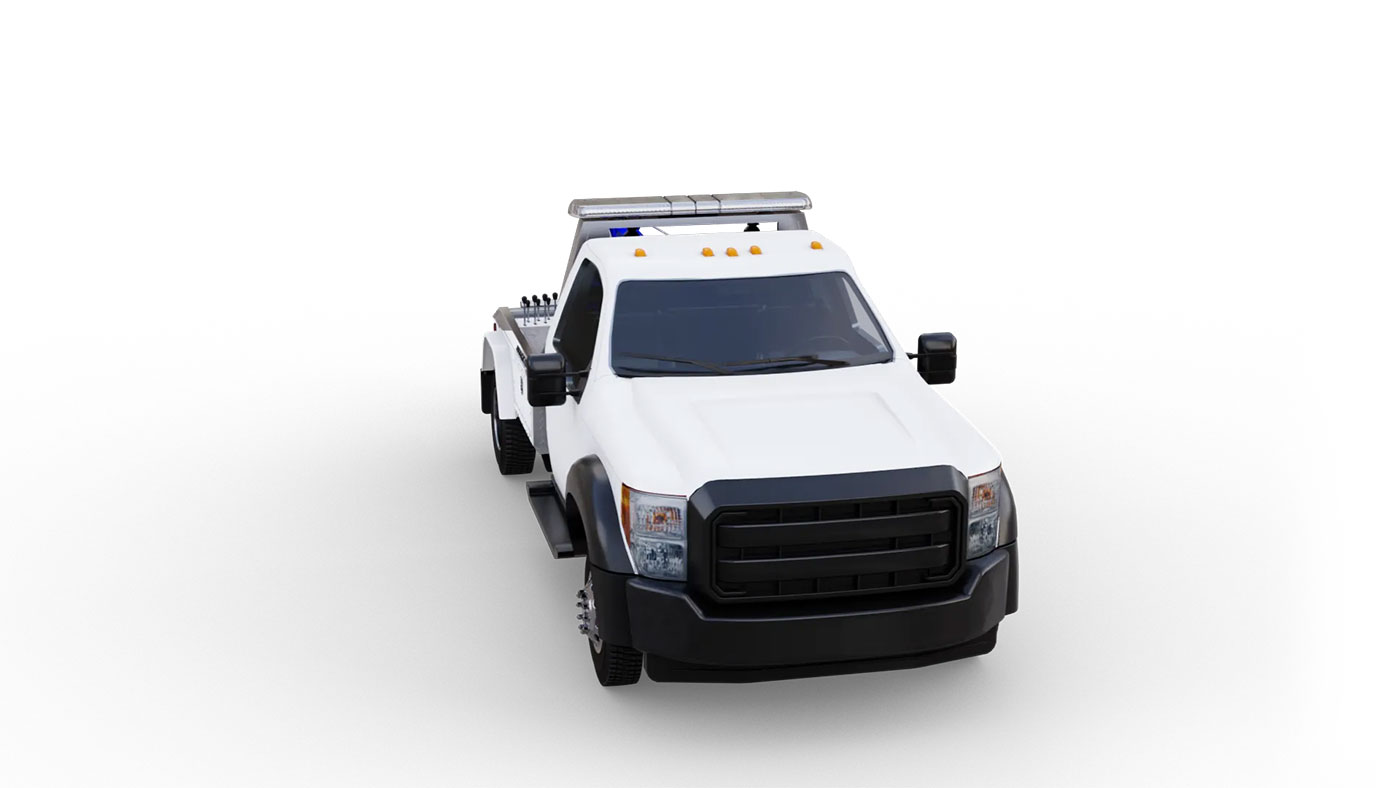

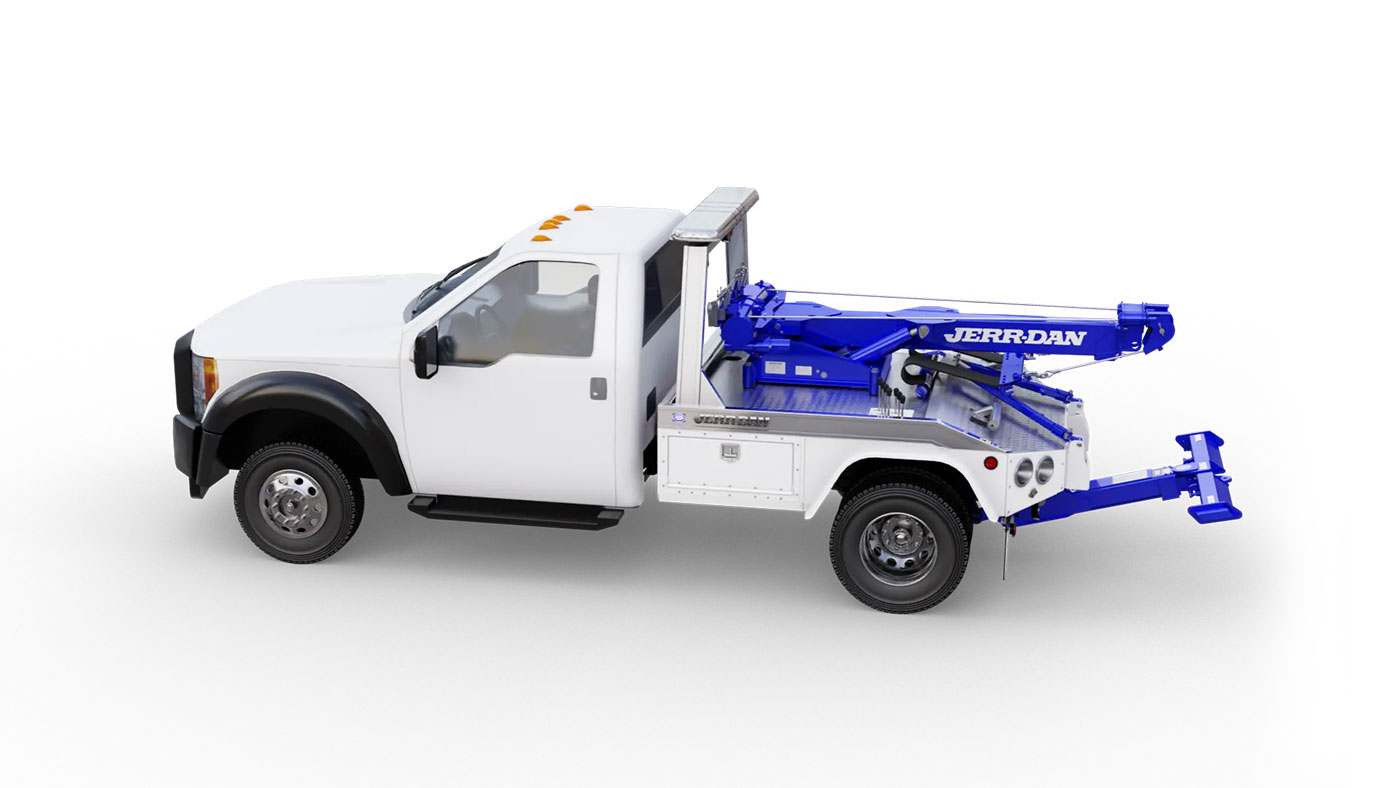

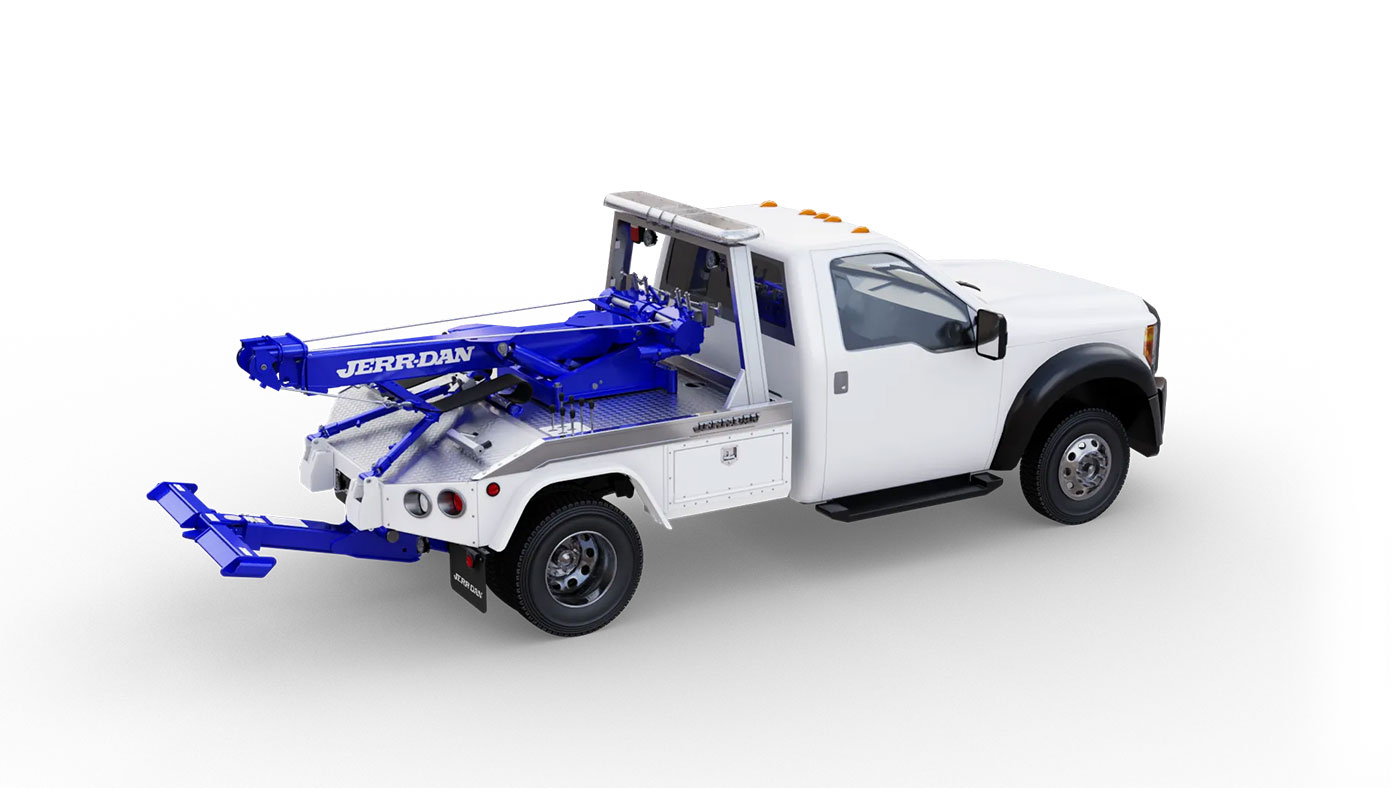

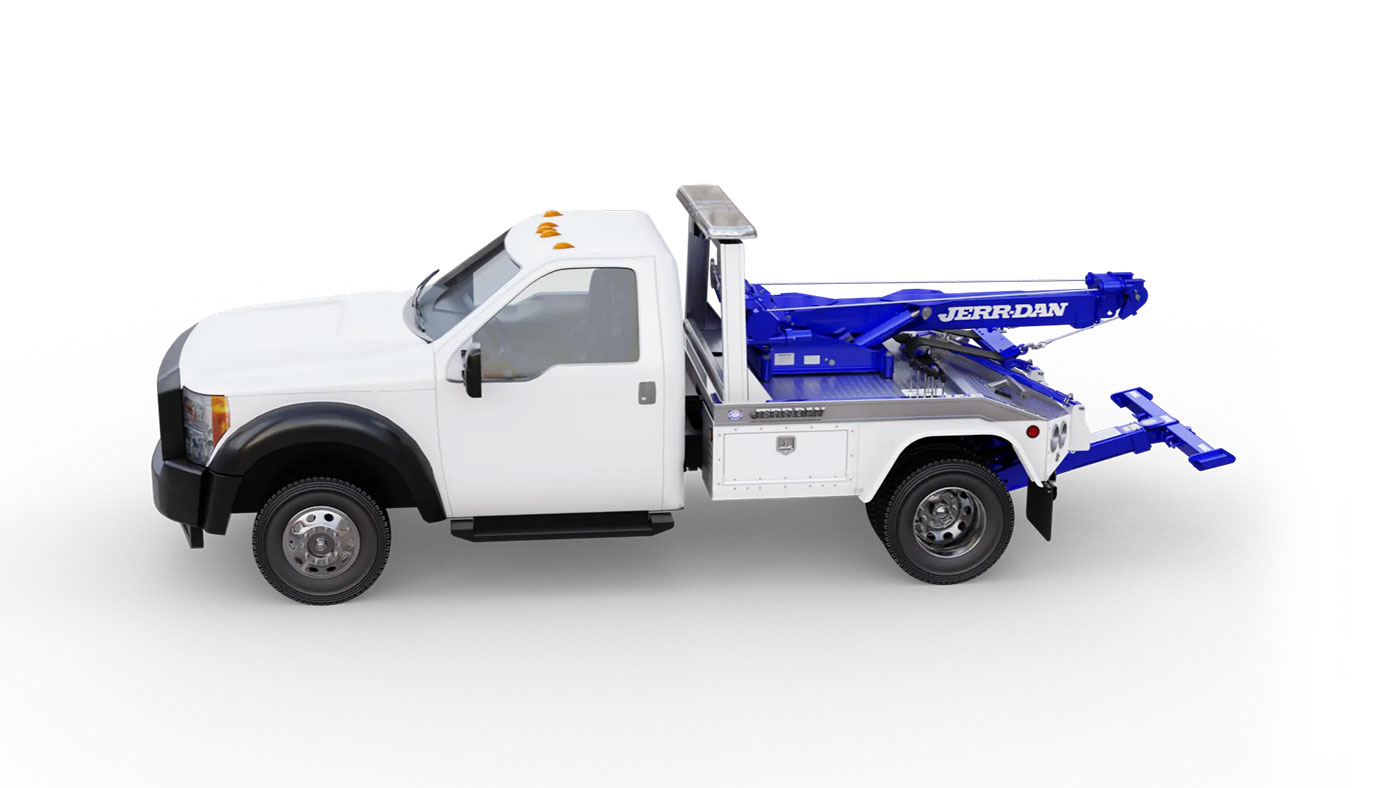

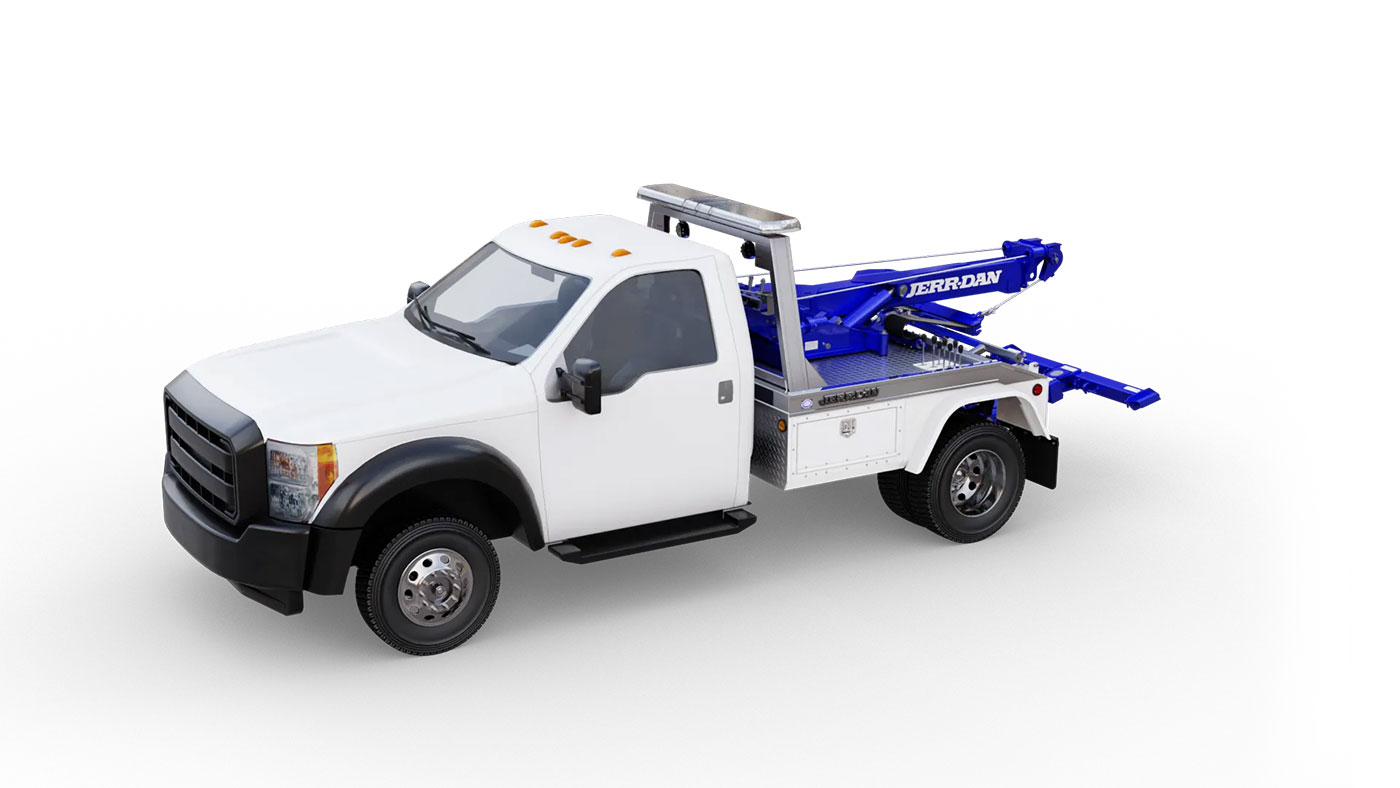

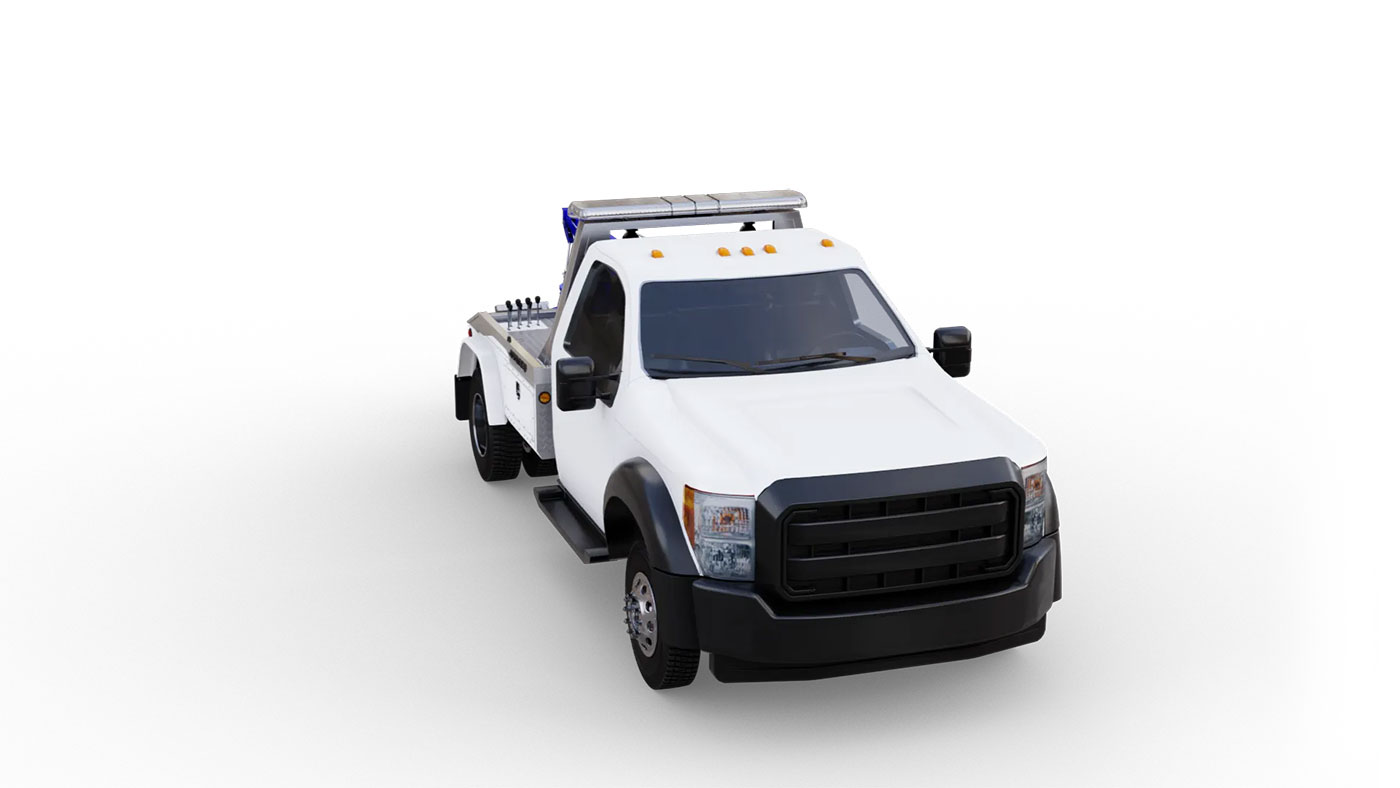

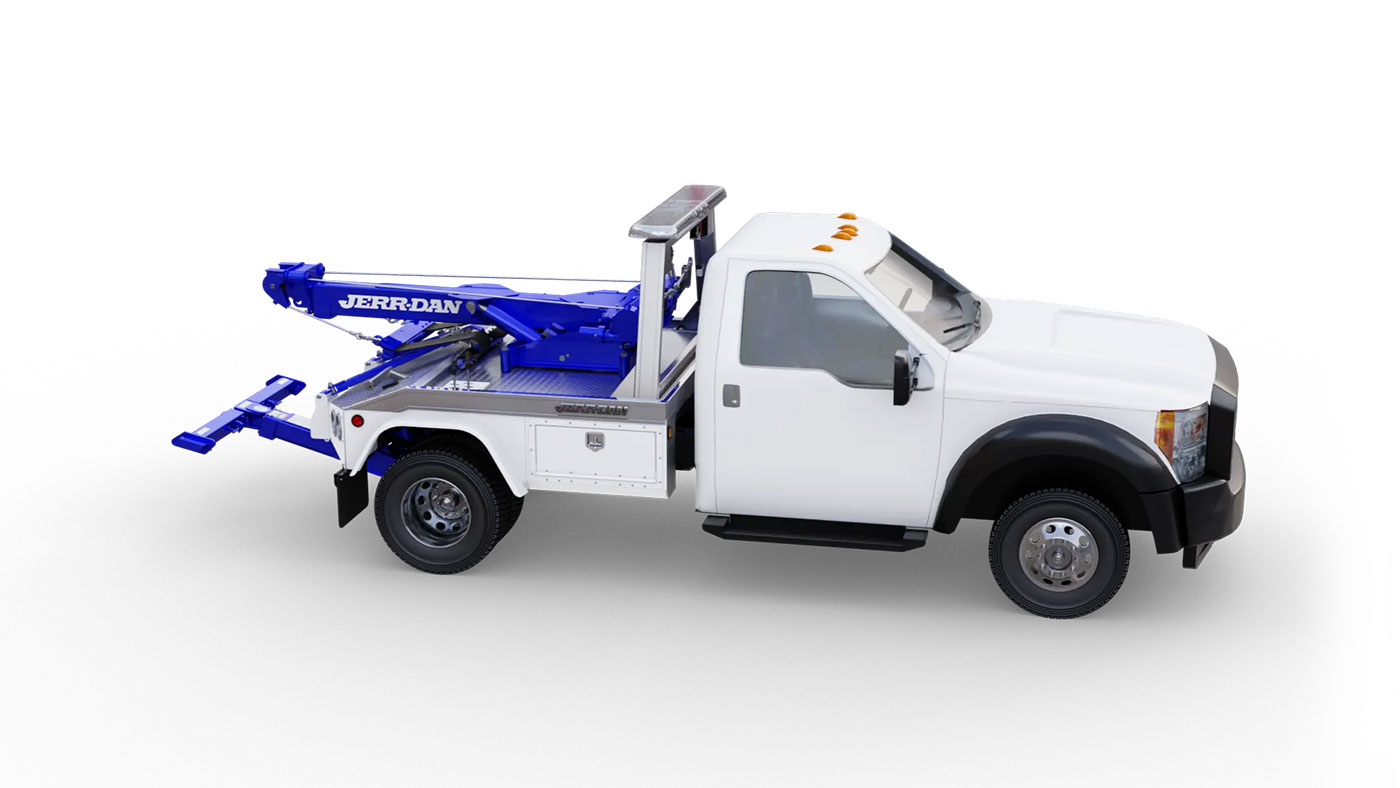

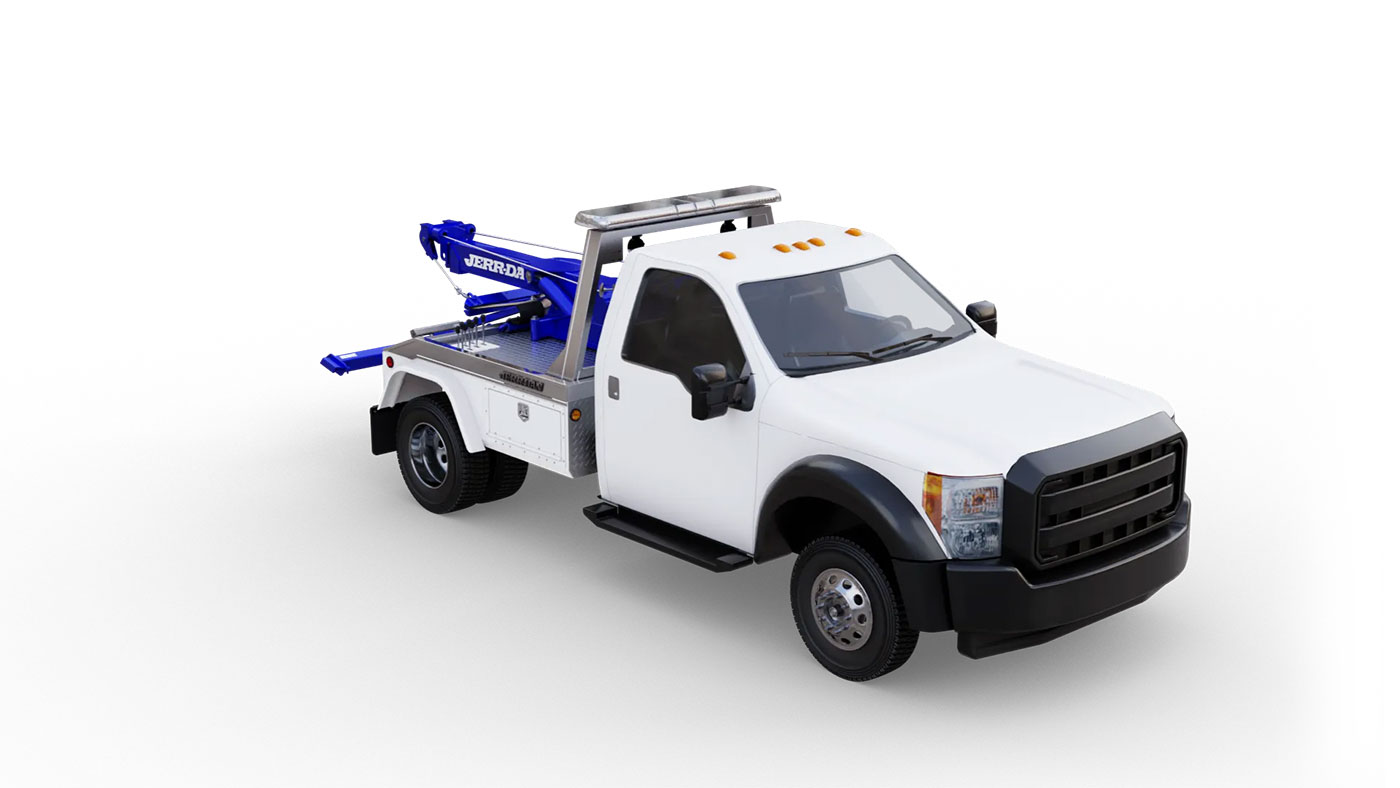

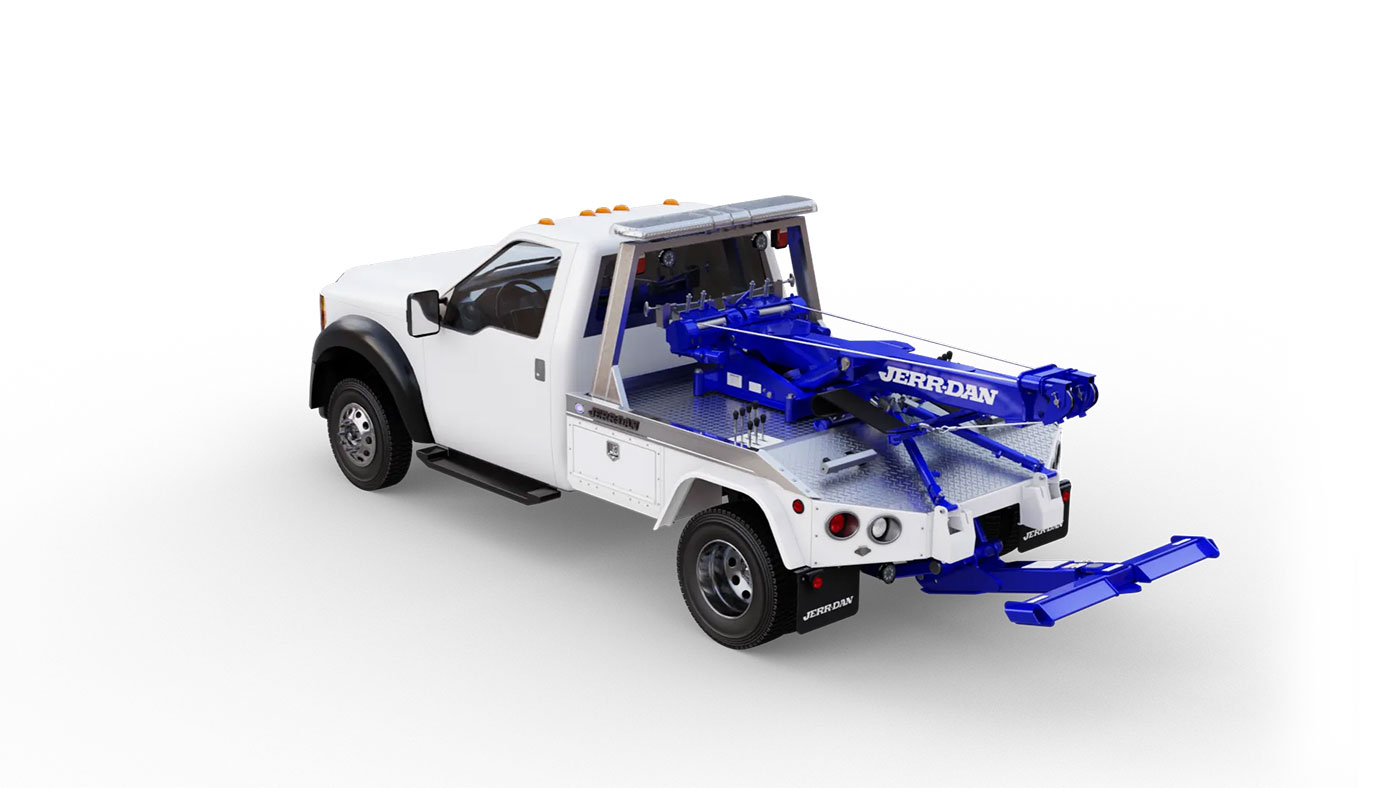

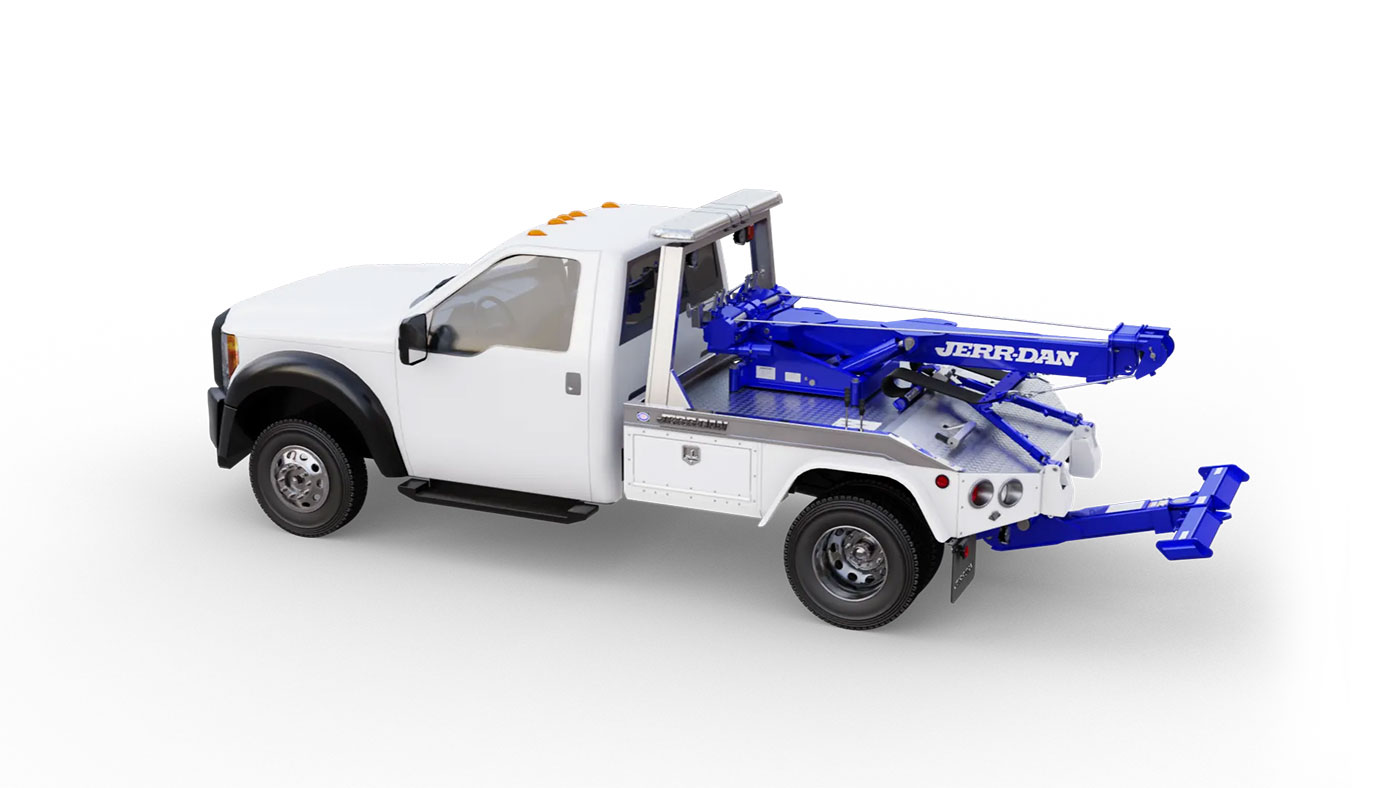

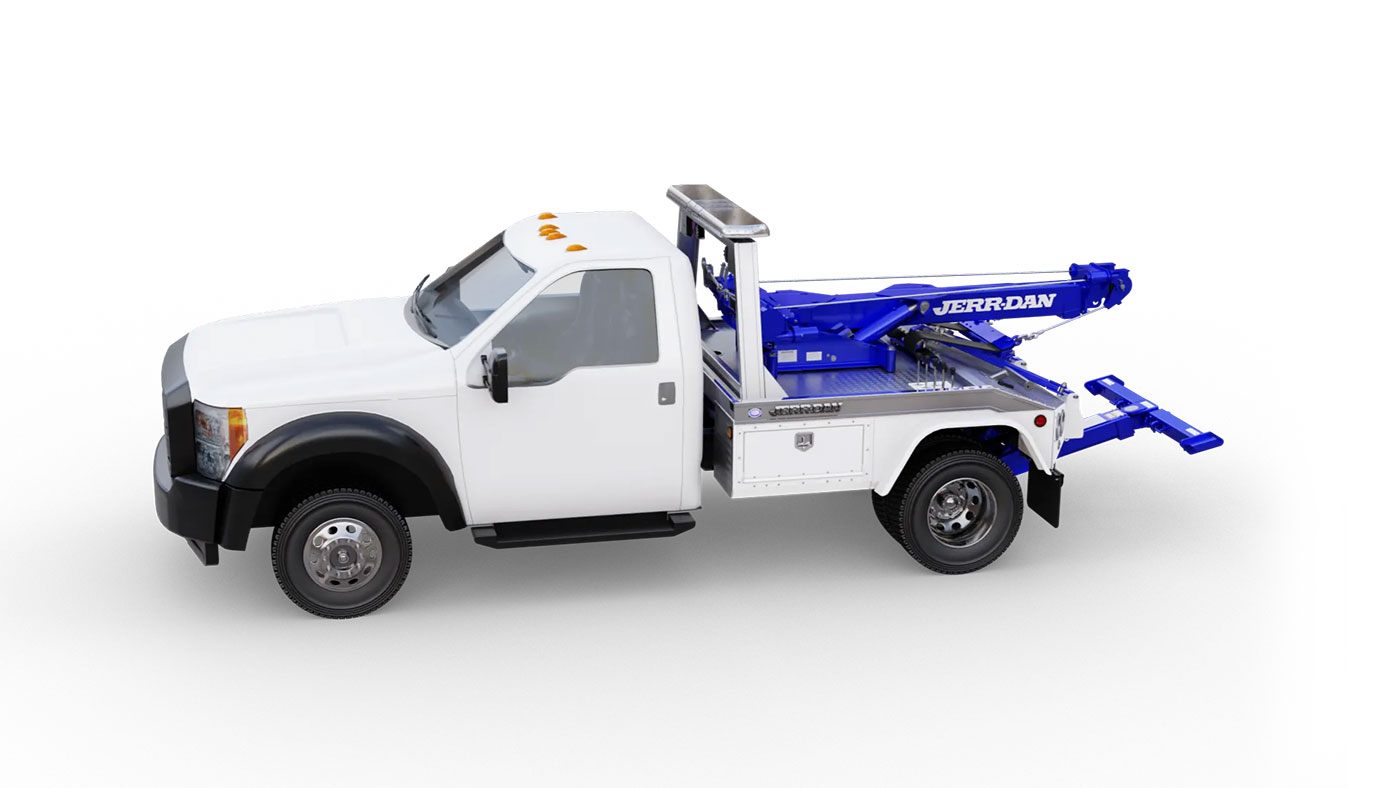

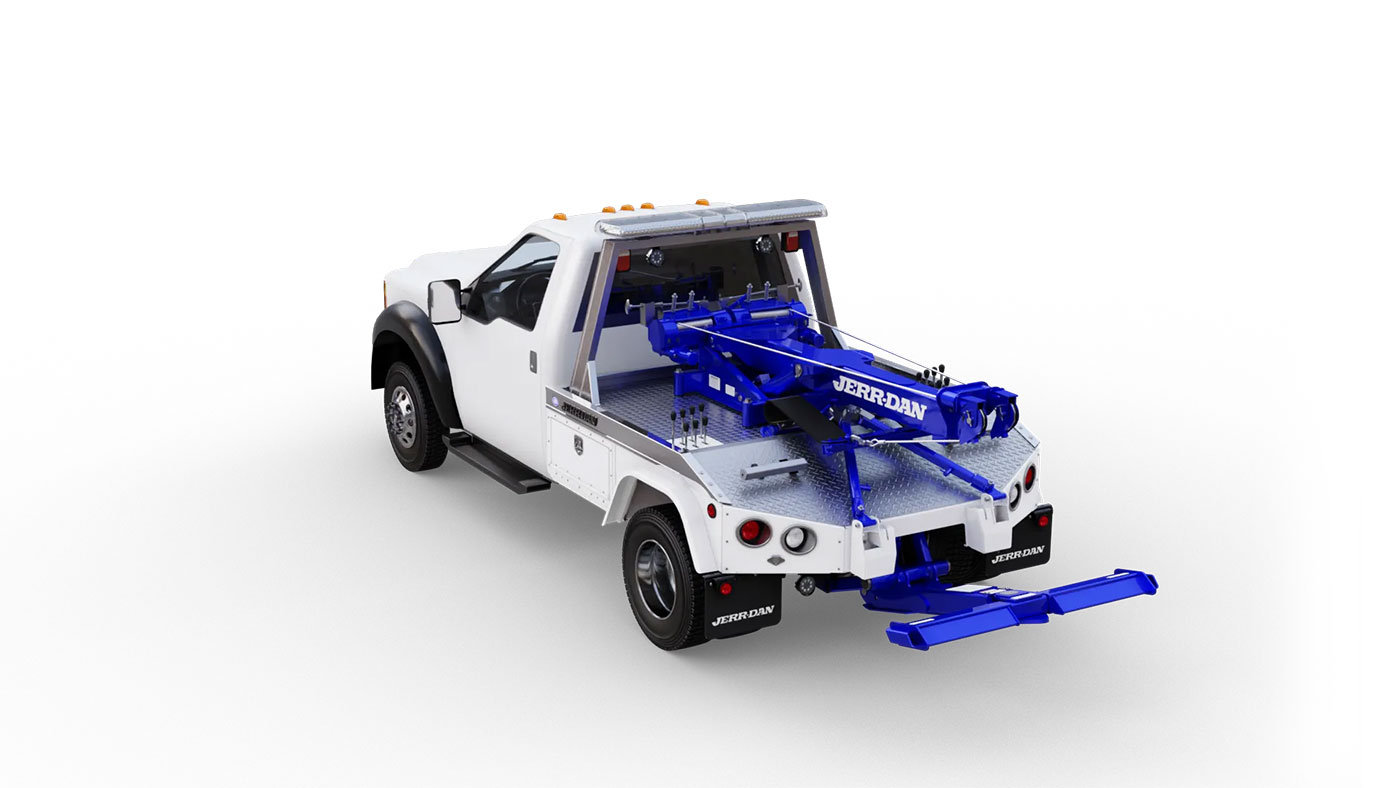

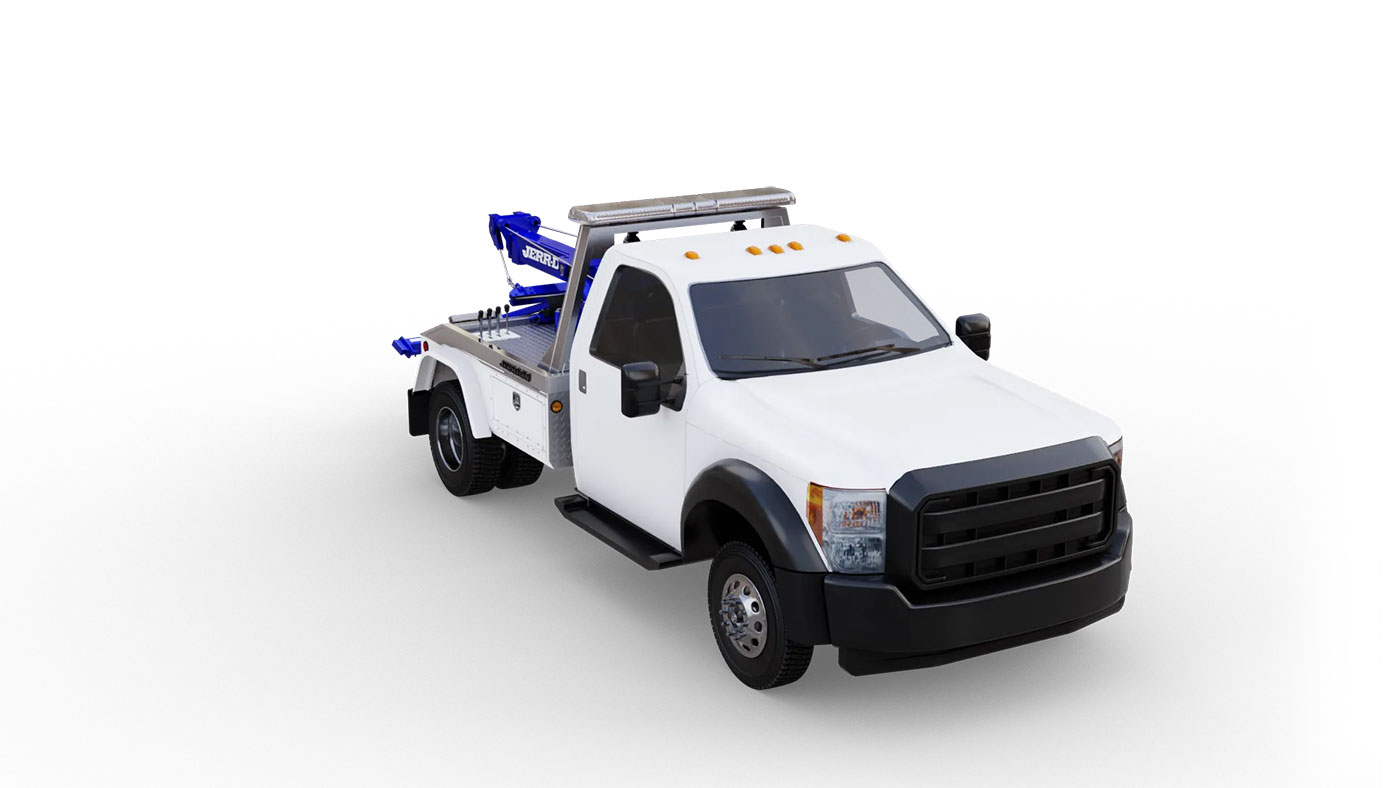

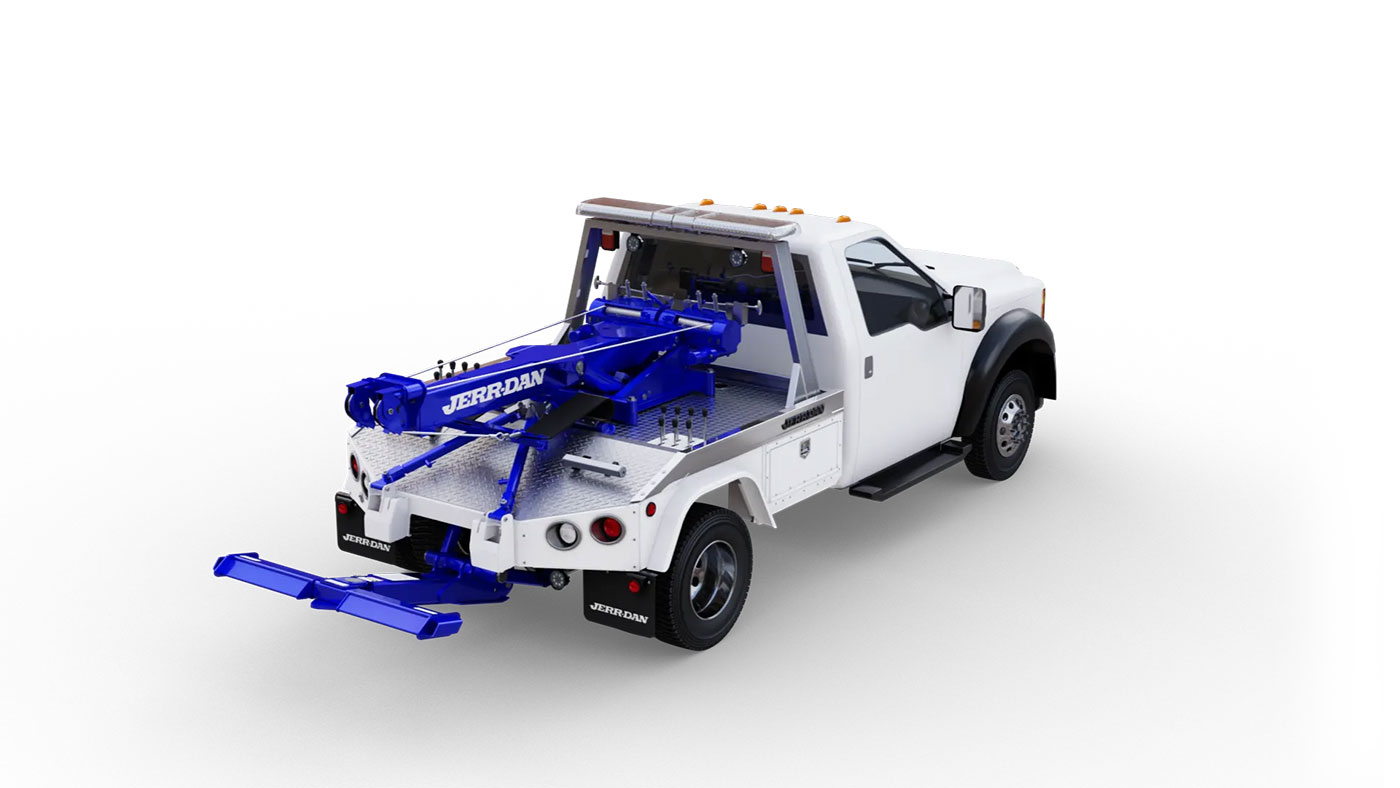

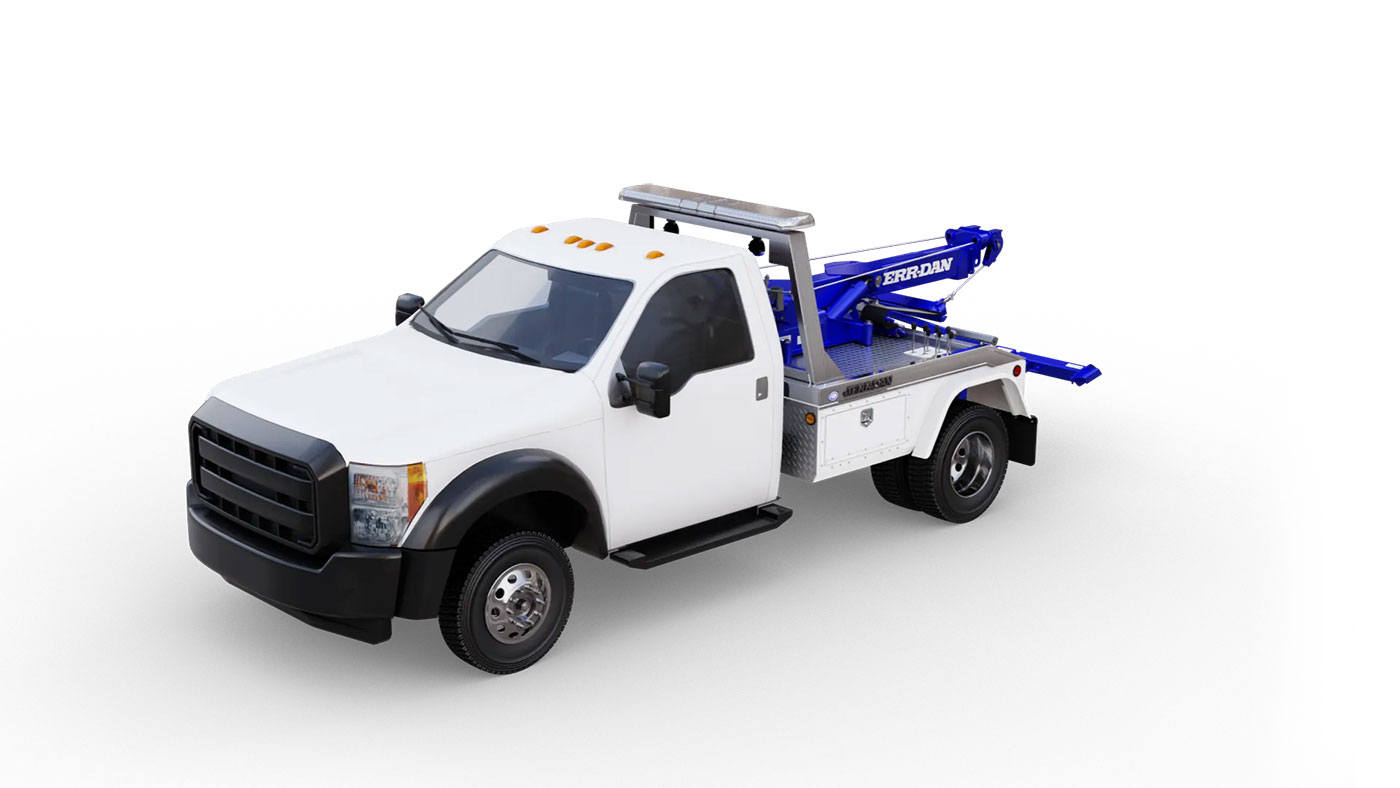

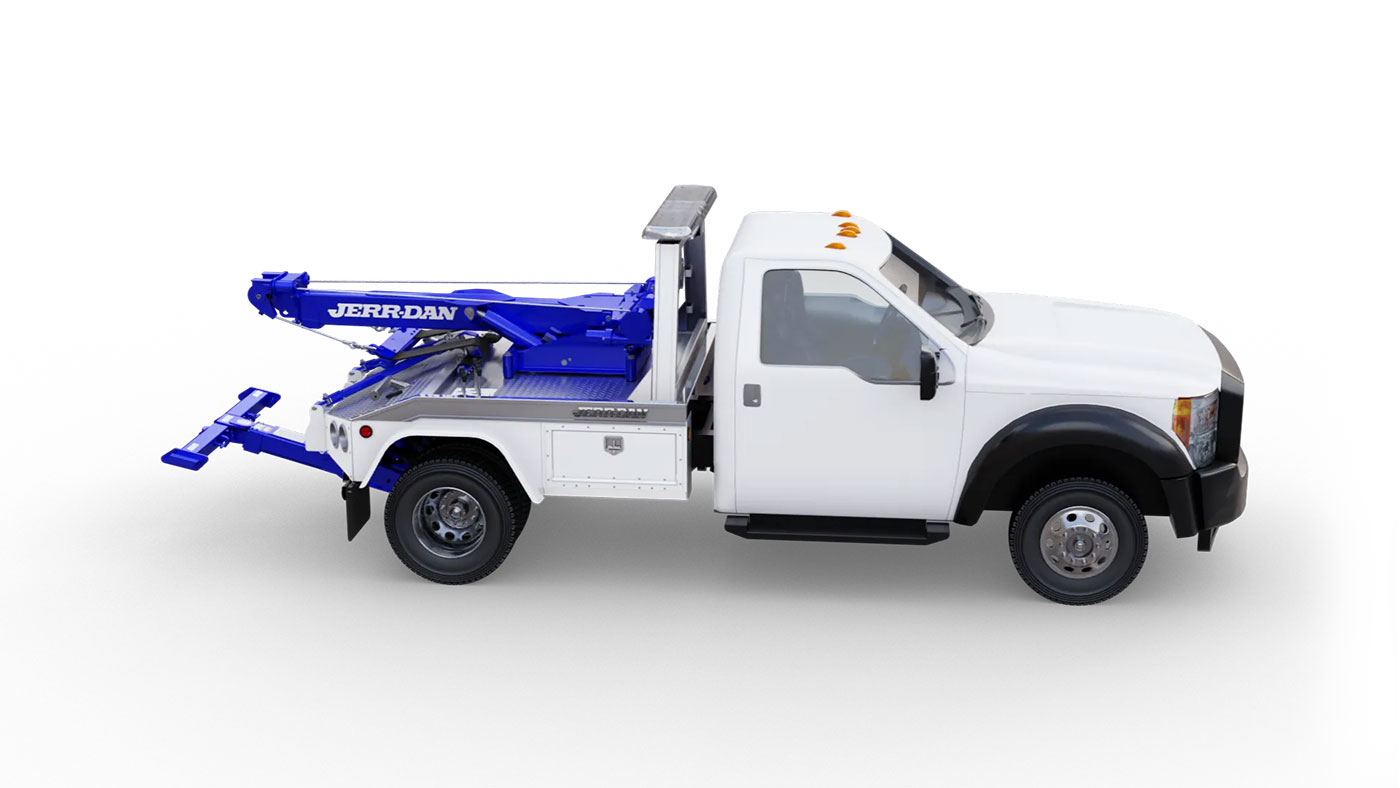

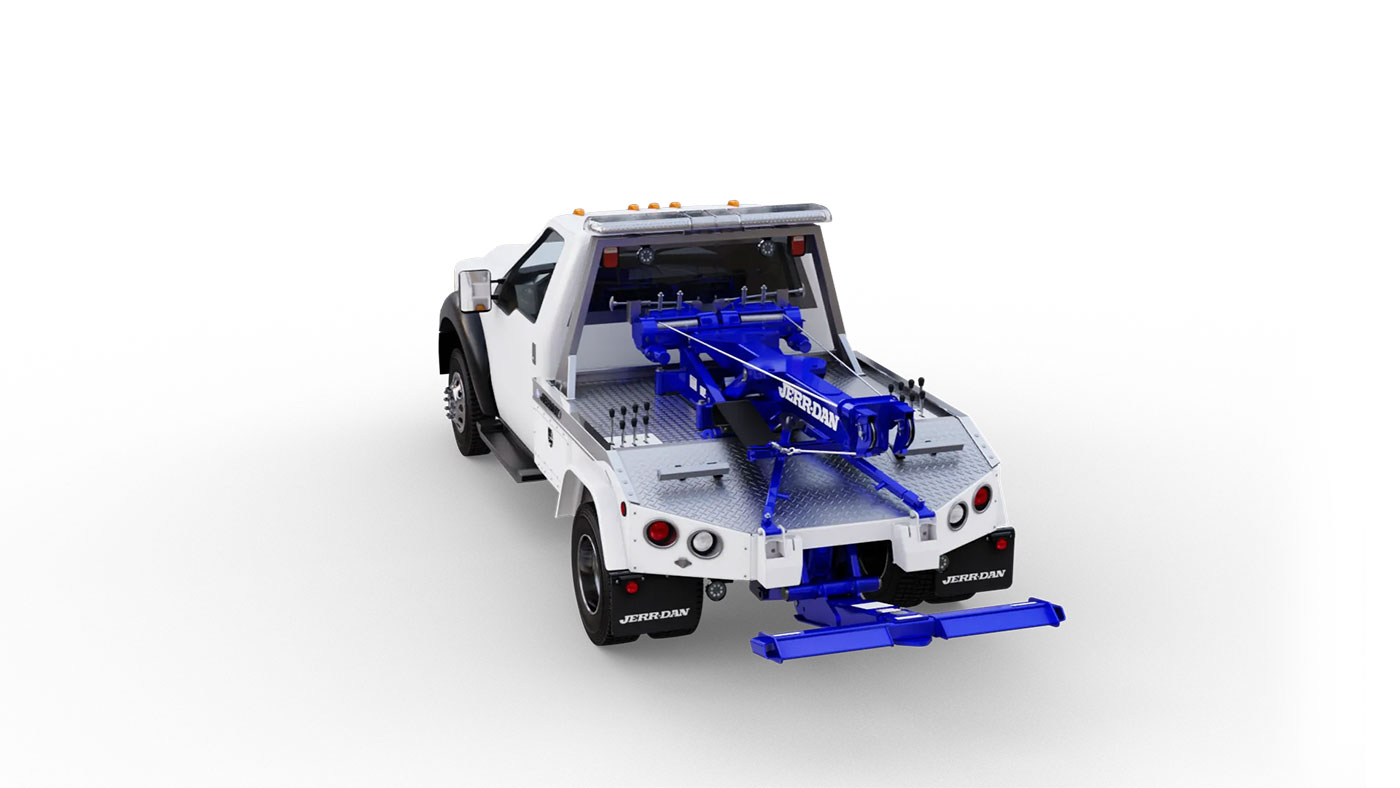

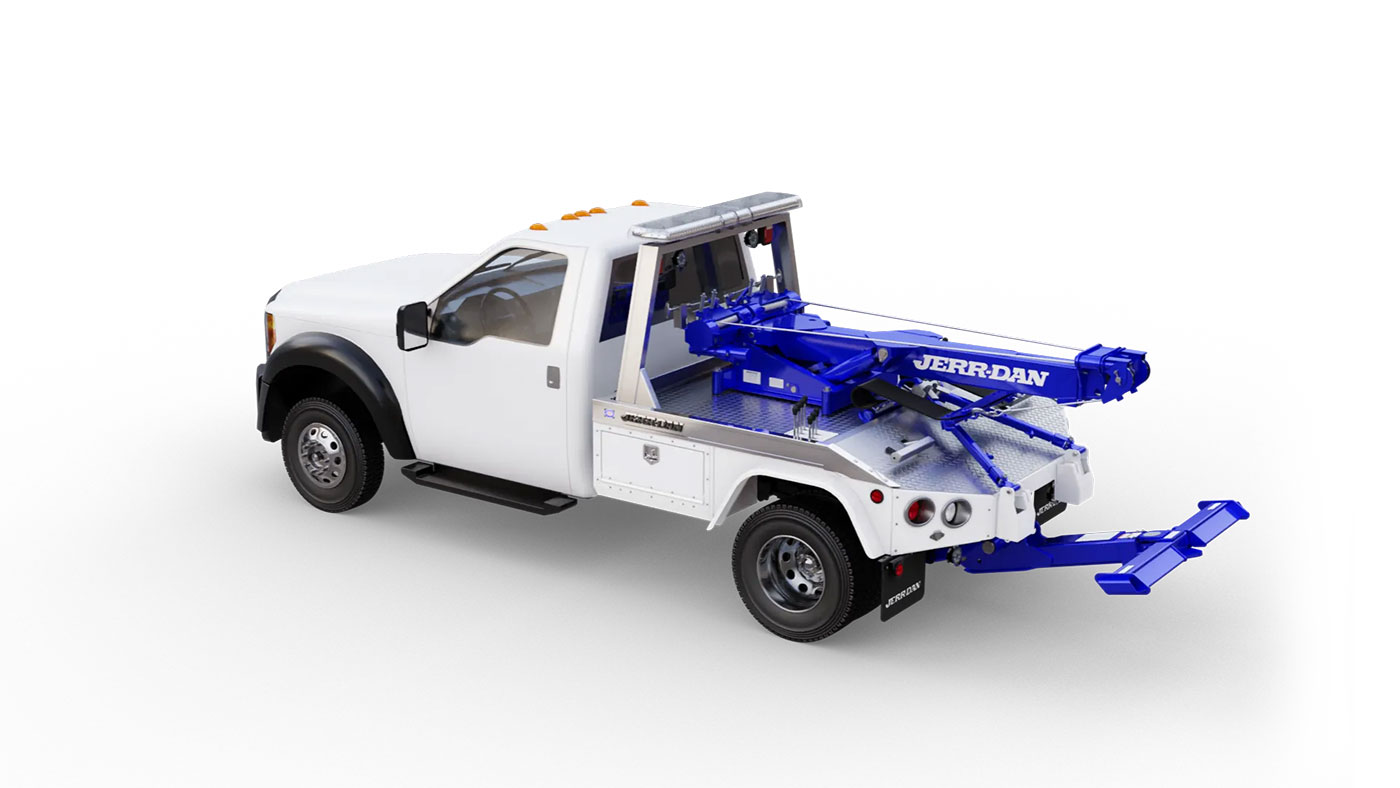

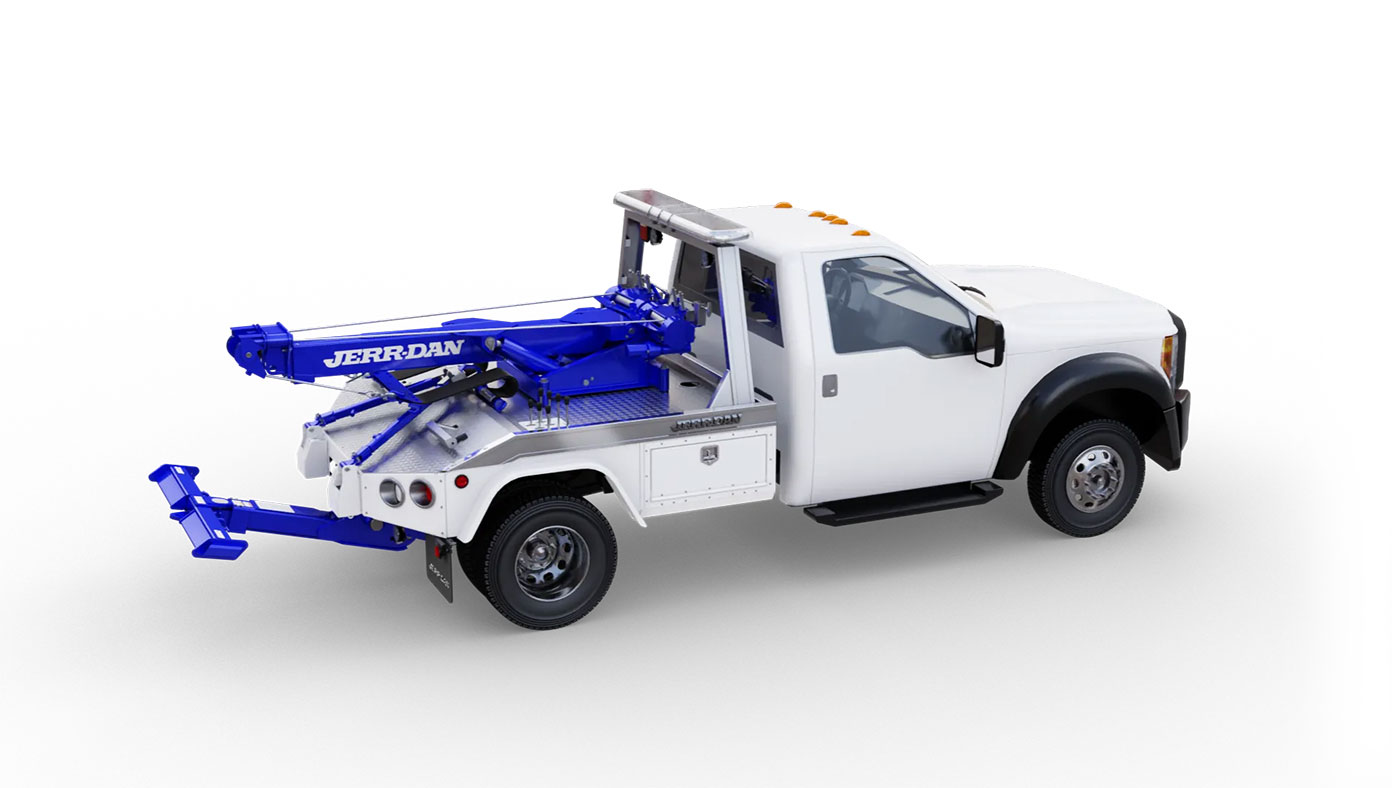

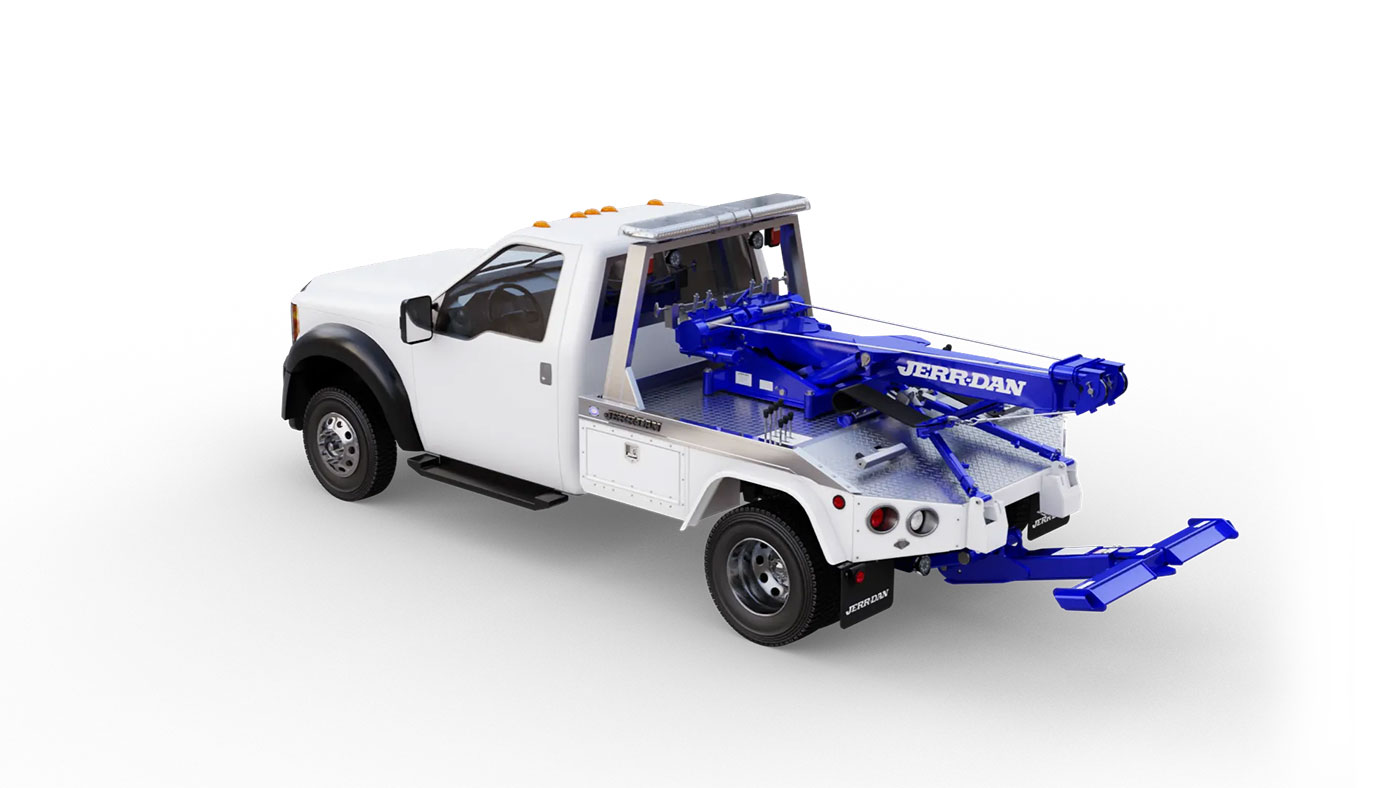

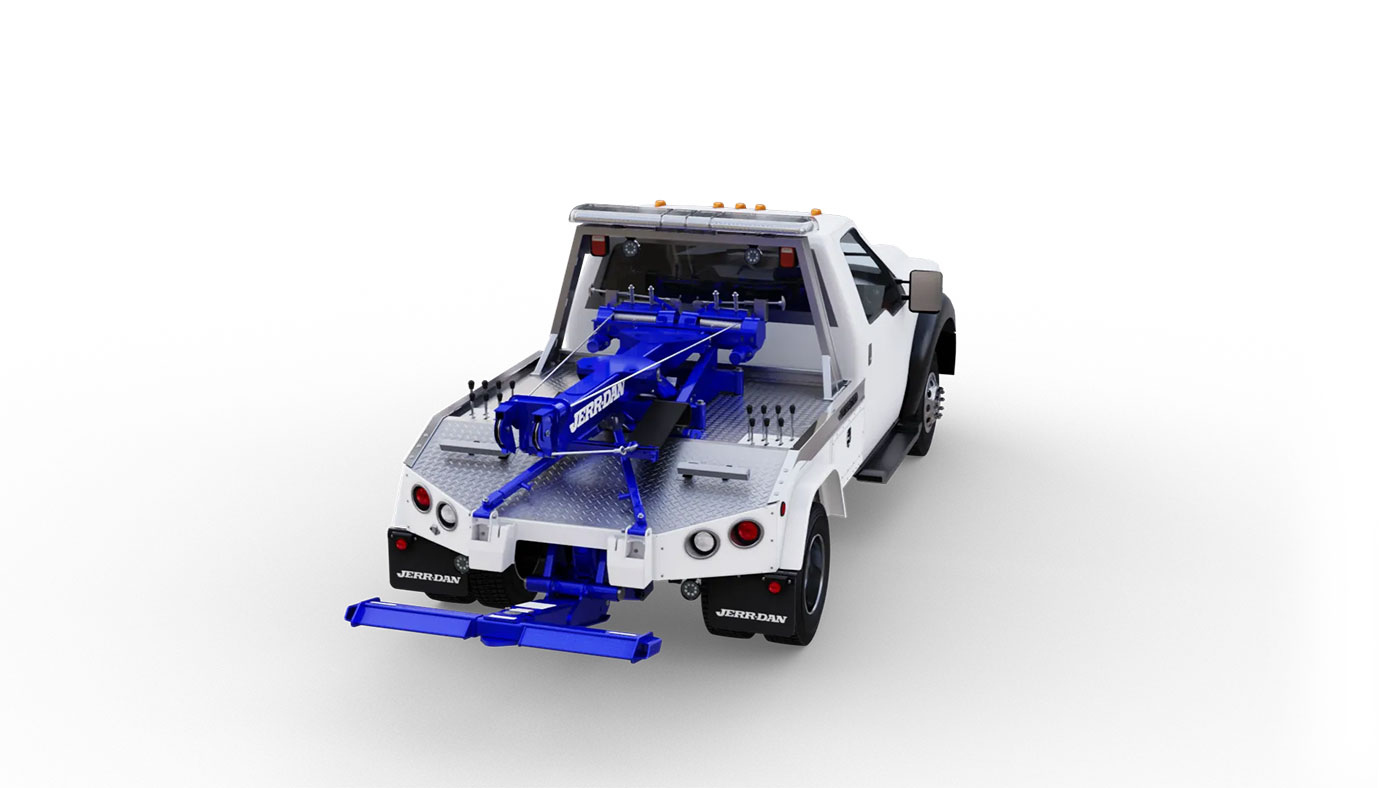

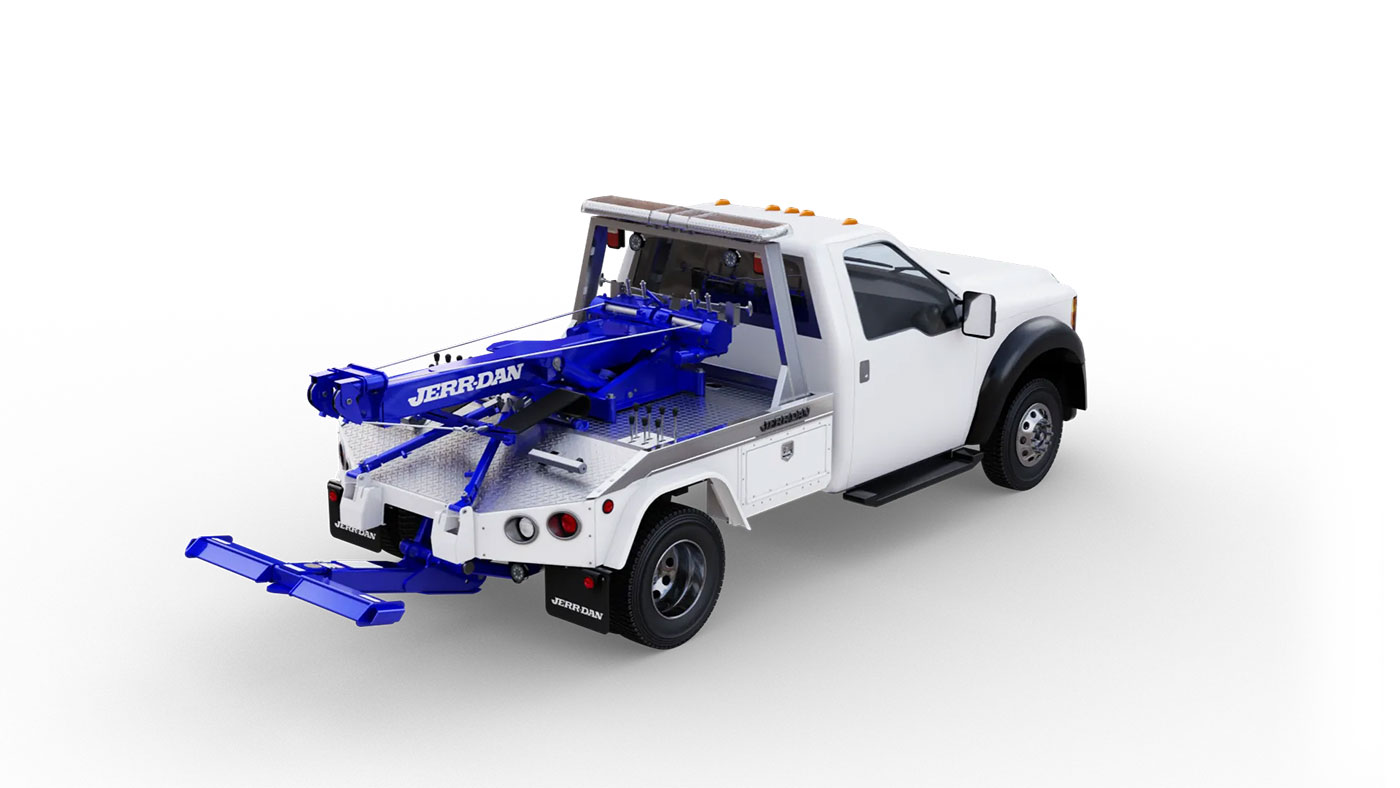

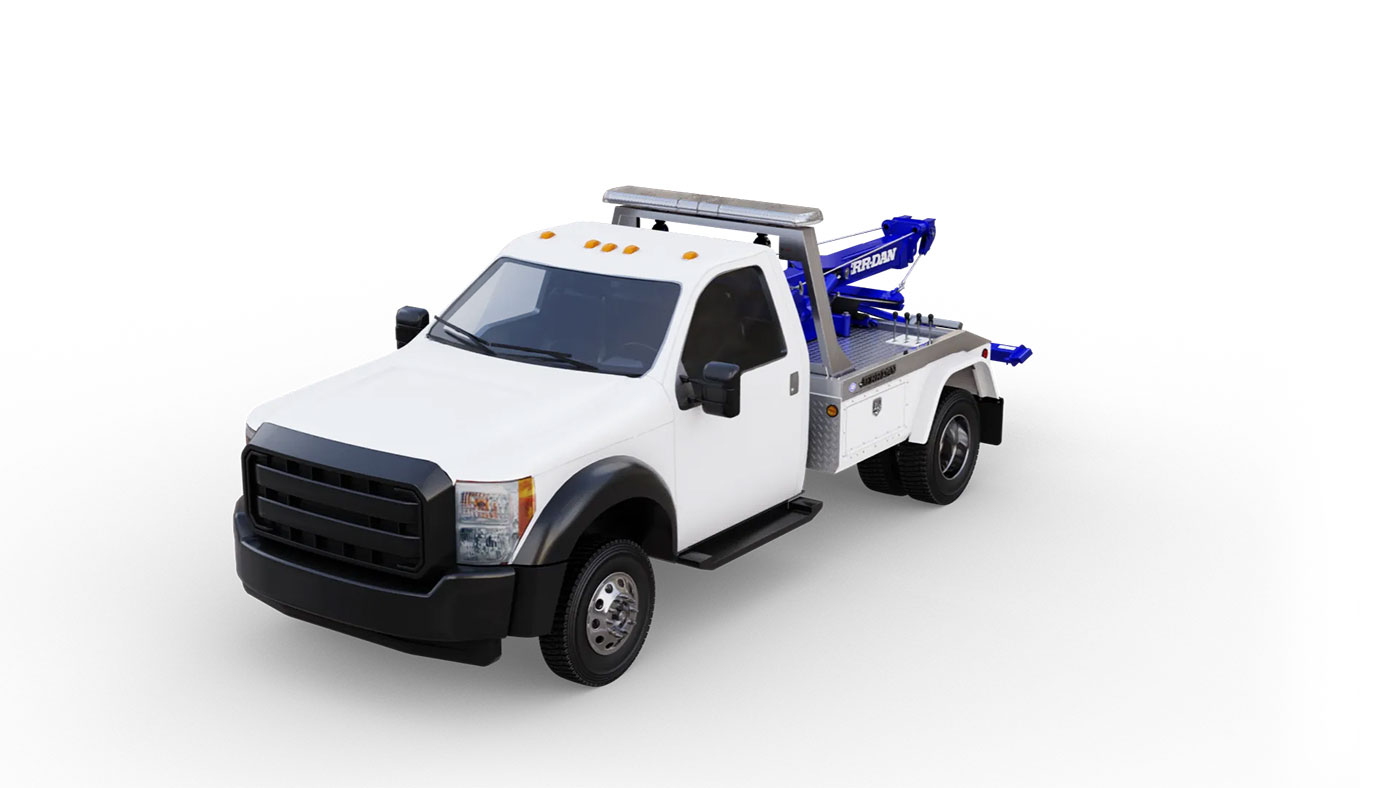

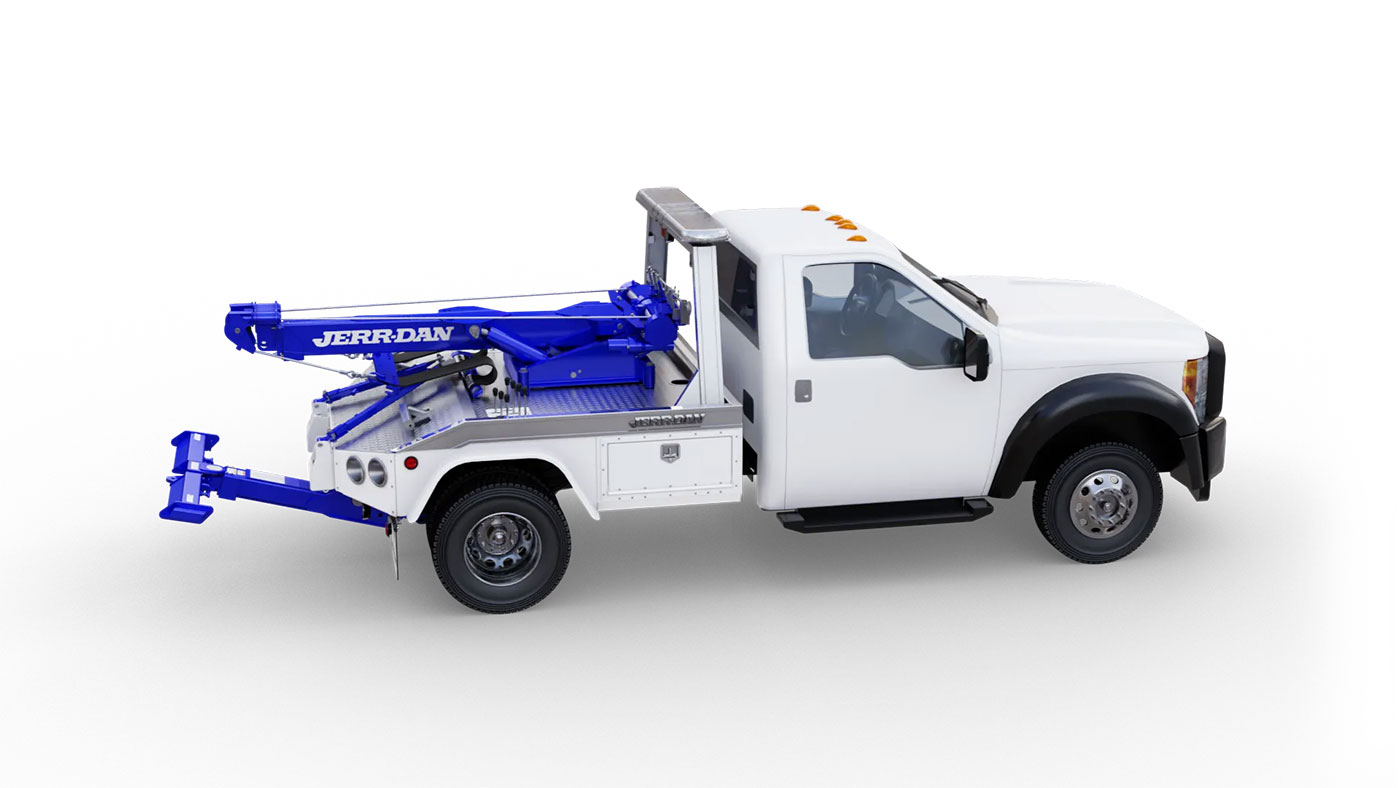

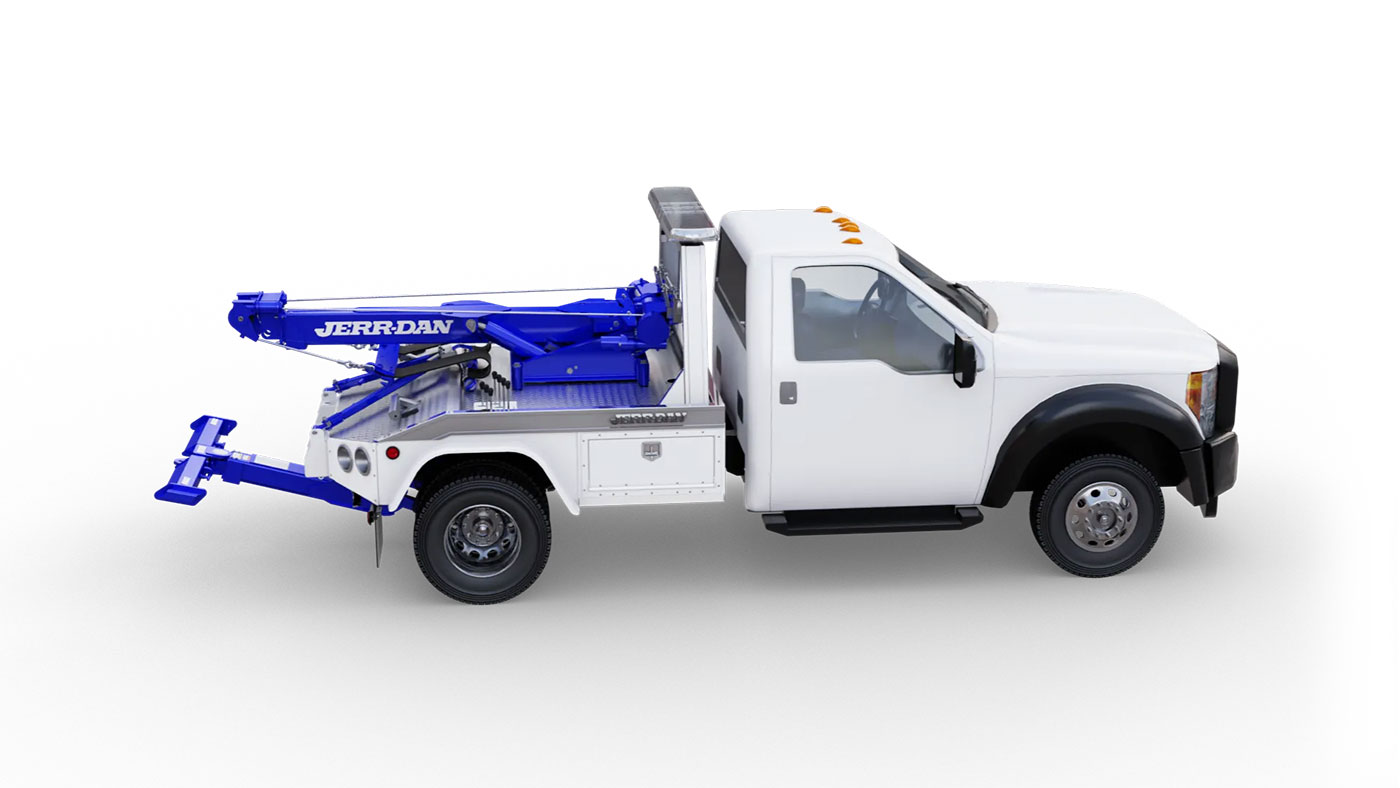

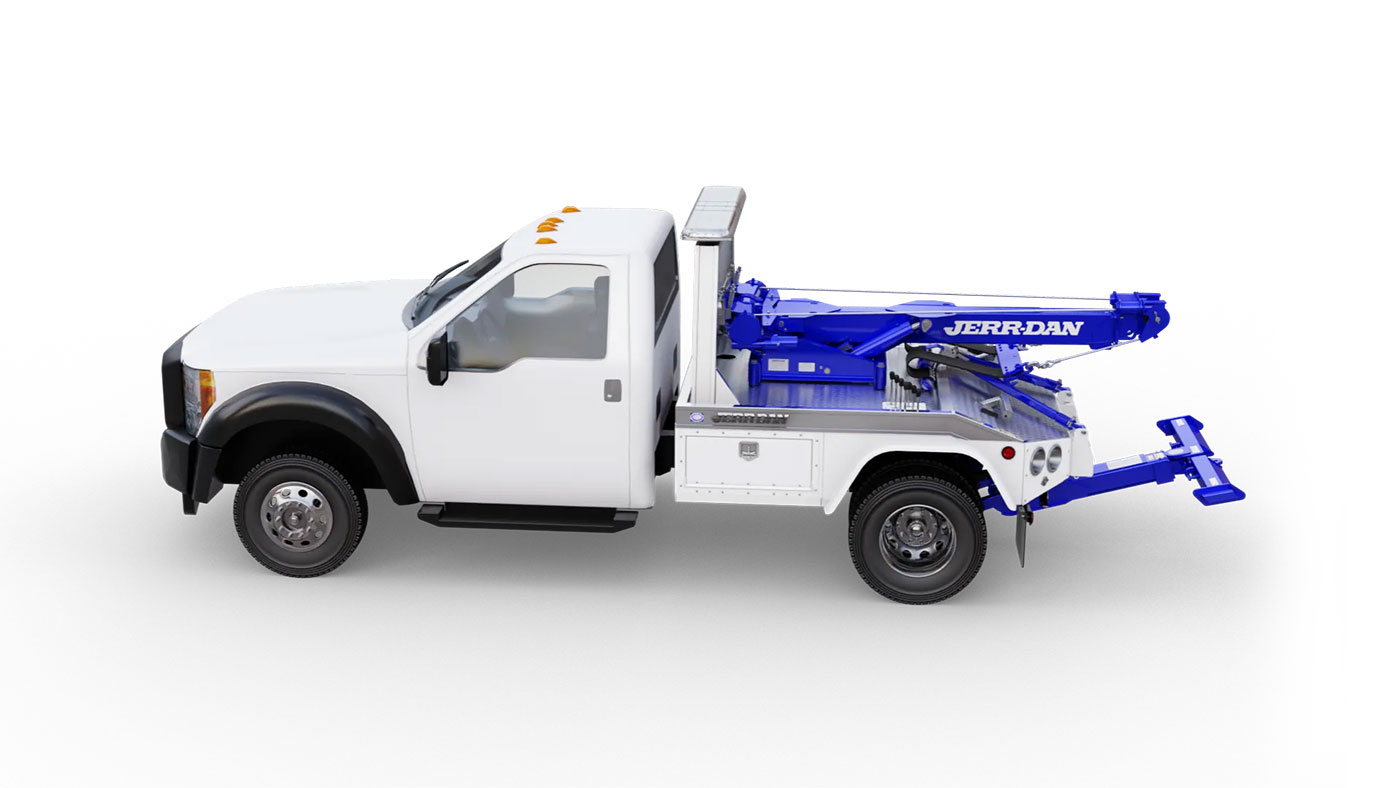

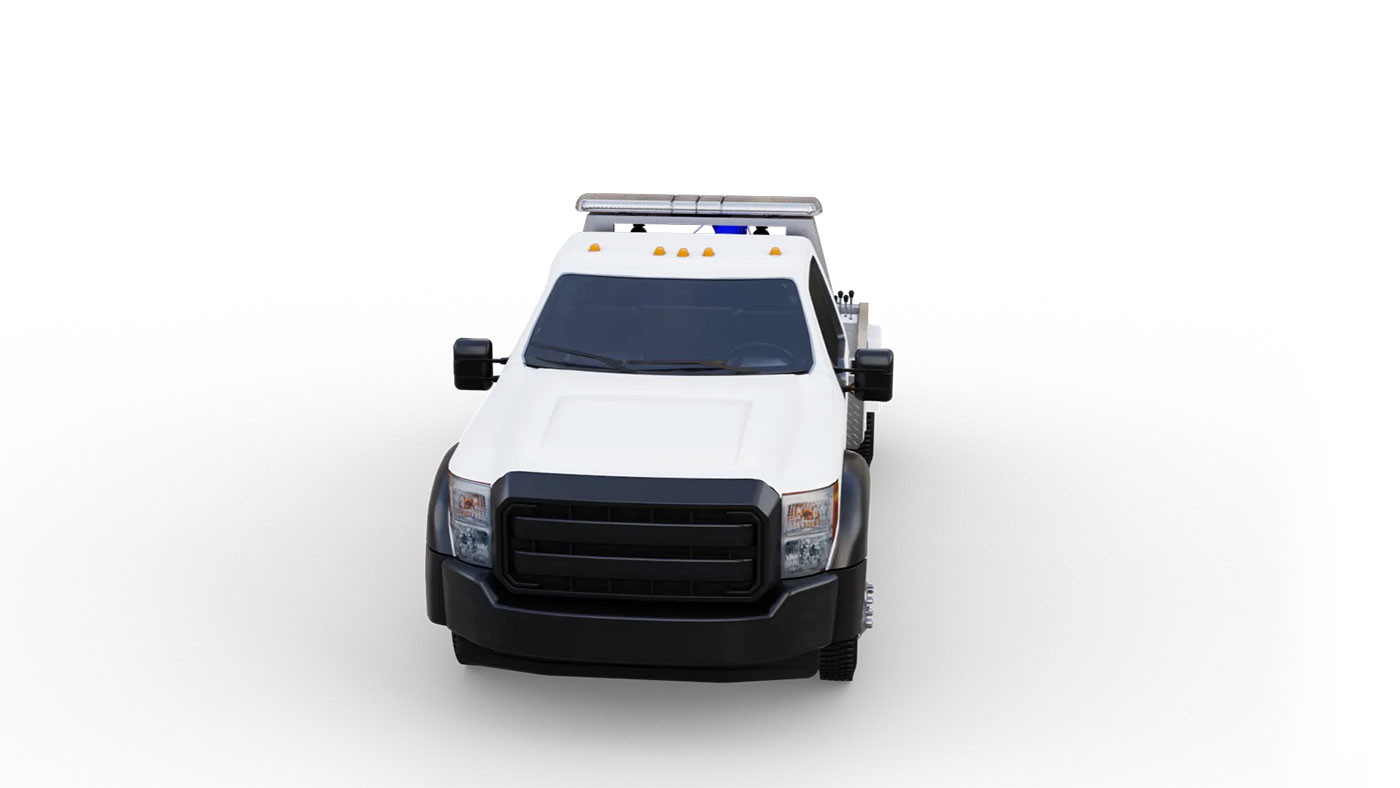

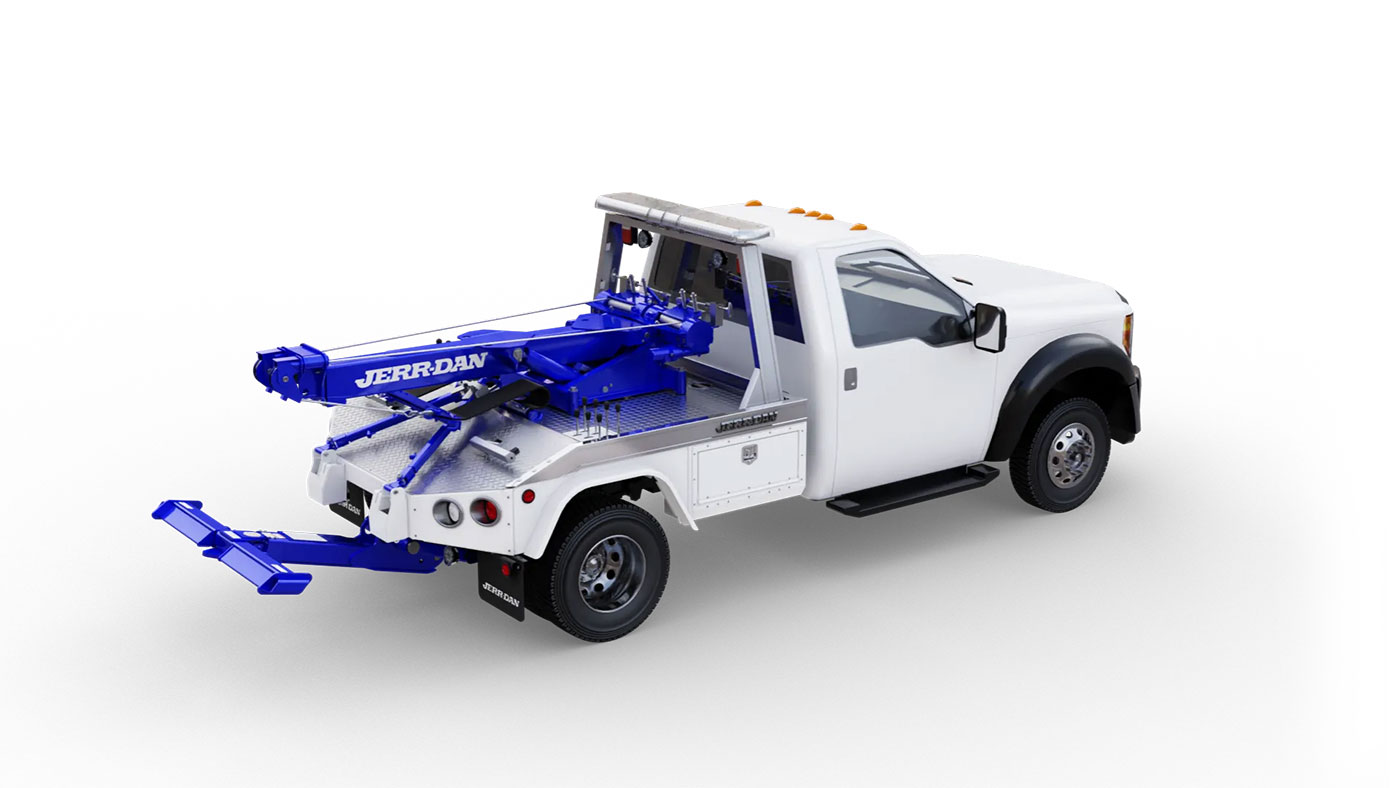

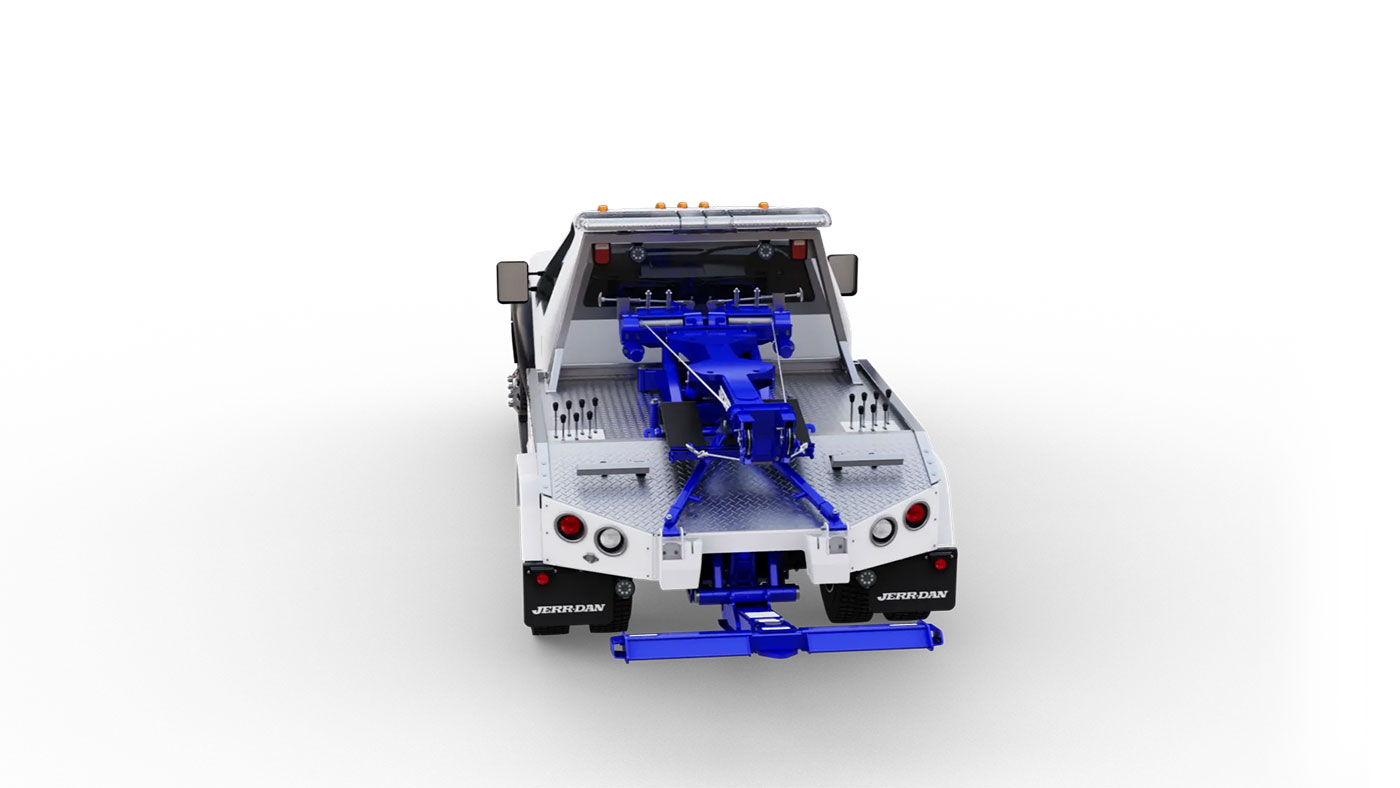

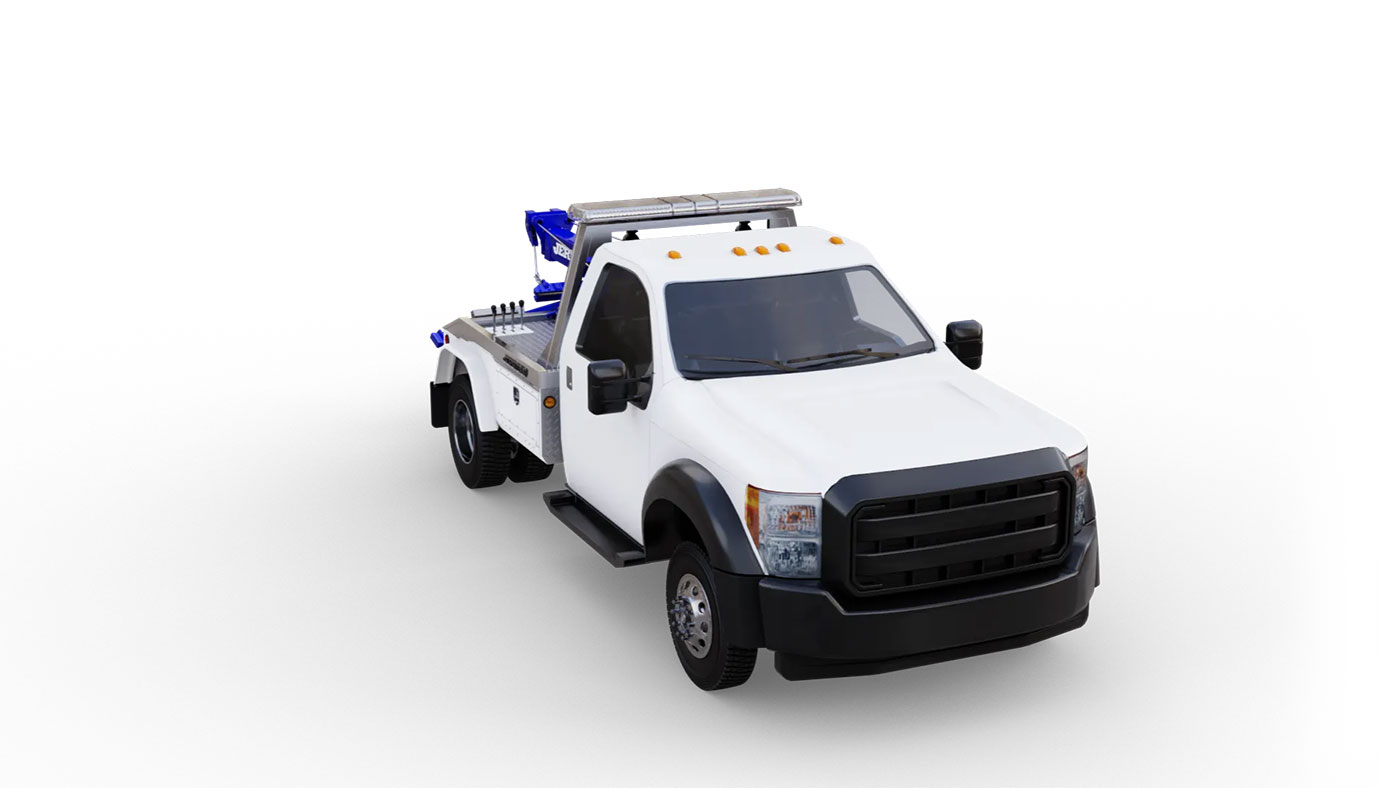

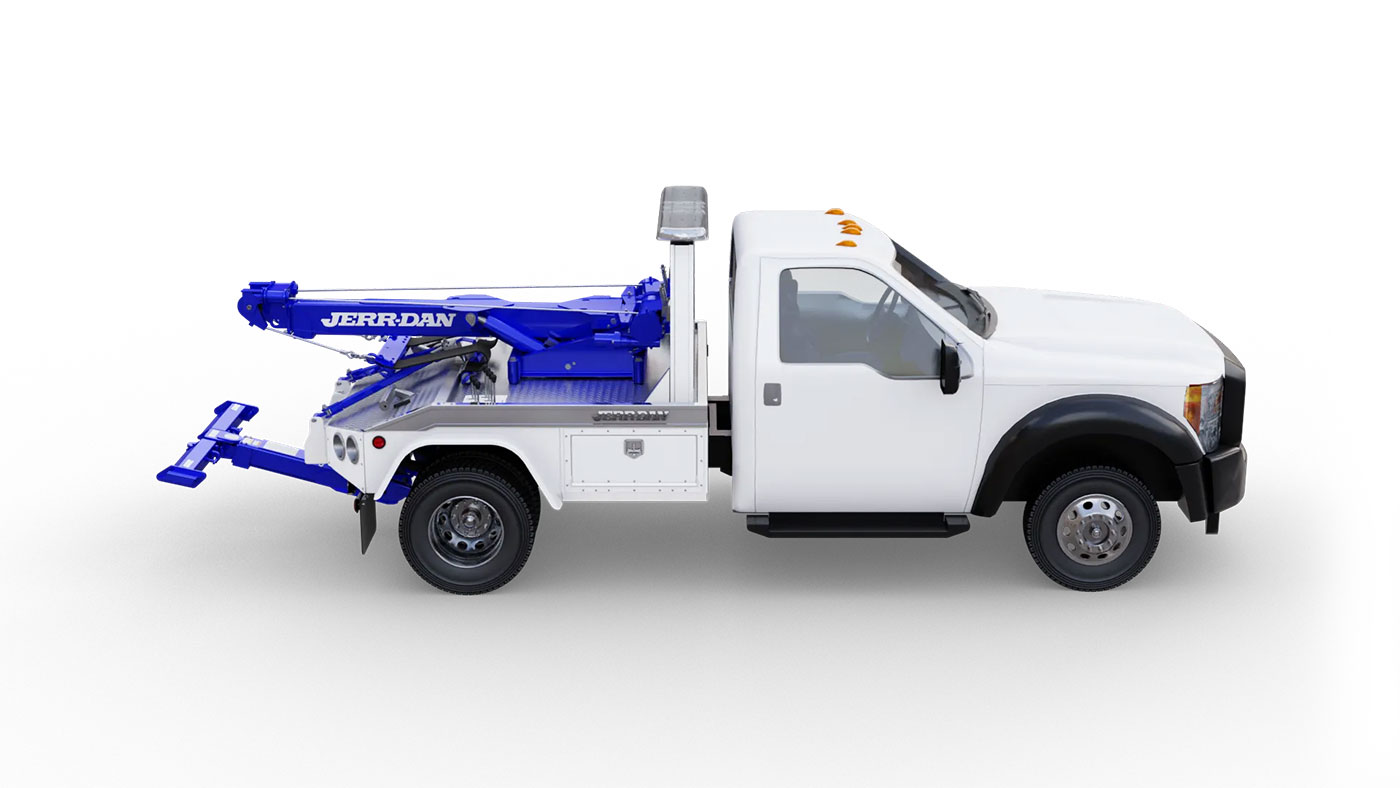

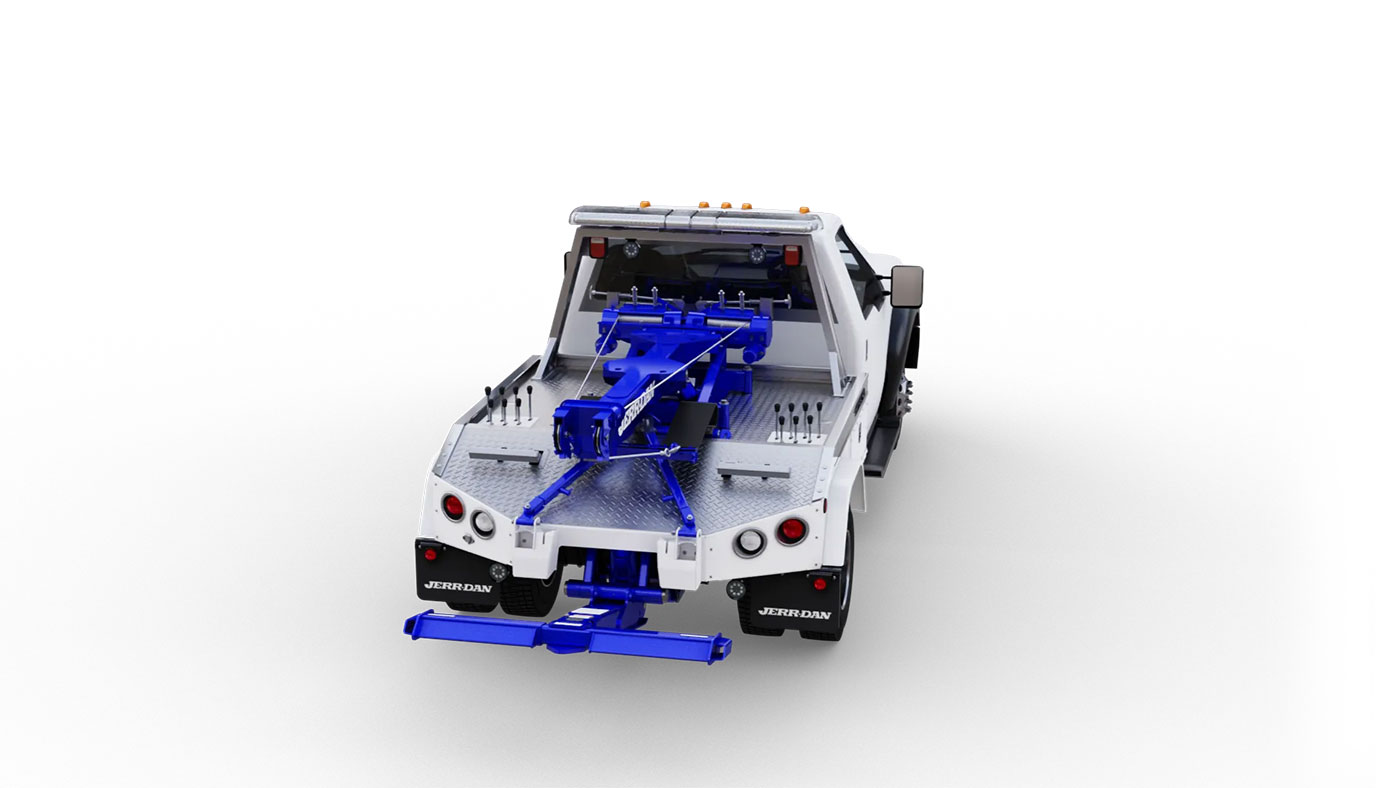

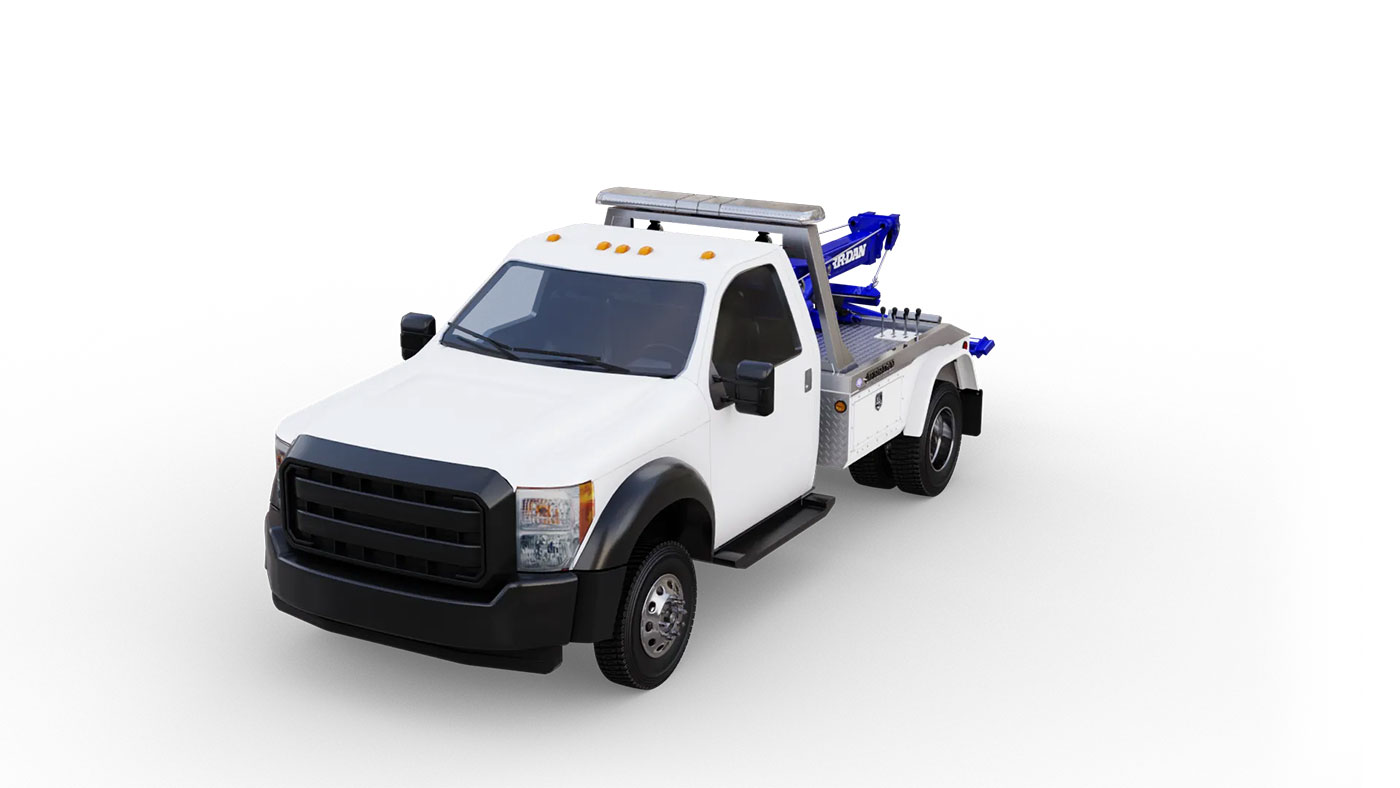

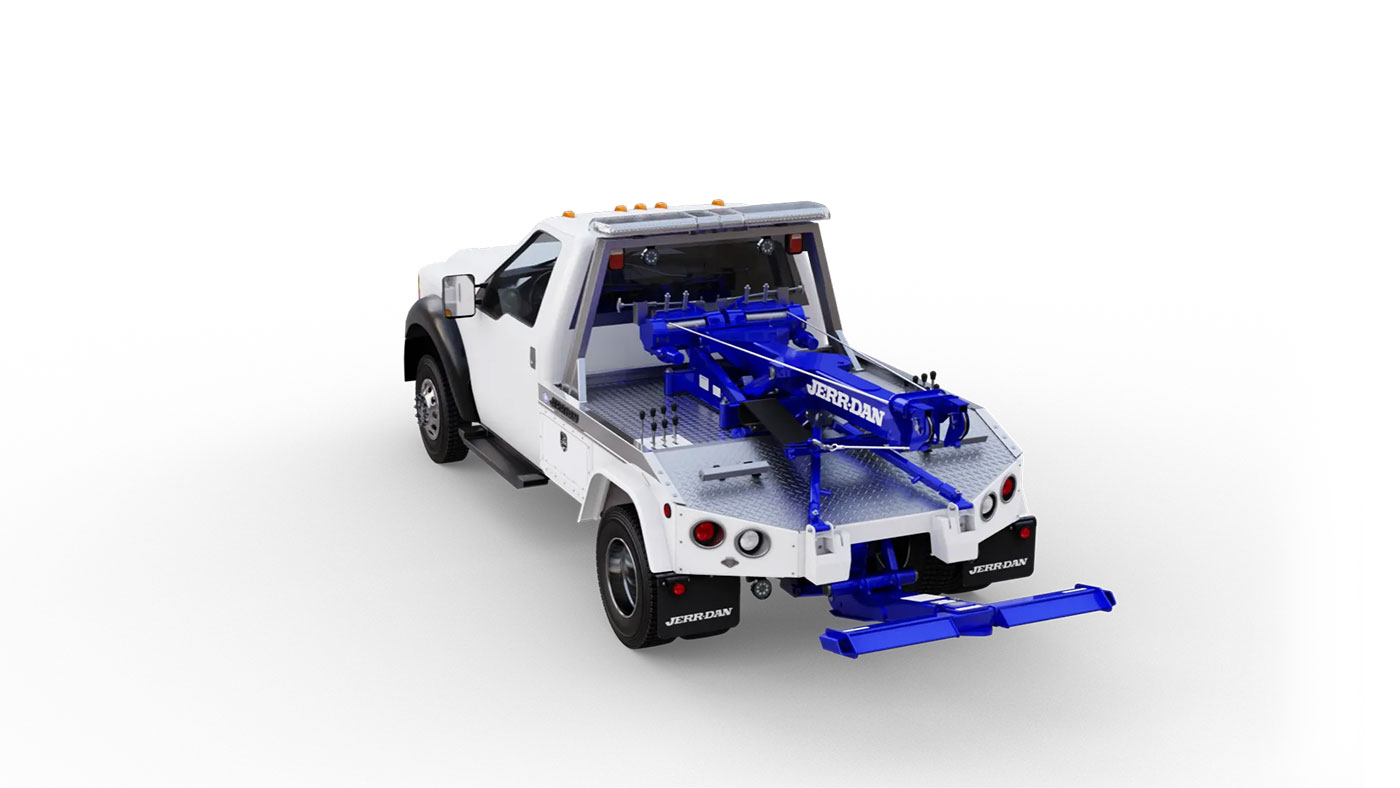

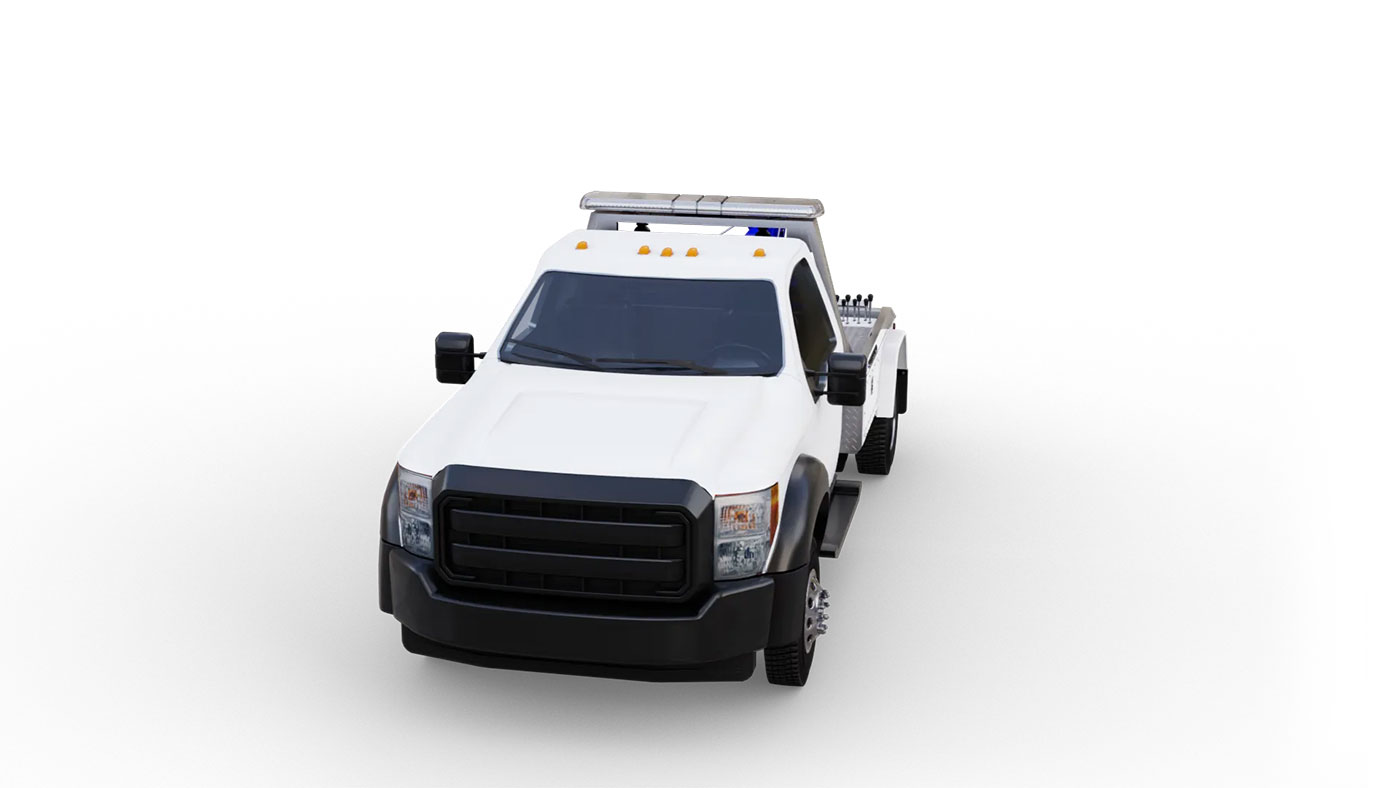

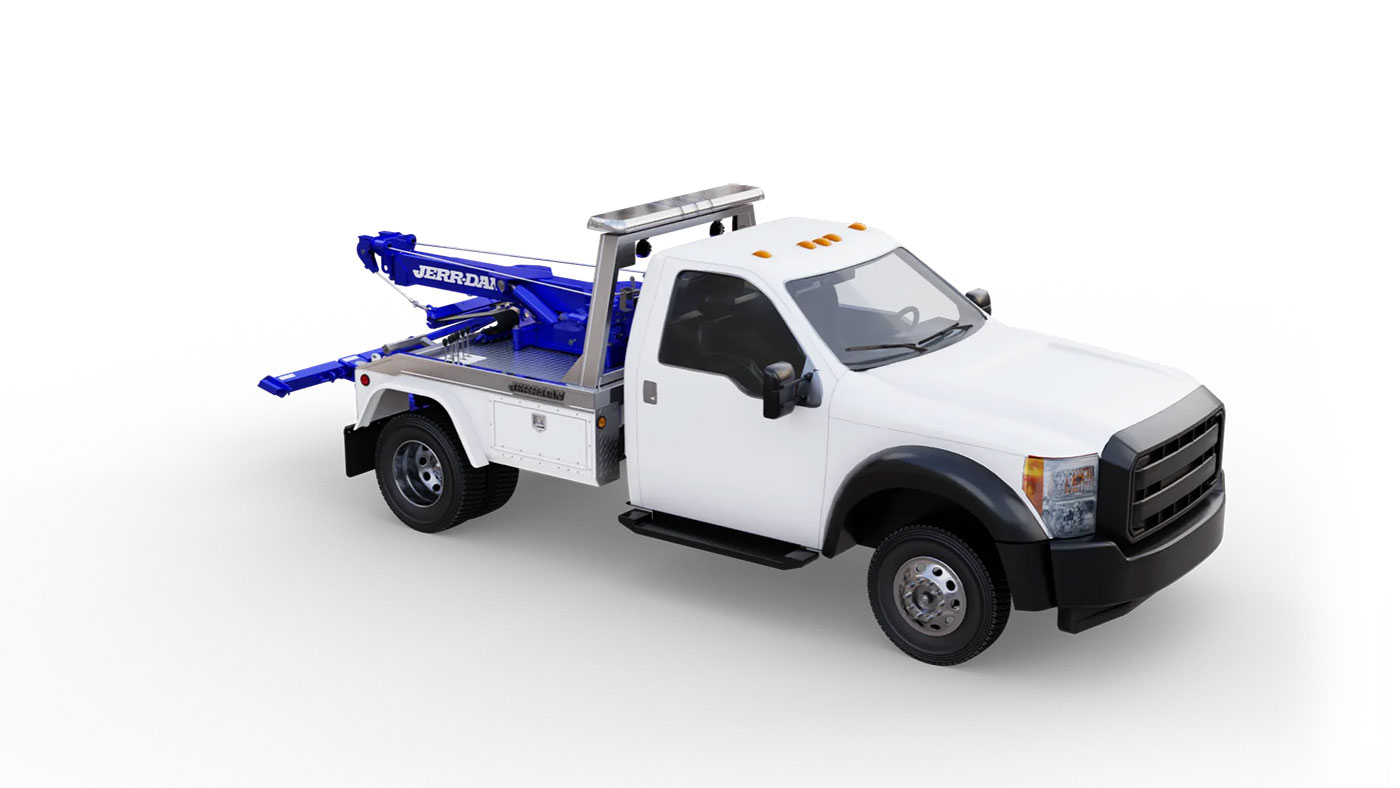

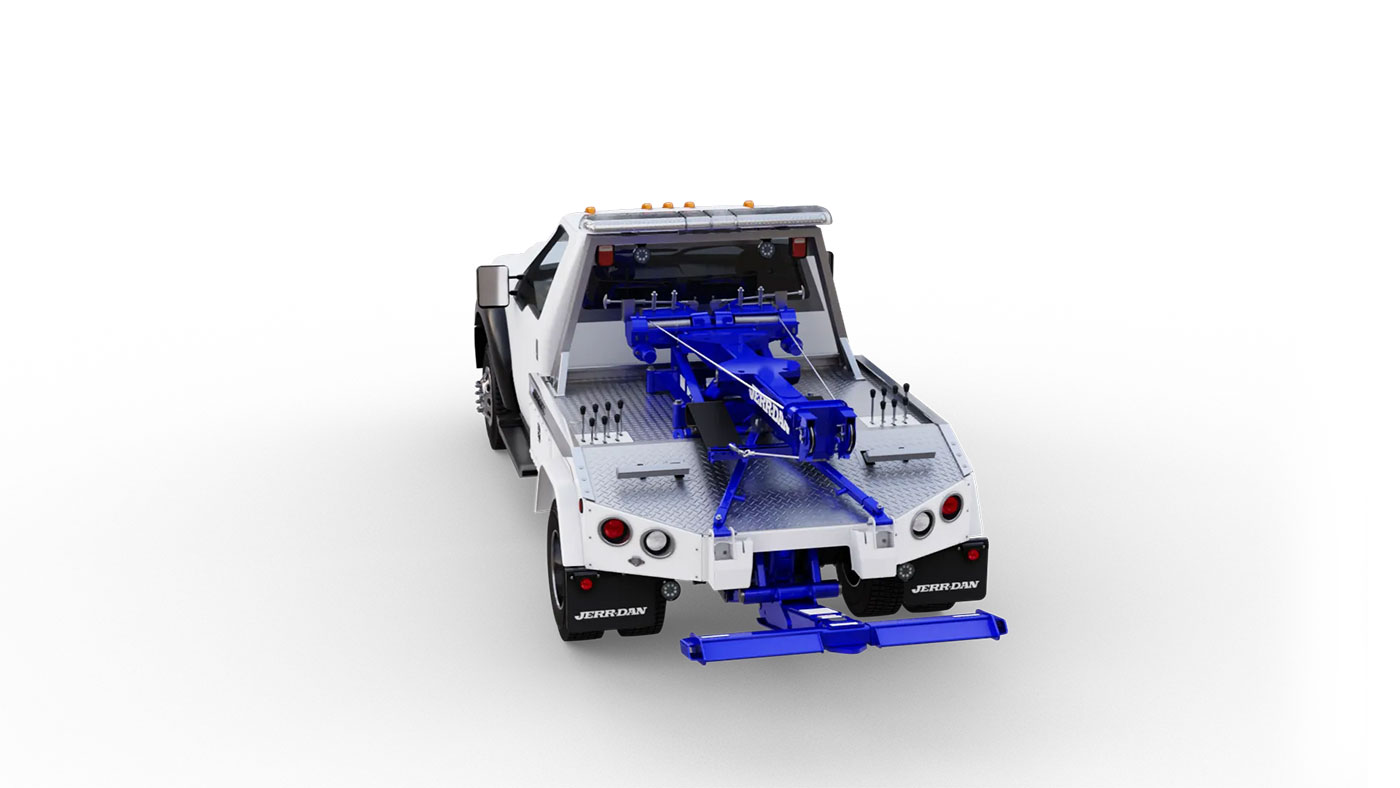

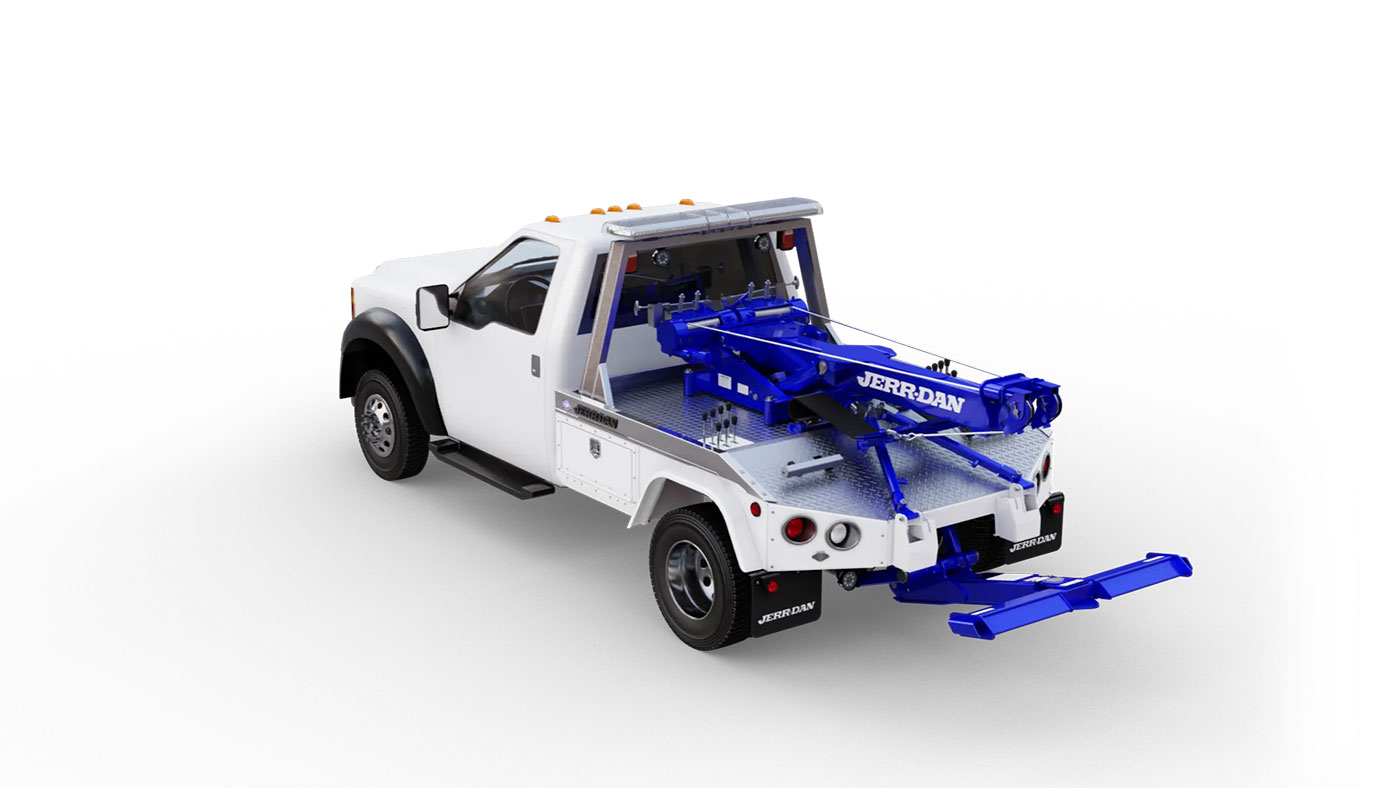

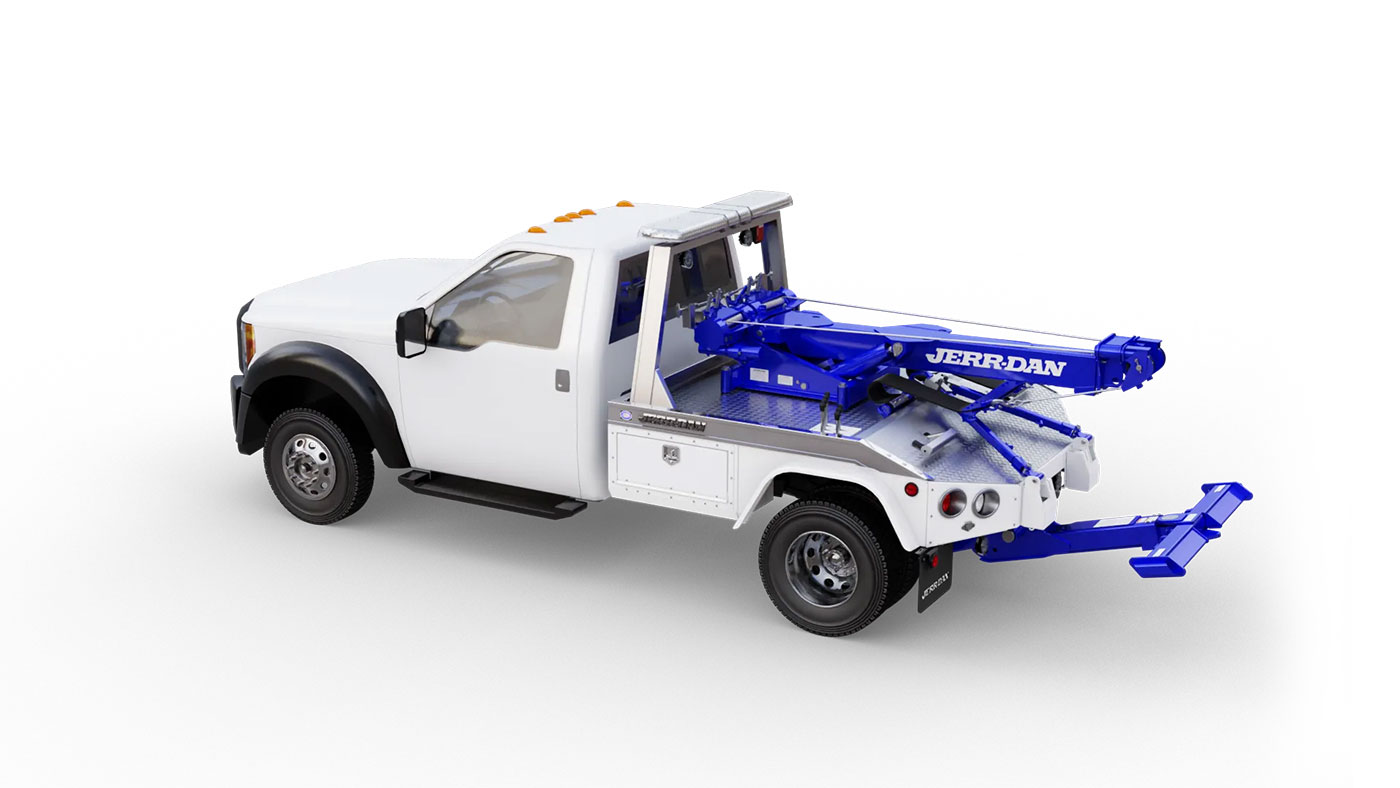

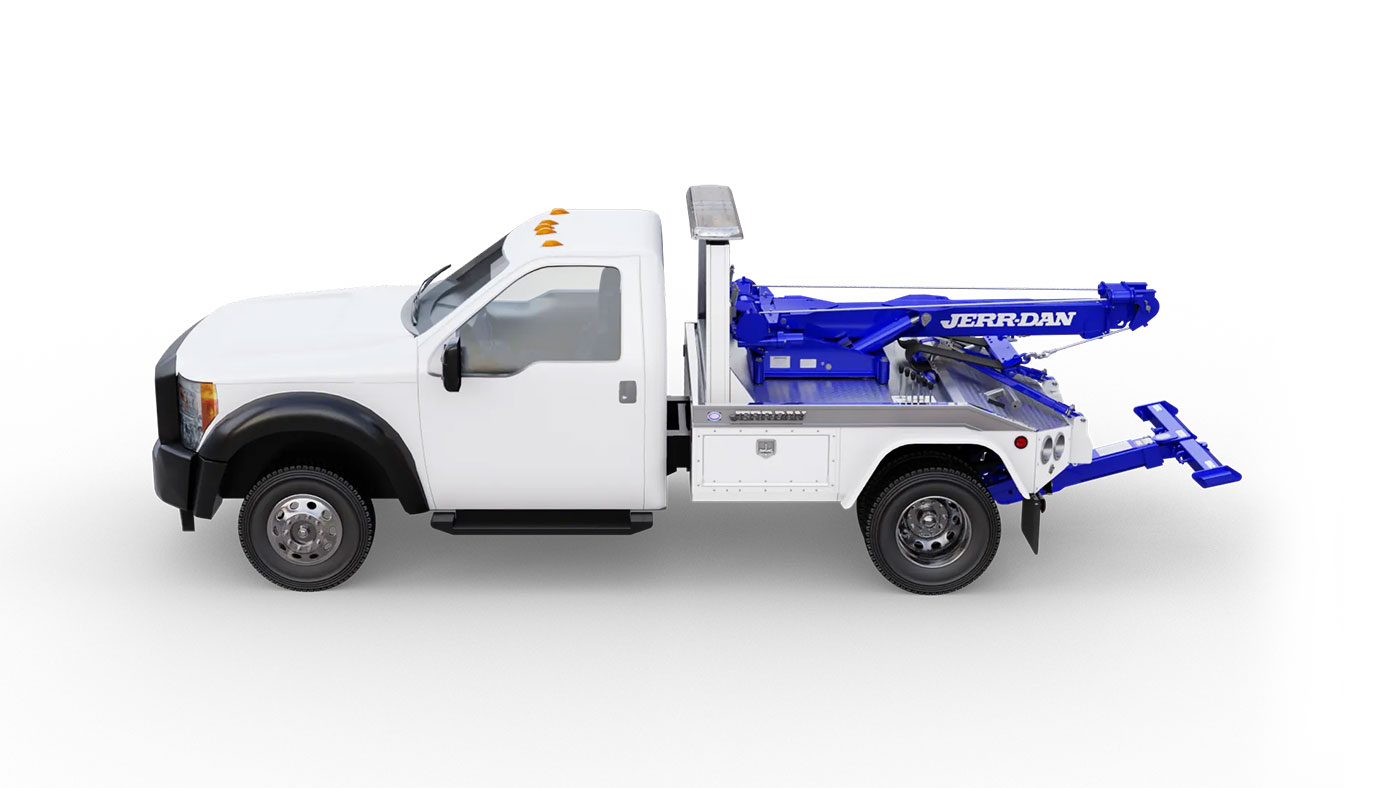

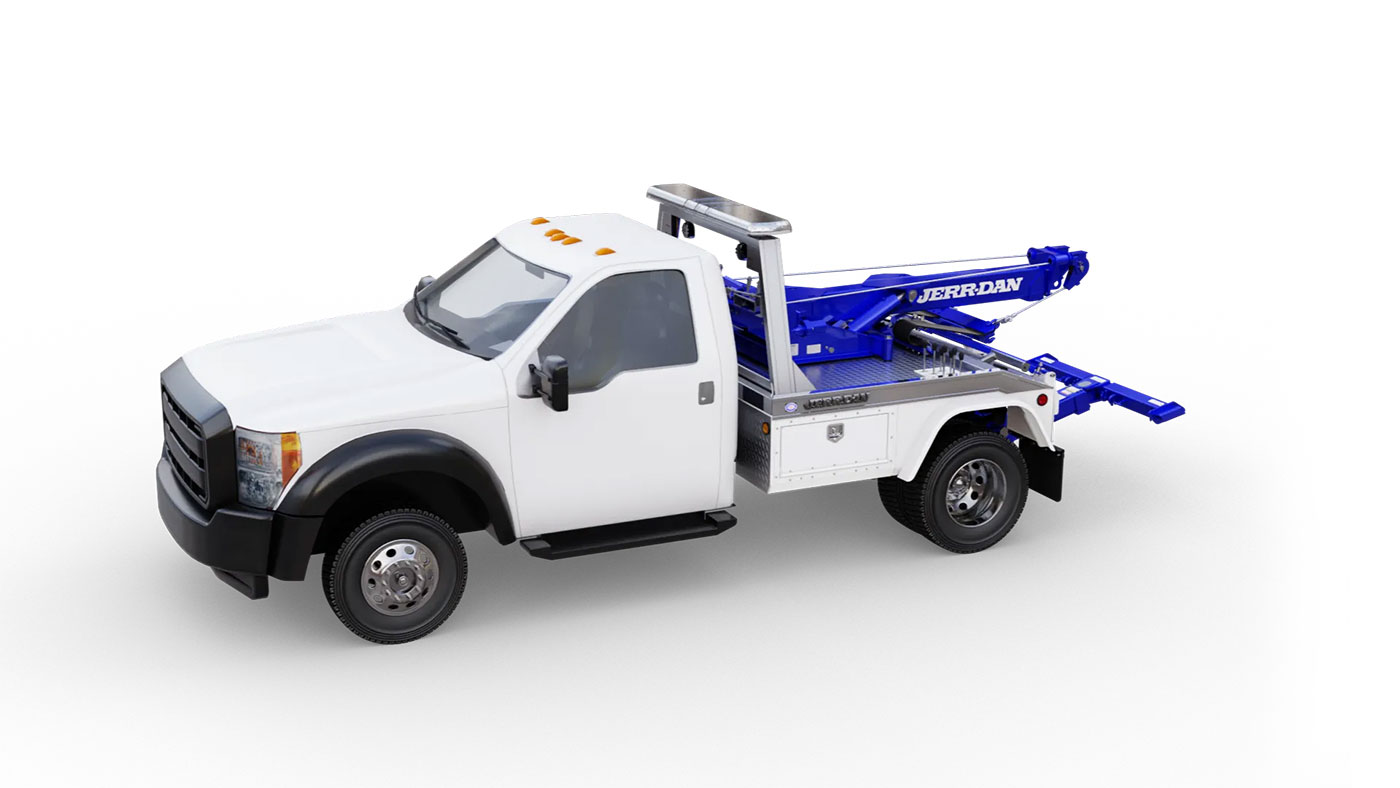

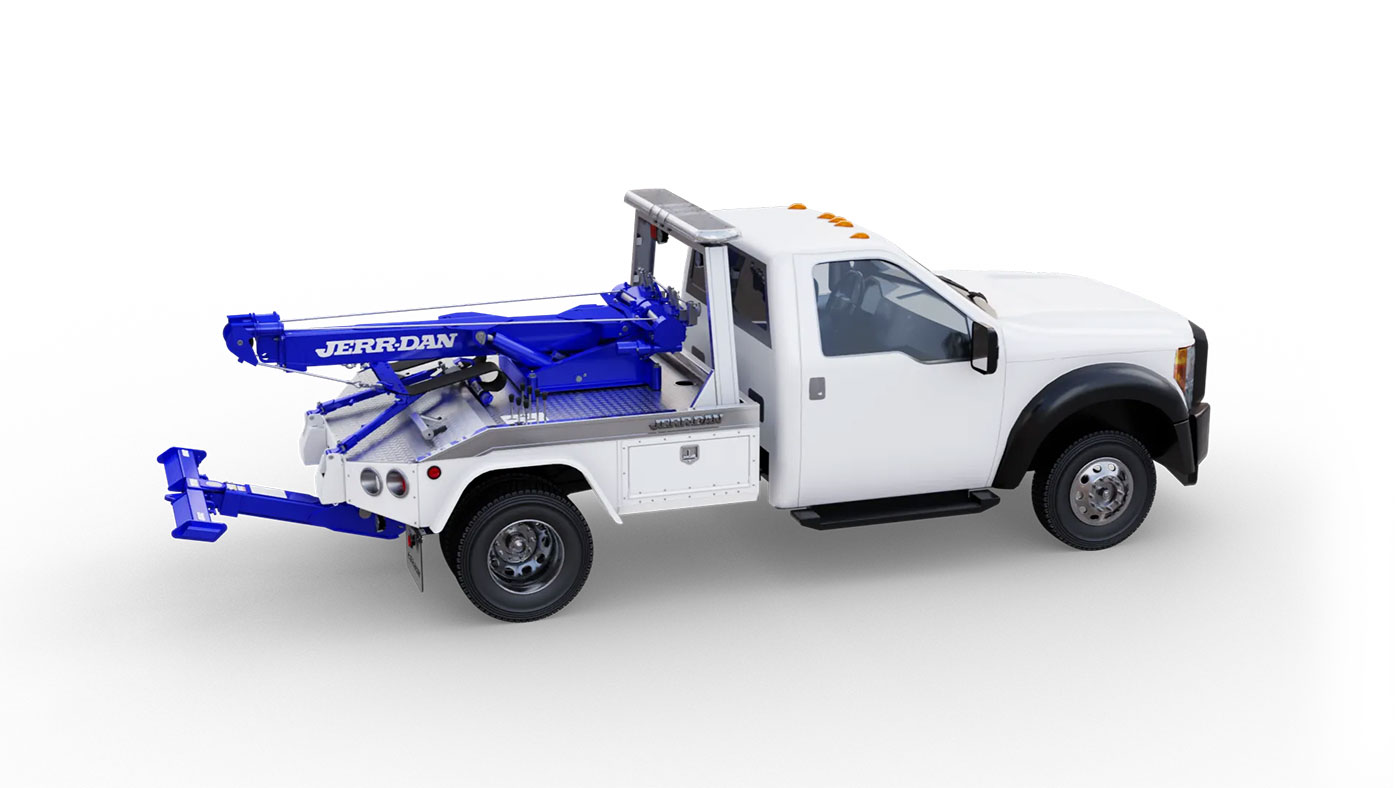

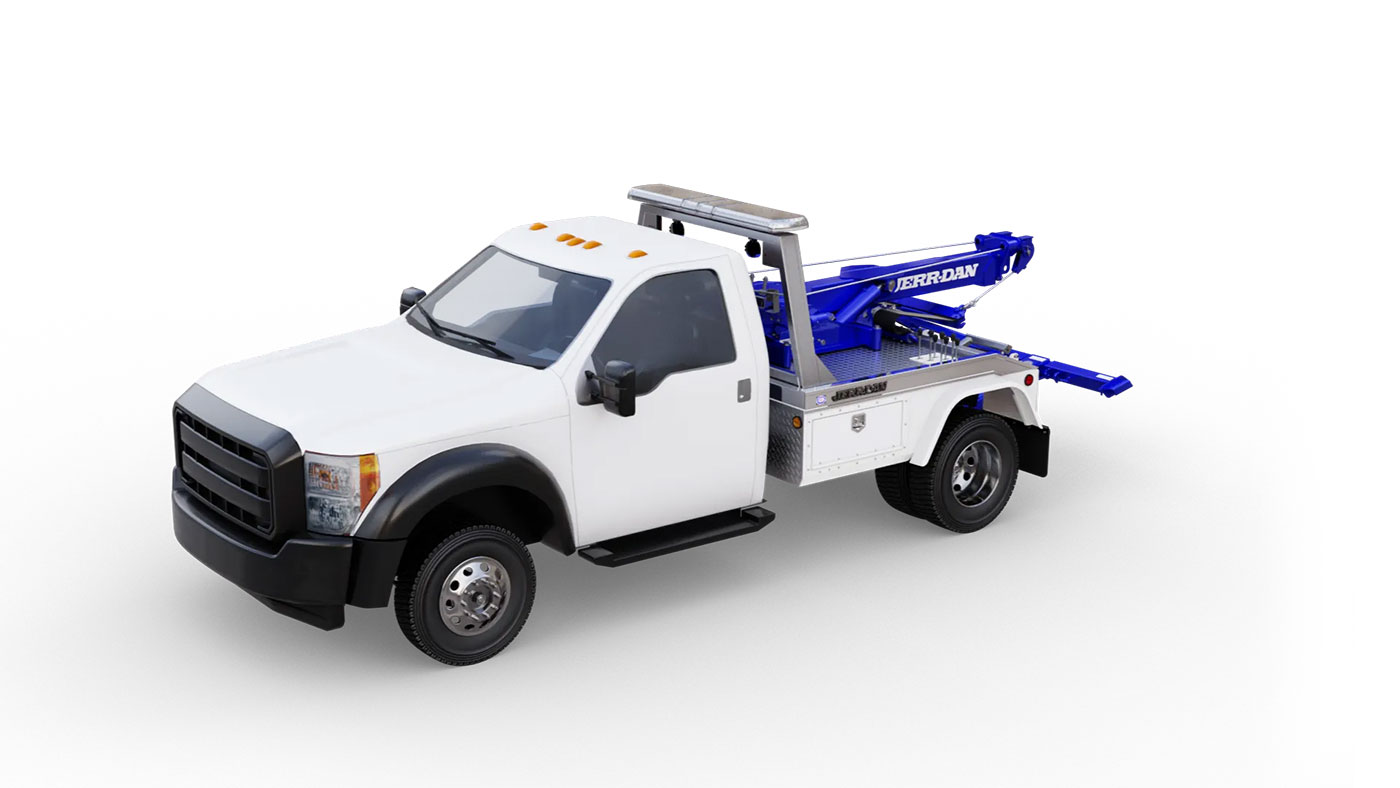

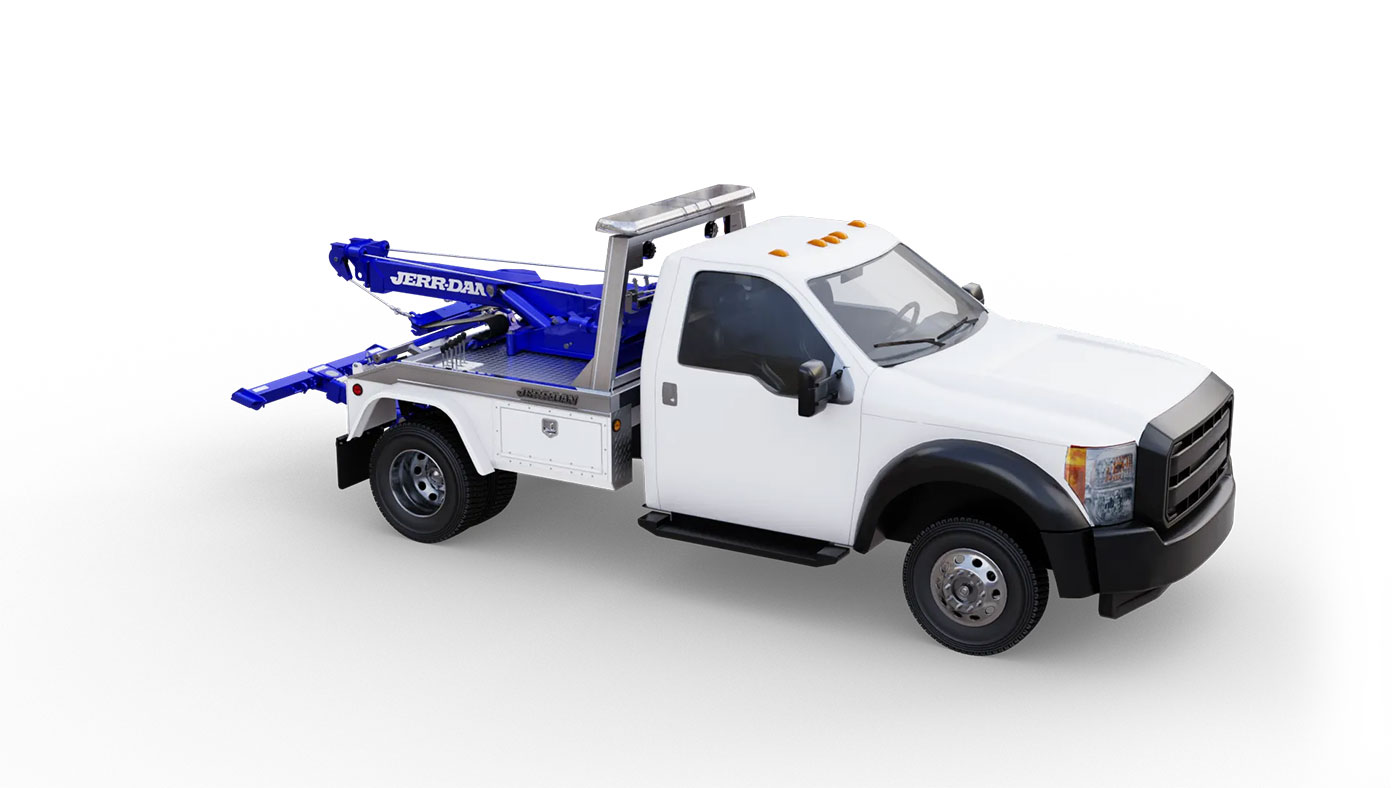

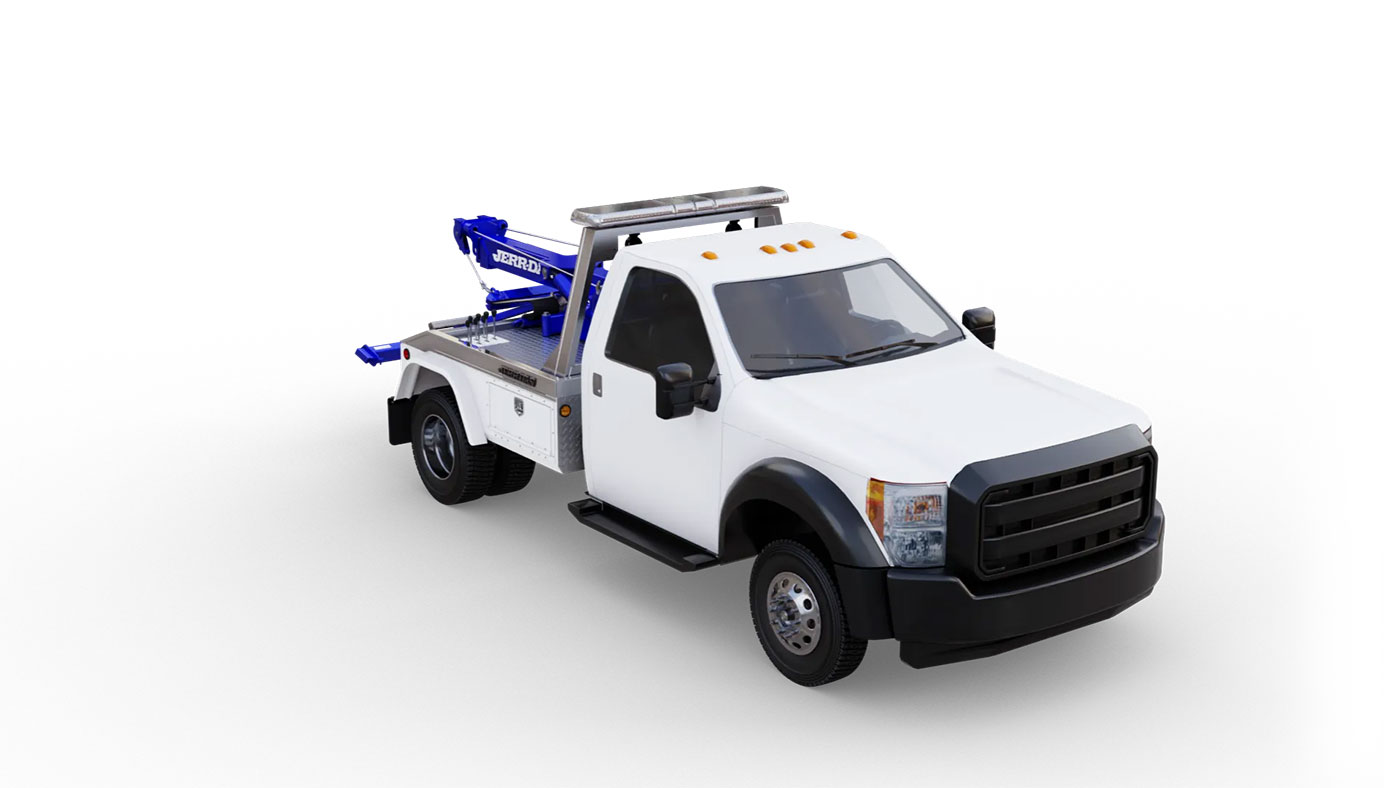

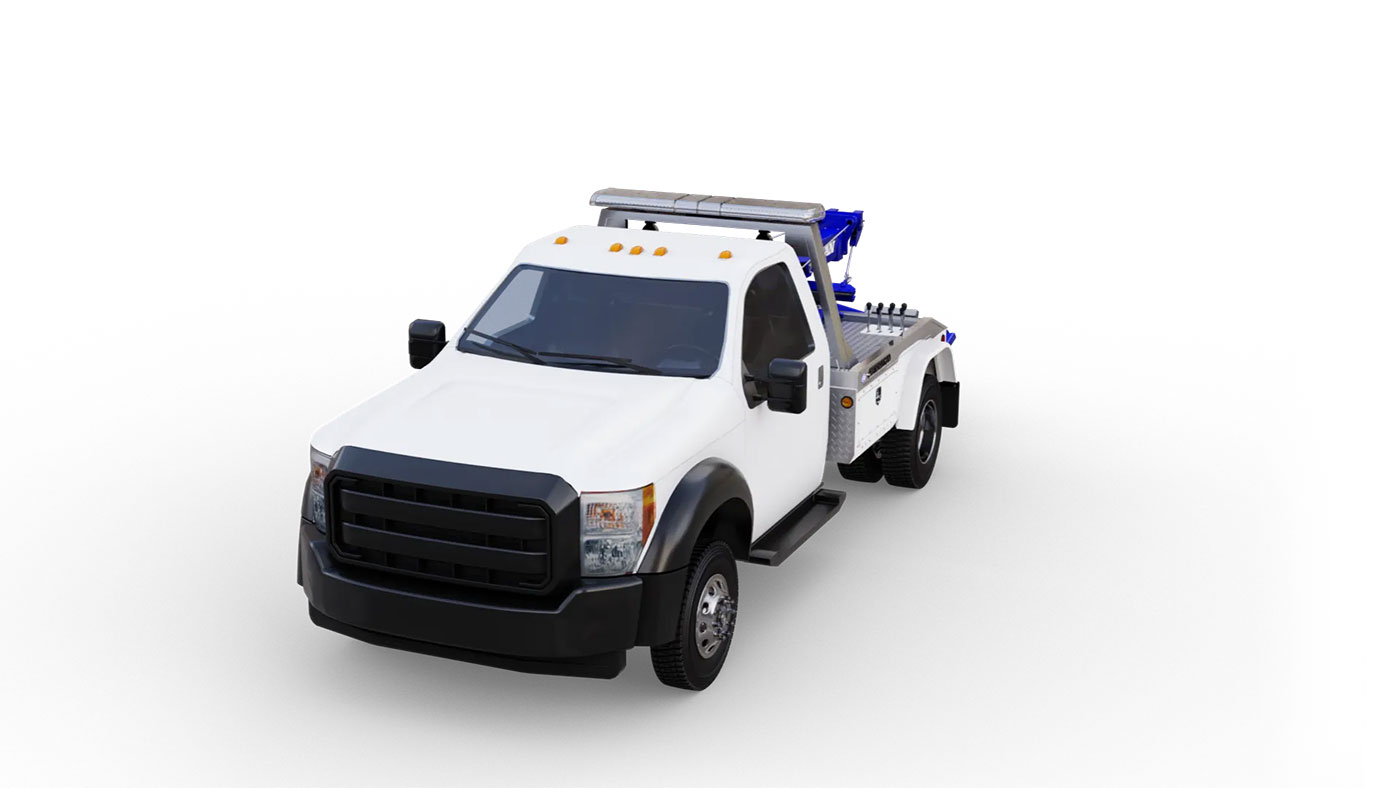

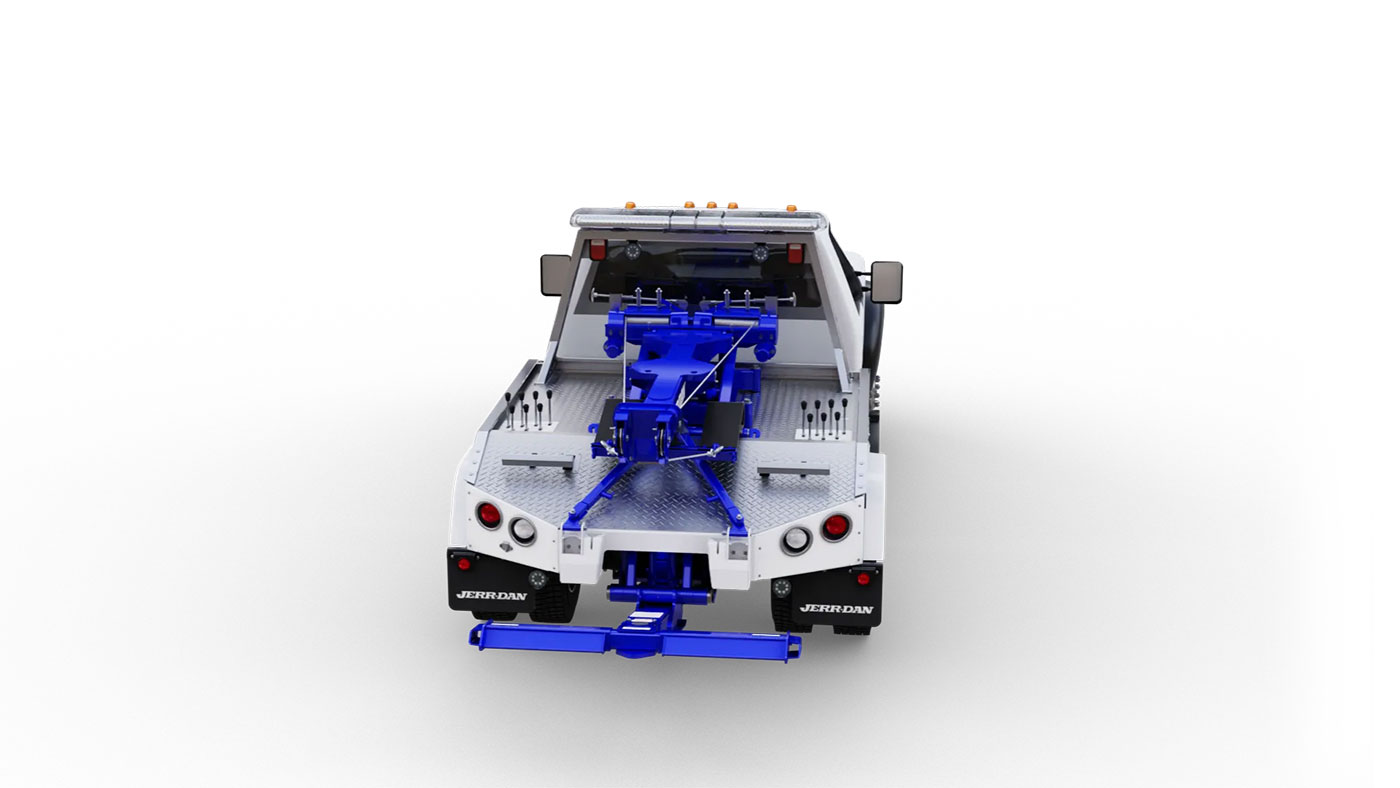

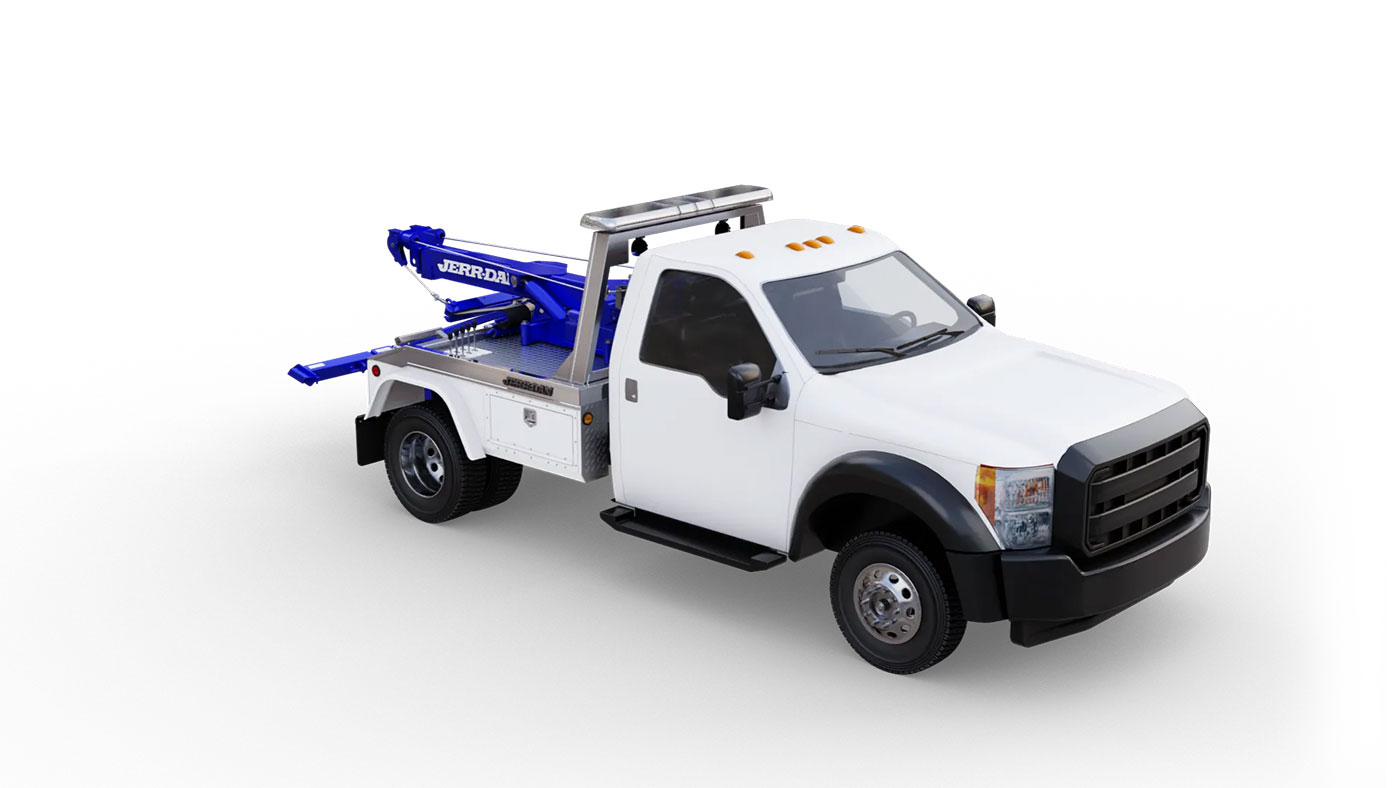

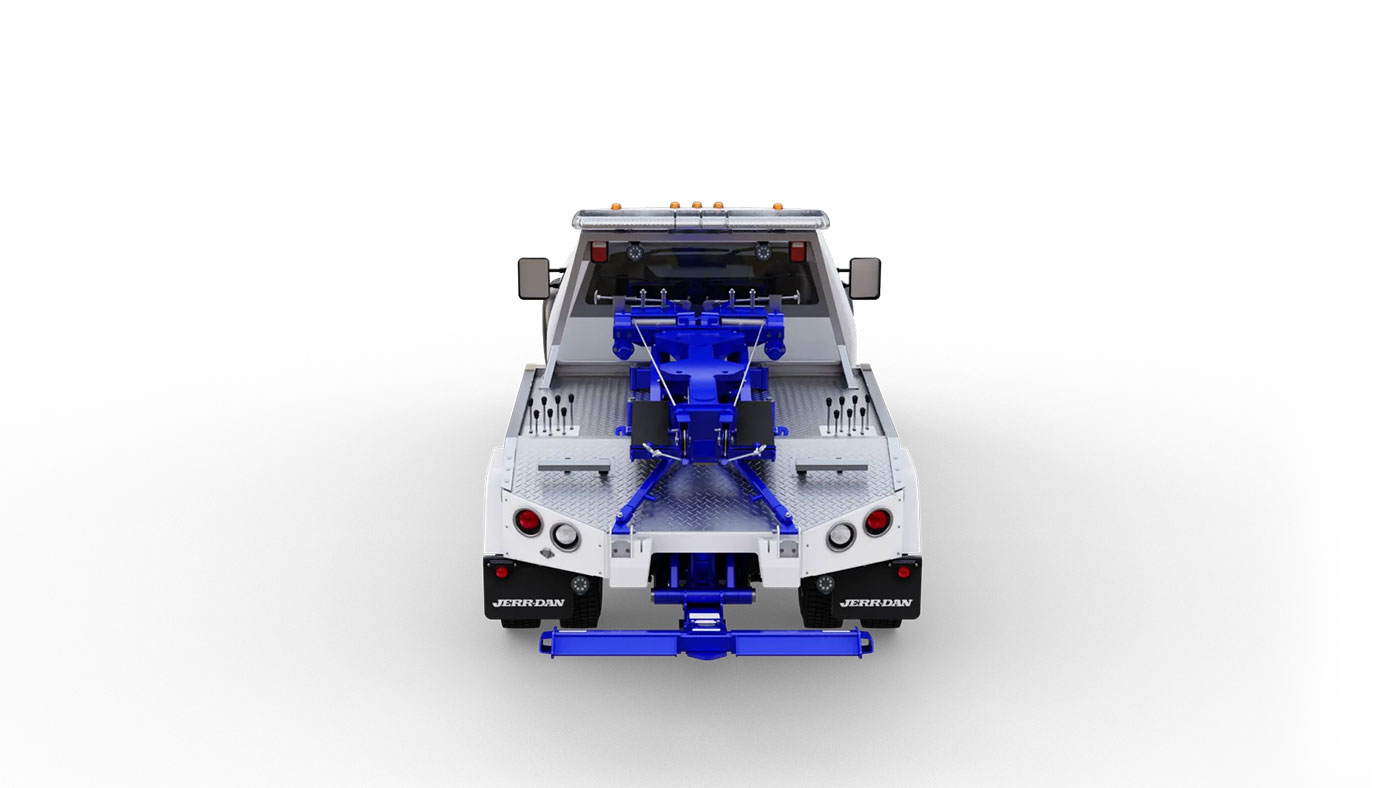

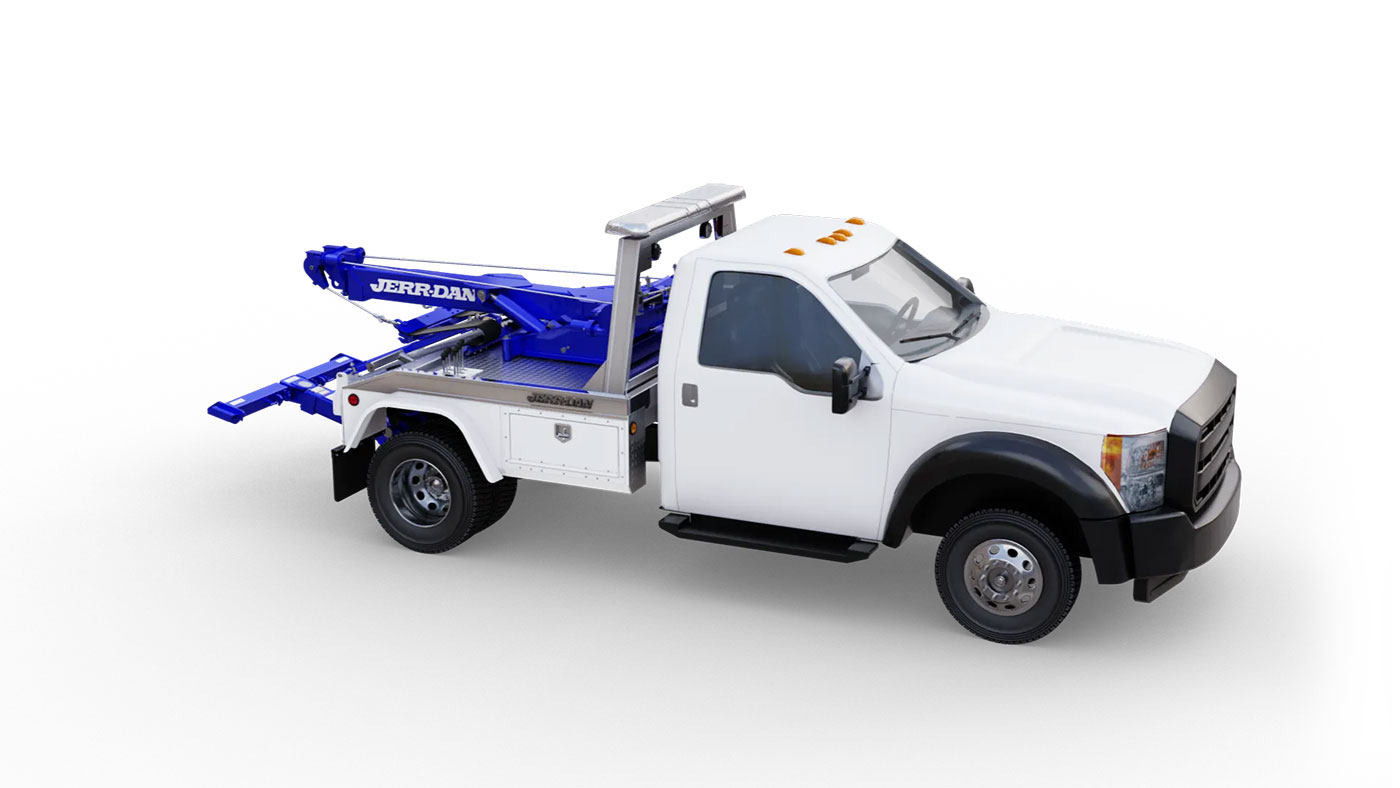

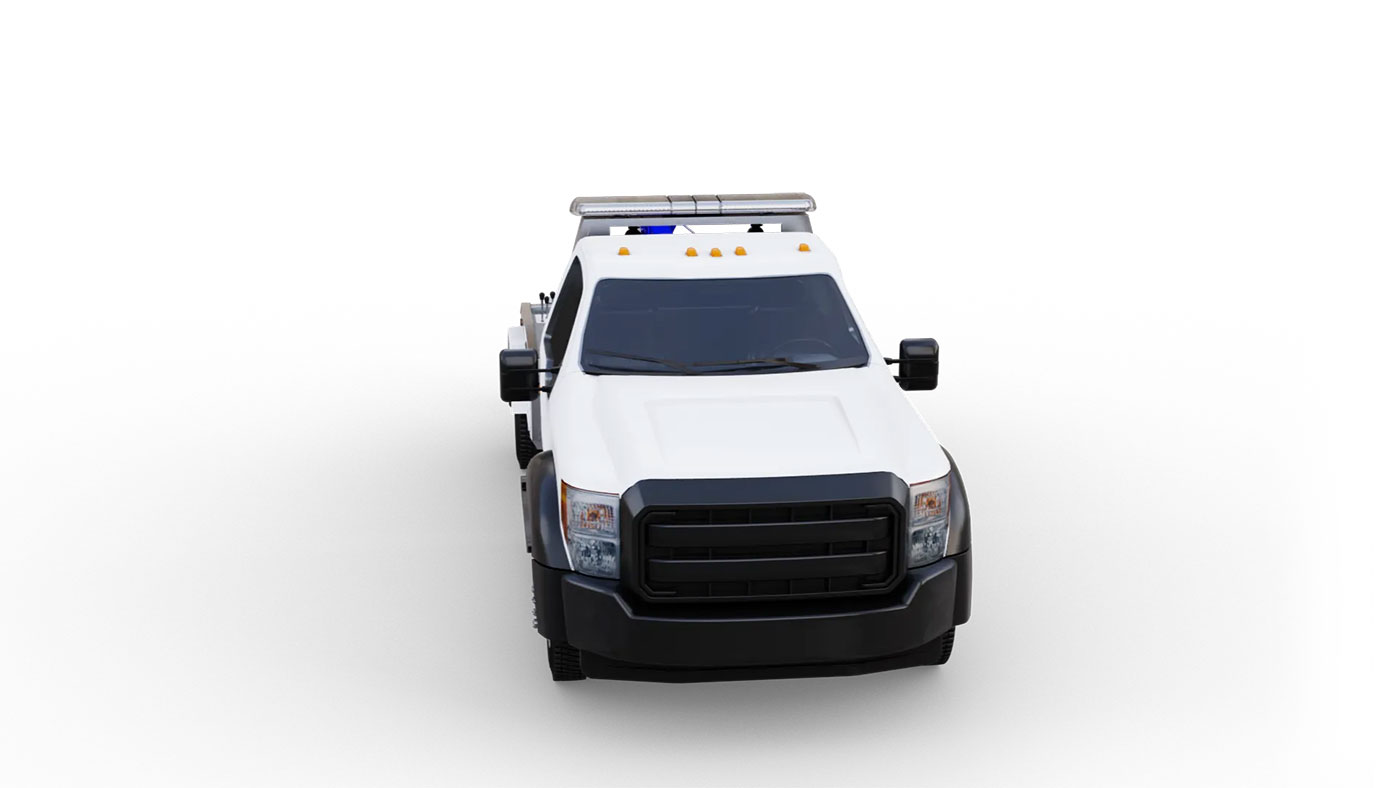

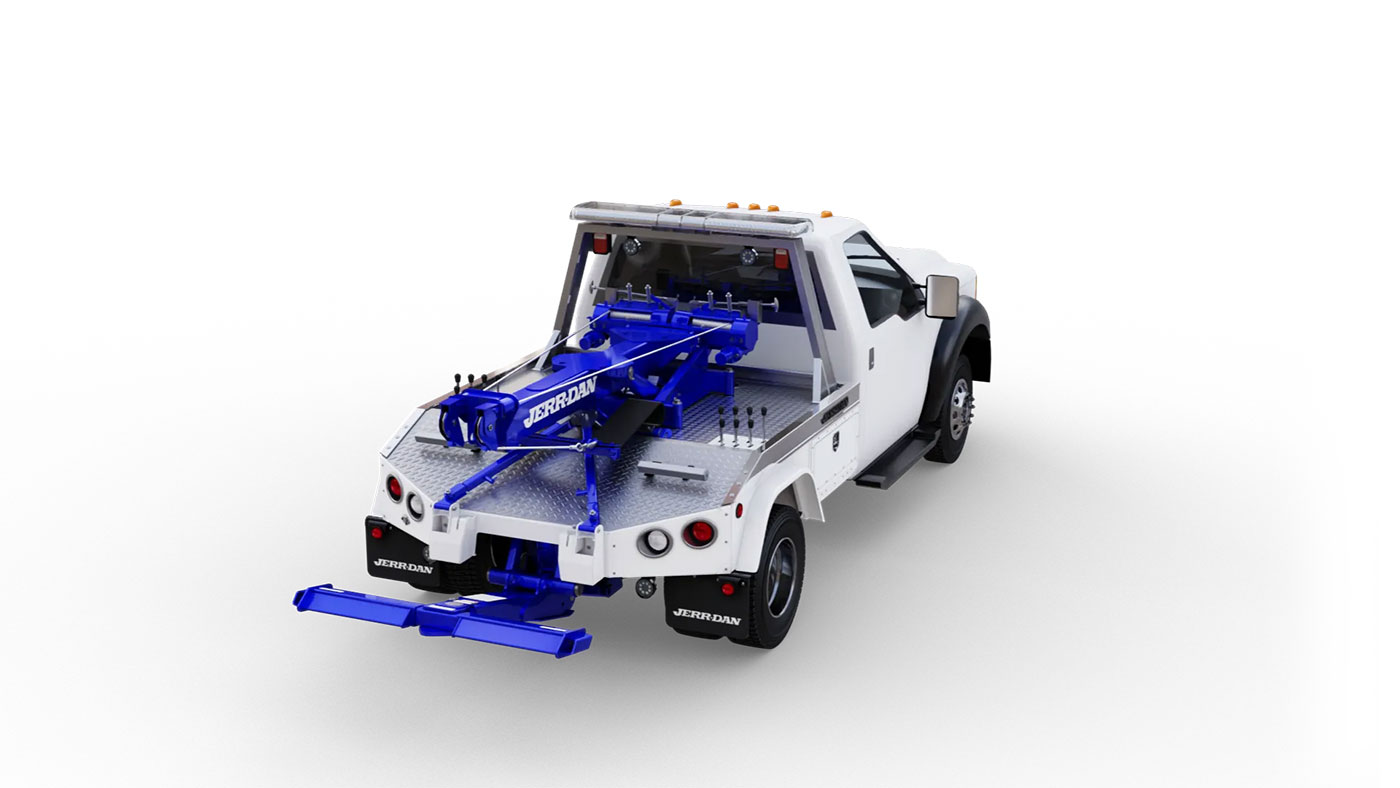

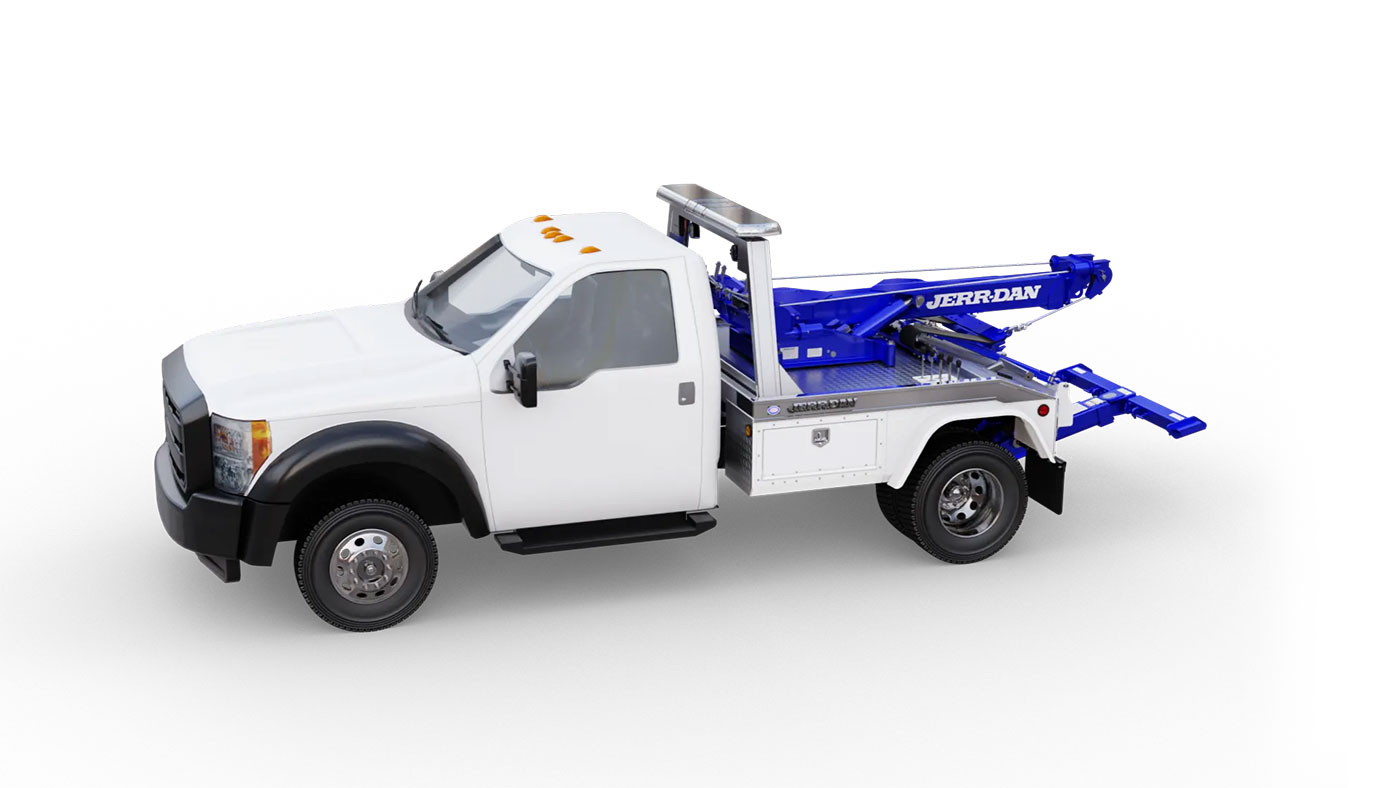

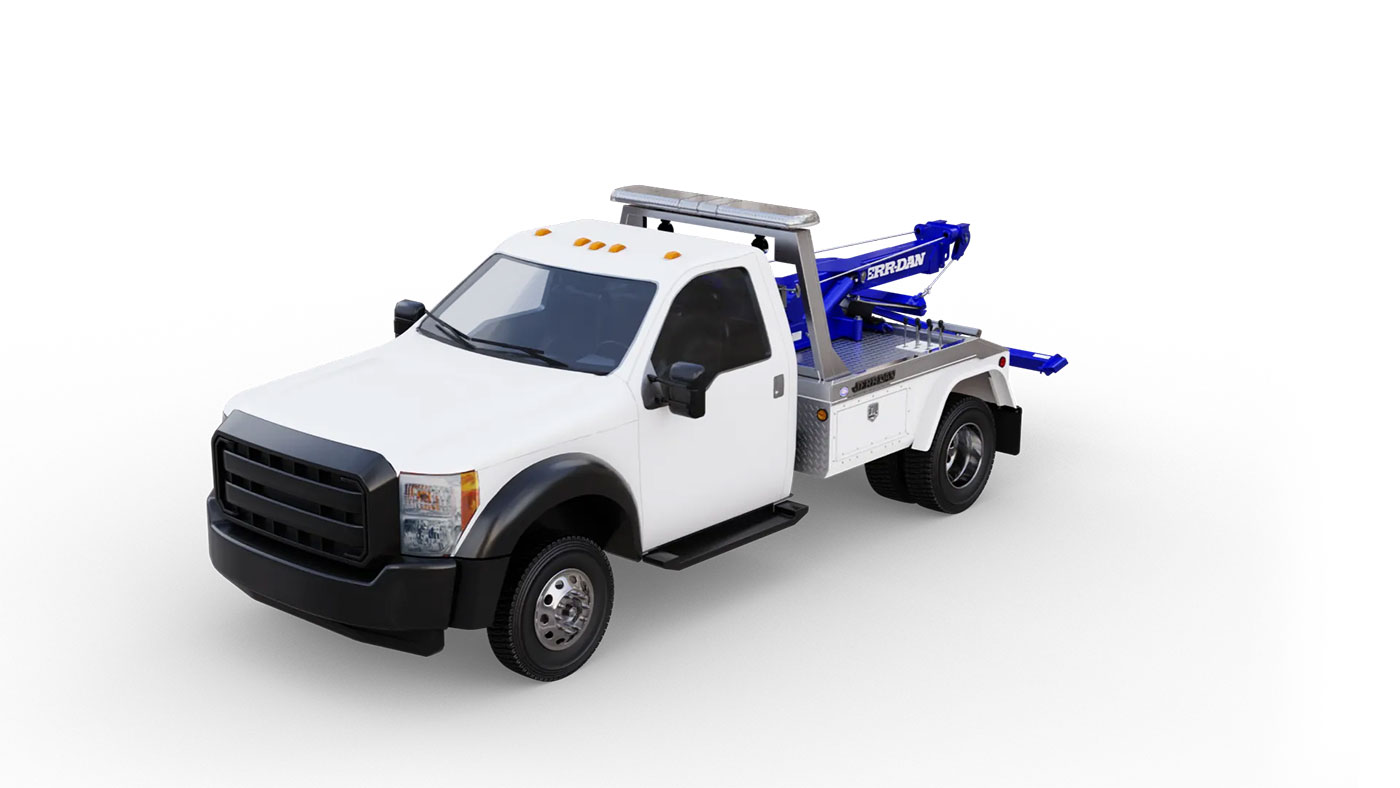

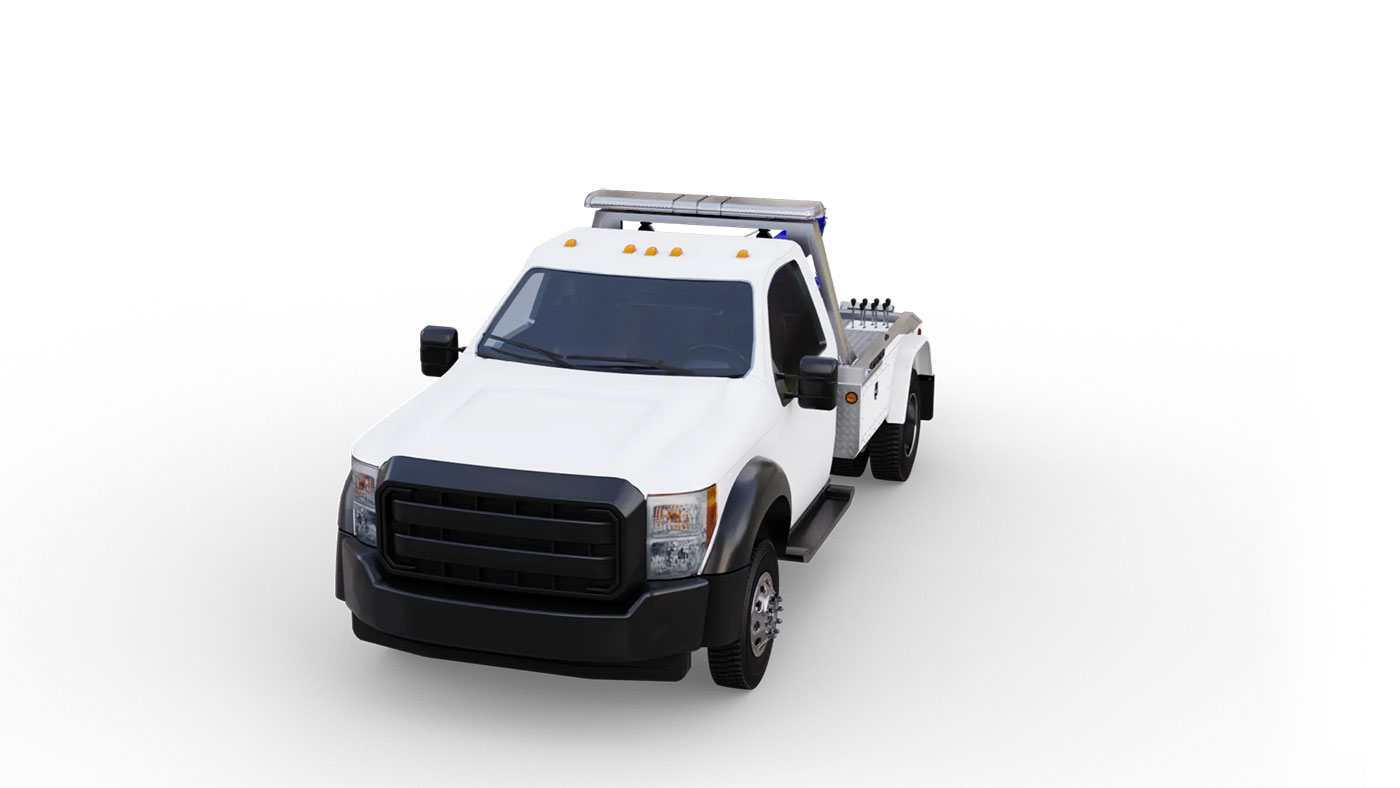

360 View

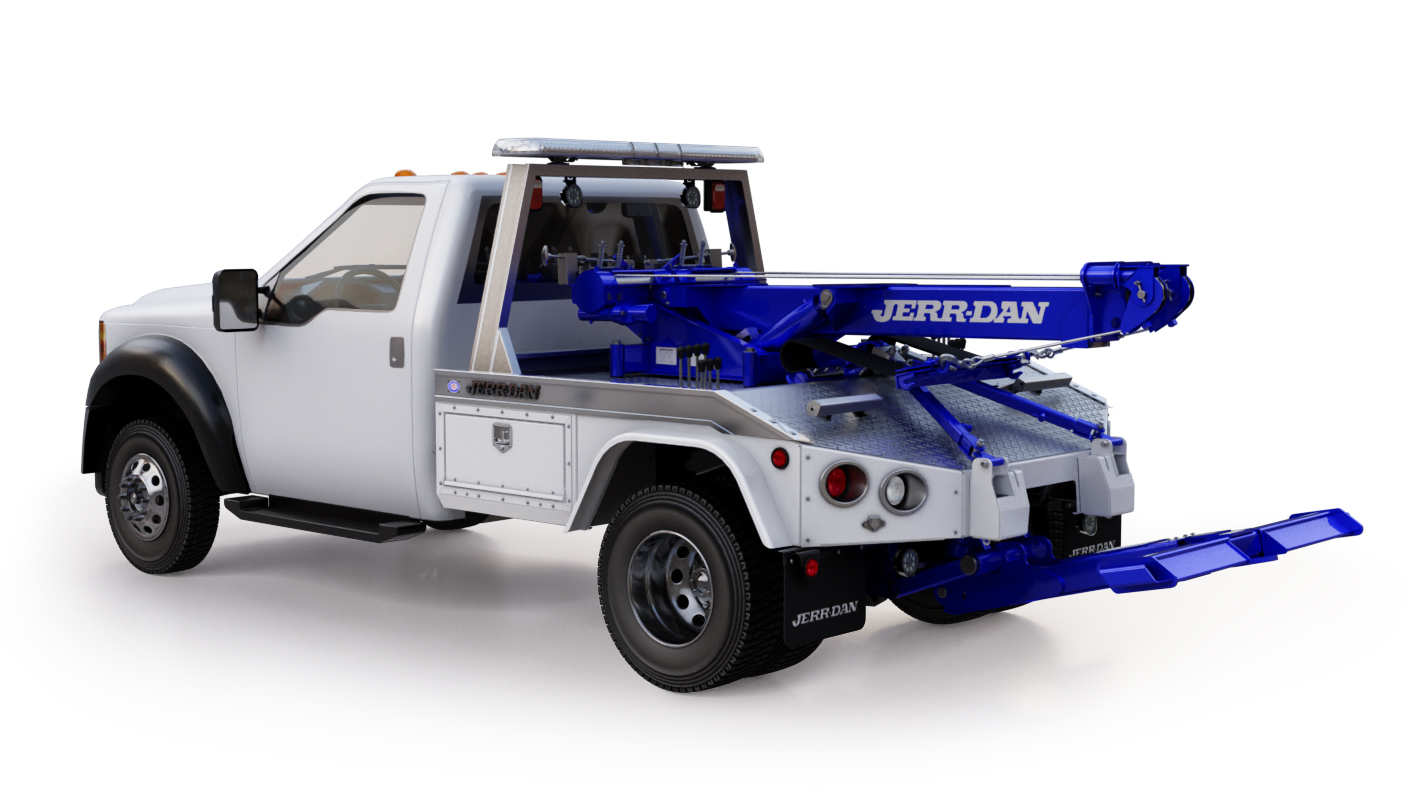

HPL-35

Features

Features

Boom
Free Spool
L-Arms
Toolbox
Tow Sling
Underlift

Dimensions

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

HPL-35
Key Features
Key Features
Multiple Boom Rating Options
Modular Aluminum Body
Dual Side Controls
8 Ton Recovery Boom
8 Ton Recovery Boom
Retracted at 30 degrees
Retracted at 30 degrees
18,500 lbs.
Extended at 30 degrees
Extended at 30 degrees
7,000 lbs.
12 Ton Recovery Boom
12 Ton Recovery Boom
Retracted at 30 degrees
Retracted at 30 degrees
24,000 lbs.
Extended at 30 degrees
Extended at 30 degrees
8,000 lbs.

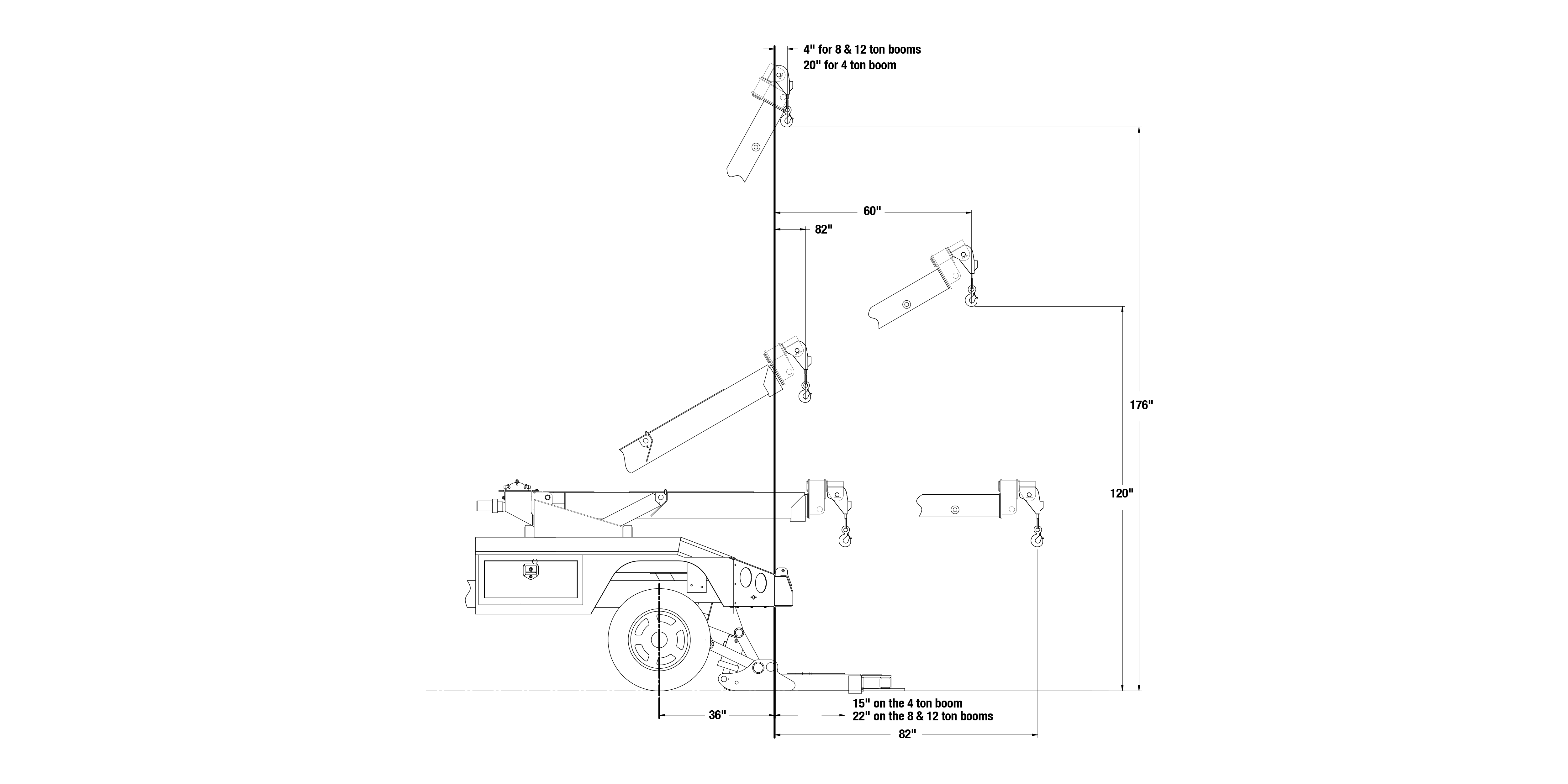

Reach Past Tailboard
Reach Past Tailboard
Extended at 0 Degrees
Extended at 0 Degrees
82 in.
Extended at 30 degrees
Extended at 30 degrees
60 in.
Operating Range
Operating Range
Minimum Boom Angle
Minimum Boom Angle
0 degrees
Maximum Boom Angle
Maximum Boom Angle
60 degrees
Maximum Boom Angle
Maximum Boom Angle
176 in.
Underlift
Underlift
Capacity at Crossbar with L-Arms
Capacity at Crossbar with L-Arms
3,500 lbs.
Capacity at Crossbar with Frame Forks
Capacity at Crossbar with Frame Forks
4,000 lbs.
Capacity at Crossbar with T-37 Swivel Grids
Capacity at Crossbar with T-37 Swivel Grids
3,500 lbs.
Capacity at Crossbar: Positive Tilt
Capacity at Crossbar: Positive Tilt
12 degrees
Capacity at Crossbar: Negative Tilt
Capacity at Crossbar: Negative Tilt
9 degrees

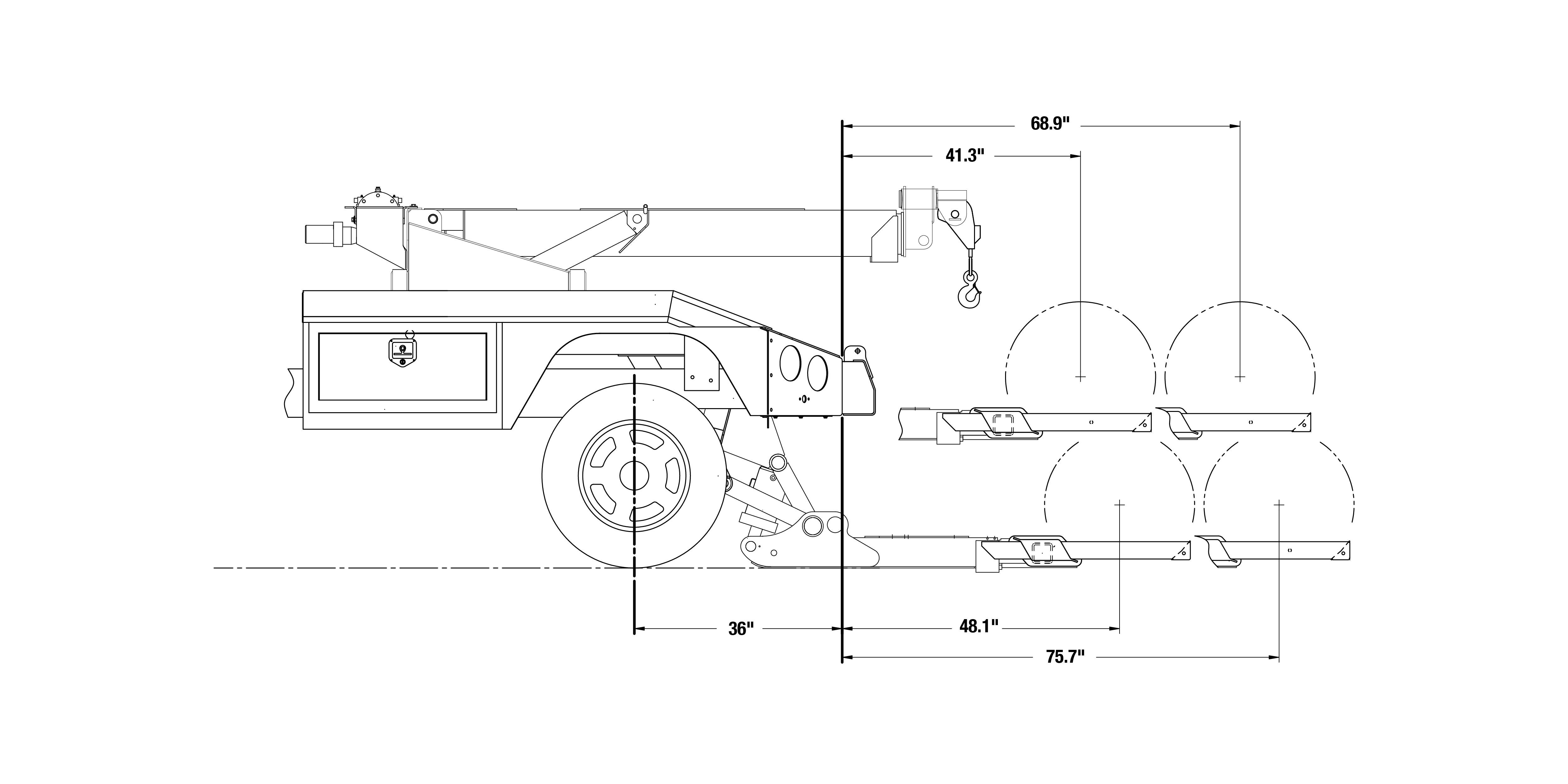

Reach Past Tailboard Retracted W/Forks
Reach Past Tailboard Retracted W/Forks
40 in.
Reach Past Tailboard Extended W/Forks
Reach Past Tailboard Extended W/Forks
68 in.
Reach Past Tailboard Retracted W/L-Arms
Reach Past Tailboard Retracted W/L-Arms
48 in.
Reach Past Tailboard Extended W/L-Arms
Reach Past Tailboard Extended W/L-Arms
76 in.
Winches & Wire Rope
Winches & Wire Rope
Deck Mounted Recovery Winch
Deck Mounted Recovery Winch
8,000 lbs.
8 Ton Boom: Winch Rating
8 Ton Boom: Winch Rating
8,000 lbs.
12 Ton Boom: Winch Rating
12 Ton Boom: Winch Rating
10,000 lbs.
West Coast Winch Package
West Coast Winch Package
12,000 lbs.
8,000 lb. Winch Capacity
8,000 lb. Winch Capacity
Wire Rope: 3/8" x 100' EIPS
Wire Rope: 3/8" x 100' EIPS
10,000 lb. Winch Capacity
10,000 lb. Winch Capacity
Wire Rope: 7/16" x 100' EIPS
Wire Rope: 7/16" x 100' EIPS
12,000 lb. Winch Capacity
12,000 lb. Winch Capacity
Wire Rope: 7/16" x 150' EIPS
Wire Rope: 7/16" x 150' EIPS
Chassis Requirements
Chassis Requirements
Minimum GVW Rating
Minimum GVW Rating
10,500 lbs.
Minimum Cab-to-Axle (CA)
Minimum Cab-to-Axle (CA)
60 in.
