Winch Capacity
8,000 lbs.
Wheel Lift Capacity
4,000 lbs.
Material
Modular Aluminum or High Strength Steel

Engineered for Strength and Durability

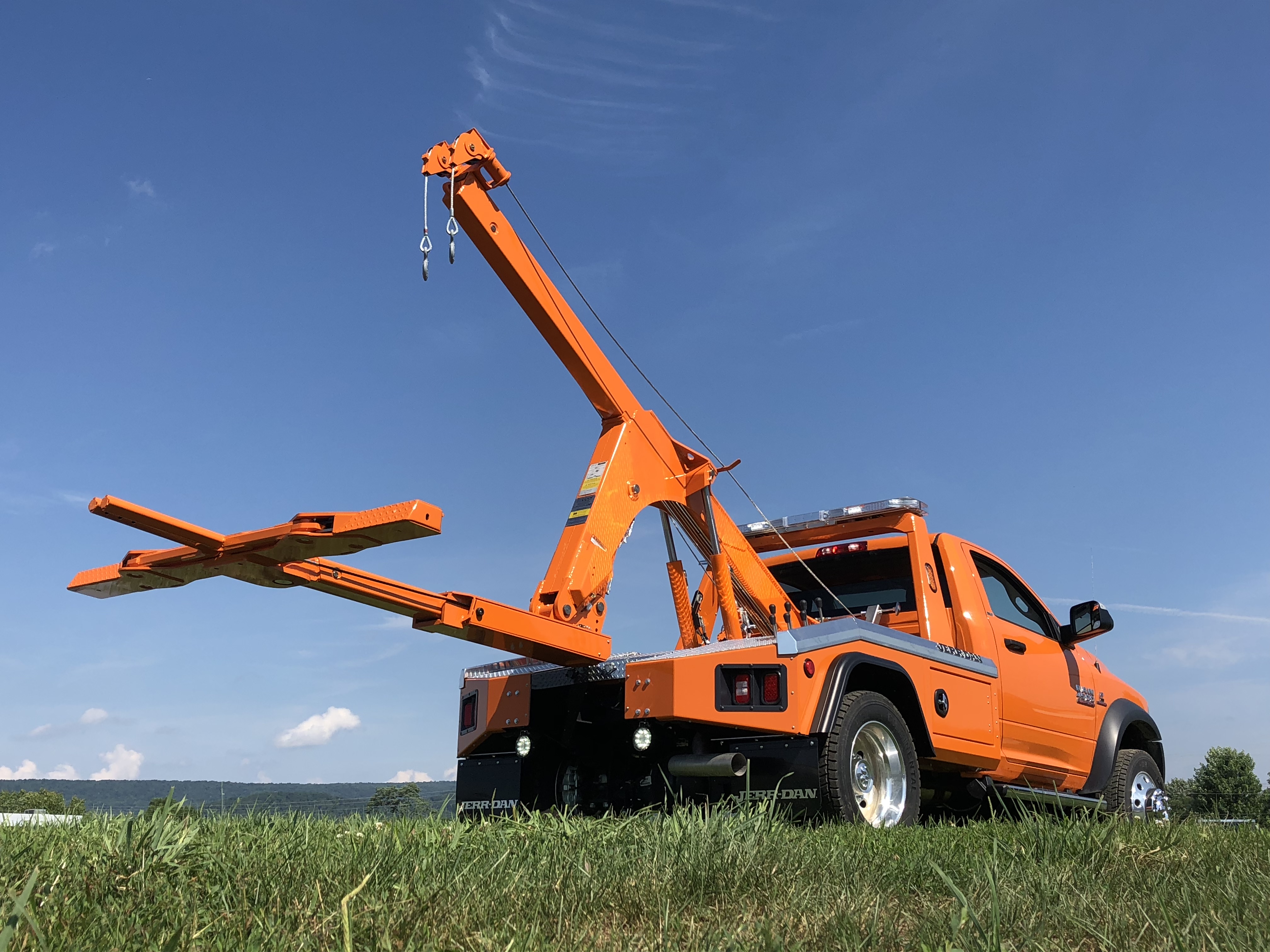

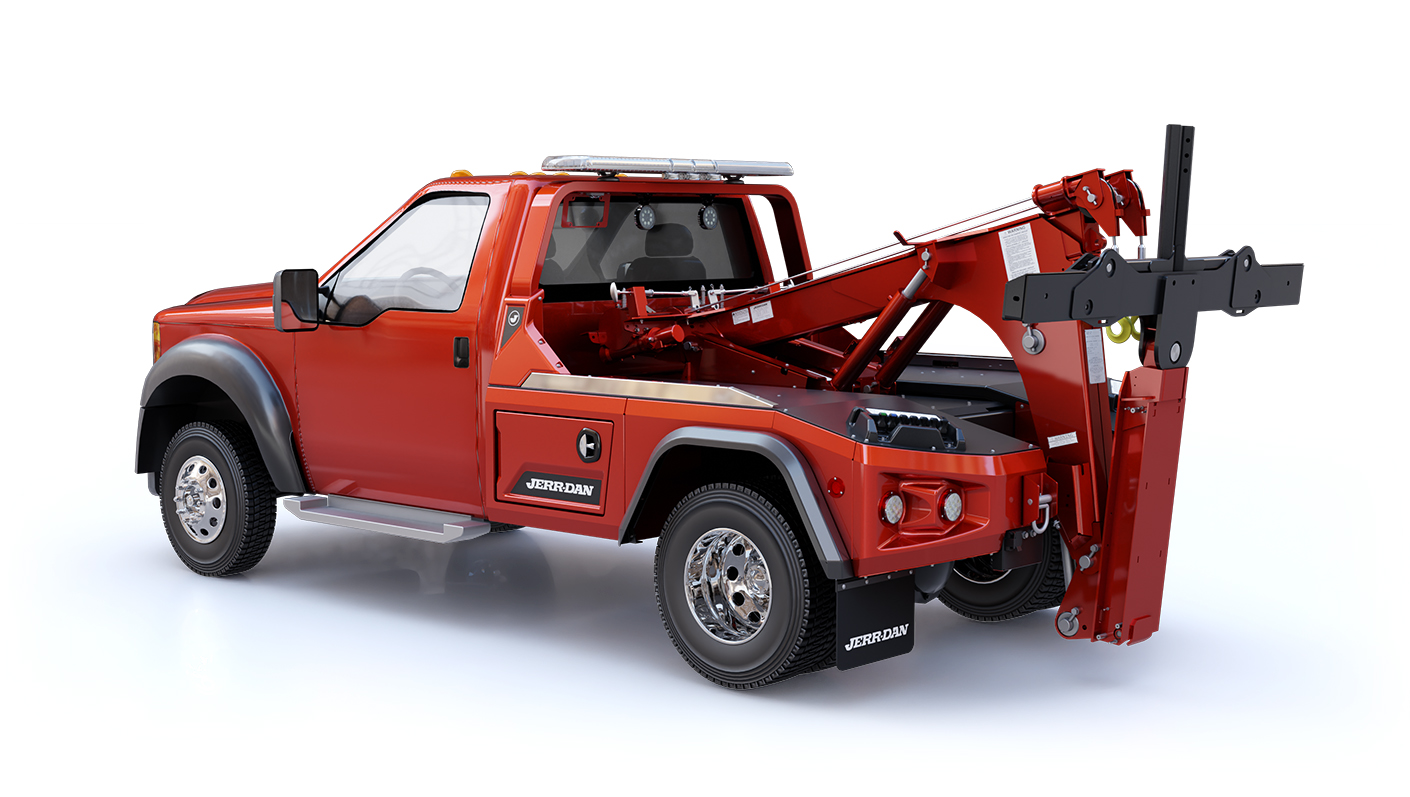

Light Duty Integrated
Wreckers

Our MPL line-up features 3 different models all with a 4,000 lb. wheel lift, and an 8,000 lb. winch option.

Models

MPL-40

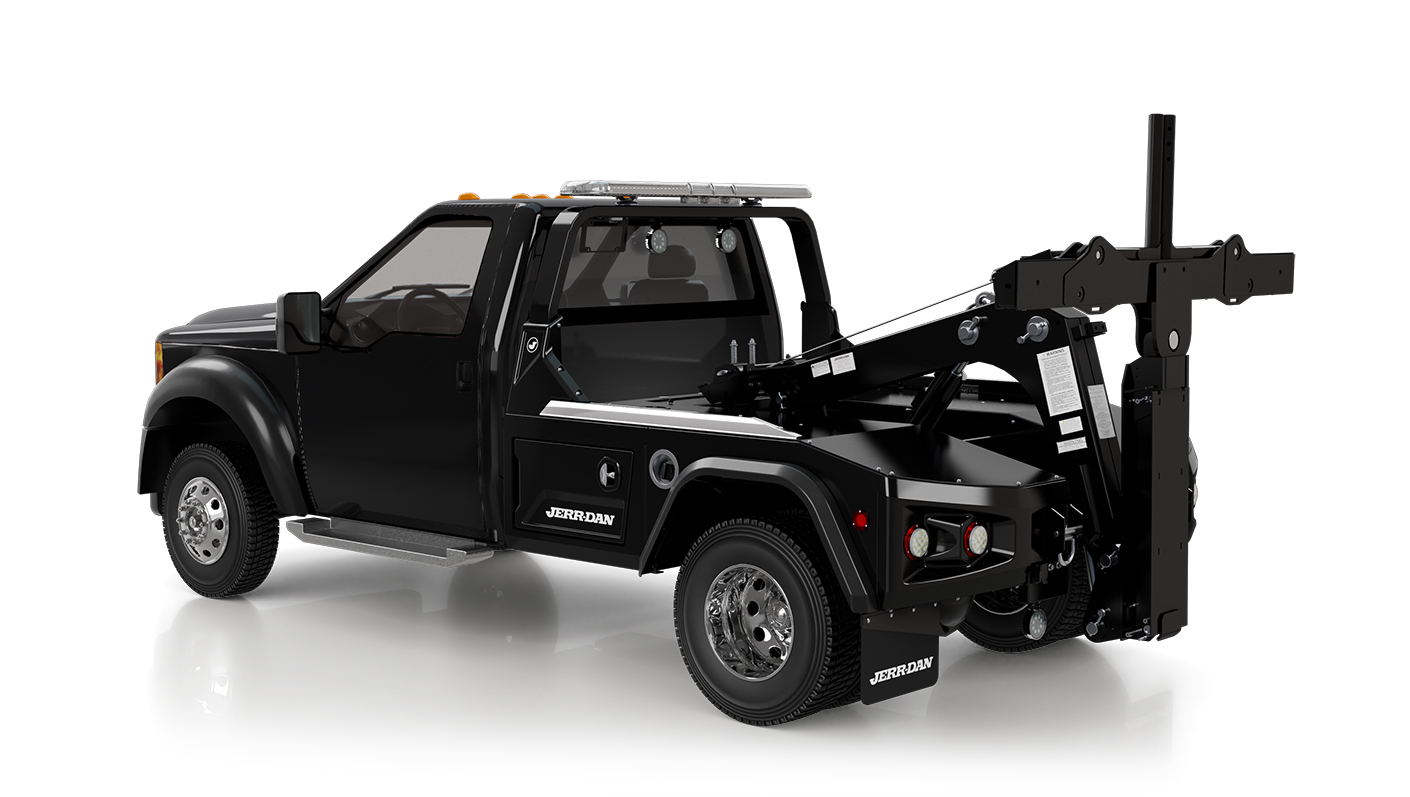

The MPL-40 offers an 8 ton integrated recovery boom, 4,000 lb. self-loading underlift featuring Underlift Level Stop Assist System®, and a modular aluminum body.

Wiinch Capacity 8,000 lbs. Single or 16,000 lbs. Dual

Underlift Capacity 4,000 lbs.

Material Modular Aluminum Body

MPL-NG

The MPL-NG features a modular aluminum body and is designed for strength.

Single Winch Capacity 8,000 lbs.

Underlift Capacity 4,000 lbs.

Material Modular Aluminum Body

MPL-NGS

The MPL- NGS is an extremely versatile workhorse with a self-loader underlift and a steel body with steel diamond decking.

Single Winch Capacity 8,000 lbs.

Underlift Capacity 4,000 lbs.

Material High Strength Steel

Compare models

Specification Sheets

MPL40_SPEC_SHEET (.pdf) MPLNG_SPEC_SHEET (.pdf) MPLNGS_SPEC_SHEET (.pdf)

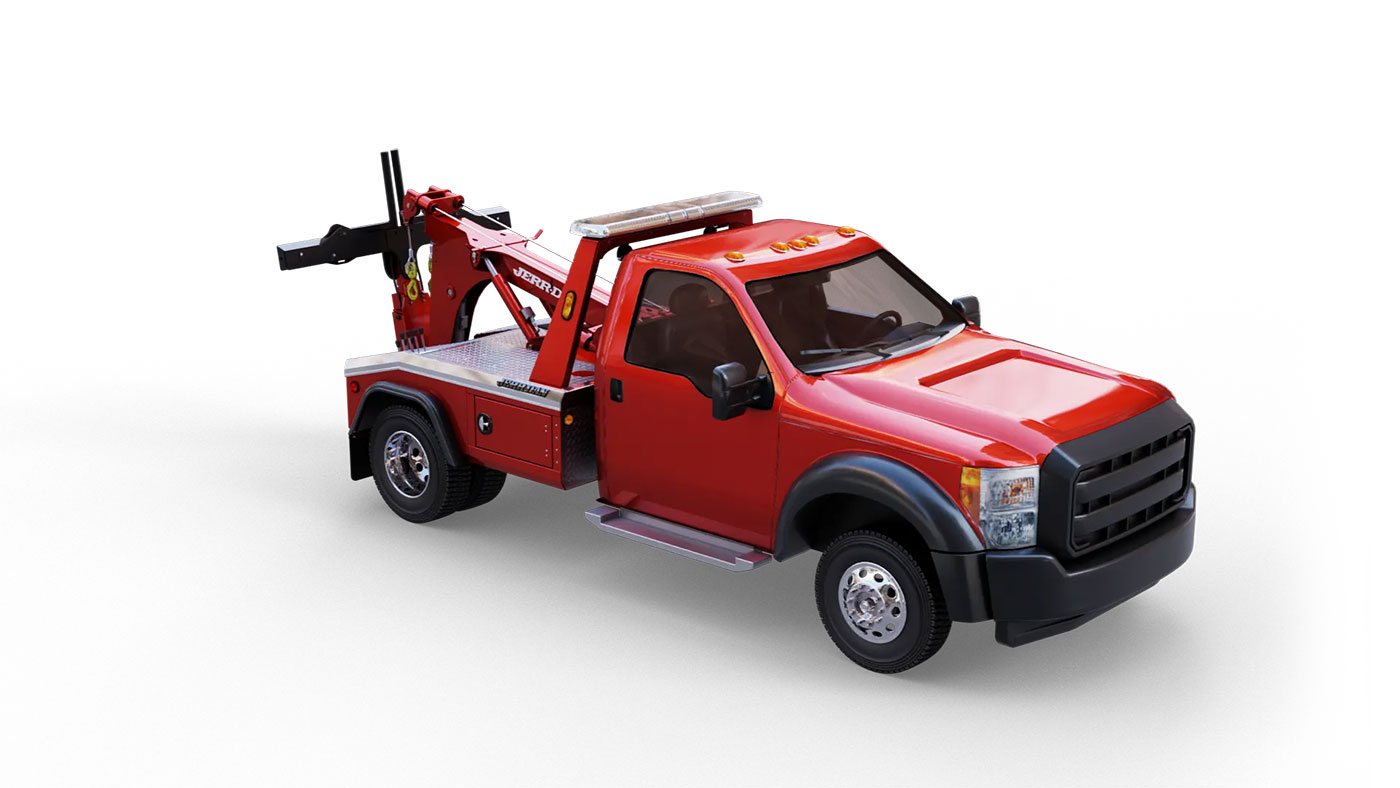

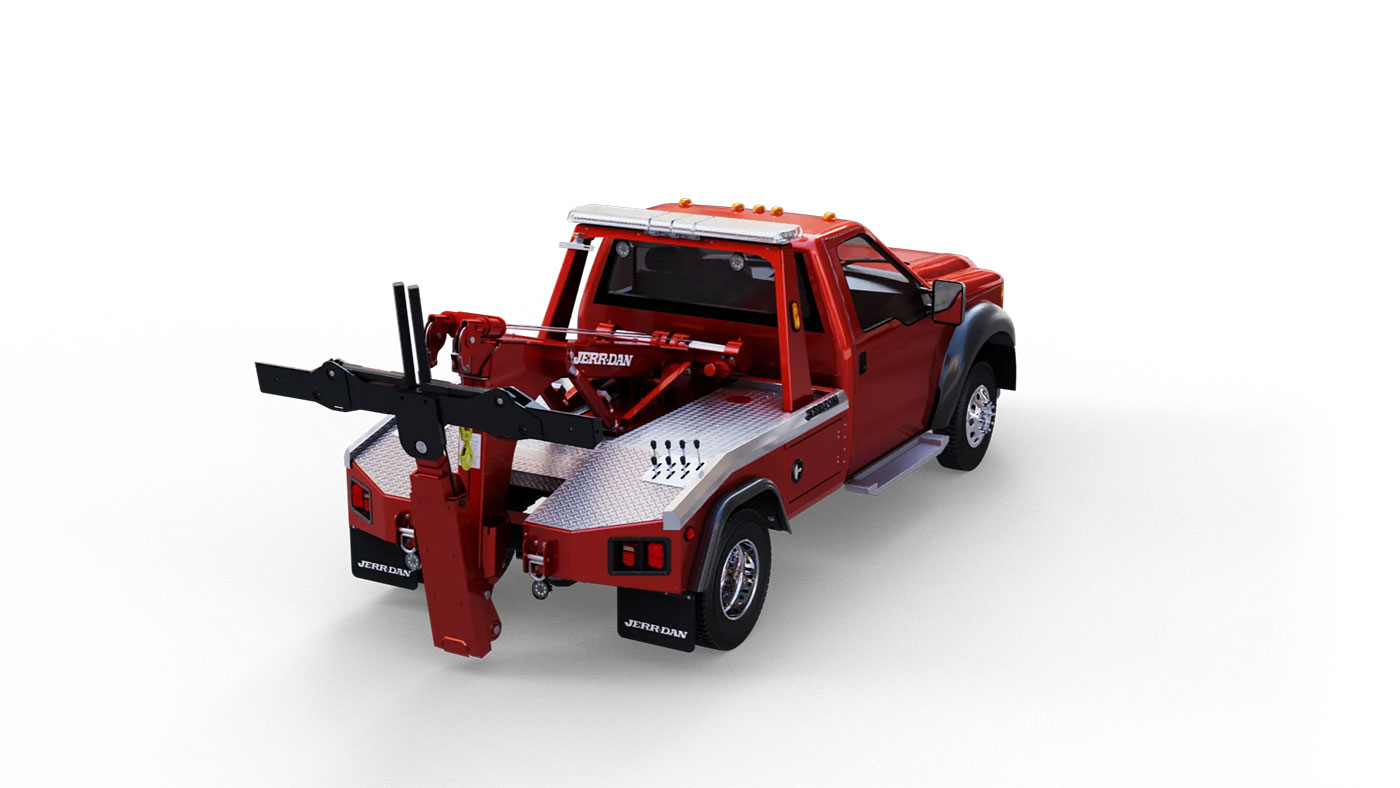

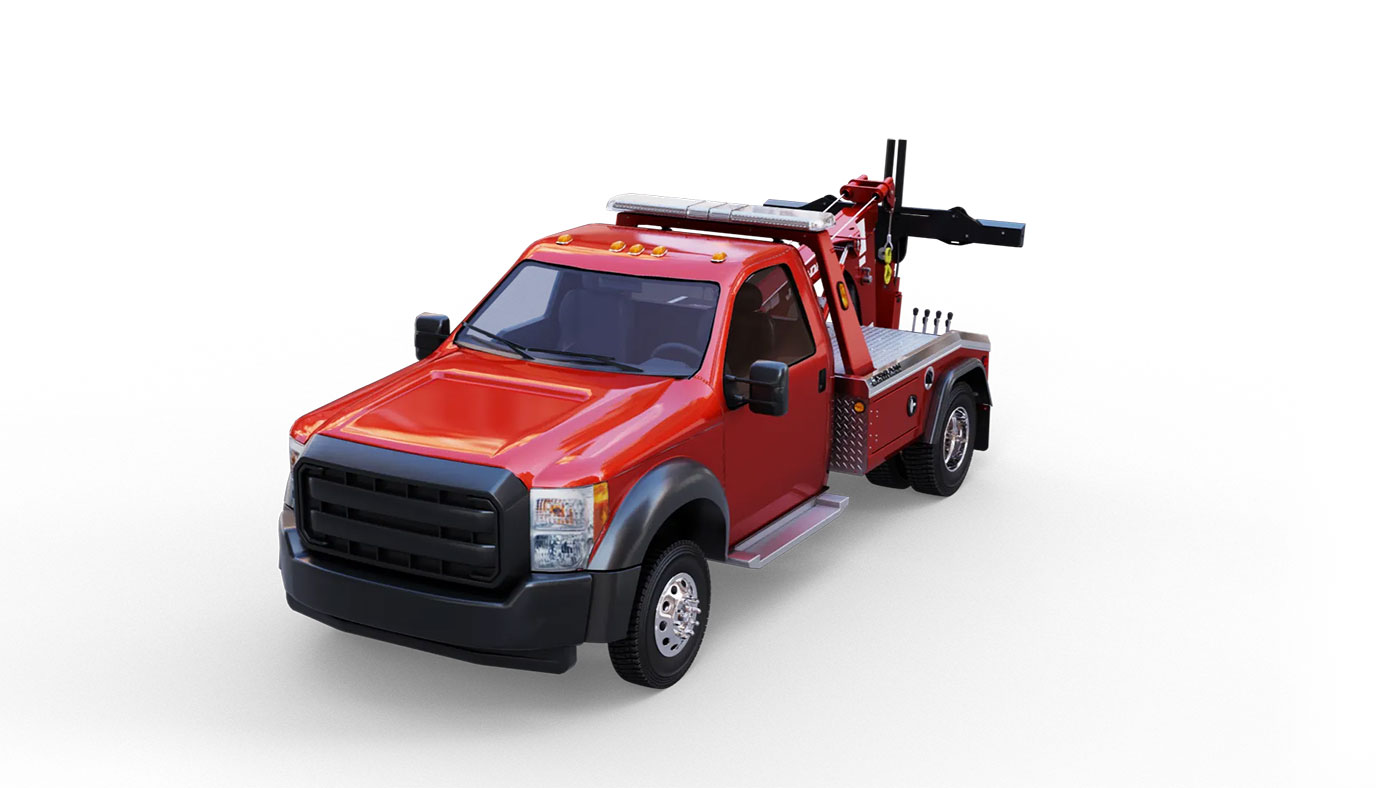

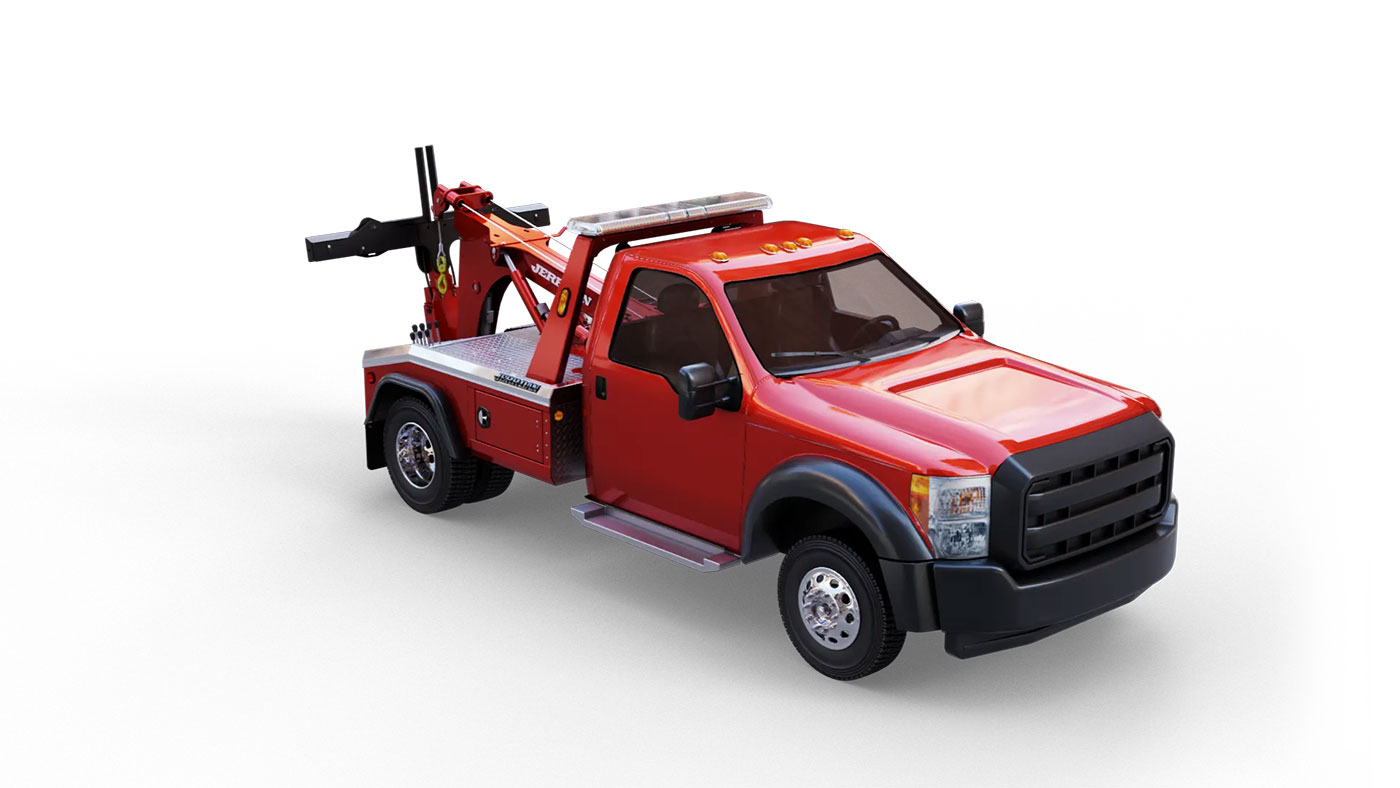

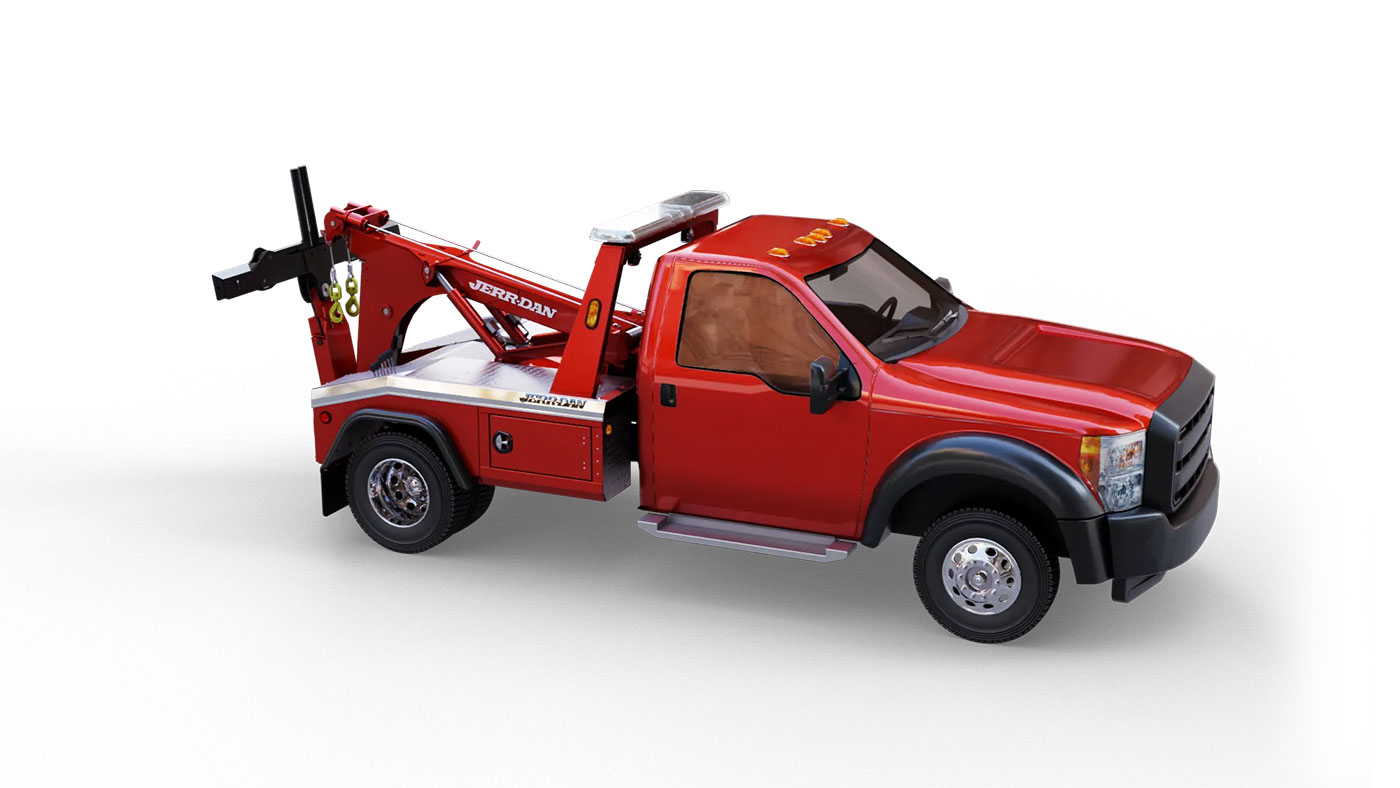

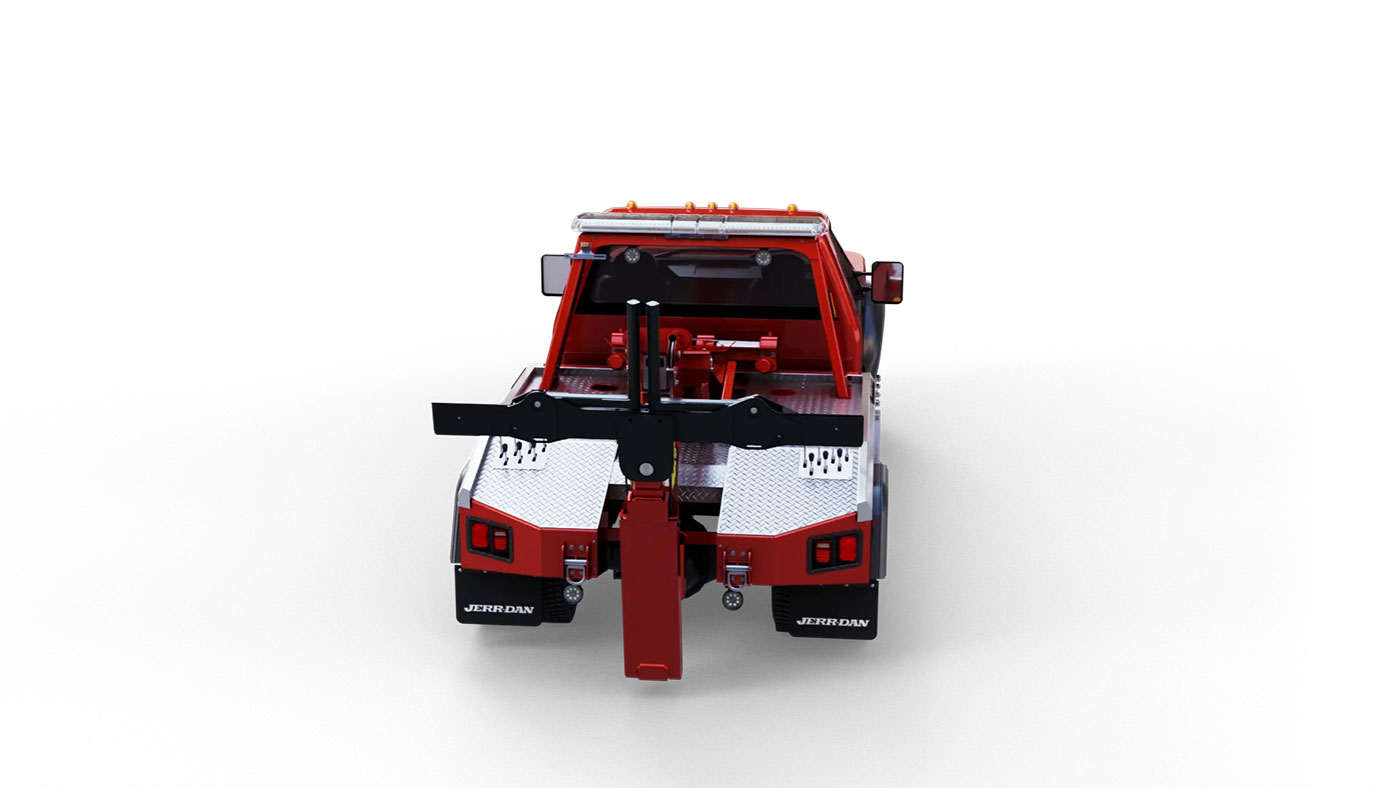

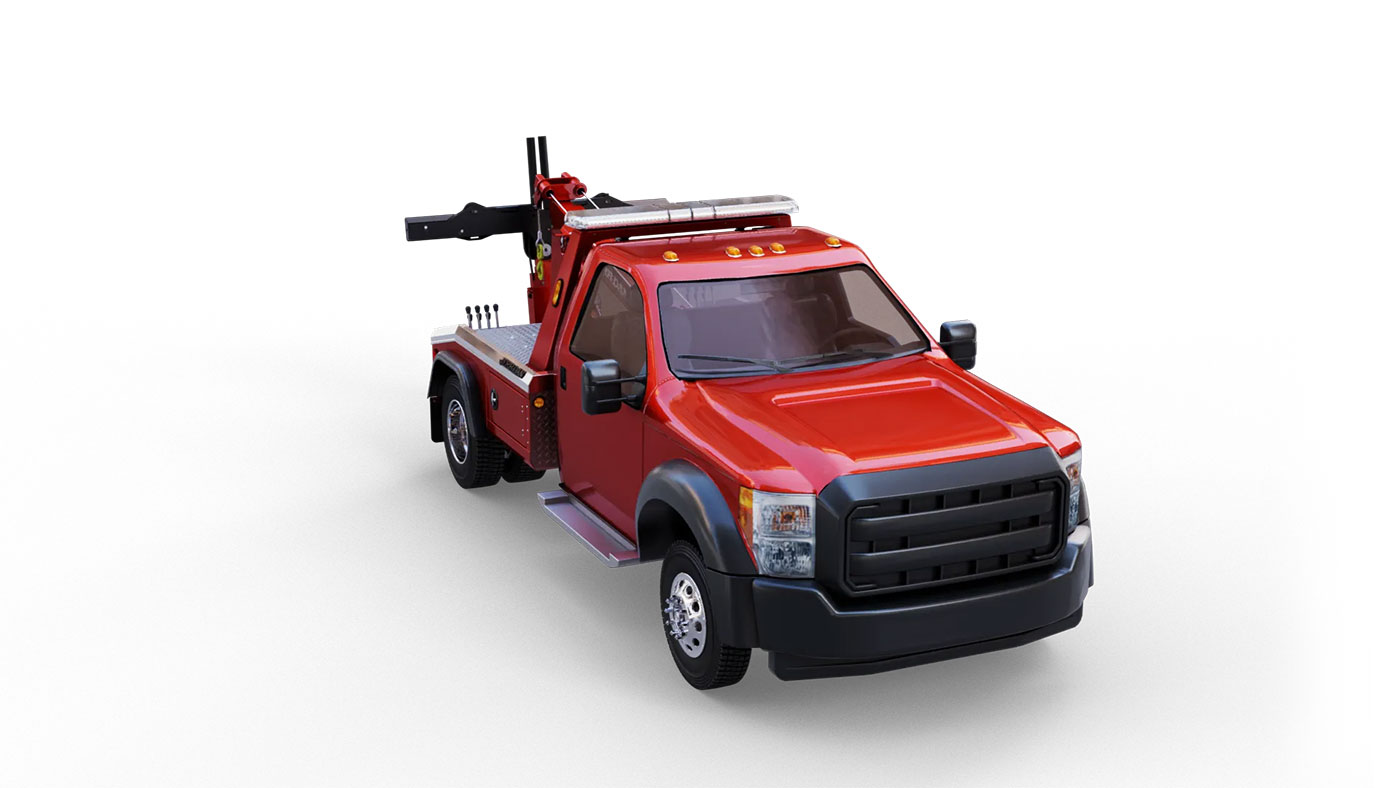

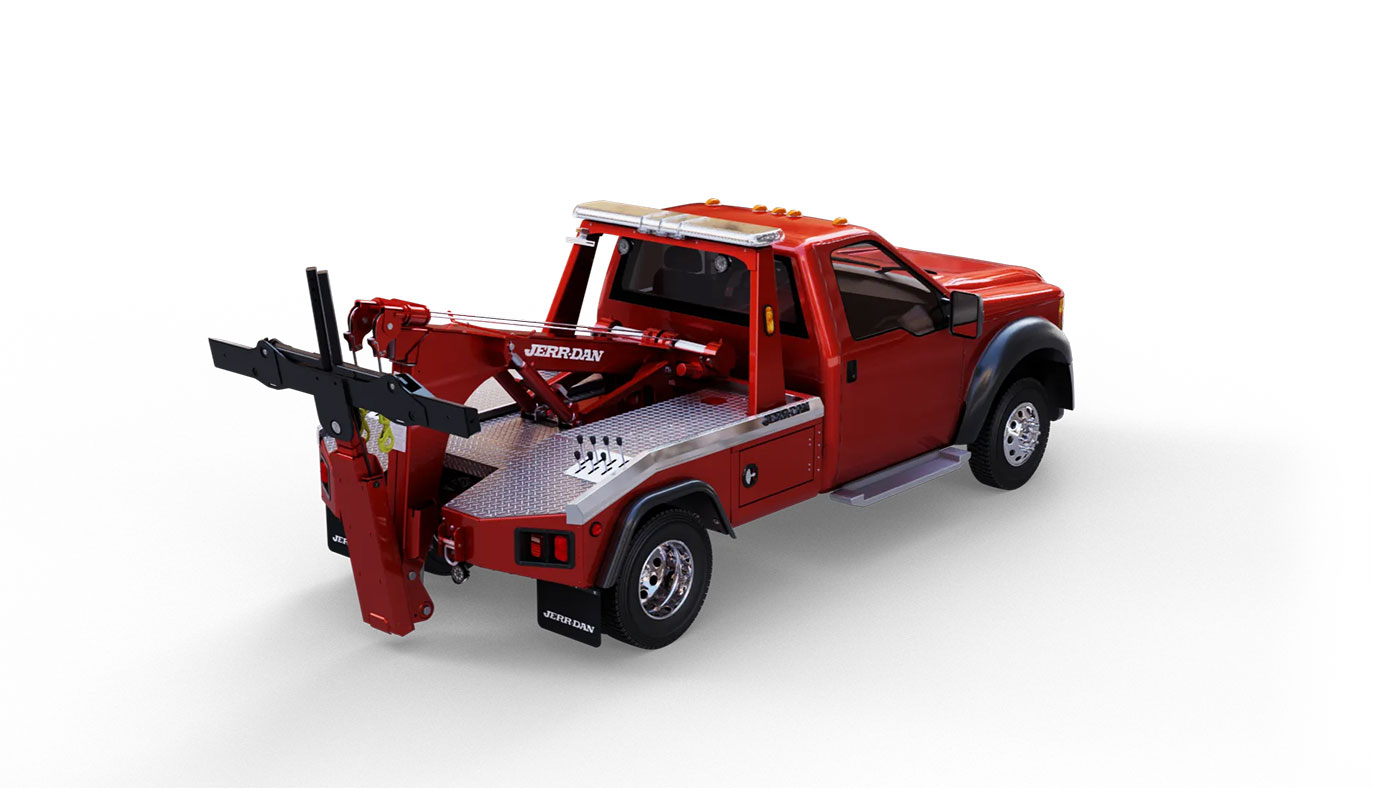

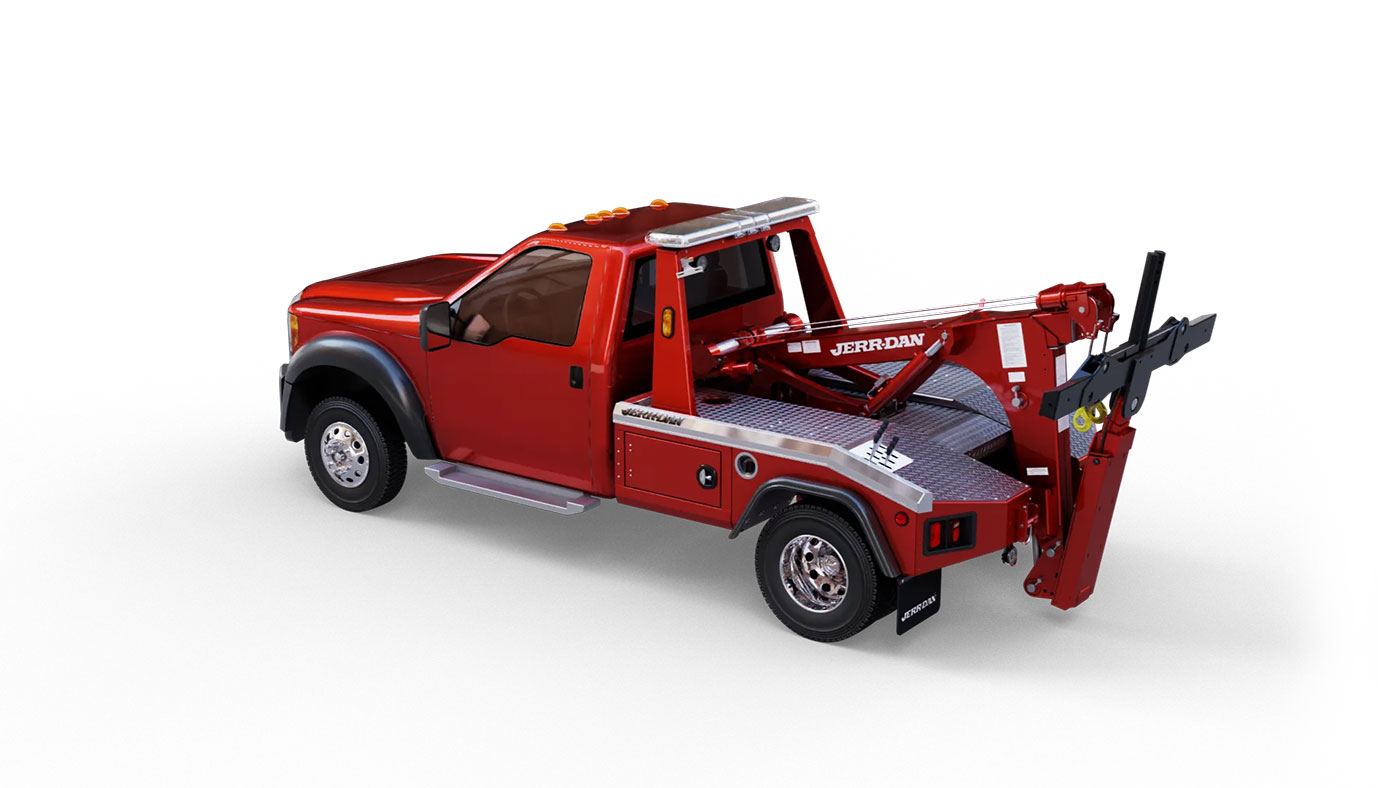

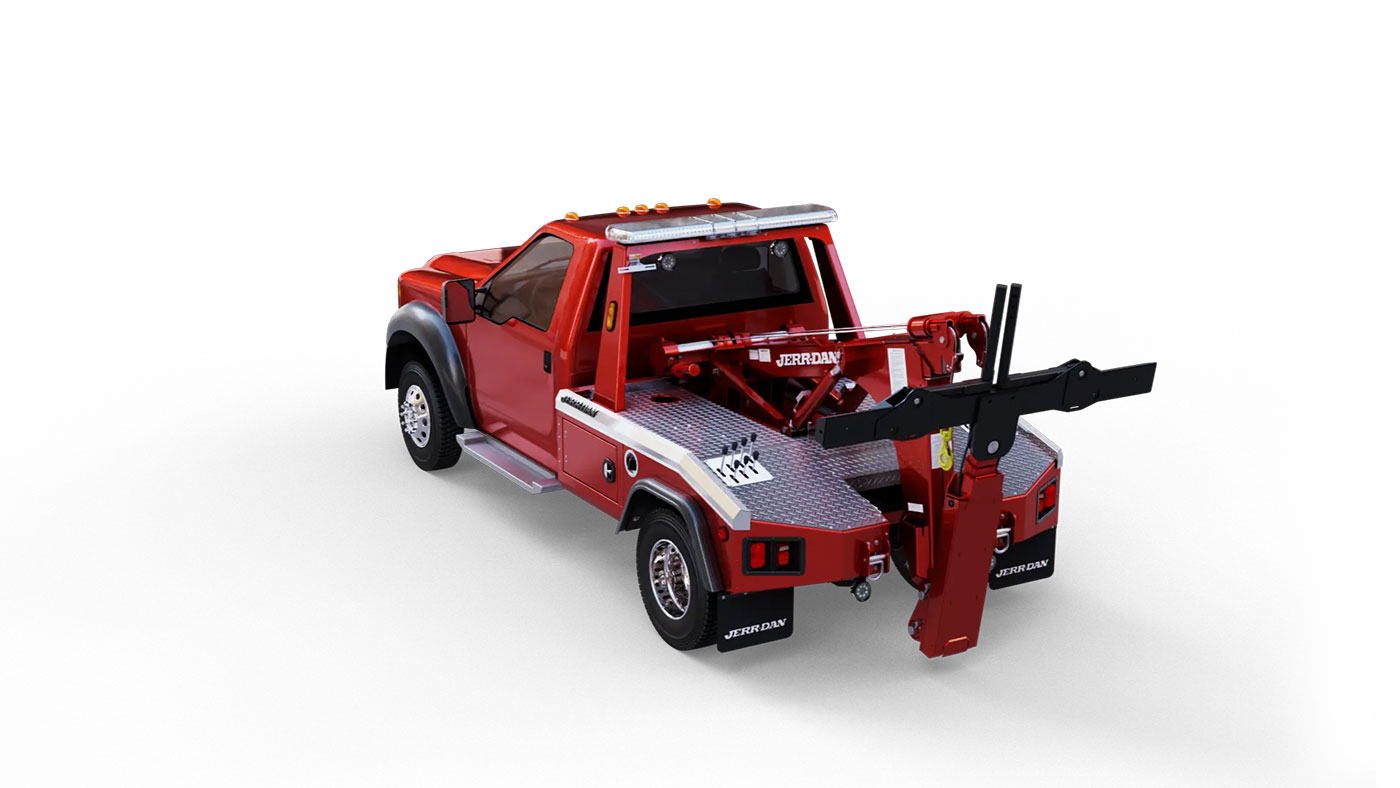

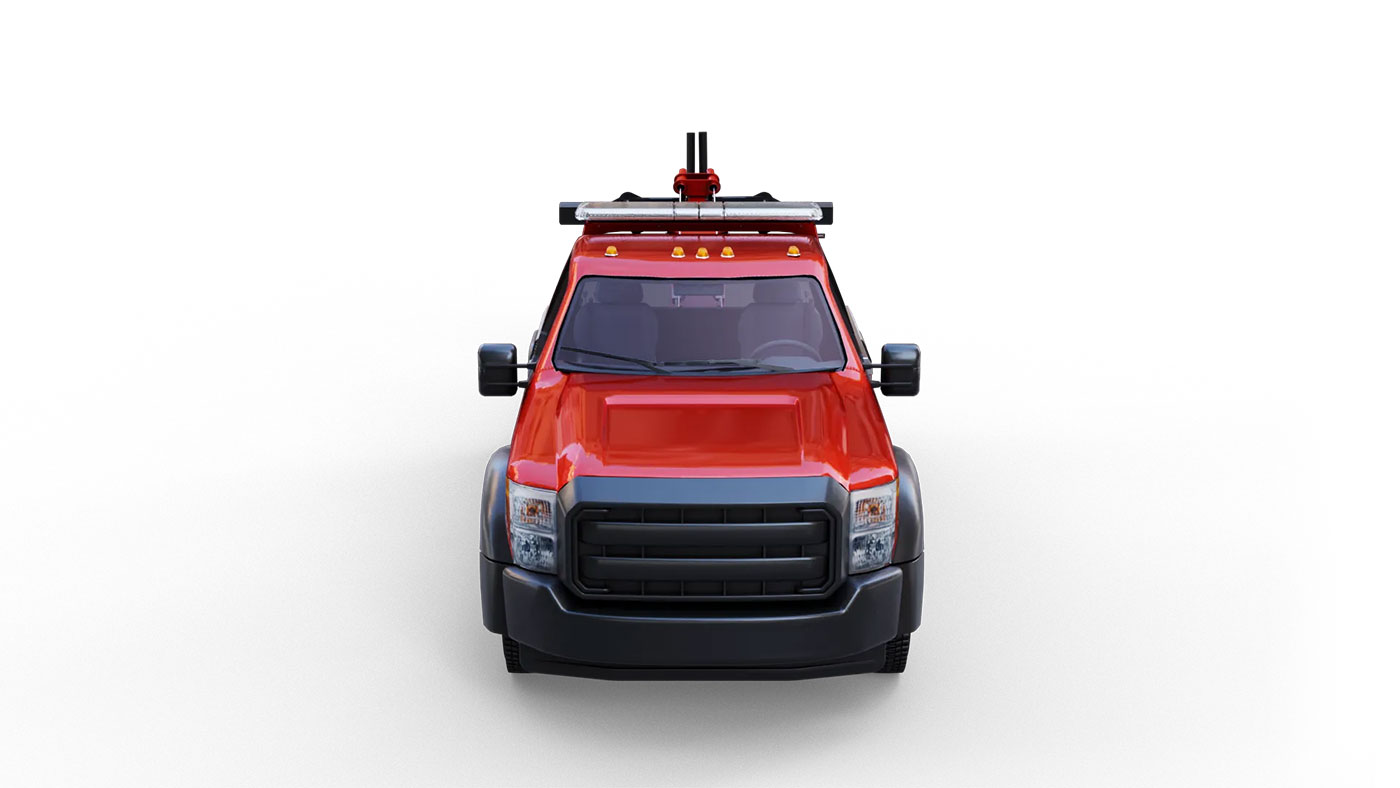

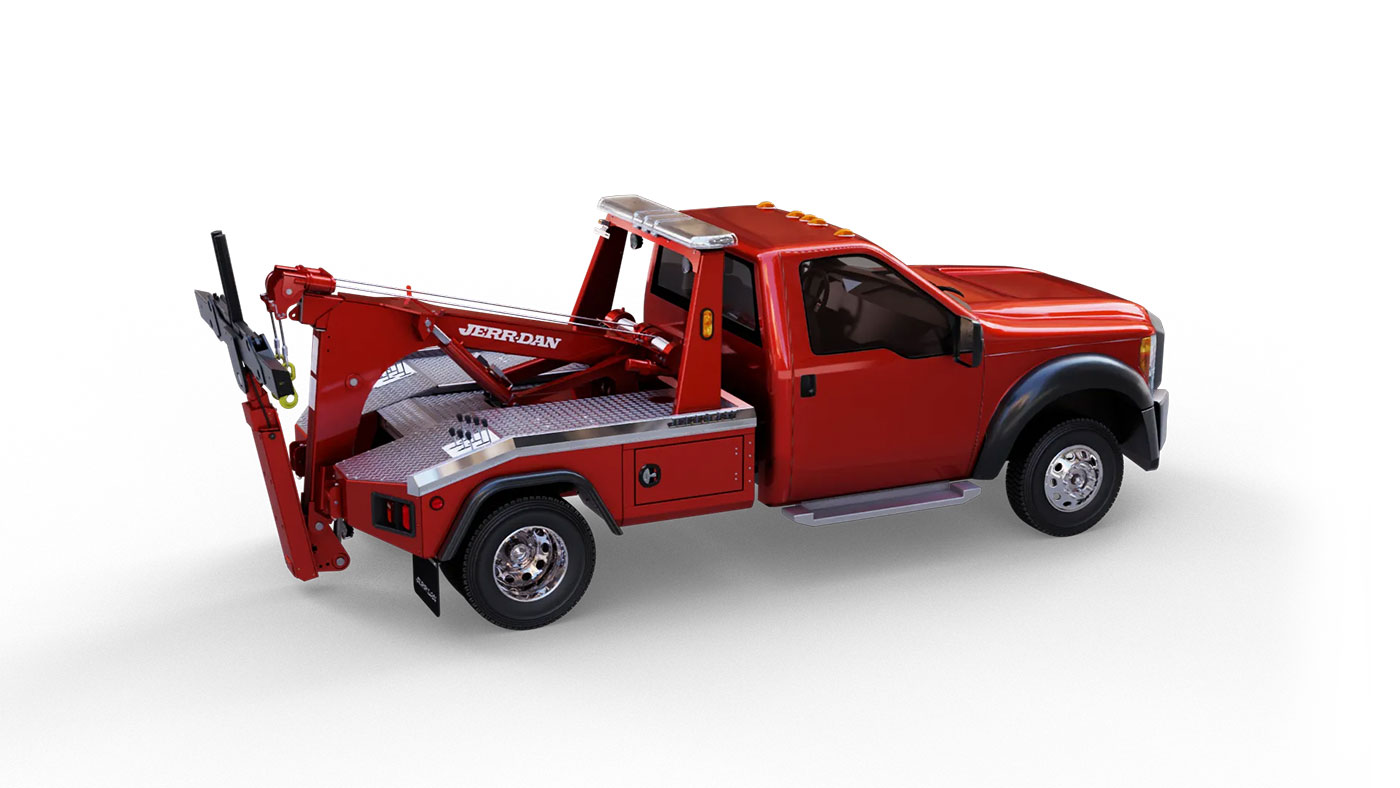

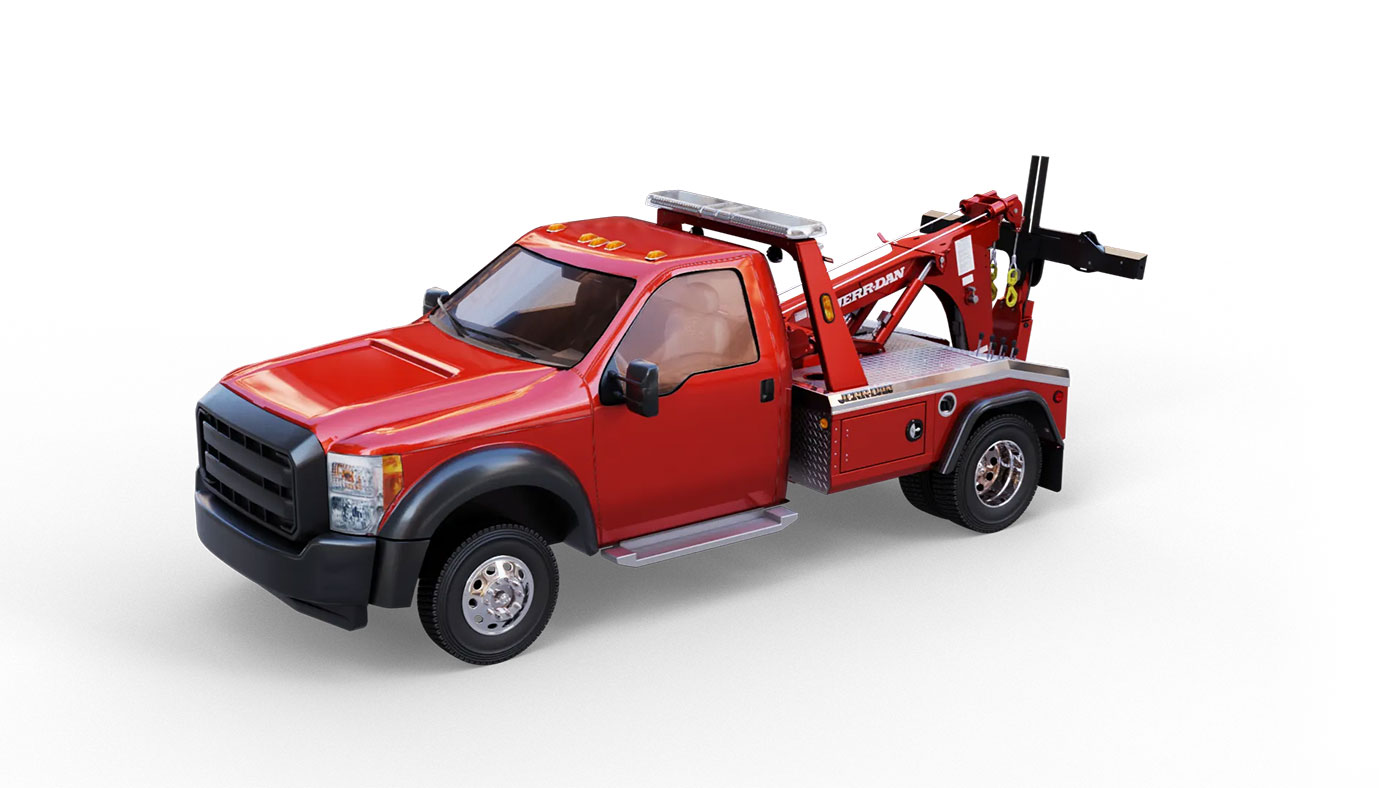

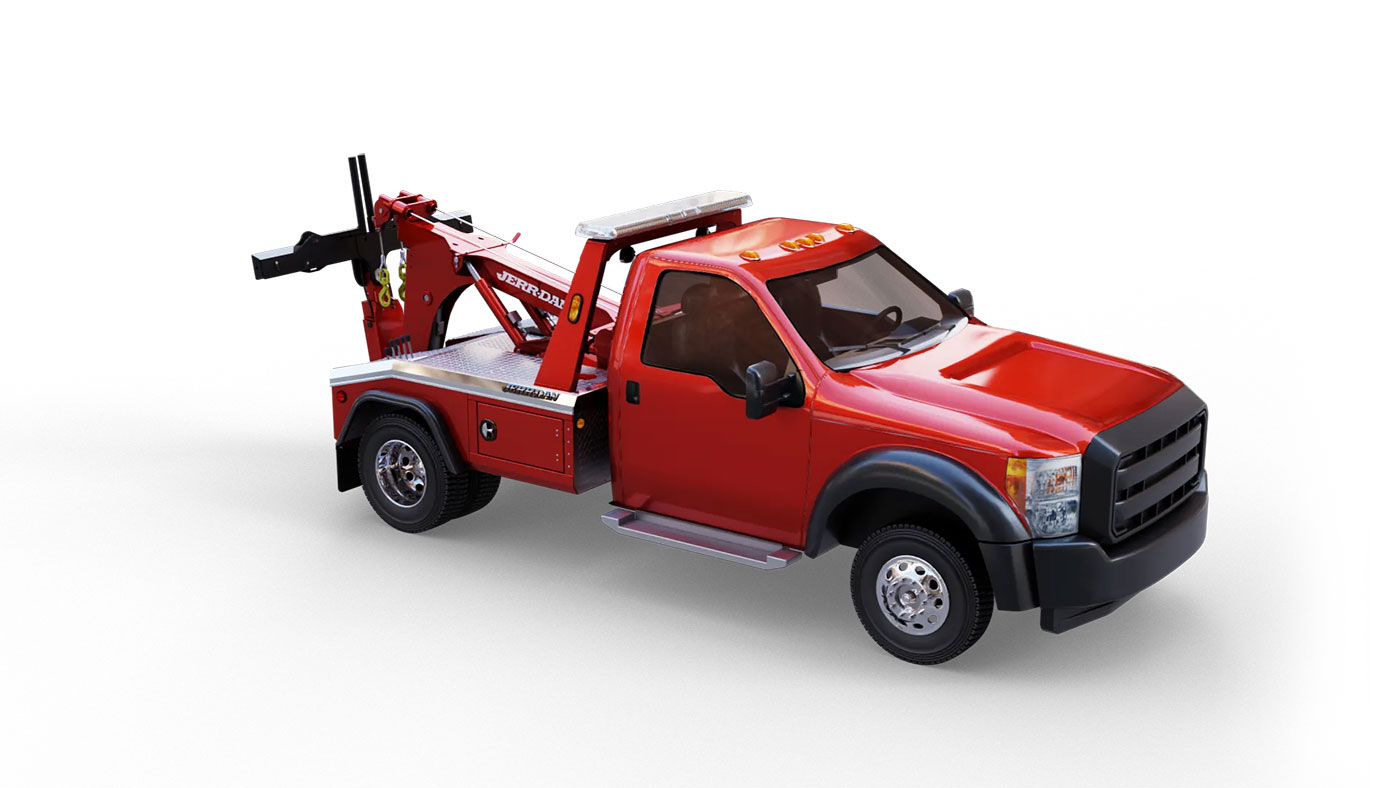

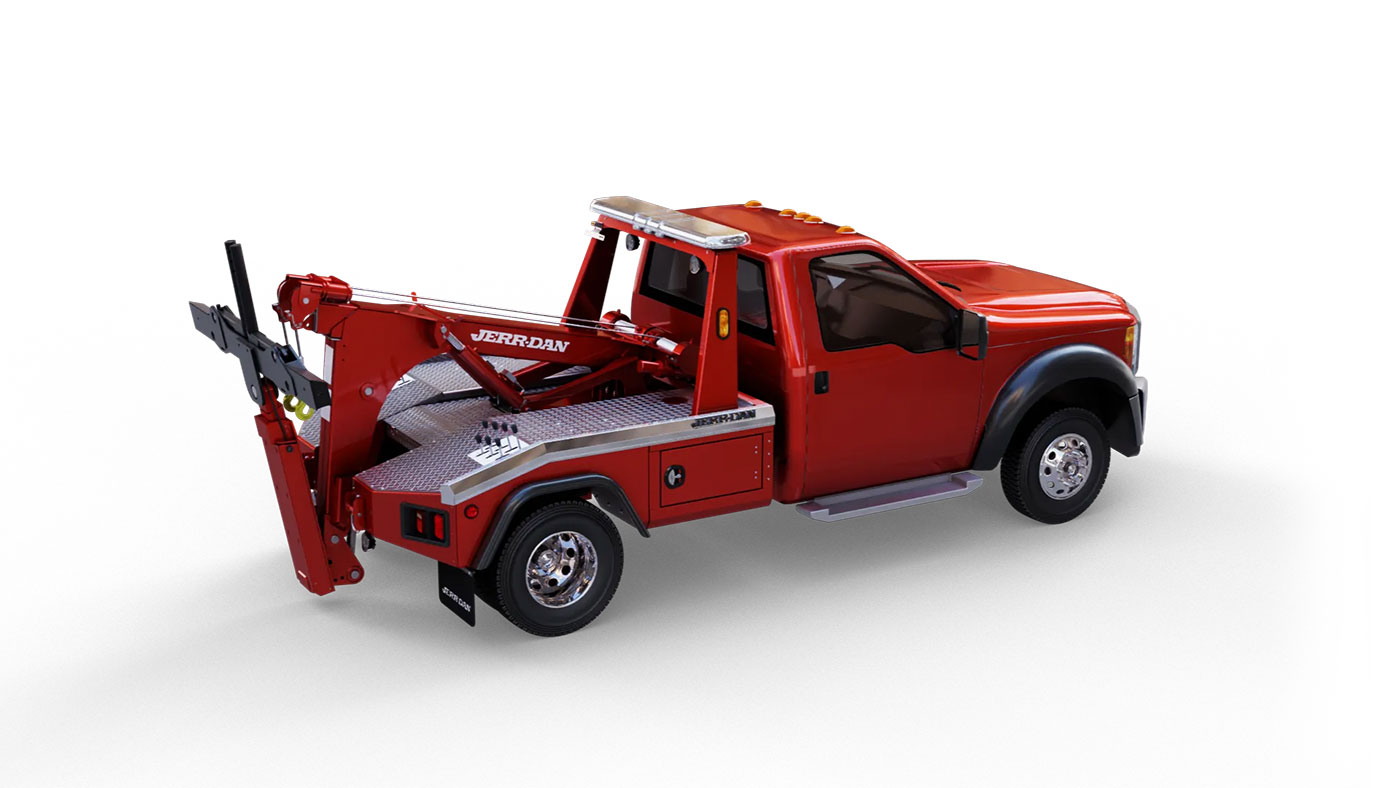

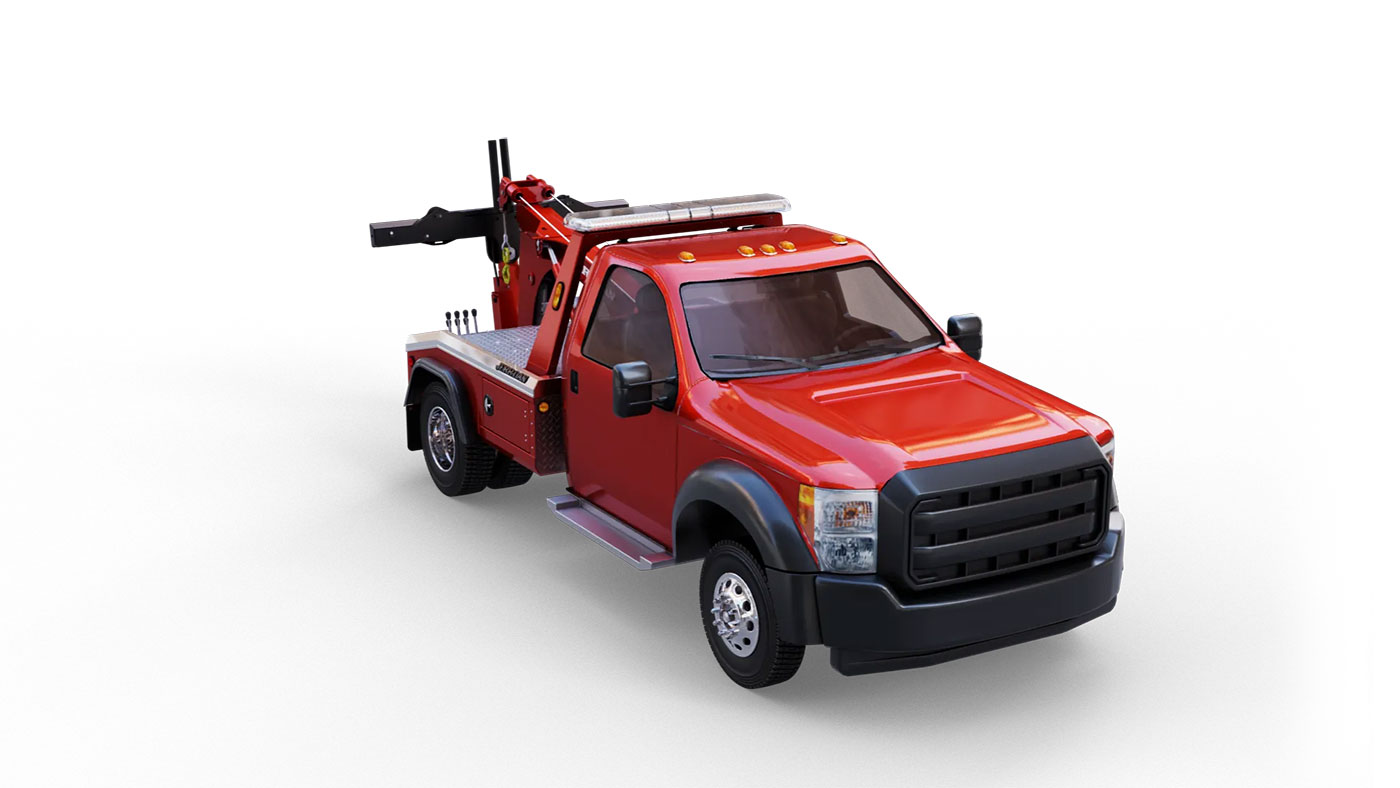

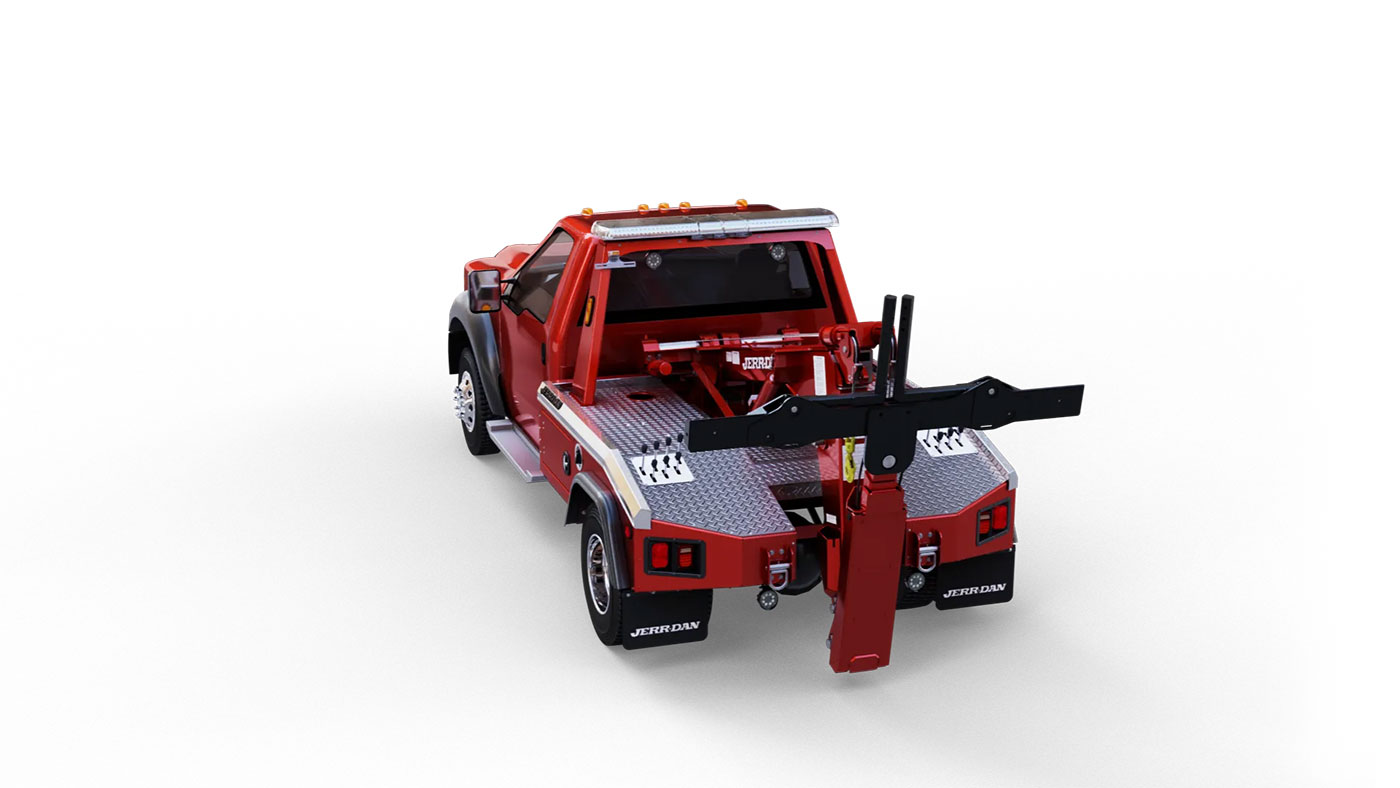

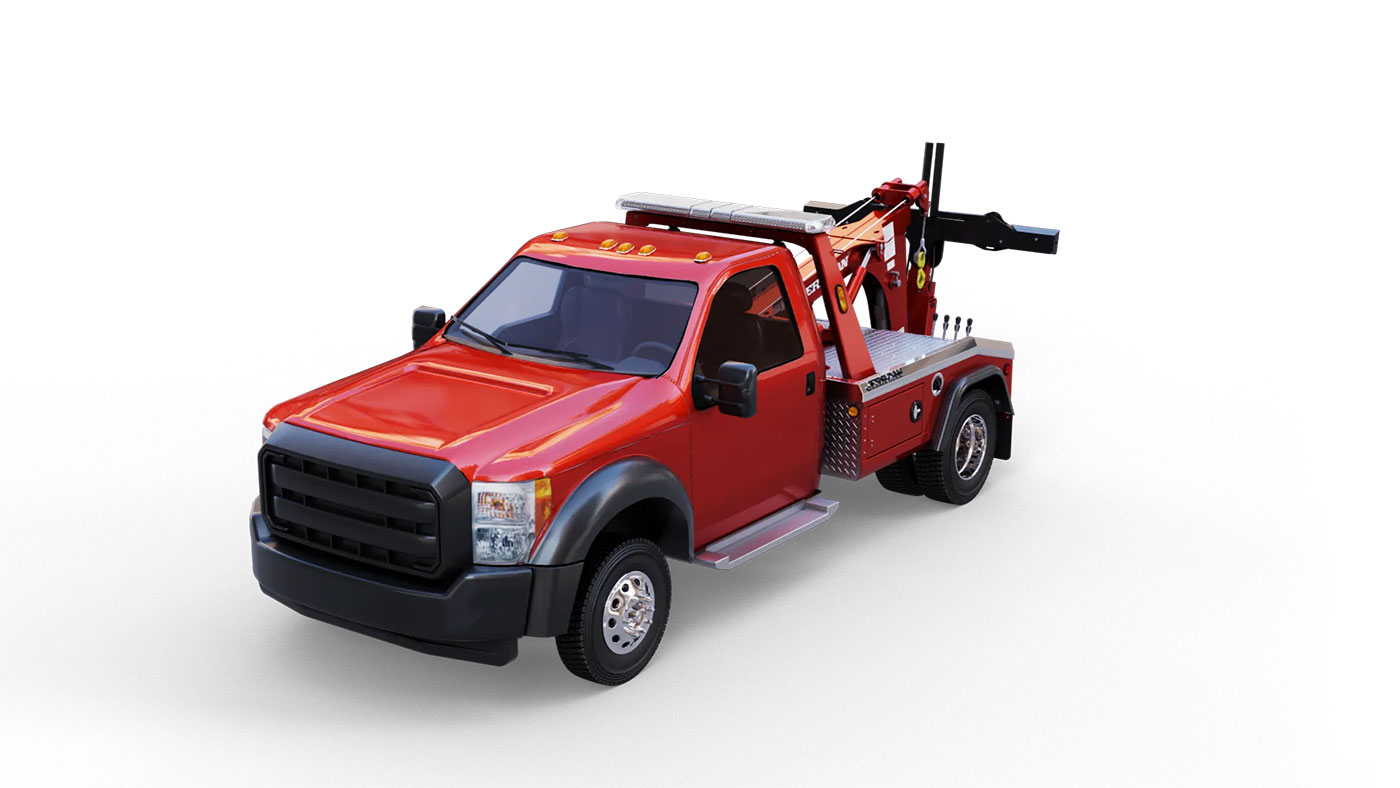

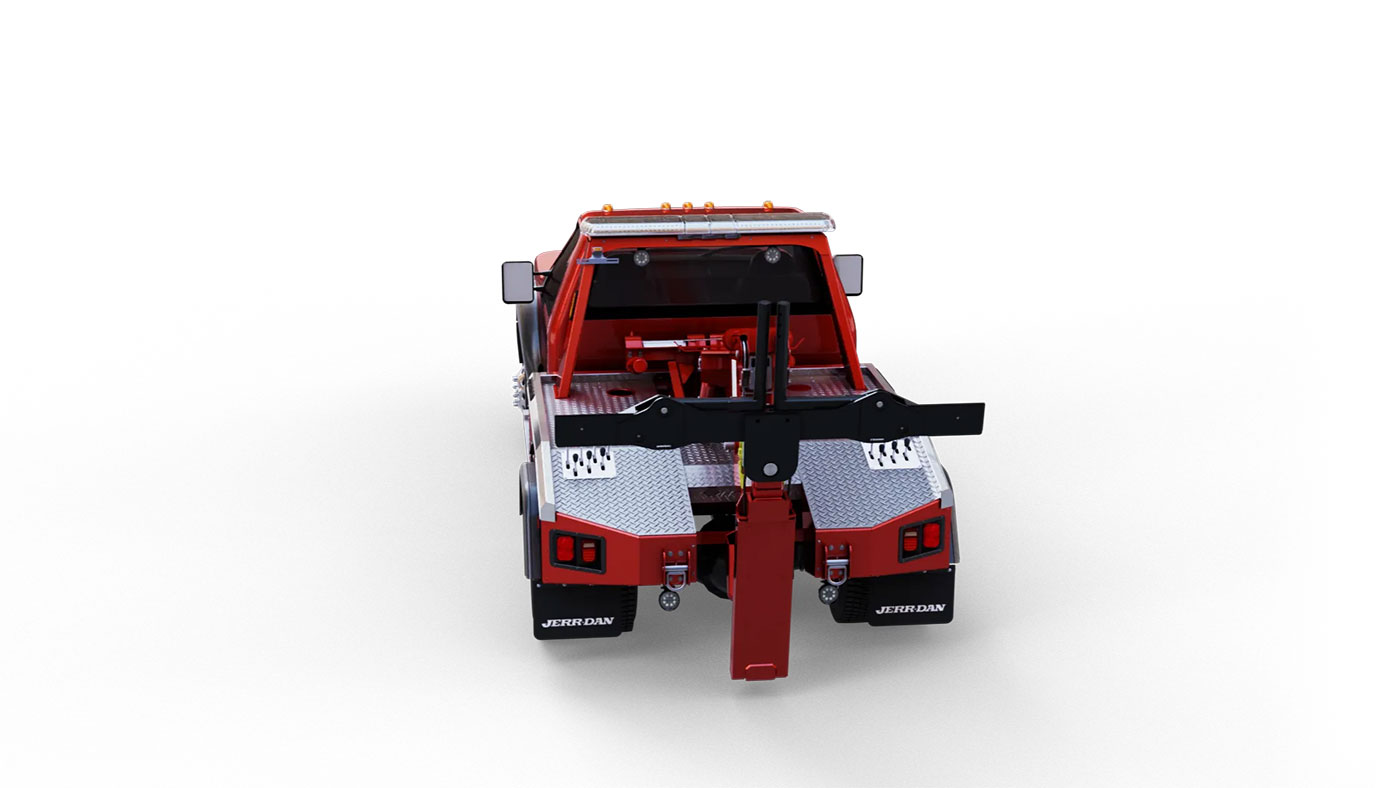

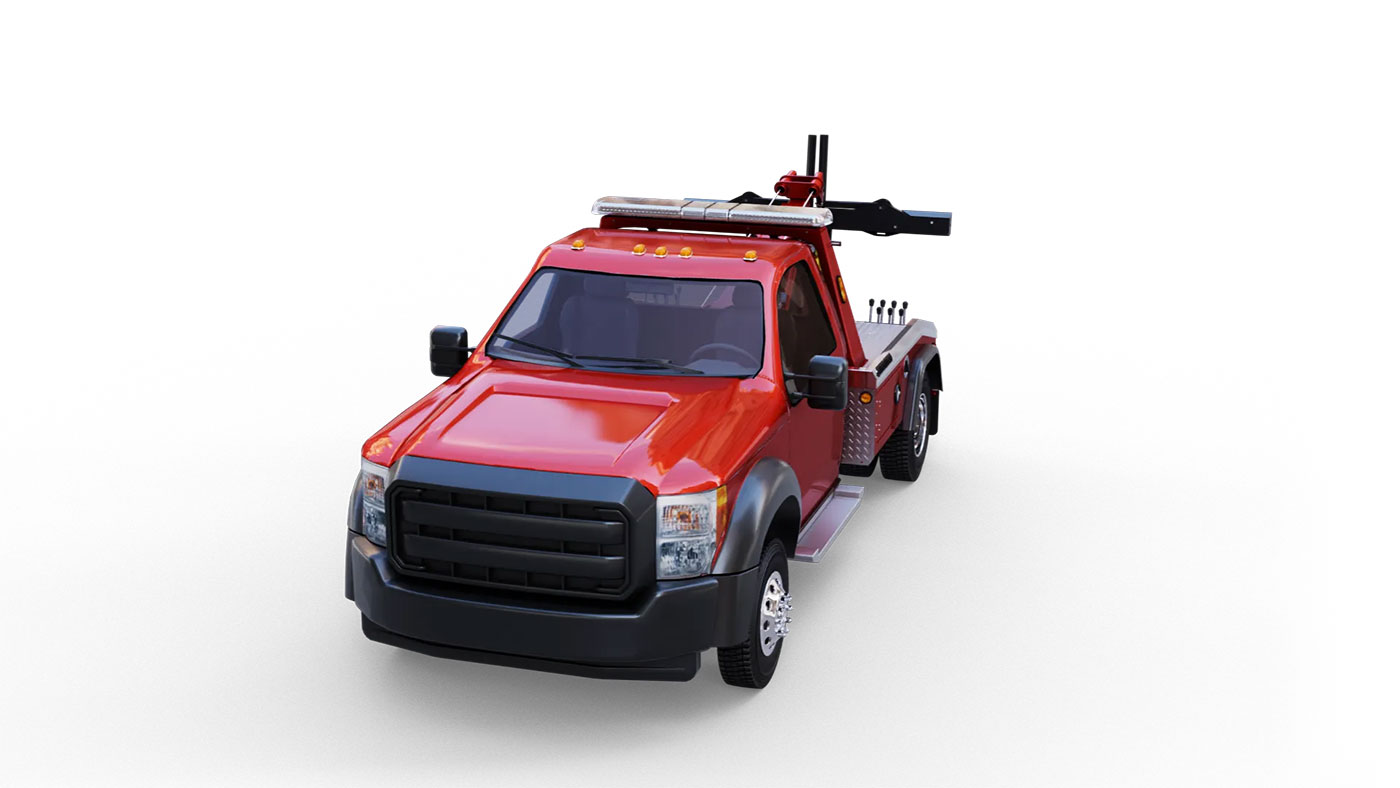

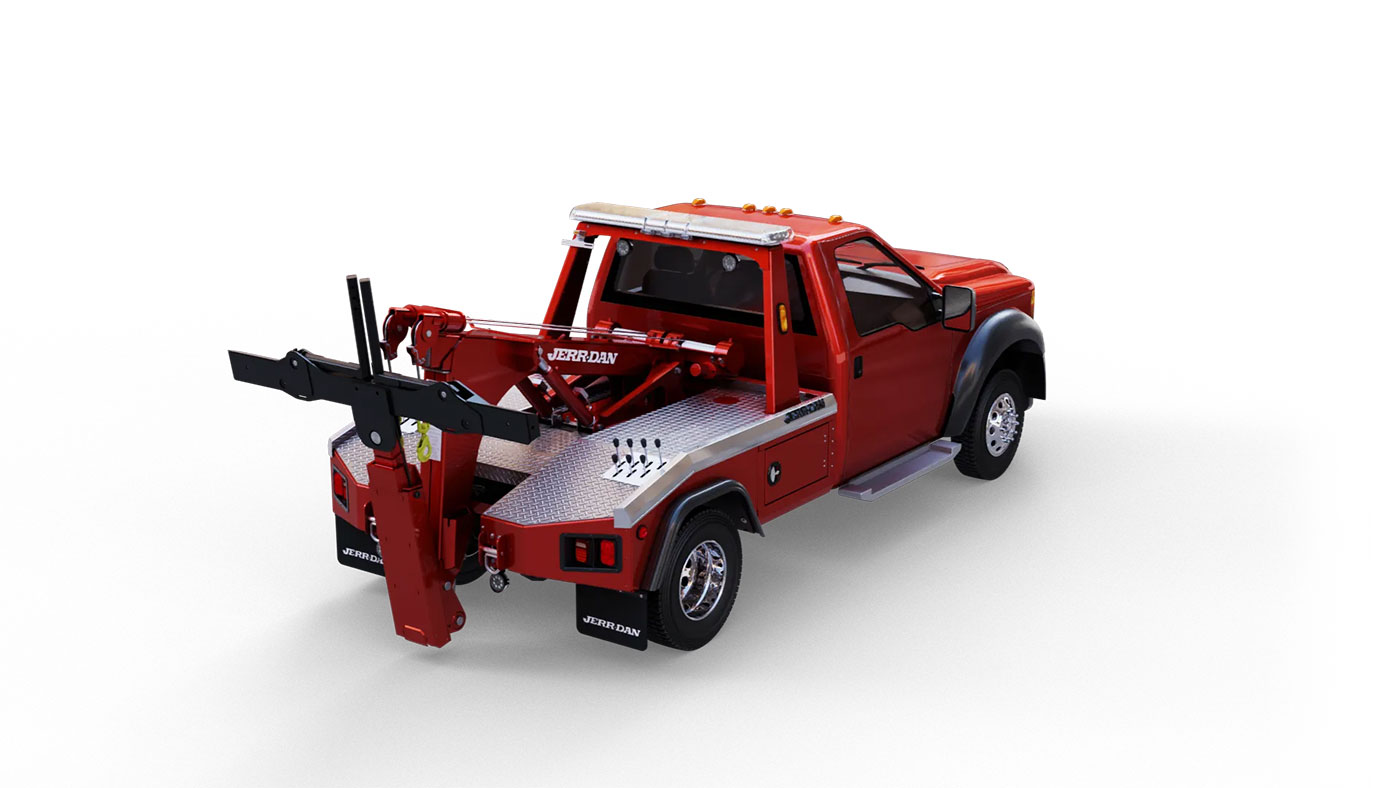

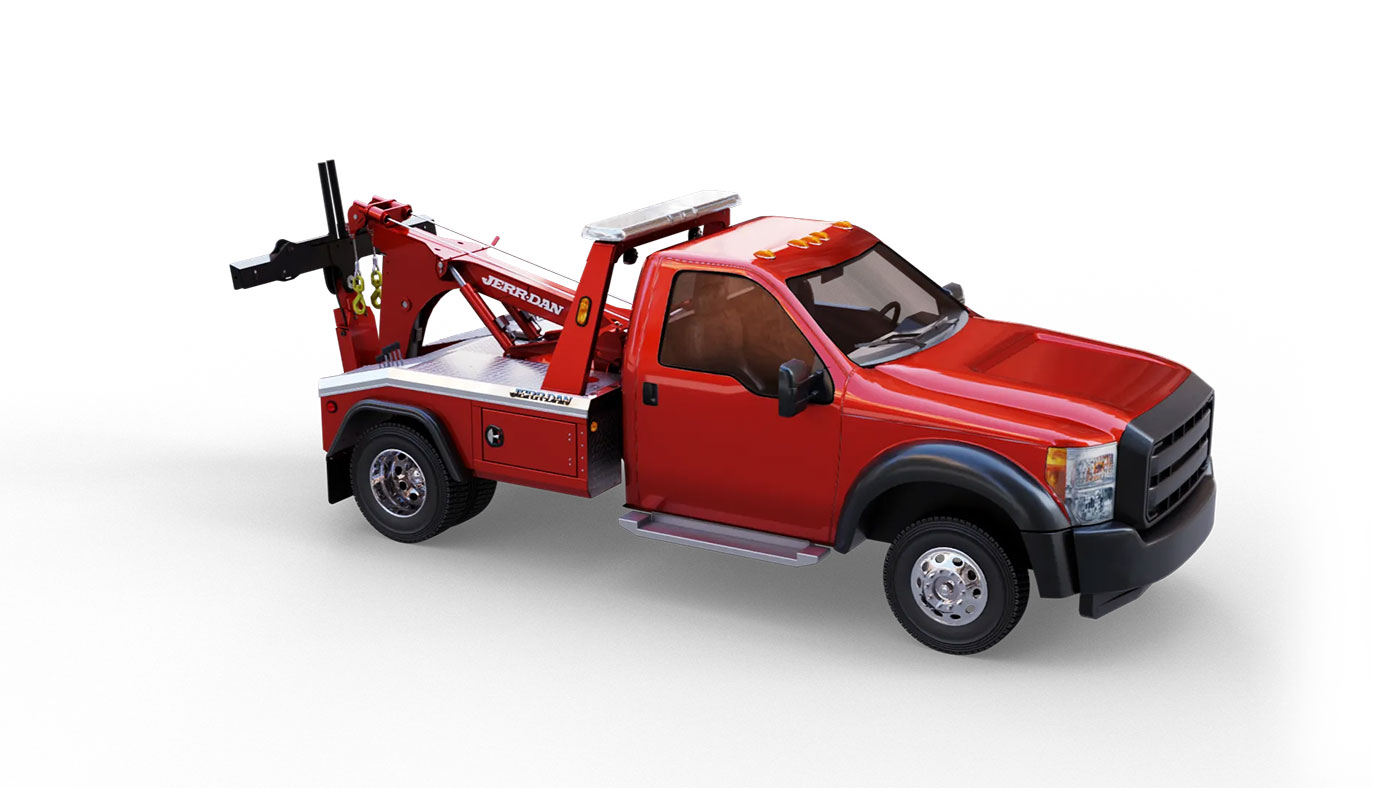

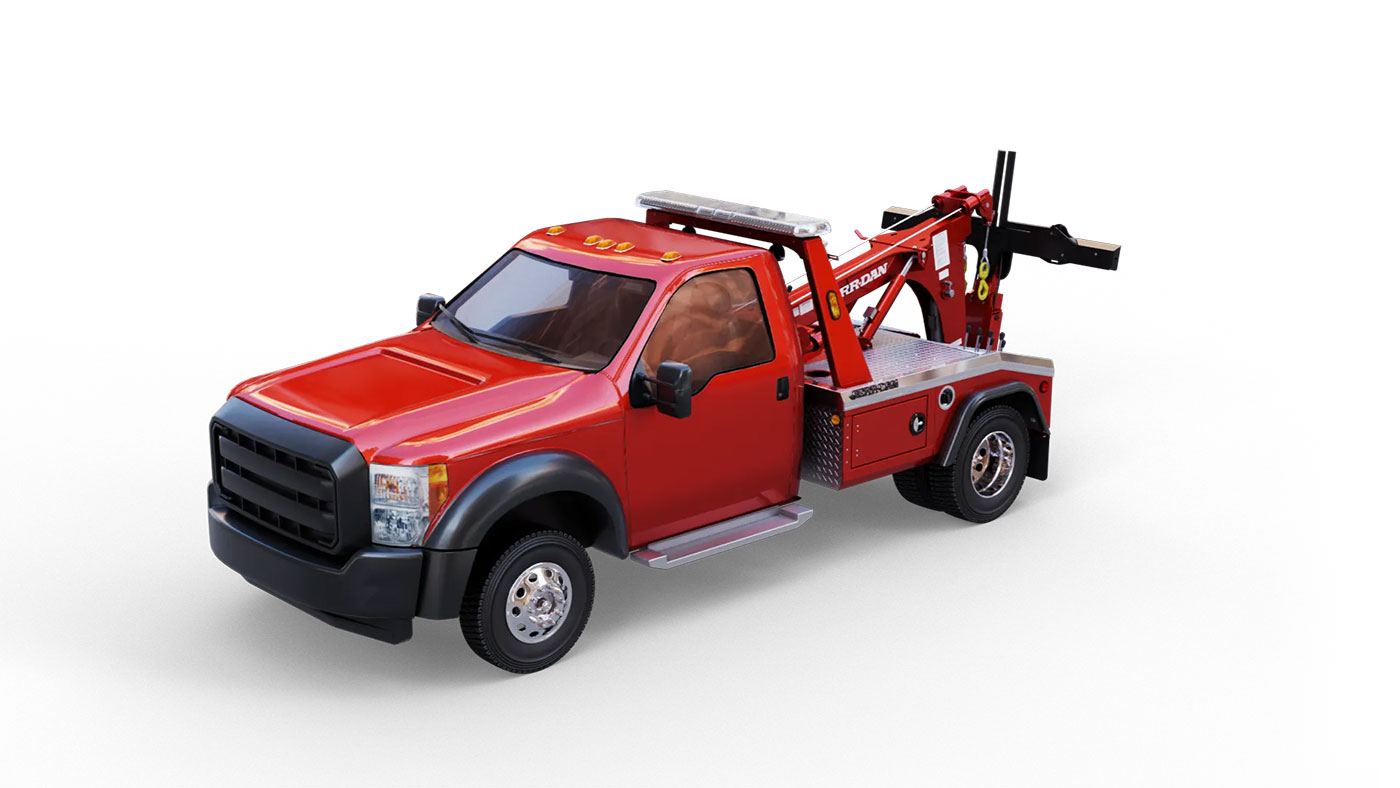

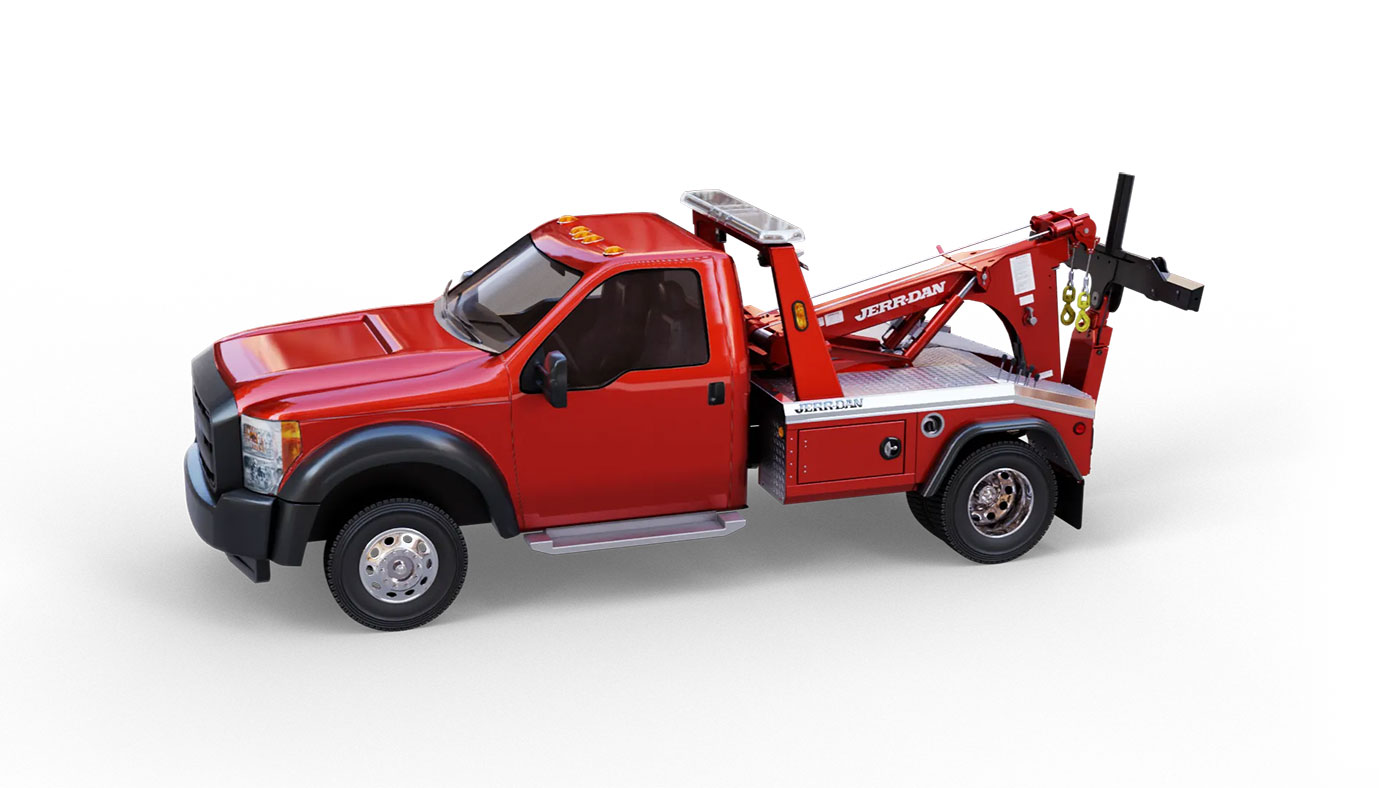

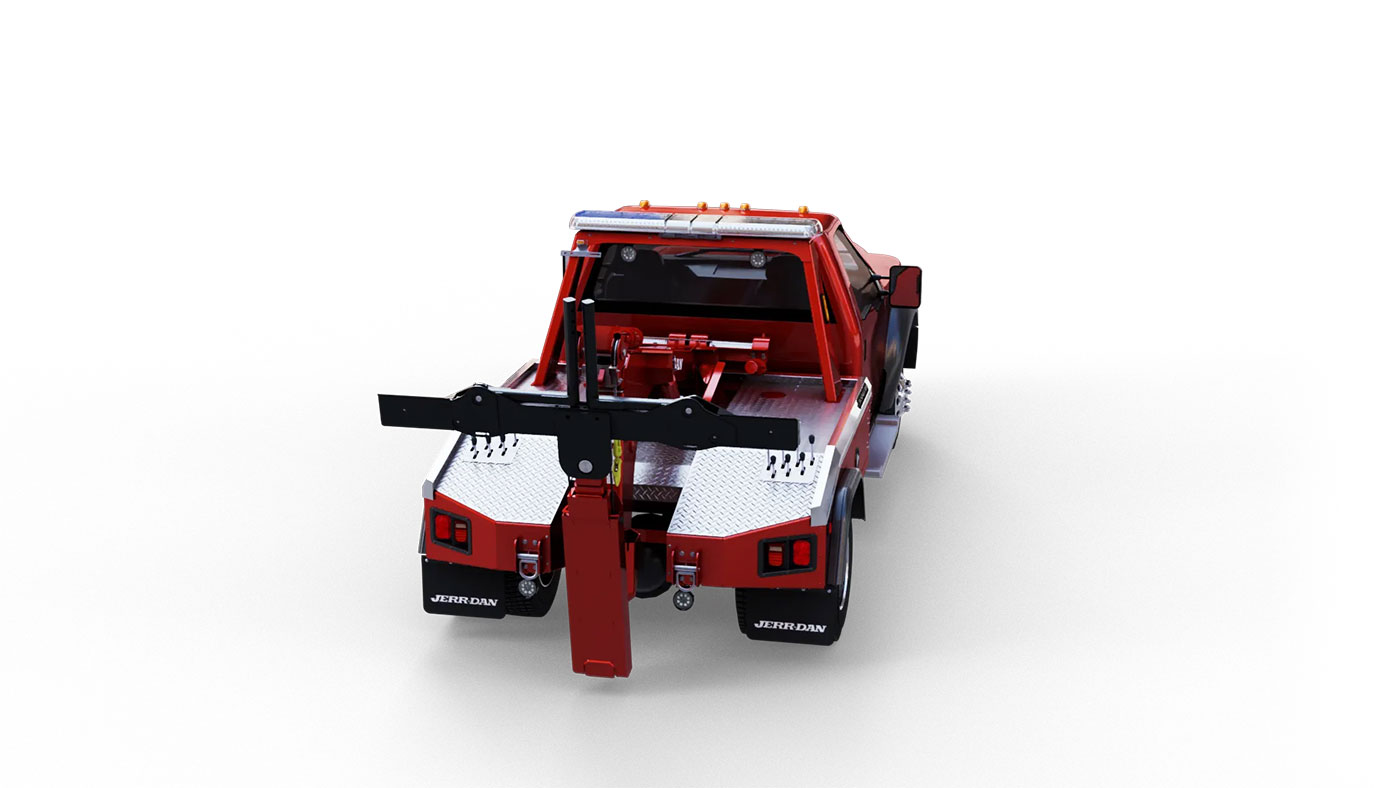

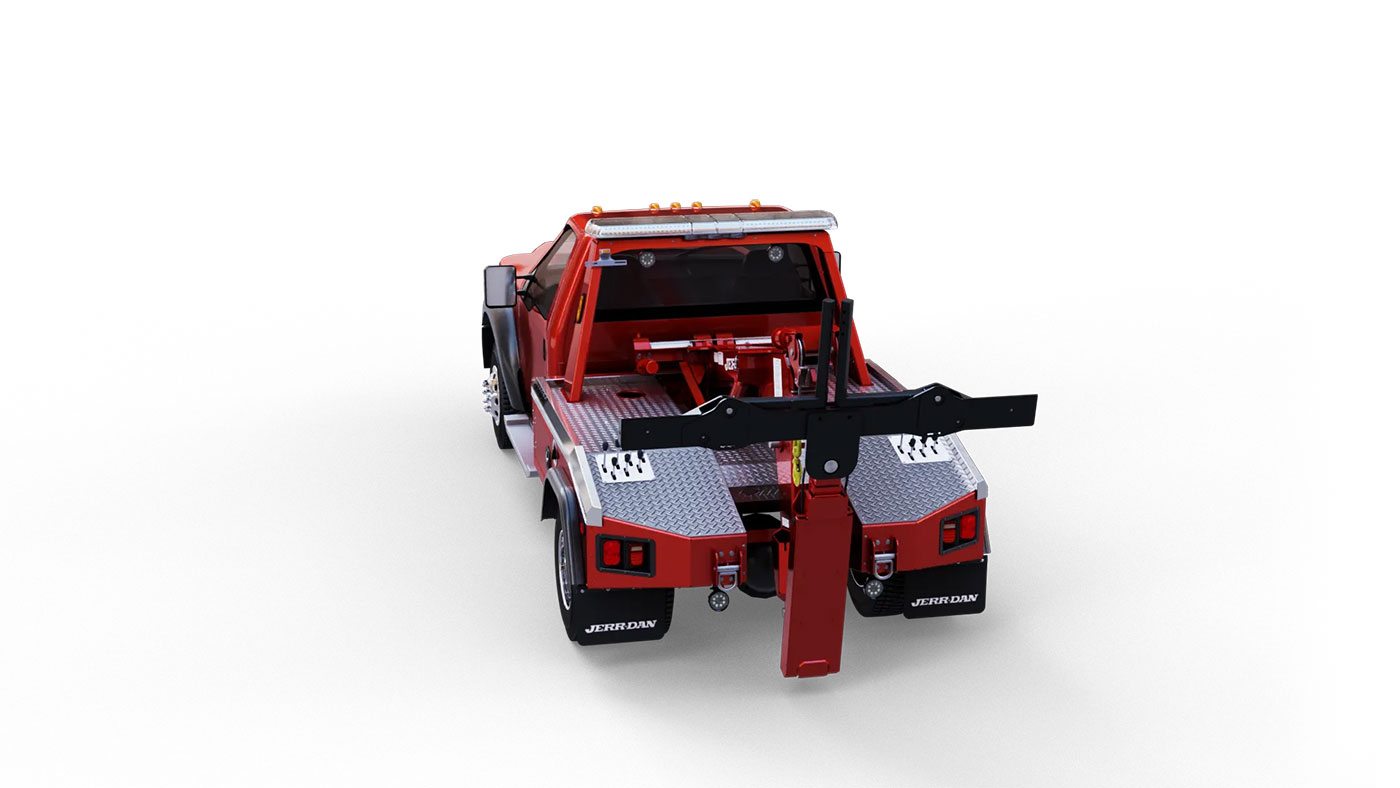

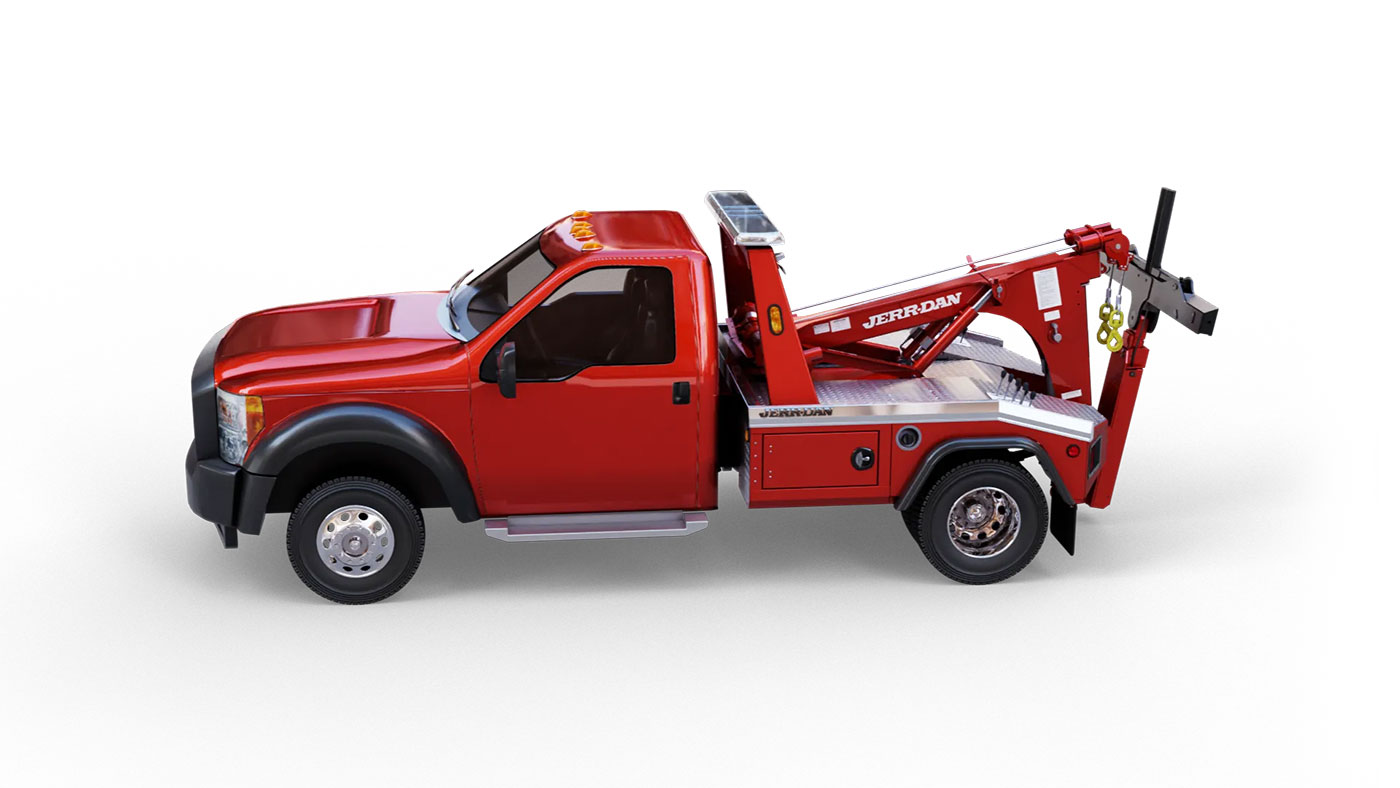

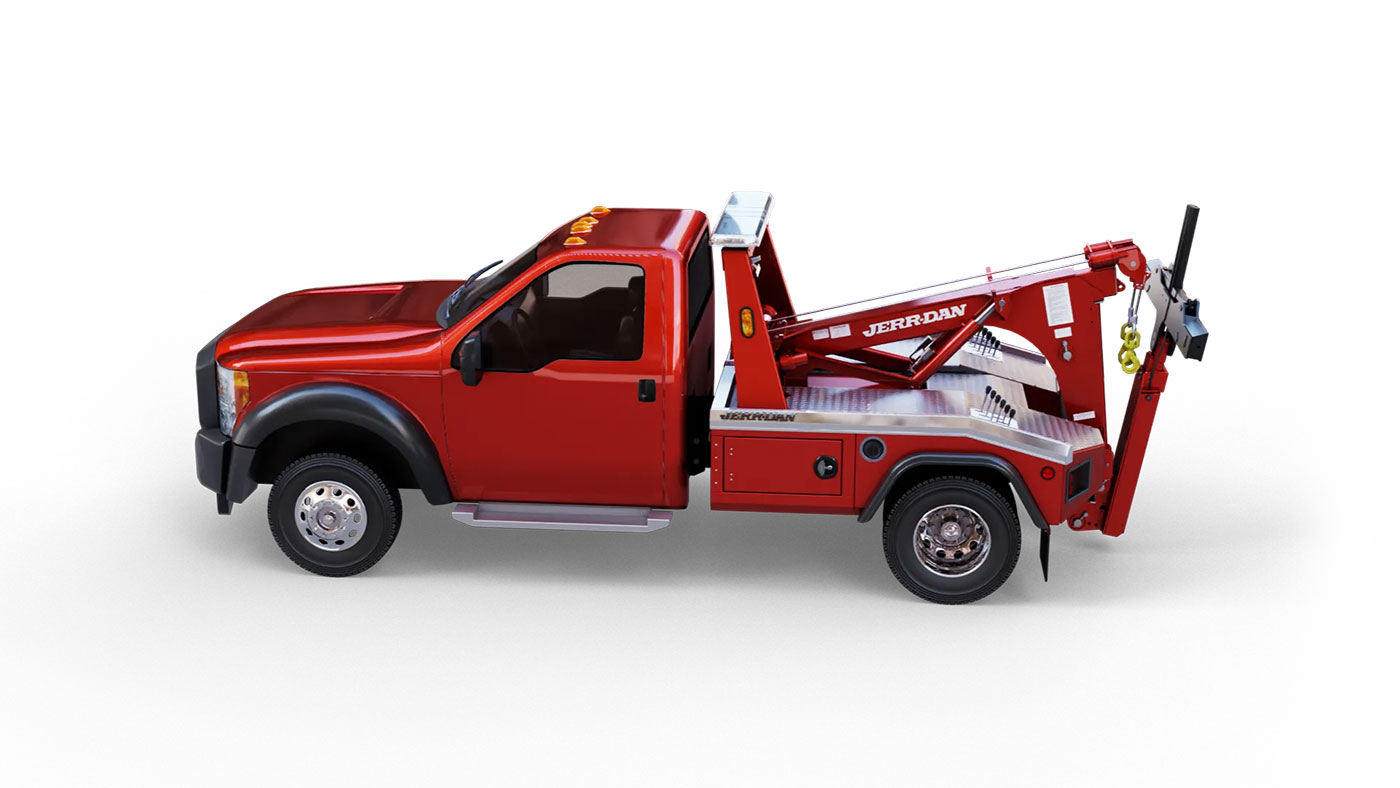

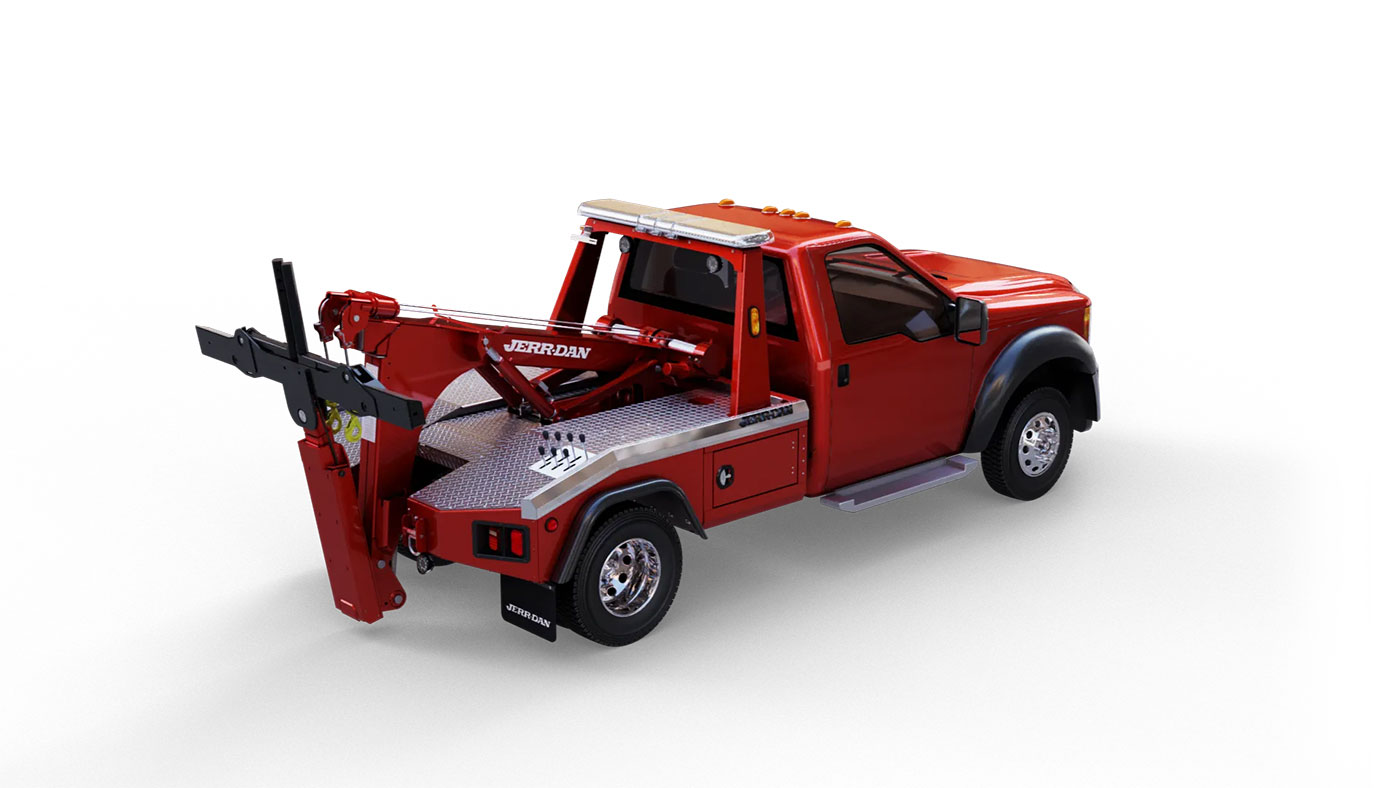

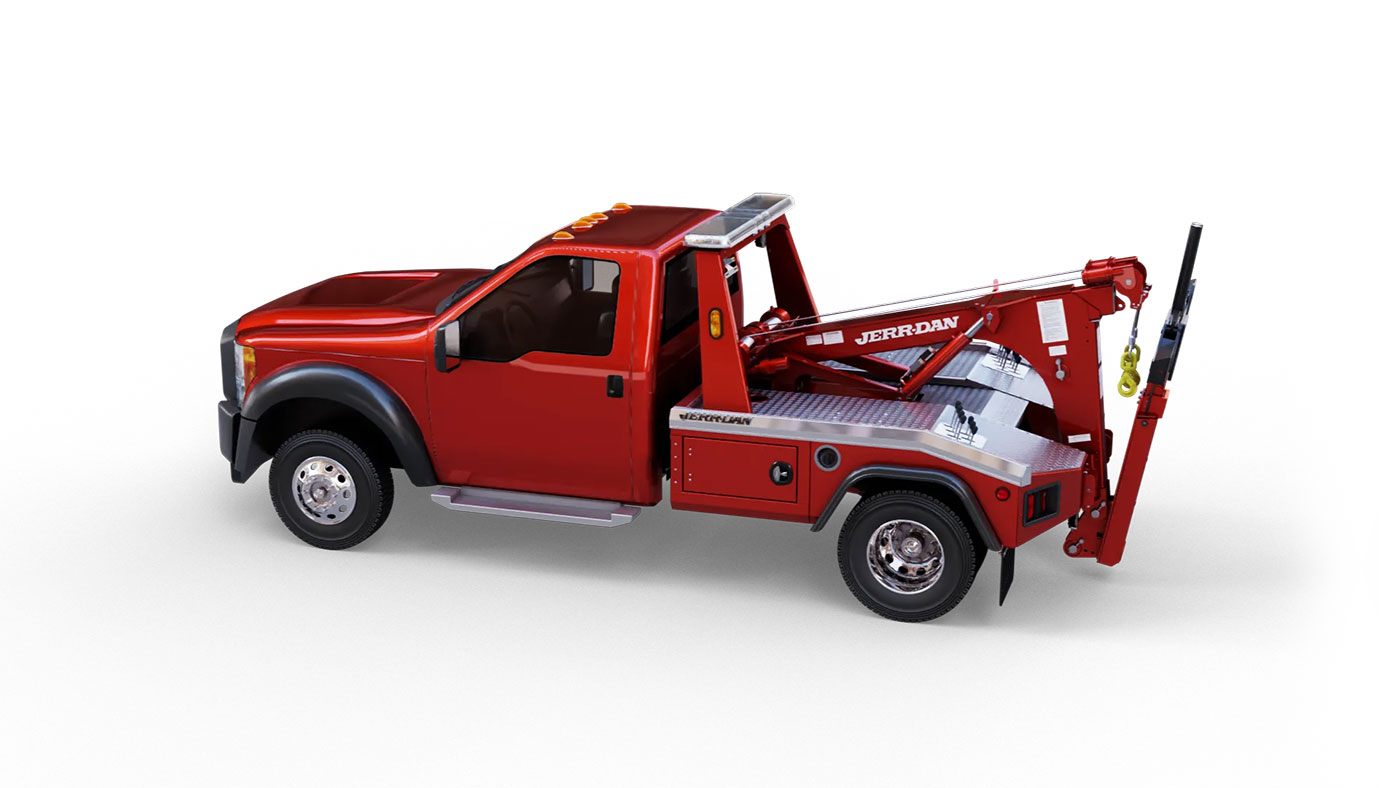

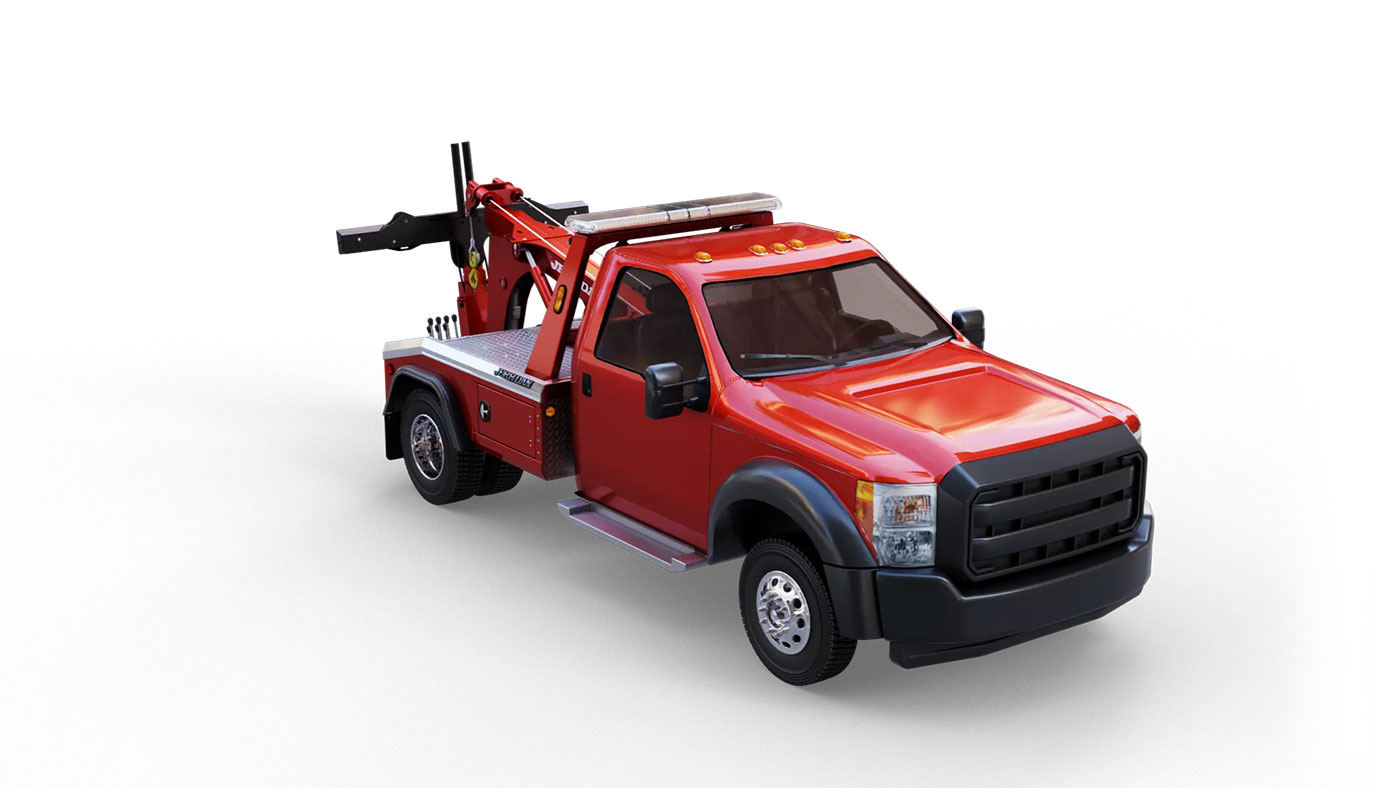

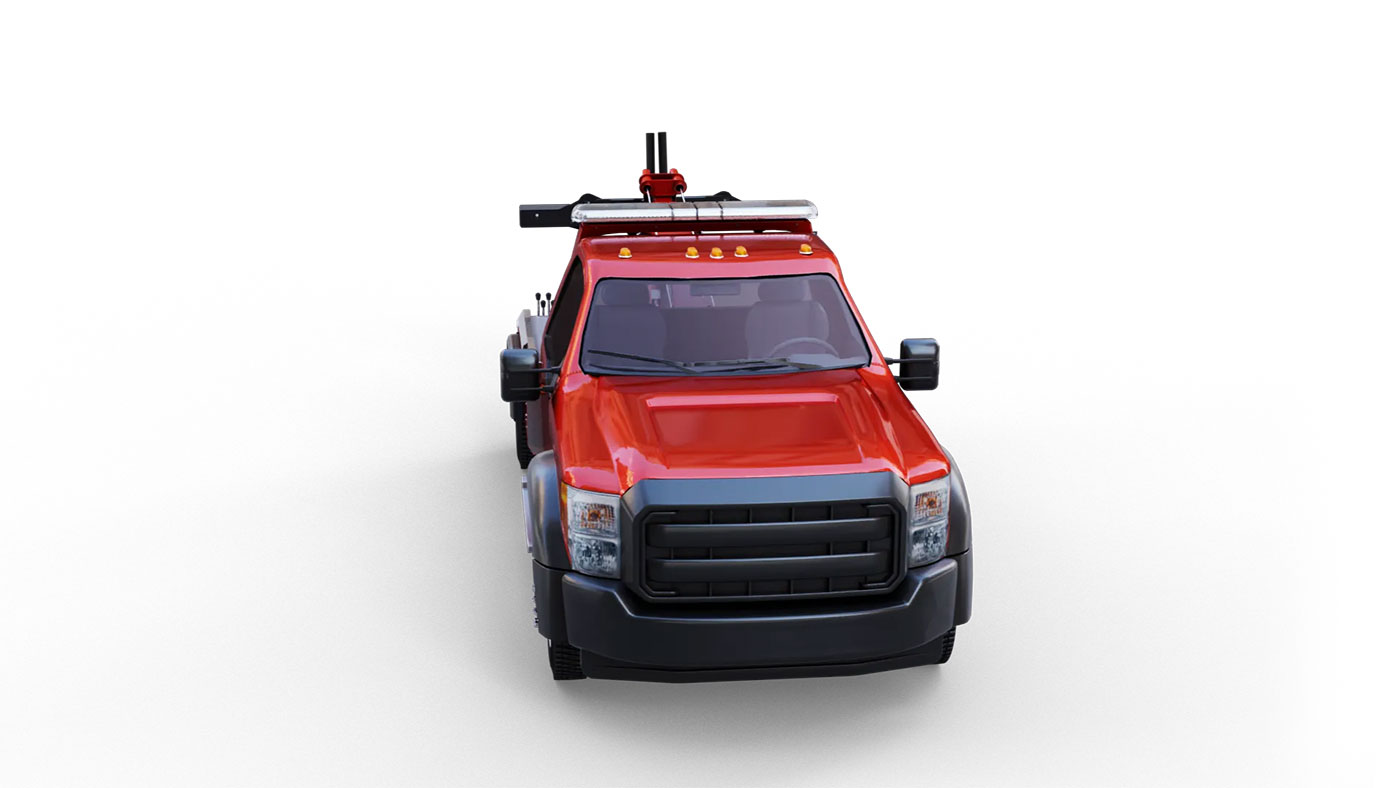

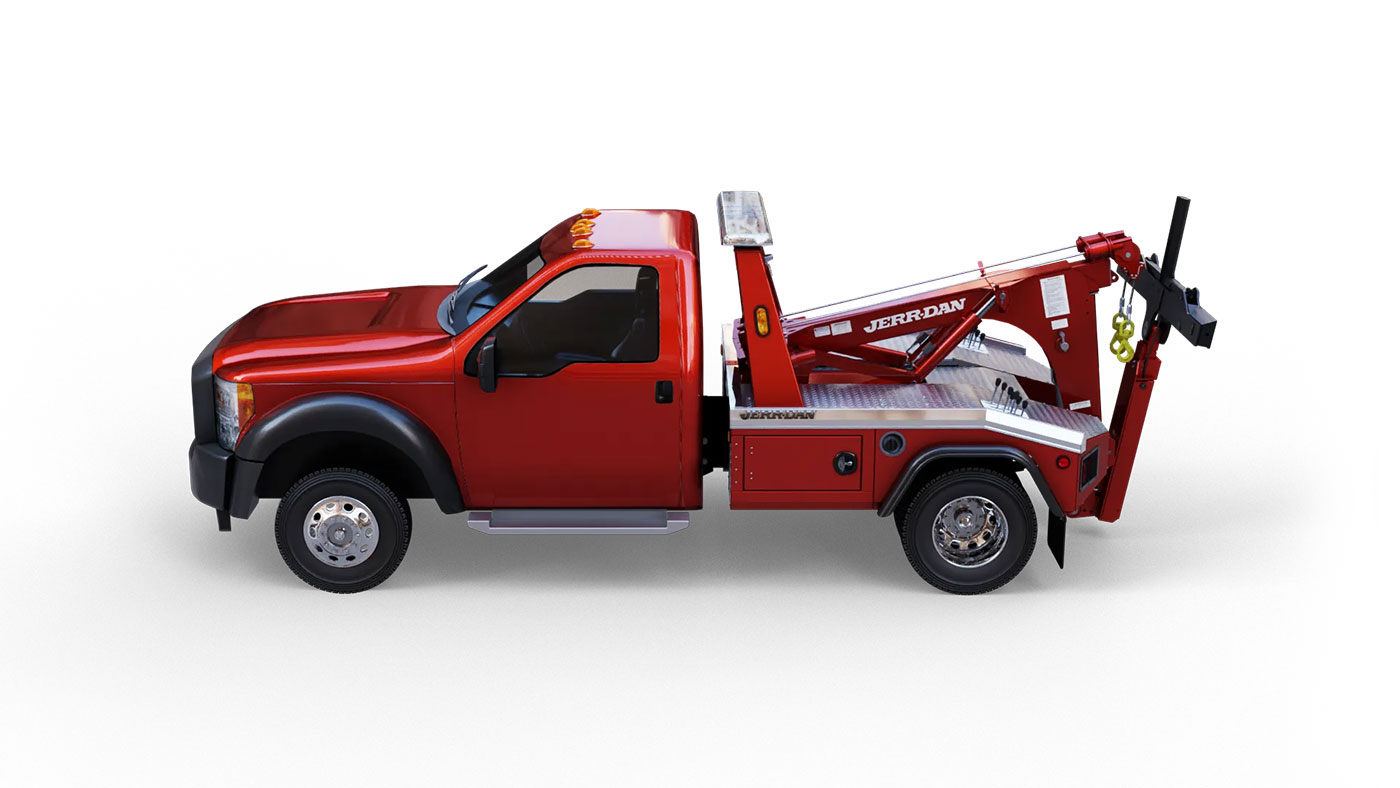

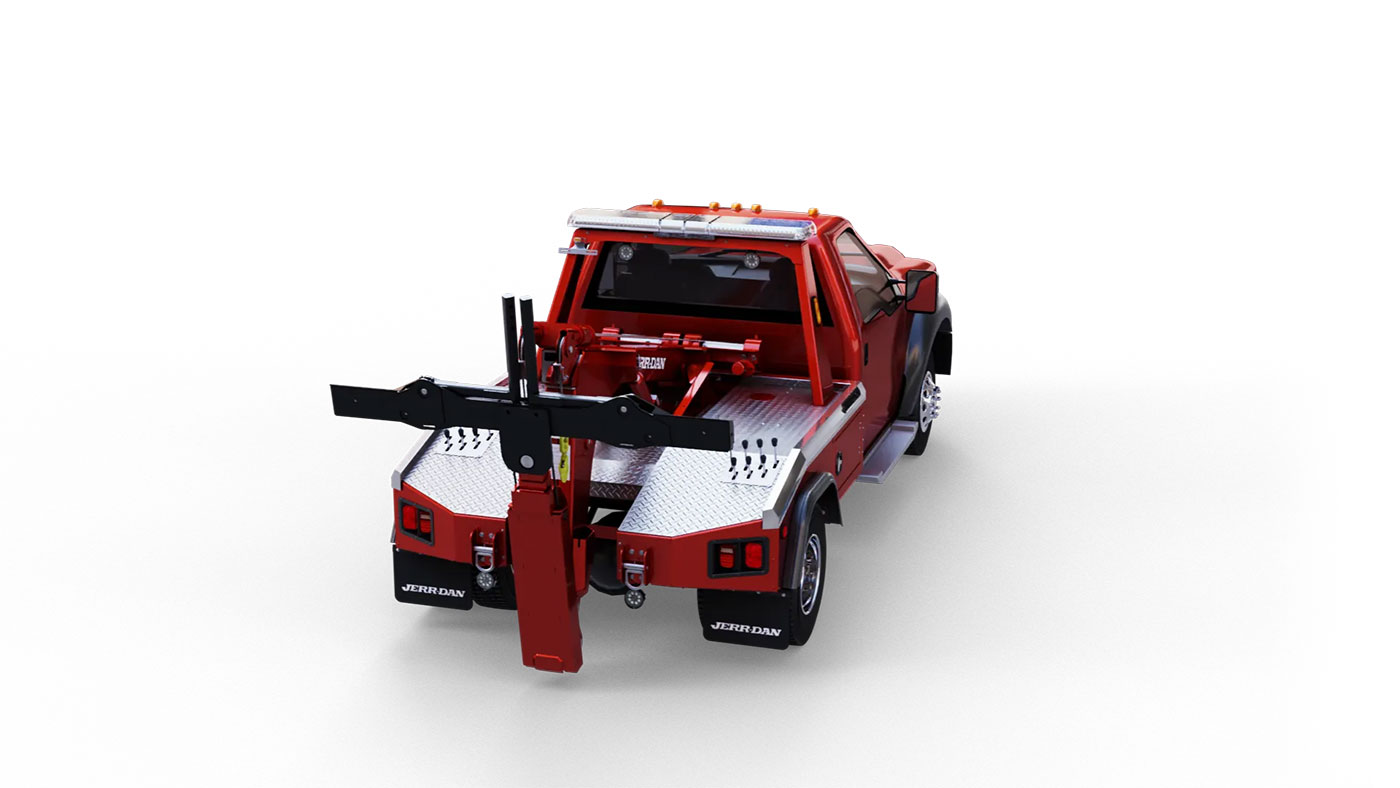

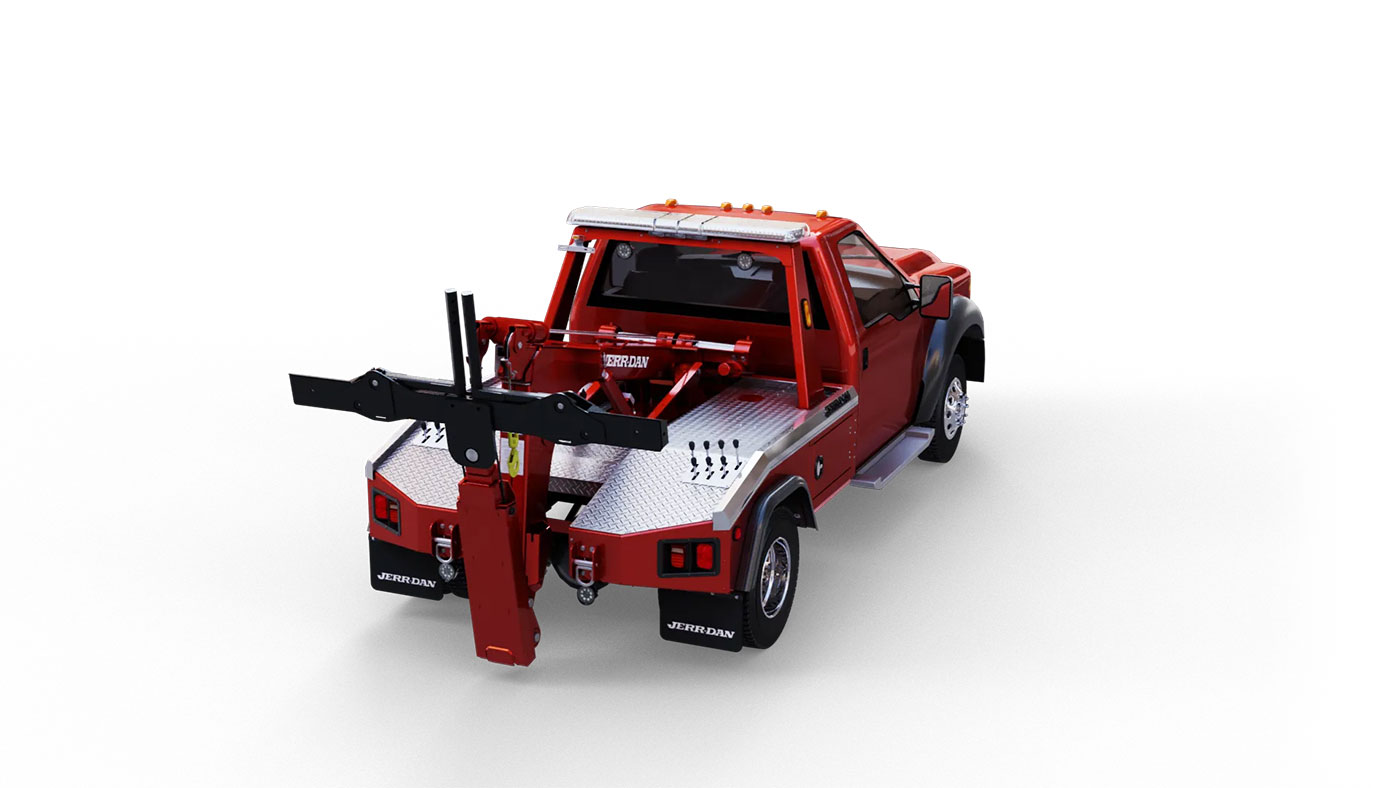

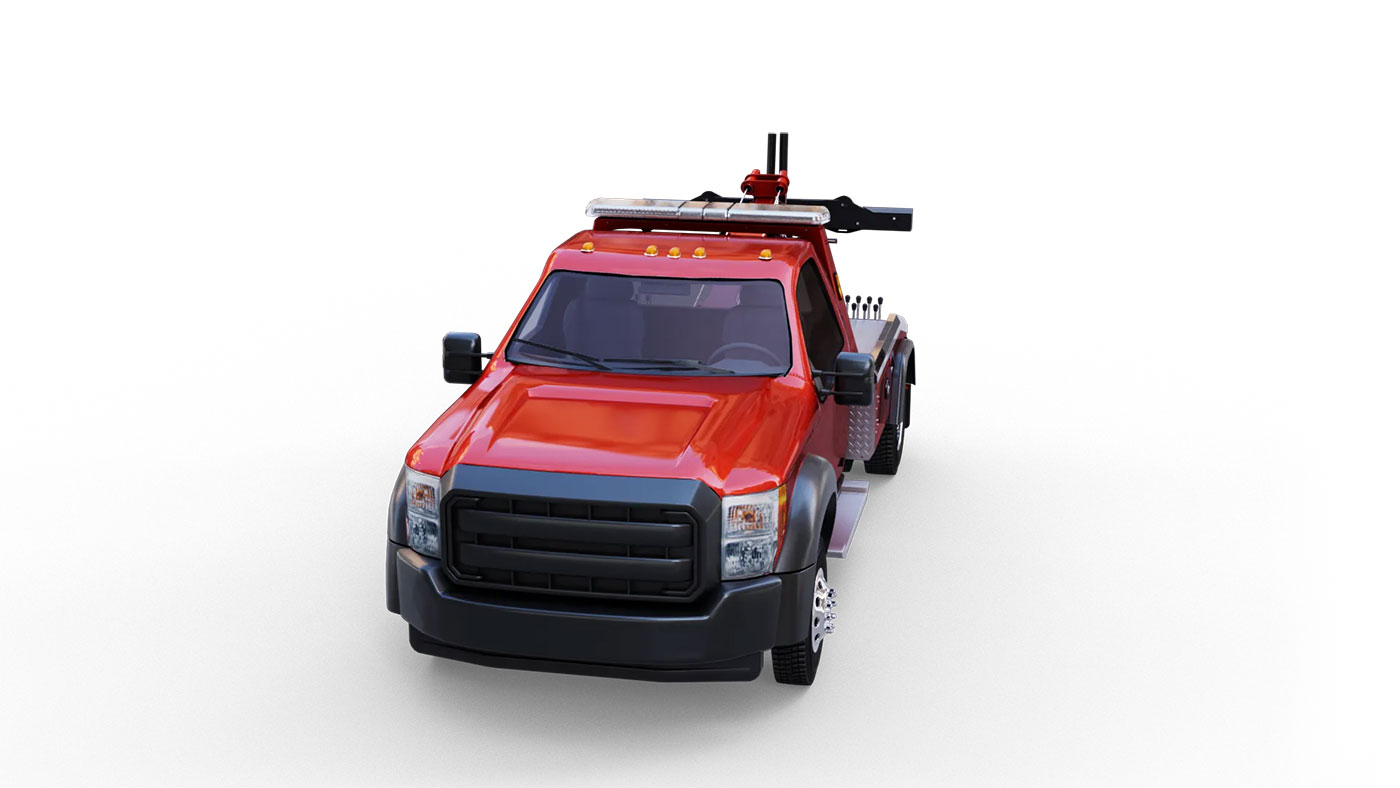

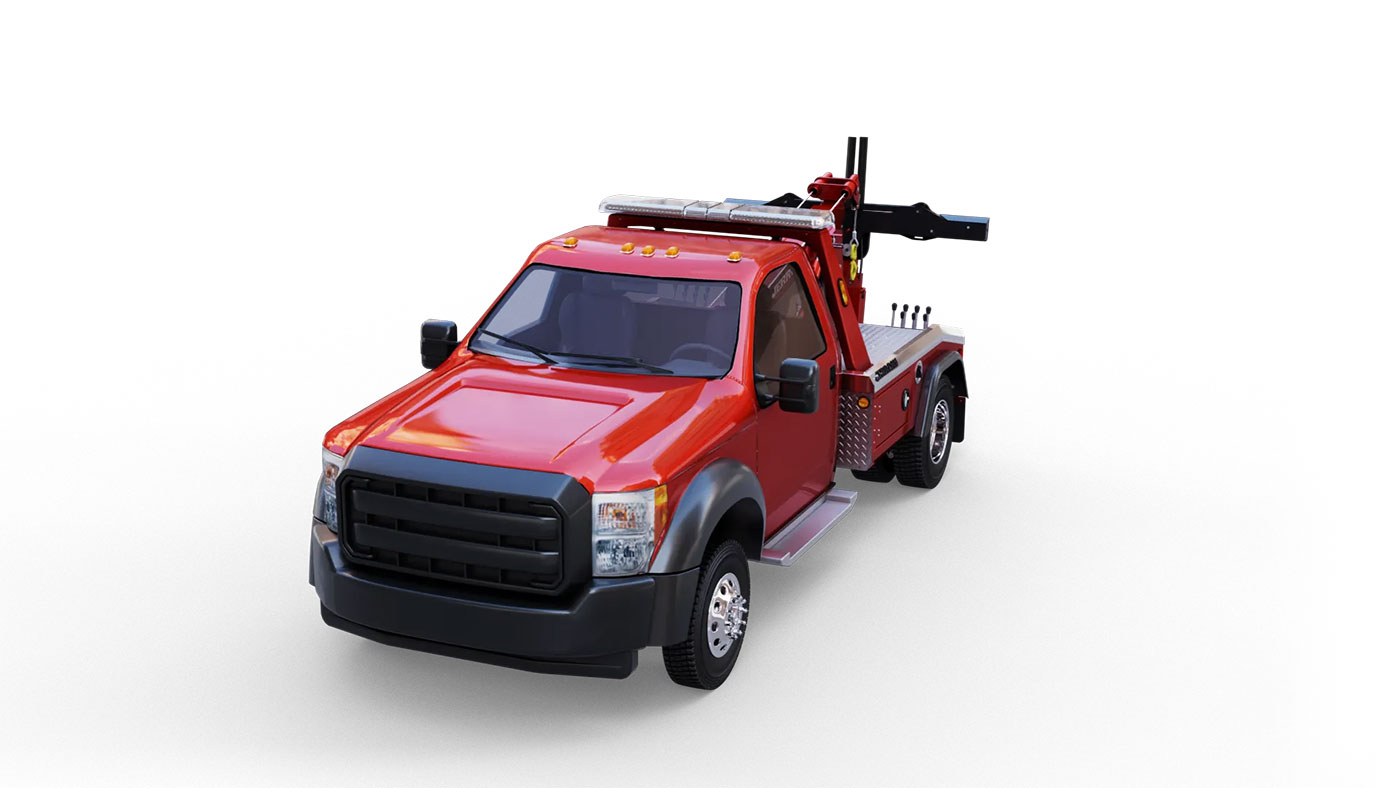

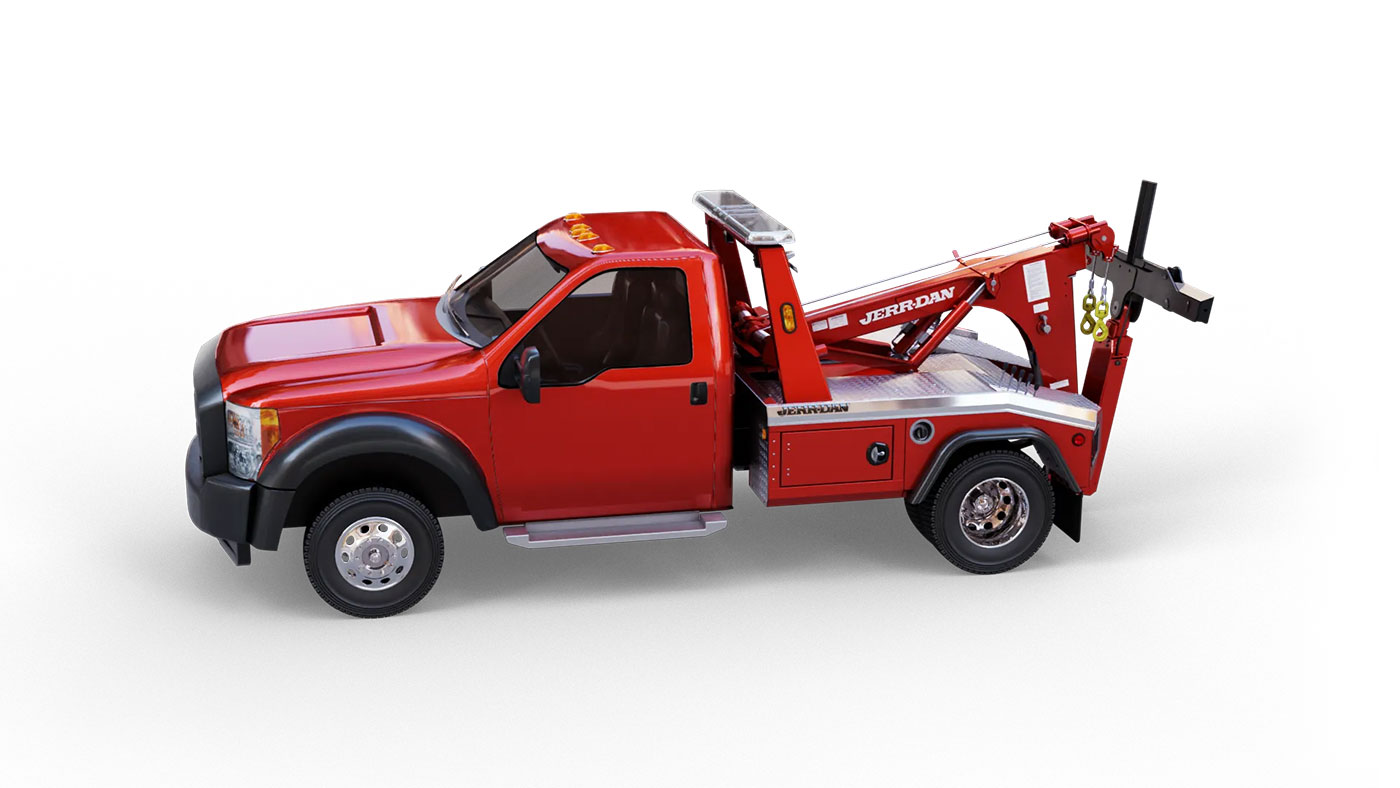

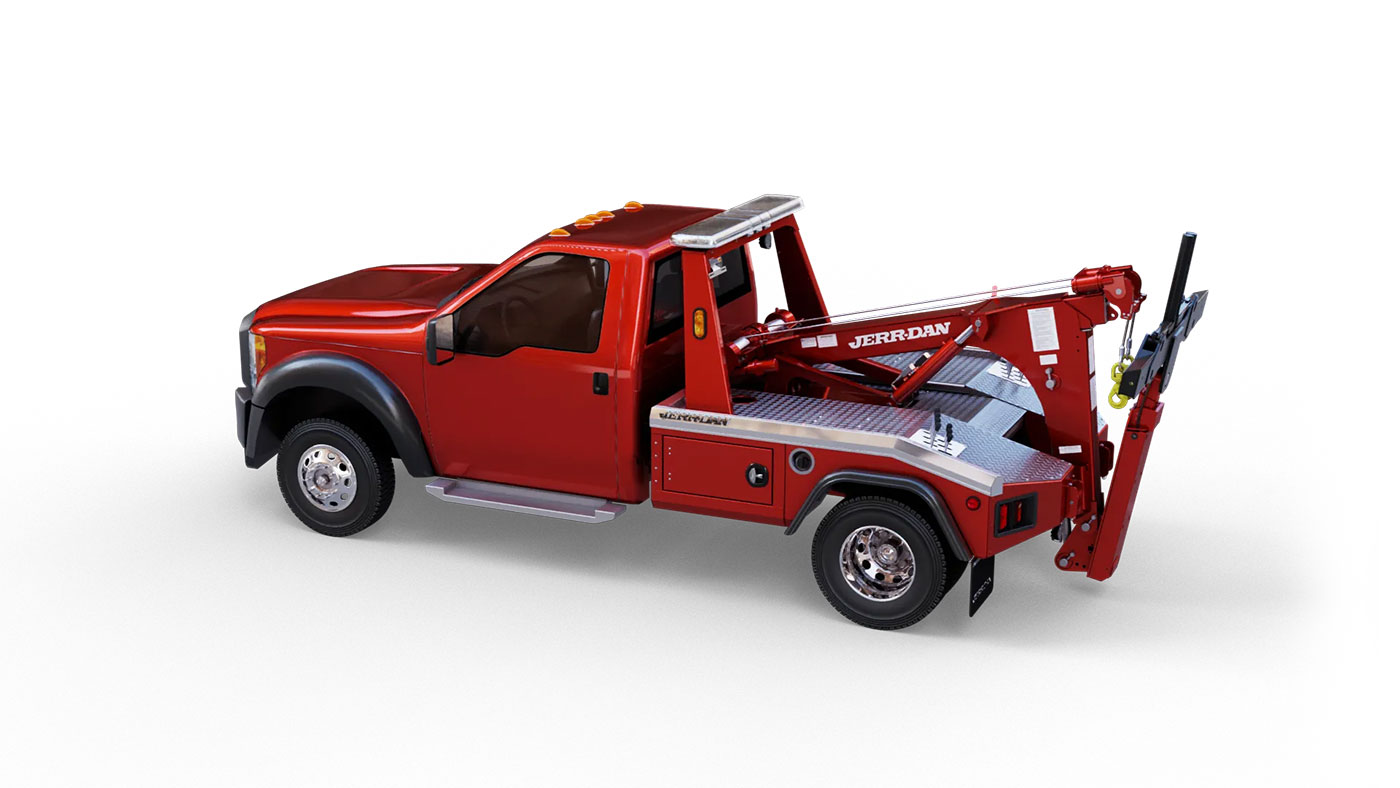

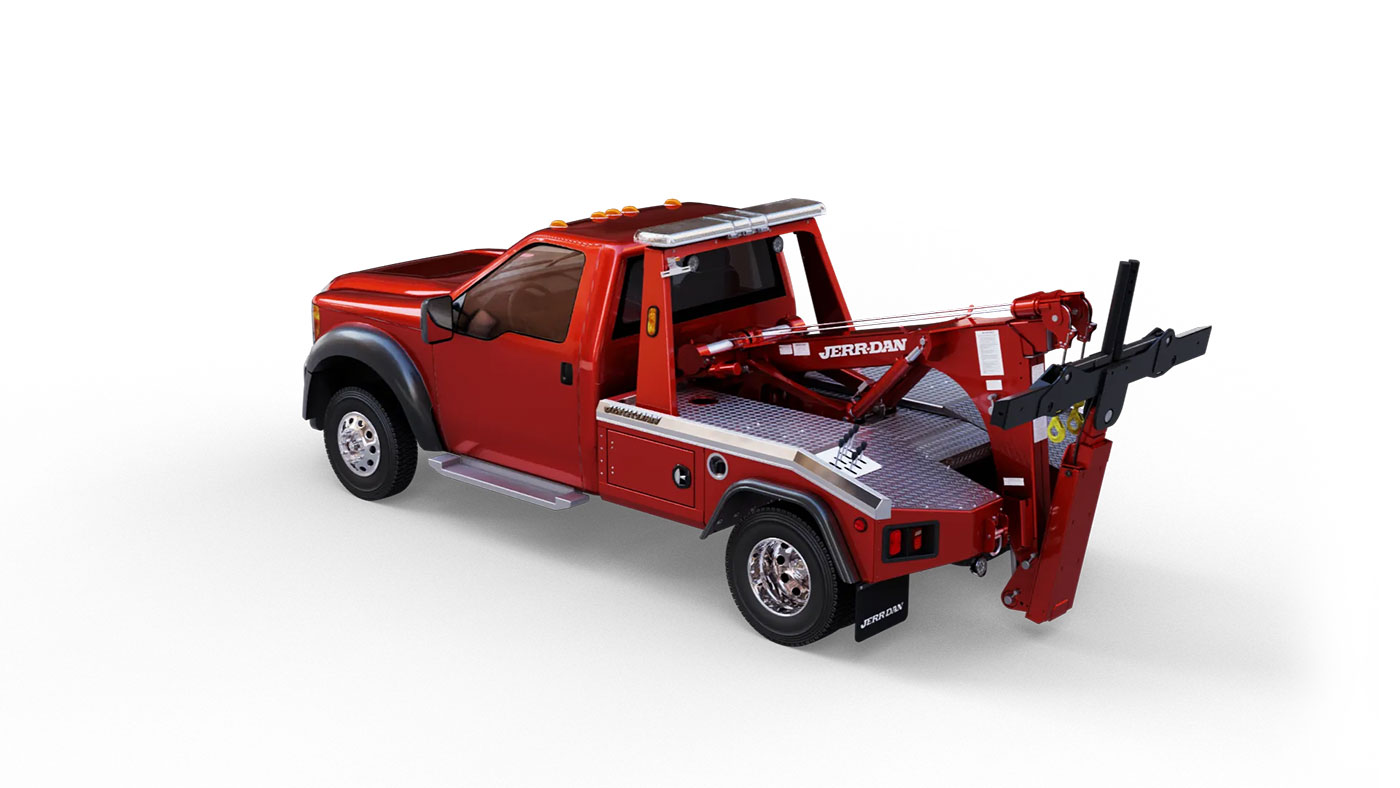

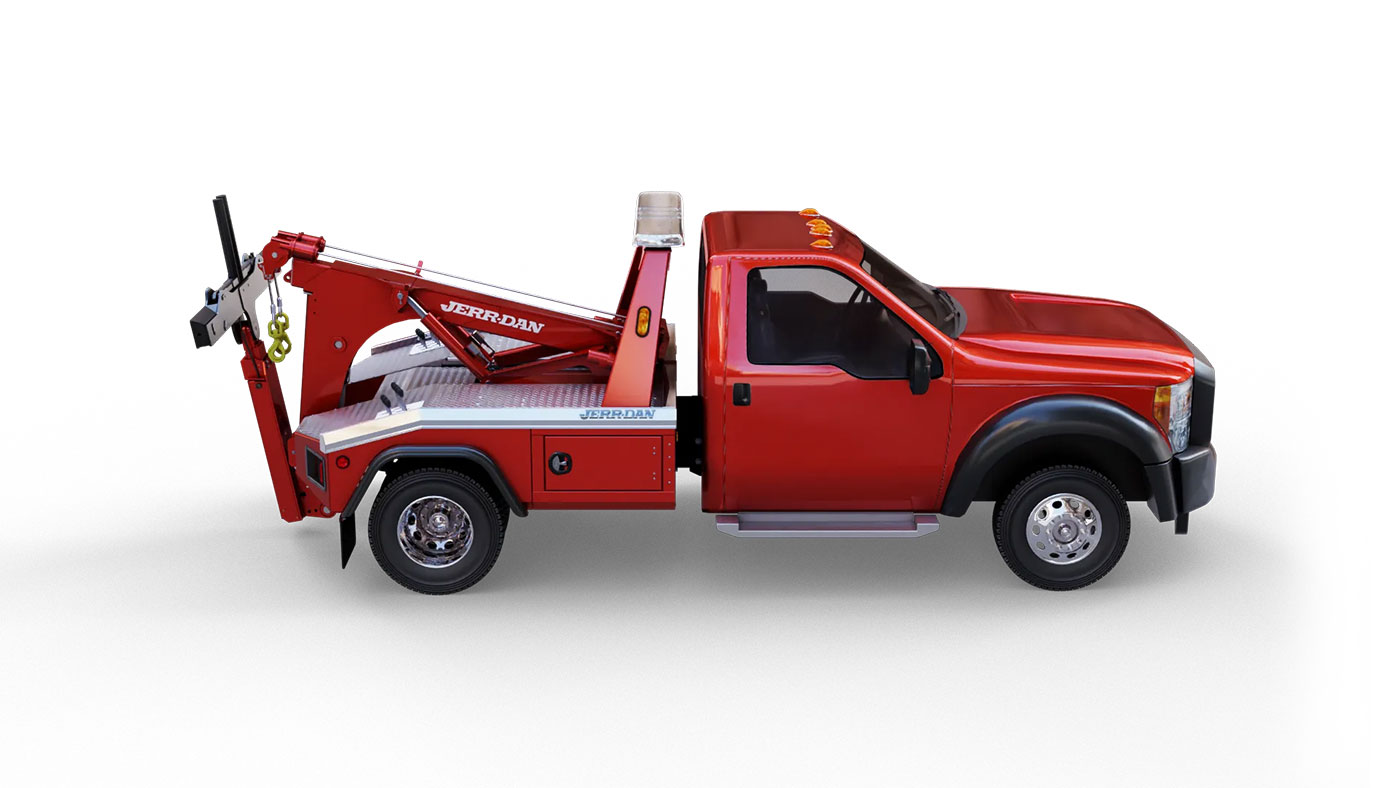

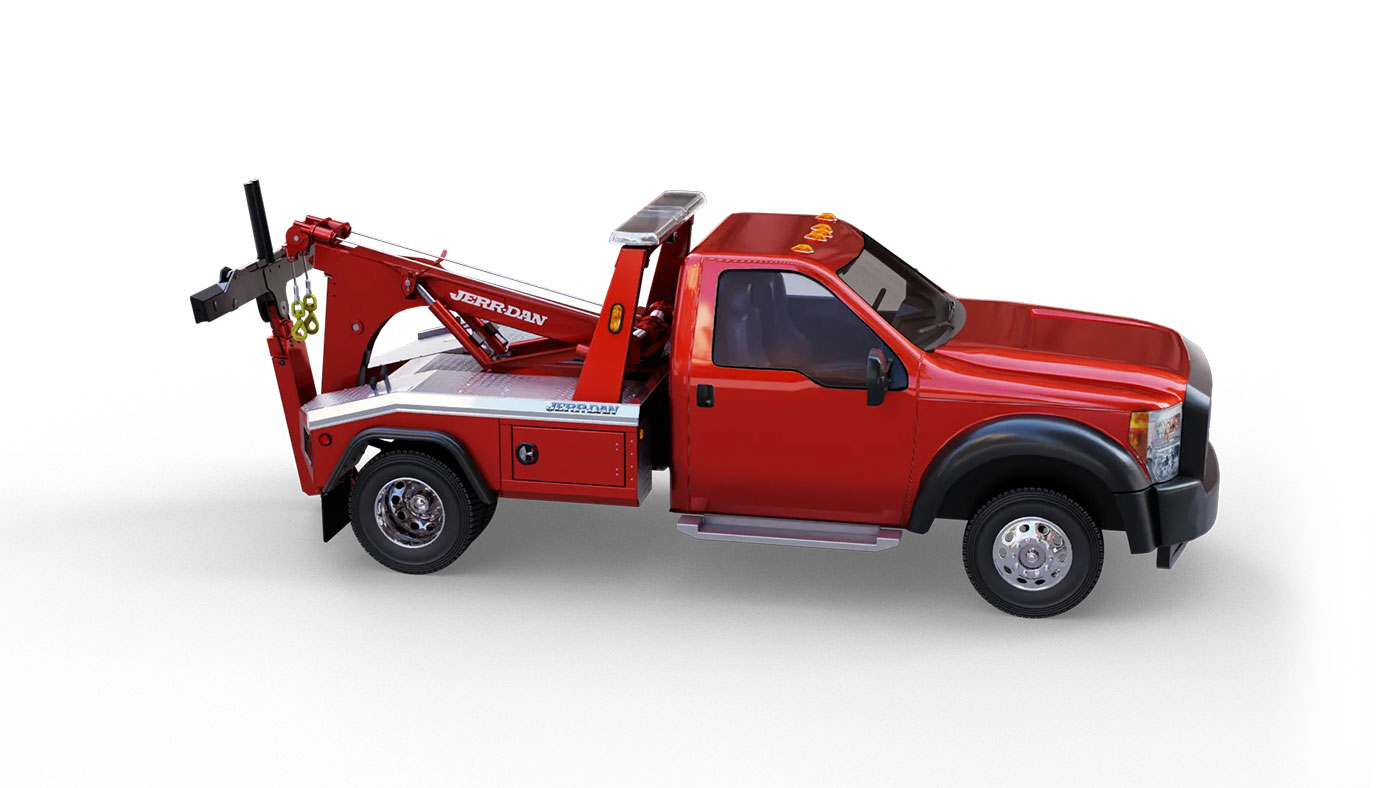

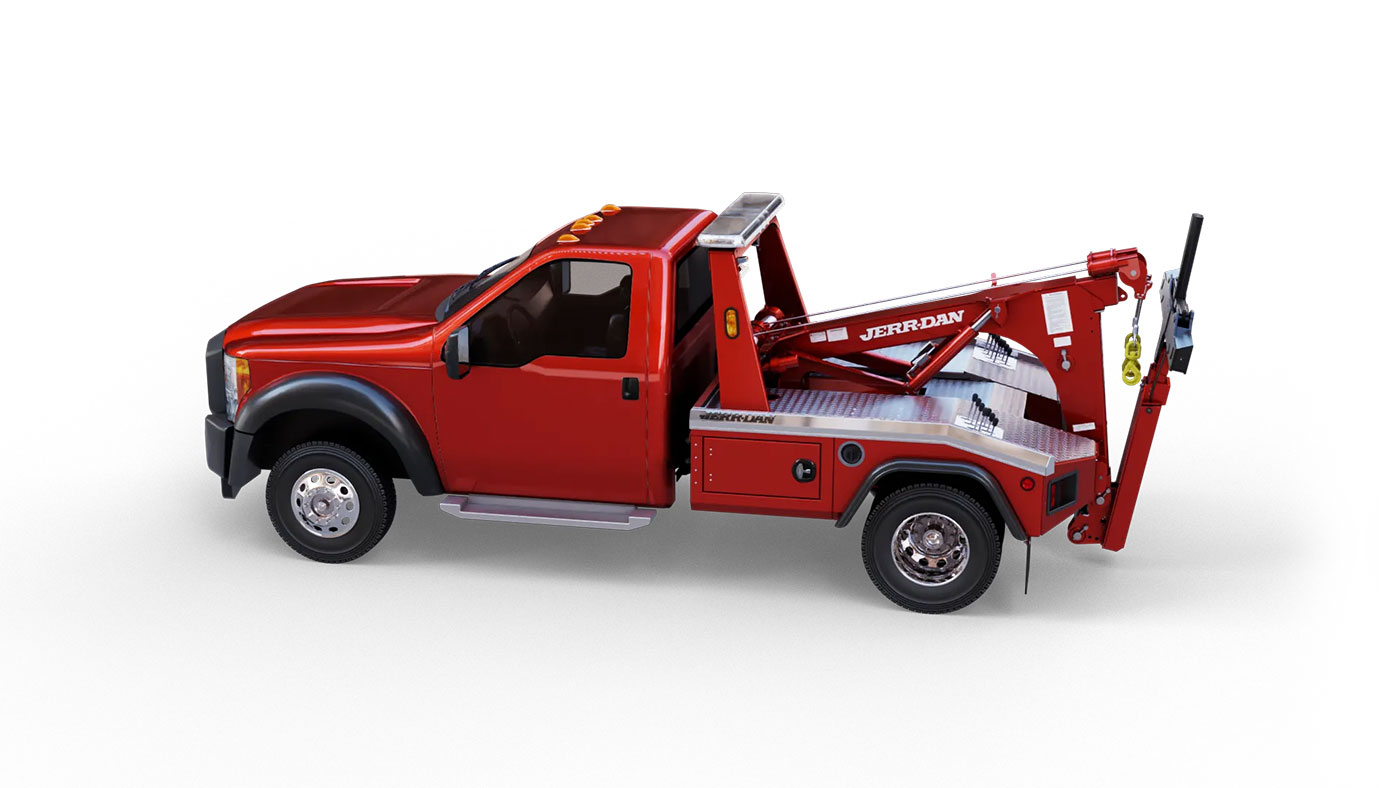

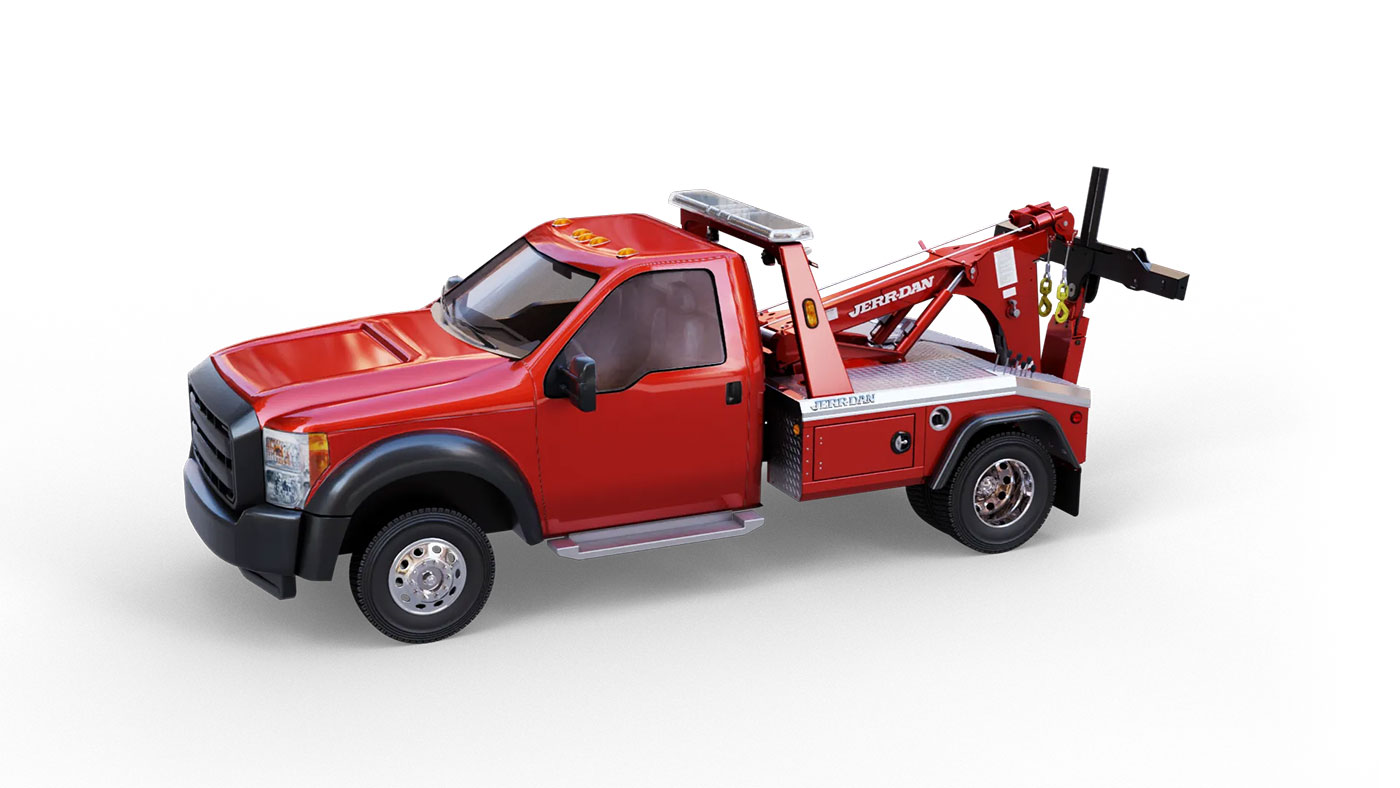

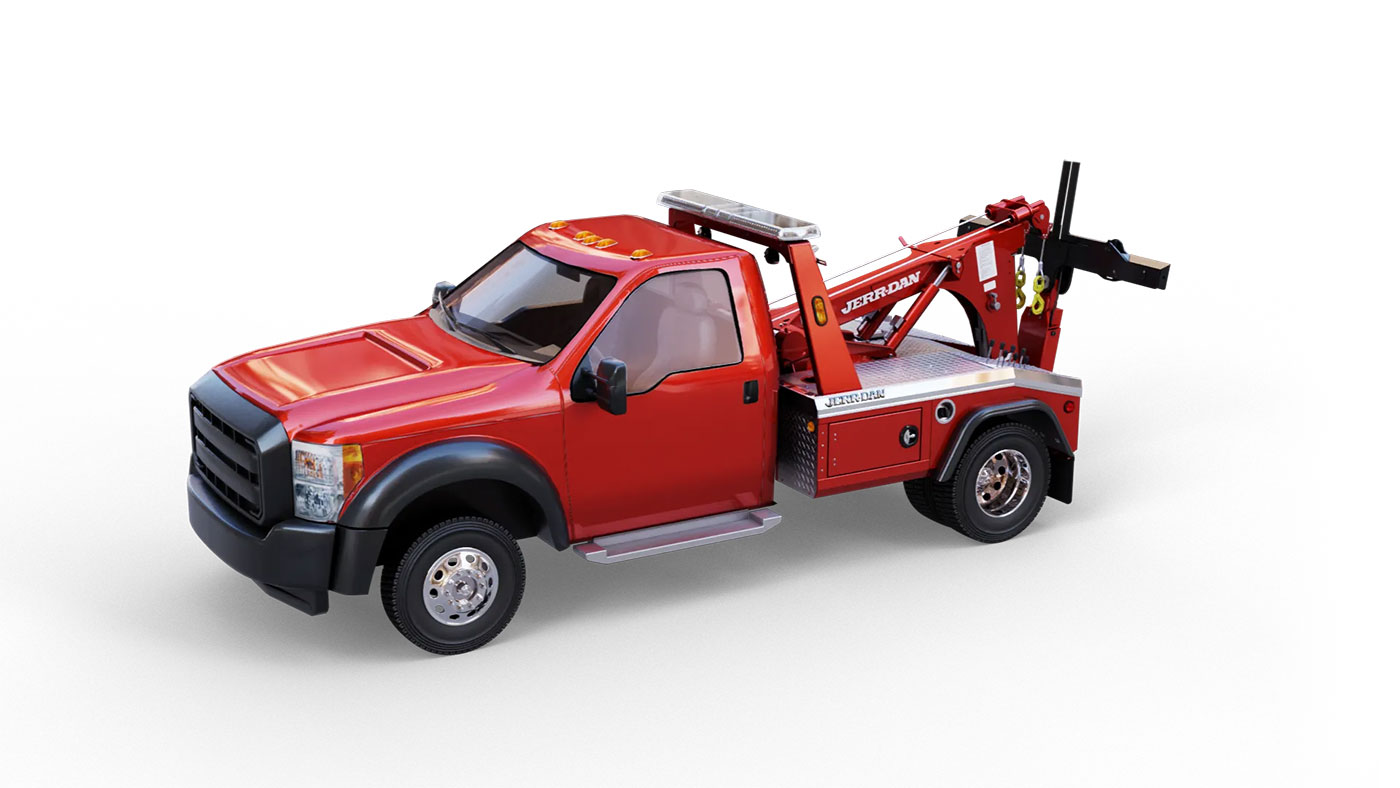

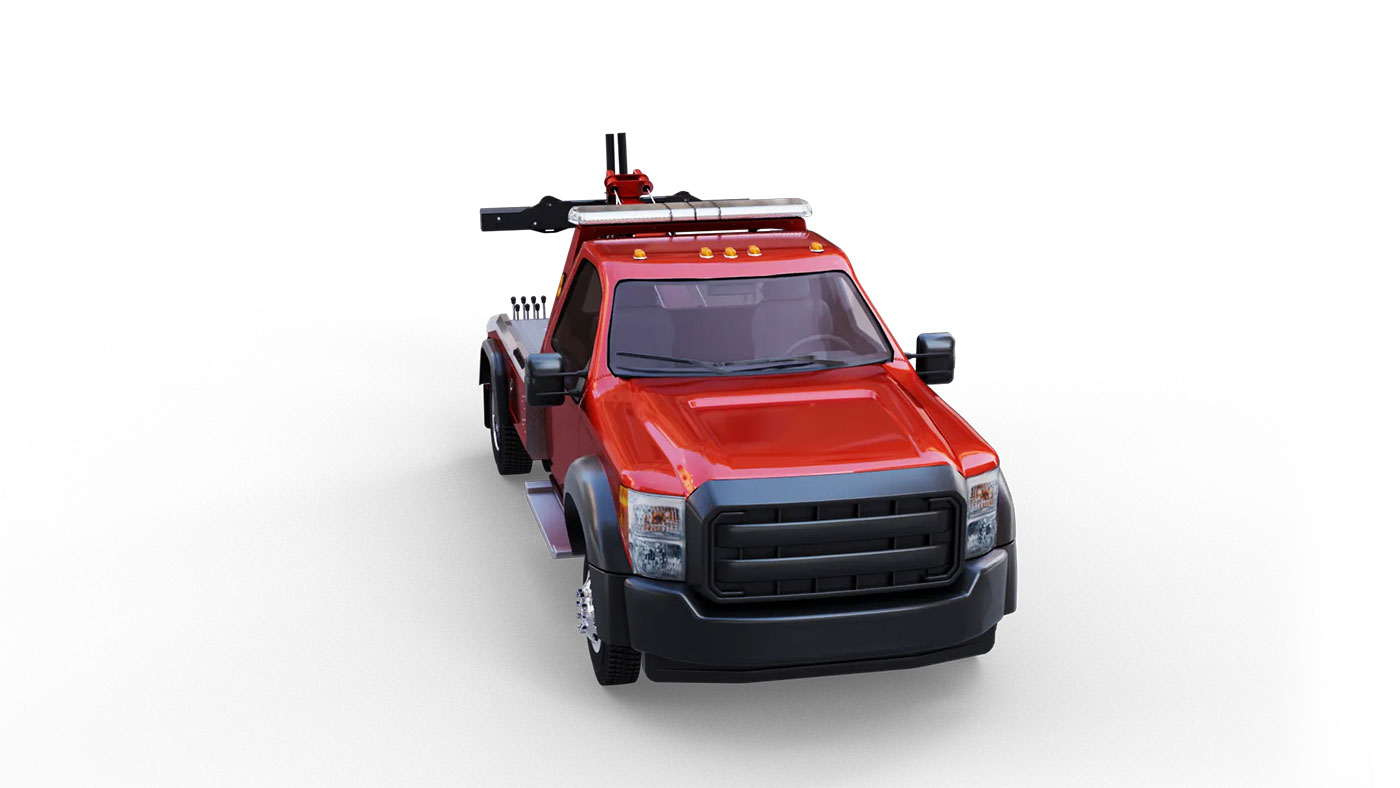

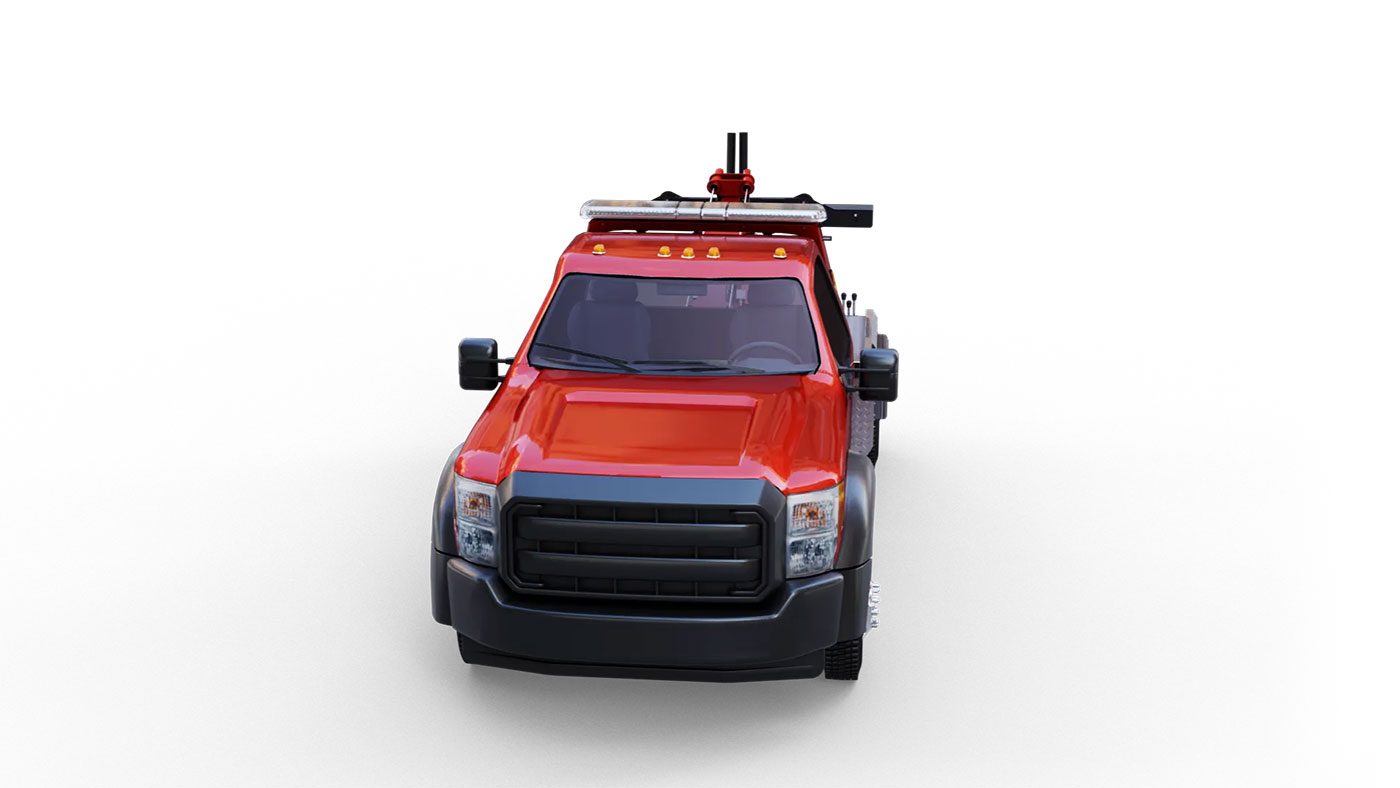

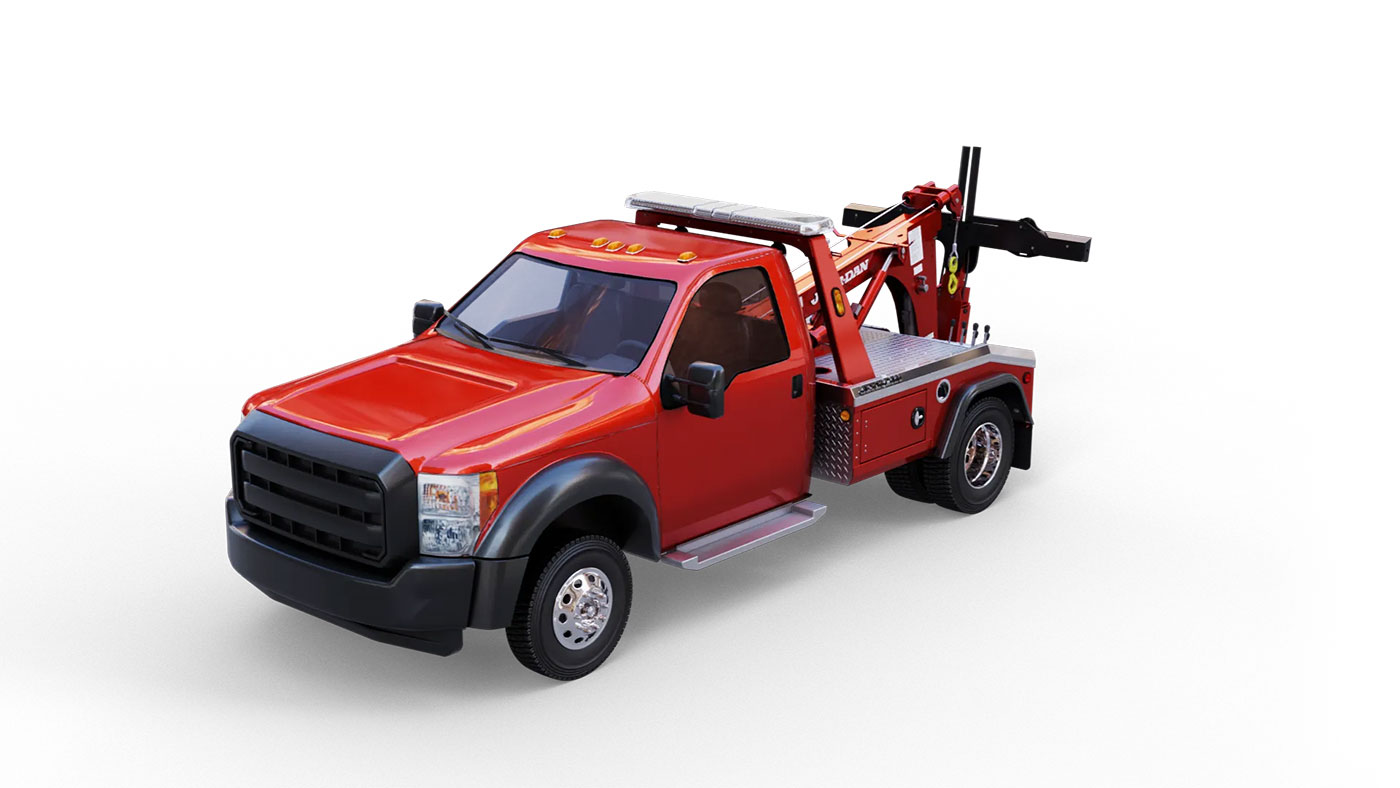

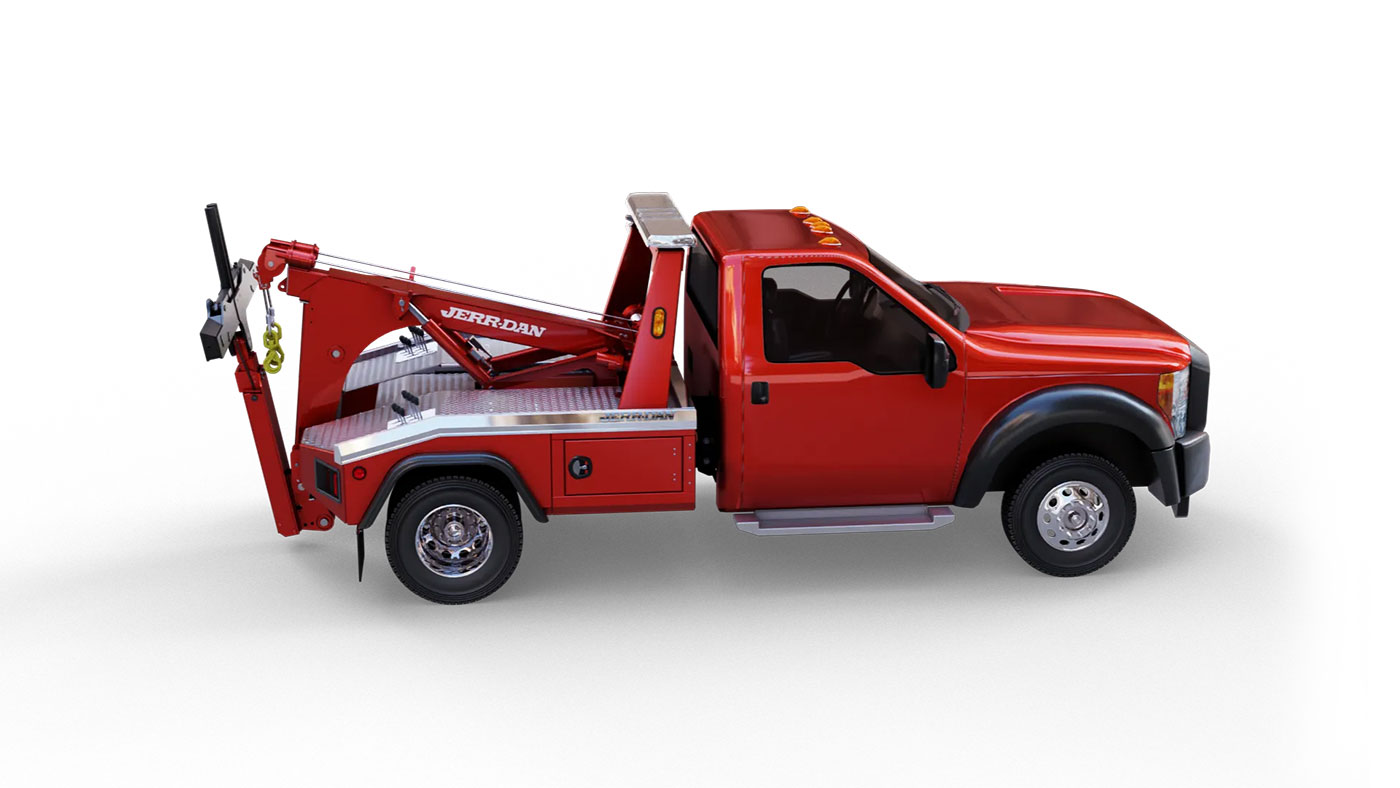

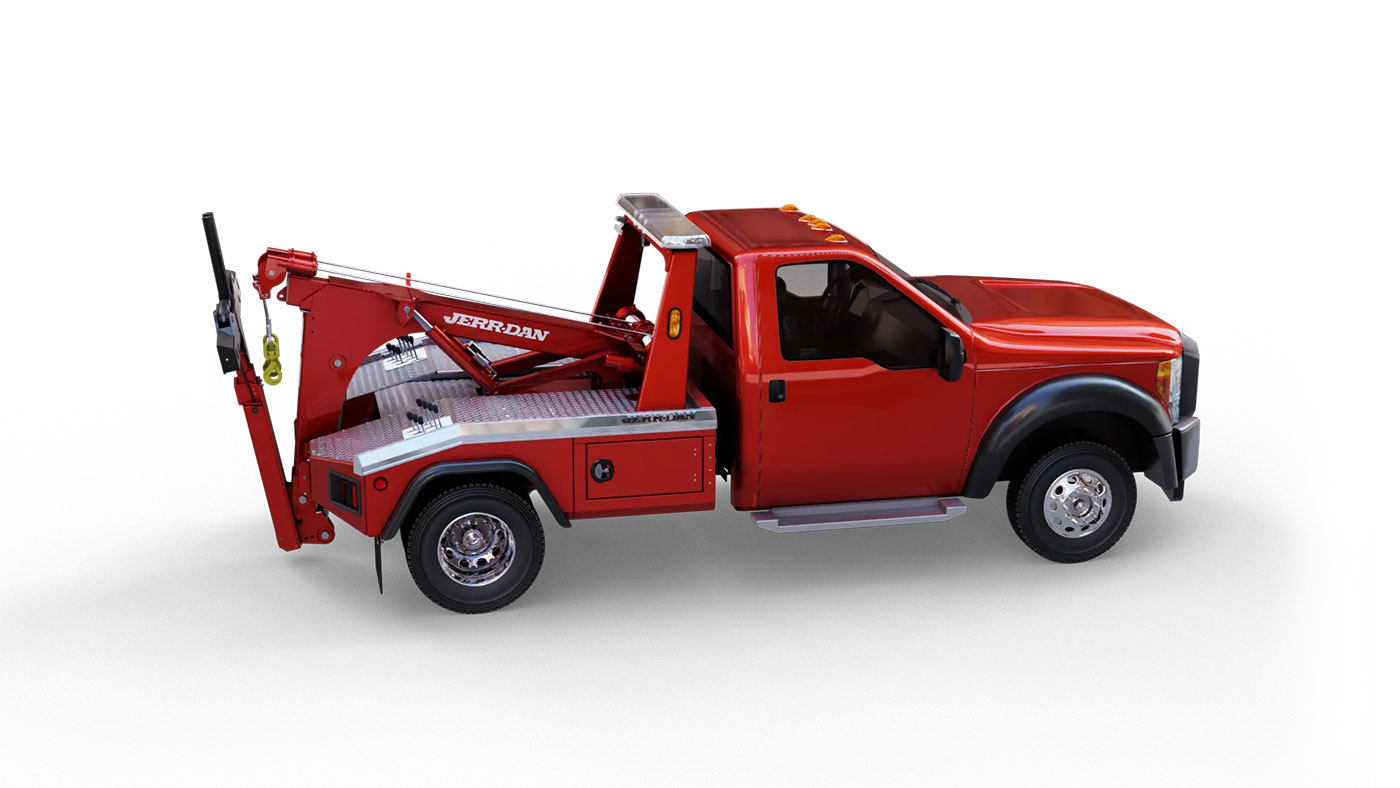

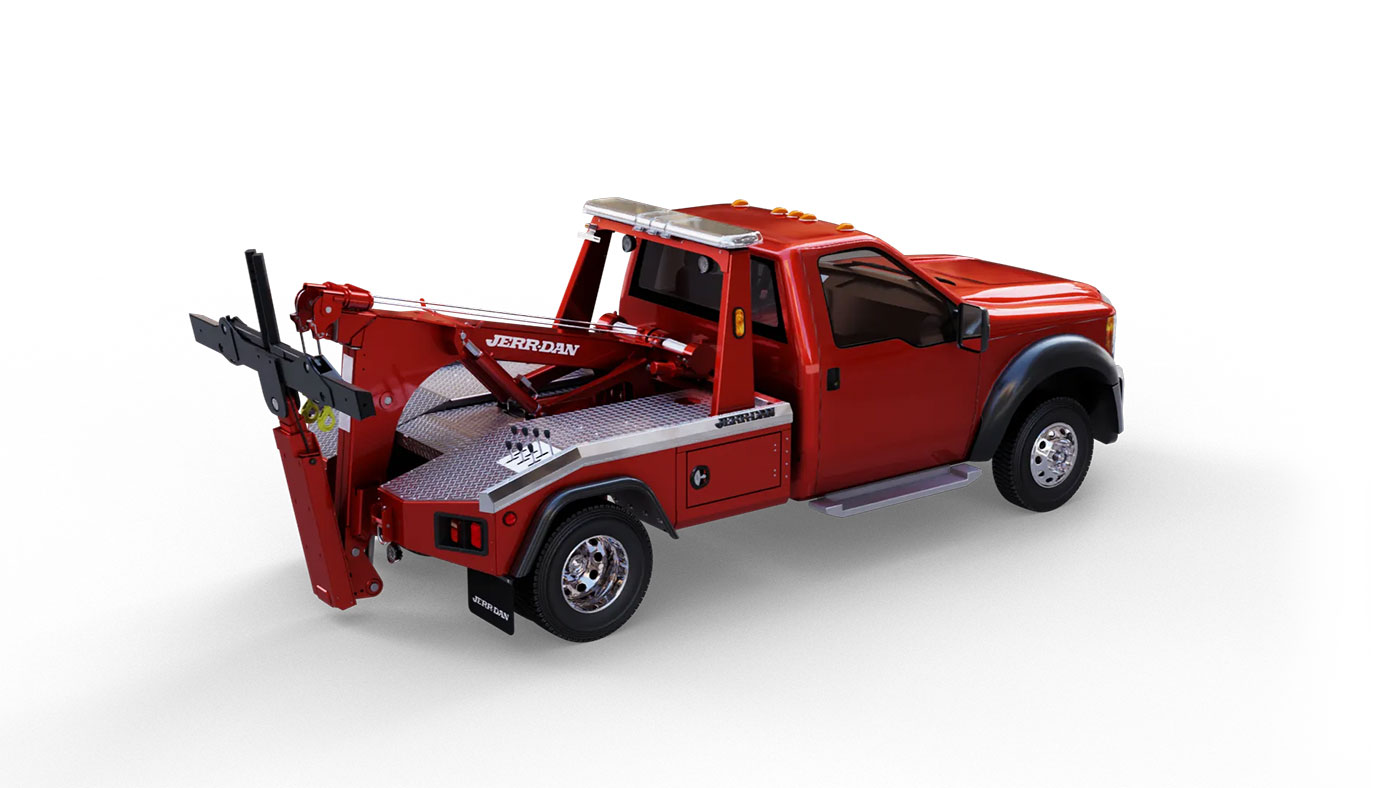

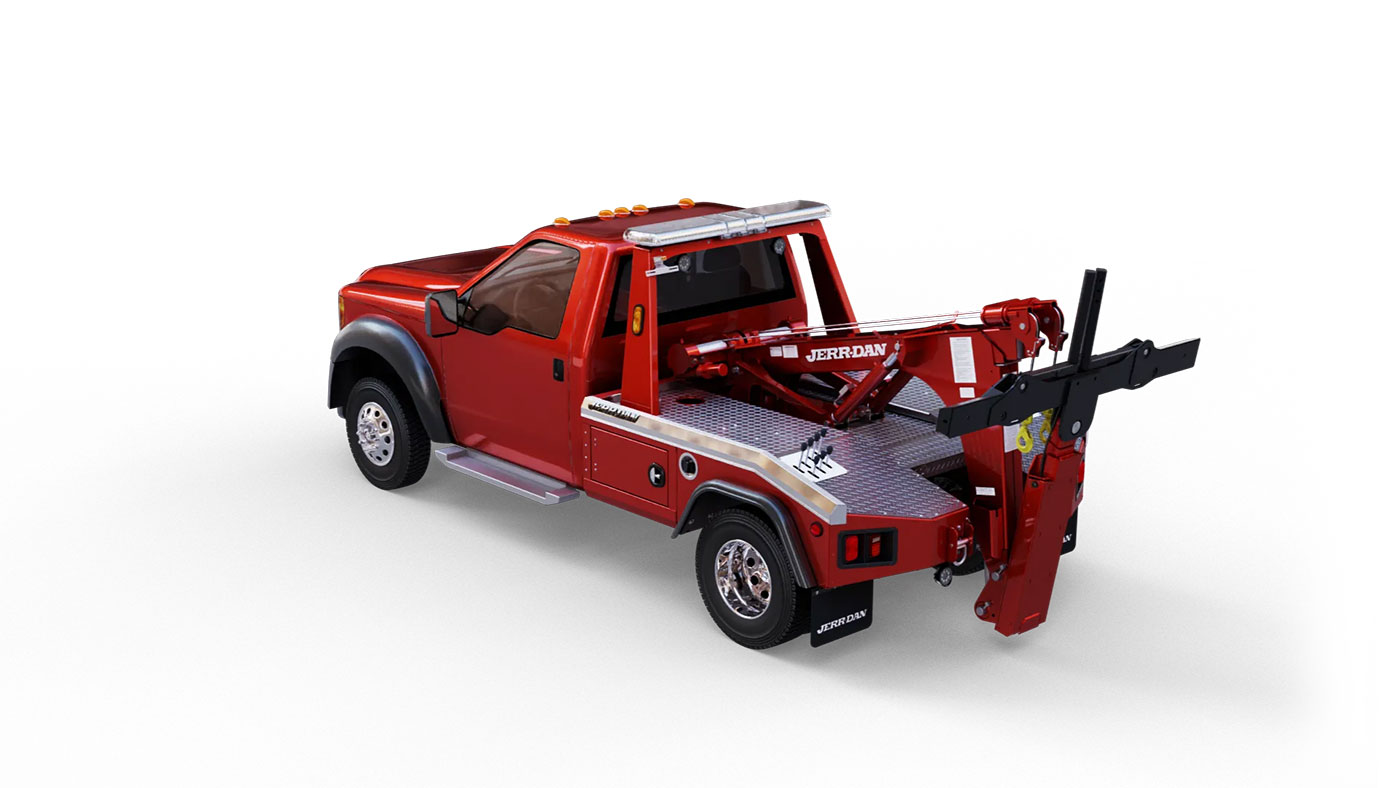

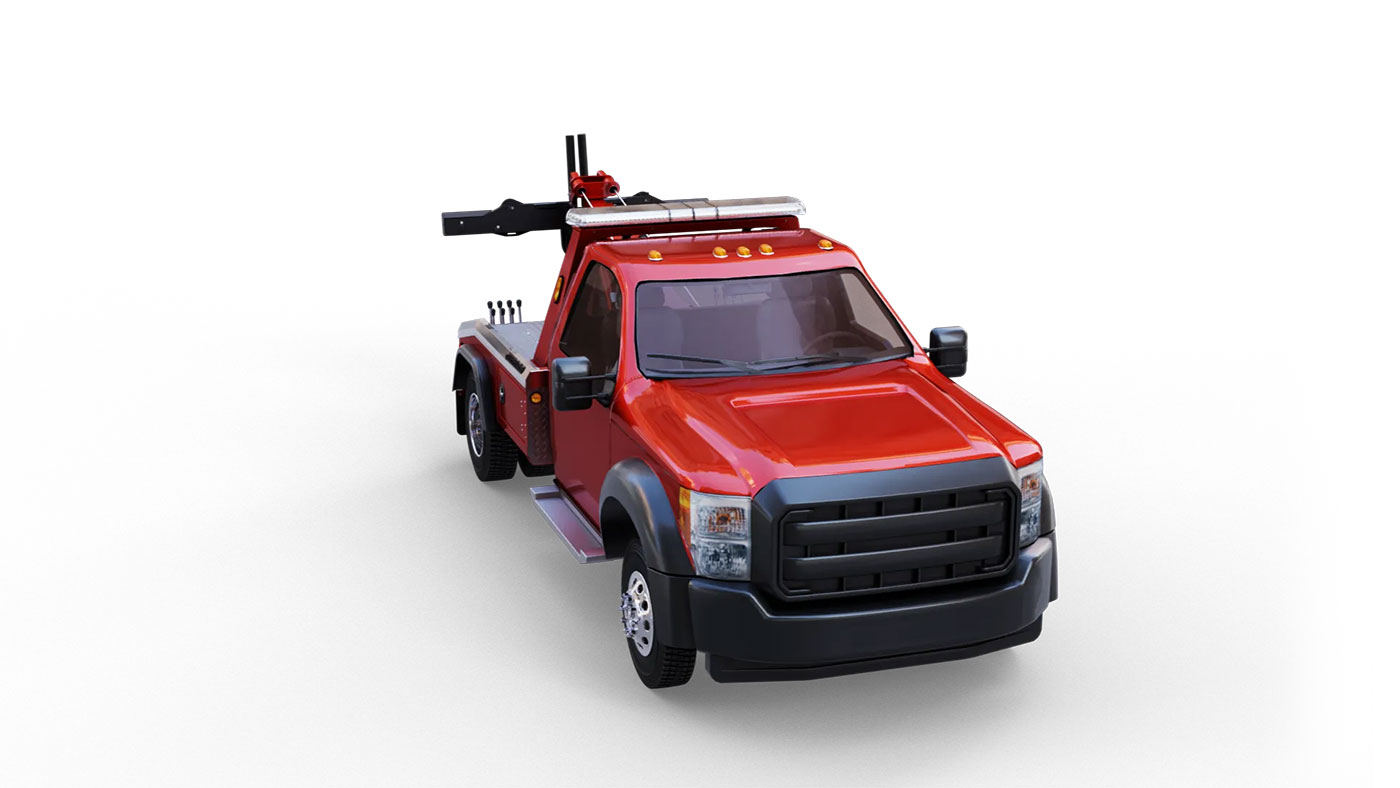

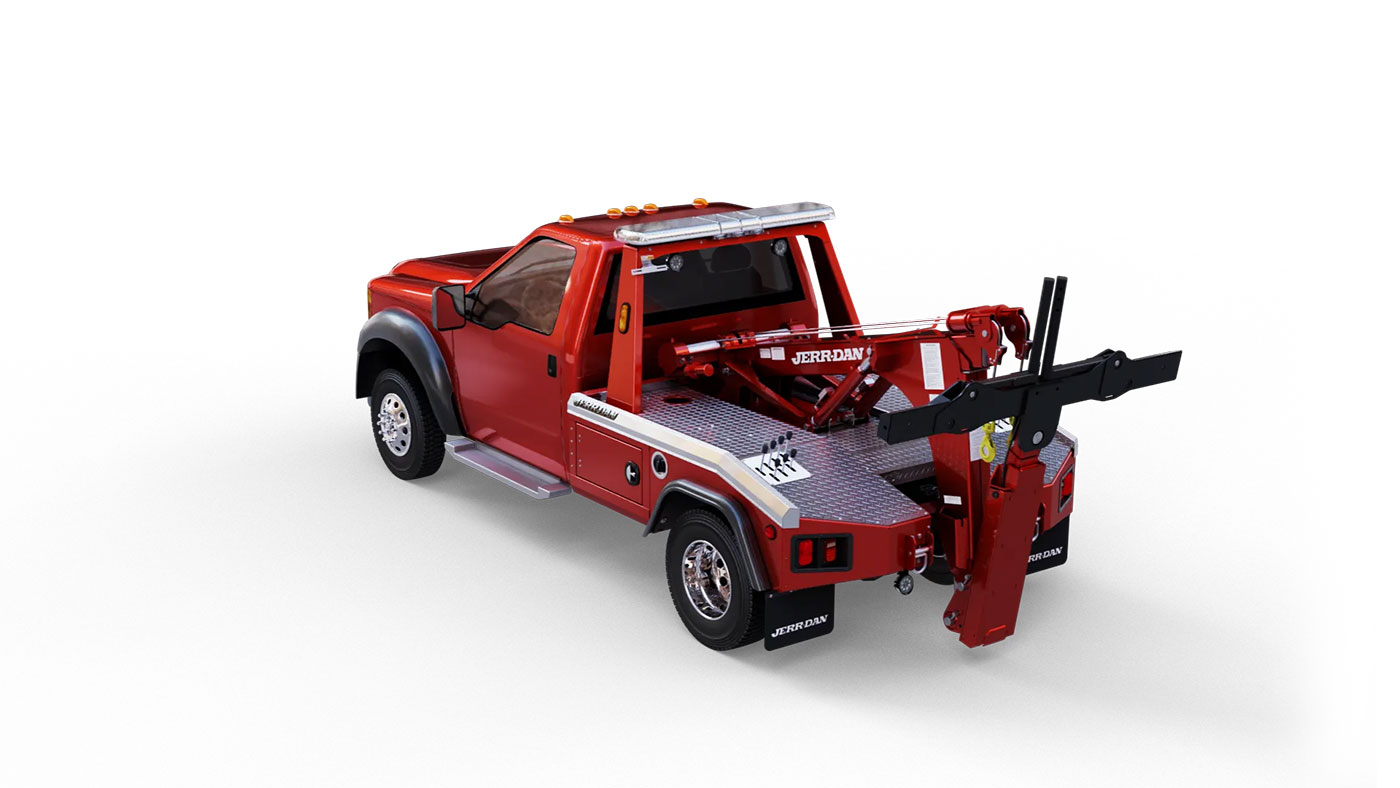

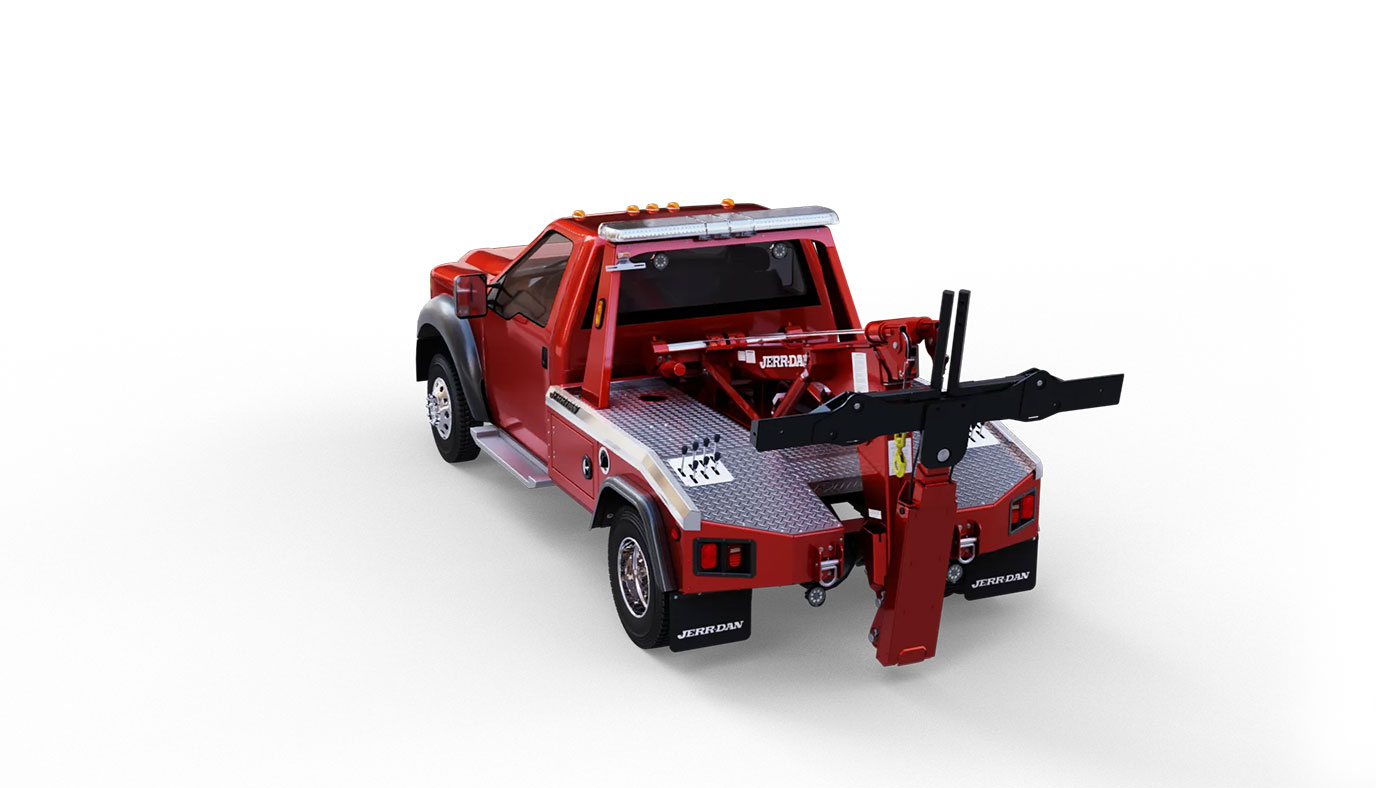

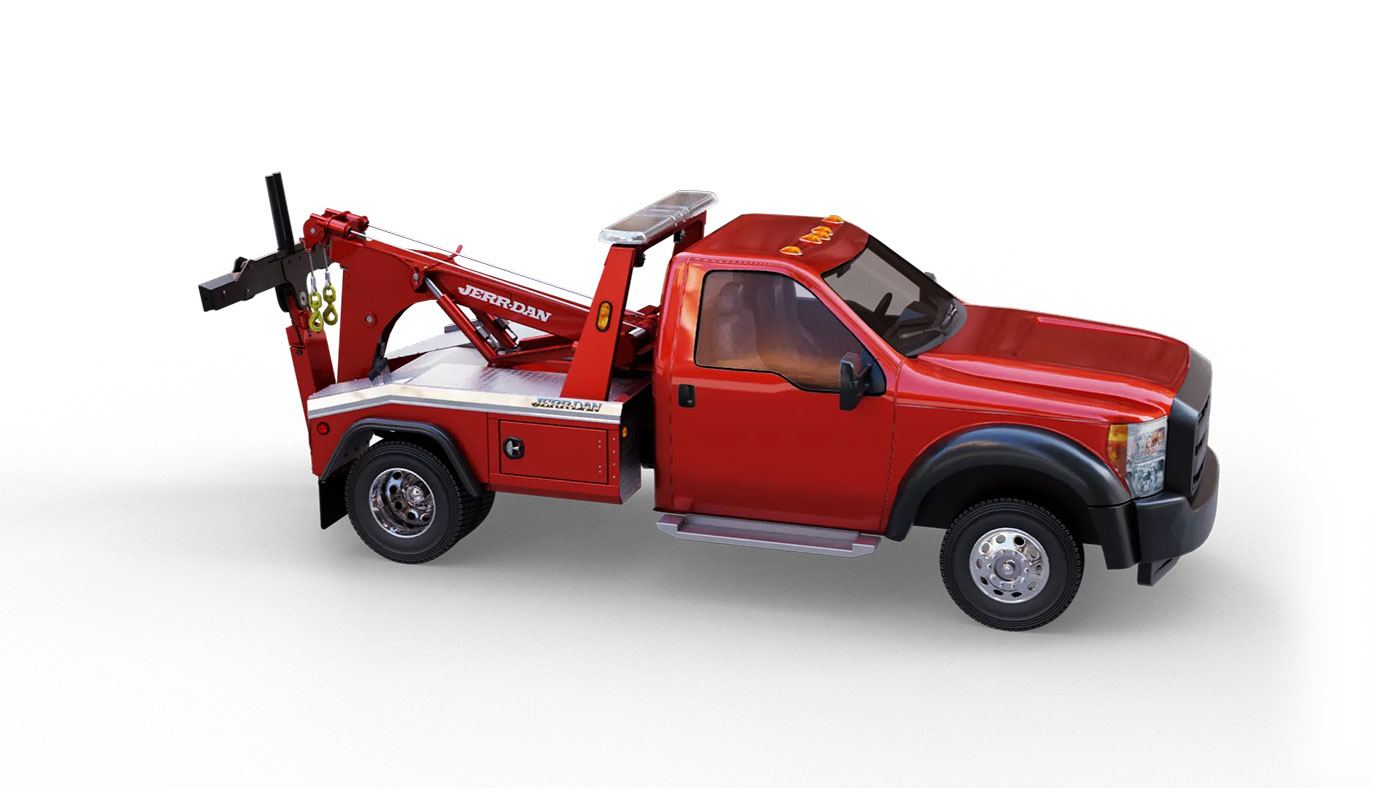

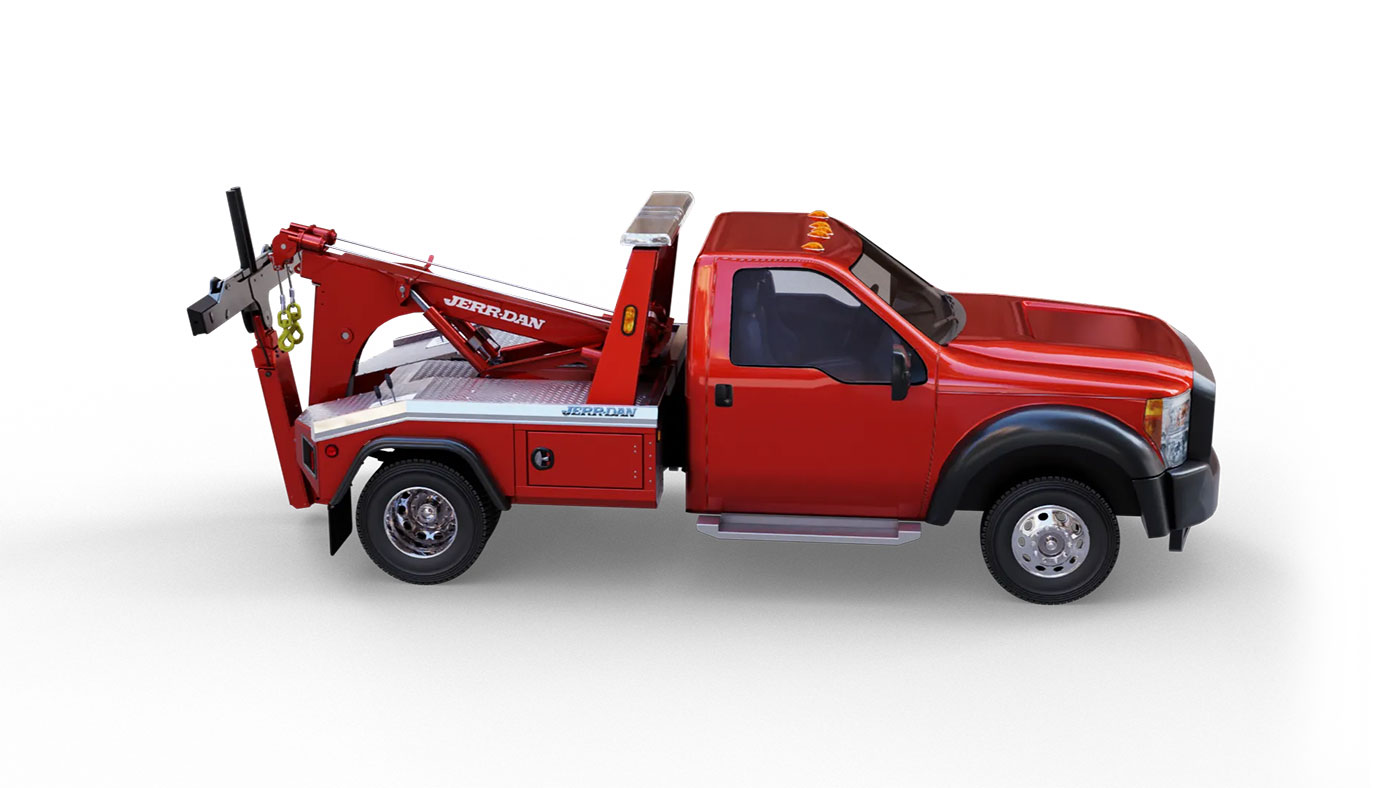

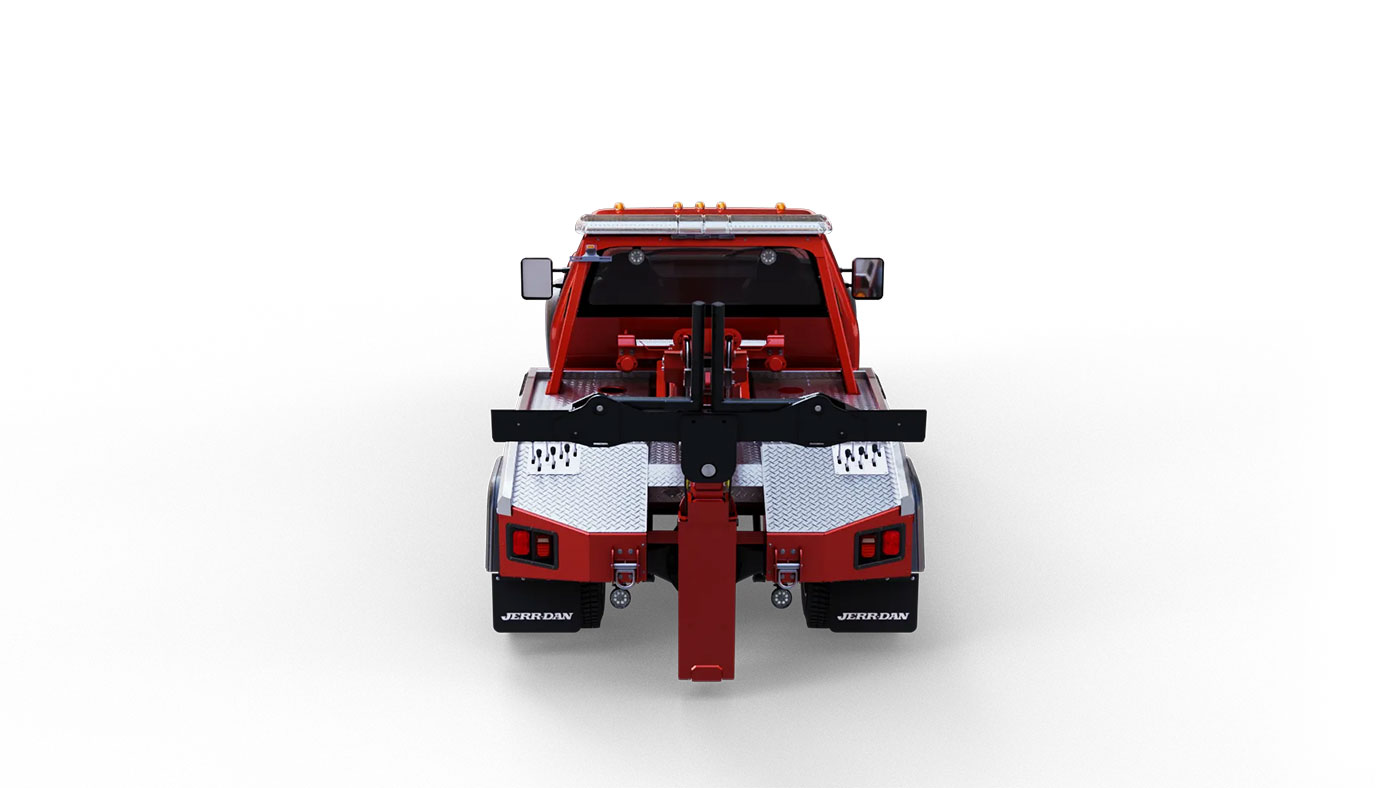

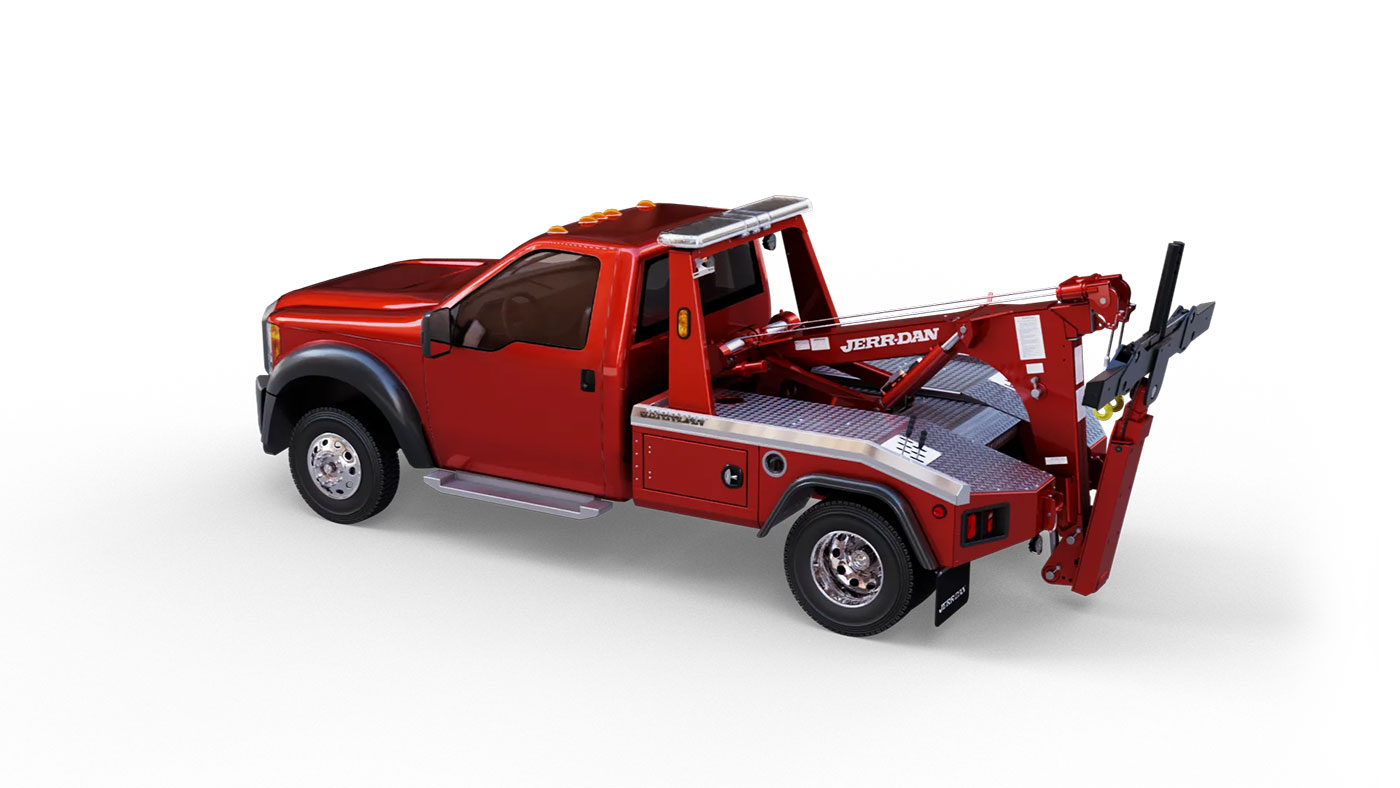

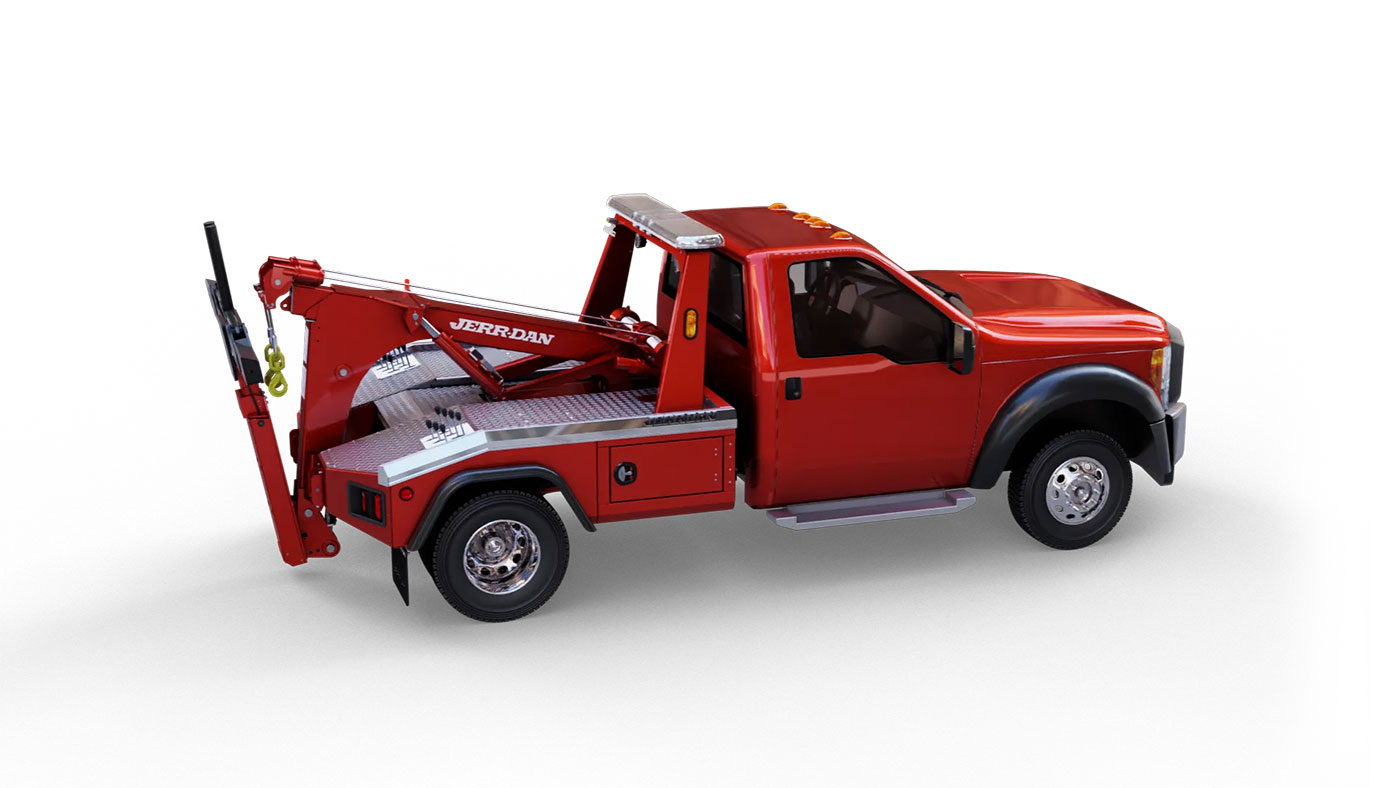

360 View

MPL-40

Features

BoomLiftCylinders

DualSideControls

DualWinches

Features

Boom Lift Cylinders

Dual Side Controls

Dual Winches

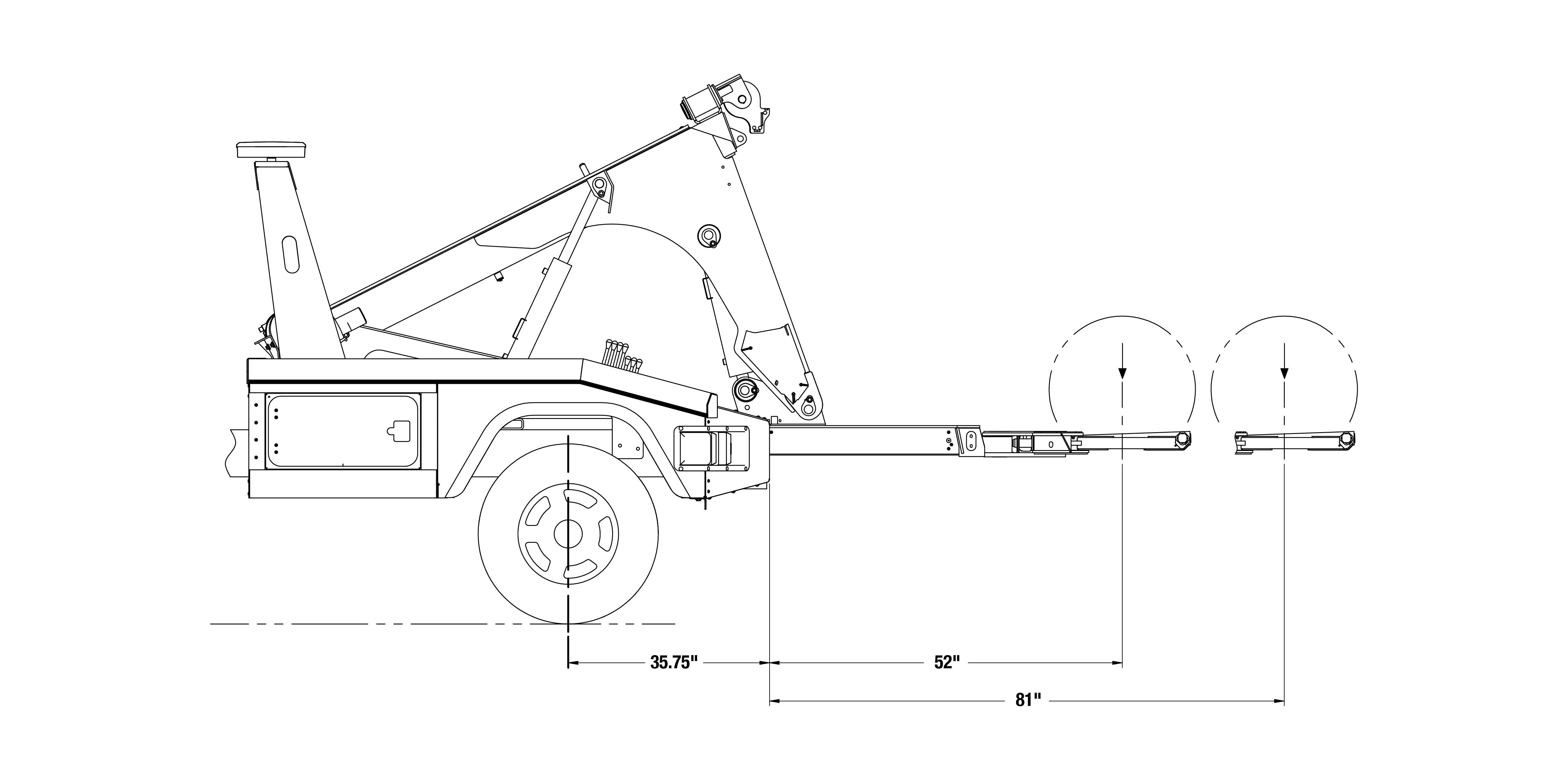

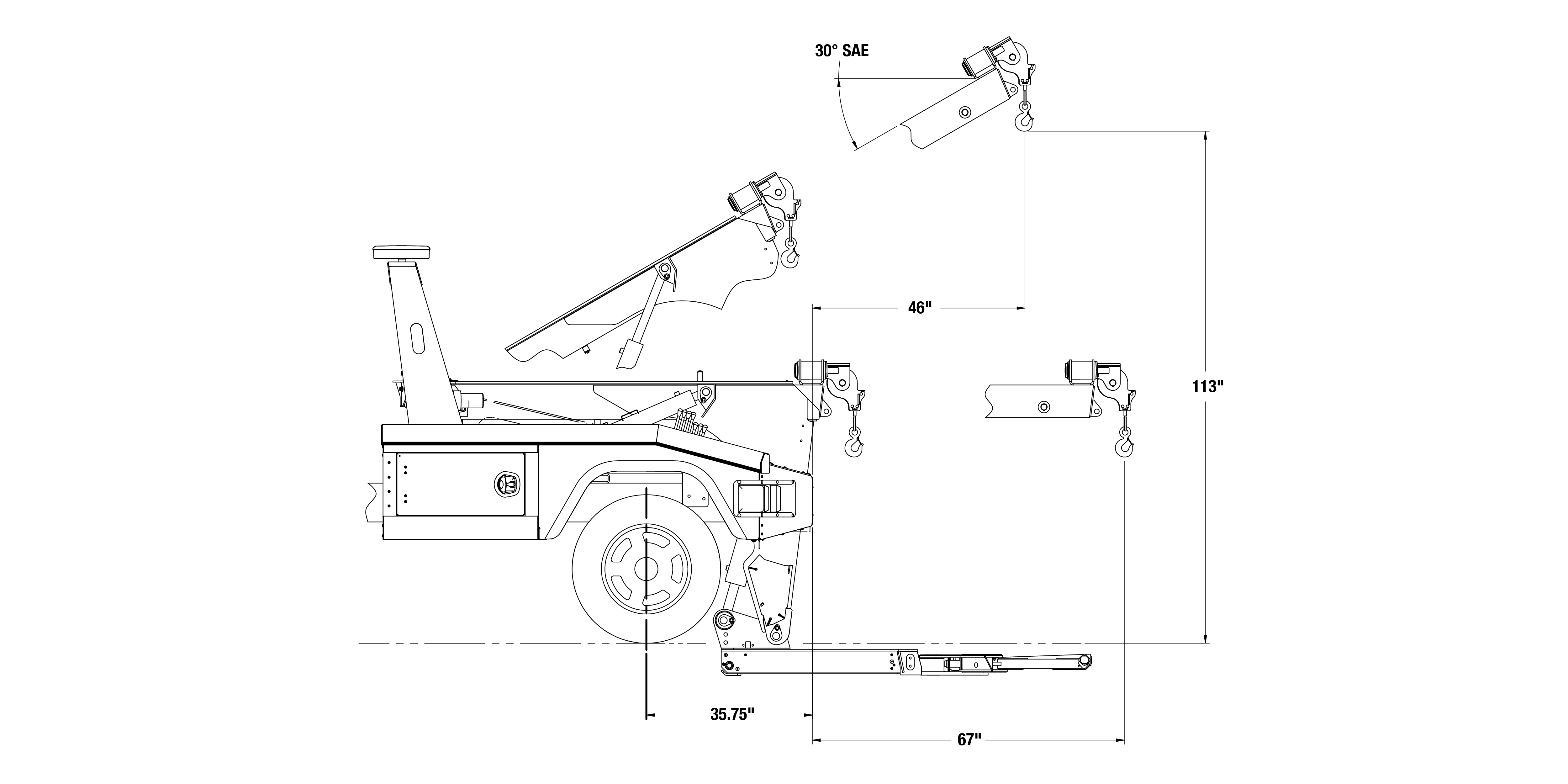

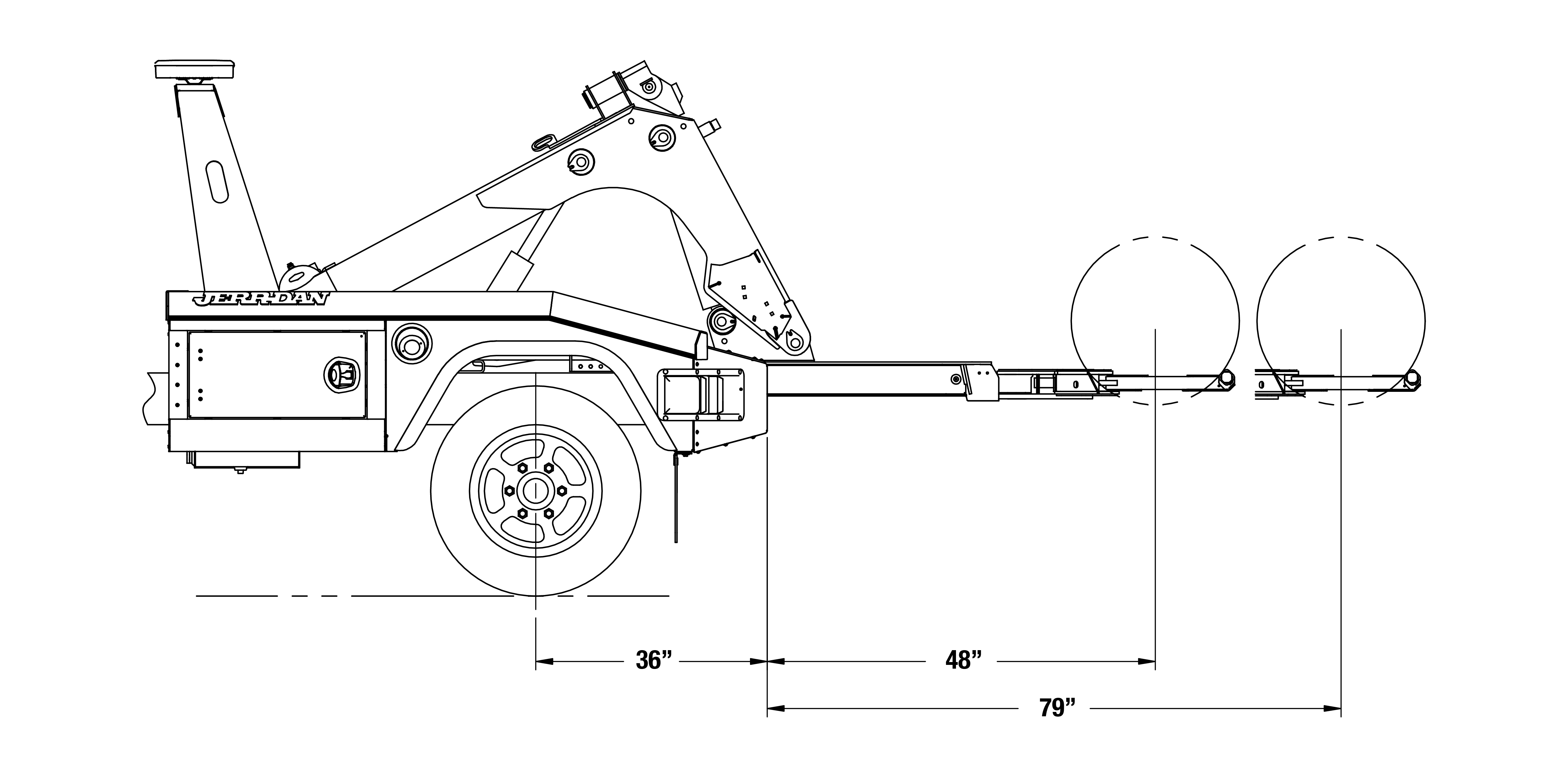

Dimensions

MPL-40

Boom Reach Past Tailboard Reach Past Tailboard: Retracted and Extended

MPL-NG

Reach Past Tailboard: Retracted & Extended

MPL-NGS

Reach Past Tailboard: Retracted & Extended

Options for Every Size Business

Jerr-Dan Financial Solutions (JDFS) offers quick, professional financing and competitive rates for leases and loans on new and used Jerr-Dan equipment. Whether you’re a one-unit operator or the owner of a large fleet, we can help you find a solution that works for you.

Learn more

MPL-40

mpl-ng

mpl-ngs

Key Features

4,000 lb. Self-loading underlift w/ underlift stop assist system

Modular Aluminum Body

High Strength Steel Material

Single Or Dual winch options

Optional Single Winch w/8,000 lb. Capacity

Recovery Boom: 2-Stage

Retracted Capacity @ 30°

16,000 lbs.

Extended Capacity @ 30°

6,000 lbs.

Reach Past Tailboard- Extended @ 0 degrees

67 in

Reach Past Tailboard- Extended @ 30°

46 in.

Underlift

Retracted Rating

4,000 lbs.

Retracted Reach

52 in.

48 in.

Extended Rating

4,000 lbs.

Extended Reach

81 in.

79 in.

Positive Tilt

20 degrees

15 degrees

Negative Tilt

20 degrees

7 degrees

Tow Capacity

7,500 lbs.

Winch

Winch Capacity

8,000 lbs.

Winch Options

Single or Dual

Single

Wire Rope

3/8 in. x 110 in., w/Optional Swivel Hook

3/8 in. x 75 ft. or 3/8 in. X 110 ft.

Chassis Requirements

Minimum GVW Rating

11,000 lbs.

Minimum CA

60 in.

Heavy Duty Carriers

Medium Duty Carriers

Specification Sheets

MPL40_SPEC_SHEET (.pdf) MPLNG_SPEC_SHEET (.pdf) MPLNGS_SPEC_SHEET (.pdf)

Showing:

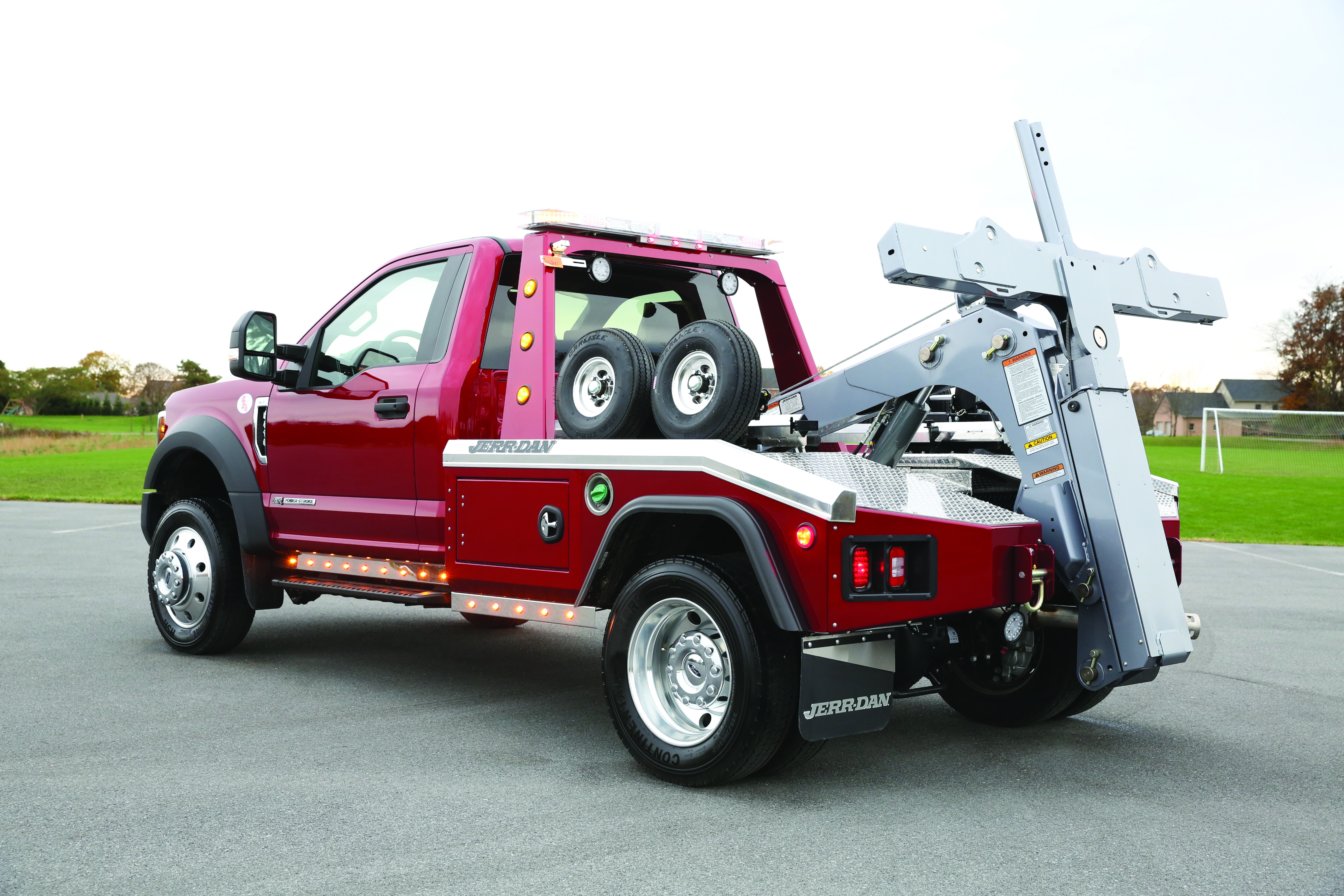

2021Calendar_April_MPLNG

2021Calendar_Aug_MPLNGS

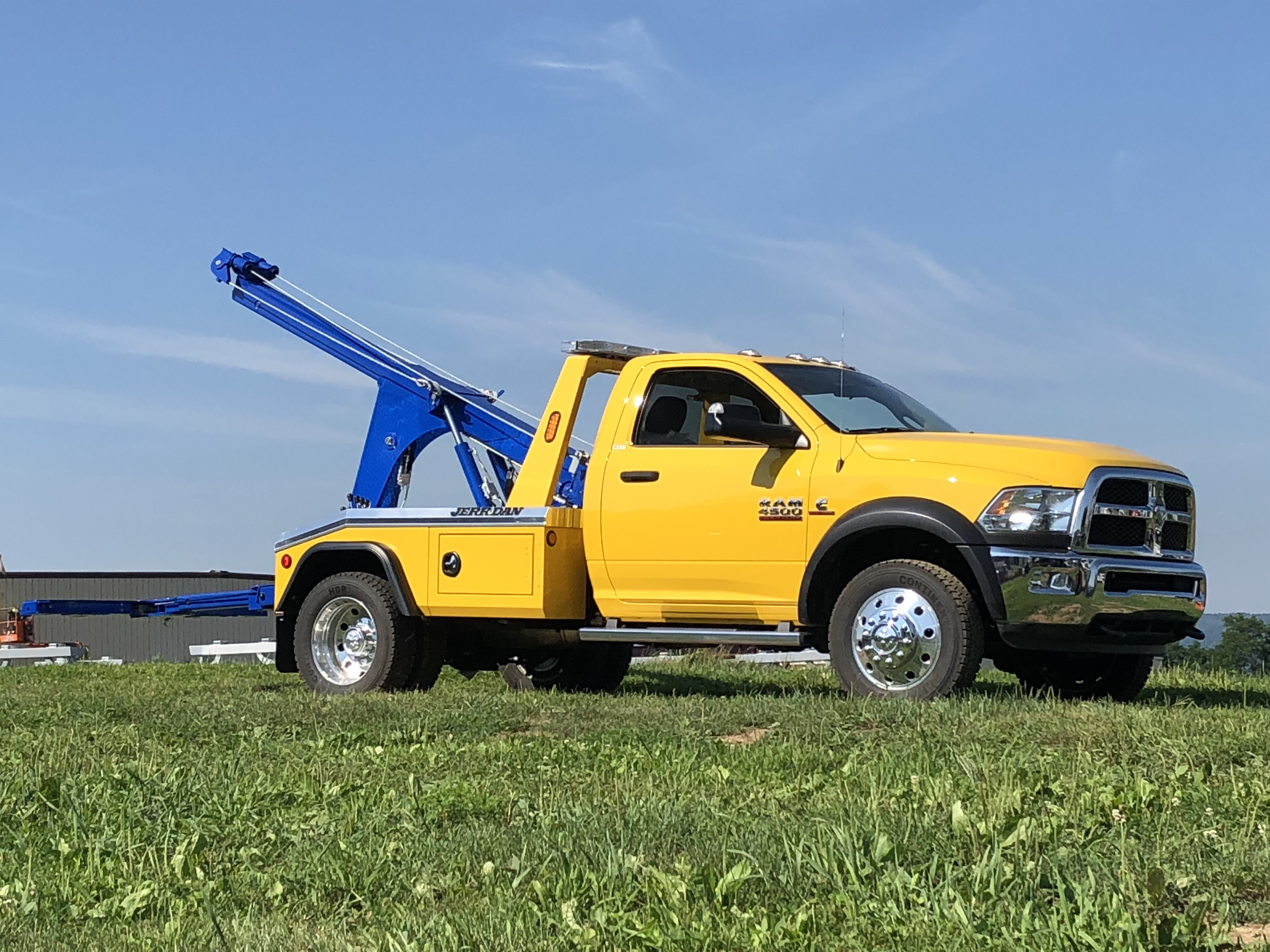

MPL40

MPL

E18SeriesWalkaround_Revised

JLGAgriculture_HayVideo3

Specification Sheets

MPL40_SPEC_SHEET (.pdf) MPLNG_SPEC_SHEET (.pdf) MPLNGS_SPEC_SHEET (.pdf)

Showing: Light Duty Carrier Medium Duty Carriers

Removable Steel Rails 19’-20’ Kit

Models:

Light Duty Carrier
Medium Duty Carriers

Requires:

Steel Deck

Removable Steel Rails 19’-20’ Kit

Models:

Light Duty Carrier

Requires:

Steel Deck

Accessories

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse tempor nisl id tortor efficitur rhoncus.

Accessories Catalog (PDF)

Calculate & Compare Tow Performance

Is your vehicle optimized for the unique demands of your towing operation?

Calculating tow ratings requires considering wheelbase, front and rear axle weights along with retracted and extended overhang, The math can be complex, use this calculator to truly understand how much you can tow, either with one of our trucks or your current truck, and compare ratings to make sure you’re getting the right equipment for your towing needs.

Terms & Conditions

I understand and agree that my use of the Jerr-Dan Tow Performance Calculator is governed by Jerr-Dan’s Terms of Use and Privacy Policy. I have read and reviewed the terms and agree with and to abide by any statements, restrictions, limitations and requirements therein. I agree that I am solely responsible for any towing I may perform that uses information from or relies on the Jerr-Dan Tow Performance Calculator.

Calculation 1

1. Wheelbase Wheelbase		in
2. Steer Axle Weight Steer Axle Weight		lbs
3. Drive Axle Weight Drive Axle Weight		lbs
4. Drive Axle Weight Rating Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang Overhang		in

Compare

Add to Compare

Calculation 2

Axle Type
1. Wheelbase Wheelbase		in
2. Steer Axle Weight Steer Axle Weight		lbs
3. Drive Axle Weight Drive Axle Weight		lbs
4. Drive Axle Weight Rating Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang Overhang		in

Wheelbase

Distance from centerline of the front axle to the centerline of the rear axle

Steer Axle Weight

Amount of weight applied to the front axle including the driver, fuel, and all equipment.

Drive Axle Weight

Amount of weight applied to the rear axle including all equipment.

Drive Axle Weight Rating

Weight capacity of the drive axle per the axle manufacturer.

Steer Axle Remaining Weight

Desired weight remaining on the towing vehicle’s steer axle when the load is lifted.

Overhang

Distance from centerline of the drive axle to the lift point.

Results

Tow Performance:
May exceed drive axle rating
Rear Axle Rating:
Rear Drive Axle(s) Weight:
