Boom
8 Ton or 12 Ton
Winch Capacity
8,000 lbs. or 12,000 lbs.
Material
Modular Aluminum Body

Engineered for Strength and Durability

Medium Duty Independent
Wreckers

Models

HPL-60

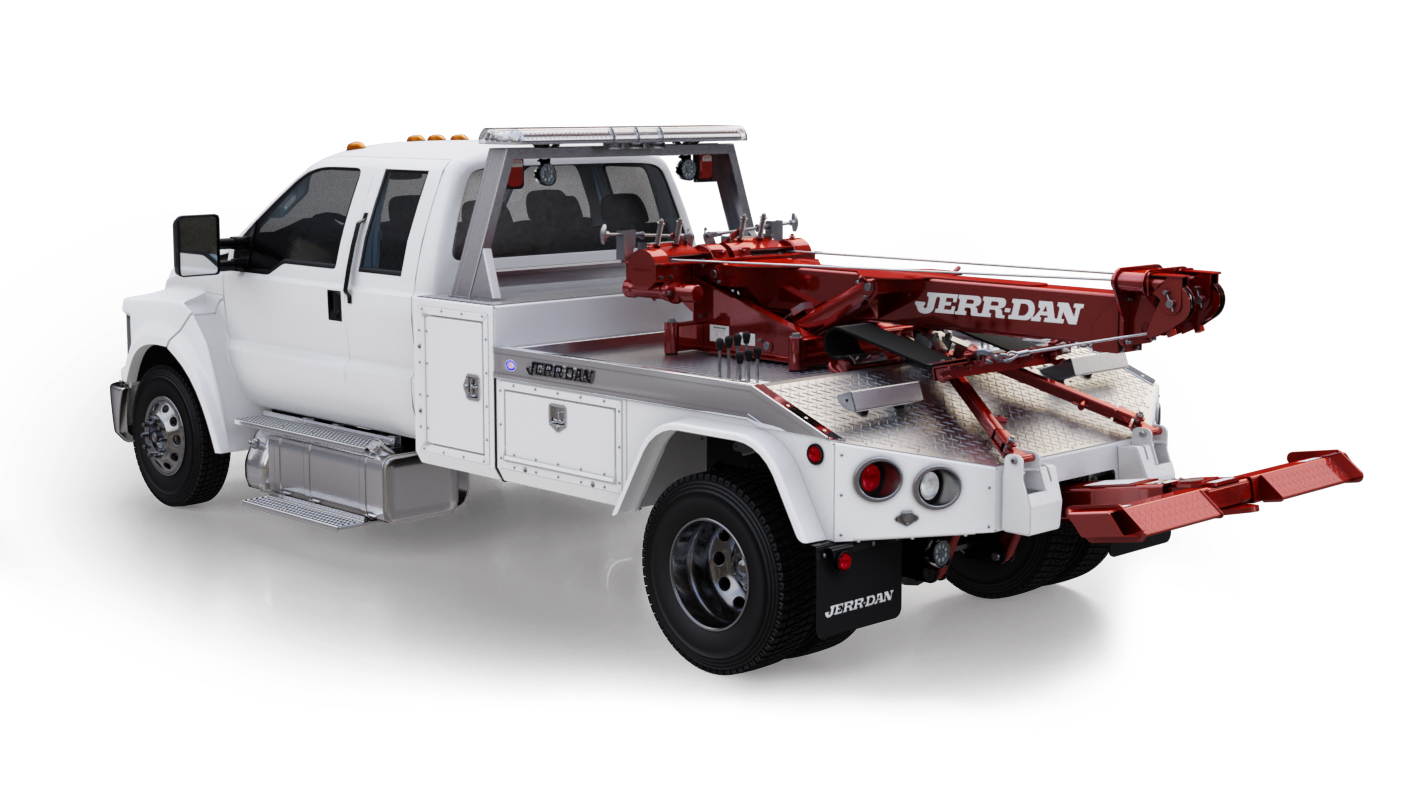

The HPL-60 Medium Duty Wrecker is engineered with a modular aluminum body and features a fully hydraulic independent boom and underlift to maximize versatility.

Boom 24,000 lbs.

Underlift Capacity 6,000 lbs.

Material Modular Aluminum Body

Compare models

HPL60_Spec_Sheet (.pdf)

HPL-60

Key Features

Multiple Boom Rating Options

Modular Aluminum Body

Dual Side Controls

8 Ton Recovery Boom

Retracted at 30 degrees

18,500 lbs.

Extended at 30 degrees

7,000 lbs.

12 Ton Recovery Boom

Retracted at 30 degrees

24,000 lbs.

Extended at 30 degrees

8,000 lbs.

Reach Past Tailboard

Extended at 0 Degrees

82 in.

Extended at 30 degrees

60 in.

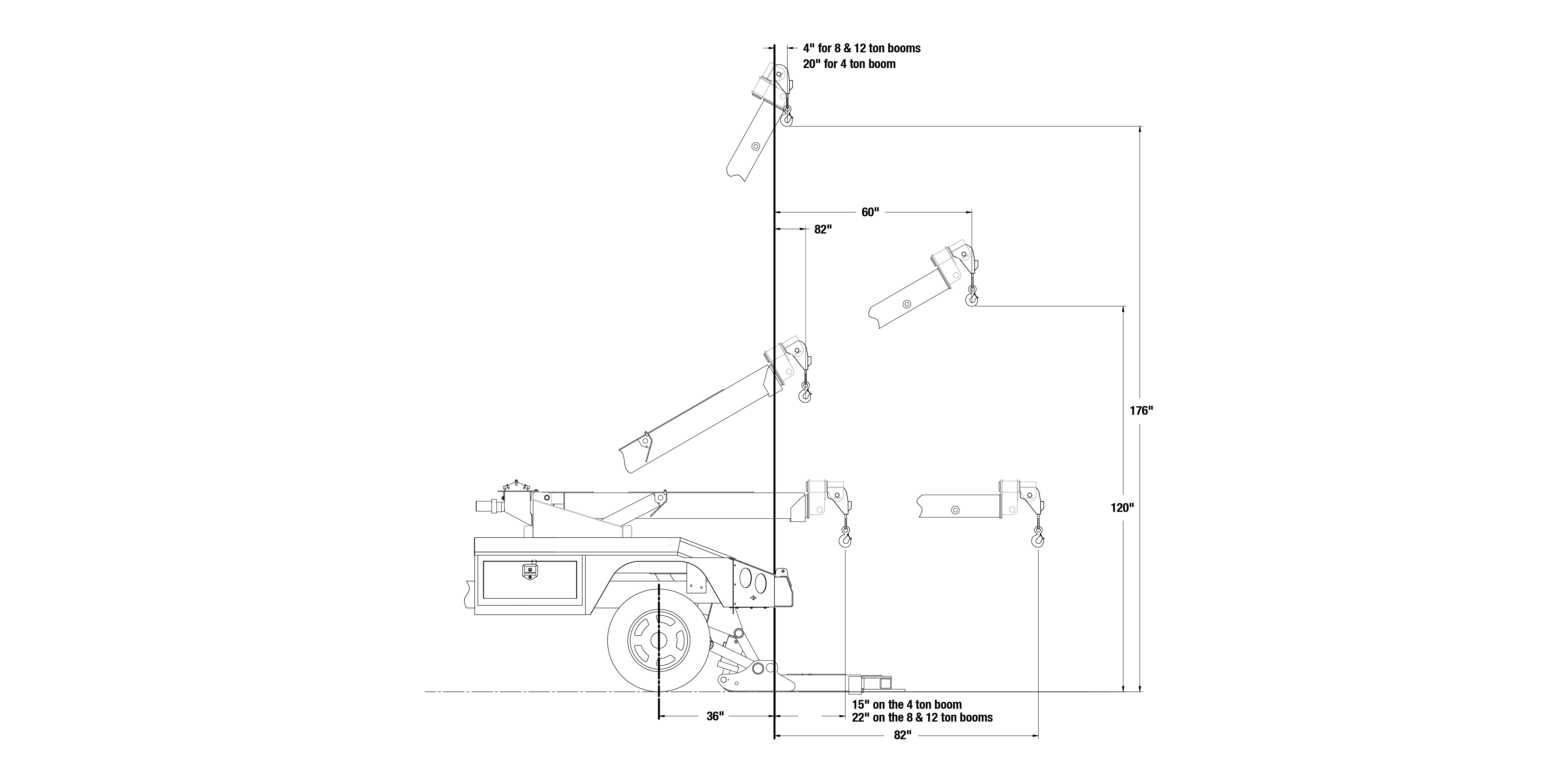

Operating Range

Minimum Boom Angle

0 degrees

Maximum Boom Angle

60 degrees

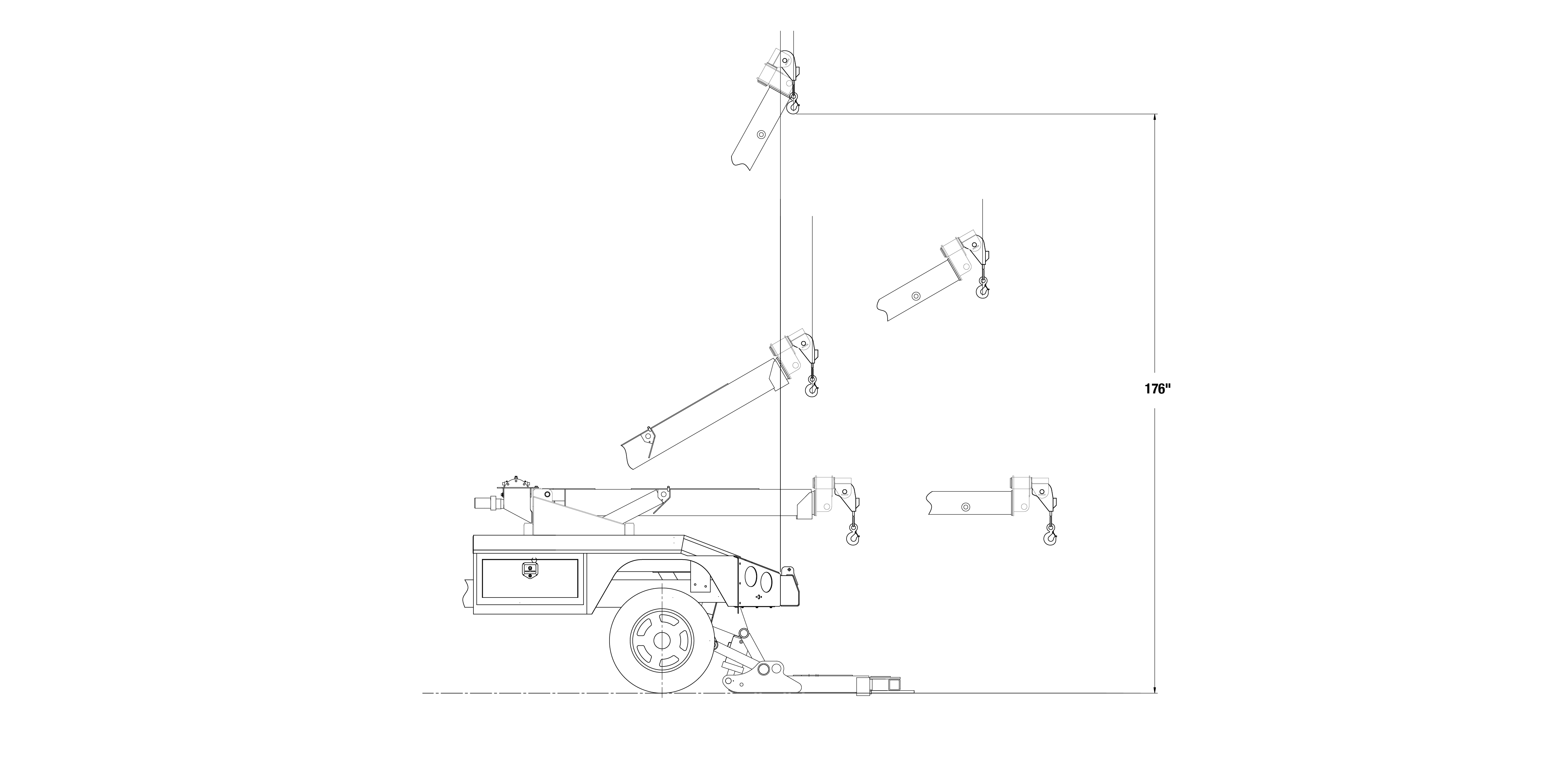

Maximum Boom Height

176 in.

Underlift

Capacity at Crossbar with L-Arms

5,000 lbs.

Capacity at Crossbar with Frame Forks

6,000 lbs.

Capacity at Crossbar with T-37 Swivel Grids

4,000 lbs.

Capacity at Crossbar: Positive Tilt

12 degrees

Capacity at Crossbar: Negative Tilt

9 degrees

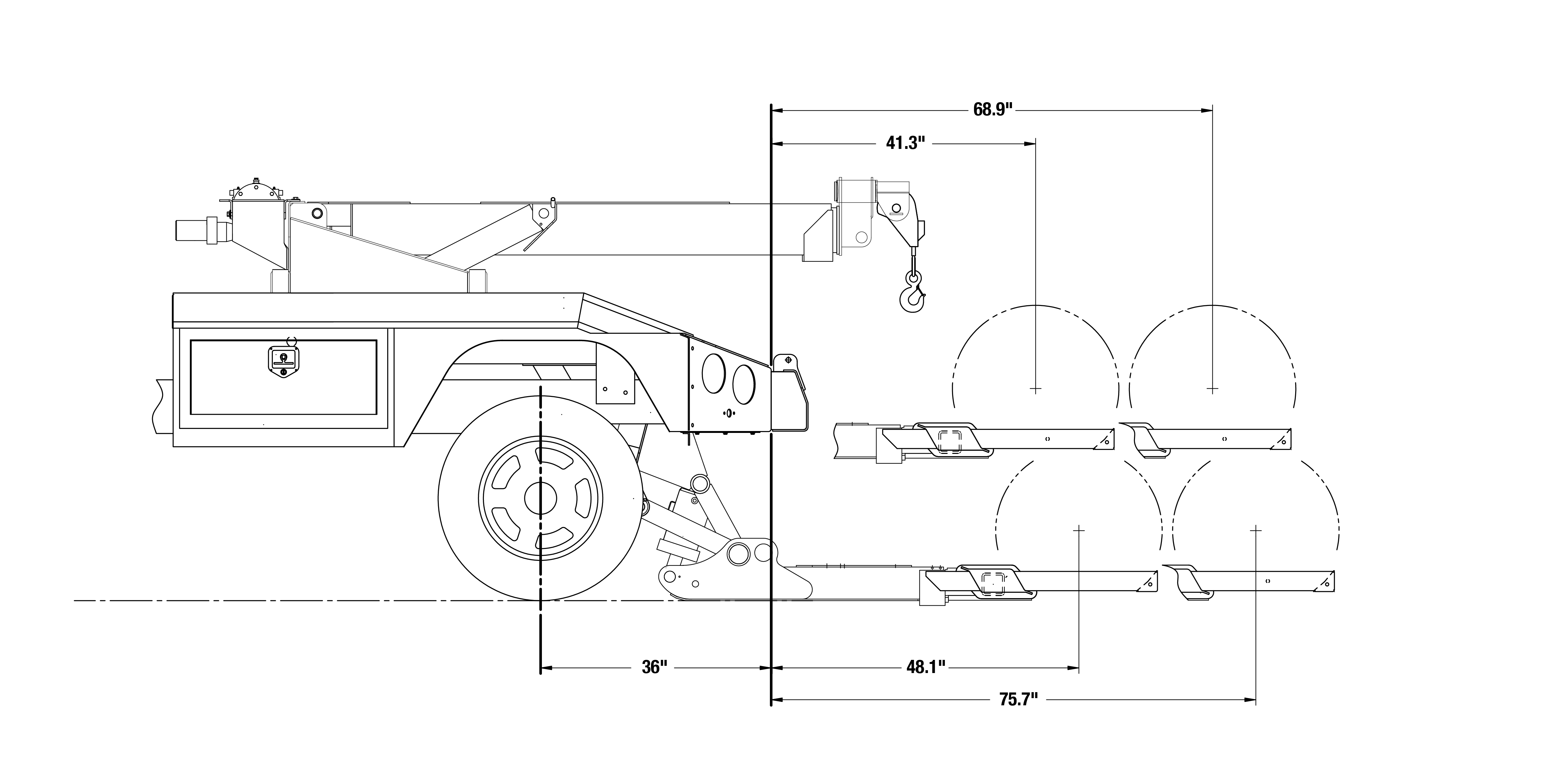

Reach Past Tailboard Retracted W/Forks

40 in.

Reach Past Tailboard Extended W/Forks

68 in.

Reach Past Tailboard Retracted W/L-Arms

48 in.

Reach Past Tailboard Extended W/L-Arms

76 in.

Winches & Wire Rope

Deck Mounted Recovery Winch

8,000 lbs.

8 Ton Boom: Winch Rating

8,000 lbs.

12 Ton Boom: Winch Rating

10,000 lbs.

West Coast Winch Package

12,000 lbs.

Wire Rope 3/8 in. x 100 ft. EIPS

8,000 lbs.

Wire Rope 7/16 in. in. x 100 ft. EIPS

10,000 lbs.

Wire Rope 7/16 in. in. x 150 ft. EIPS

10,000 lbs.

Wire Rope 7/16 in. in. x 150 ft. EIPS

12,000 lbs.

Chassis Requirements

Minimum GVW Rating

15,500 lbs.

Minimum Cab-to-Axle (CA)

60 in.

HPL60_Spec_Sheet (.pdf)

Calculate & Compare Tow Performance

Is your vehicle optimized for the unique demands of your towing operation?

Calculating tow ratings requires considering wheelbase, front and rear axle weights along with retracted and extended overhang, The math can be complex, use this calculator to truly understand how much you can tow, either with one of our trucks or your current truck, and compare ratings to make sure you’re getting the right equipment for your towing needs.

Terms & Conditions

I understand and agree that my use of the Jerr-Dan Tow Performance Calculator is governed by Jerr-Dan’s Terms of Use and Privacy Policy. I have read and reviewed the terms and agree with and to abide by any statements, restrictions, limitations and requirements therein. I agree that I am solely responsible for any towing I may perform that uses information from or relies on the Jerr-Dan Tow Performance Calculator.

Calculation 1

1. Wheelbase Wheelbase		in
2. Steer Axle Weight Steer Axle Weight		lbs
3. Drive Axle Weight Drive Axle Weight		lbs
4. Drive Axle Weight Rating Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang Overhang		in

Compare

Add to Compare

Calculation 2

Axle Type
1. Wheelbase Wheelbase		in
2. Steer Axle Weight Steer Axle Weight		lbs
3. Drive Axle Weight Drive Axle Weight		lbs
4. Drive Axle Weight Rating Drive Axle Weight Rating		lbs
5. Steer Axle Remaining Weight Steer Axle Remaining Weight We recommend using at least 50% of the Steer Axle Rating.		%
6. Overhang Overhang		in

Wheelbase

Distance from centerline of the front axle to the centerline of the rear axle

Steer Axle Weight

Amount of weight applied to the front axle including the driver, fuel, and all equipment.

Drive Axle Weight

Amount of weight applied to the rear axle including all equipment.

Drive Axle Weight Rating

Weight capacity of the drive axle per the axle manufacturer.

Steer Axle Remaining Weight

Desired weight remaining on the towing vehicle’s steer axle when the load is lifted.

Overhang

Distance from centerline of the drive axle to the lift point.
