Proportional Electro-Hydraulic Controls
Retracted Capacity @ 30°
24,000 lbs.
Extended Capacity @ 30°
8,000 lbs.

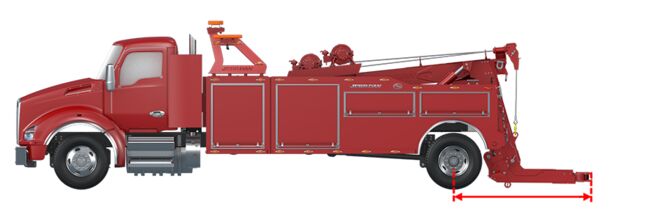

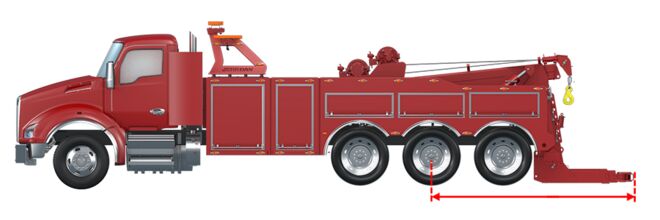

Reach Past Tailboard- Extended @ 0 degrees
Reach Past Tailboard- Extended @ 0 degrees
84 in
Reach Past Tailboard- Extended @ 30°
Reach Past Tailboard- Extended @ 30°
60 in.
Retracted Rating
5,000 lbs. w/ L-arms | 6,000 lbs. w/ Forks

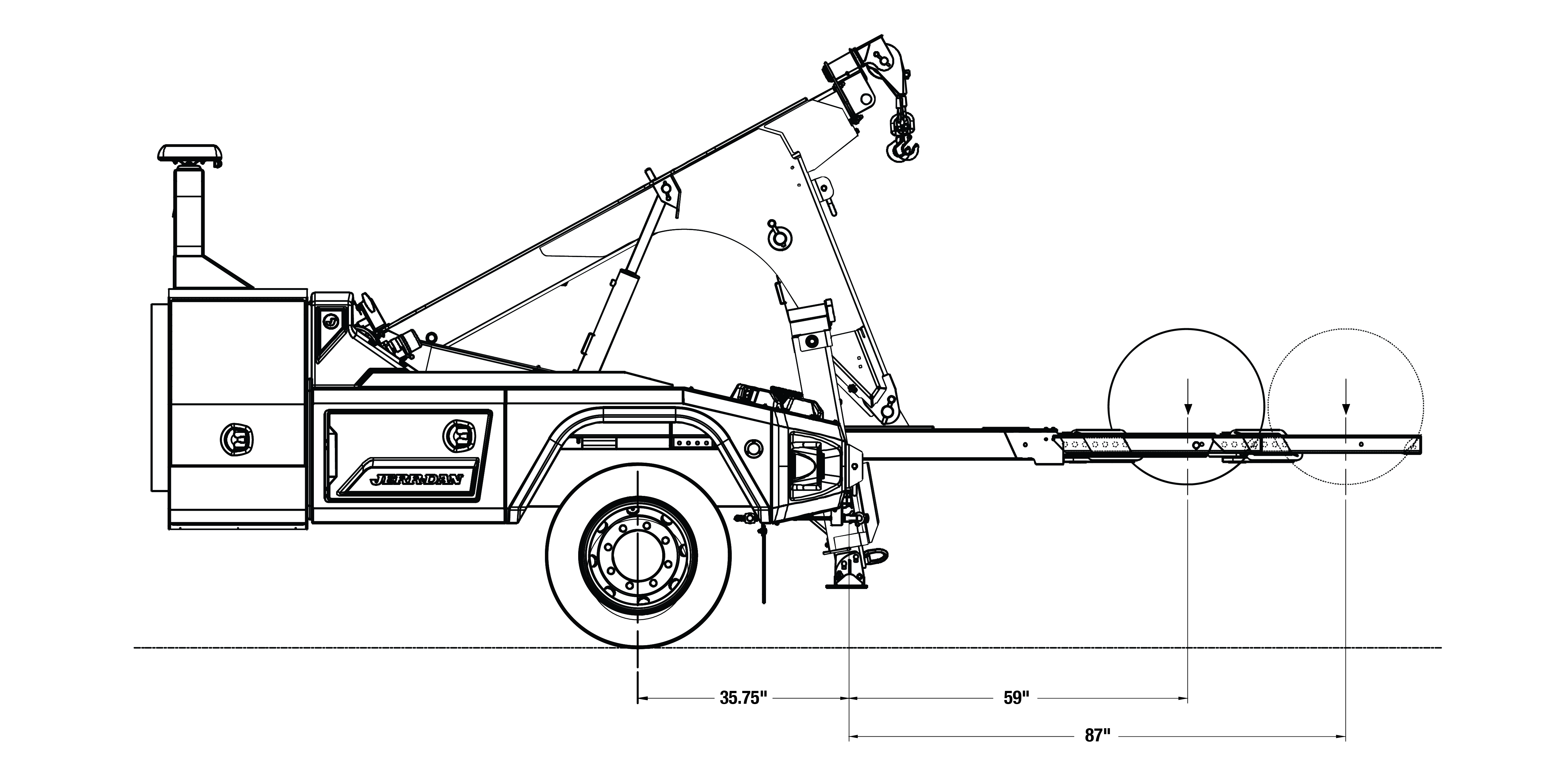

Retracted Reach
59 in. w/ L-arms | 51 in. w/ Forks
Extended Rating
5,000 lbs. w/ L-arms | 6,000 lbs. w/ Forks
Extended Reach
87 in. w/ L-arms | 78 in. w/ Forks
Winch Capacity
10,000 lbs. / 12,000 lbs.
Wire Rope
7/16" x 100' (w/ swivel hook, for 10K winch) | 7/16" x 150' (w/ swivel hook, for 12K winch)
